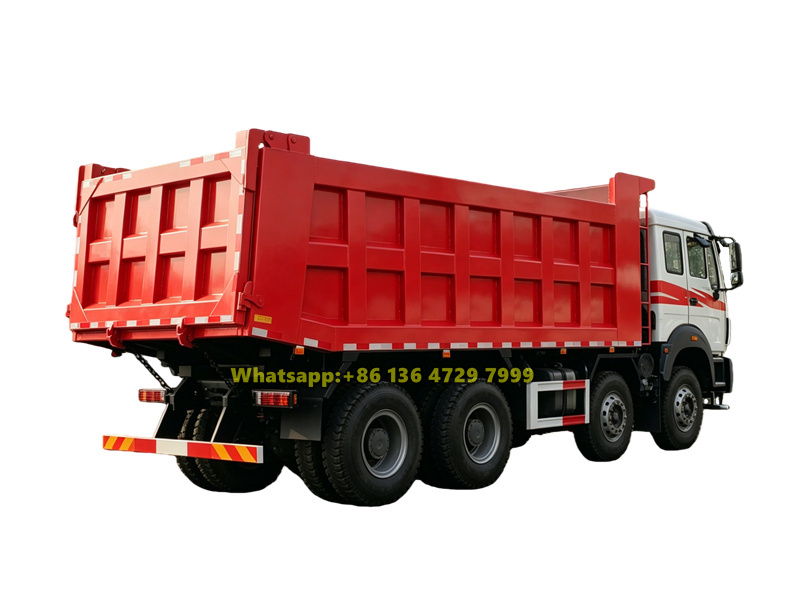

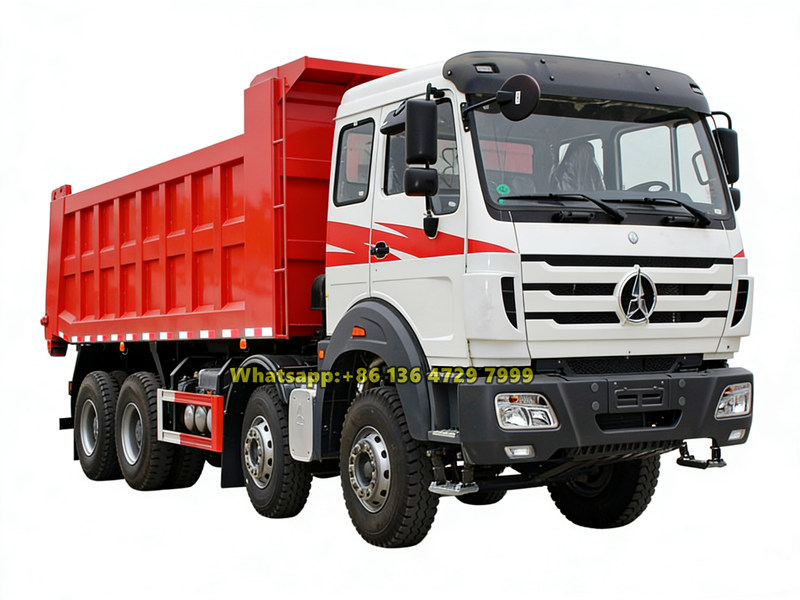

The Beiben 8×4 dump truck is a reliable and durable heavy-duty construction vehicle. It is equipped with a Weichai 380 HP engine and a Fast 12-speed transmission, forming a mature and reliable powertrain. The high-strength steel frame, combined with multi-leaf spring suspension, offers strong load-carrying capacity. The body features a front lifting structure with a large lifting angle for fast unloading. With practical configurations, this truck is suitable for earthmoving and ore transportation in harsh environments such as mines and construction sites.
Working Capcity:
40 tonsCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
9800×2550×3395Drive System:
8×4Wheelbase (mm):
1500+3500+1450Engine Power:
380HP/WP10.380E32Gear Box:
12JS200TRemark:
12.00R24, 14.00R20 tyre, 6×6, RHD drive optionalThe Beiben 8×4 heavy-duty dump truck is specifically designed for tough working conditions, offering high load capacity. The chassis is built with a high-strength steel frame and multi-leaf spring suspension, providing excellent rated load capacity. Powered by the Weichai 380 HP engine, it delivers strong performance with low fuel consumption. Paired with the Fast 12-speed manual transmission, shifting is smooth and the drivetrain is durable and reliable. The cargo body measures 6500×2300×1500 mm and is equipped with a front lifting hydraulic system, achieving a lifting angle of up to 55° for high unloading efficiency. It is widely used in heavy-load transport scenarios such as mining, infrastructure projects, and large-scale earthmoving operations.
CEEC factory is authorized supplier on beiben heavy duty dump trucks,
guarantee all beiben tipper trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
★ High Load Capacity:
The Beiben chassis frame is made of high-strength steel, and the suspension features a multi-leaf spring design, capable of withstanding heavy loads.
★ Excellent Engine Performance
Equipped with the Weichai 380 HP engine, which not only provides strong power but also offers low fuel consumption and long service life, suitable for prolonged high-intensity operations.
★ Reliable Transmission
Uses a Fast 12-speed transmission for smooth shifting.
★ Durable and Rugged Cargo Body
Made of high-strength steel, rugged and durable, with a lifting angle of up to 55° for high unloading efficiency
» Ⅱ. Product Specifications:
|
Beiben 8×4 Tipper Lorry Technical Specification |
||
|
Basic parameter |
Model |
3138K/8×4 |
|
Length×width×height(mm) |
9800×2550×3395 |
|
|
Wheel-base(mm) |
1500+3500+1450 |
|
|
Curb weight(kg) |
15200 |
|
|
Engine parameter |

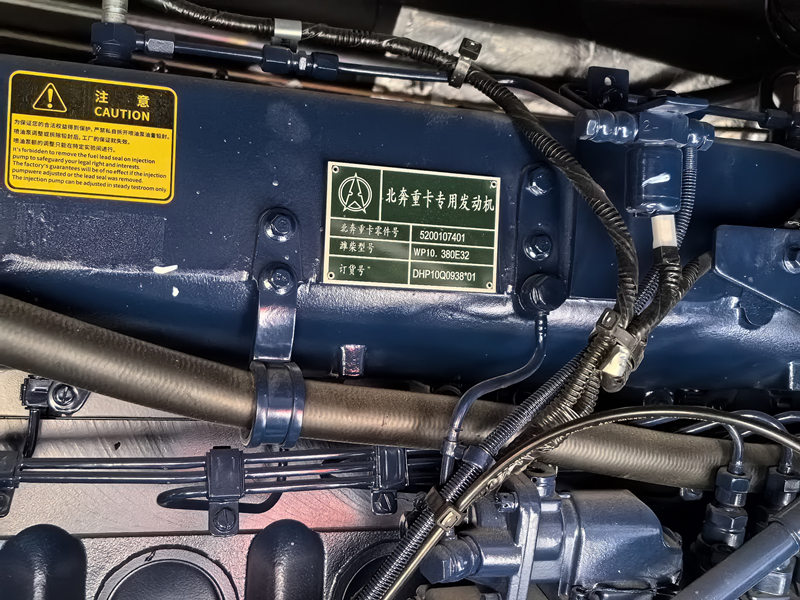

Model (six cylinder in line) |
WP10.380E32 |
|
Max. Power (HP/rpm) |
380 |
|
|
Max. Torque(Nm/rpm) |
1500/1400～1600 |
|
|
Displacement(lit) |
9.726 L |
|
|
Fuel tank capacity |
400L |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
12JS200T Mechanical, 12 forward gear, manual； |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster； |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7 mm； |
|
Front axle |
7.5T, Non-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, ductile casting casing, speed ratio is 5.263； |
|
|

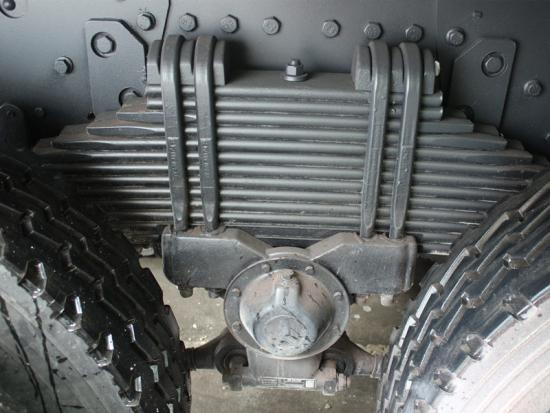

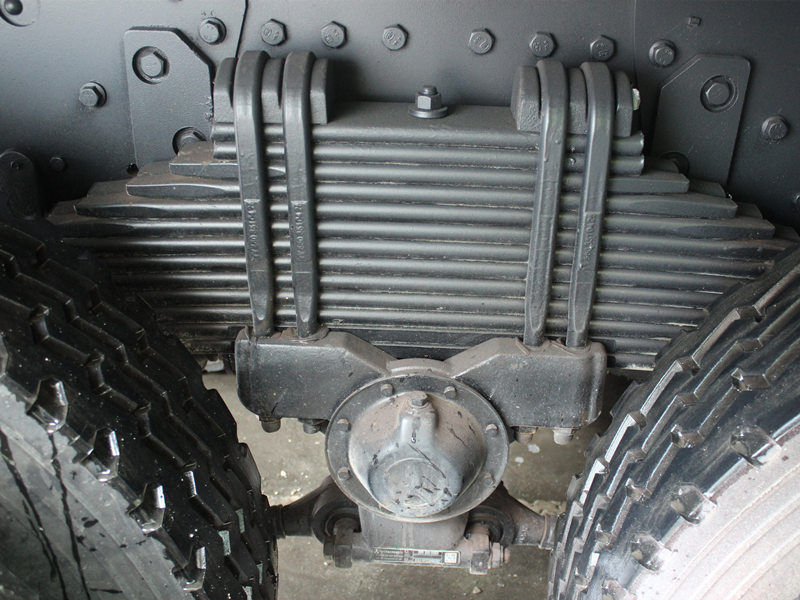

Front and rear suspension |
Front/rear: Leaf spring, 12/12/13 pieces； |
|
|
Tire |
12.00R20 |
|
|
Cab |

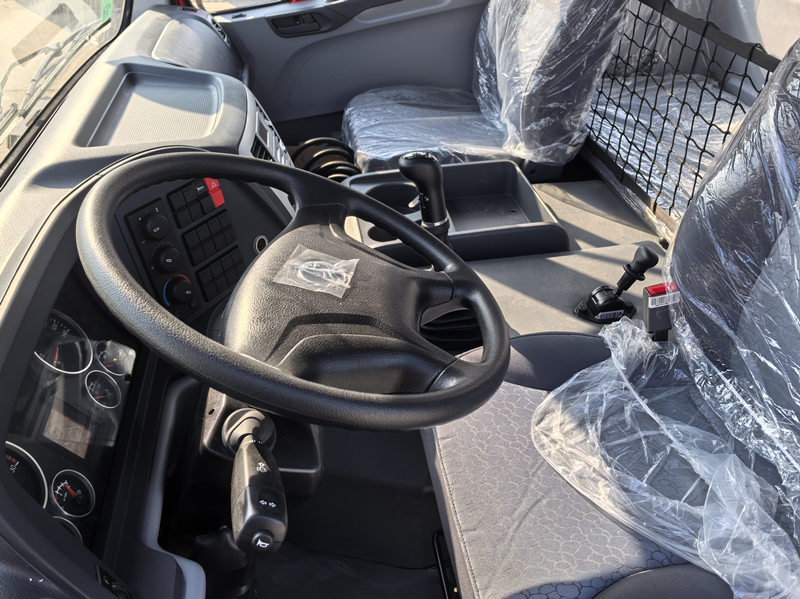

NG80B Long Cabin Flat roof with single sleeper Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument, electric window lifter |
||
|

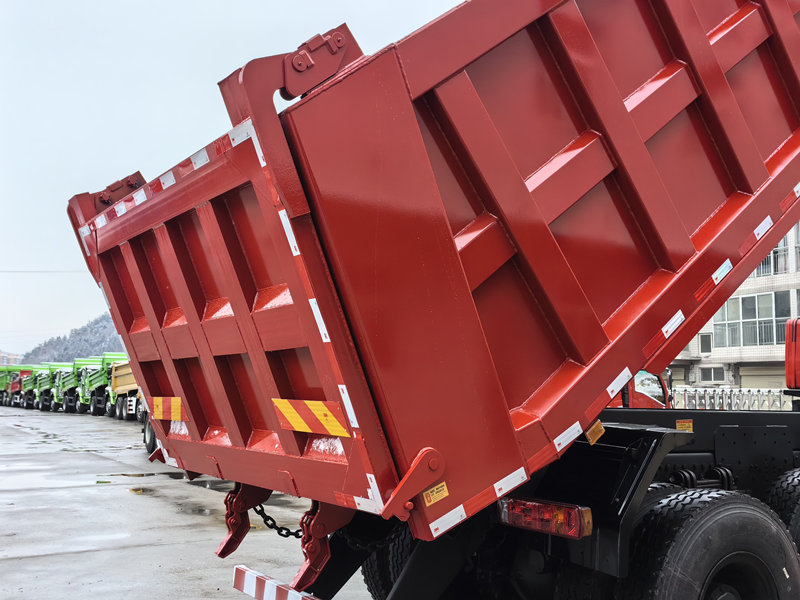

Cargo box |
Size (mm) |
6500×2300×1500 |
|
Material |
High strength steel Q345 |
|
|
Thickness (mm) |
Walls: 6mm; Floor 8mm |
|
|
Lifting system |

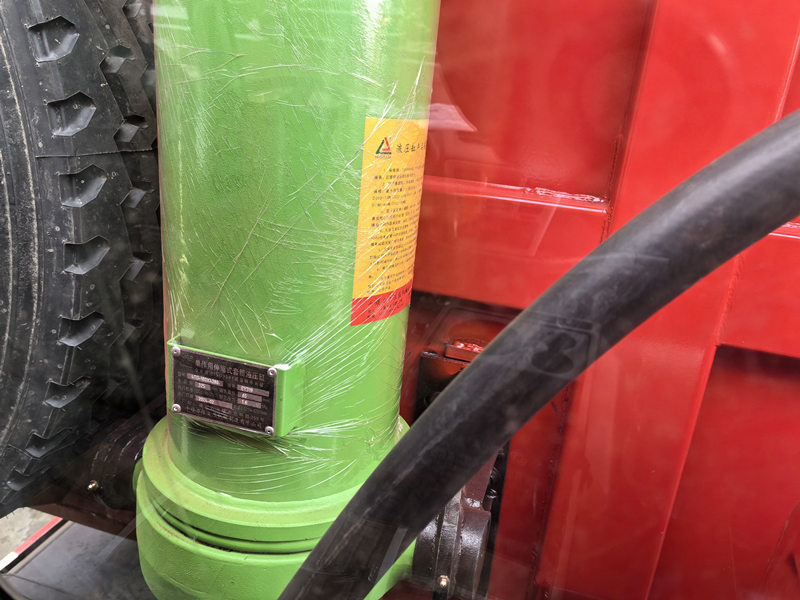

Front lifting, telescopic hydraulic cylinder diameter 180mm |
|
|

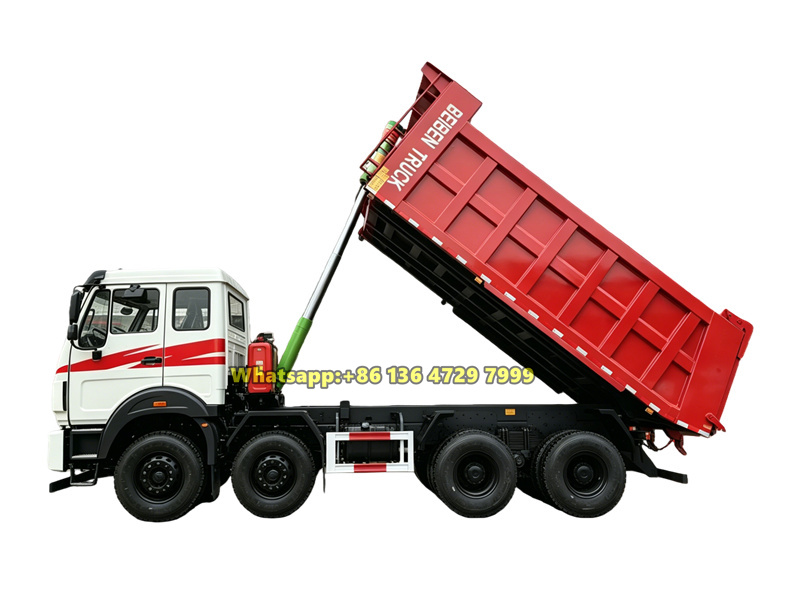

Lifting angle |
55° |
|
|
Painting |
Primer, mid-coat and top coat |
|
» Ⅲ. Product Details:

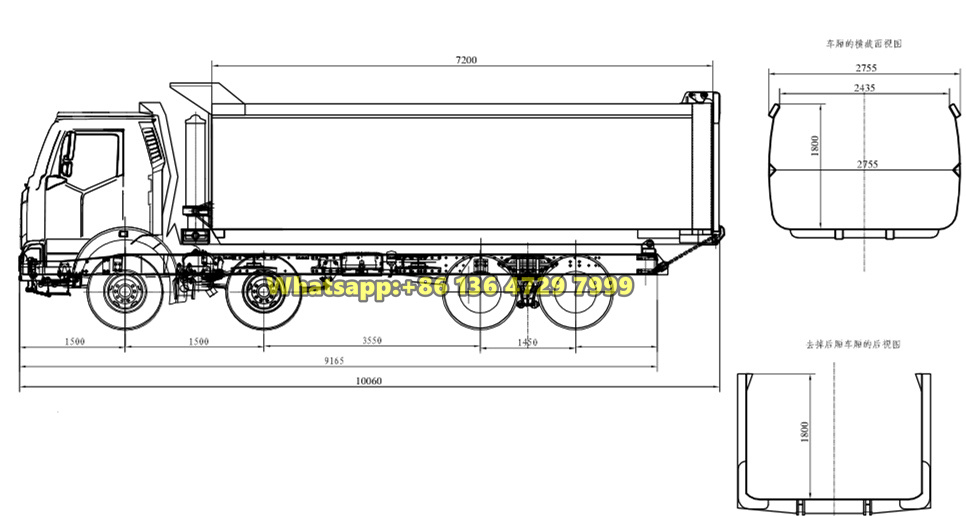

» Ⅳ. Product Drawing
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x4, 6x4, 6x6, 8x4 drive tipper truck, all upon on your need !
2. Factory bottom price, save your china vist cost
3.12 months after sale service guarantee, quality assurance.
4. 12.00R24 tyres, 14.00R20 , 315/80R22.5, 13.00R22.5, all are avaiable.
As the best baotou beiben 12 wheeler dump trucks manufacturer, we can produce Beiben 12 wheeler dump truck 8*4 driving sytem, with beiben special 340 horse power diesel engine, fast gear 12 shift transmission. The north benz 340 hp dump trucks are widely used for transporting sand, construction material and low density material .
Beiben 3138 dump trucks is also called as beiben 3138 dumper, with beiben 380 hp diesel engine and full germany benz technology. Our north benz 380 hp 12 wheeler dump truck are very polulare in africa countries, such as CONGO, TANZANIA, GHANA, NIGERIA.
North benz 12 wheeler 420 Hp dumpers , with beiben 420 hp diesel engine, fast 12 shift transmission, fully applyied Benz truck technology, with latest beiben dumper trucks technology.
As the best dealer of baotou beiben heavy duty trucks plant, we can produce the best type for beiben 420 hp dump trucks. It is beiben 6*4 dumper with 420 hp engine. All the beiben 420 hp dumper from our plant will have long guarantee more than 12 months.
Made in China Powerful Beiben V3 8X4 tipper for sale With Low Price, we are best china made beiben V3 12 wheeler dump trucks manufacturer, more than 10 years in beiben V3 dump trucks producing.
Durable Beiben V3 8X4 dumper truck With Low Price , we can make sure the best price for beiben V3 dump trucks. Our price for beiben 12 wheeler dump trucks is the factory price .
Drive Wheel: 8x4 Capacity (Load): 41 - 50t Horsepower: 351 - 450hp Condition: New Transmission Type: Manual Emission Standard: Euro 3 Fuel Type: Diesel Engine Capacity: > 8L Gross Vehicle Weight: 31000 Place of Origin: Shandong, China (Mainland) Brand Name: BEIBEN Model Number: 3138K Dimensions (L x W x H) (mm): 7500x2500x1500 Color: white orange
beiben truck north benz NG80 3138 heavy dump tipper trucks dumper 8x4 380hp Africa hot sale low price,New design European vehicles security level Stemping vehicle frame Benz unique axle technique High reliability fuel economy
north benz NG80 3138 heavy dump tipper trucks manufacturer , best quality north benz 3138 dump truck for sale
