The Beiben 8×4 heavy-duty dump truck chassis is a high-capacity transport solution designed for demanding engineering applications. It is powered by a Weichai WP13.500E501 engine, delivering 500 horsepower and a peak torque of 2400 N·m, offering ample power reserves while achieving excellent fuel economy through high-pressure common rail technology. The drivetrain is paired with an F16JZ24A integrated AMT transmission, which features a central clutch actuator for fast and precise gear shifting, along with intelligent functions such as hill start assist and economical coasting. Key chassis components are manufactured to Mercedes-Benz technical standards, with both the front and middle/rear axles utilizing reinforced designs. The axle housings are processed through an integrated internal expansion forming technique, ensuring high gear engagement accuracy while reducing noise and weight. The vehicle is equipped with a dual-circuit air braking system and hydraulic power steering, combined with a high-strength variable-section frame, guaranteeing superior off-road performance, safety, and durability in complex road conditions.

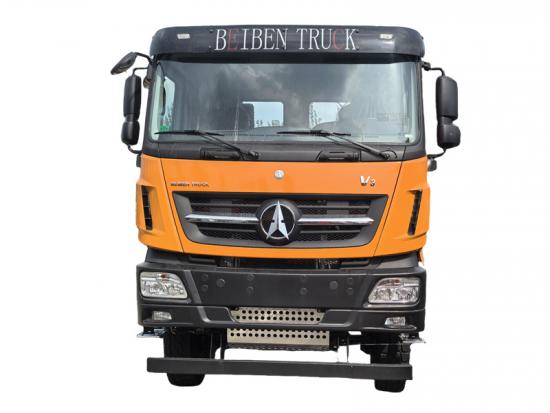

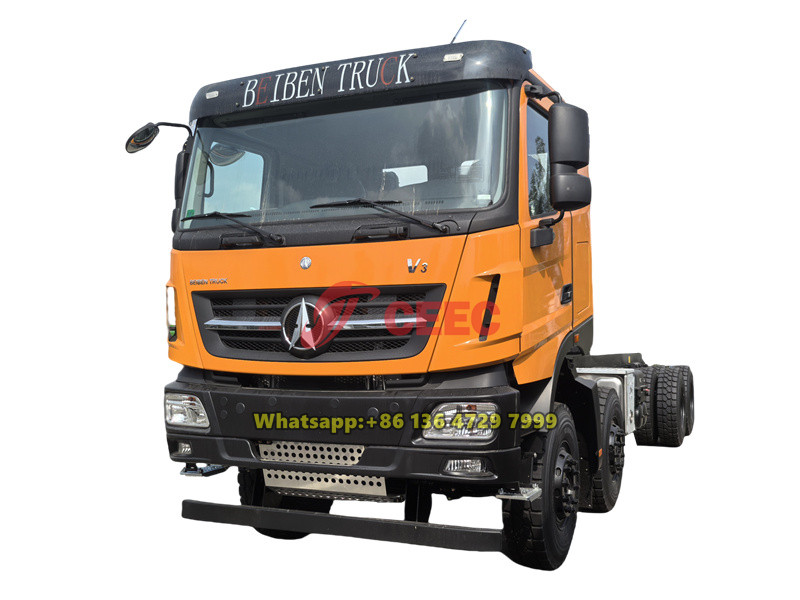

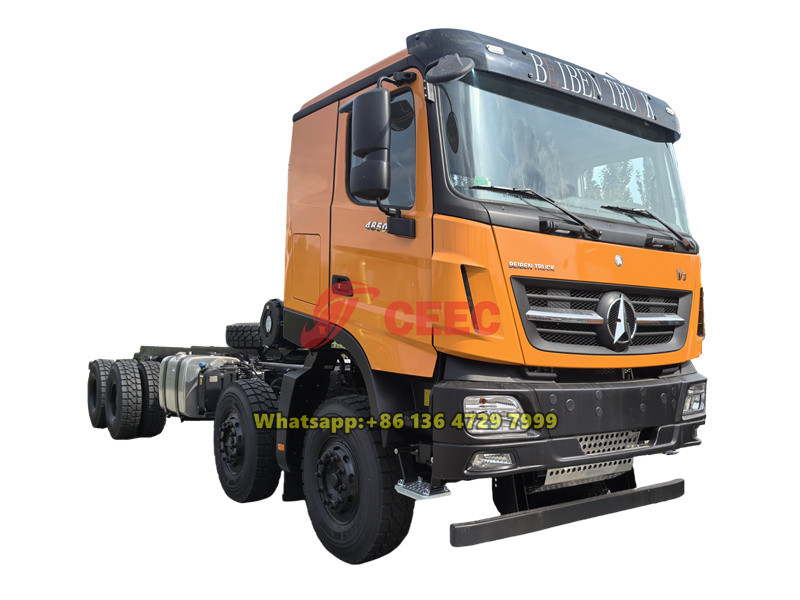

*Beiben V3 8×4 heavy tipper truck chassis*

CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS

Beiben V3 truck features:

1. Powerful Engine: Equipped with 500HP Weichai engine and AMT transmission, delivering substantial torque and excellent performance under heavy loads and steep gradients.

2. High Load Capacity: Utilizes heavy-duty axles with Mercedes-Benz technology and a high-strength frame, ensuring superior carrying capability and rugged durability.

3. Excellent Maneuverability: With a 35° approach angle and high-efficiency braking system, it easily handles challenging road conditions and ensures reliable access across worksites.

4. Intelligent Control: Equipped with hill start assist, crawl mode, and other smart functions for more convenient operation and relaxed driving.

» Ⅱ. Product Specifications:

» Ⅲ. Product Features:

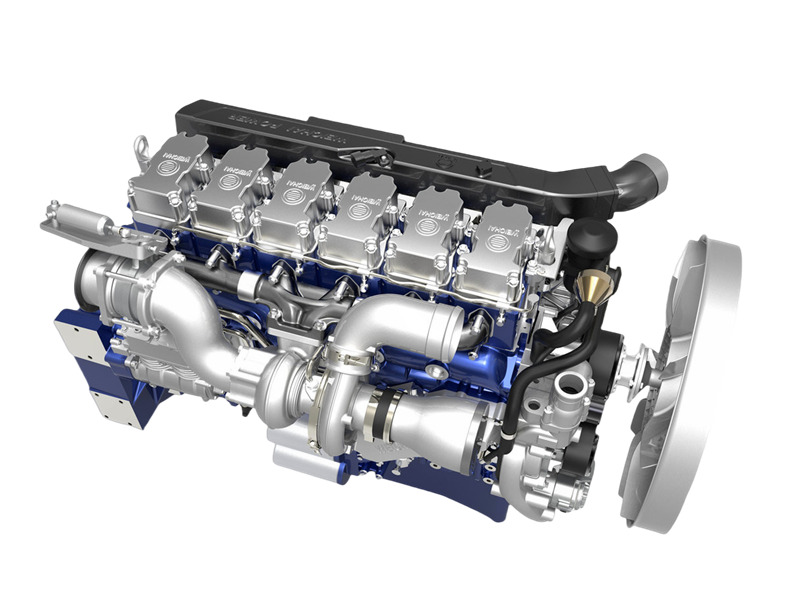

Powerfuel Engine WP13.500E501

Robust Power

Maximum power output of 500 horsepower, ideal for heavy-duty transportation.

Fuel Efficiency

Optimized combustion system design reduces fuel consumption by 3%-5% per 100 kilometers compared to similar products.

Enhanced Durability

Critical components feature reinforced designs with maintenance intervals of up to 100,000 kilometers.

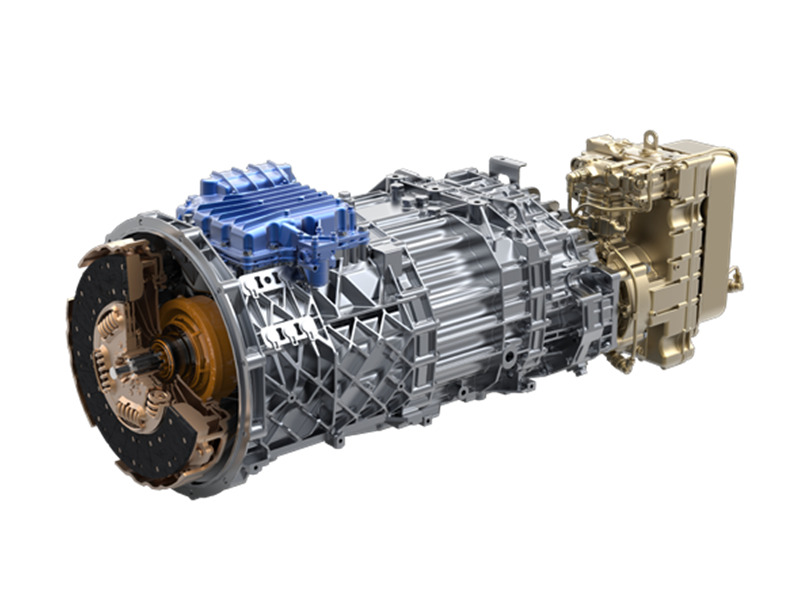

FAST Transmission F16JZ24A

1. The integrated AMT design eliminates external air tubes and wiring connections for the transmission, significantly enhancing system reliability.

2. The integrated shifting system and centralized clutch actuator offer a compact structure, delivering rapid response and precise control.

3. Features include GPS-based driving prediction, hill start assist, escape mode, creep mode, and economical coasting functions.

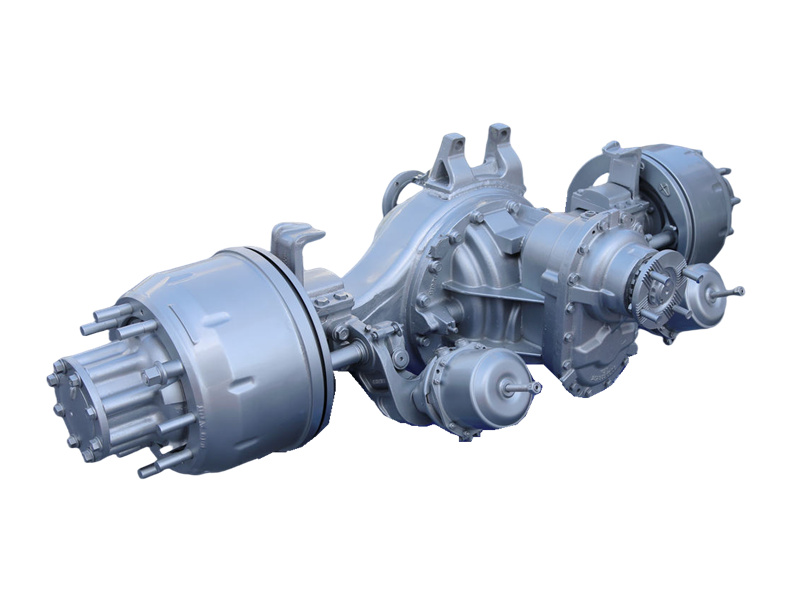

Mercedes-Benz Technology Axles

Designed and manufactured in accordance with Mercedes-Benz technical standards, it delivers reliable quality. The axle housing employs a monolithic internal expansion process, while components adopt an integrated design. This enhances gear meshing accuracy, effectively reduces noise, extends service life, and contributes to a lighter overall axle. The result is superior maintainability and reliability.

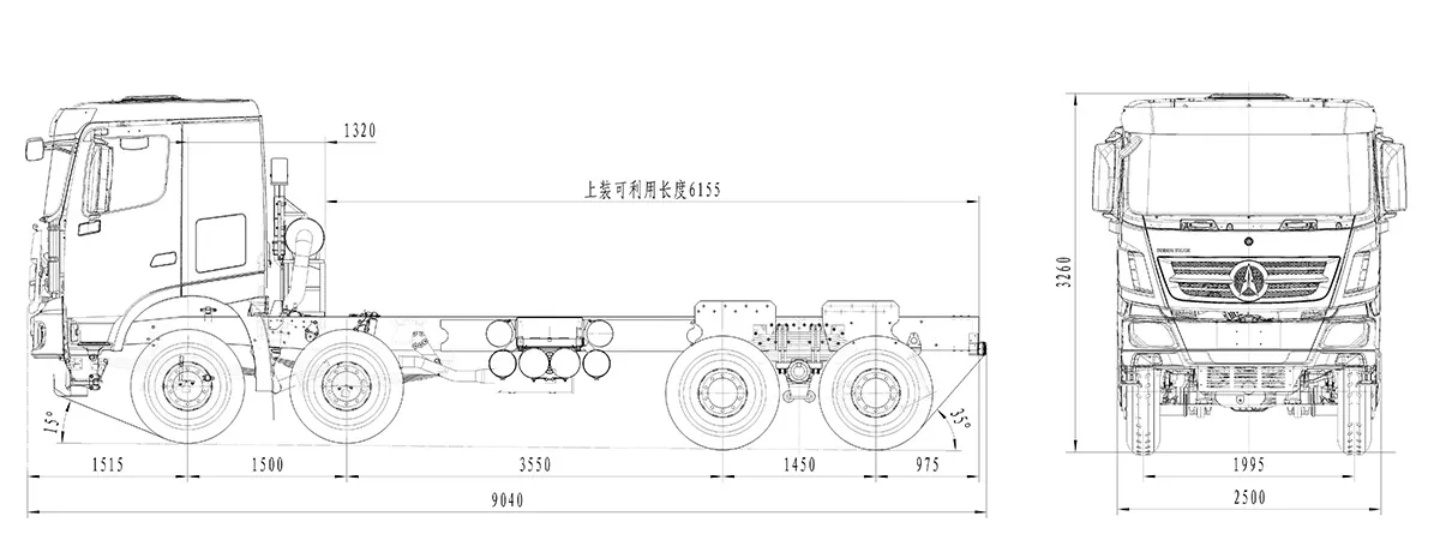

» Ⅳ. Product Drawing:
