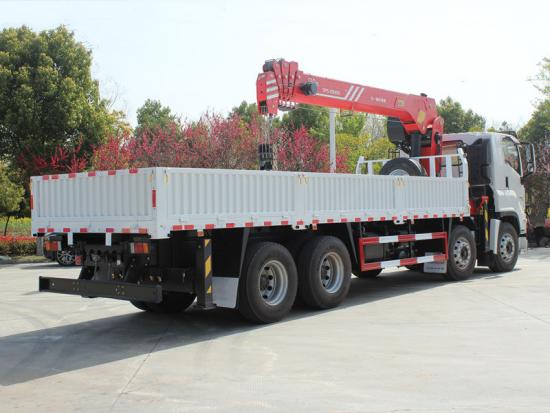

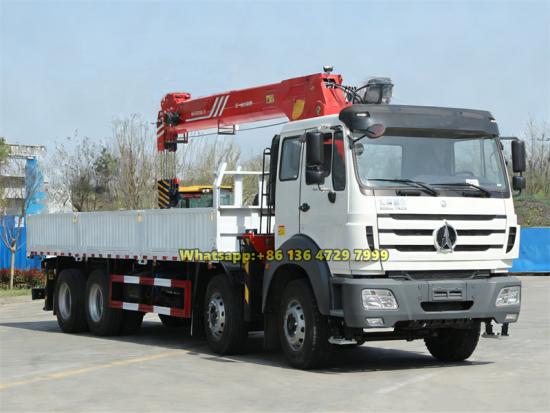

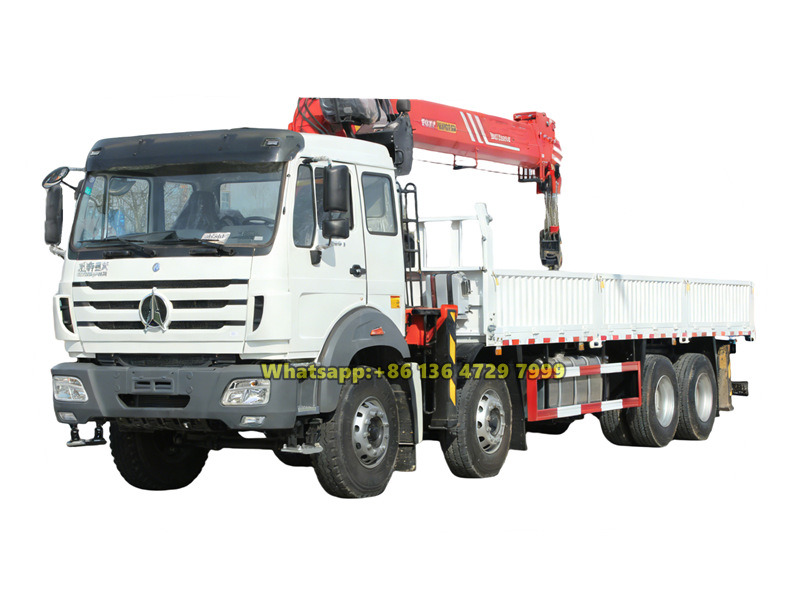

The Beiben 8×4 truck-mounted crane is a versatile engineering vehicle that integrates heavy-duty lifting and transportation functions. It is built on a Beiben 8×4 heavy-duty chassis and equipped with a Palfinger SPS25000 crane, offering a maximum lifting capacity of 10 tons and a working radius of up to 14 meters. Combined with an 8-meter-long cargo bed, it enables efficient integrated lifting and transportation operations, making it widely suitable for flexible work scenarios such as engineering construction and logistics transfer.
Market Price:
$54000Working Capcity:
10000 kgCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
12000×2550×3850Drive System:
8×4Wheelbase (mm):
1500+4450+1450Engine Power:
380HP/WP10.380E32Gear Box:
12JS200TRemark:

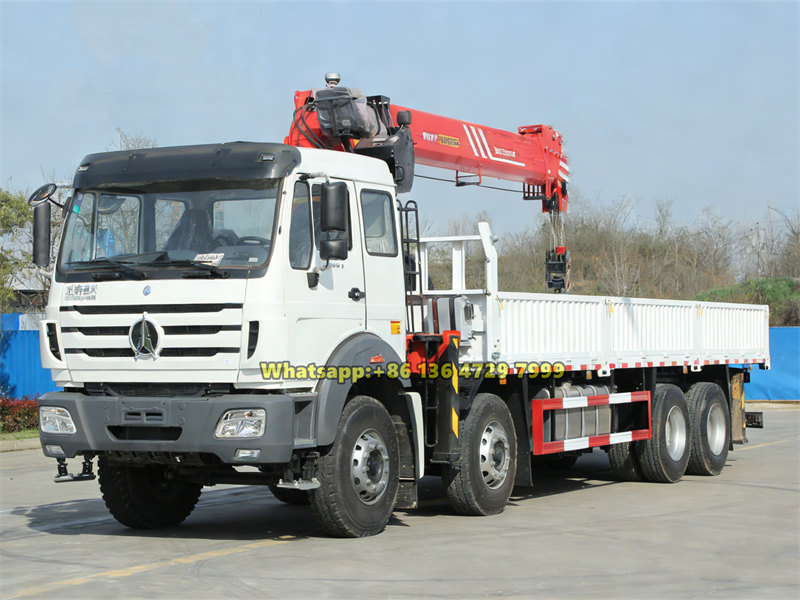

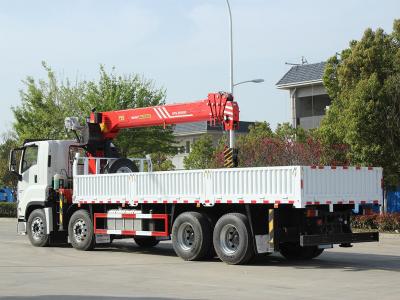

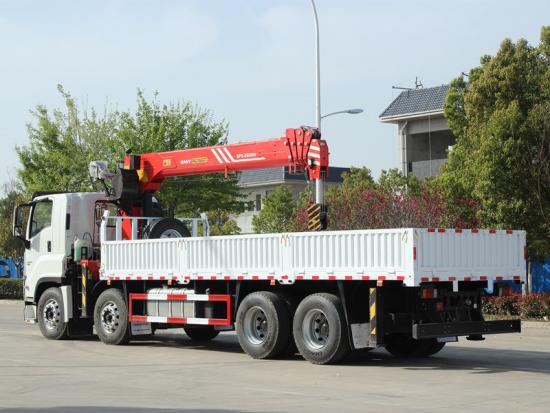

XCMG, palfinger/unic crane is optionalThe Beiben 8×4 truck-mounted crane is a multifunctional engineering vehicle that integrates lifting and transportation capabilities. It is built on a reinforced Beiben 12-wheeler chassis, powered by a 380-horsepower Weichai engine paired with a Fast 12-speed transmission, ensuring robust load-bearing and power performance. The vehicle is equipped with a Palfinger SPS25000 crane, which provides a maximum lifting capacity of 10 tons, a maximum working radius of 14 meters, and supports 360° full-revolution operation. Coupled with its 8-meter-long large cargo bed, it achieves efficient coordination between on-site lifting and logistics transportation.
This Beiben heavy-duty boom crane truck is widely applicable to scenarios such as building material transfer, equipment installation, and emergency rescue. Its 360° full-revolution crane arm and a wide outrigger span of up to 5.6 meters ensure excellent stability during operations, making it particularly suitable for rapid deployment at construction sites with limited space or frequent relocation needs. It serves as an efficient solution for modern engineering and logistics applications.
CEEC factory is authorized supplier on beiben crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS

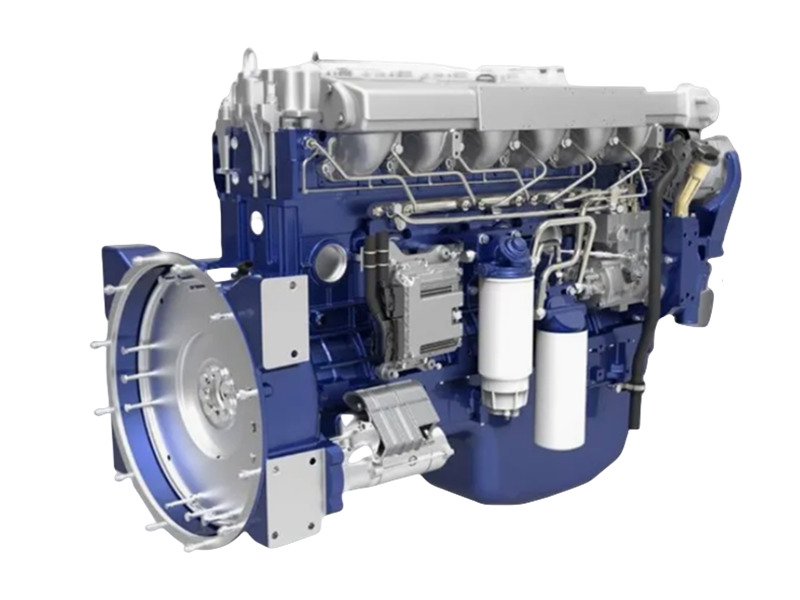

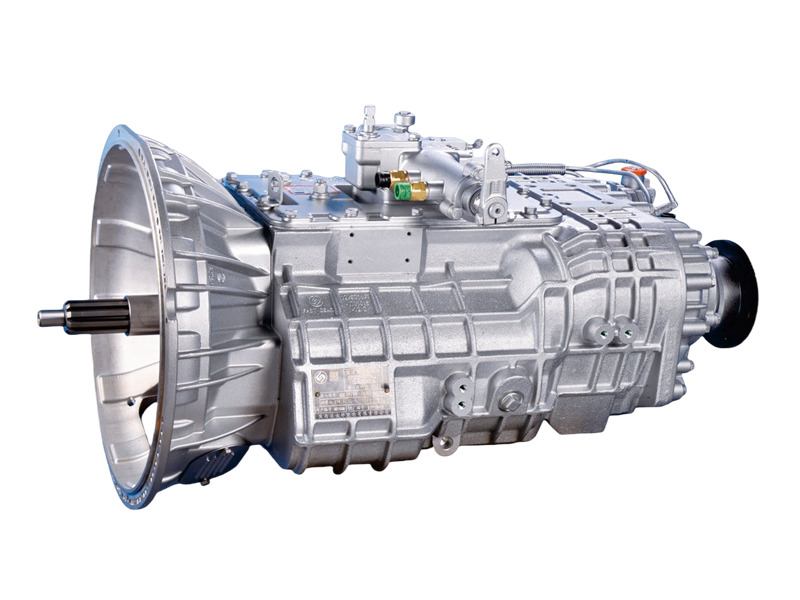

▶ Chassis: Beiben 8×4 chassis, NG80B long cabin, Weichai 380HP diesel engine, Fast 12-speed gearbox

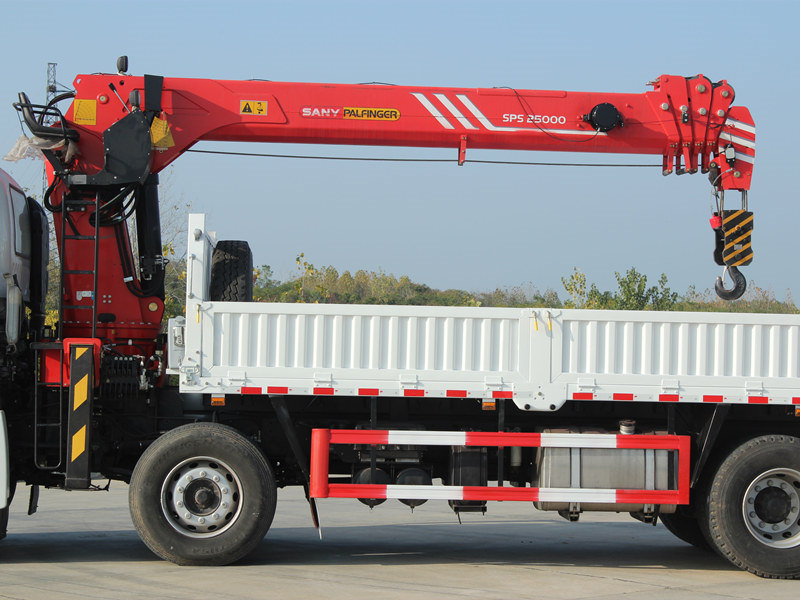

▶ Crane model: Palfinger SPS25000
▶ Crane lifting capacity: 10 tons

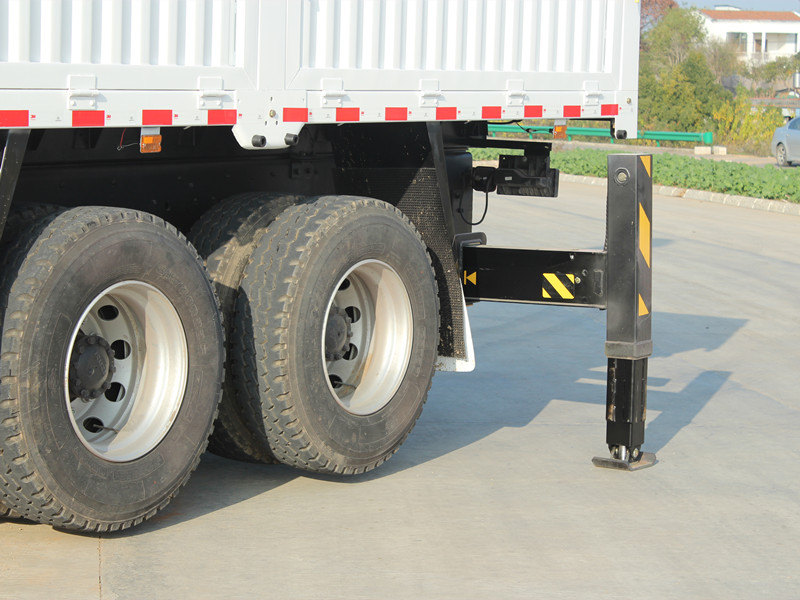

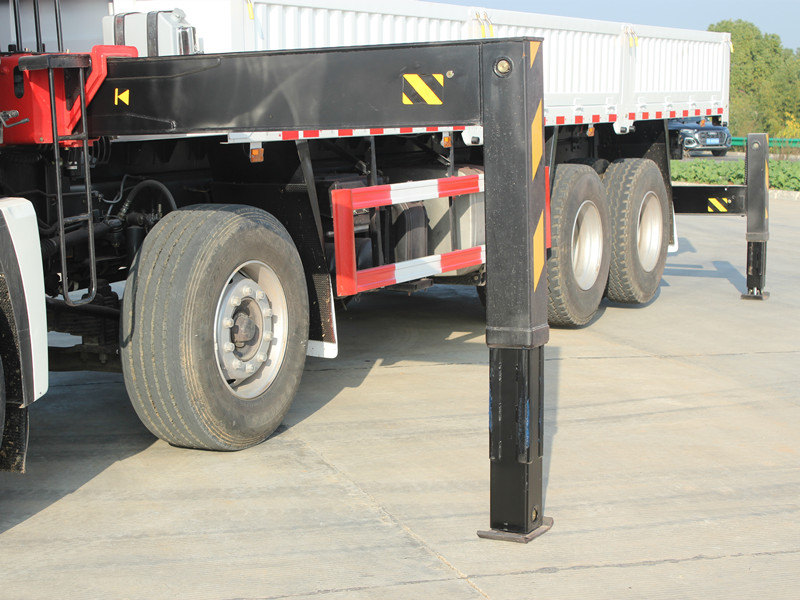

▶ Outriggers: 2 front outriggers and 2 rear outriggers
▶ Cargo box dimensions: 8000×2500×600 mm
» Ⅱ. Product Specifications:
|
Vehicle Technical Parameters |
|
|
Product Name |
Beiben 8x4 Truck Mounted Crane Palfinger SPS25000 |
|
Gross vehicle weight (Kg) |
31000 |
|
Curb weight (kg) |
18650 |
|
Overall dimensions (mm) |
12000×2550×3850 |
|
Wheelbase (mm) |
1500+4450+1450 |
|
Max Passengers Allowed |
3 |
|
Approach/departure angle (°) |
17/13 |
|
Front wheel track (mm) |
1995/1995 |
|
Rear wheel track (mm) |
1800/1800 |
|
Max. driving speed (km/h) |
80 |
|
Chassis Technical Parameters |
|
|
Chassis model |
Beiben 3138 |
|
Engine model |
Weichai WP10.380E32 |
|
Fuel Type |
Diesel |
|
Number of cylinders |
6 |
|
Displacement |
9.726 L |
|
Max. power |
380HP (280kW) |
|
Rated speed |
2200 rpm |
|
Max. torque |
1600N.m |
|
Speed at max. torque |
1500-1800rpm |
|
Transmission |
FAST 12JS200T, 12-speed forward and 2-speed reverse |
|
Front Axle load |
7500kg+7500kg |
|
Rear Axle load |
13000kg+13000kg |
|
Number of Axles |
4 |
|
Number of leaf springs |
12/12/13 pcs |
|
Brakes |
Air brakes |
|
Tire Size |
12.00R20 |
|
Number of Tires |
12+1 pcs |
|
Crane Parameters |
|
|
Crane model |
Palfinger SPS25000 |
|
Max lifting weight |
10,000 kg |
|
Max lifting Moment |
25 mt |
|
Max outreach |
14 m |
|
Max lifting height |
16.1 m |
|
Length of the boom system (retracted) |
5.3 m |
|
Length of the boom system (fully extended) |
14.3 m |
|
Number of boom sections |
4 |
|
Operation pressure |
31 Mpa |
|
Rotation angle |
360°, full rotation |
|
Outrigger span (fully extended) |
5600 mm |
|

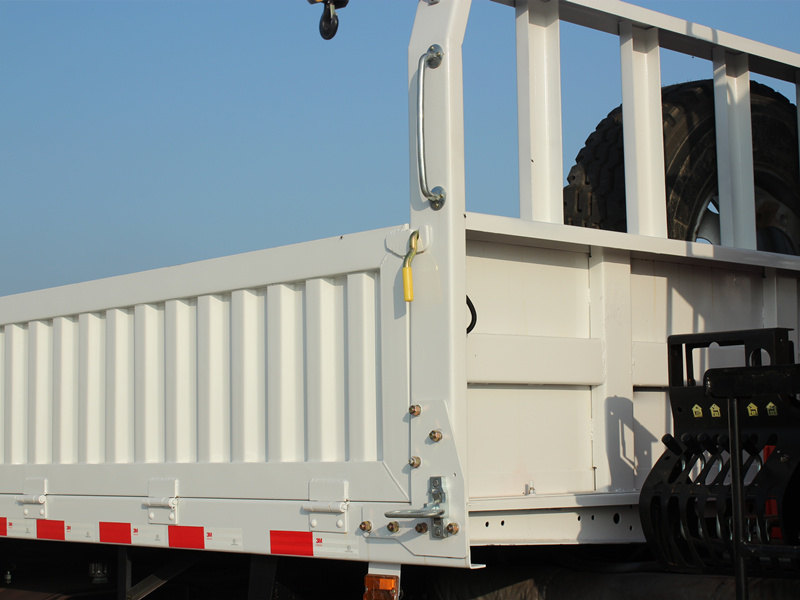

Cargo box Parameters |
|
|
Box inner dimension(mm) |
8000×2450×600 mm |
|
Material |
Carbon steel |
|
Thickness |
Floor: 4mm; Walls: 3mm |

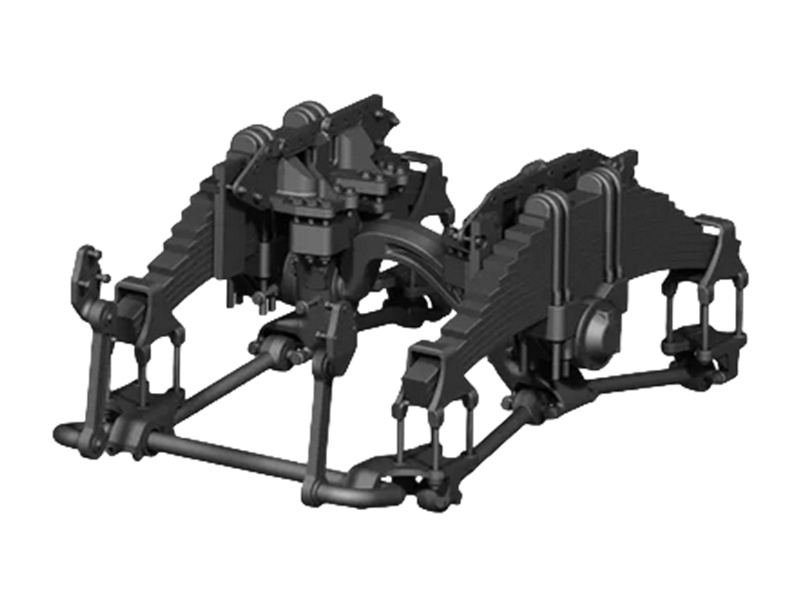

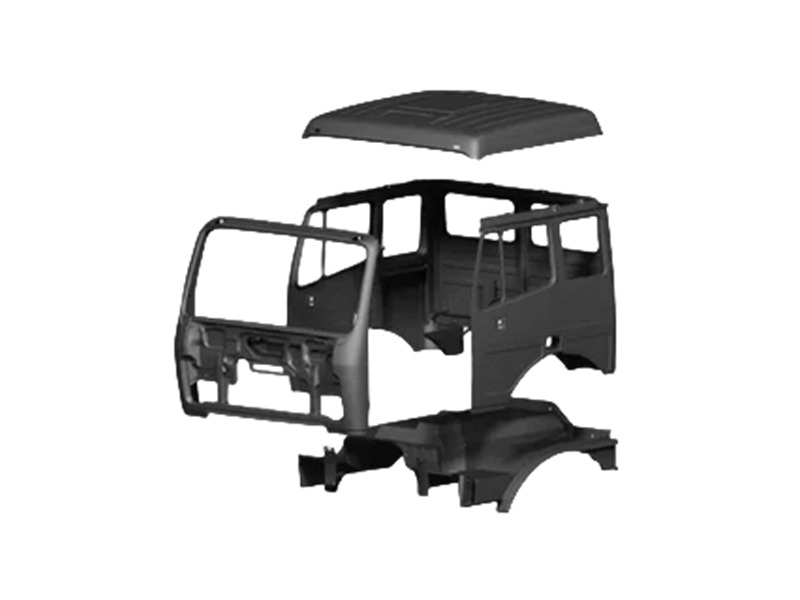

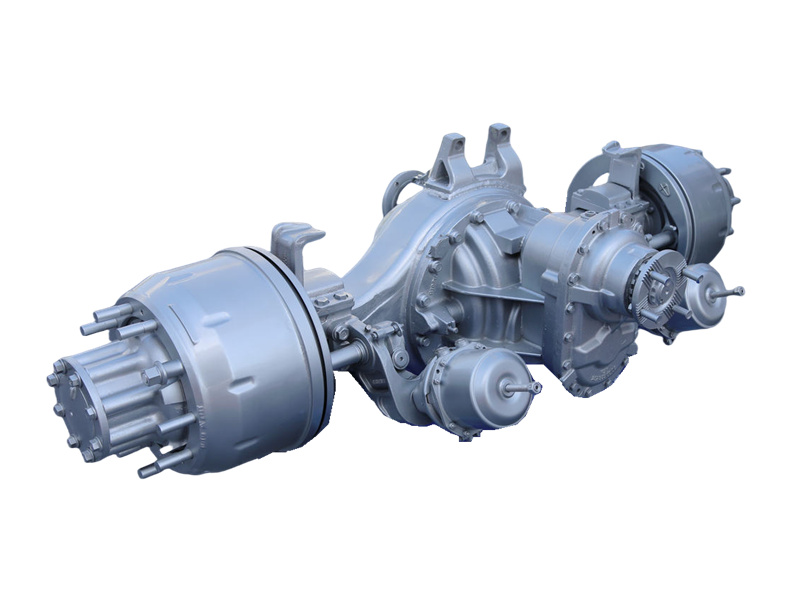

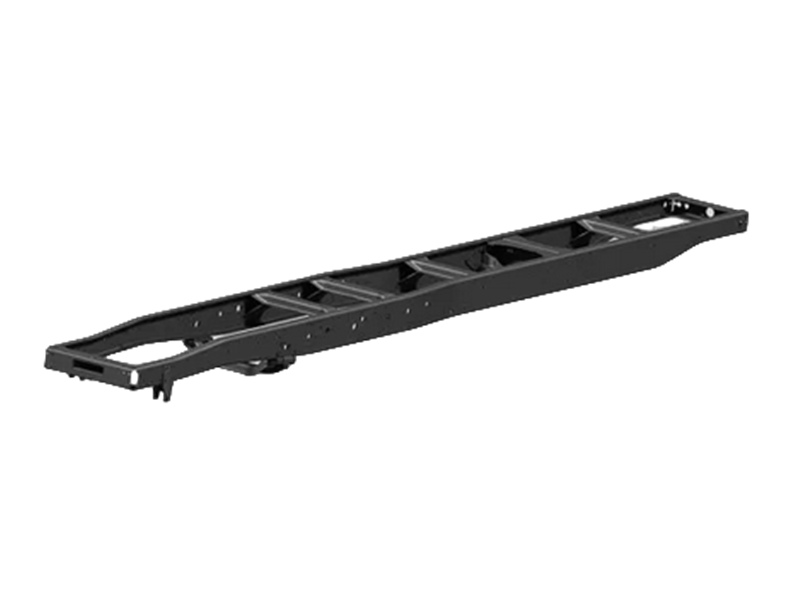

» Ⅲ. Chassis Advantages:

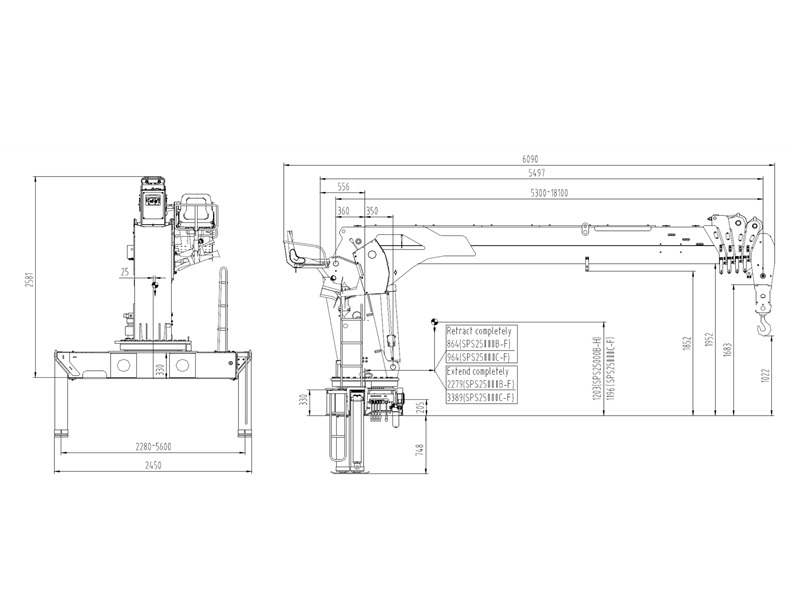

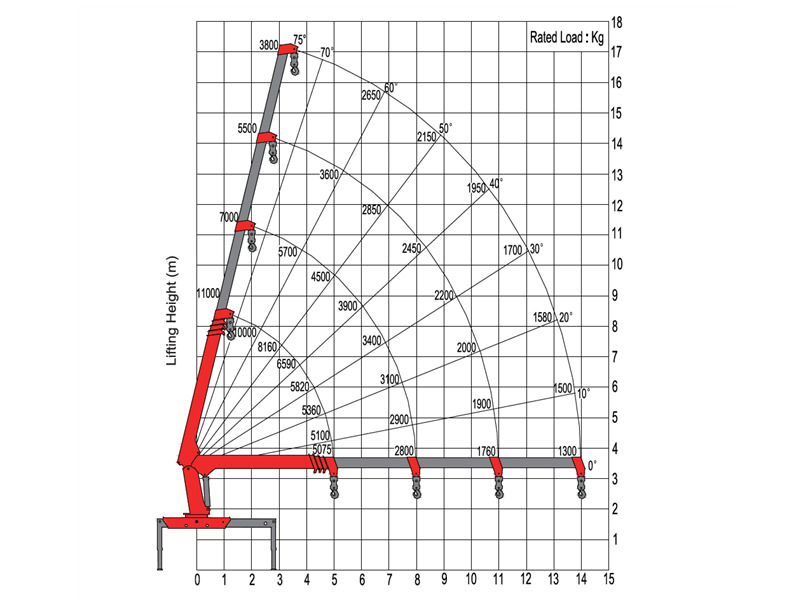

» Ⅳ. Palfinger SPS25000 Crane Specifications:
| Basic Data | SPS 25000B |
| Rated lifting moment | 25 mt |
| Rated lifting capacity | 10000 kg (2.5 m) |
| Max. outreach | 14.0 m |
| Max. lines of the hook | 6 |
| Slewing angle | Continuous |
| Boom raising angle | 0 ~ 75° |
| Max. lifting height | 16.1 m |
| Length of the boom system (retracted) | 5.3 m |
| Length of the boom system (fully extended) | 14.3 m |
| Boom sections | 4 |
| Outrigger span (fully extended) | 5600 (mm) |
| Recommended flow rate | 60 ~ 90 L/min |
| Operating pressure | 31 Mpa |
| Recommended oil tank capacity | 200 L |
| Crane moment (dynamic) | 416.0 kNm |
| 42.4 mt | |
| Torsional moment (dynamic) | 26.3 kNm |
| 2.7 mt |

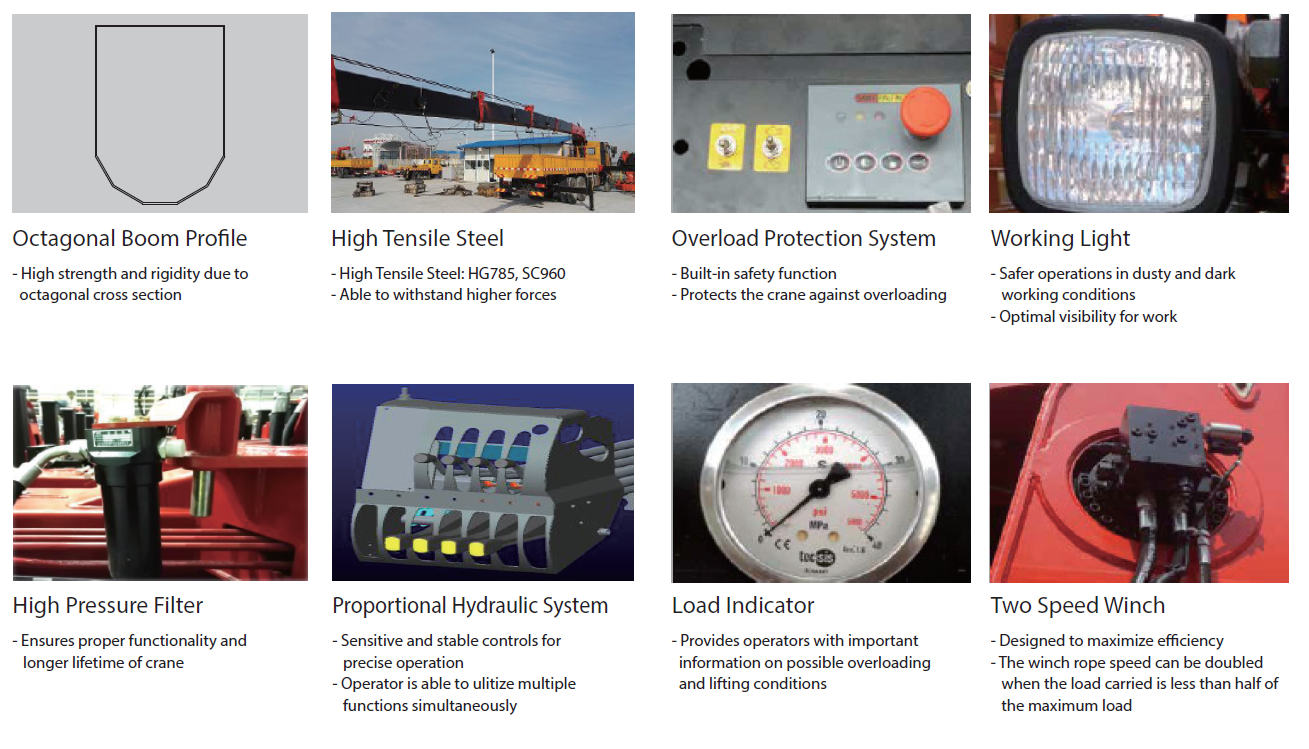

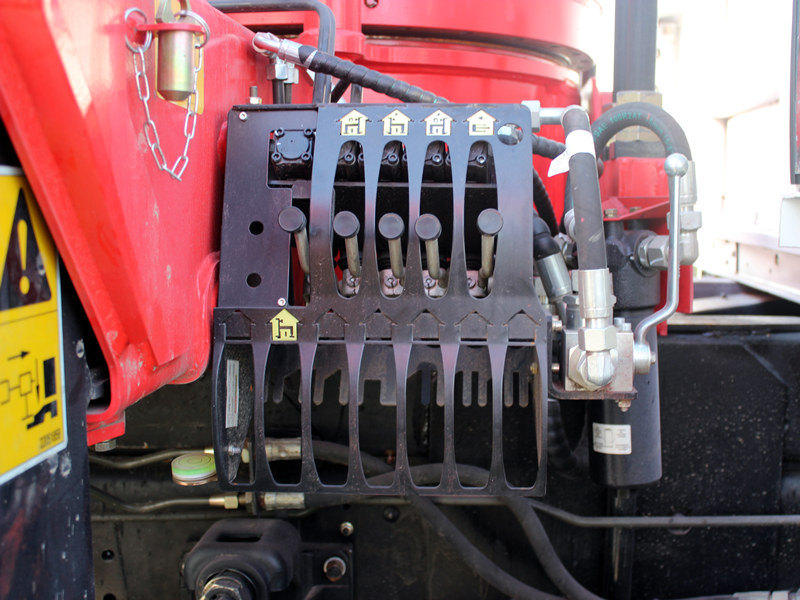

» Ⅴ. Palfinger crane features and options:

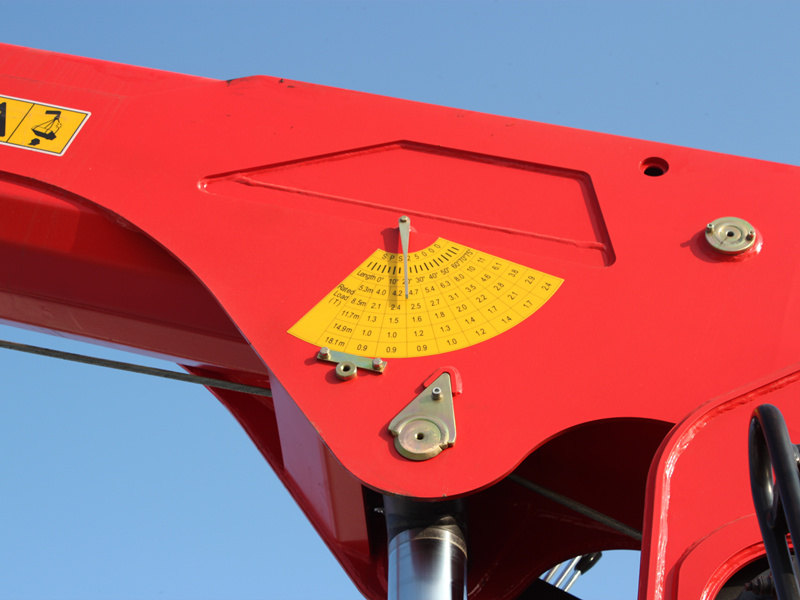

» Ⅵ. Product Details:

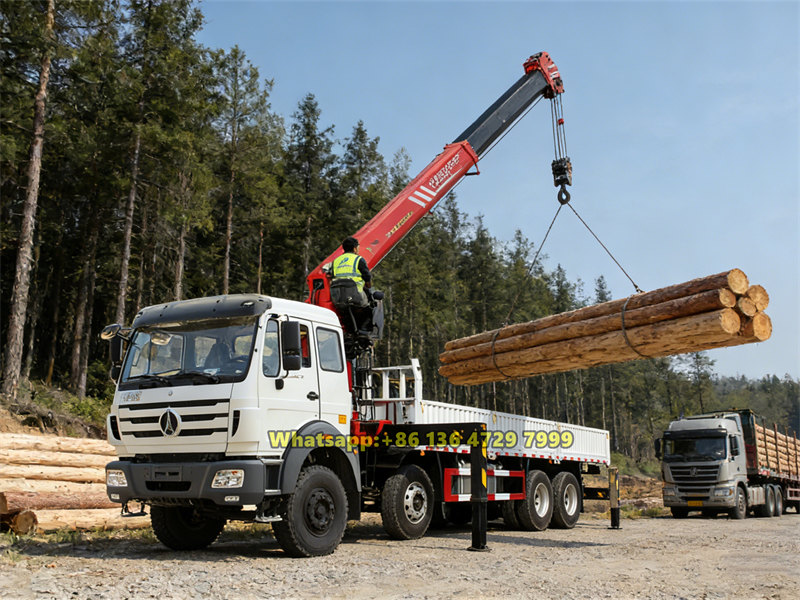

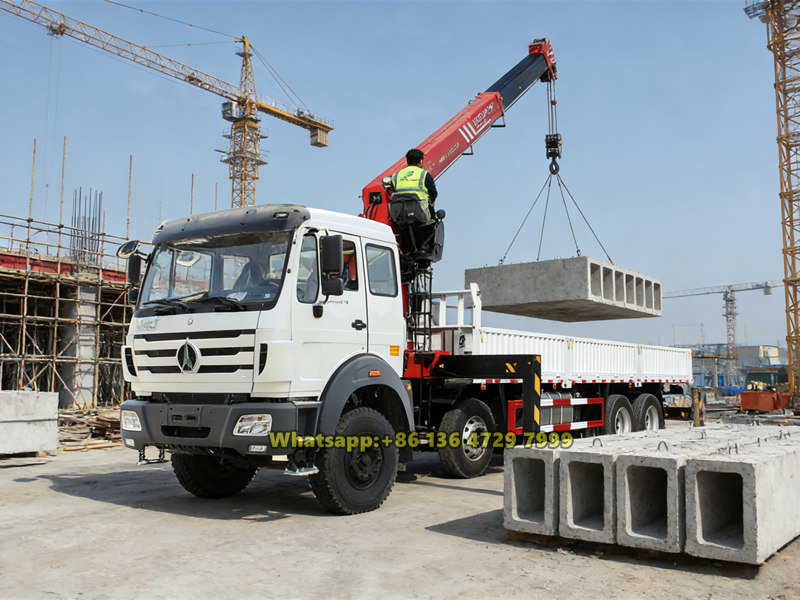

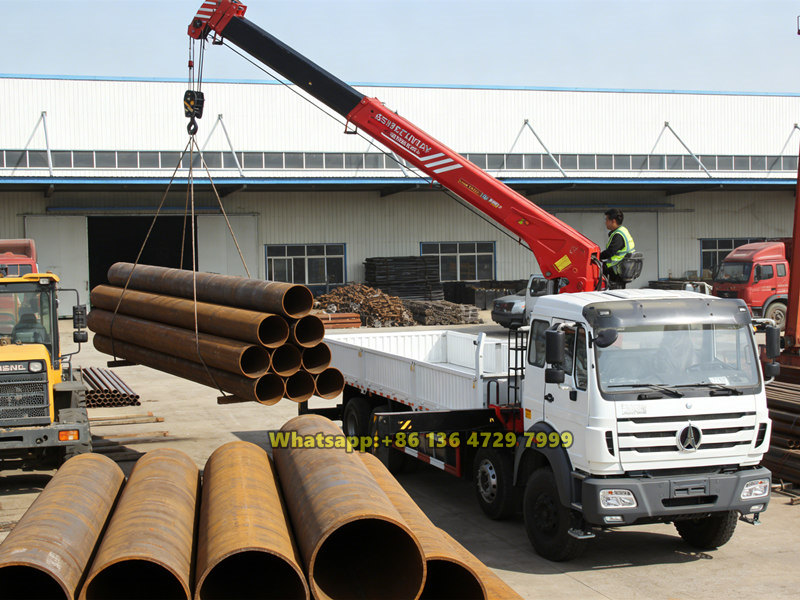

» Ⅶ. Product Applications:
