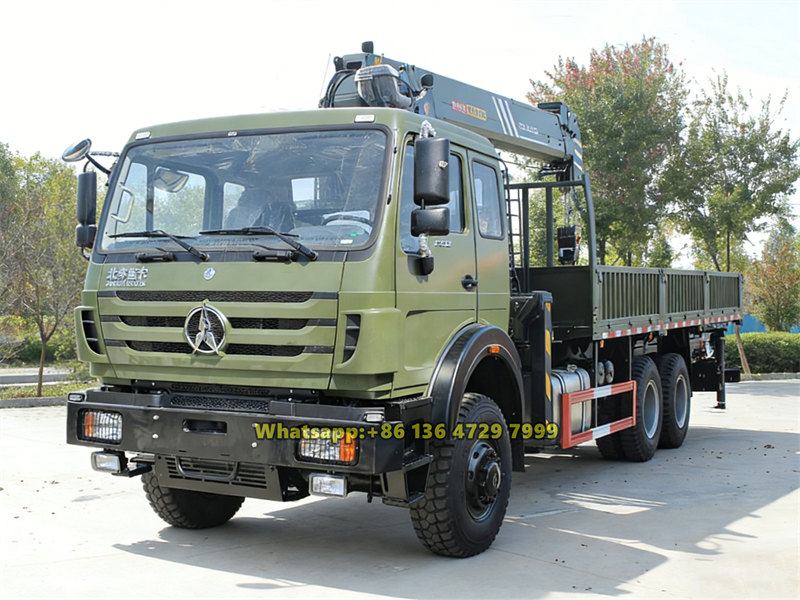

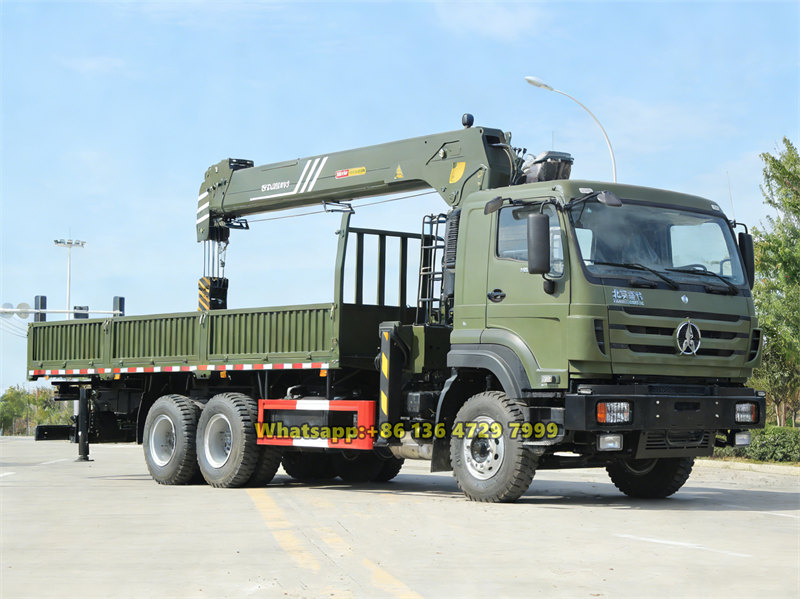

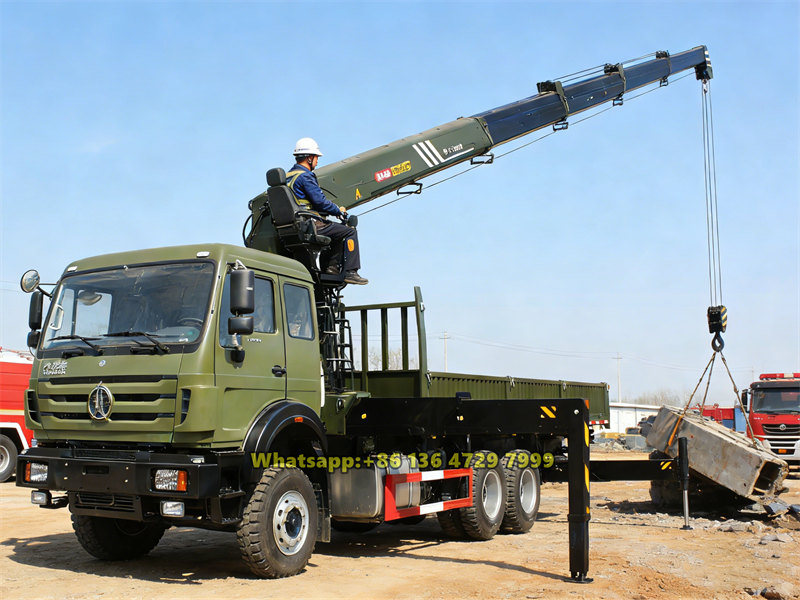

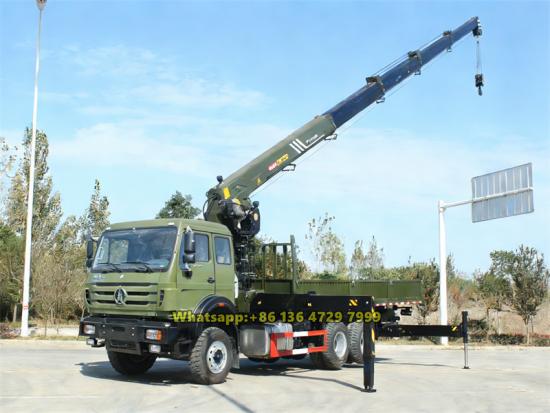

The Beiben 2642 Truck-Mounted Palfinger Crane is a highly efficient and versatile engineering vehicle. It is built on a robust Beiben 6×4 chassis and powered by a Weichai 420 horsepower engine, equipped with a Palfinger SPS40000 16-ton five-section straight-arm crane. With a maximum lifting height of 21.5 meters and 360-degree full rotation capability, its design balances heavy lifting and daily transport needs, making it suitable for various engineering scenarios such as construction and logistics.
Market Price:
$58500Working Capcity:
16000 kgCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
9990×2550×3650Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:

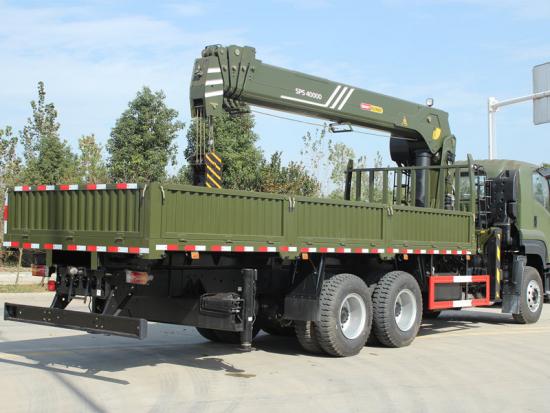

XCMG, palfinger/unic crane is optionalBeiben 2642 Cargo Truck-Mounted Crane is a professional engineering vehicle that integrates efficient transportation and heavy lifting capabilities. It is built on the Beiben 2642 6×4 heavy chassis, paired with the powerful Weichai 420 horsepower engine and a Fast Gear 12-speed transmission, providing reliable power for the vehicle. Its design fully considers multifunctional requirements, ensuring excellent load-bearing performance while incorporating a practical 7-meter cargo box, achieving a seamless combination of heavy lifting and daily cargo transportation.

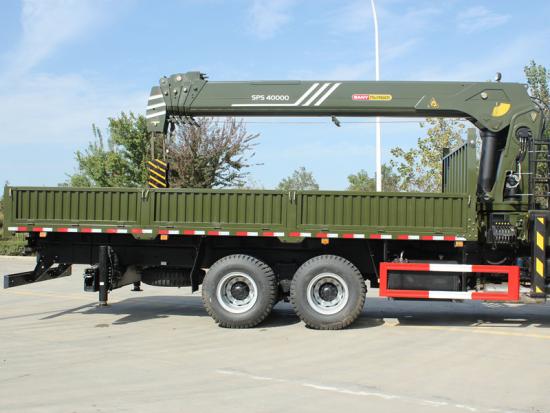

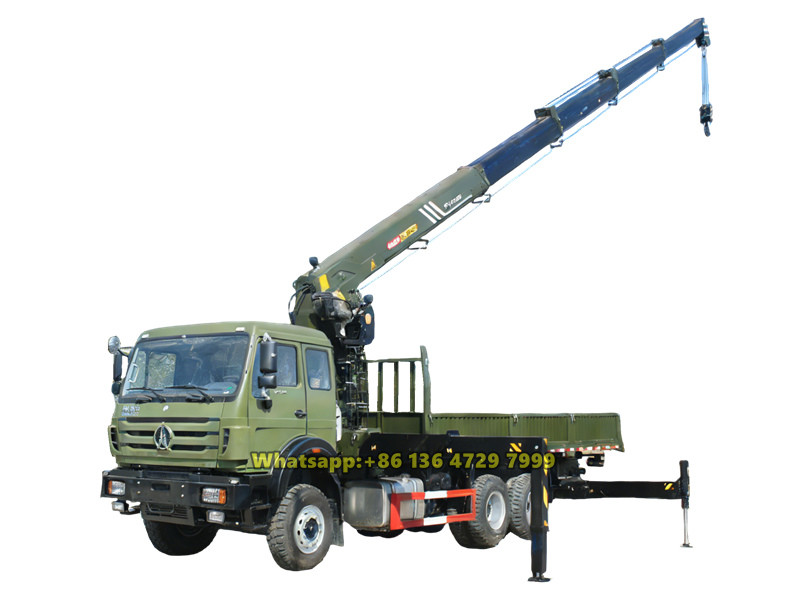

The vehicle is equipped with a Palfinger SPS40000 five-section telescopic boom crane, offering a maximum lifting capacity of 16,000kg, a maximum lifting height of 21.5 meters, and a 360-degree full rotation range. It features a lightweight, all-condition, equal-strength design, combined with dual-stage hydraulic cylinder-driven booms and wide-span outriggers, striking a balance between broader operational range and enhanced lifting stability. This Beiben truck bed mounted crane is particularly suitable for scenarios such as building material handling, equipment installation, and engineering rescue operations, making it a versatile heavy-duty work equipment.

CEEC factory is authorized supplier on beiben hydraulic crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×4 chassis, NG80B long cabin, Weichai 420HP diesel engine, Fast 12-speed gearbox
▶ Crane model: PALFIGNER SPS40000, telescopic boom crane
▶ Crane lifting capacity: 16 tons
▶ Crane lifting height: 21.5 m
▶ Cargo box dimensions: 7000×2550×600 mm
» Ⅱ. Product Specifications:
|
Products Technical Specification |
||
|
Product Name |
Beiben truck mounted Palfinger 16-ton crane |
|
|
Chassis Model |
Beiben 2642 |
|
|
Fuel type |
Diesel |
|
|
Driving type |
6×4, left hand drive |
|
|
Cabin |
Beiben NG80B long cabin, 2 seats and one sleeper berth |
|
|
Vehicle |
Overall dimensions (L×W×H) |
9990*2550*3650 |
|
Cargo body dimensions |
7000*2550*600 |
|
|
Wheelbase |
4450+1450 |
|
|
Front overhang |
1400 |
|
|
Rear overhang |
2850 |
|
|
Weight data (kg) |
G.V.W |
26000 |
|
Curb weight (chassis) |
15200 |
|
|
Max payload |
20000-25000 |
|
|
Vehicle |
Max. speed (km/h) |
98 |
|
Max. slope of climb (%) |
30 |
|
|
Engine |
Model |
WP12.420E32 |
|
Maximum power |
309kw / 420hp |
|
|
Number of cylinders |
6 |
|
|
Displacement (L) |
11.596 |
|
|
Engine Manufacturer |
WEICHAI |
|
|
Gear box |
Model |
FAST 12JS200T |
|
Type |
Manual |
|
|
Number of gears |
12 forward gears & 2 reverse |
|
|
Axle |
Front load capacity |
7500 kg |
|
Rear load capacity |
13000 kg + 13000 kg |
|
|
Suspension |
Leaf spring |
10/13 |
|
Steering |
8098 |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically double circulation air brake system |
|
Assistant brake |
WEVB(Engine exhaust brake) |
|
|
Park brake |
Spring brake effect to middle and rear tires |
|
|
Electric device |
Rated voltage |
24V |
|
Tyres & Quantity |
12.00R20 & 10+1 |
|
|
Crane Specifications |
||
|
Brand |
Palfinger |
|
|
Model |
SPS40000 |
|
|
Type |
Telescopic boom crane, 5 sections |
|
|
Max Lifting Capacity (kg) |
16000 |
|
|
Maximum lift height (m) |
21.5 |
|
|
Working radius (m) |
18.6 |
|
|
Max Lifting Moment (t.m) |
40 |
|
|
Recommended flow rate (L/min) |
80~110 |
|
|
Rated Pressure of Hydraulic System (MPa) |
32 |
|
|
Oil Tank Capacity (L) |
300 |
|
|
Rotation Angle (°) |
360° all rotation |
|
|
Crane Weight (kg) |
6000 |
|
|
Outriggers |
2 front and 2 rear |
|
|
Outrigger span (mm) |
2270~7250 |
|

» Ⅲ. Product Advantages:

Beiben 2642 heavy-duty chassis
Beiben NG80B long cabin, 2 seats and one sleeper berth, with A/C
Weichai WP12.420E32 engine, 420HP, 6-cylinder, 11.596L displacement
FAST 12JS200T transmission, 12-speed forward and 2-speed reverse
Front axle 7500kg; rear axle 13000kg+13000kg

Palfinger Crane
1. Full working condition equal strength design, more scientific in engineering, and stronger lifting capacity.
2. Lightweight design, reducing overall self-weight.
3. Extra-long boom, providing a wider working range.
4. The boom is driven by a dual-stage hydraulic cylinder, enhancing lifting capacity.
5. Wide-span outriggers, offering stronger overall machine stability.
6. High safety factor design, ensuring higher reliability.
7. Standard equipped with plunger pump, delivering longer service life, higher efficiency, and greater reliability.
» Ⅳ. Palfigner SPS40000 Crane Specifications:

| Basic Data | SPS 40000C |
| Rated Lifting Moment | 40 mt |
| Rated lifting capacity | 16000 kg (2.5 m) |
| Max. outreach | 18.6 m |
| Max. lines of the hook | 6 |
| Slewing angle | Continuous |
| Boom raising angle | 0 ~ 75° |
| Max. lifting height | 21.5 m |
| Length of the boom system (retracted) | 6.23 m |
| Length of the boom system (fully extended) | 19 m |
| Boom sections | 5 |
| Outrigger span(fully extended) | 7250 (mm) |
| Recommended Flow Rate | 80 ~ 110 L/min |
| Operating pressure | 32 Mpa |
| Recommended oil tank capacity | 300 L |

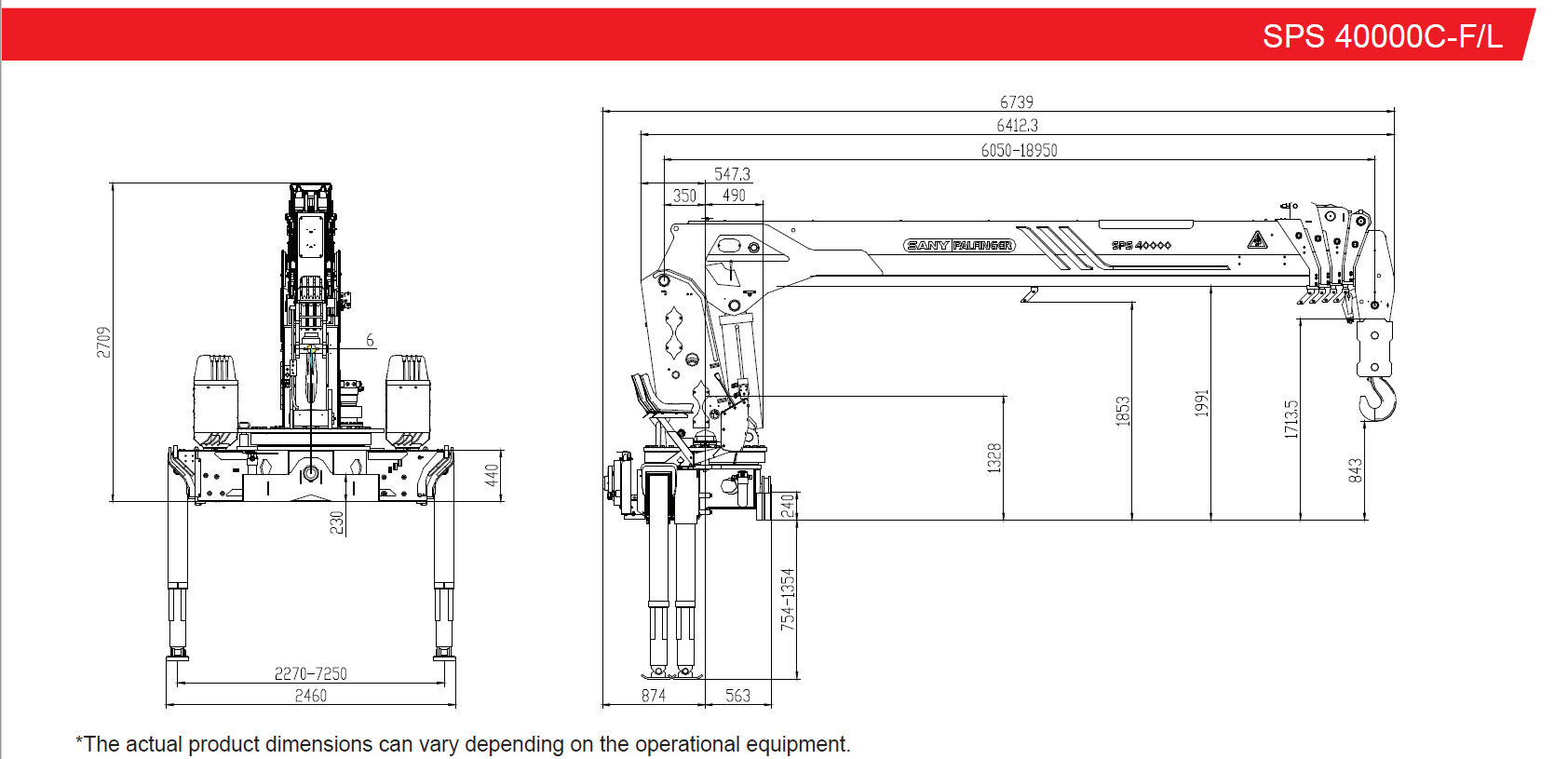

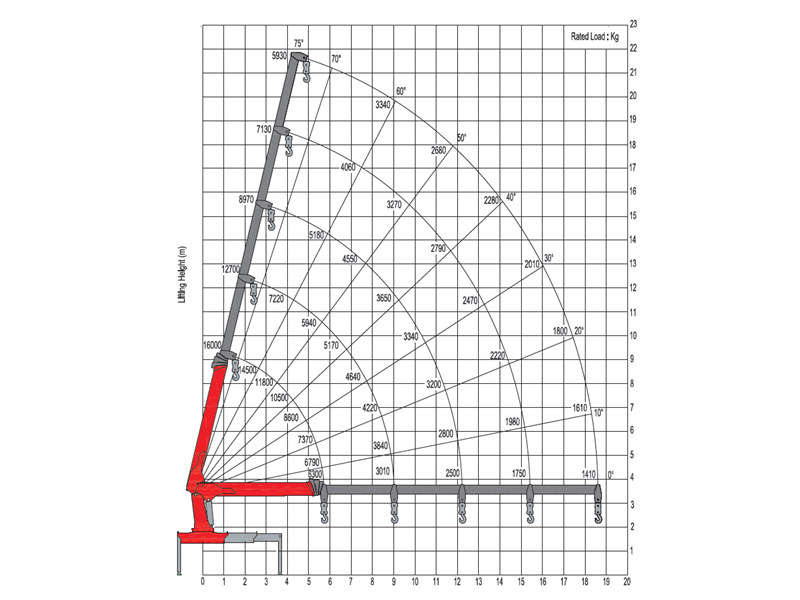

Crane Dimension

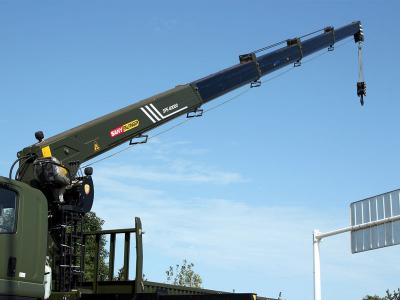

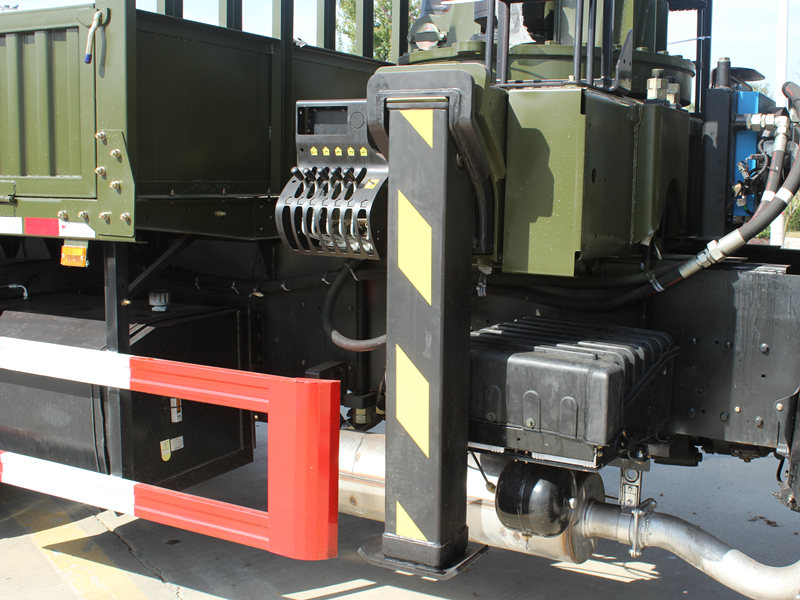

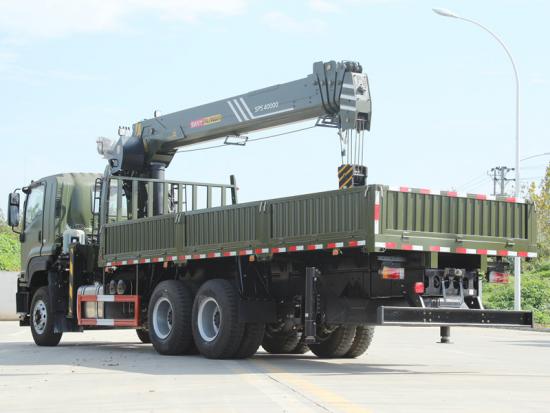

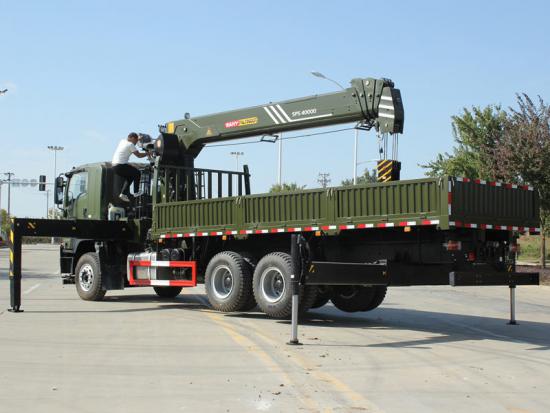

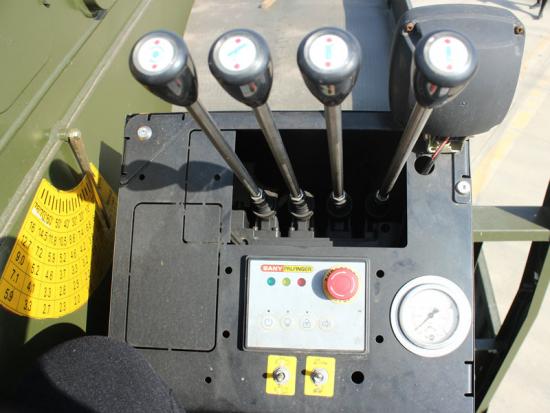

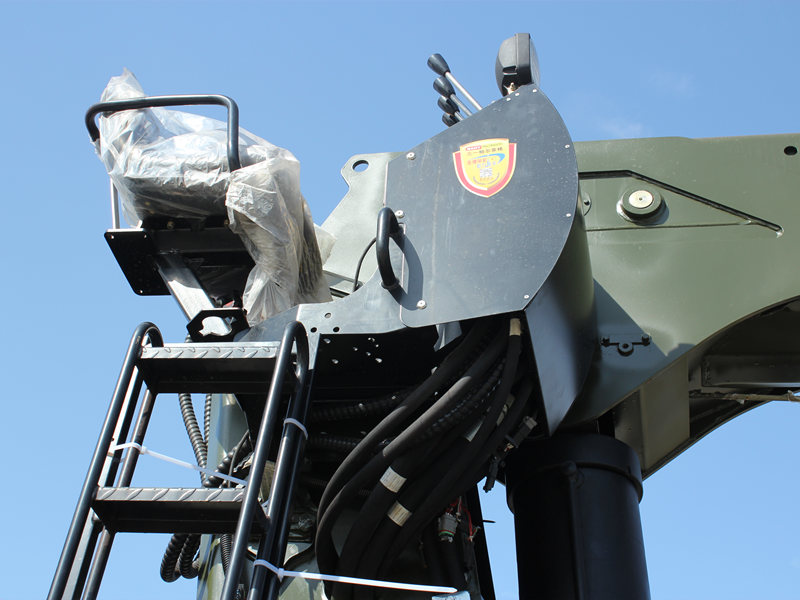

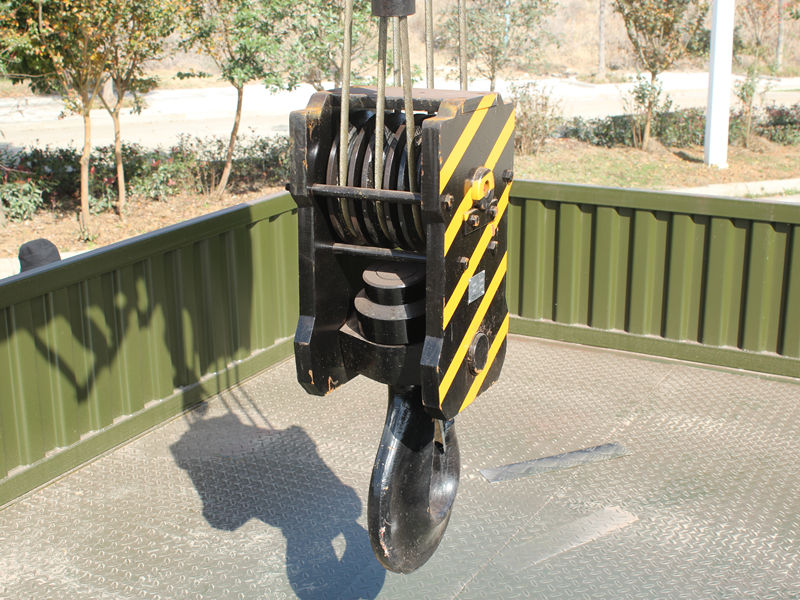

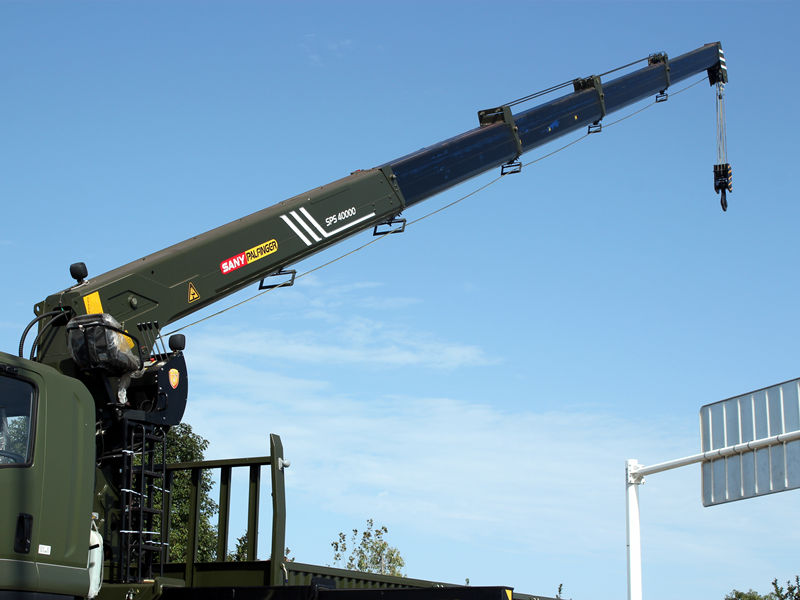

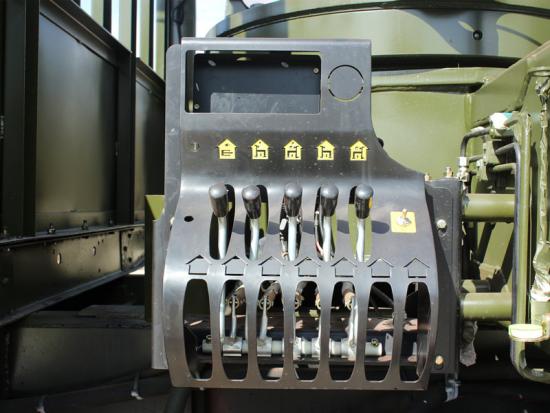

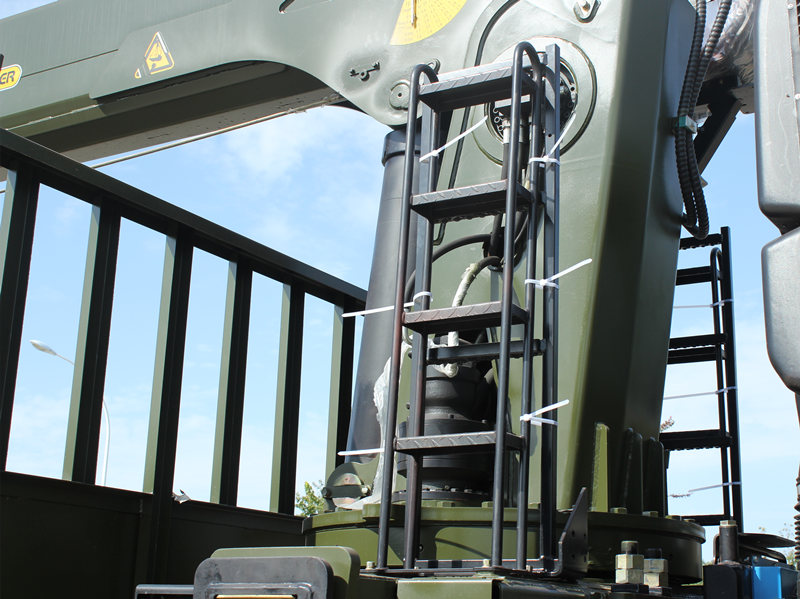

» Ⅴ. Palfinger SPS40000 crane details:

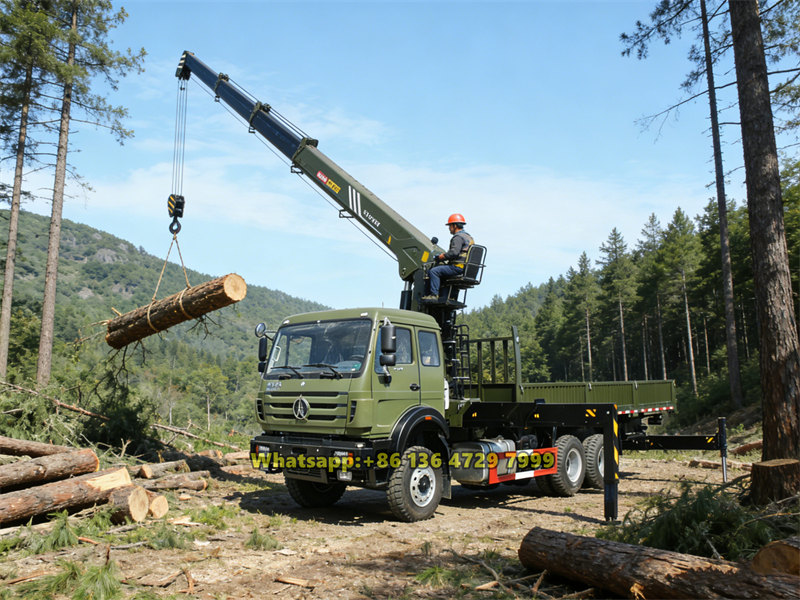

» Ⅵ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive boom crane trucks for option
2. Factory direct sale, supply Beiben crane trucks with lifting capacity 5000kg to 25000kg
3. XCMG, Palfinger, UNIC, ZOOMLION telescopic or knuckle boom cranes for option
4. Optional: remote control, moment limited valve, high sesat on column, drill, etc.
