Beiben V3 truck loader crane

The Beiben V3 Truck Loader Crane is a multifunctional engineering vehicle based on the Beiben 8×4 heavy-duty chassis, integrating transport and lifting capabilities. It is equipped with a Shimei QYS-14V telescopic crane, featuring a maximum lifting capacity of 14 tons, a working height of 22 meters, and 360° full rotation. Powered by a Weichai high-horsepower engine and paired with a reinforced cargo box, the vehicle is designed to deliver robust power, efficient lifting, and reliable load-bearing performance. It is specifically tailored for heavy-duty applications such as municipal engineering and port logistics.

  • Market Price:

    $67800
  • Working Capcity:

    14000 kg
  • Cabin Type:

    V3 cabin
  • Dimension ( mm ) :

    12000×2550×3750
  • Drive System:

    8×4
  • Wheelbase (mm):

    2100+4600+1450
  • Engine Power:

    430HP/WP13.430E50
  • Gear Box:

    12JS200T
  • Remark:

    XCMG, palfinger/unic crane is optional
New Products

The Beiben V3 service truck with crane, also known as the Beiben V3 truck bed mounted crane, is a highly efficient and versatile specialized vehicle built on the Beiben 8×4 heavy-duty chassis. It is fitted with a Shimei QYS-14V hydraulic crane system, enabling rapid lifting, rotation, and transportation of objects. The chassis is equipped with a Weichai 430HP engine and a reliable Fast manual transmission, combined with reinforced axles and a multi-leaf spring suspension system, forming a robust and adaptable platform that provides solid and stable support for various lifting operations.

The Shimei QYS-14V five-section telescopic crane mounted on the vehicle boasts a maximum lifting capacity of 14 tons, a maximum working height of 22 meters, and 360° full rotation. Its hydraulic system is equipped with safety balance valves and sequence valves, ensuring smooth, precise, and safe operation. With its approximately 8-meter-long three-door drop-side cargo box, the Beiben V3 cargo crane truck is capable of flexibly handling diverse tasks such as municipal maintenance and port loading/unloading, making it a highly efficient and versatile specialized work vehicle.

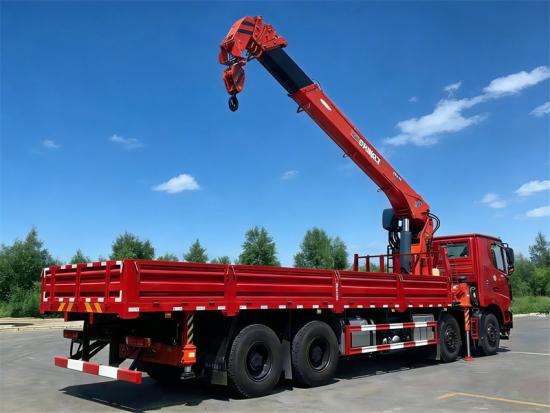

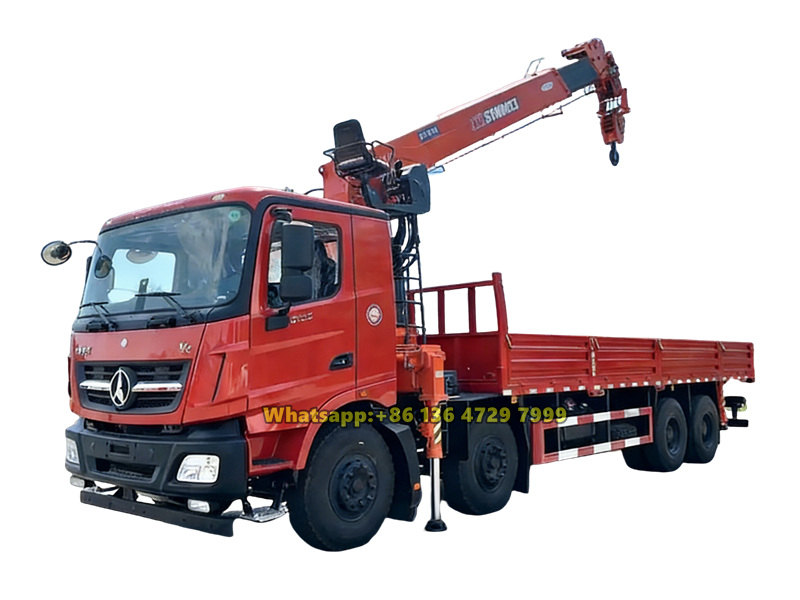

Beiben V3 truck mounted mobile crane

*Beiben V3 truck mounted hydraulic crane

CEEC factory is authorized supplier on beiben boom trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.



» Ⅰ.Product Introduction:

Manufacturer: CEEC TRUCKS

Chassis: Beiben 8×4 chassis, V3 cabin, Weichai 430HP diesel engine, Fast 12-speed gearbox

Crane model: Shimen QYS-14V

Crane type: Telescopic boom, 5 sections, 14000kg lifting capacity

Outriggers: 2 front outriggers and 2 rear outriggers

Cargo box dimensions: 8000×2450×550 mm

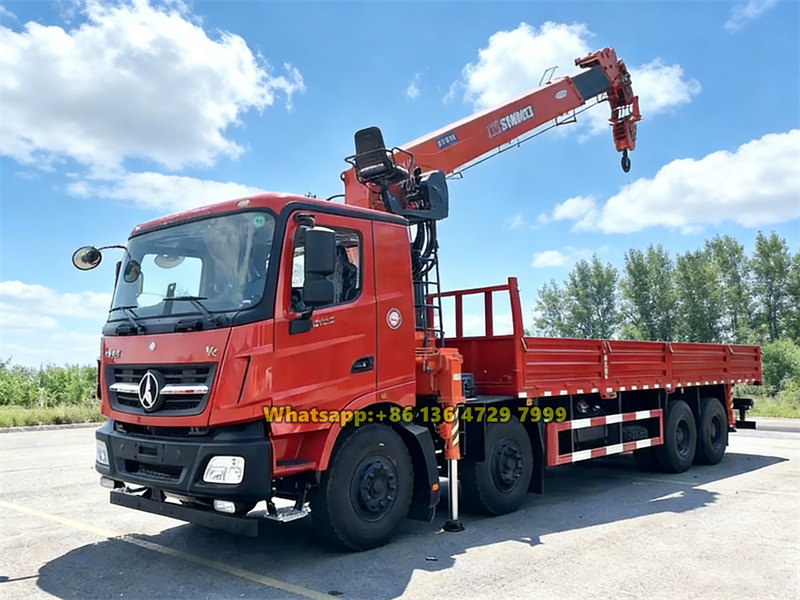

Beiben12-wheeler lorry mounted crane



» Ⅱ. Product Specifications:



Beiben V3 Lorry Mounted Crane Technical Specifications

Product Name

Beiben V3 8×4 telescopic boom truck

Chassis Model

ND1310

Fuel type

Diesel

Emission Standard

Euro 5

Cabin

Beiben V3

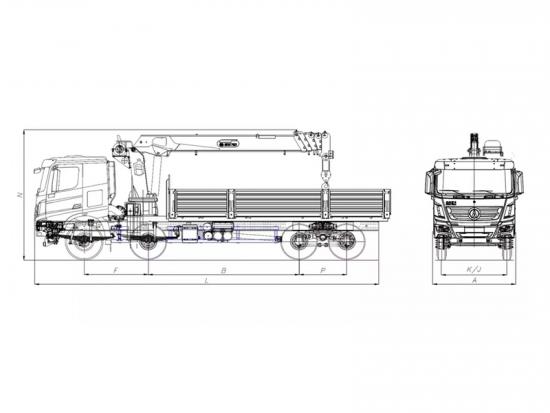

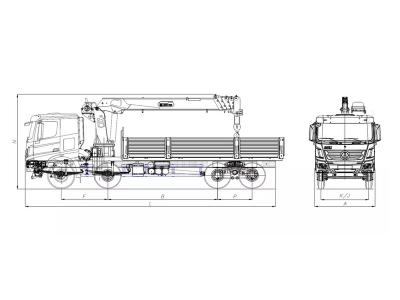

Vehicle main dimensions (mm)

Overall dimensions (L×W×H)

12000*2550*3750

Cargo box dimensions

8000*2450*550

Wheelbase

2100+4600+1450

Front overhang

1515

Rear overhang

2335

Weight data (kg)

G.V.W

31000

Curb weight

20800

Rated payload

10070

Vehicle main performance

Max. speed (km/h)

80

Max. slope of climb (%)

30

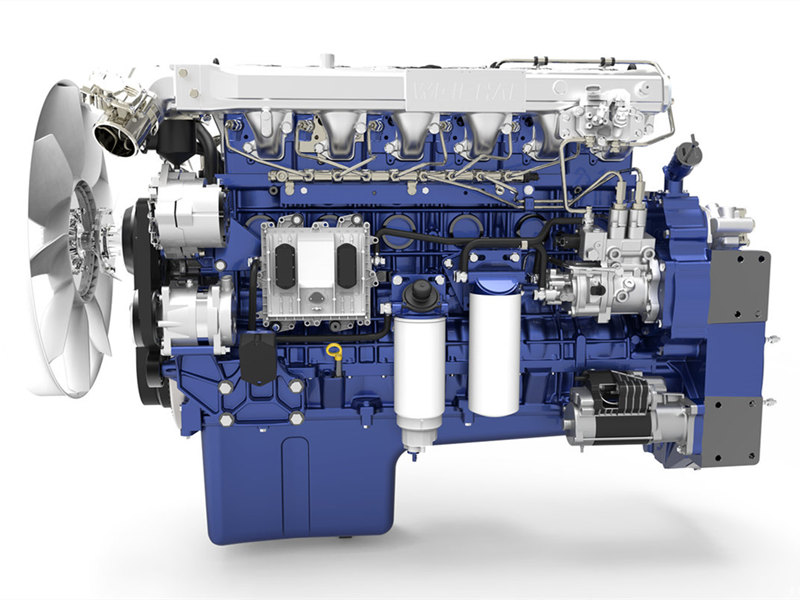

Engine

Model

WP12.430E50

Engine Manufacturer

WEICHAI

Maximum power

316kw / 430hp

Number of cylinders

6

Displacement (L)

11.596

Rated speed (rpm)

1900

Gear box

Brand

FAST

Model

12JS200T

Type

Manual

Number of gears

12 forward gears & 2 reverse

Axle

Front load capacity

6500/6500 kg

Rear load capacity

18000 kg

Suspension

Leaf spring

10/10/12

Steering Wheel

left/right hand drive

LHD

Brake system

Service brake

Air brake with ABS

Electric device

Rated voltage

24V

Tyres & Quantity

12.00R20 & 12+1

Crane Specifications

Brand

SHIMEI

Model

QYS-14V

Type

Telescopic boom crane, 5 sections

Max Lifting Capacity (kg)

14000

Maximum lift height (m)

22

Working radius (m)

22.5

Max Lifting Moment (kN.m)

360

Flow of Hydraulic System (L/min)

60

Pressure of Hydraulic System (MPa)

28

Hydraulic Oil Tank Capacity (L)

160

Rotation Angle (°)

360° all rotation

Outriggers

2 front outriggers and 2 rear outriggers

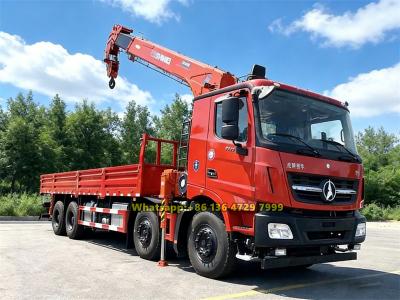

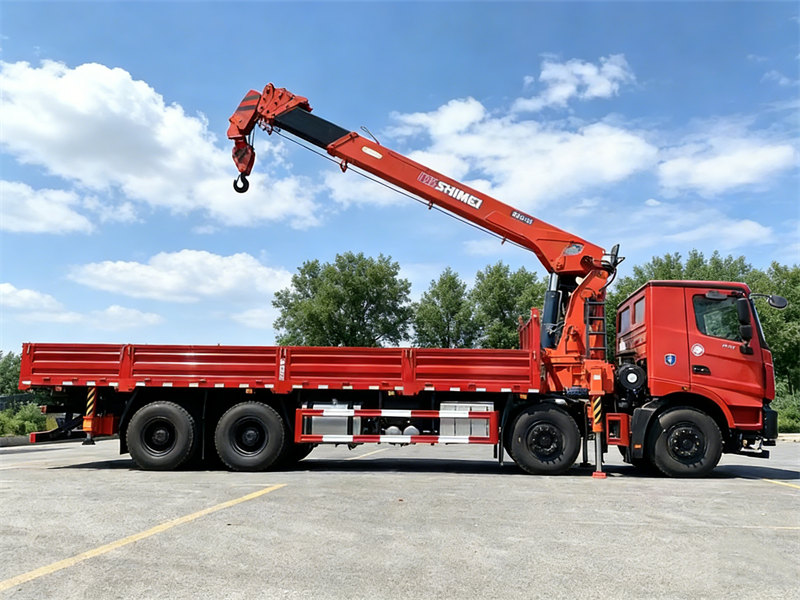

Beiben 8×4 service truck with crane



» Ⅲ. Chassis Advantages:



» Ⅳ. Crane Specifications:

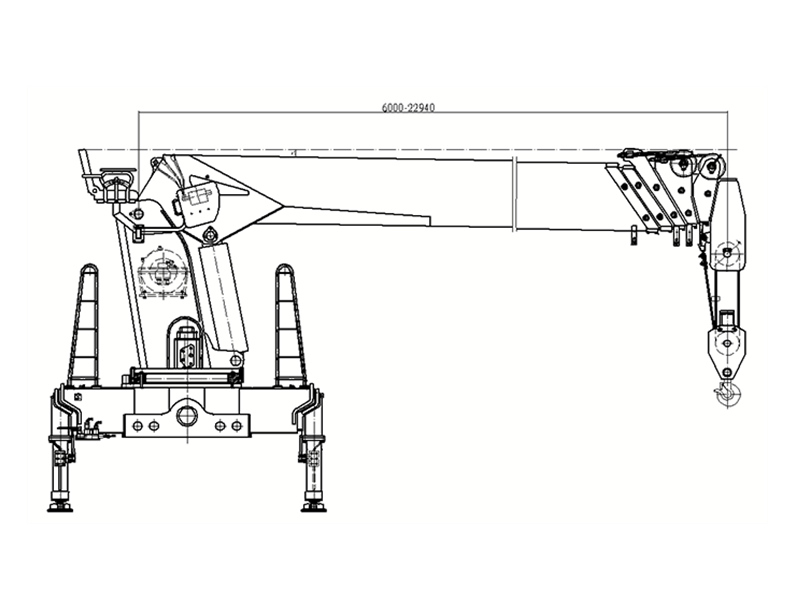

Shimei  crane QYS-14V

Item

Parameters

Unit

Maximum Lifting Moment

360

kN·m

Maximum Lifting Capacity

14000

kg

Maximum Lifting Height

22

m

Maximum Working Radius

22.5

m

Number of Telescopic Boom Sections

5

m

Slewing Range

±360

°

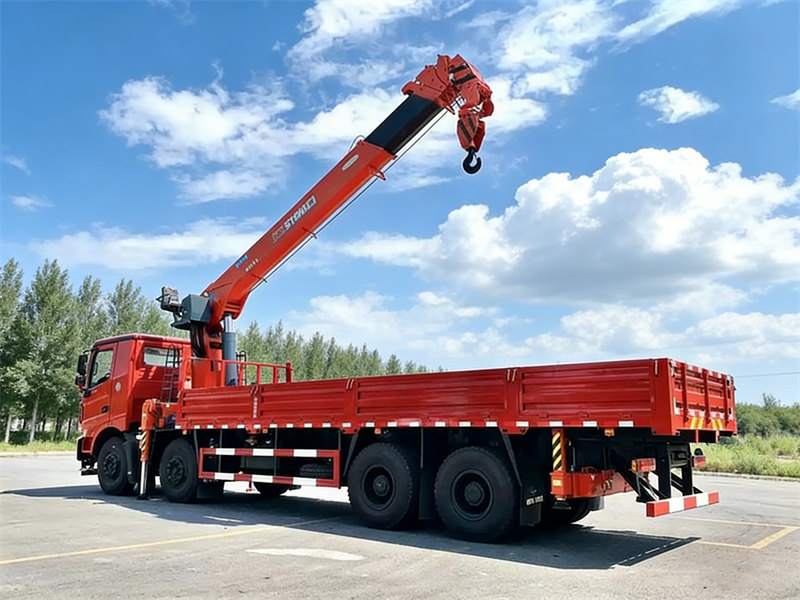

Beiben 8×4 tree service boom truck

Crane Features:
1. The telescopic boom is driven by a three-stage sequential telescopic hydraulic cylinder; the first and second boom sections provide enhanced load-bearing capacity.
2. A decagonal cross-section boom design is employed to minimize web height and thickness, effectively reducing the overall weight of the boom.
3. The system uses an LUDV (Load-Independent Flow Distribution) valve with post-compensation proportional flow control, enabling smooth compound actions even under unsaturated flow conditions.
4. An adaptive dual-speed lifting device is incorporated to improve operational efficiency.
5. Features include over-winding safety protection and hook retraction safety technology for enhanced reliability and safety.
6. A hydraulic anti-shake system is integrated to improve the stability of the luffing system during operation.

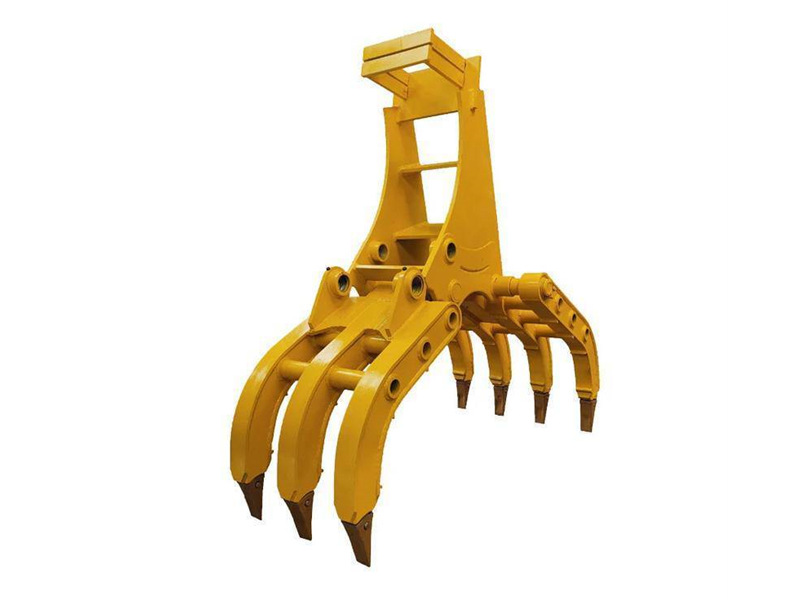

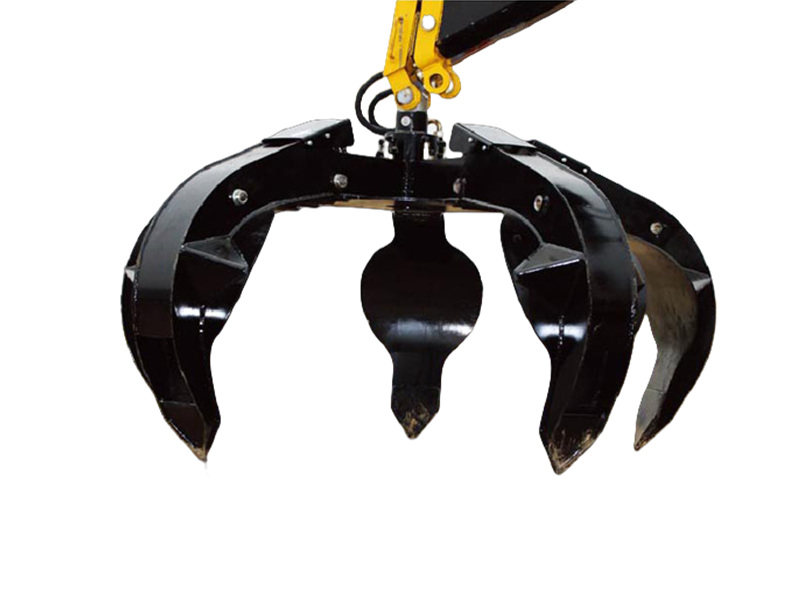

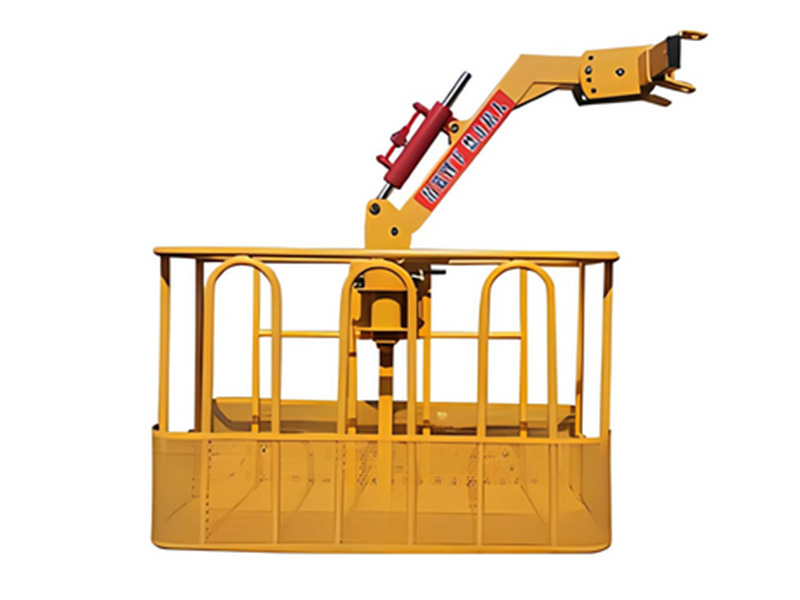

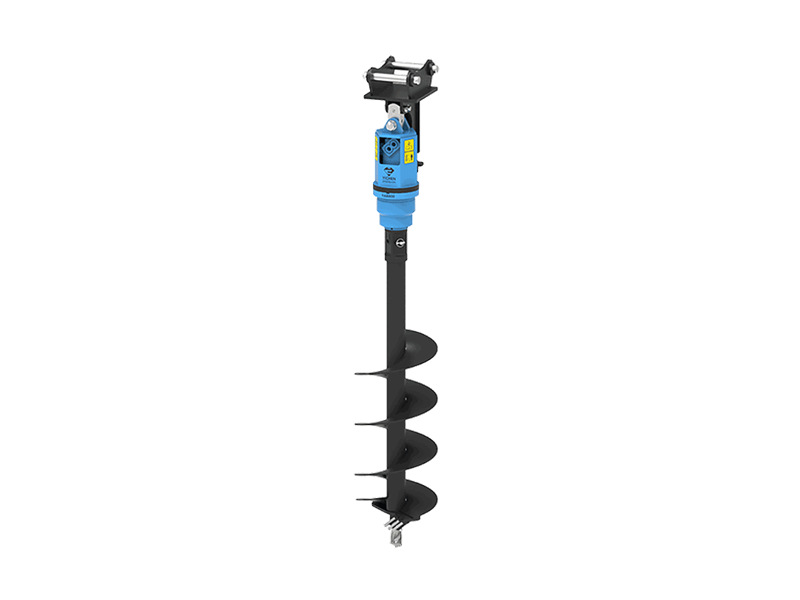

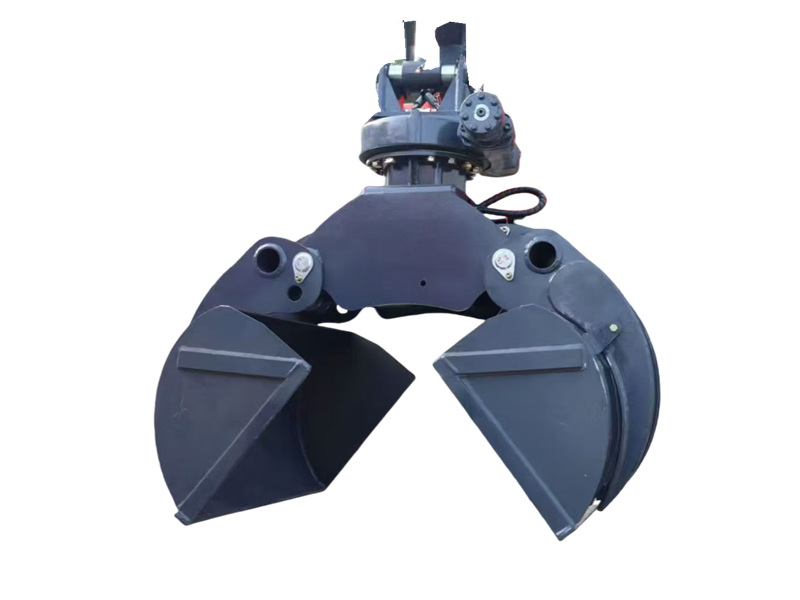

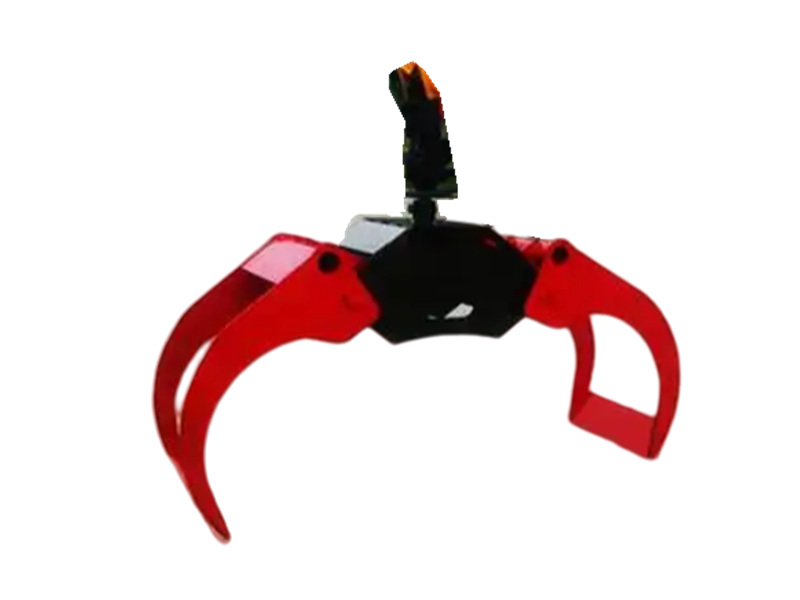

» Ⅴ. Crane Optional Accessories:

» . Product Applications:

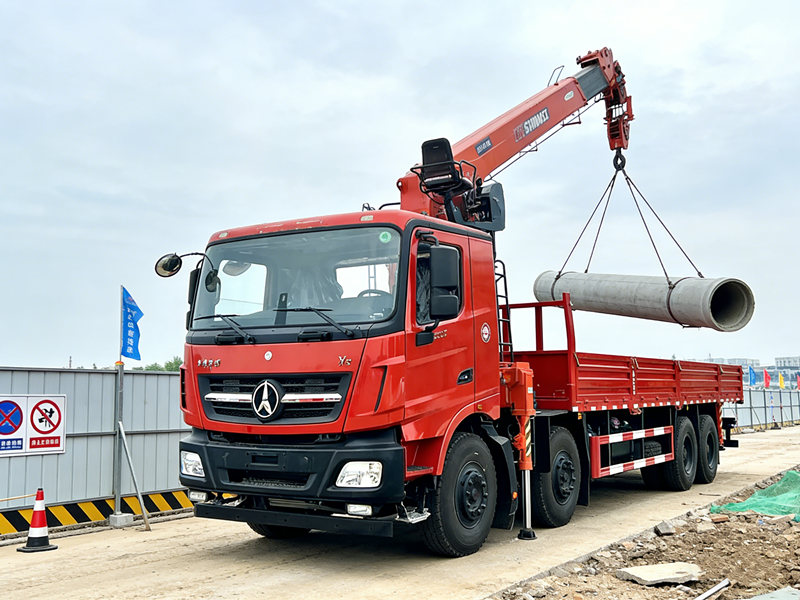

  • Beiben V3 boom crane truck applications
  • Beiben utility truck mounted crane applications

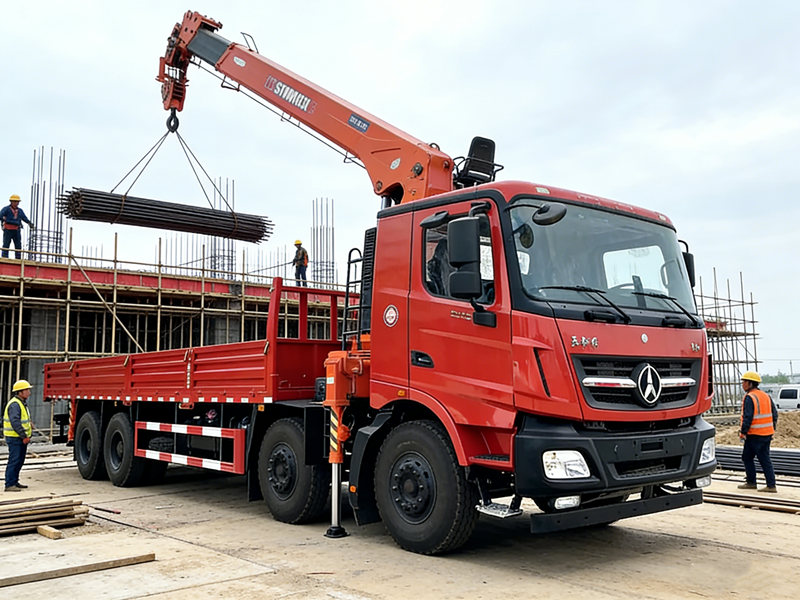

  • Beiben lorry crane applications





Products--100% china beiben factory trucks!

Shipping --100% fast, Convenience, Efficient!

Guarantee--7days + 24hours Safetify Service!



1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive boom crane trucks for option



2. Factory direct sale, supply Beiben crane trucks with lifting capacity 5000kg to 25000kg



3. XCMG, Palfinger, UNIC, ZOOMLION telescopic or knuckle boom cranes for option



4. Optional: remote control, moment limited valve, high sesat on column, drill, etc.
