Beiben 4x2 lorry mounted 5 ton crane

Beiben 4×2 boom crane truck
Beiben 4×2 boom crane truck
Beiben 4×2 boom crane truck
Beiben 4×2 boom crane truck
Beiben 4×2 boom crane truck
Beiben 4×2 boom crane truck
Beiben 4×2 boom crane truck
Beiben 4×2 boom crane truck
Beiben 4×2 boom crane truck

Beiben 4x2 lorry mounted 5 ton crane

The Beiben 4×2 truck-mounted hydraulic crane is a versatile engineering vehicle that integrates transportation and lifting functions. Built on a Beiben 4×2 heavy-duty chassis, it is equipped with a 290-horsepower Weichai engine and a four-section straight-arm crane with a maximum lifting capacity of 5 tons and a working height of 11.5 meters. Combining a robust carbon steel cargo box with 360-degree full-slewing lifting capability, this model is particularly suitable for material handling and transfer tasks on-site, enabling efficient and integrated operations.

  • Market Price:

    $32500
  • Working Capcity:

    5000 kg
  • Cabin Type:

    NG80B long cabin, with sleeper
  • Dimension ( mm ) :

    8535×2500×3650
  • Drive System:

    4×2
  • Wheelbase (mm):

    4800
  • Engine Power:

    290HP/WP10.290E32
  • Gear Box:

    9JS150A
  • Remark:

    4×4, XCMG, palfinger/unic crane is optional
New Products

Beiben 4×2 truck-mounted telescopic crane is an engineering transport and lifting vehicle built on a Beiben 1929 heavy-duty chassis, featuring a 4×2 drive configuration and left-hand drive design. It is powered by a Weichai WP10.290E32 diesel engine, delivering 290 horsepower, and paired with a 9-speed manual transmission. With a total vehicle weight of 19 tons and robust axle load capacity, it provides a stable and reliable mobile platform for integrated lifting operations.

This Beiben 4×2 boom truck is equipped with an SQS125-4 four-section telescopic crane, offering a maximum lifting torque of 125 kN·m, a maximum lifting capacity of 5 tons, and a lifting height of up to 11.5 meters, supporting 360-degree full-slewing operation. The carbon steel cargo box measures 5600 × 2500 × 600 mm and, together with adjustable-span outriggers, enables the efficient integration of lifting operations and cargo transportation. It is well-suited for a variety of material loading, unloading, and transfer needs on-site.

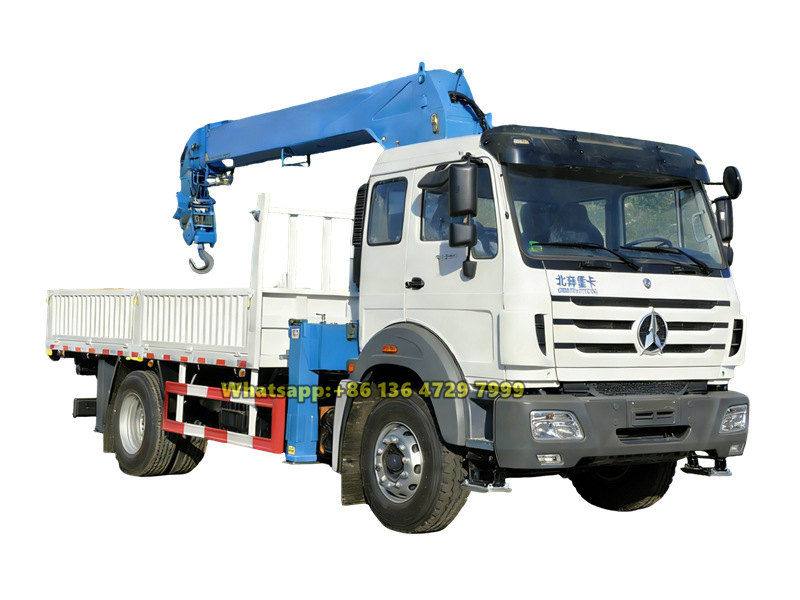

beiben 1929 telescopic boom truck

*Beiben 1929 truck mounted 5-ton crane

CEEC factory is authorized supplier on beiben hydraulic crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.



» Ⅰ.Product Introduction:

Manufacturer: CEEC TRUCKS

Chassis: Beiben 4×2 chassis, NG80B long cabin, Weichai 290HP diesel engine, Fast 9-speed gearbox

Crane model: CEEC SQS125-4, telescopic boom crane

Crane lifting capacity: 5 tons

Crane max lifting height: 11.5 m

 Crane max working radius: 9 m

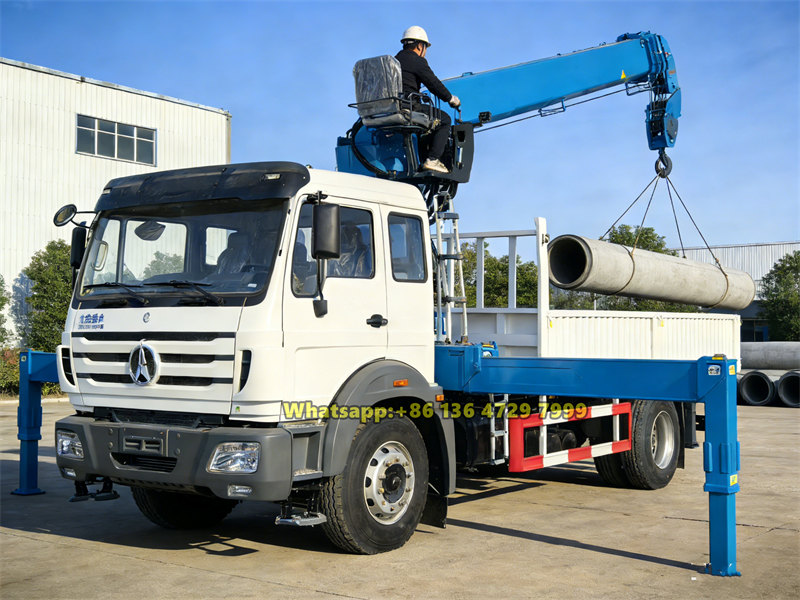

Beiben 4×2 5-ton telescopic boom truck



» Ⅱ. Product Specifications:



Vehicle Specifications

Chassis brand

Beiben

Cabin

Beiben NG80B long cabin, 2 seats and one sleeper bed, with aircon

Driving type

4x2, Left hand drive

Overall Dimensions

Overall size (L x W x H)

8535x2500x3650 mm

Wheelbase

4800 mm

Weight in KGS

GVW

19000 kg

Tare weight

12380 kg

Front axle loading capacity

7500 kg

Rear axles loading capacity

13000 kg

Engine

Type

Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Engine Model

WP10.290E32

Engine Brand

WEICHAI

Fuel Type

Diesel

Power

290 HP213KW

Emission Standard

Euro III

Displacement(ml)

9726

Max Speed

90 km/h

Gearbox

FAST 9JS150A, manual, 9-speed forwards and 1 reverse

Tire

12.00R20, 7 pieces including one spare tire

Crane Specifications

Model

SQS125-4

Max Lifting moment

125Kn.m

Max Lifting Capacity

5000 kg

Max Lifting Height

11.5m

Working Radius

9 m

Boom Section

4 sections

Rotation Angle

360°All Rotation

Working Pressure

20 Mpa

Rated Oil Flow

50 L/min

Oil tank Capacity

60 L

Outrigger Span

2280-5000mm

Crane Weight

2300 kg

Cargo Box Specifications

Size

5600×2500×600 mm

Material

Carbon steel

Thickness

Side walls: 3mm; floor: 4mm

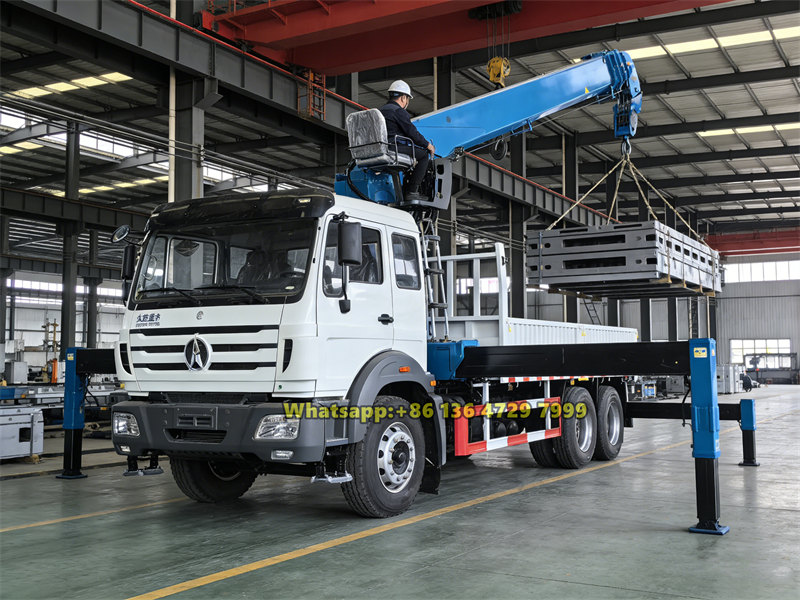

Beiben 1929 truck with hydraulic crane



» Ⅲ. Product Pictures:

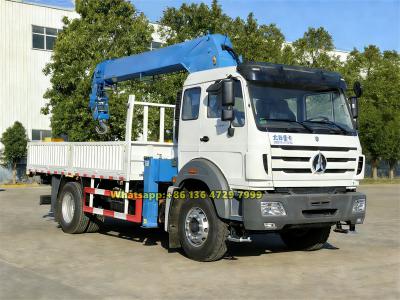

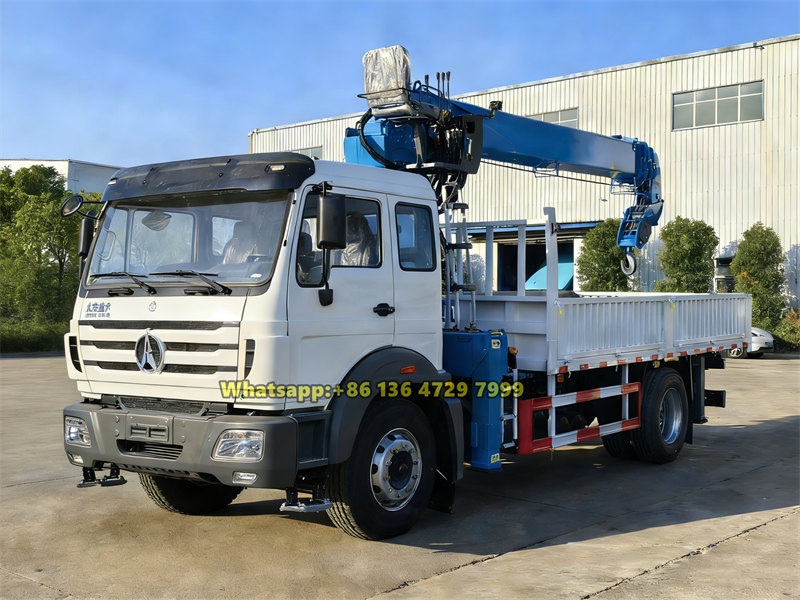

Beiben 4×2 heavy duty boom crane truck

Beiben 1929 boom crane truck

Beiben NG80B long cabin, 2 seats and one sleeper berth, with A/C

Weichai WP10.290E32 engine, 290HP, 6-cylinder, 9.726L displacement

FAST 9JS150A transmission, 9-speed forward and 1-speed reverse

Front axle 7500kg; rear axle 13000kg

Cargo box: 5600×2500×600 mm

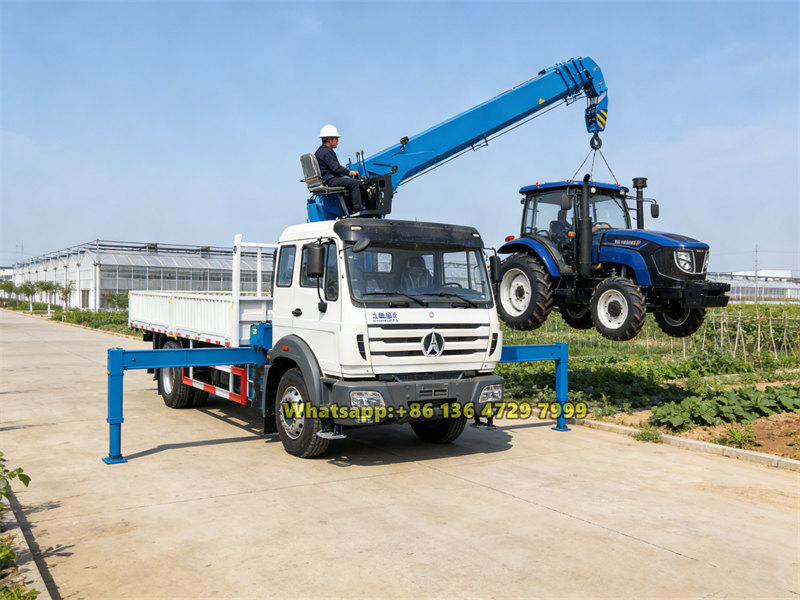

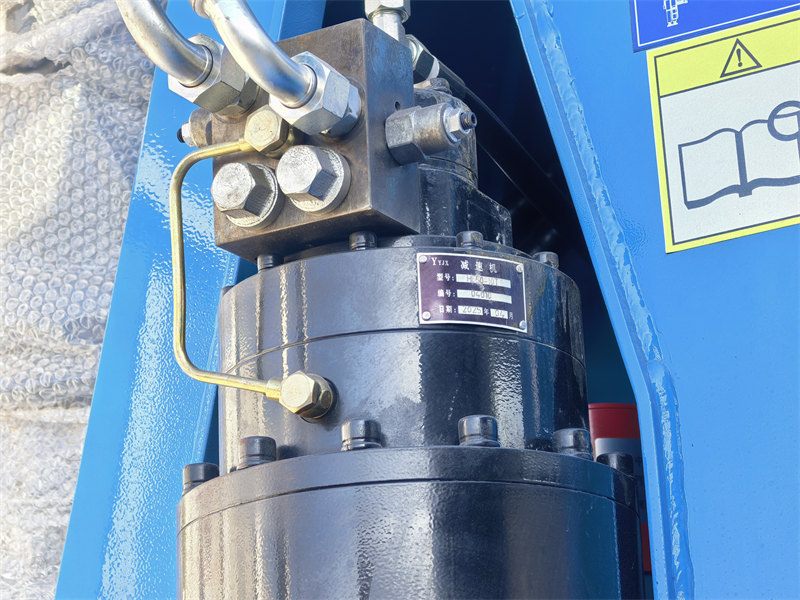

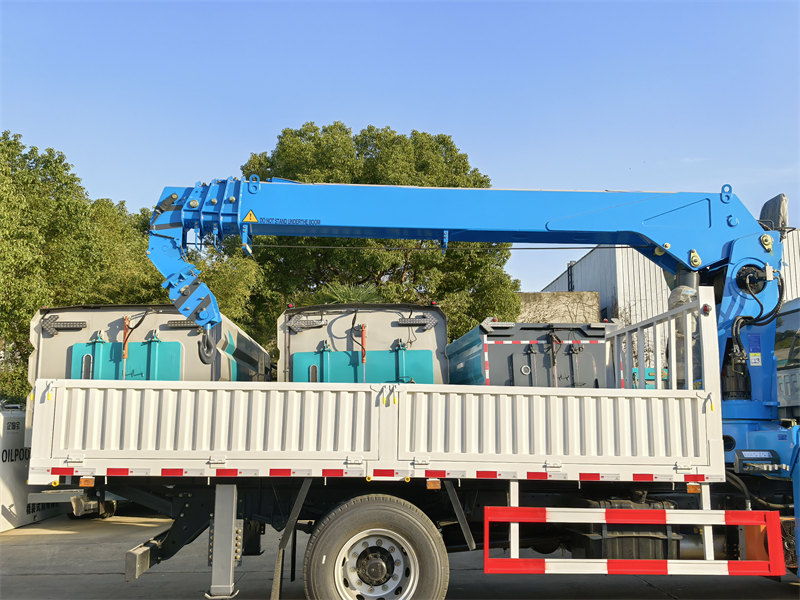

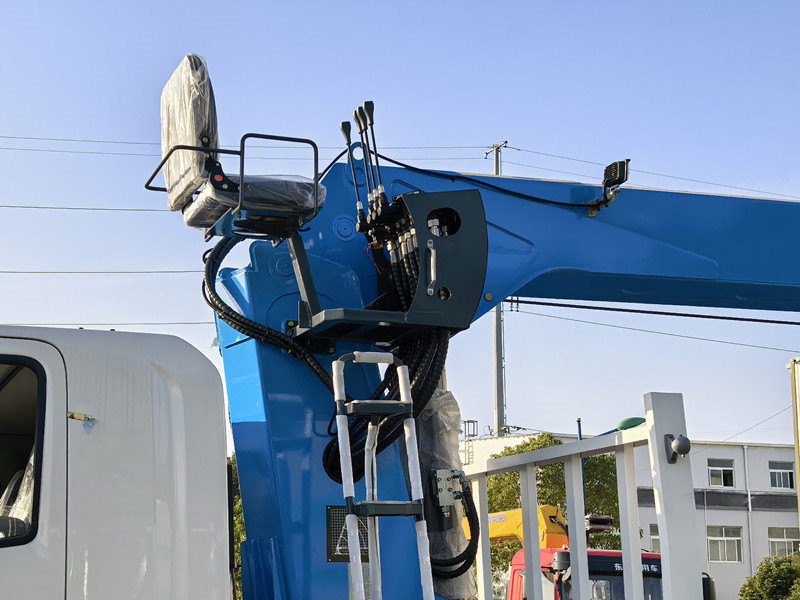

Beiben truck mounted 5-ton crane

CEEC 5-ton boom crane

• Strong Lifting Capacity: The crane boom is constructed from high-strength steel, enabling a lifting height of up to 11.5 meters.

• High Operational Efficiency: Equipped with a high-pressure oil pump and imported hydraulic components, ensuring smooth movements and excellent fine-control capability.

• Stability and Safety: The octagonal boom design minimizes lateral sway, while the large-span outriggers enhance operational stability and safety.





» Ⅳ. UNIC URV800 Crane Specifications:



Crane Parameters



Item

Unit

Parameters

Max lifting moment

kN.m

125

Max lifting capacity

kg

5000

Max. outreach

m

9.5

Max lifting height

m

11.5

Rated Flow of Hydraulic System

l/min

50

Oil tank capacity

L

60

Rated Pressure of Hydraulic System

MPa

20

Recommended Power

kw

24

Installation Space

mm

630

Slewing angle

°

360

Crane Weight

kg

2300

Boom section



4

Outrigger span

mm

2280~5000

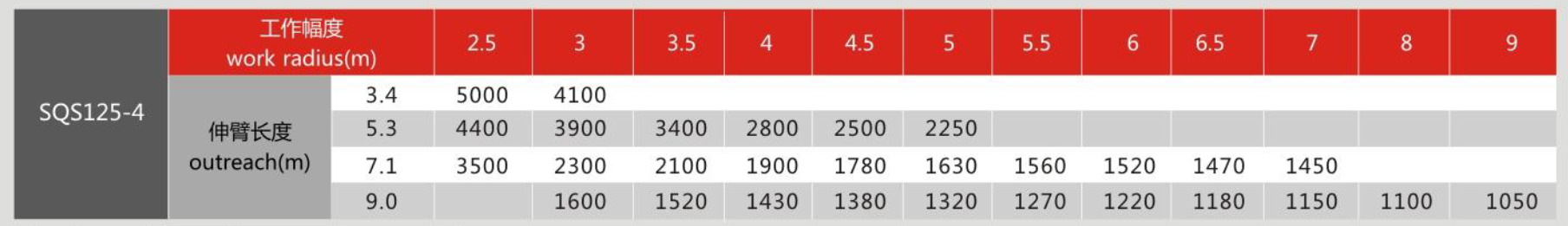

Crane Rated Load

Beiben 5 ton truck crane rated load

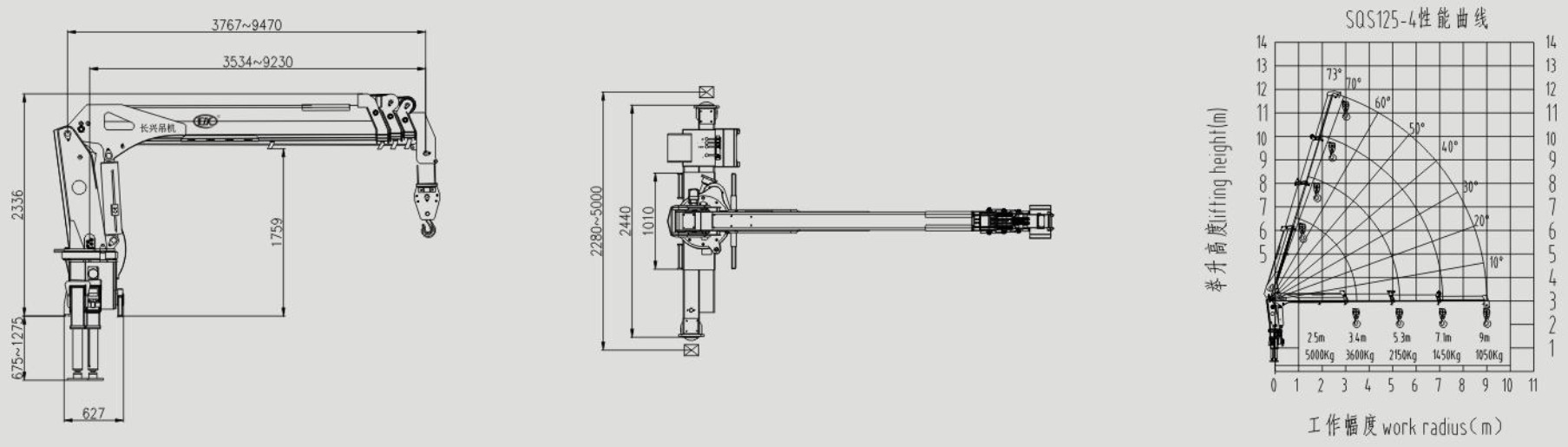

Crane Drawing

Beiben 5-ton truck crane drawing



» . Product Applications:

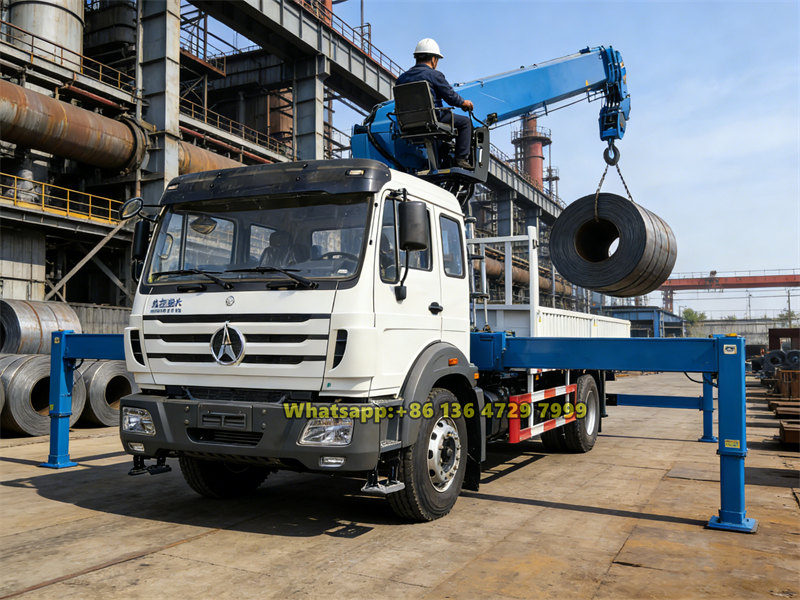

  • Beiben boom crane truck applications
  • Beiben truck mounted crane applications

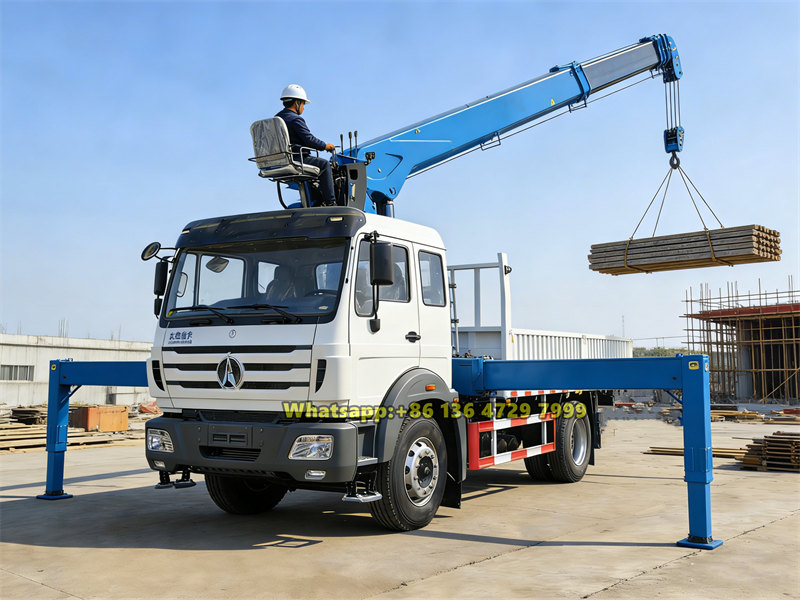

  • Beiben truck mounted hydrulic crane applications





Products--100% china beiben factory trucks!

Shipping --100% fast, Convenience, Efficient!

Guarantee--7days + 24hours Safetify Service!



1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive boom crane trucks for option



2. Factory direct sale, supply Beiben crane trucks with lifting capacity 5000kg to 25000kg



3. XCMG, Palfinger, UNIC, ZOOMLION telescopic or knuckle boom cranes for option



4. Optional: remote control, moment limited valve, high sesat on column, drill, etc.
