The Beiben 6×4 truck-mounted stiff crane is a high-efficiency special-purpose engineering vehicle that integrates both lifting and transportation functions. Adopting the Beiben NG80B long cab, this vehicle features a 6×4 drive configuration. It is powered by a 420-horsepower Weichai engine matched with a 12-speed transmission, and equipped with a UNIC 8-ton telescopic boom crane with a working radius of 12.5 meters. With a cargo box dimension of 7000×2500×600 mm, it is suitable for lifting and transportation operations in various scenarios such as engineering, logistics, and landscaping.
Market Price:
$48500Working Capcity:
8000 kgCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
10300×2550×3750Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
XCMG, palfinger/unic crane is optionalThe Beiben 2642 truck-mounted hydraulic crane is a high-efficiency special-purpose vehicle integrating lifting and cargo transportation functions. Its core component is the UNIC 8-ton telescopic boom crane. The vehicle adopts the Beiben NG80B long cab with a 2-seat and 1-berth layout, and a 6×4 drive form. It is powered by the Weichai WP12.420E32 420-horsepower engine, paired with a Fast 12-speed manual transmission. The chassis has solid and stable load-bearing performance, which can flexibly adapt to operational needs in various scenarios including engineering construction and logistics transportation.
The equipped UNIC URV800 crane has a maximum lifting capacity of 8 tons, with 4 telescopic booms, a maximum working radius of 12.5 meters and a maximum lifting height of 14 meters. It supports 360° full-circle slewing operation, and the outrigger span reaches 5.1 meters, ensuring strong operational stability. The cargo box of the Beiben 2642 truck with hydraulic crane measures 7000×2500×600 mm, enabling it to efficiently complete core operations such as loading and unloading of construction materials like steel bars and pipes, installation of outdoor equipment, and transfer of emergency rescue supplies, thus balancing operational flexibility and transportation practicality.
CEEC factory is authorized supplier on beiben hydraulic crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×4 chassis, NG80B long cabin, Weichai 420HP diesel engine, Fast 12-speed gearbox
▶ Crane model: UNIC URV800, telescopic boom crane
▶ Crane lifting capacity: 8 tons
▶ Crane max lifting height: 14.4 m
▶ Crane max working radius: 12.5
» Ⅱ. Product Specifications:
|
BEIBEN truck bed mounted UNIC crane specifications |
|||
|
Vehicle model |
CEECJ5260SQ |
||
|
Chassis brand |
Beiben |
||
|
Driving Type |
6×4, left hand drive |
||
|
Cabin |
Beiben NG80B long cabin, 2 seats and one bed |
||
|
Crane lifting capacity |
8000 kg |
||
|
Dimensions |
|||
|
Wheelbase(mm) |
4450+1450 |
||
|
Overall Dimension(mm) |
10300×2550×3750 |
||
|
Cargo box dimension(mm) |
7000x2500x600 |
||
|
Weight parameters |
|||
|
GVW(kg) |
26,000kgs |
||
|
Curb weight(kg) |
15,800kgs |
||
|
Rated load weight(kg) |
10,200kgs |
||
|
Chassis parameter |
|||
|
Front axle |
7500 kg, non-driving axle |
||
|
Rear/middle axle |
13000kg+13000kg, double reduction driving axle, differential lock |
||
|
Front wheel track (mm) |
1995 |
||
|
Rear wheel track (mm) |
1800/1800 |
||
|
Front/rear overhang(mm) |
1515/2885 |
||
|
Approach angle (°) |
23 |
||
|
Departure angle (°) |
11 |
||
|
Max speed(km/h) |
89 |
||
|
Suspension |
Leaf spring suspension, front 10 pcs, rear 13 pcs |
||
|
Engine performance |
|||
|
Brand |
Weichai |
||
|
Engine model |
WP12.420E32 |
||
|
Engine type |
Straight in-line, 6 cylinders, 4 strokes, water-cooling, turbocharged with inter-cooling, diesel engine |
||
|
No. of cylinders |
Straight-6 cylinders |
||
|
Displacement(L) |
11.596 L |
||
|
Fuel type |
Diesel |
||
|
Max. output (kw/Ps) |
309kw/420 ps |
||
|
Rated speed (rpm) |
2100 rpm |
||
|
Max. torque (N.m) |
1750 N.m |
||
|
Fuel tank (L) |
400 |
||
|
Tires |
|||
|
Tire specifications |
12.00R20 |
||
|
Number of tires |
10 pcs and one spare tire |
||
|
Drive Line |
|||
|
Clutch description |
¢430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance |
||
|
Transmission |
FAST 12JS200T, 12 forwarders, 2 reverse gear, synchronous meshing, manual |
||
|
Braking system |
Service brake: Brake gap can be adjusted automatically double circulation air brake system |
||
|
Suspension system |
|||
|
Front axle |
Semi-elliptic leaf springs shock absorbers |
||
|
Rear axle |
Torsion bar semi-elliptic leaf springs |
||
|
Electrical Equipment |
|||
|
Voltage |
24V |
||
|
Batteries |
2X12V/135Ah |
||
|
Starter |
6.2Kw/24V |
||
|
UNIC 8-ton telescopic boom crane specifications |
|||
|
Crane model |
URV800 |
Unit |
|
|
Max lifting capacity |
8000 |
kg |
|
|
Max. working radius |
12.5 |
m |
|
|
Max lifting height |
14 |
m |
|
|
Number of boom sections |
4 |
||
|
Outrigger span |
5.1 |
m |
|
|
Rotation Angle |
360 |
° |
|
|
Oil Tank Capacity |
90 |
L |
|
» Ⅲ. Product Pictures:

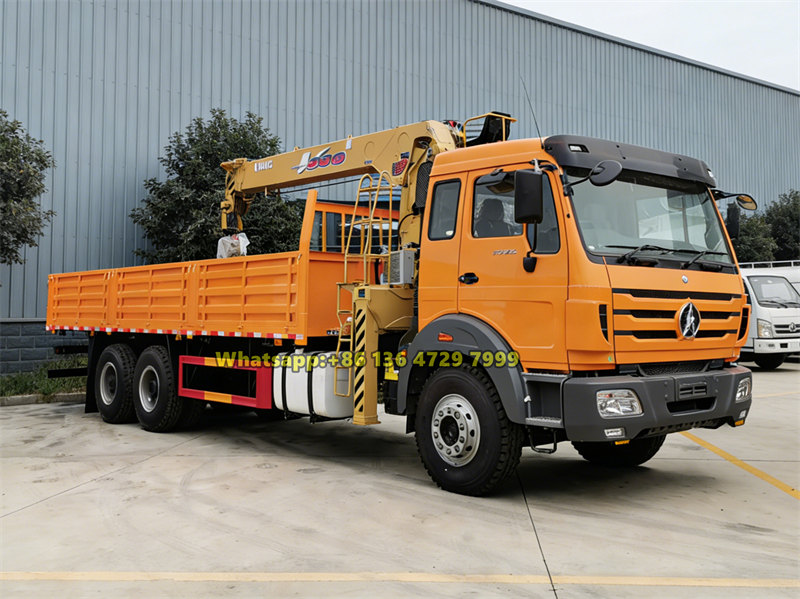

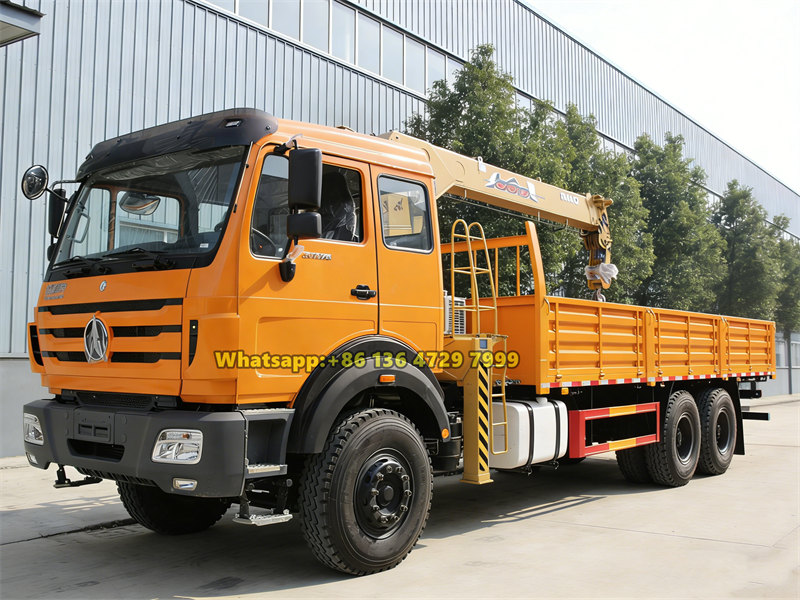

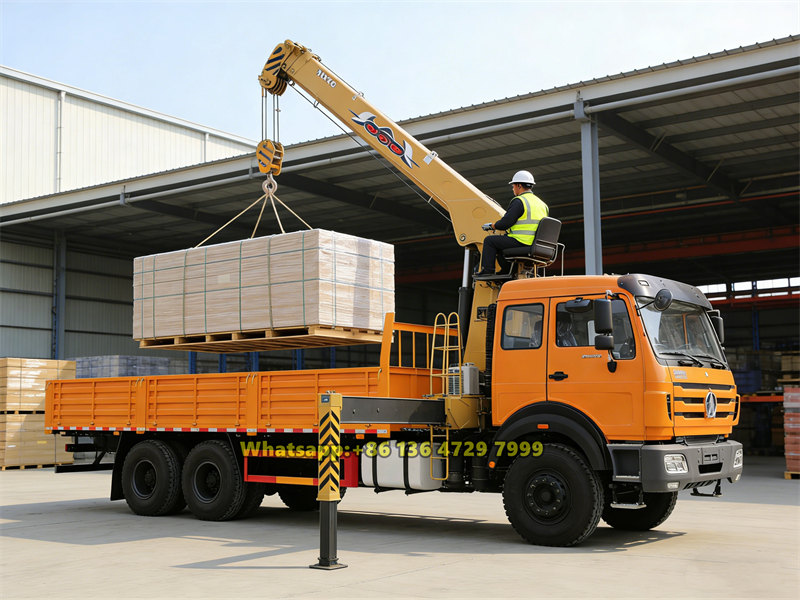

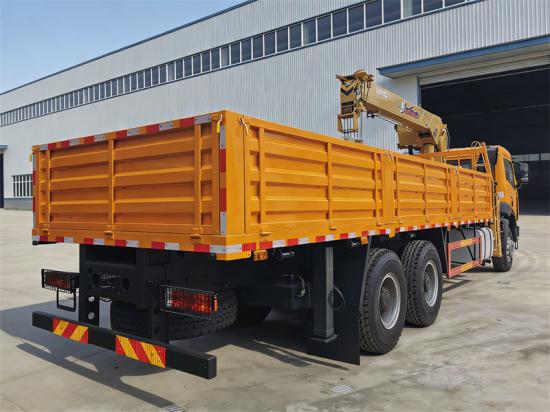

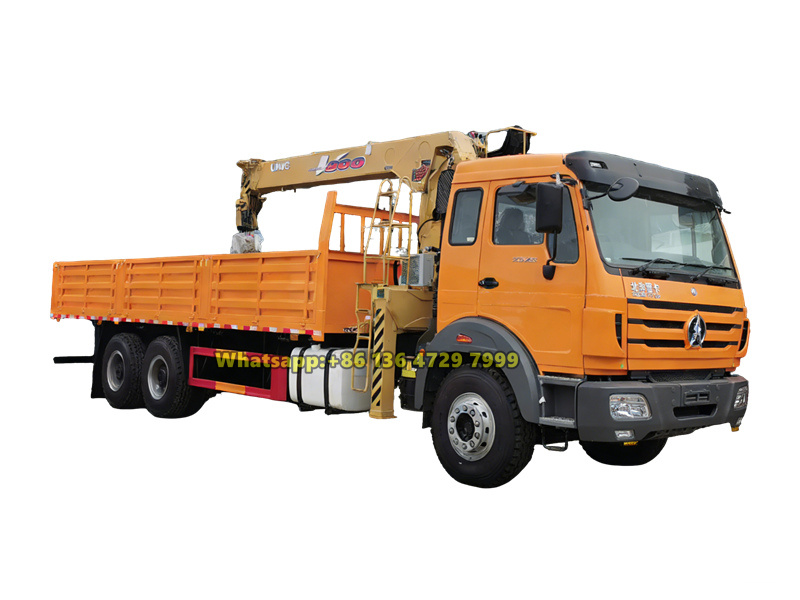

Beiben 2642 truck mounted crane
Beiben NG80B long cabin, 2 seats and one sleeper berth, with A/C
Weichai WP12.420E32 engine, 420HP, 6-cylinder, 11.596L displacement
FAST 12JS200T transmission, 12-speed forward and 2-speed reverse
Front axle 7500kg; rear axle 13000kg+13000kg

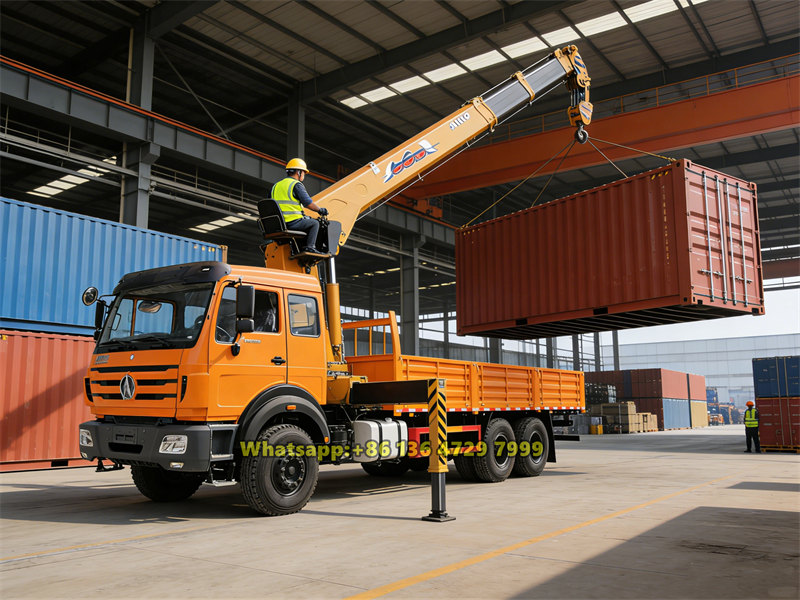

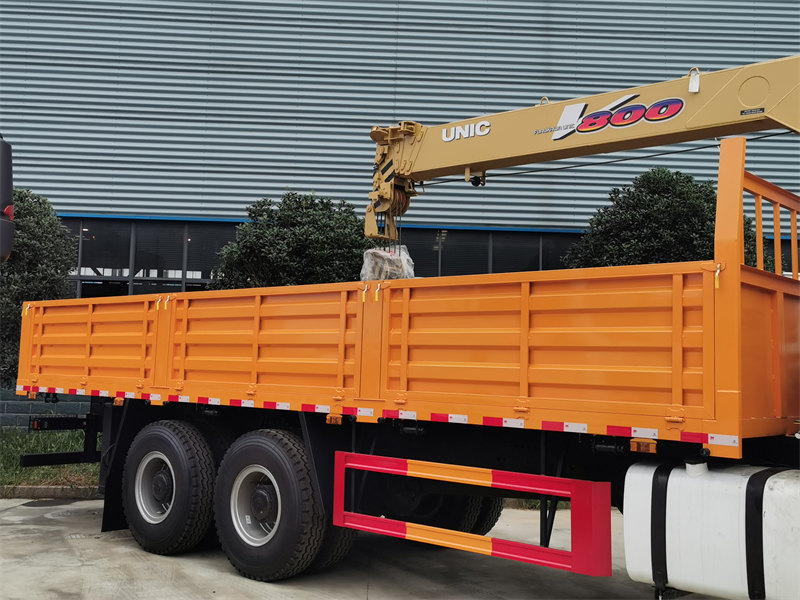

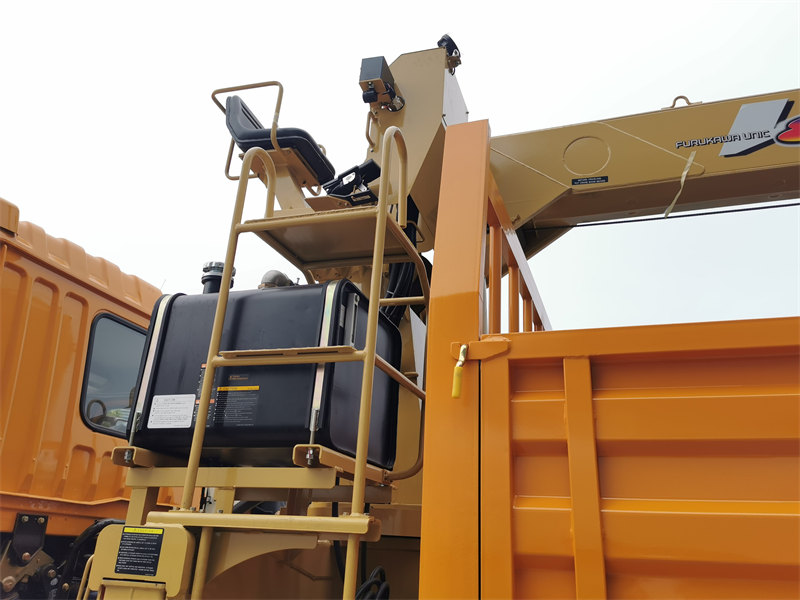

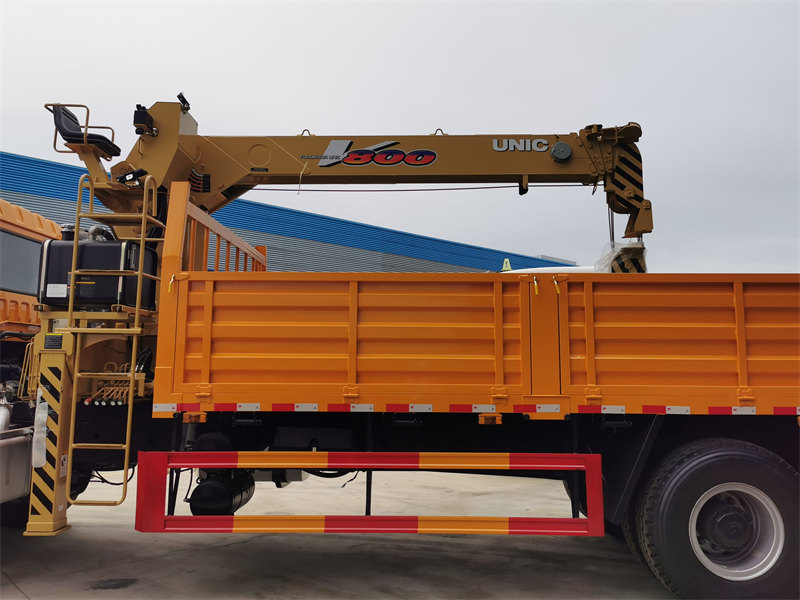

UNIC telescopic boom crane
Exquisite craftsmanship and high durability
Stable and reliable lifting performance;
Leading technology and convenient operation;
Comprehensive safety features.
» Ⅳ. UNIC URV800 Crane Specifications:
Specification Table
|
MODEL |
URV803 |
URV804 |
URV805 |
|
Max. Lifting Capacity |
8,070 kg at 2.5 m |
8,070 kg at 2.5 m |
8,070 kg at 2.5 m |
|
Max. Hook Height |
11.1 m |
14.4 m |
17.5 m |
|
Max. Working Radius |
9.20 m |
12.50 m |
15.60 m |
|
Max. Boom Length |
9.50 m |
12.80 m |
15.90 m |
|
Min. Boom Length |
4.20 m |
4.30 m |
4.40 m |
|
Boom Sections |
3 |
4 |
5 |
|
Boom Raising Angle |
Min. 1° to Max. 80° |
Min. 1° to Max. 80° |
Min. 1° to Max. 80° |
|
Slewing Angle |
360° Continuous |
360° Continuous |
360° Continuous |

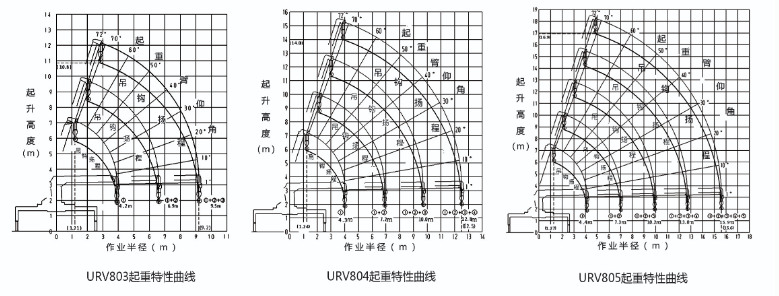

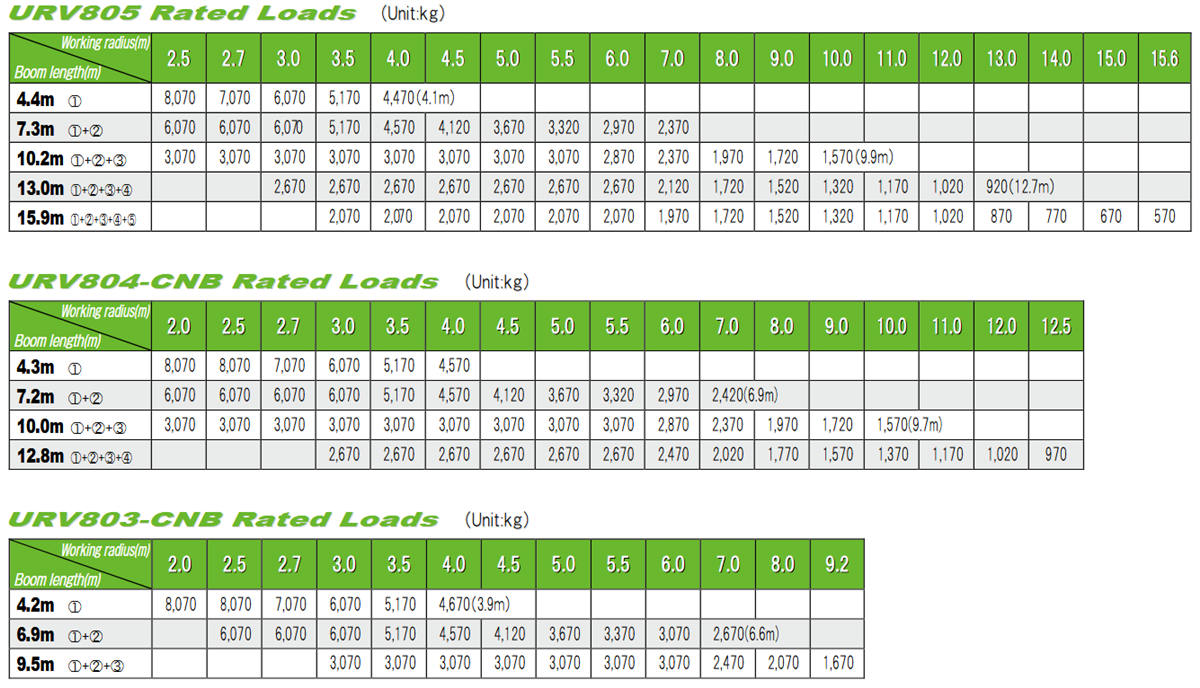

Crane Rated Load

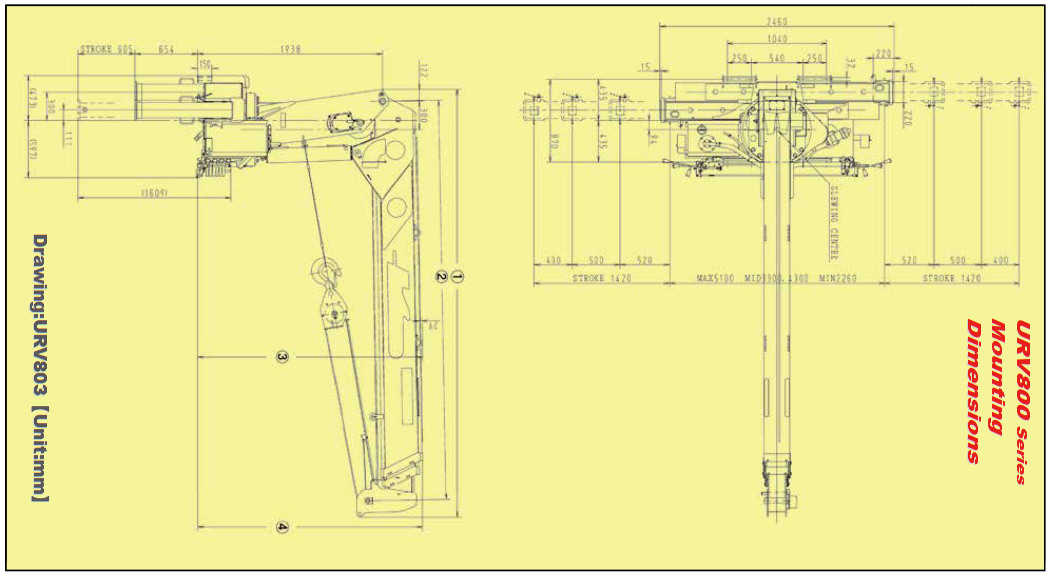

Crane Drawing

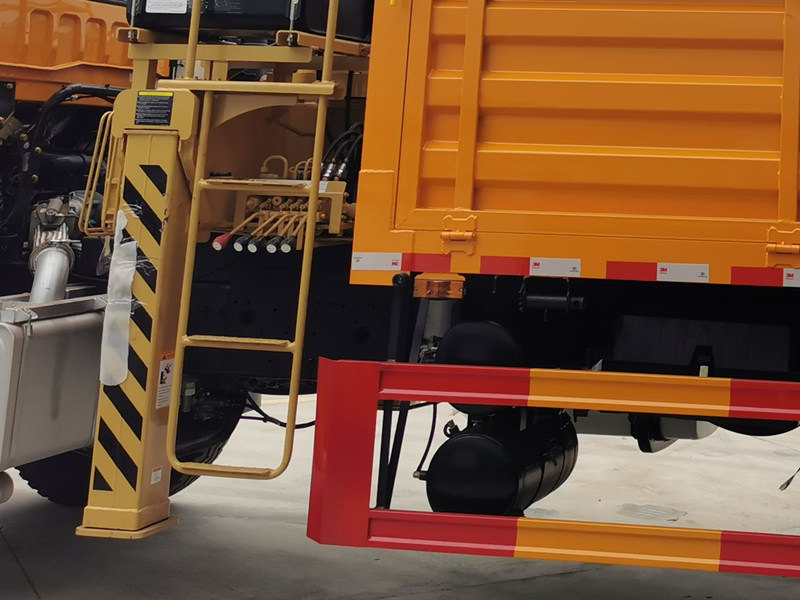

» Ⅴ. Product details:

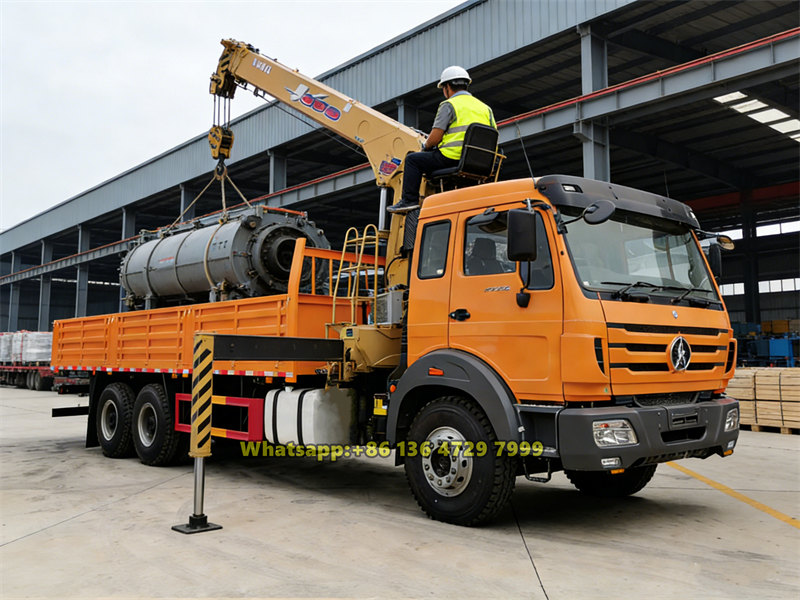

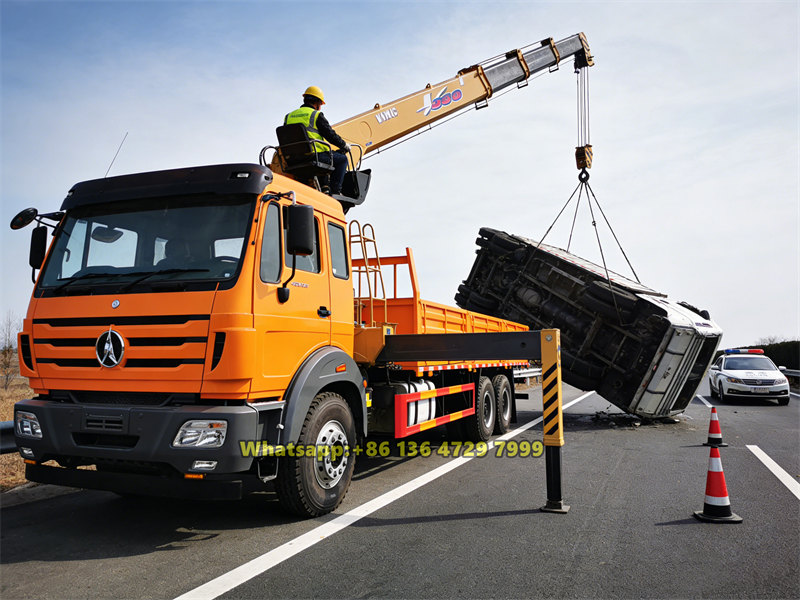

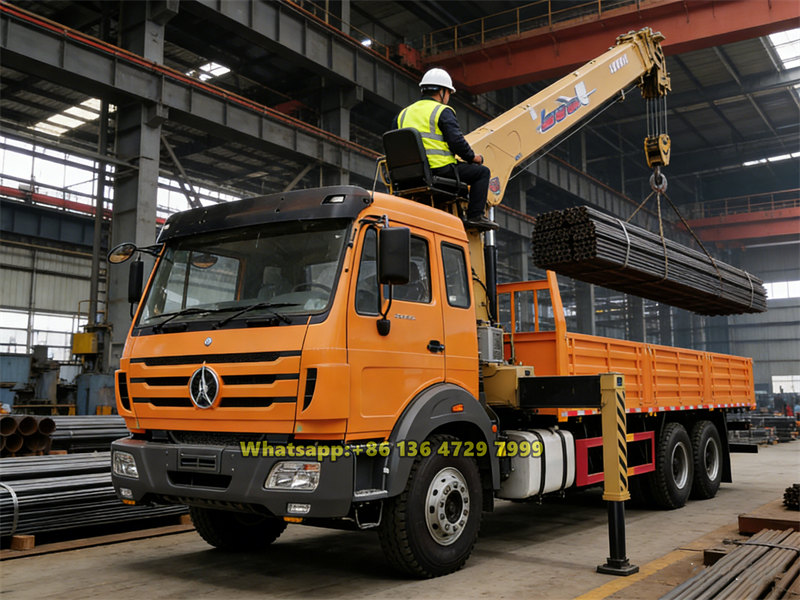

» Ⅵ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive boom crane trucks for option
2. Factory direct sale, supply Beiben crane trucks with lifting capacity 5000kg to 25000kg
3. XCMG, Palfinger, UNIC, ZOOMLION telescopic or knuckle boom cranes for option
4. Optional: remote control, moment limited valve, high sesat on column, drill, etc.
The Beiben 8×4 truck-mounted crane is a versatile engineering vehicle that integrates heavy-duty lifting and transportation functions. It is built on a Beiben 8×4 heavy-duty chassis and equipped with a Palfinger SPS25000 crane, offering a maximum lifting capacity of 10 tons and a working radius of up to 14 meters. Combined with an 8-meter-long cargo bed, it enables efficient integrated lifting and transportation operations, making it widely suitable for flexible work scenarios such as engineering construction and logistics transfer.
The Beiben V3 Truck Loader Crane is a multifunctional engineering vehicle based on the Beiben 8×4 heavy-duty chassis, integrating transport and lifting capabilities. It is equipped with a Shimei QYS-14V telescopic crane, featuring a maximum lifting capacity of 14 tons, a working height of 22 meters, and 360° full rotation. Powered by a Weichai high-horsepower engine and paired with a reinforced cargo box, the vehicle is designed to deliver robust power, efficient lifting, and reliable load-bearing performance. It is specifically tailored for heavy-duty applications such as municipal engineering and port logistics.
The Beiben 2642 Truck-Mounted Palfinger Crane is a highly efficient and versatile engineering vehicle. It is built on a robust Beiben 6×4 chassis and powered by a Weichai 420 horsepower engine, equipped with a Palfinger SPS40000 16-ton five-section straight-arm crane. With a maximum lifting height of 21.5 meters and 360-degree full rotation capability, its design balances heavy lifting and daily transport needs, making it suitable for various engineering scenarios such as construction and logistics.

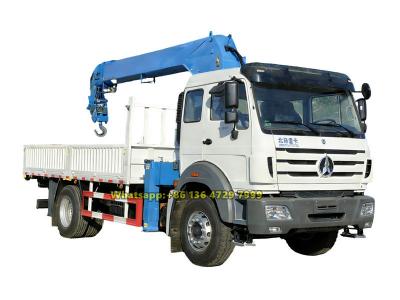

The Beiben 4×2 truck-mounted hydraulic crane is a versatile engineering vehicle that integrates transportation and lifting functions. Built on a Beiben 4×2 heavy-duty chassis, it is equipped with a 290-horsepower Weichai engine and a four-section straight-arm crane with a maximum lifting capacity of 5 tons and a working height of 11.5 meters. Combining a robust carbon steel cargo box with 360-degree full-slewing lifting capability, this model is particularly suitable for material handling and transfer tasks on-site, enabling efficient and integrated operations.
