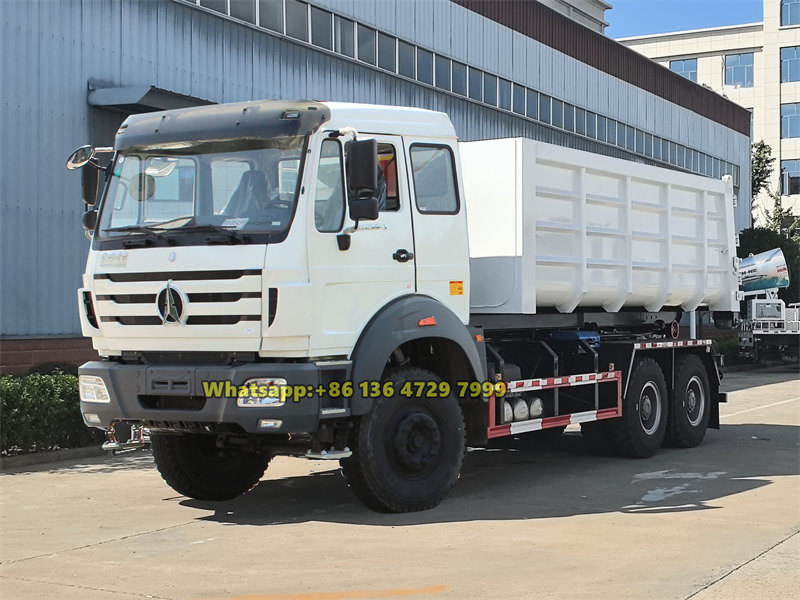

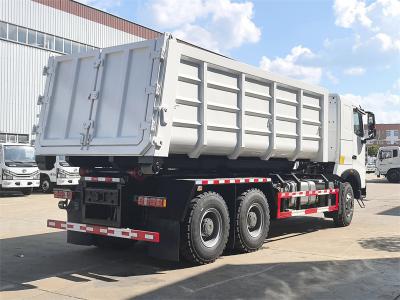

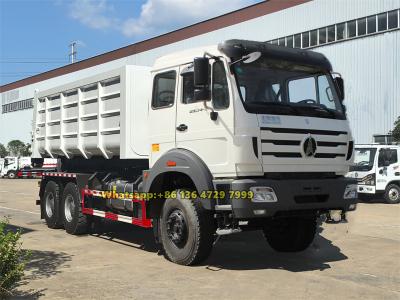

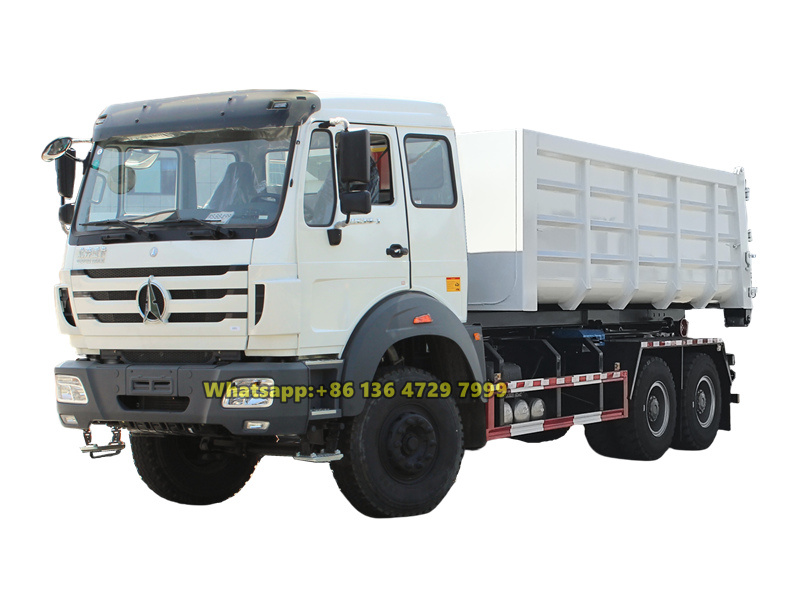

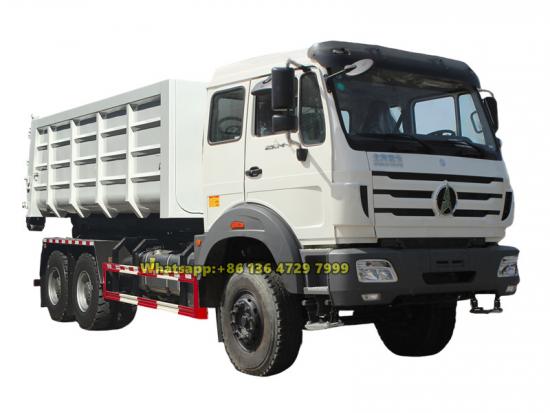

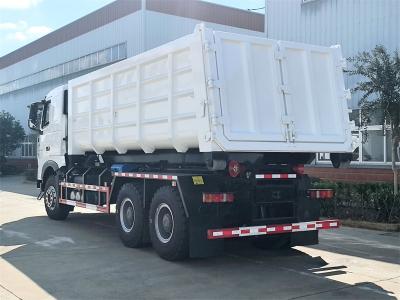

The Beiben 6×4 20-ton hooklift garbage truck is a highly efficient sanitation equipment featuring a detachable container design, enabling one vehicle to work with multiple containers in a cyclic transportation model. Powered by a 380-horsepower engine, it offers a maximum lifting capacity of 20 tons and a container volume of 20 cubic meters, ensuring swift and reliable loading and unloading operations.
Working Capcity:
20 tonsCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
8600×2500×3050Drive System:
6×4Wheelbase (mm):
4100+1450Engine Power:
380HP/WP10.380E32Gear Box:
9JSD150ARemark:
12.00R20 tyres, 20 T hook loader systemThe Beiben 6×4 truck mounted hook loader is a high-efficiency waste transfer vehicle, utilizing a detachable container system that allows one vehicle to work interchangeably with multiple containers. Equipped with a 380-hp Weichai engine, a FAST 9-gear transmission, and a 13-ton dual rear axle, it delivers exceptional load-bearing performance. The hook-arm system, constructed from high-strength steel, provides a maximum lifting capacity of 20 tons and is compatible with 20-cubic-meter garbage containers.
CEEC factory is authorized supplier on beiben garbage trucks,
guarantee all beiben hook loader trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Strong Load-Bearing: 380HP engine, 13-ton dual rear axle, 20-ton lifting capacity
▶ High Efficiency: Loading time ≤60S, Unloading time ≤72S
▶ Multi-Container Operation: One vehicle can work with multiple containers
▶ Durable Build: High-strength steel hook-arm, reinforced chassis.
» Ⅱ. Product Specifications:
|
Beiben 6×4 20 Ton Hook Loader Garbage Truck Specifications |
||
|
Overall dimensions |
8600*2500*3050 mm |
|
|
GVW |
26000 kg |
|
|
Curb weight |
13200 kg |
|
|
Chassis brand |
Beiben |
|
|
Traction type |
6×4, left hand drive |
|
|
Chassis Description |
||
|
Chassis model |
Beiben 2638 |
|
|
Cab |
Beiben NG80B long cabin, 2 seats and one sleeper, all welded steel cab of tilt type, mechanical cab tilting |
|
|
Adjustable suspension driver's seat, air conditioning system |
||
|
Wheelbase |
4100+1450mm |
|
|
Tire specification |
12.00R20 |
|
|
Tire quantity |
10+1 units |
|
|
Engine |
Engine model |
WEICHAI WP10.380E32 |
|
Emission standard |
Euro 3 |
|
|
Displacement |
9726ml |
|
|
Power |
380HP/280kw |
|
|
Rated speed |
2200 rpm |
|
|
Max. torque |
1600 N.m |
|
|
Transmission |
Type |
FAST 9JSD150 |
|
Number of gears |
9 forward gears& 1 reverse, manual |
|
|
Brake system |
Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake |
|
|
Axle |
Front |
7.5 Ton |
|
Rear |
13 Ton×2 |
|
|
Suspension |
Front |
10 pcs leaf spring with shock absorber |
|
Rear |
13 pcs leaf spring |
|
|
Fuel tanker |
Type |
Steel fuel tank, with lockable cap |
|
Capacity |
400L |
|
|
Upper body specifications |
||
|
Garbage container effective volume (CBM) |
20CBM |
|
|
Max. lifting capacity of hook arm(T) |
20 |
|
|
The Hook arm material |
High strength carbon steel |
|
|
System pressure (Mpa) |
30 |
|
|
Control voltage (V) |
24 |
|
|
Extension of hook arm (mm) |
1100 |
|
|
Height of hook center (mm) |
1570 |
|
|
Max. dumping angle (°) |
50 |
|
|
Loading Working Time (s) |
≤60 |
|
|
Unloading Working Time(s) |
≤72 |
|
|
Discharge Work Cycle Time(s) |
≤110 |
|
» Ⅲ. Chassis Advantages:
Durable Axles
Front axle payload: 7500kg
Driving axle payload: 13000kg+13000kg
Driving axle ratio: 4.769
Powerful Engine
Model: WP10.380E32
Number of cylinders: 6
Power: 380HP/280KW
Displacement: 9726ml
Rated speed: 2200 rpm

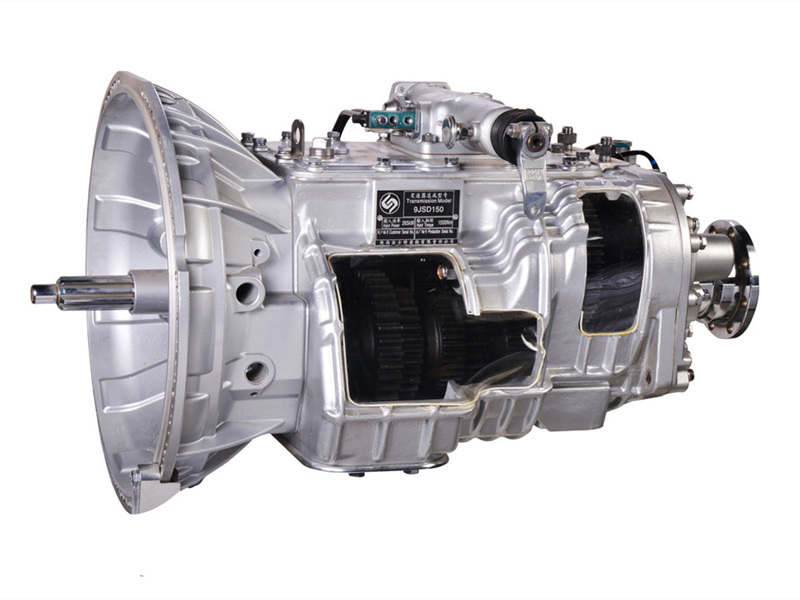

FAST Gearbox
Model: 9JSD150
Gear: 9-speed forwards and 1 reverse
Max. input torque: 1500 N.m

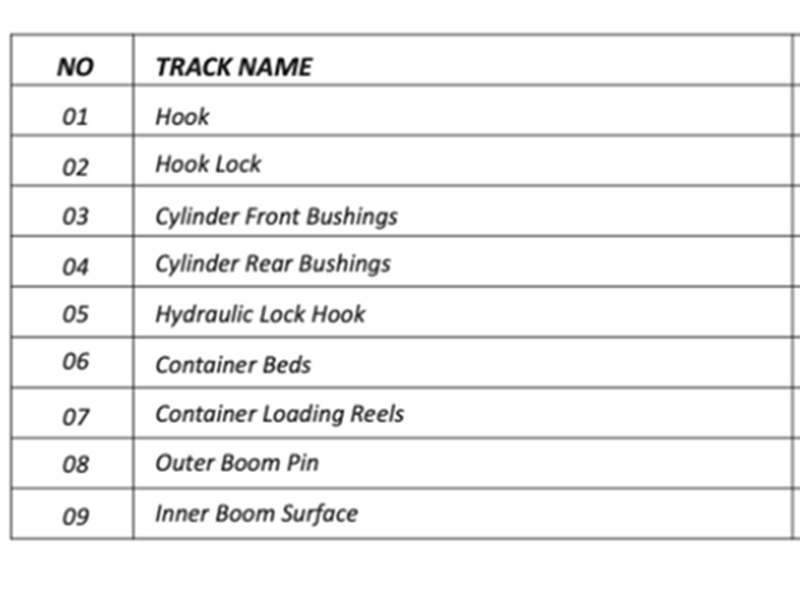

» Ⅳ. Hook Loader Structure:
 |
 |

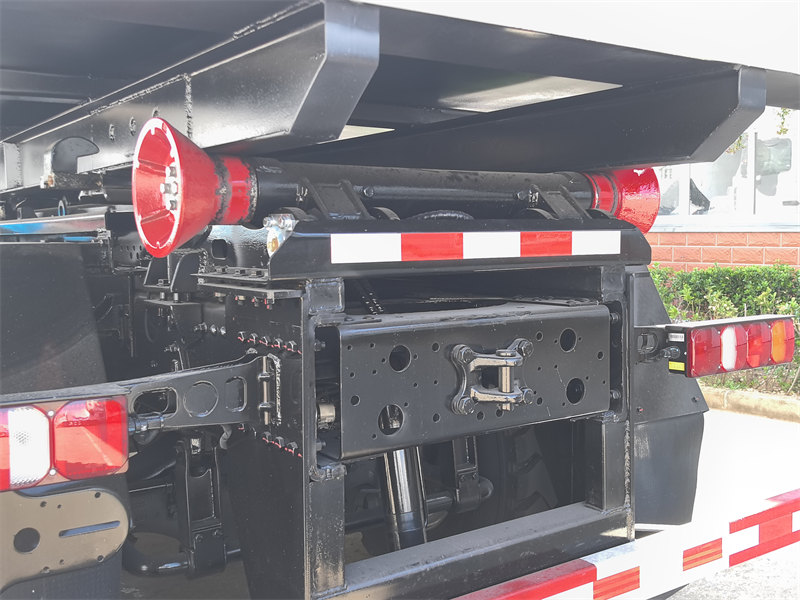

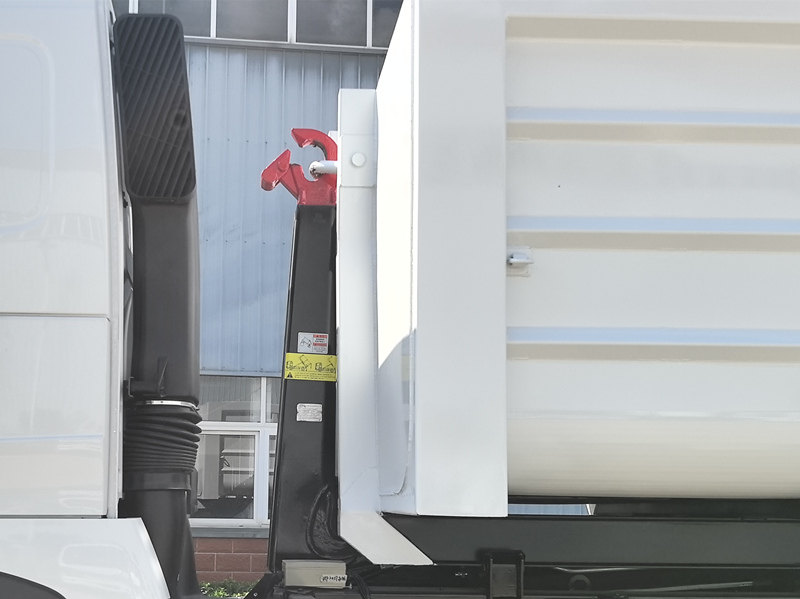

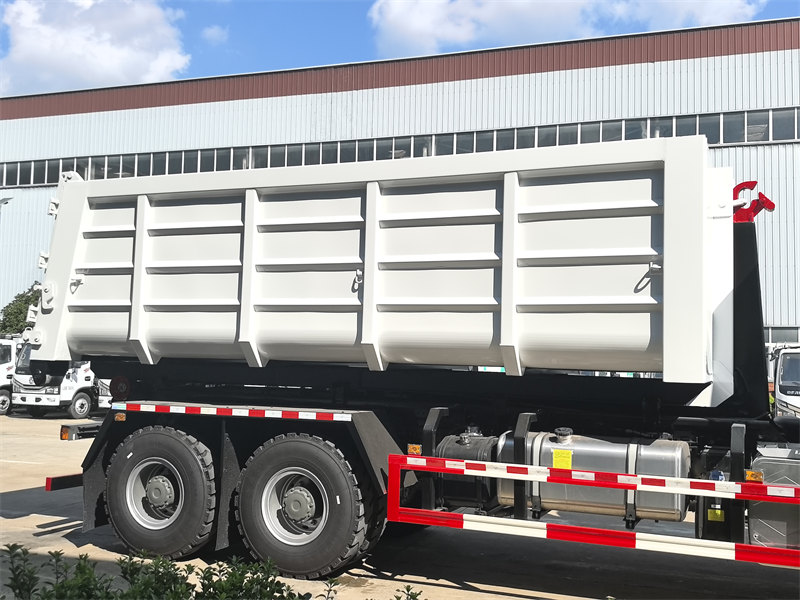

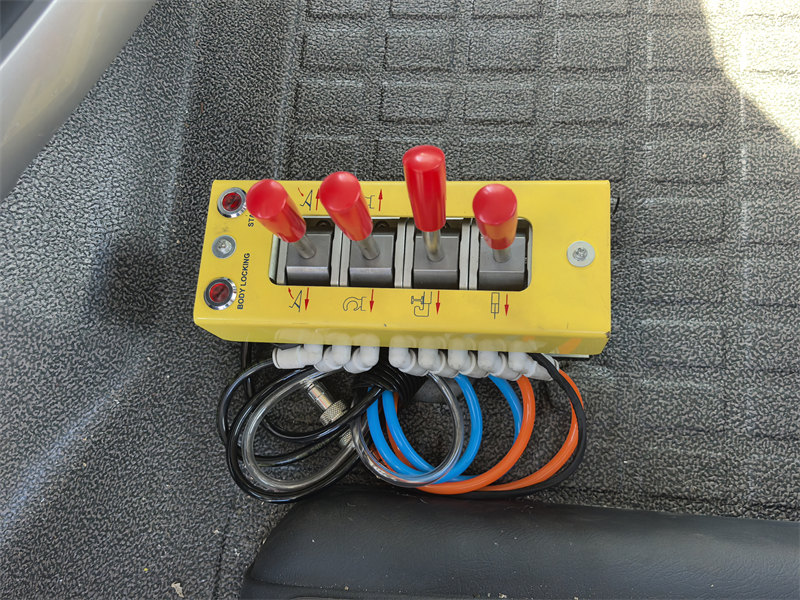

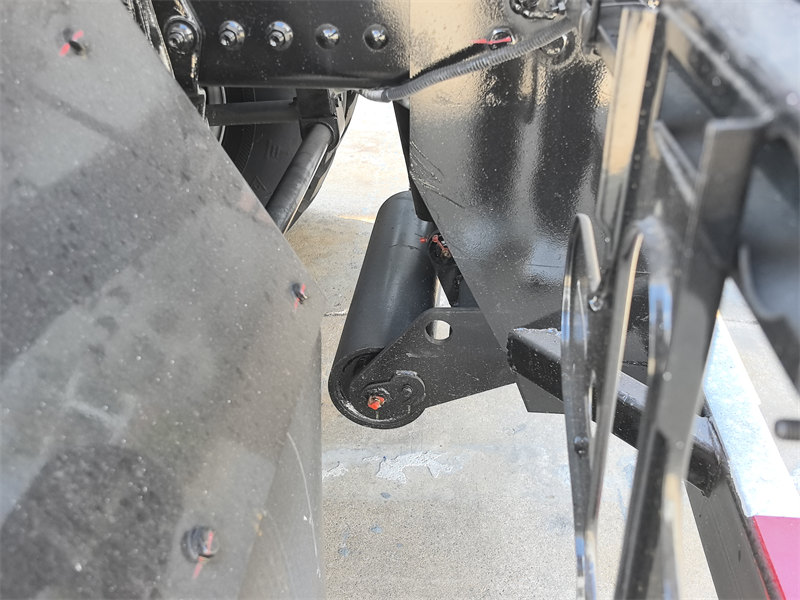

» Ⅴ. Hook Loader Details:

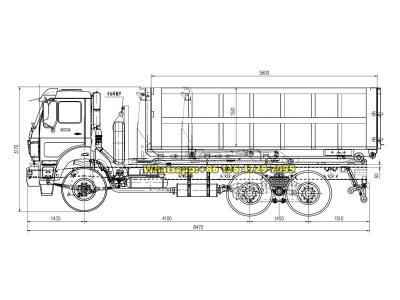

» Ⅶ. Product Drawing:

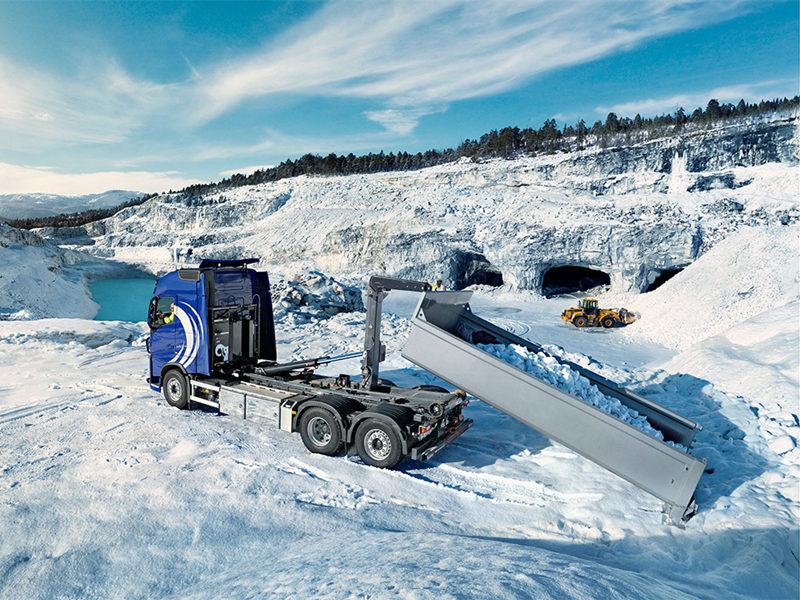

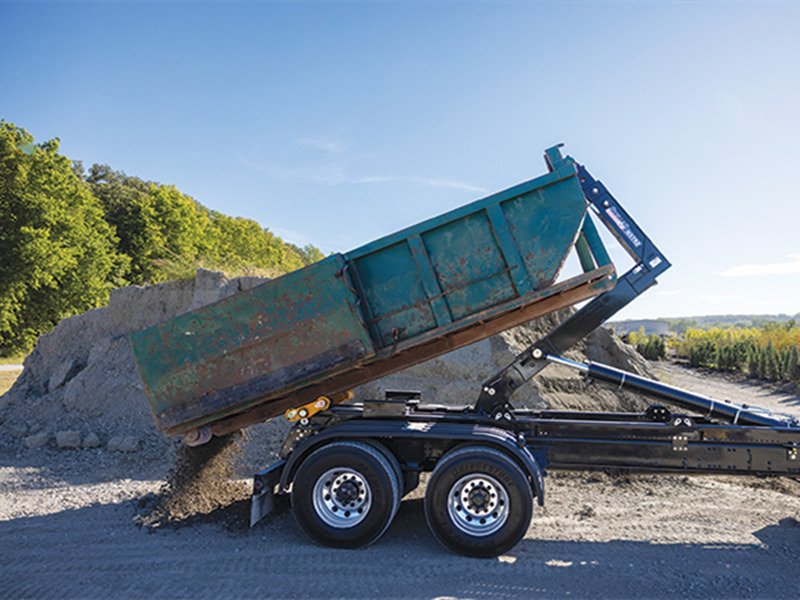

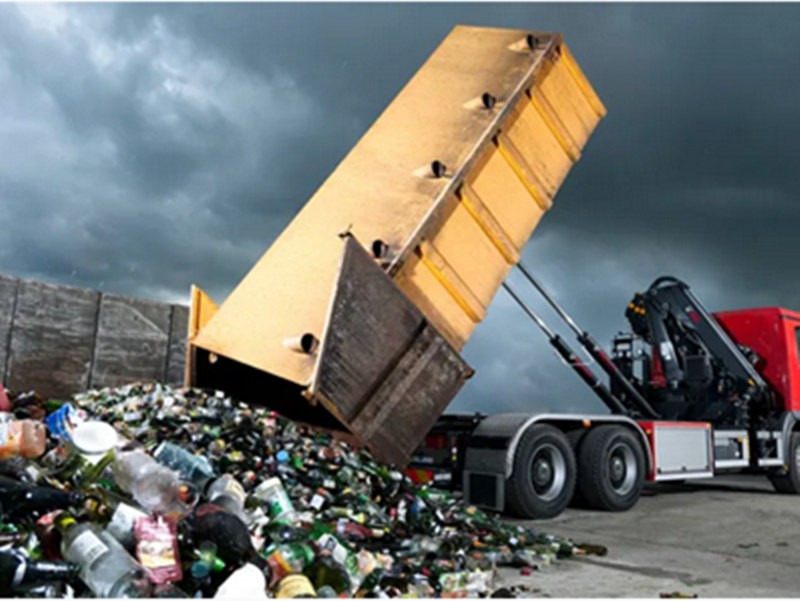

» Ⅷ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive hooklift garbage trucks for option
2. Factory direct sale, supply Beiben 15 Ton, 20 Ton, 25 Ton, 30 T capacity hook loader trucks
3.12 months after sale service guarantee, quality assurance.
4. Beiben trucks mounted VOLER, HYVA, PALFINGER hook loader brand.
The Beiben 6×4 20-ton Hooklift Garbage Truck is a professional and high-efficiency environmental sanitation transfer equipment. Built on the robust Beiben heavy-duty chassis, its core hydraulic hooklift system boasts a 20-ton operating capacity, enabling it to quickly load, unload, and self-dump a 20-cubic-meter standard garbage bin in just 50 seconds. it is an ideal choice for modern urban environmental sanitation systems.
