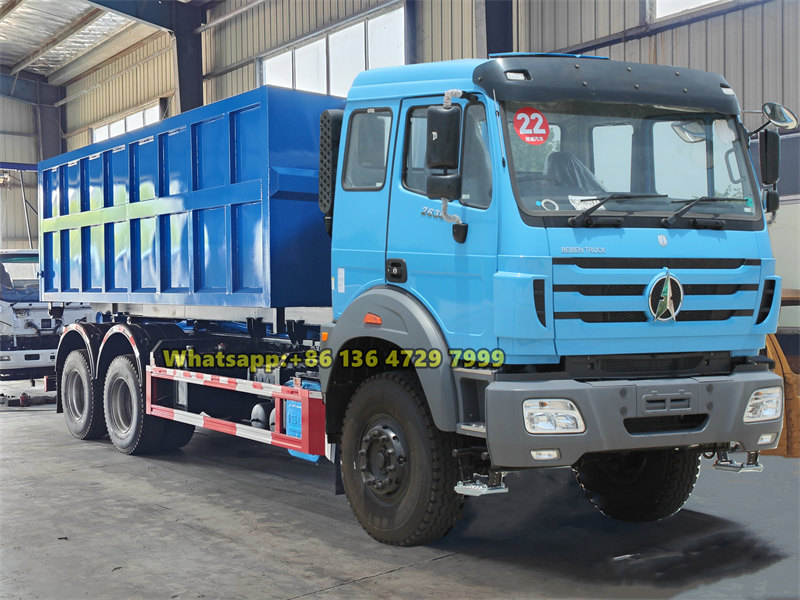

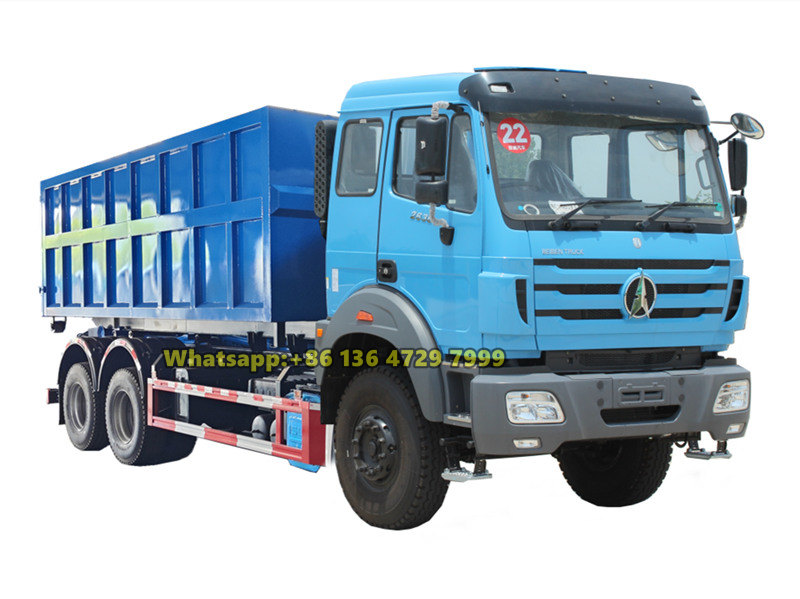

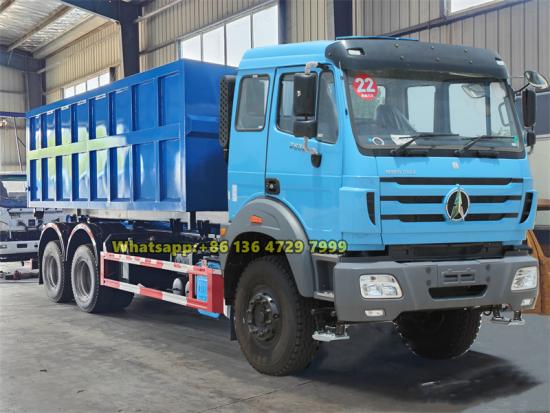

The Beiben 6x6 20-ton Roll-off Garbage Truck is a heavy-duty sanitation transfer vehicle. Its core feature is the hydraulic hook arm system at the rear, which enables rapid grabbing and dumping of multiple 20-cubic-meter sealed garbage containers. This facilitates an efficient "one vehicle with multiple bins" cyclic operation. Powered by a Weichai 420-horsepower engine and built on a full-wheel-drive chassis, the truck offers robust power and adaptability to complex road conditions. Its fully sealed transport process eliminates secondary pollution, making it a reliable solution for decentralized garbage collection and transfer in both urban and rural areas.
Working Capcity:
20 tonsCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
8600×2500×3200Drive System:
6×6Wheelbase (mm):
4100+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
20-ton hooklift system, 20CBM garbage containerThe Beiben 6x6 20-ton Roll Off Garbage Truck is a heavy-duty sanitation vehicle specifically designed for waste transfer. Utilizing its hydraulic hook arm system, it efficiently grabs, transports, and dumps multiple sealed garbage containers. Based on the Beiben 6x6 heavy-duty chassis, the vehicle is equipped with a Weichai 420 HP engine, paired with a Fast Gear 12-speed transmission and a full-air braking system. This configuration ensures powerful performance and reliable operation under challenging road conditions.
The telescopic hook arm of the Beiben Hook Loader Truck can complete the lifting of a 20CBM container within 55 seconds, with a maximum tipping angle of 50 degrees, offering highly efficient and convenient operation. The "one vehicle, multiple bins" cyclic mode significantly enhances collection efficiency. Combined with fully enclosed transportation that prevents secondary pollution, it serves as an ideal solution for decentralized garbage collection and transfer in areas such as city streets and schools.

CEEC factory is authorized supplier on beiben garbage trucks,
guarantee all beiben hook loader trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Beiben 6×6 chassis: All wheel drive, Weichai 420HP diesel engine, Fast 12-speed gearbox
▶ Reliable hook lift system: Telescopic type hook arm, with 20-ton lifting capacity
▶ Customized garbage container: 20CBM~30CBM garbage container, the size can be customized

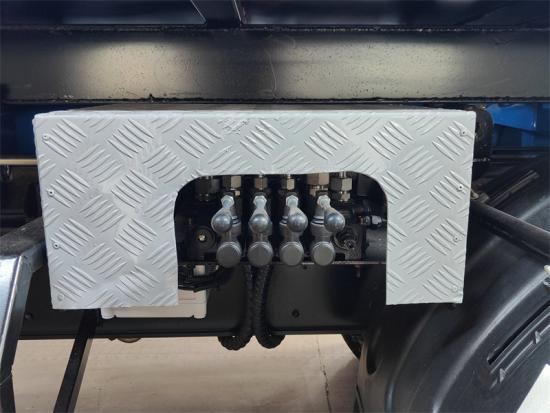

▶ Easy Opration: Manual operation + remote control box
» Ⅱ. Product Specifications:
|
Vehicle Description |
||
|
Overall dimension |
Approx.8600*2500*3200mm |
|
|
GVW |
26000kg |
|
|
Lifting capacity |
20 ton |
|
|
Chassis brand |
Beiben |
|
|
Traction type |
6*6, Left hand drive |
|
|
Chassis Parameters |
||
|
Cabin |
Beiben NG80B long cabin, 2 seats and one sleeping berth, with air condition |
|
|
Wheelbase |
4100+1450 mm |
|
|
Tire specification |
12.00R24 |
|
|
Tire quantity |
10+1 units |
|
|
Engine |
Engine model |
WEICHAI WP12.420E32 |
|
Emission standard |
Euro 3 |
|
|
Displacement |
11.596 L |
|
|
Max. output power |
309 KW |
|
|
Mx horsepower |
420 HP |
|
|
Gear box |
Model |
FAST 12JS200T |
|
Number of gears |
12 forward gears& 2 reverse |
|
|
Brake system |
Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake |
|
|
Axle load |
Front |
7.5T |
|
Rear |
13T×2 |
|
|
Suspension |
Front |
10 pieces Leaf spring |
|
Rear |
13 pieces Leaf spring |
|
|
Fuel tanker |
Type |
Iron fuel tank, with lockable cap |
|
Capacity |
400L |
|
|
Upper-body Parameters |
||
|
Look loader type |
Telescopic |
|
|
Lifting capacity |
20T |
|
|
Garbage container volume |
20CBM |
|
|
Hydraulic system pressure |
25 Mpa |
|
|
Arm telescopic distance |
1200 mm |
|
|
Time for lifting container |
55S |
|
|
Dumping angle |
50° |
|

» Ⅲ. Chassis Advantages:

Beiben Axles
Front axle: Beiben 7.5 T driving axle
Rear axle: Beiben 13T dual reduction driving axle
Rear axle ratio: 5.263

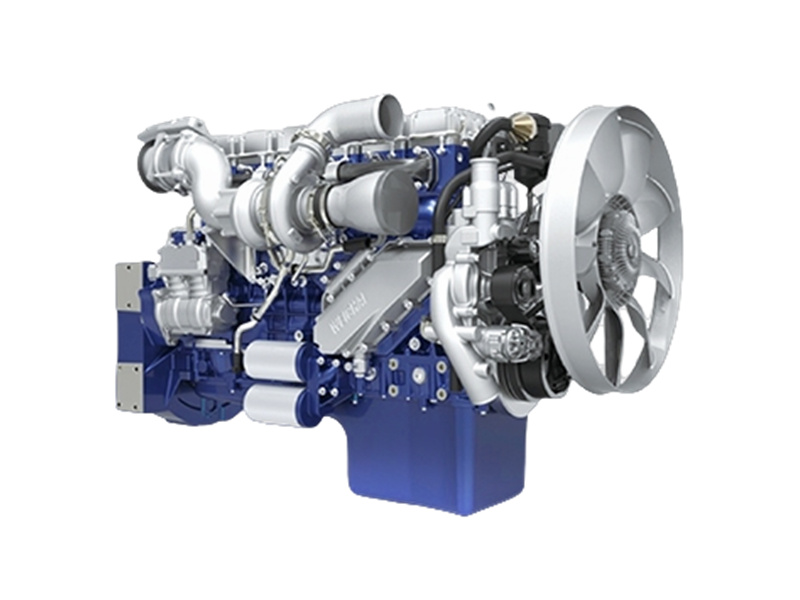

Weichai Engine
Model: WP12.420E32
Number of cylinders: 6
Power: 420HP/309KW
Displacement: 11596ml
Rated speed: 2100 rpm
Max. torque: 1750 N.m

FAST Gearbox
Model: 12JS200T
Gear: 12-speed forwards and 2 reverse
Rated input power: 355 kw
Rated input torque: 2000 N.m
» Ⅳ. Hook Loader Advatanges:

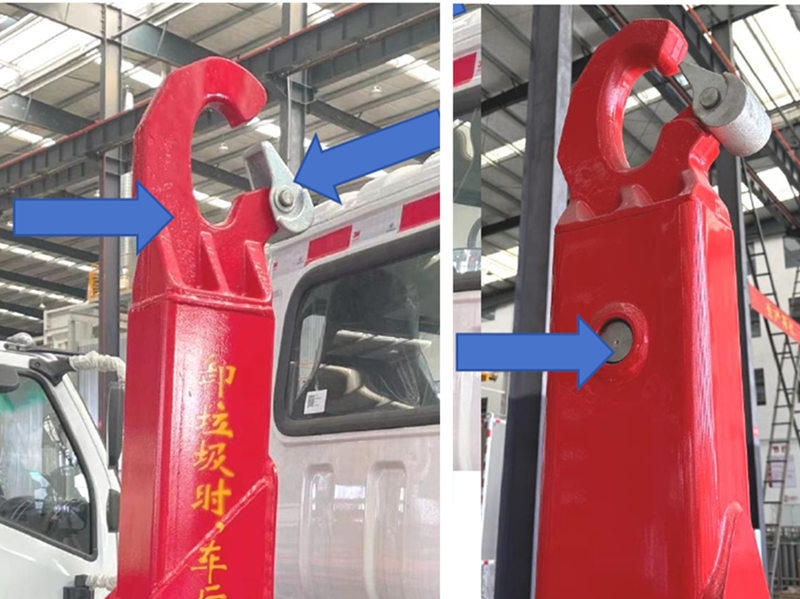

Strong Hook
High-strength forged components
Equipped with a gravity self-locking device for enhanced safety
The hook features a replaceable structure

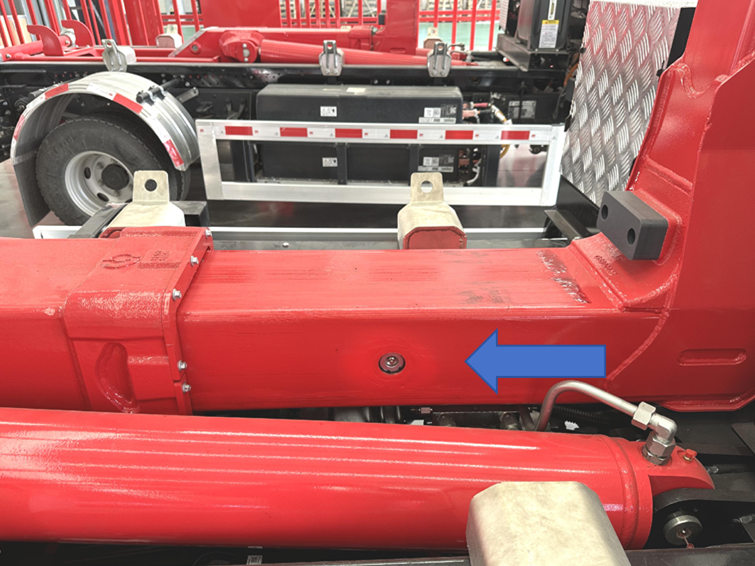

Telescopic arm
The telescopic arm is integrally formed from thickened Q460 seamless square steel.

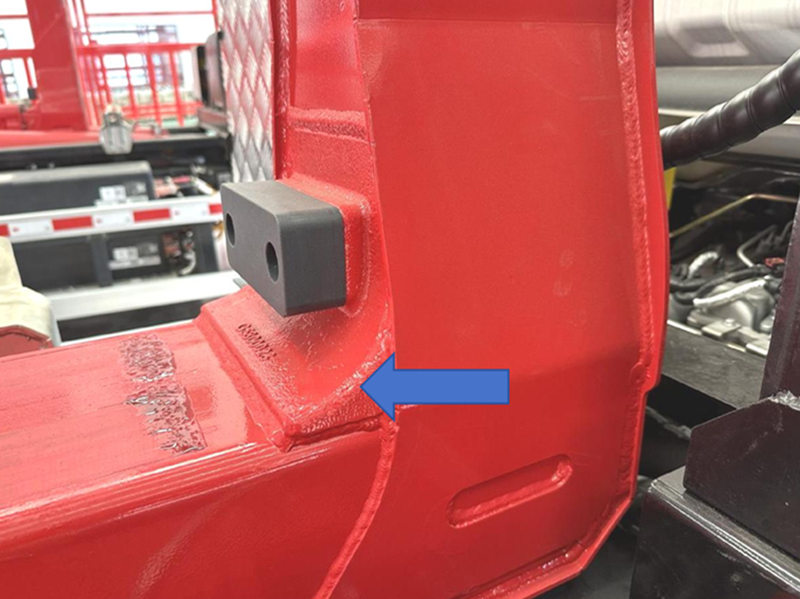

Right-angle connector for the arm
It utilizes cast components, offering superior overall strength and a more refined appearance

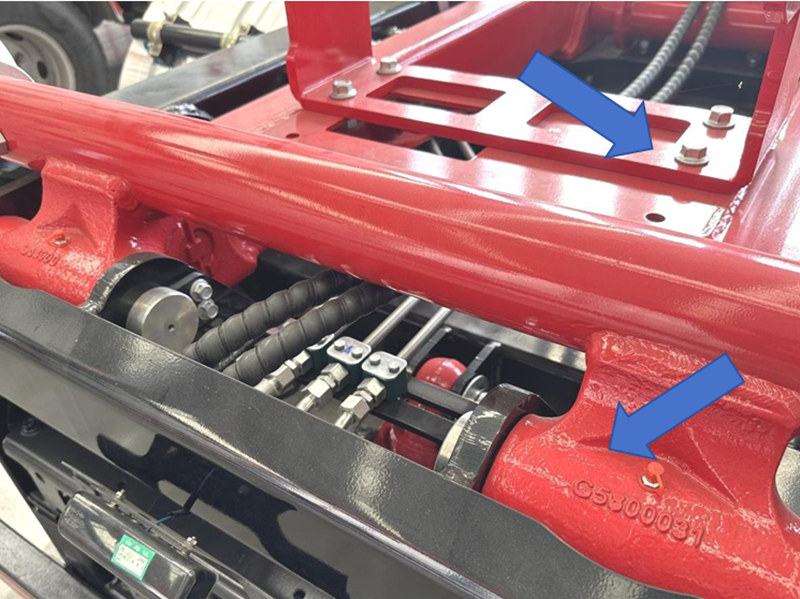

Tilting part
The tilting part is made of Q460 material.
The tilting shaft employs cast components, providing enhanced overall strength
The container locking hook features a modular assembly design

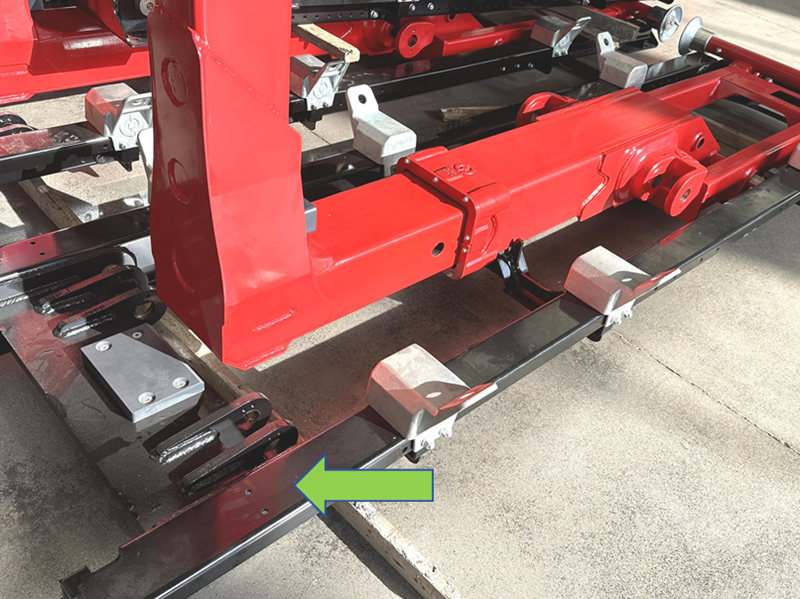

Sub-frame
The sub-frame is constructed from Q460 low-alloy high-strength steel for superior strength

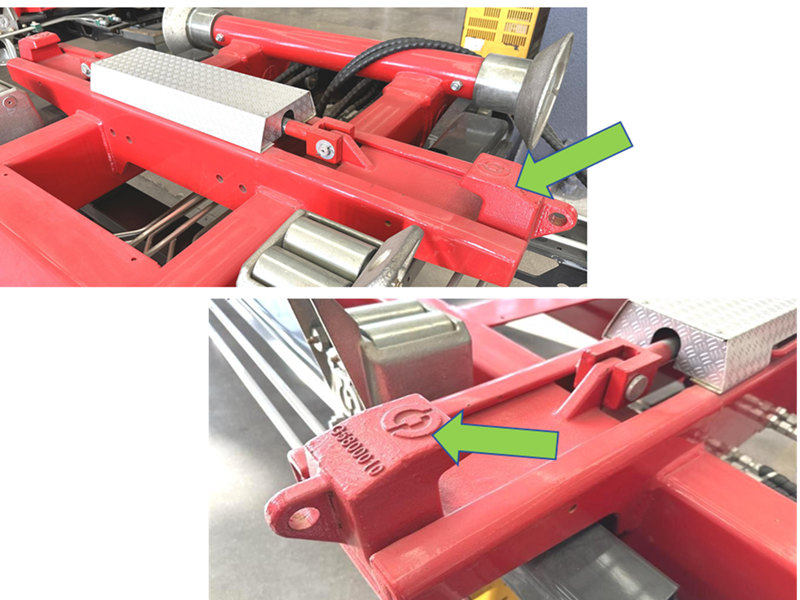

Container lock
It is a cast component and can switch the locking direction according to the container type, allowing for both internal and external locking.
» Ⅴ. Hook Loader Specifications:

|
No |
Item |
Parameters |
|
1 |
Lift capacity |
20T |
|
2 |
System pressure |
25MPa |
|
3 |
Discharging angle |
50º |
|
4 |
Telescopic distance |
1200mm |
|
5 |
Height of hook center |
1570 mm |
|
6 |
Rail width |
1060 mm |
|
7 |
Oil pump displacement |
60 ml/r |
|
8 |
Hydraulic oil tank volume |
110L |
|
9 |
Time of lifting container |
55s |
|
10 |
Electric control voltage |
24V |
|
11 |
Weight of hook loader |
2300Kg |

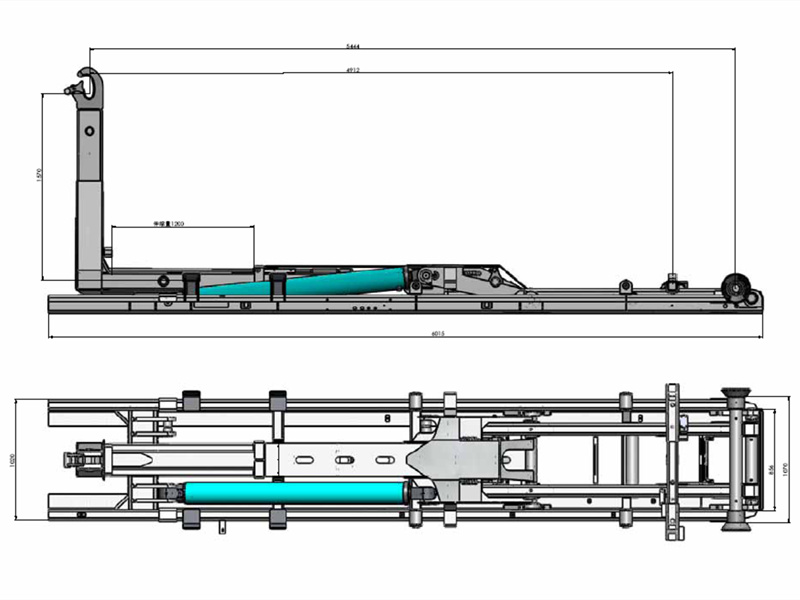

» Ⅶ. Product Drawing:

» Ⅷ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!

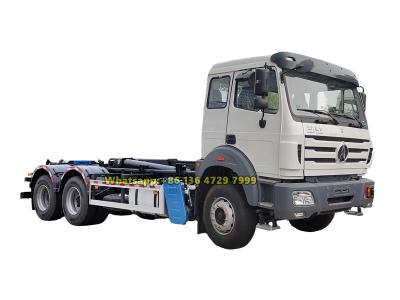

1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive hooklift garbage trucks for option
2. Factory direct sale, supply Beiben 15 Ton, 20 Ton, 25 Ton, 30 T capacity hook loader trucks
3.12 months after sale service guarantee, quality assurance.
4. Beiben trucks mounted VOLER, HYVA, PALFINGER hook loader brand.
