The Beiben 20-ton hooklift bin truck is a high-efficiency heavy-duty sanitation transportation equipment, built on the Beiben 6×4 heavy chassis and equipped with a 420-horsepower Weichai engine. Its core advantage lies in the fully hydraulically controlled hook-arm system, which enables rapid separation and loading/unloading of the chassis and garbage containers, with a short single-cycle operation time. It is specifically designed for efficiently transporting 15–20 cubic meter mobile garbage compression containers. The vehicle offers stable performance and convenient operation, supports one truck with multiple containers for cyclic operations, and significantly enhances garbage transportation efficiency.
Working Capcity:
20 tonsCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
8450×2530×3170Drive System:
6×4Wheelbase (mm):
4100+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
20-ton hooklift system, 20CBM garbage containerThe Beiben 20-ton hooklift dumpster truck is a high-efficiency sanitation transportation equipment modified based on the Beiben 6×4 heavy-duty chassis. The vehicle is powered by a Weichai WP12.420E32 diesel engine, delivering 420 horsepower, and paired with a FAST 12-speed transmission and 13-ton rear axles, providing robust load-bearing and transportation capabilities. Its design, which allows complete separation of the container and chassis, combined with a fully hydraulic control system, enables rapid loading and unloading of 15–20 cubic meter mobile garbage compression containers. With container lifting time of no more than 55 seconds, it facilitates a one-truck-with-multiple-containers cyclic transportation model.
The core hydraulic and electronic control components of this Beiben hooklift garbage truck utilize European imported brands, while critical stress-bearing parts are made of cast steel components, significantly enhancing the equipment's durability and reliability. The operation supports both manual and remote control, combined with an external locking design, ensuring operational safety while greatly improving the automation level and work efficiency of sanitation transportation. It is particularly suitable for medium-to-large garbage transfer stations and various scenarios requiring efficient cyclic transportation operations.

CEEC factory is authorized supplier on beiben garbage trucks,
guarantee all beiben hook loader trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Beiben heavy-duty chassis: NG80B long cabin, Weichai 420HP diesel engine, Fast 12-speed gearbox
▶ Max. lifting capacity: 20 ton, can lift containers with volume of 15~20CBM
▶ Container rail width: 1060mm, suitable for standard-sized garbage bins
▶ Dumping angle: 50°, facilitating unloading and tilting of the container
▶ Operation mode: Manual control and electric remote control
» Ⅱ. Product Specifications:
|
TECHNICAL SPECIFICATIONS |
||
|
Main specification |
Product Name |
Beiben heavy duty hook lift truck |
|
Lifting Capacity |
20 ton |
|
|
Overall Dimensions |
8450x2530x3170mm |
|
|
Chassis |
Brand |
Beiben |
|
Cabin |
NG80B, long cabin, 2 seats and one sleeping bed, with A/C |
|
|
Drive Mode |
6x4, left hand drive |
|
|
F/R Axles |
7.5T/13T |
|
|
Wheelbase |
4100+1450 mm |
|
|
Gearbox |
FAST 12JS200T, 12-Forwards & 2-Reverse |
|
|
Tire |
12.00R20, 10+1pcs |
|
|
Fuel Tank |
400L |
|
|
Engine |
Brand |
WEICHAI |
|
Model |
WP12.420E32 |
|
|
Number of cylinders |
6 |
|
|
Fuel type |
Diesel |
|
|
Power |
420 HP (309KW) |
|
|
Displacement |
11.596 L |
|
|
Emission Standard |
Euro 3 |
|
|
Rated speed |
2100 rpm |
|
|
SUPERSTRUCTURE |
||
|
Hook Loader |
Lifting capacity |
20 tons |
|
Hook center height |
1570mm |
|
|
Width of guild rail |
1060mm |
|
|
Clearance height of box track |
≥150 |
|
|
Dump angle |
50° |
|
|
Loading/unloading cycle time |
≤55s |
|
|
Garbage bin locking mode |
Lock outside |
|
|
Extension of hook arm |
1100 mm |
|
|
Pull rod offset |
270mm |
|
|
Hydraulic pump flow |
80l/min |
|
|
Maximum pressure of hydraulic system |
30Mpa |
|
|
Control system |
Manual control joysticks and remote control |
|

» Ⅲ. Chassis Advantages:

Beiben Axles
Front axle: Beiben 7.5 T driving axle
Rear axle: Beiben 13T dual reduction driving axle
Rear axle ratio: 5.263

Weichai Engine
Model: WP12.420E32
Number of cylinders: 6
Power: 420HP/309KW
Displacement: 11596ml
Rated speed: 2100 rpm
Max. torque: 1750 N.m

FAST Gearbox
Model: 12JS200T
Gear: 12-speed forwards and 2 reverse
Rated input power: 355 kw
Rated input torque: 2000 N.m

Suspension system
Equipped with integrated balance suspension system developed based on Benz technology.
Front leaf spring: 10 pcs
Rear leaft spring: 13 pcs
U-shape bolts: 4 pcs
» Ⅳ. Hook Loader Advatanges:

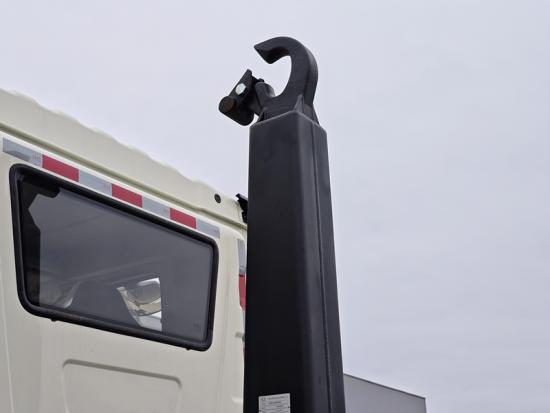

Strong Hook
High-strength forged components
Equipped with a gravity self-locking device for enhanced safety
The hook features a replaceable structure

Telescopic arm
The telescopic arm is integrally formed from thickened Q460 seamless square steel.

Right-angle connector for the arm
It utilizes cast components, offering superior overall strength and a more refined appearance

Tilting part
The tilting part is made of Q460 material.
The tilting shaft employs cast components, providing enhanced overall strength
The container locking hook features a modular assembly design

Sub-frame
The sub-frame is constructed from Q460 low-alloy high-strength steel for superior strength

Container lock
It is a cast component and can switch the locking direction according to the container type, allowing for both internal and external locking.
» Ⅴ. Hook Loader Specifications:

|
Lifting Capacity |
T |
20-25 |
|
H-Hook Center Height |
mm |
1570 |
|
L-Width of container guide rail |
mm |
1060 |
|
T-Clearance Height of Container guide rail |
mm |
≥150 |
|
LR-Length of Container |
mm |
4700~6400 |
|
Dumping Angle |
° |
50 |
|
Container Lifting Time |
S |
55 |
|
Container Lock Type |
External locking |
|
|
Container Tie Rod Diameter |
mm |
50 |
|
Tie Rod Offset |
mm |
270 |
|
Hydraulic Pump Flow |
ml/r |
80 |
|
Hydraulic System Pressure |
Mpa |
30 |
|
Multi-Way Valve |
Imported from Italy |

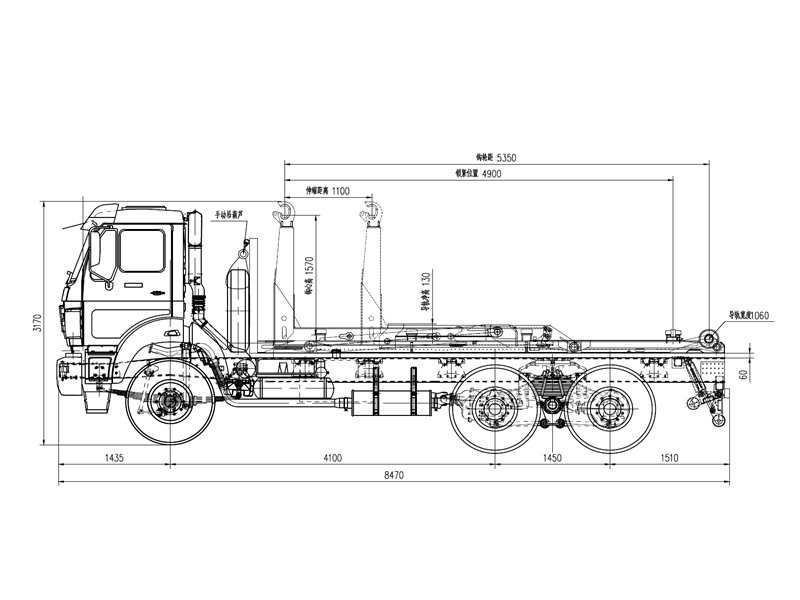

» Ⅶ. Product Drawing:

» Ⅷ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive hooklift garbage trucks for option
2. Factory direct sale, supply Beiben 15 Ton, 20 Ton, 25 Ton, 30 T capacity hook loader trucks
3.12 months after sale service guarantee, quality assurance.
4. Beiben trucks mounted VOLER, HYVA, PALFINGER hook loader brand.
