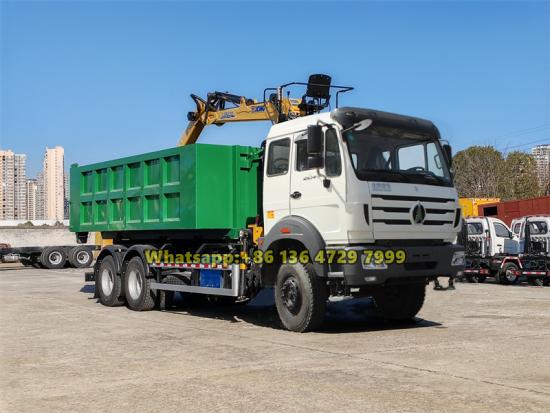

Beiben hook loader truck mounted crane

The Beiben Hooklift Truck Moundted Crane is a versatile heavy-duty specialized vehicle. Built on a robust Beiben 6x4 chassis, it features not only a hook-arm system with a 20-ton lifting capacity and a 20-cubic-meter refuse container for efficient container transfer and waste collection/transport, but also is equipped with a XCMG LQS120 knuckle crane. This crane delivers a powerful maximum lifting moment of 120 kN·m, enabling it to independently perform various lifting tasks. This combination perfectly meets the comprehensive needs of complex scenarios such as municipal services and construction.

  • Working Capcity:

    20 tons
  • Cabin Type:

    NG80B long cabin, with sleeper
  • Dimension ( mm ) :

    9800×2500×3850
  • Drive System:

    6×4
  • Wheelbase (mm):

    4100+1450
  • Engine Power:

    420HP/WP12.420E32
  • Gear Box:

    12JS200T
  • Remark:

    20-ton hooklift system, XCMG knuckle boom crane
New Products

The Beiben Hooklift Truck Mounted Crane is a multi-purpose heavy-duty special vehicle that integrates hook-arm loading/unloading with crane lifting capabilities. Based on the Beiben 6x4 chassis and powered by a Weichai 420 HP engine, this truck comes with a 20-cubic-meter garbage container and a hooklift system boasting a maximum lifting capacity of 20 tons,the vehicle is fitted with a XCMG LQS120 knuckle boom crane, which possesses a maximum lifting moment of 120 kN·m and a working radius of 8.12 meters, granting the vehicle independent lifting capabilities.

This dual-function design enables the Beiben hook loader truck to efficiently handle standard garbage containers via its hook-lift system, while also utilizing the mounted crane for on-site lifting of materials like construction supplies and equipment. Its outrigger structure with a 3.8-meter span and a 420-degree slewing angle ensure lifting stability, while the 6mm thickened container floor guarantees durability during waste transport.

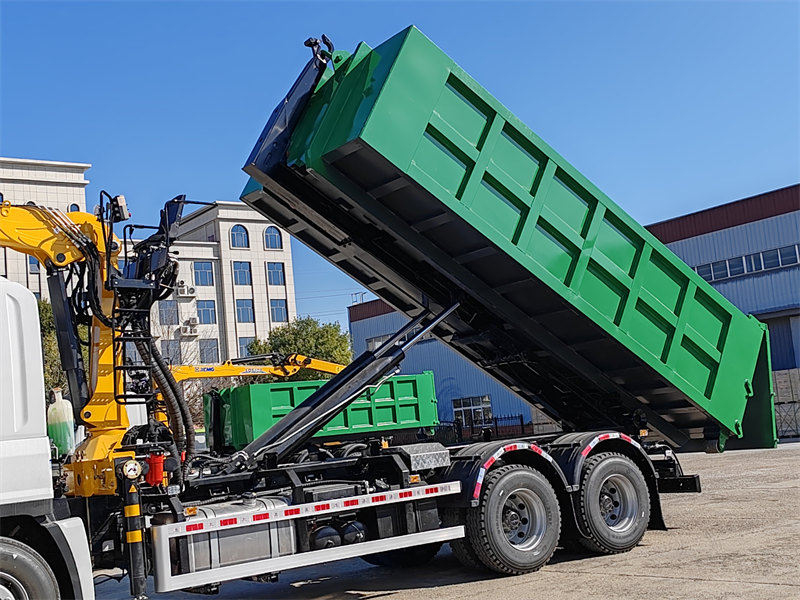

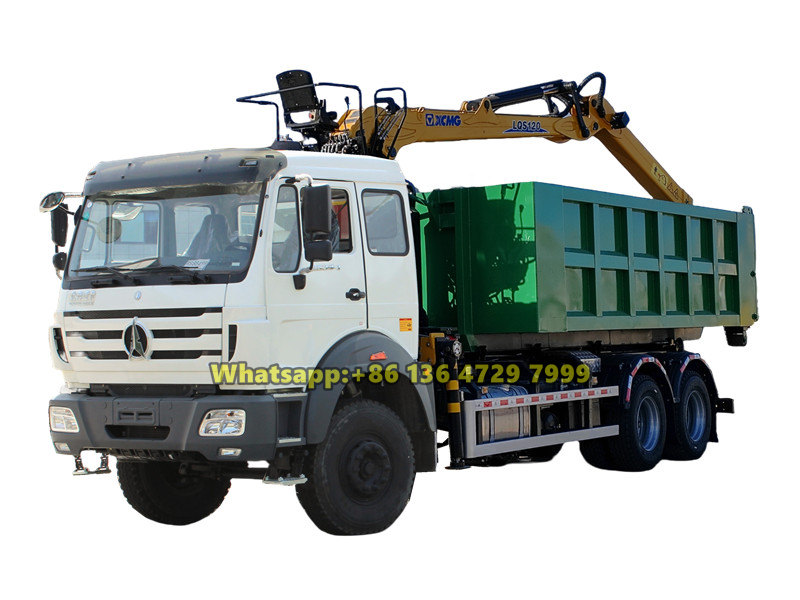

beiben 6x4 heavy hooklift truck with crane

*Beiben 6×4 hooklift garbage truck mounted crane

CEEC factory is authorized supplier on beiben garbage trucks,
guarantee all beiben hook loader trucks Brand-New and High-Quality.



» Ⅰ.Product Introduction:

Manufacturer: CEEC TRUCKS

Durable chassis: Beiben 10-wheeler heavy chassis, with Weichai 420HP, FAST 12-speed transmission

Strong hooklift system: Equipped with reliable hooklift system, which has 20-ton lifting capacity

Customized garbage container: With 20CBM garbage container, the maximum volume cab be up to 30CBM

China famous brand crane: Equipped with XCMG knuckle boom crane, maximum lifting moment is 120kN.m

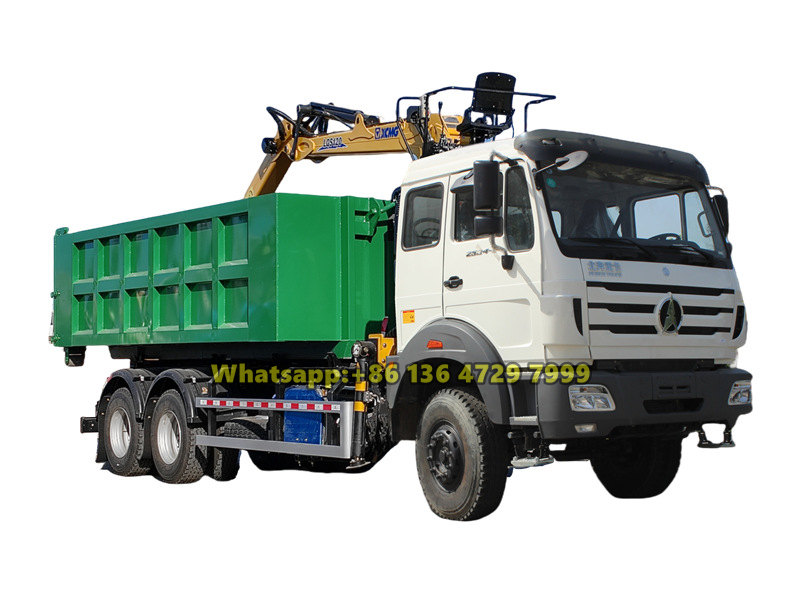

Beiben 6×4 20 ton hook loader truck with crane



» Ⅱ. Product Specifications:



Beiben Hooklift Truck Mounted Crane Specifications

Main specification

Product Name

Beiben hook loader truck with crane

Container Capacity

20CBM

Dimension

9800x2500x3850mm

Chassis

Brand

Beiben

Cabin

Beiben NG80B long cabin, 2 seats with a sleeper, with A/C

Drive Mode

6x4, Left hand drive

Front axle

7500 kg

Driving axle/ratio

13000kg×2; 4.769

Wheelbase

4100+1450mm

Gearbox

FAST 12JS200T, 12-Forwards & 1-Reverse

Number of leaf springs

10/13

Tire

12.00R20, 10+1pcs

Fuel tank

400L

Engine

Brand

WEICHAI

Model

WP12.420E32

Power

420HP/309KW

Emission Standard

Euro 3, diesel

Type

6-cylinders in-line, turbo-charged intercooling

Displacement

11596 ml

UPPER BODY

Hooklift system

Maximum lfiting capacity

20 ton

Hook center height

1570mm

Outer width of box track

1060mm

Clearance height of box track

≥150

Dump angle

50°

Time of lifting container

55s

Time of unloading container

55s

Telescopic distance

1200 mm

Flow of hydraulic oil pump

80ml/r

Maximum pressure of hydraulic system

30Mpa

Multi way directional valve of hydraulic system

Import Italy brand

Garbage Container

Capacity

20CBM

Inner Size

5800x2300x1500mm

Type

Top open container, rear open

Material

High-strength steel Q235

Thickness

Side plate 5mm, bottom plate 6mm

Crane

Brand

XCMG

Model

LQS120, knuckle boom crane

Max. lifting moment

120 kN.m

Max. working radius

8.12 m

Slewing moment

29 kN.m

Slewing angle

420°

Span of outriggers

3.8 m

Hydraulic system pressure

25 Mpa

Hydraulic system flow

50 L/min

Recommended power

52 kW

Hydraulic oil tank volume

200 L

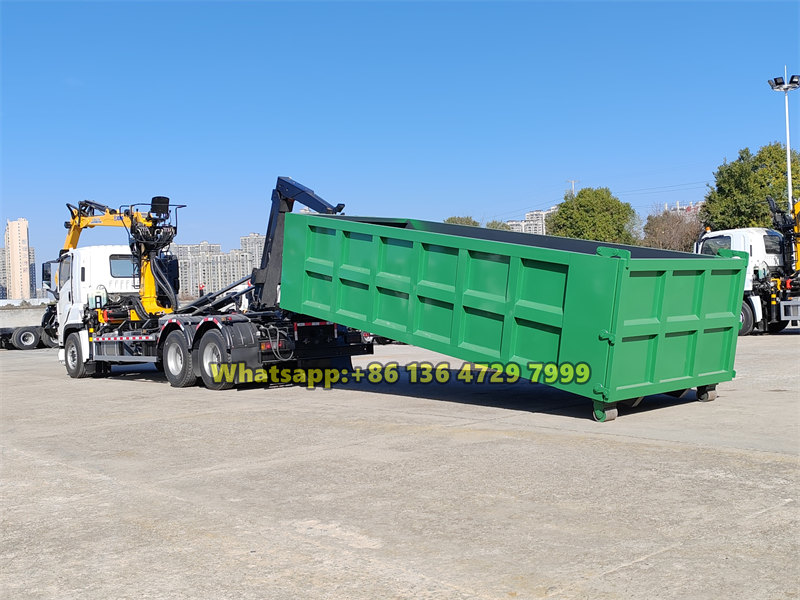

Beiben 20-ton hooklift truck with crane



» Ⅲ. Chassis Features:



Beiben 8×4 roll off garbage truck

Reliable Axles

Front axle payload: 7500kg
Driving axle payload: 13000kg+13000kg
Driving axle ratio: 4.769



Beiben 12-wheel 30-ton hook loader

Weichai Engine

Model: WP12.420E32

Number of cylinders: 6

Power: 420HP/309KW

Displacement: 11596ml

Rated speed: 2100 rpm

Max. torque: 1750 N.m



Beiben 8×4 roll off container garbage truck

FAST Gearbox

Model: 12JS200T

Gear: 12-speed forwards and 2 reverse

Max. input torque: 2000 N.m

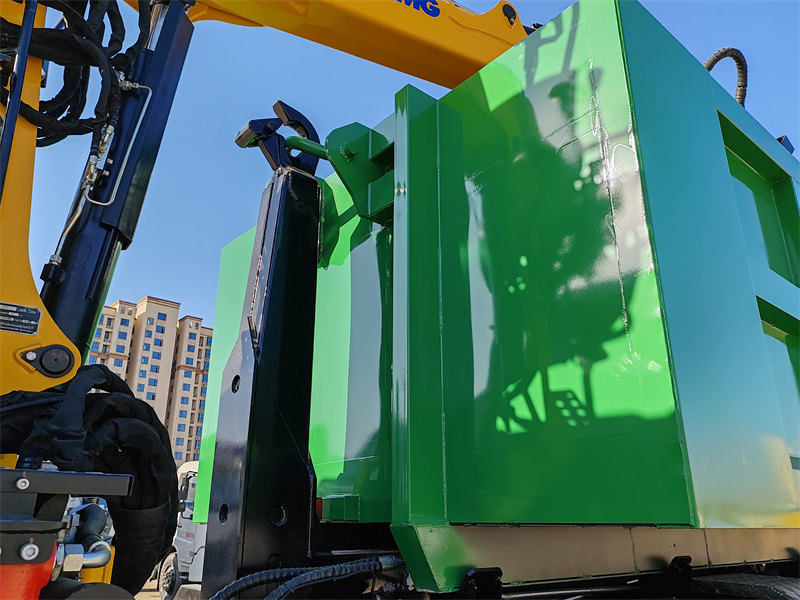

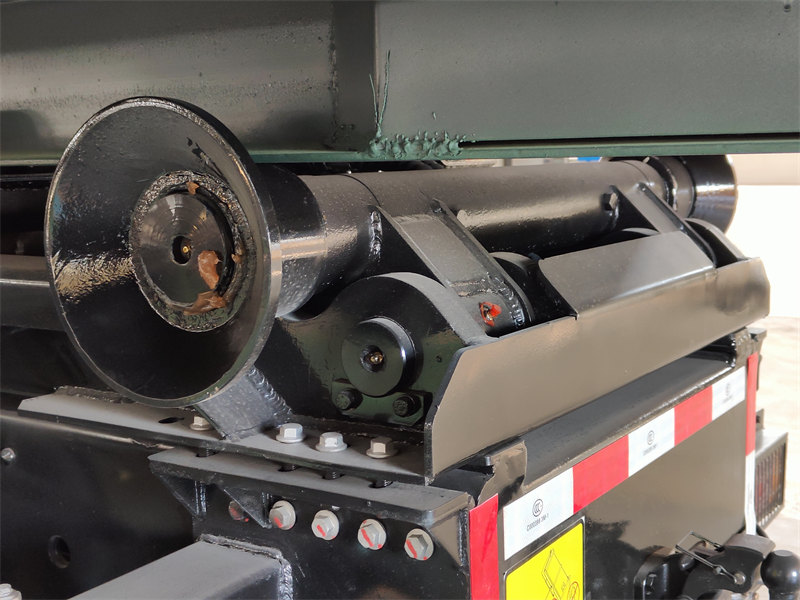

» Ⅳ. Hook Lift system:

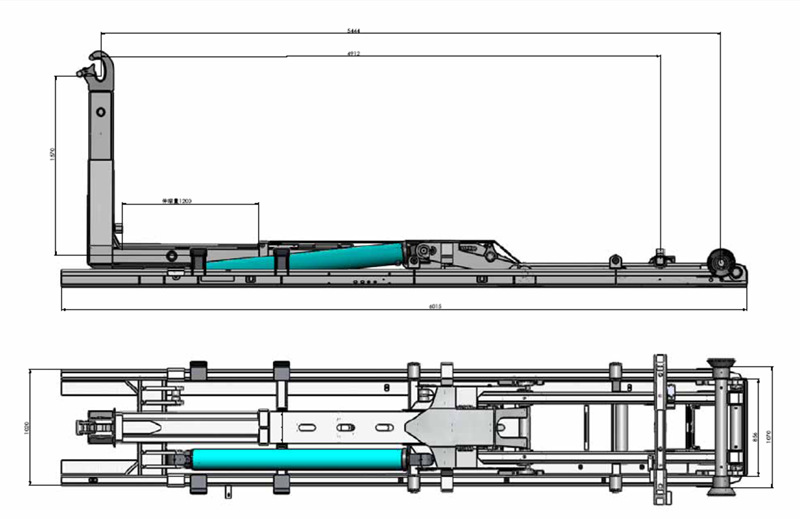

Beiben hook loader garbage truck structure

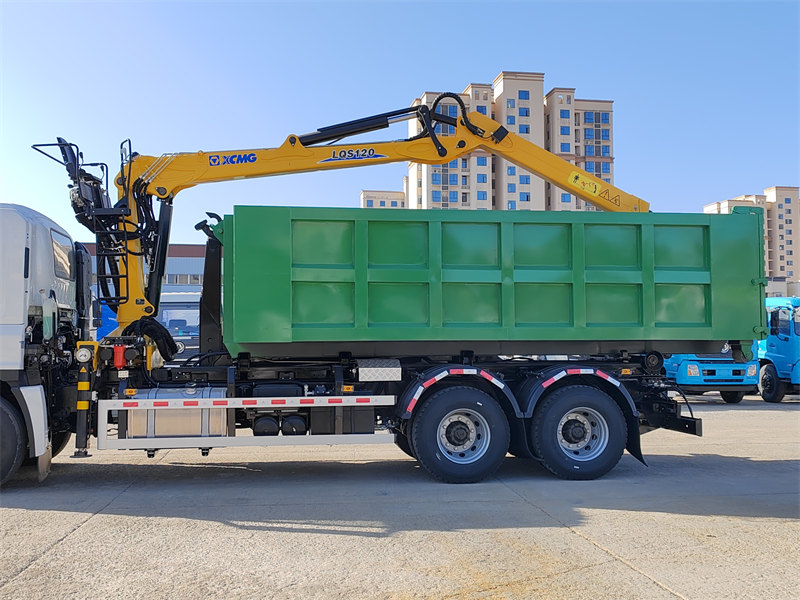

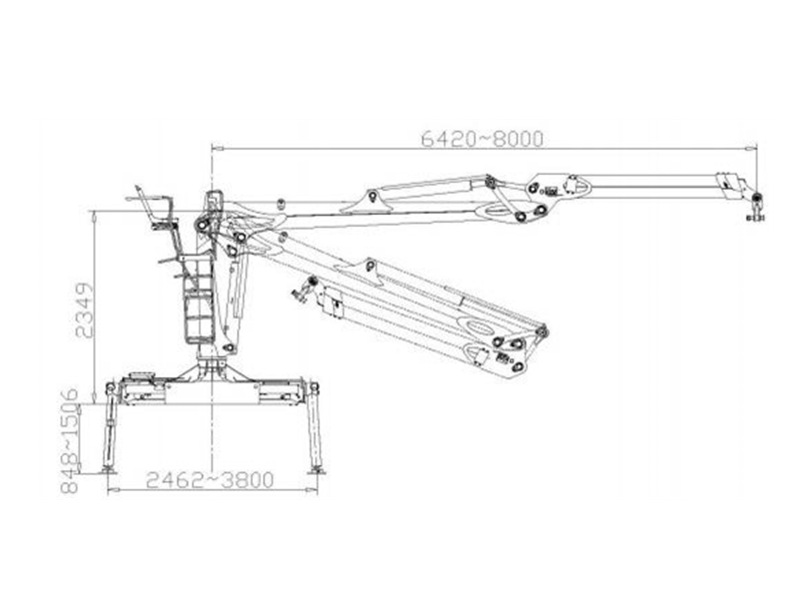

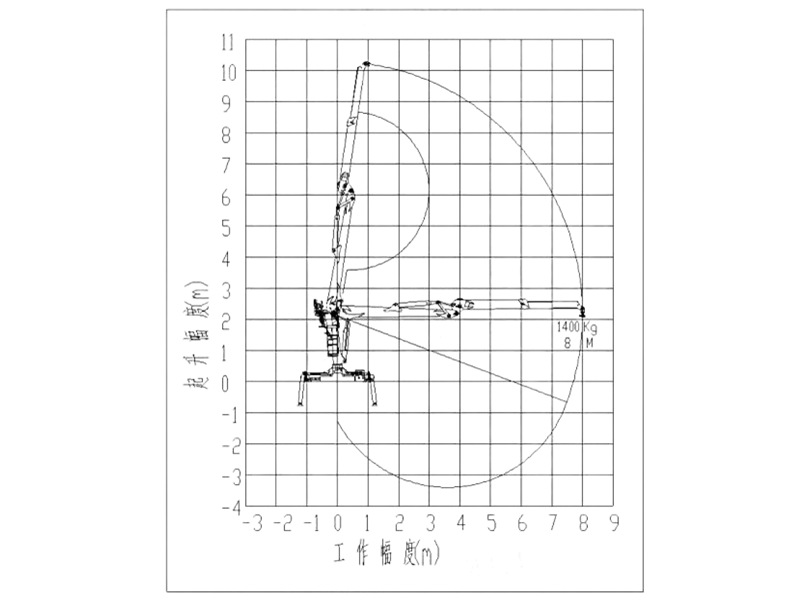

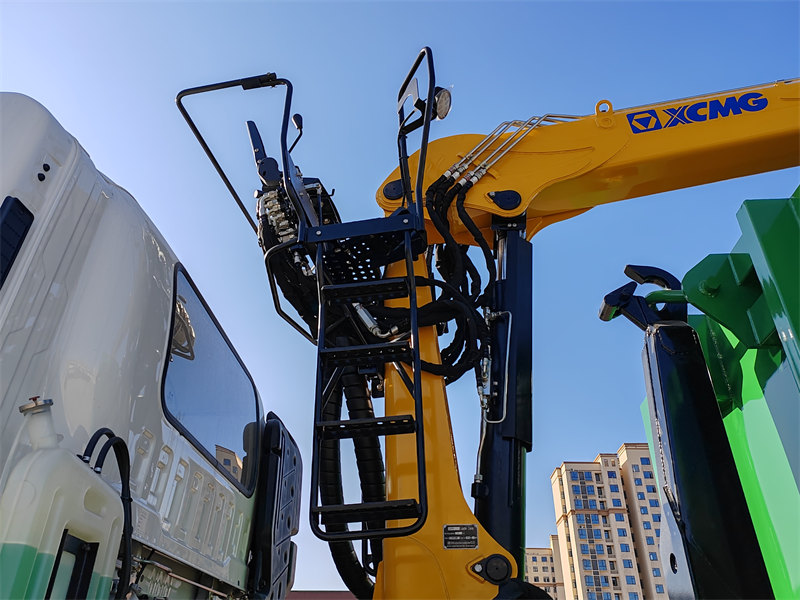

» Ⅴ. Boom crane features:

  •

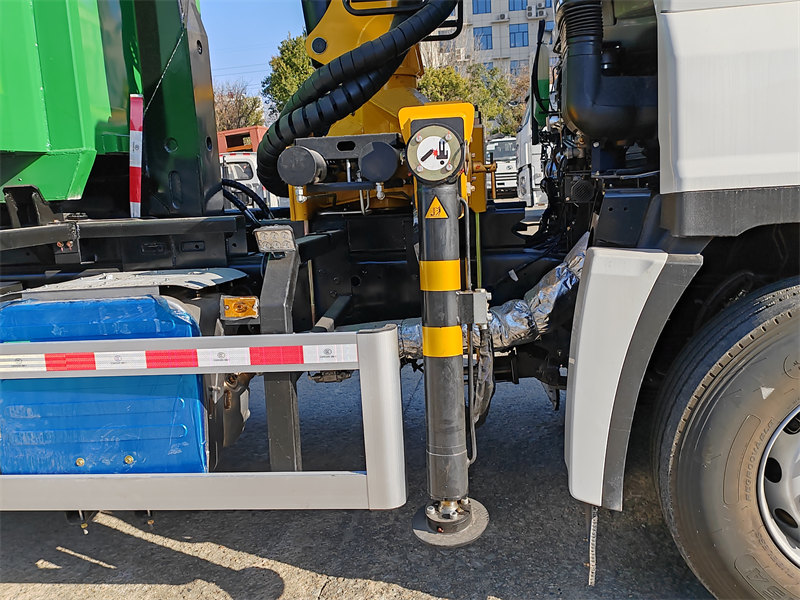

Beiben hook loader with crane  Beiben hook loader garbage truck with crane



» Ⅶ. Product Drawing:

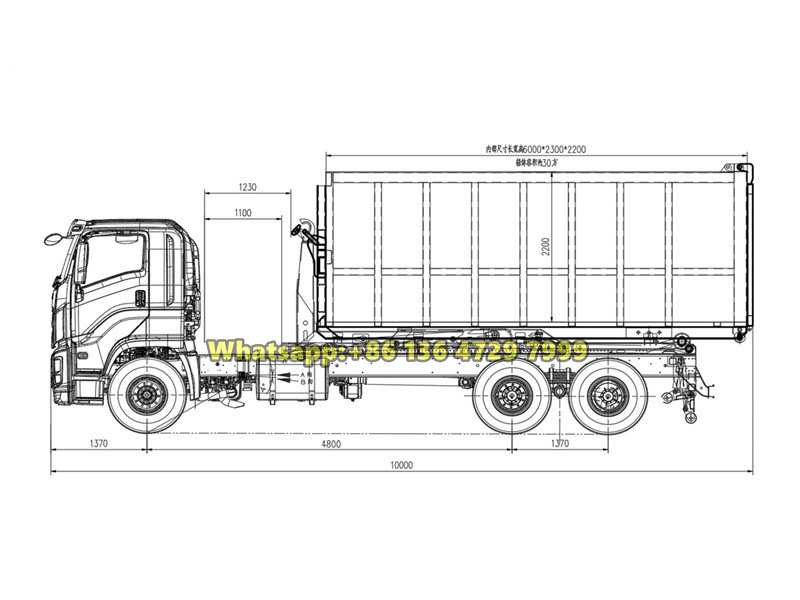

Beiben 6×4 hook loader garbage truck drawing

» Ⅷ. Product Applications:



  • Beiben 20-ton hook loader application
  • Beiben 20-ton hook loader application
  • Beiben 30-ton hook loader application





Products--100% china beiben factory trucks!

Shipping --100% fast, Convenience, Efficient!

Guarantee--7days + 24hours Safetify Service!



1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive hooklift garbage trucks for option



2. Factory direct sale, supply Beiben 15 Ton, 20 Ton, 25 Ton, 30 T capacity hook loader trucks



3.12 months after sale service guarantee, quality assurance.



4. Beiben trucks mounted VOLER, HYVA, PALFINGER hook loader brand.
