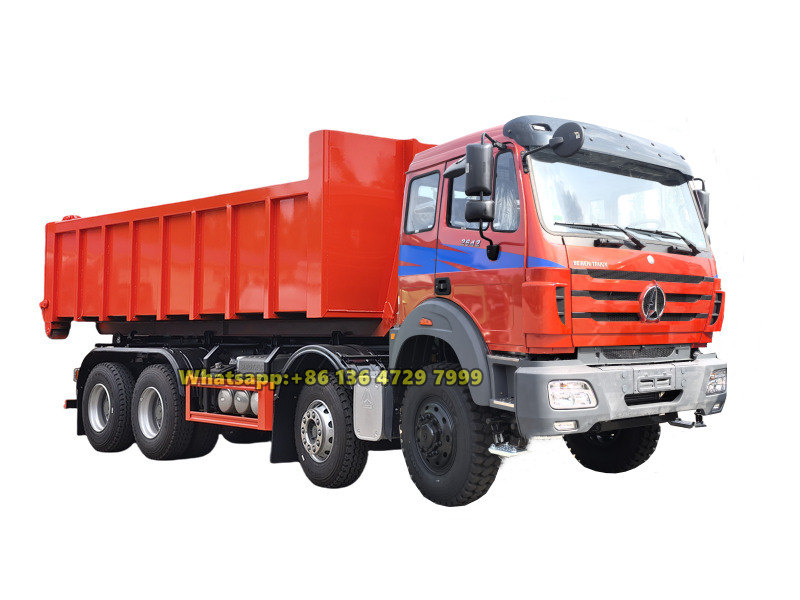

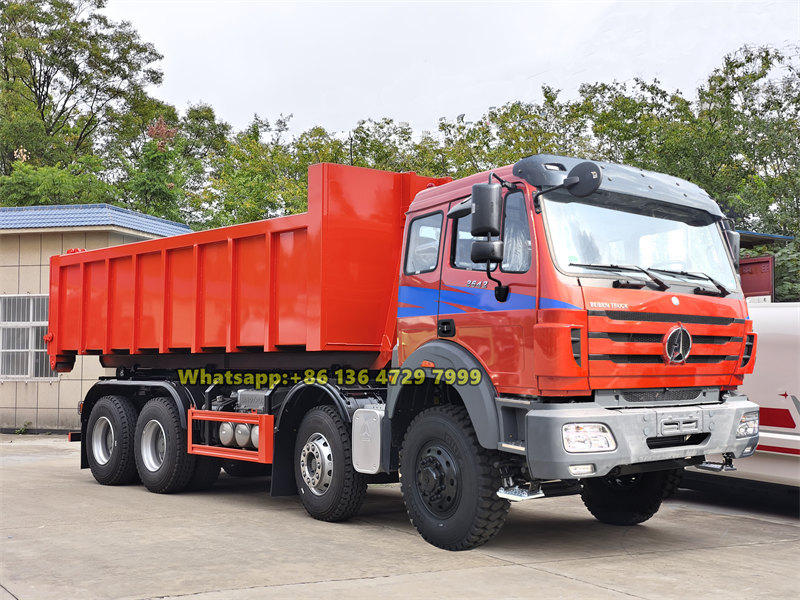

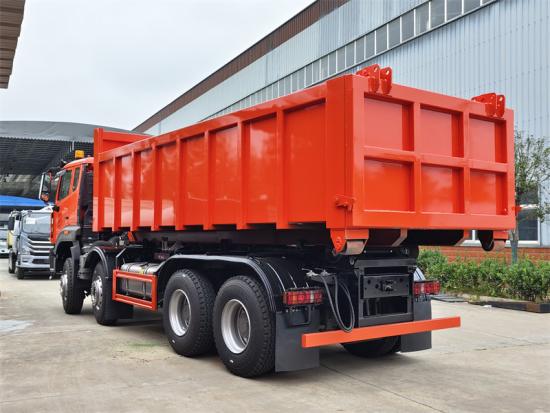

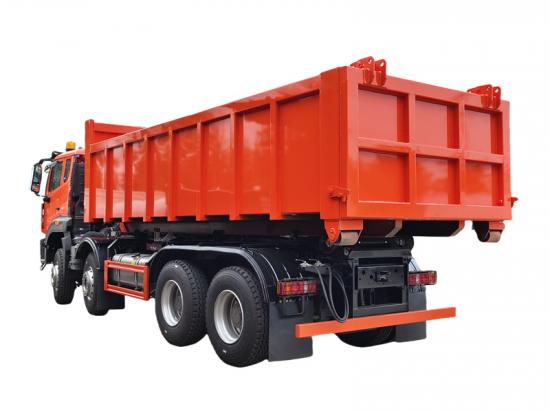

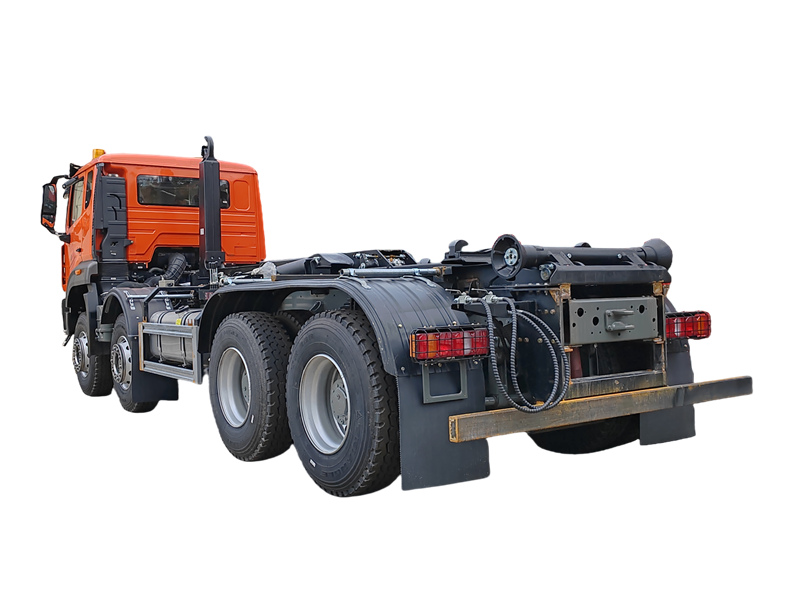

The Beiben 30-ton heavy-duty hook loader is a highly efficient waste transfer equipment. Featuring an 8×4 drive configuration and a Weichai 420 horsepower engine, it offers a load capacity of 30 tons. Its telescopic hooklift system, combined with a hydraulic locking mechanism, enables rapid loading and unloading of 25-cubic-meter garbage bins within 110 seconds. With rear support rollers ensuring operational stability, it is widely suitable for various waste transfer stations.
Working Capcity:
30 tonsCabin Type:
NG80B long cabin, with sleeperDimension ( mm ) :
10300×2500×3400Drive System:
8×4Wheelbase (mm):
1500+4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
30-ton hooklift system, 25CBM garbage containerThe Beiben 30-ton heavy-duty hook loader, also known as a hooklift garbage truck, is a highly efficient solution specifically designed for waste transportation. It adopts an NG80B long cab and an 8×4 drive configuration, powered by a Weichai 420 horsepower engine and a FAST 12-speed transmission, providing a payload capacity of 30,000 kg. The telescopic hook-arm system, manufactured from high-strength steel and equipped with an Italian imported hydraulic main control valve, allows for the loading and unloading of 25-cubic-meter garbage bins within 110 seconds. Additionally, the hydraulic locking mechanism and rear support roller design effectively prevent the chassis from lifting during operation.
All hydraulic operations of this Beiben 30-ton hooklift garbage truck can be controlled remotely via an electric system or manually, ensuring simplicity and efficiency. With a hook center height of 1,570 mm, an operational distance of 5,860 mm, and a maximum lifting angle of 52 degrees, it is perfectly compatible with standard garbage containers. Widely used in waste transfer stations and processing plants, this truck serves as an ideal solution for garbage transfer systems, delivering high efficiency and reliable performance.
CEEC factory is authorized supplier on beiben garbage trucks,
guarantee all beiben hook loader trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Powerful Engine: Weichai 420HP, 11596ml displacement
▶ High Lifting Capacity: The lifting capacity of hooklift system is up to 30 tons
▶ Large Garbage Bin: Suitable for working with garbage bins with volume 20~25CBM

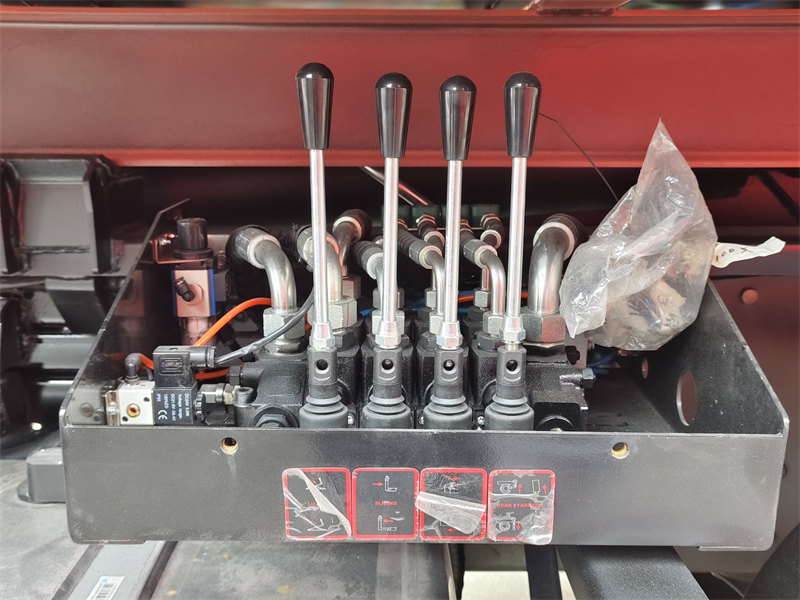

▶ Easy Opration: Equipped with both manual and electric remote control
» Ⅱ. Product Specifications:
|
Cabin |
Beiben NG80B long cabin, 2 seats and one sleeper berth, with A/C |
|
|
Driving type |
8×4，left hand drive |
|
|
Vehicle Dimensions |
Overall dimensions |
10300×2500×3400 |
|
Wheelbase (mm) |
1500+4450+1450 |
|
|
Wheel track (front/rear) (mm) |
1940/1847 |
|
|
Truck weight (KGS) |
Gross vehicle weight |
31000 kg |
|
Tare weight |
12500 kg |
|
|
Recommend payload |
30000 |
|
|
Front axle load capacity |
7500×2 |
|
|
Rear axle load capacity |
13000×2 |
|
|
Max. driving speed(km/h) |
90 |
|
|
Engine |
Manufacture |
Weichai Engine |
|
Model |
WP12.420E32 |
|
|
Type |
Straight 6-cylinder in line, Turbocharge with inter-cooling, diesel engine |
|
|
Displacement (L) |
11.596 |
|
|
Engine power(hp) |
420HP (309kW) |
|
|
Emission standard |
Euro 3 |
|
|
Rated speed |
2100 rpm |
|
|
Max. torque |
1750 N.m |
|
|
Speed @ max. torque |
1200-1500rpm |
|
|
Gearbox |
FAST 12JS200T, Manual operation, 12 forward gear, 2 reverse gear |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Tire |
12.00R20, 12+1 pcs (including one spare tire) |
|
|
Upper Body Parameters |
||
|
Garbage container effective volume (CBM) |
25CBM |
|
|
The Hooking Capacity(T) |
30 |
|
|
The Hook arm material |
High-strength steel |
|
|
Hydraulic system pressure (Mpa) |
30 |
|
|
The hook arm self weighs (kg) |
2200 |
|
|
Extension of hook arm(mm) |
1450 |
|
|
Hydraulic system flow (L/min) |
120 |
|
|
Hydraulic oil tank capacity(L) |
110L or more |
|
|
Loading/unloading cycle time(S) |
≤110S |
|
|
The hook center height(mm) |
1570 |
|
|
Distance from hook center to rear roller(mm) |
5860 |
|
|
Width of guild rail(mm) |
850 |
|
|
Dumping angle (°) |
52 |
|
» Ⅲ. Chassis Advantages:

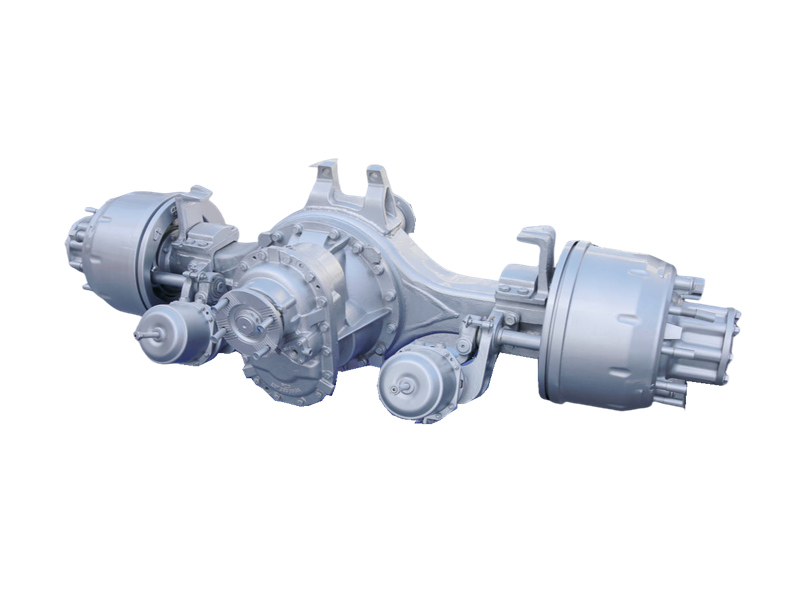

Reliable Axles
Front axle payload: 7500kg+7500kg
Driving axle payload: 13000kg+13000kg
Driving axle ratio: 5.286

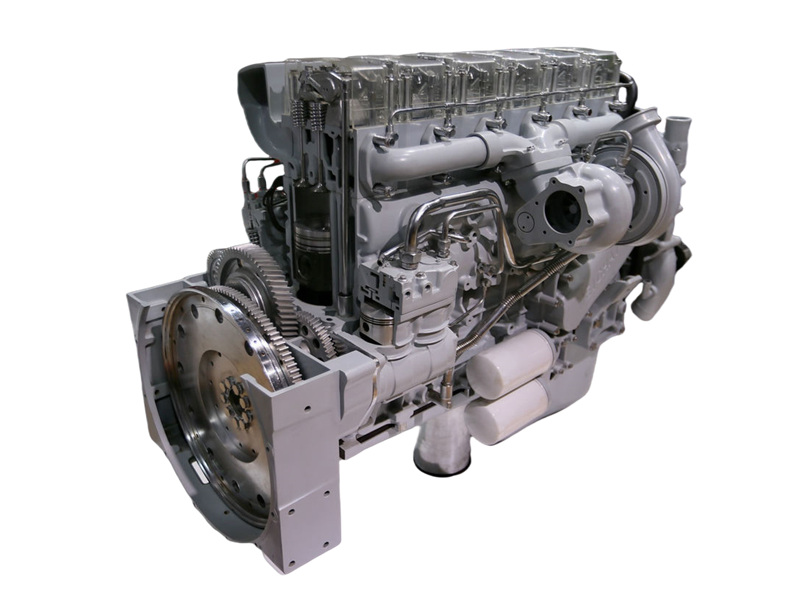

Powerful Engine
Model: WP12.420E32
Number of cylinders: 6
Power: 420HP/309KW
Displacement: 11596ml
Rated speed: 2100 rpm

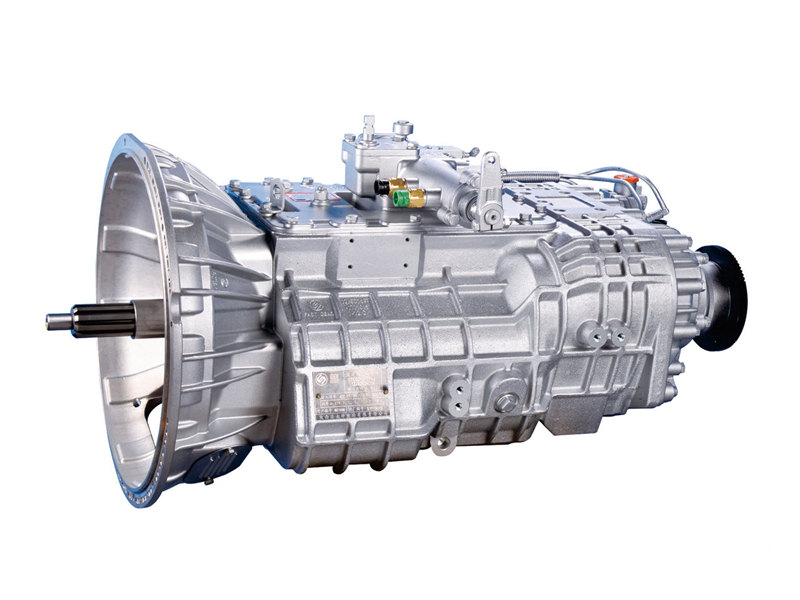

FAST Gearbox
Model: 12JS200T
Gear: 12-speed forwards and 2 reverse
Max. input torque: 2000 N.m

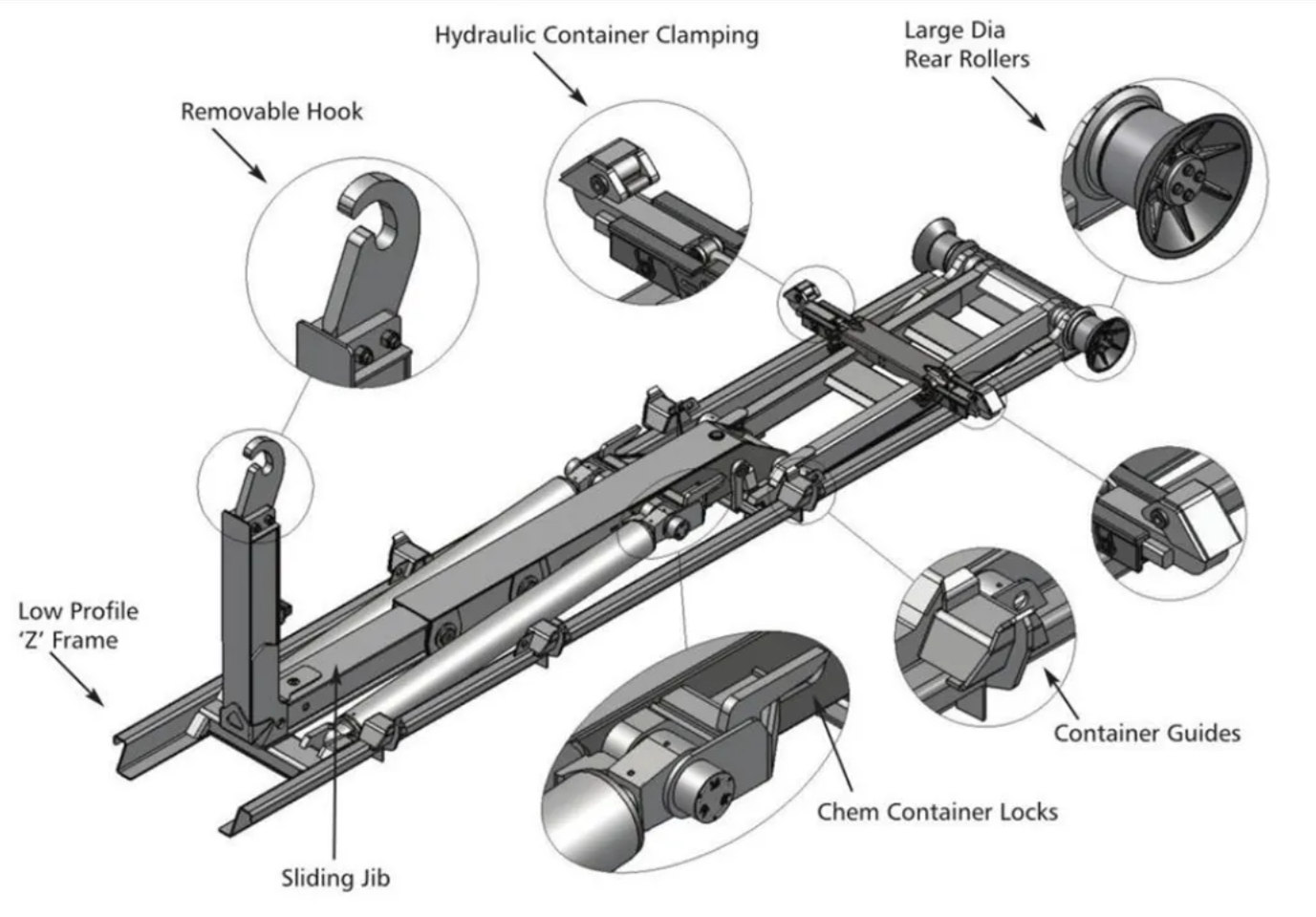

» Ⅳ. Hook Loader Structure:

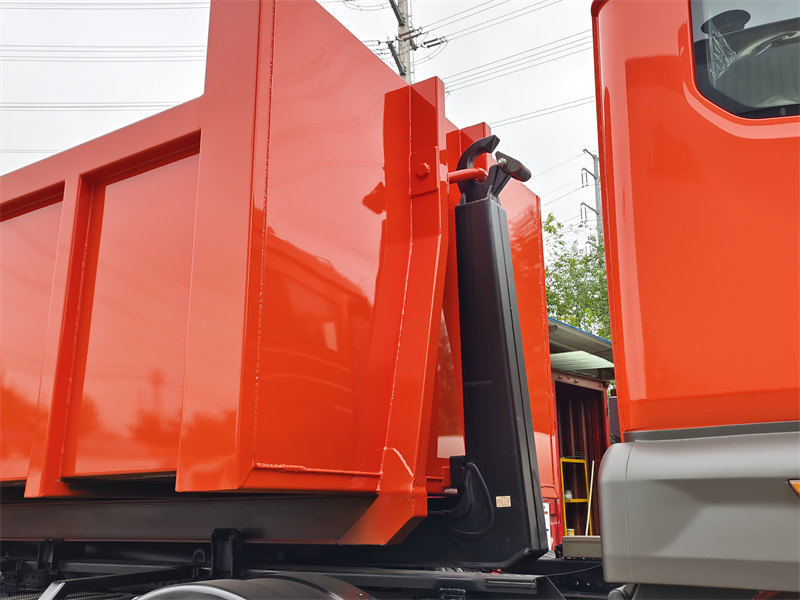

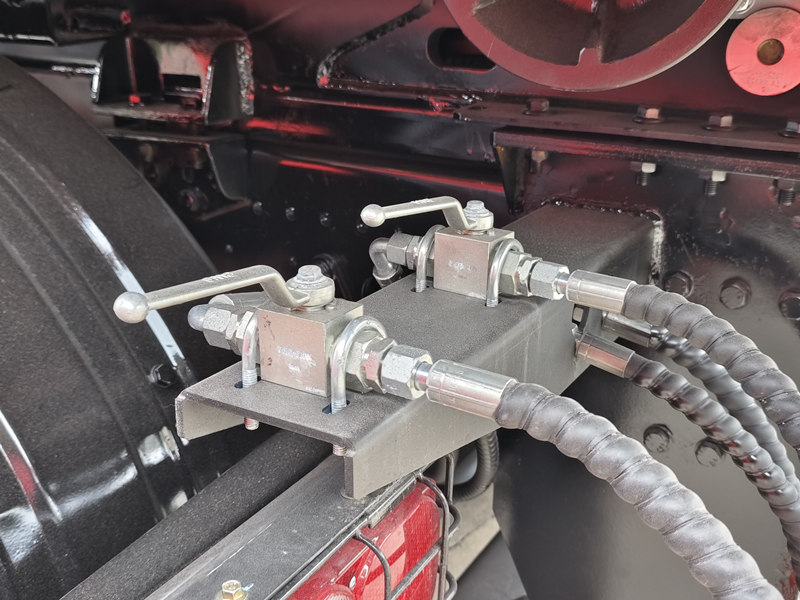

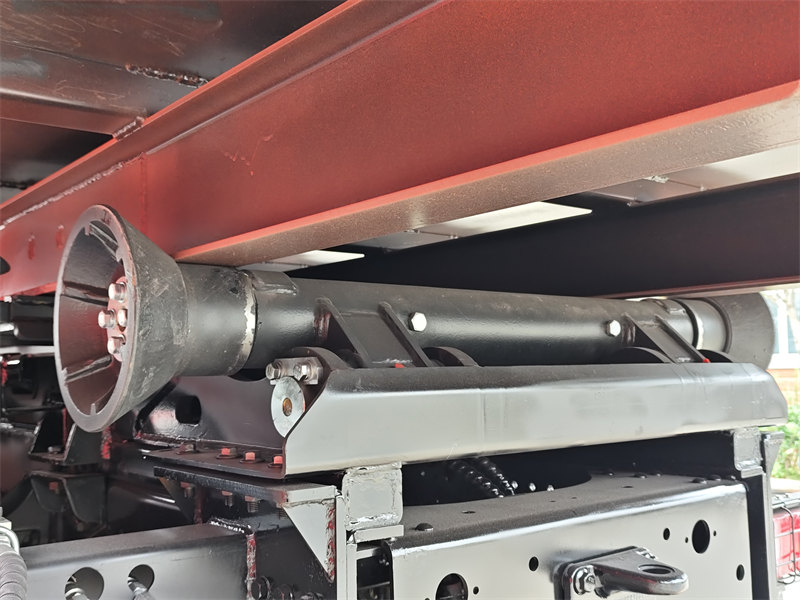

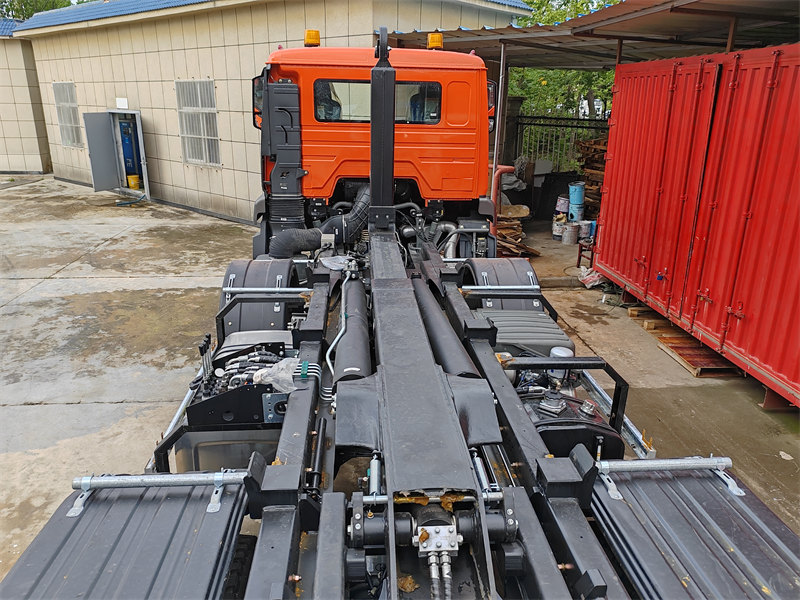

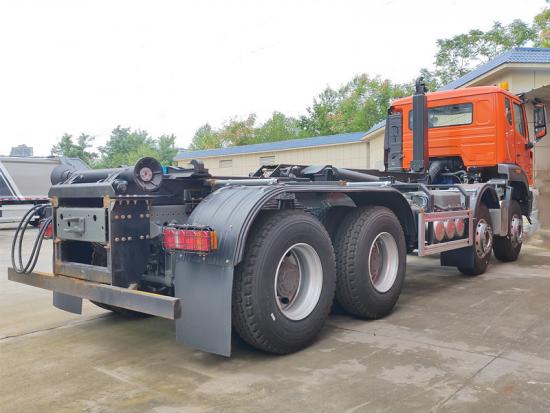

» Ⅴ. Hook Loader Details:

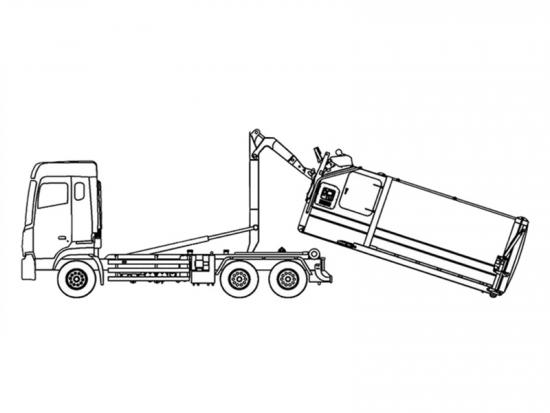

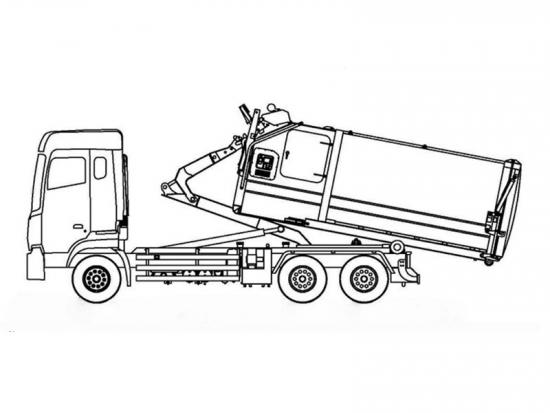

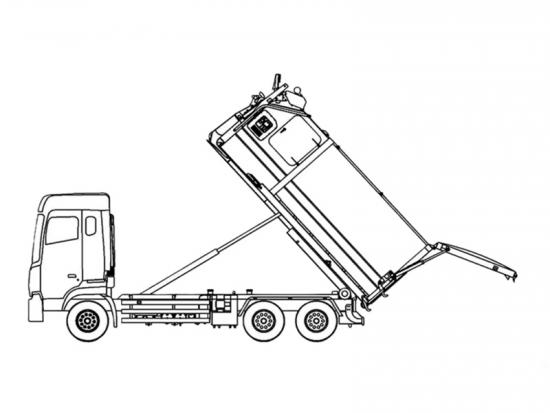

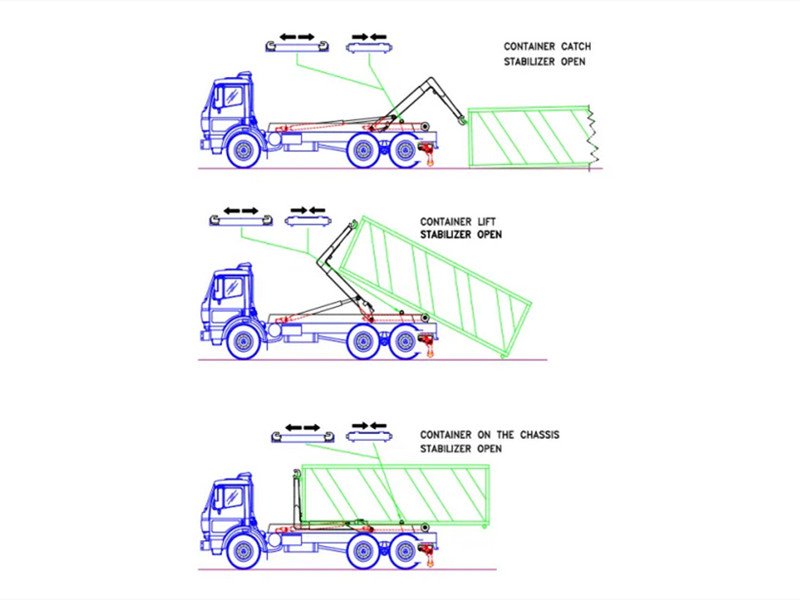

» Ⅶ. Product Working Process:

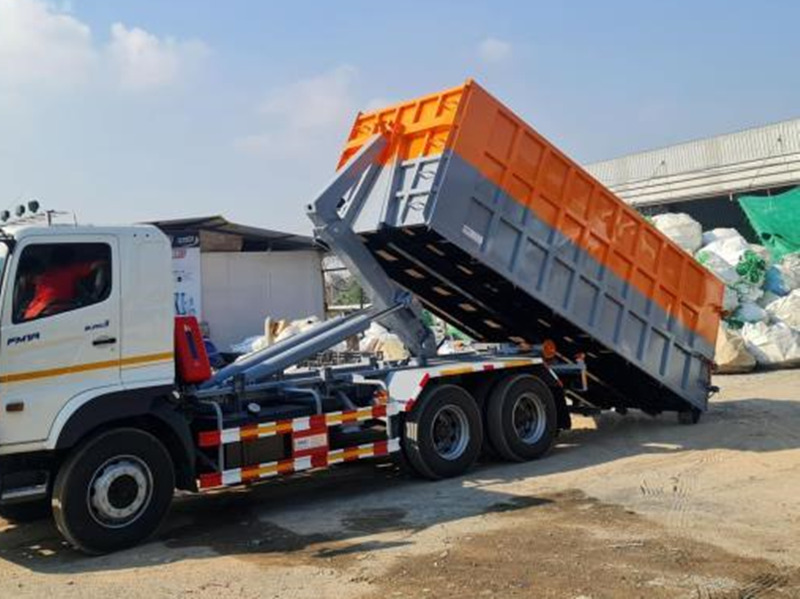

» Ⅷ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive hooklift garbage trucks for option
2. Factory direct sale, supply Beiben 15 Ton, 20 Ton, 25 Ton, 30 T capacity hook loader trucks
3.12 months after sale service guarantee, quality assurance.
4. Beiben trucks mounted VOLER, HYVA, PALFINGER hook loader brand.
The Beiben 6×4 20-ton hooklift garbage truck is a highly efficient sanitation equipment featuring a detachable container design, enabling one vehicle to work with multiple containers in a cyclic transportation model. Powered by a 380-horsepower engine, it offers a maximum lifting capacity of 20 tons and a container volume of 20 cubic meters, ensuring swift and reliable loading and unloading operations.
The Beiben 6×4 20-ton Hooklift Garbage Truck is a professional and high-efficiency environmental sanitation transfer equipment. Built on the robust Beiben heavy-duty chassis, its core hydraulic hooklift system boasts a 20-ton operating capacity, enabling it to quickly load, unload, and self-dump a 20-cubic-meter standard garbage bin in just 50 seconds. it is an ideal choice for modern urban environmental sanitation systems.

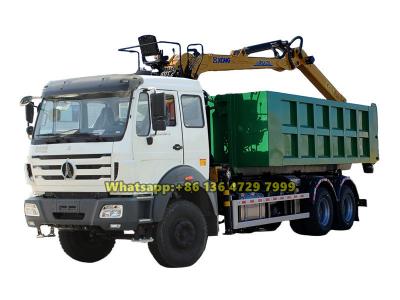

The Beiben Hooklift Truck Moundted Crane is a versatile heavy-duty specialized vehicle. Built on a robust Beiben 6x4 chassis, it features not only a hook-arm system with a 20-ton lifting capacity and a 20-cubic-meter refuse container for efficient container transfer and waste collection/transport, but also is equipped with a XCMG LQS120 knuckle crane. This crane delivers a powerful maximum lifting moment of 120 kN·m, enabling it to independently perform various lifting tasks. This combination perfectly meets the comprehensive needs of complex scenarios such as municipal services and construction.
