Beiben 20 ton truck mounted hook loader

Beiben 10-wheeler hook loader garbage truck
Beiben 10-wheeler hook loader garbage truck
Beiben 10-wheeler hook loader garbage truck
Beiben 10-wheeler hook loader garbage truck
Beiben 10-wheeler hook loader garbage truck
Beiben 10-wheeler hook loader garbage truck
Beiben 10-wheeler hook loader garbage truck
Beiben 10-wheeler hook loader garbage truck

Beiben 20 ton truck mounted hook loader

The Beiben 20-ton Hooklift Garbage Truck is a sanitation vehicle specifically designed for efficient waste collection and transportation. Built on a reliable Beiben 6×4 chassis and powered by a robust 380-horsepower engine, it meets power demands even under complex road conditions. Its core hydraulic hook-arm system boasts a lifting capacity of up to 20 tons, enabling rapid grabbing, lifting, and dumping of waste containers. The truck also supports a circulating operation mode with one vehicle paired with multiple containers. Featuring a sturdy structure, user-friendly operation, and equipped with both self-dumping and safety locking functions, it provides a dependable solution for various waste collection and transfer tasks in urban and rural areas.

  • Working Capcity:

    20 tons
  • Cabin Type:

    NG80B long cabin, with sleeper
  • Dimension ( mm ) :

    8600×2500×3200
  • Drive System:

    6×4
  • Wheelbase (mm):

    4100+1450
  • Engine Power:

    380HP/WP10.380E32
  • Gear Box:

    12JS160T
  • Remark:

    20-ton hooklift system, 20CBM garbage container
New Products

The Beiben 20-ton Roll-off Garbage Truck is an efficient and durable waste transfer device suitable for waste collection operations in diverse settings such as commercial areas and townships. Built on the Beiben 2638 chassis with a 6×4 drive configuration, it is equipped with a 380-horsepower Weichai WP10.380E32 diesel engine paired with a Fast 12-gear transmission, delivering strong performance and excellent load-bearing capacity. Its core hook-lift system offers a maximum lifting capacity of 20 tons and is paired with a 20-cubic-meter carbon steel waste container. The hydraulic mechanism provides an extension stroke of approximately 1200 mm, enabling container lifting in about 55 seconds and a self-dumping angle of up to 50 degrees, ensuring flexible and convenient operation. Supporting a one-vehicle-multiple-container circulating operation mode, this Beiben hooklift garbage truck is also equipped with hydraulic locking devices and reinforced rear outriggers, ensuring stability and safety during transport and dumping. This significantly enhances the efficiency of waste collection and transfer operations.

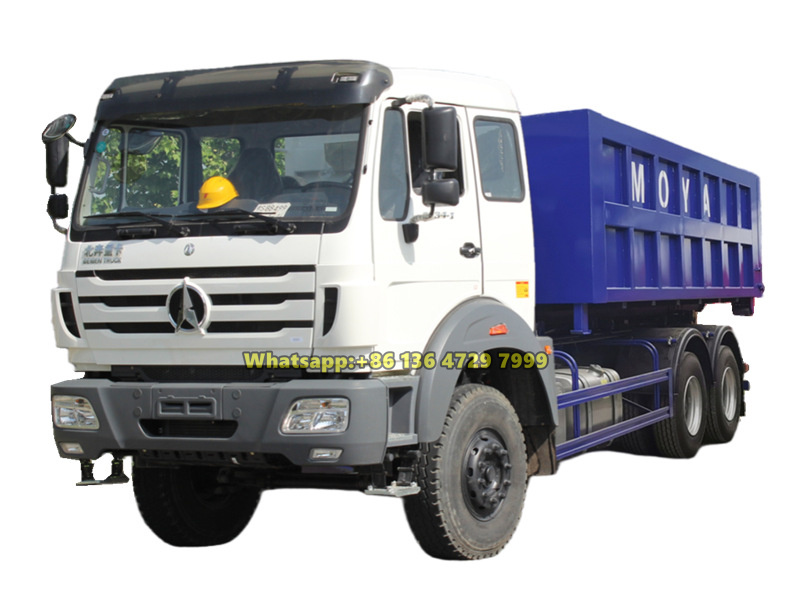

beiben 6x4 heavy-duy hooklift truck

*Beiben 20-ton roll-off container garbage truck

CEEC factory is authorized supplier on beiben garbage trucks,
guarantee all beiben hook loader trucks Brand-New and High-Quality.



» Ⅰ.Product Introduction:

Manufacturer: CEEC TRUCKS

Powerful Engine: Weichai 380HP, 6-cylinder, 9726ml displacement

High Lifting Capacity: Reinforced hook loader with 20-ton lifting capacity

Self dishcarging: With dumping angle 50°, can be used as a dumper truck

Easy Opration: Manual operation + remote control box

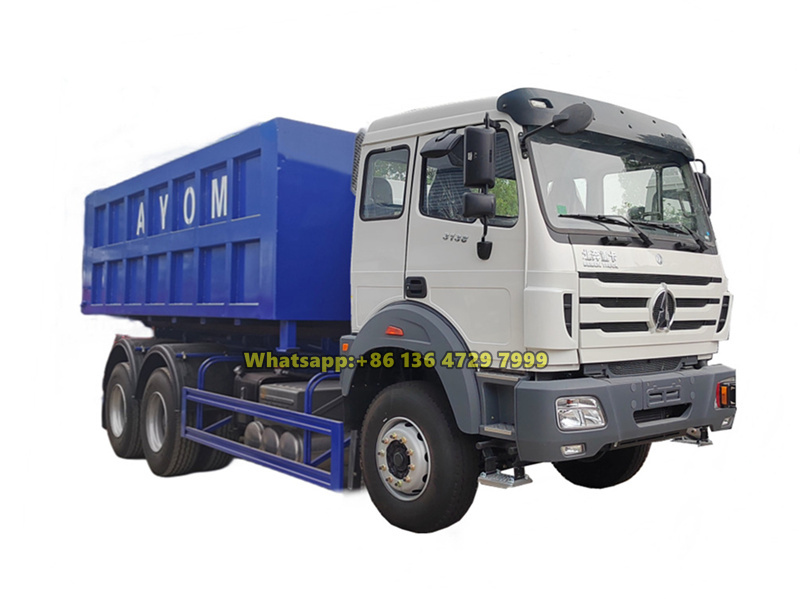

Beiben 6×4 20 ton hook loader truck



» Ⅱ. Product Specifications:



Beiben Hook Loader Specifications

Chassis parameters

Chassis model

Beiben 2638

Driving type

6×4left hand drive

Overall dimensions

8600*2500*3200mm

Wheel base

4100+1450mm

Front/rear wheel track

1940/1847mm

Front/rear overhang

1435/1510mm

Approach/departure angle

15/10°

Maximum speed

90km/h

Cab

Configuration

Beiben NG80B long cabin, with air conditioner, sleeper, 2 seats

Color

white, other color is optional

Engine

Model

WEICHAI WP10.380E32

Emission standard

Euro 3

Type

6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine

Rated power

380 HP (280KW)

Displacement

9726 ml

Max. torque

1600N·m

Tire

Size

12.00R20 Tire

Number

10+1 pcs, with one spare tyre

Front axle loading

7 tons

Rear axle loading

13 tons×2

Rated voltage

24V,DC

Transmissions

FAST 12JS160T, 12 gears forward and 2 reverse.

Steering

Power assisted steering

Fuel tank

400L

Hook lift system

Lifting capacity

20 tons

Container volume

20CBM

Sidewalls of container

Carbon steel (thickness: 4 mm)

Floor of container

Carbon steel (thickness: 5 mm)

Telescopic distance

1200 mm

Height of hook center

1570 mm

Time of lifting container

55S

Dump angle

50 degree

Hydraulic system pressure

30Mpa

Hydraulic oil tank volume

80L

Standard equipment

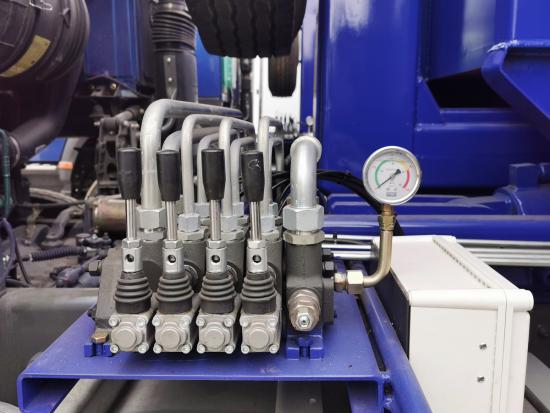

China famous brand gear pump and control valve, balance valve, hydraulic lock, main hydraulic cylinder of hook arm, sliding cylinder of sleeve arm, hydraulic oil pipe, hydraulic oil tank, hydraulic strengthen rear outrigger.
Operation way: Manual+remote control

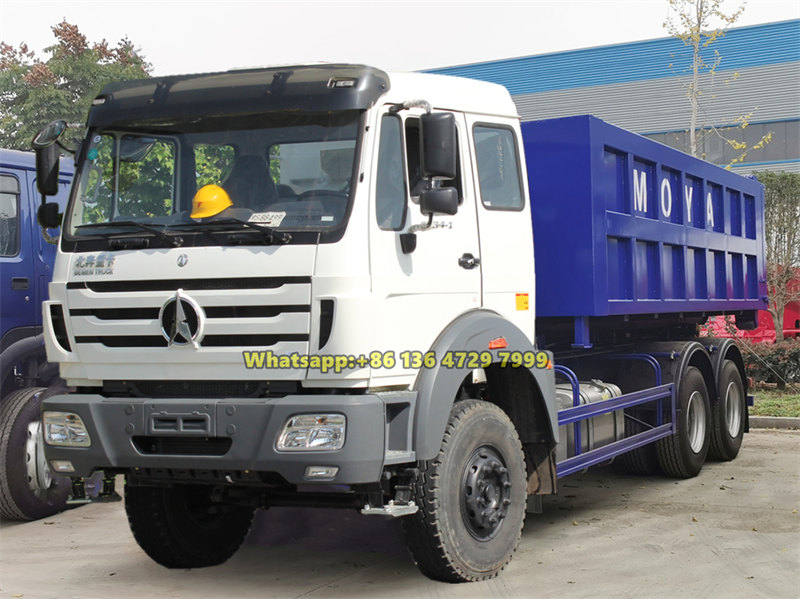

Beiben 20-ton hooklift dumpster truck



» Ⅲ. Chassis Advantages:



Beiben 6×4 roll off garbage truck

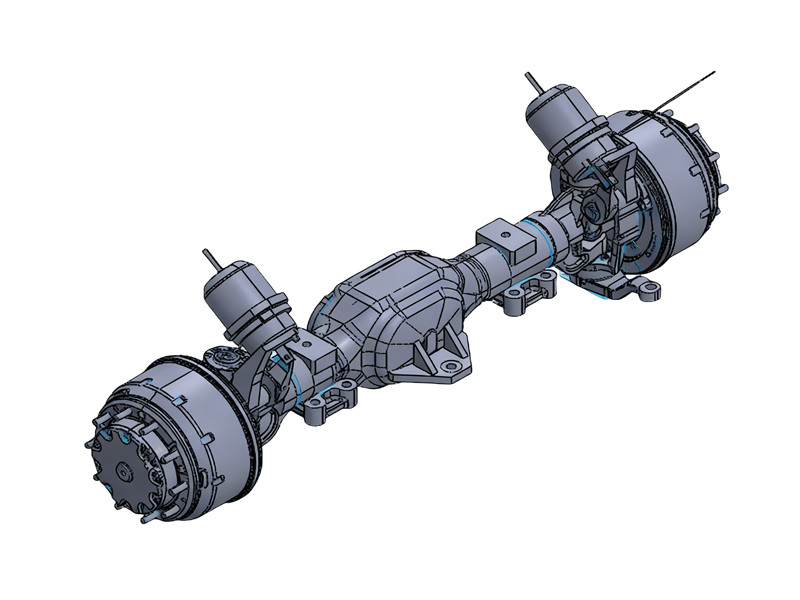

Beiben Axles

Front axle payload: 7500kg
Driving axle payload: 13000kg+13000kg
Driving axle ratio: 5.263



Beiben 10-wheel heavy hook loader

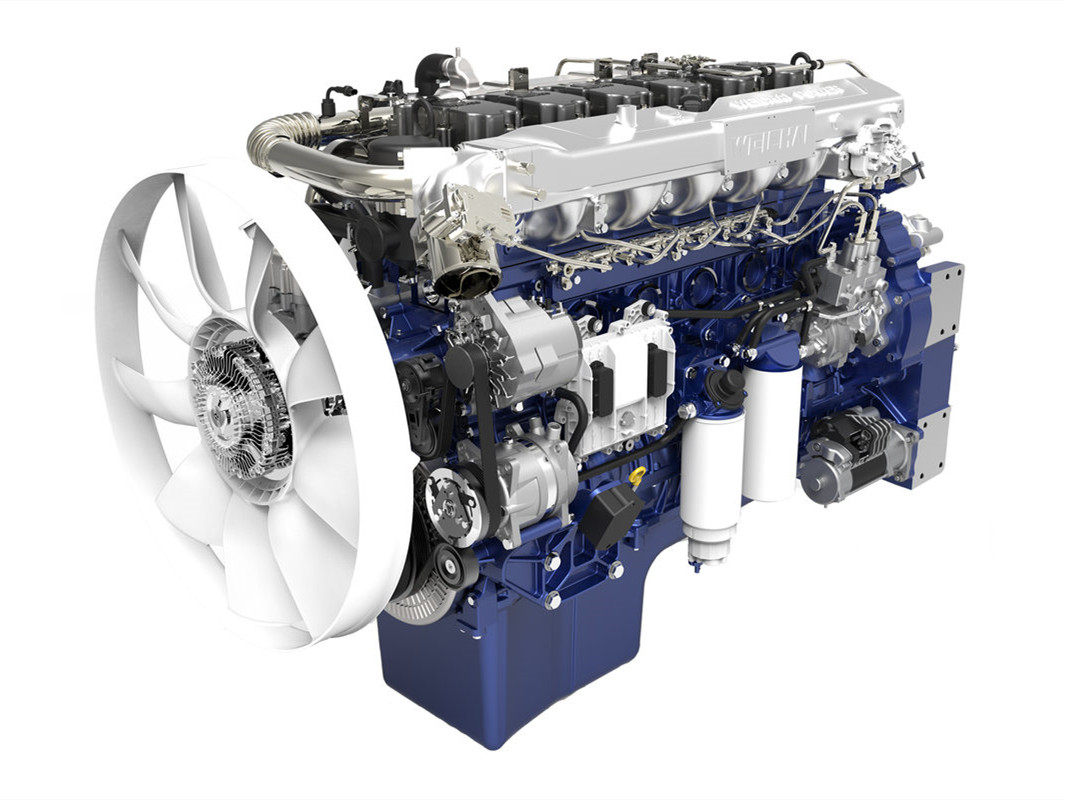

Weichai Engine

Model: WP10.380E32

Number of cylinders: 6

Power: 380HP/280KW

Displacement: 9726ml

Rated speed: 2200 rpm

Max. torque: 1600 N.m



Beiben 6×4 roll off container garbage truck

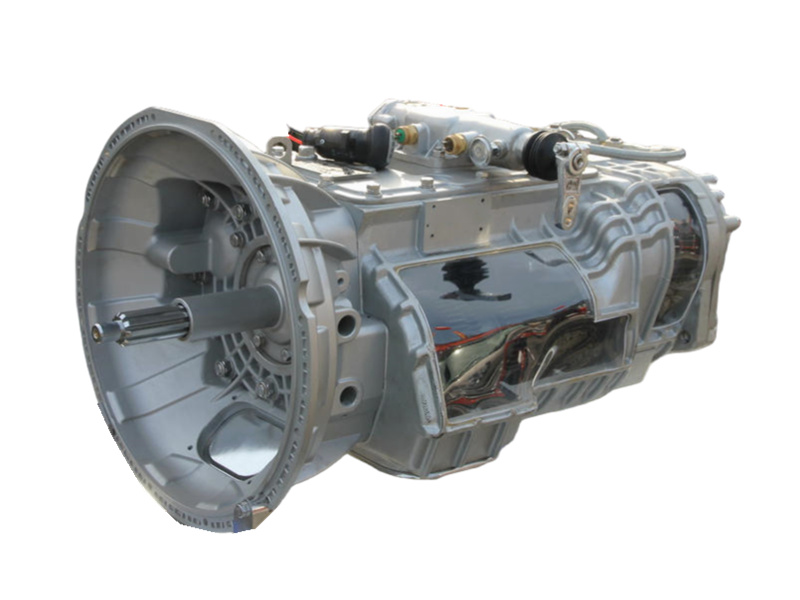

FAST Gearbox

Model: 12JS160T

Gear: 12-speed forwards and 2 reverse

Rated input power: 285 kw

Rated input torque: 1600 N.m







» Ⅳ. Hook Loader Advatanges:

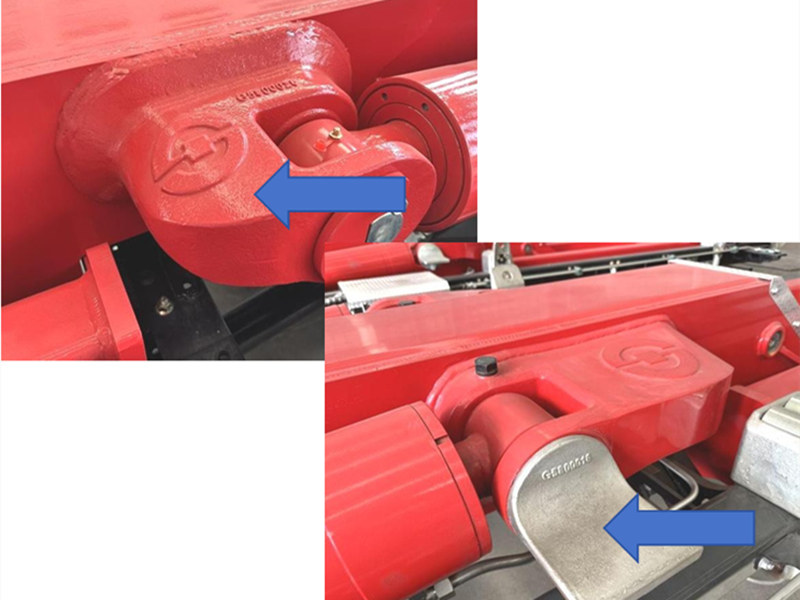

  • Beiben hook loader truck

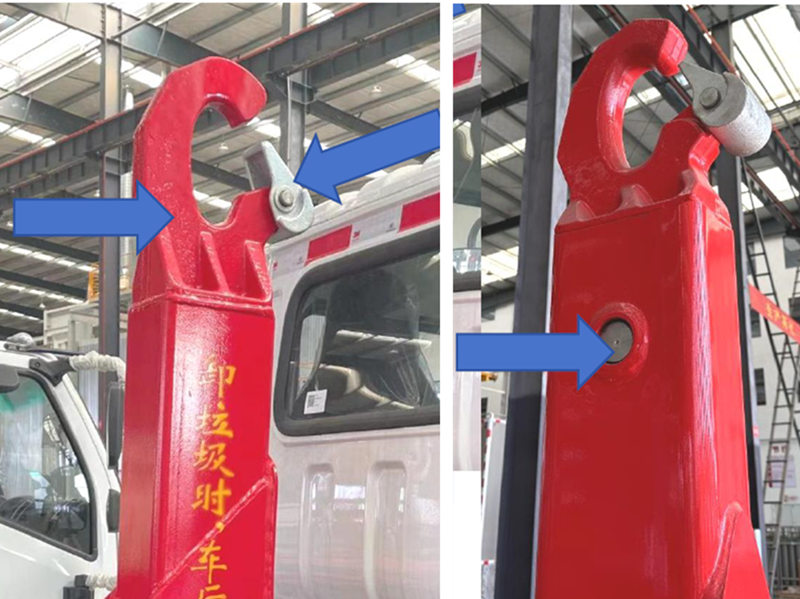

    Hook arm
    High-strength hook arm with a gravity self-locking mechanism for enhanced safety, replaceable hook

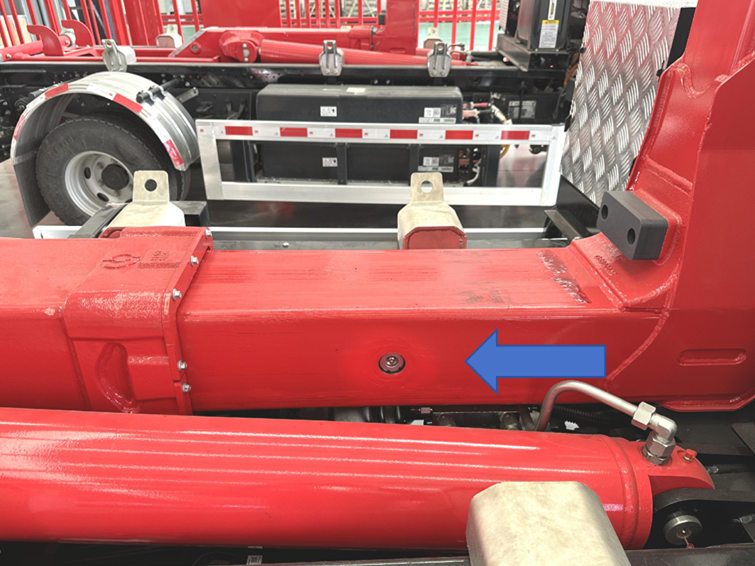

  • Beiben 20-ton hook loader
    Telescopic boom
    Manufactured through an integrated molding process using thickened Q460 seamless square steel
  • Beiben heavy duty hook lift garbage truck

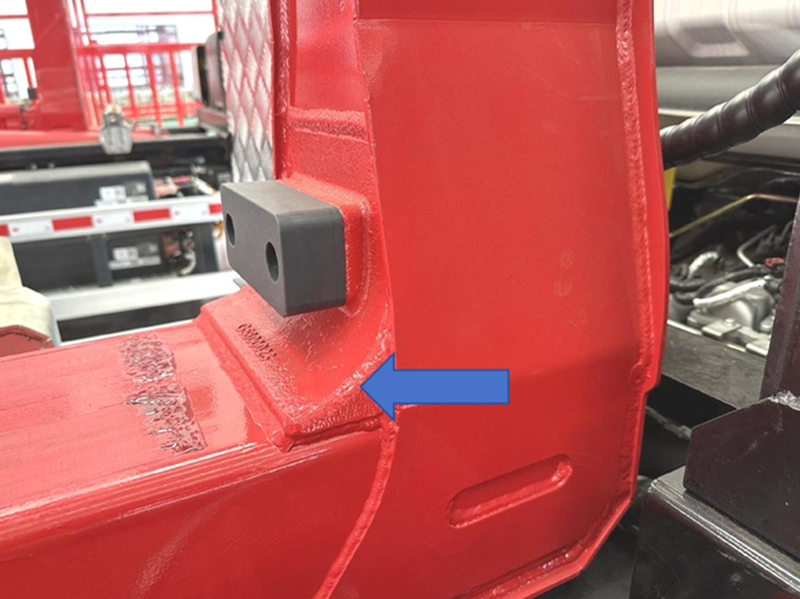

    Right-angle connector
    Made of cast material for superior overall strength and a more aesthetically pleasing appearance
  • Beiben hooklift garbage truck
    Rotation shaft
    Constructed from cast components, delivering greater overall strength and an improved aesthetic

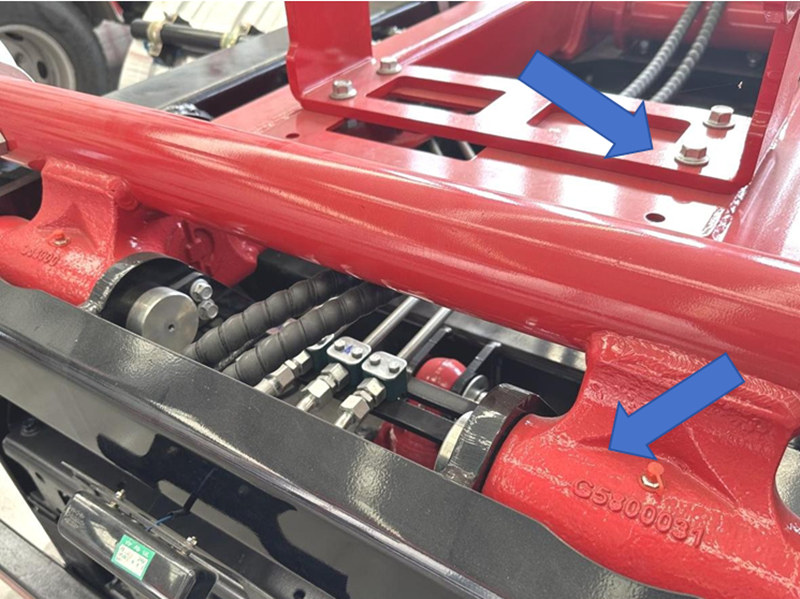

  • Beiben 20-ton roll off container garbage truck
    Rotation arm
    arm is made of Q460 material, with superior strength and durability; shaft is cast components, with enhanced structure
  • Beiben 10-wheeler hook arm garbage truck

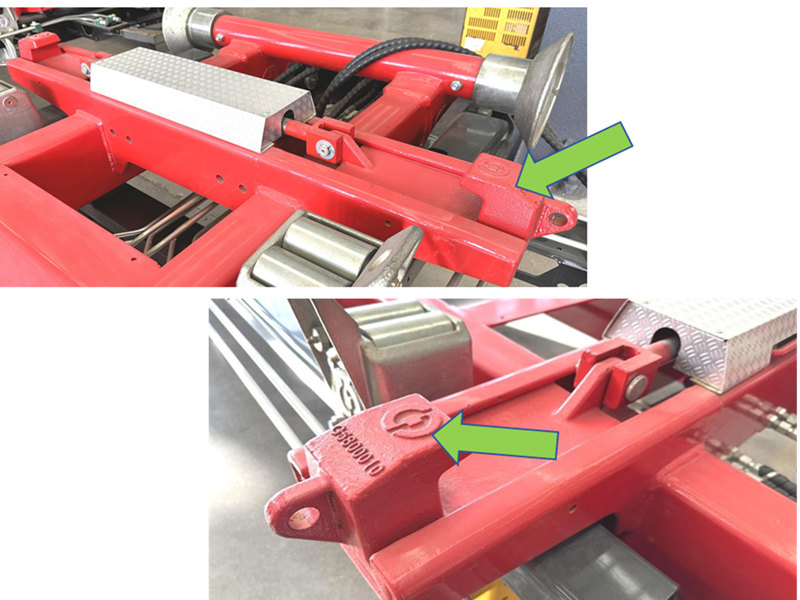

    Container lock
    Crafted as a cast component, can switch the locking direction based on the container, enabling both internal and external locking

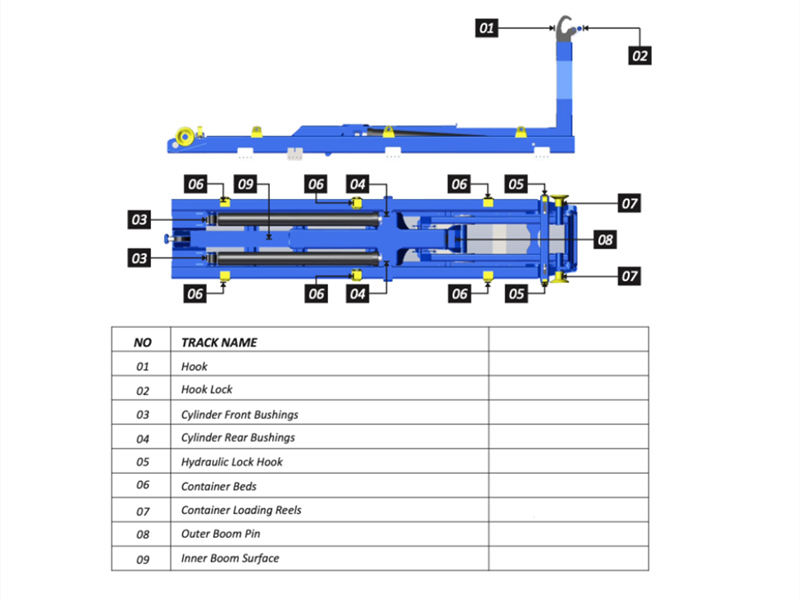

» Ⅴ. Hook Loader Structure:



Beiben 20-ton hook loader refuse truck structure

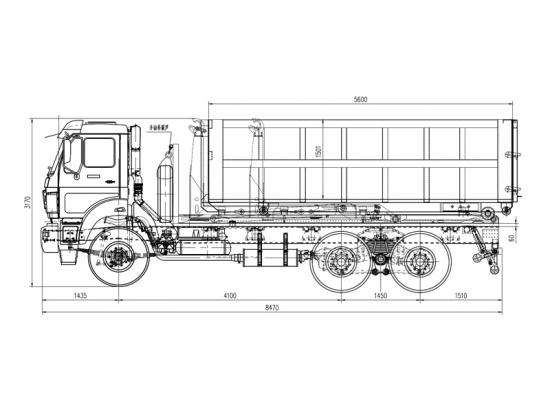

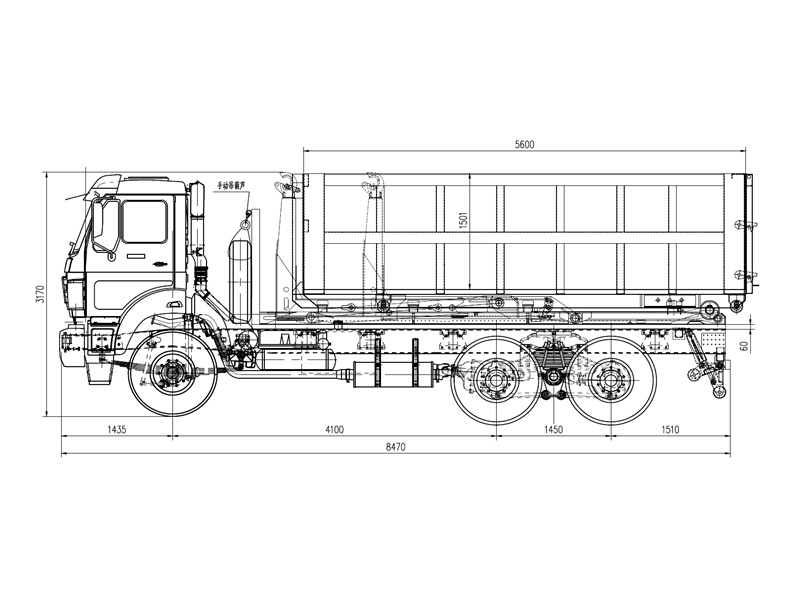

» Ⅶ. Product Drawing:



Beiben 6×4 hook loader garbage truck

» Ⅷ. Product Applications:



  • Beiben 20-ton hook loader application
  • Beiben 20-ton hook loader application
  • Beiben 30-ton hook loader application





Products--100% china beiben factory trucks!

Shipping --100% fast, Convenience, Efficient!

Guarantee--7days + 24hours Safetify Service!



1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive hooklift garbage trucks for option



2. Factory direct sale, supply Beiben 15 Ton, 20 Ton, 25 Ton, 30 T capacity hook loader trucks



3.12 months after sale service guarantee, quality assurance.



4. Beiben trucks mounted VOLER, HYVA, PALFINGER hook loader brand.
