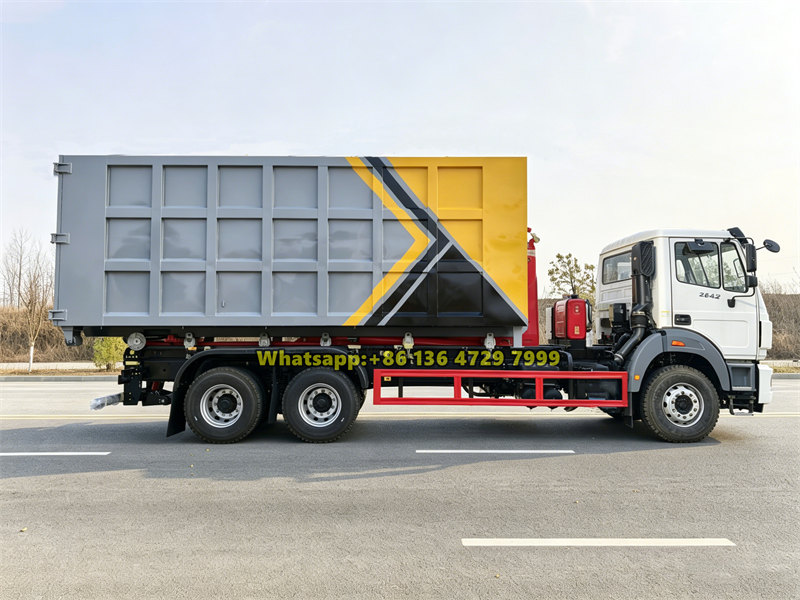

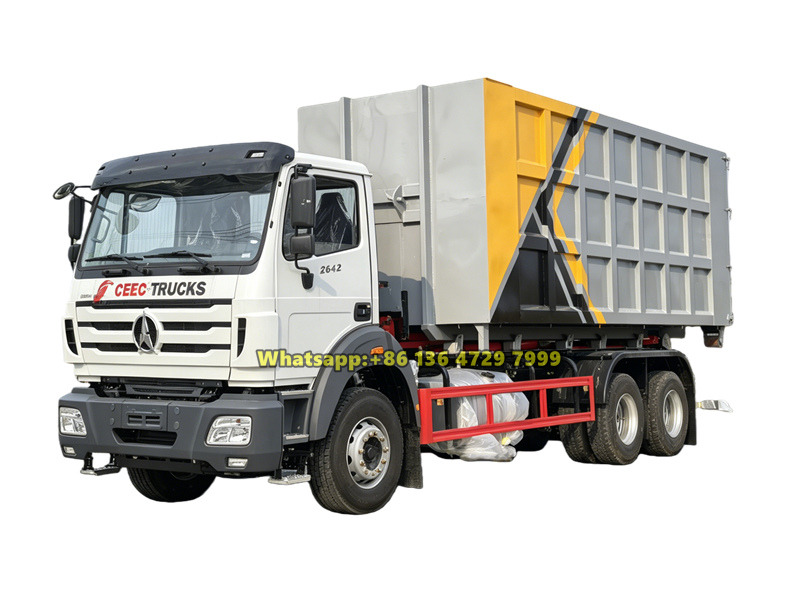

The Beiben 20-ton hook load garbage truck is built on the Beiben 2642 chassis, equipped with a 420 hp engine and a 20-ton hydraulic hook-arm system, and features a 20CBM garbage container. The loading/unloading cycle is ≤110 seconds, supporting both manual and remote control operations, enabling efficient one-truck-multiple-containers transfer.
Market Price:
$56000Working Capcity:
20 tonsCabin Type:
NG80B short cabinDimension ( mm ) :
8800×2550×3450Drive System:
6×4Wheelbase (mm):
4450+1450Engine Power:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
20-ton hooklift system, 20CBM garbage containerThe Beiben 20-ton hook lift garbage truck, built on the Beiben 2642 heavy-duty chassis with a 20-ton hydraulic hook-arm system, is designed for heavy-duty waste transfer applications. It is powered by a 420 hp engine, equipped with a FAST 12-speed manual transmission and a high-strength hook lift mechanism, supporting a one-truck-multiple-containers operation mode. The truck is fitted with a 20CBM garbage container, with a loading/unloading working cycle of ≤110 seconds and a lifting angle of 52°. The hydraulic system adopts a well-known brand multi-way valve and gear pump, supports both manual and remote control operation modes, and is equipped with balance valves and hydraulic locks, ensuring smooth and reliable operation. The upper structure features electrostatic powder spray and baking paint technology, offering outstanding corrosion resistance. This Beiben heavy duty hook lift truck is suitable for high-frequency operation scenarios such as waste transfer stations, large industrial parks, and municipal sanitation.
CEEC factory is authorized supplier on Beiben garbage trucks,
guarantee all Beiben hook lift trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
• High Load Capacity: The rated load capacity reaches 20 tons, meeting the requirements of high-intensity operations.

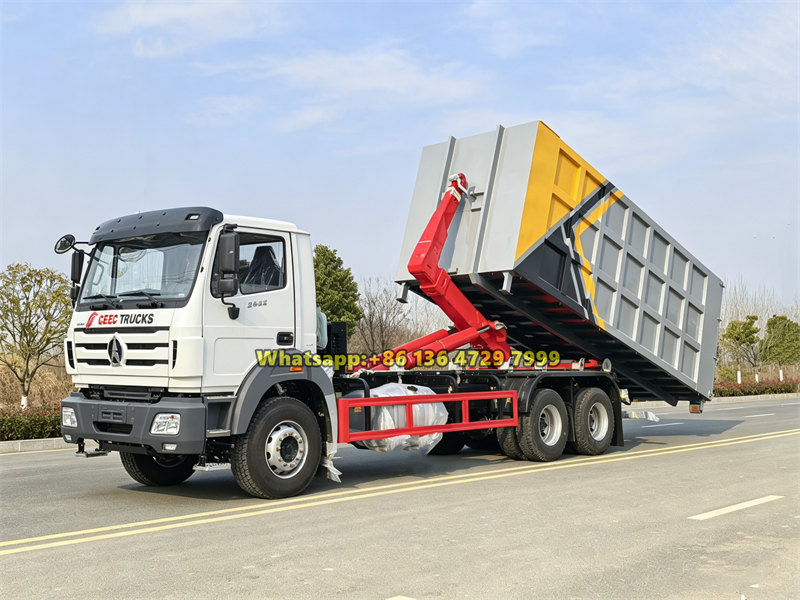

• Efficient Loading/Unloading System: Equipped with a hook-arm device, enabling integrated operations of container lifting, unloading, and self-dumping.
• High Structural Strength: Key components such as the hook arm and container are manufactured from high-strength weather-resistant steel plates, with advanced welding technology, ensuring excellent overall rigidity.

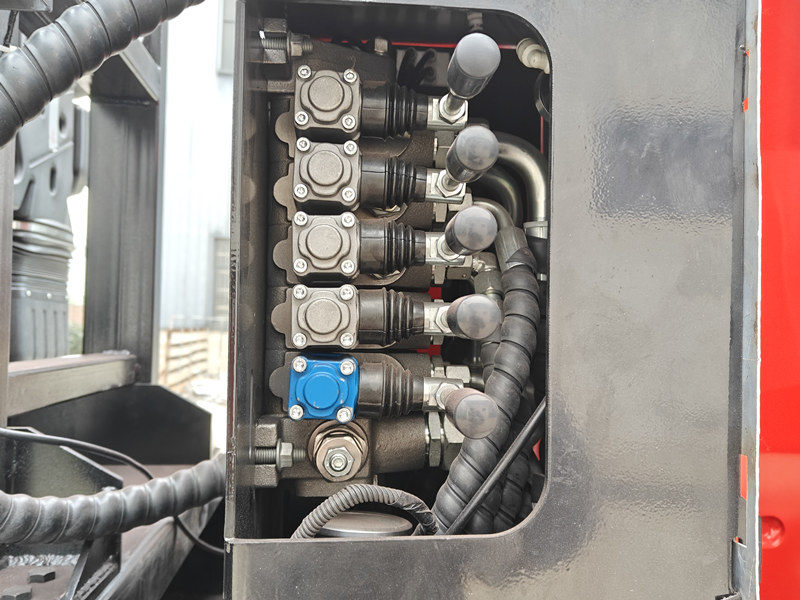

• Advanced Hydraulic System: Most hydraulic components are sourced from well-known brands, ensuring smooth action and constant pressure.
» Ⅱ. Product Specifications:
|
Beiben 20 ton hook loader garbage truck specifications |
||
|
Basic parameter |
Model |
Beiben 2642 |
|
Length×width×height(mm) |
8800×2550×3450 |
|
|
Wheel-base(mm) |
4450+1450 |
|
|
Curb weight(kg) |
12800 |
|
|
Engine parameter |
Model (six cylinder in line) |
WP12.420E32 |
|
Max. Power (HP/rpm) |
420 |
|
|
Max. Torque(Nm/rpm) |
1750/1200～1500 |
|
|
Displacement(lit) |
11.596 L |
|
|
Fuel tank capacity |
400L Iron fuel tank |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical, 12JS200T |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7.5 T, non-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 10/13 pieces； |
|
|
Tire |
12.00R20 |
|
|
Cab |
NG80 Short Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||
|
Hook lift system |
Lifting capacity |
20 tons |
|
Hook center height |
1570 mm |
|
|
Extension of hook arm |
1100 mm |
|
|
Width of guild rail |
1060 mm |
|
|
Tipping angle |
52° |
|
|
Hydraulic system pressure |
28 Mpa |
|
|
Loading Working Time |
≤60 S |
|
|
Unloading Working Time |
≤72 S |
|
|
Discharge Work Cycle Time |
≤110 S |
|
|
Control system |
Manual operation + electric remote control |
|
|

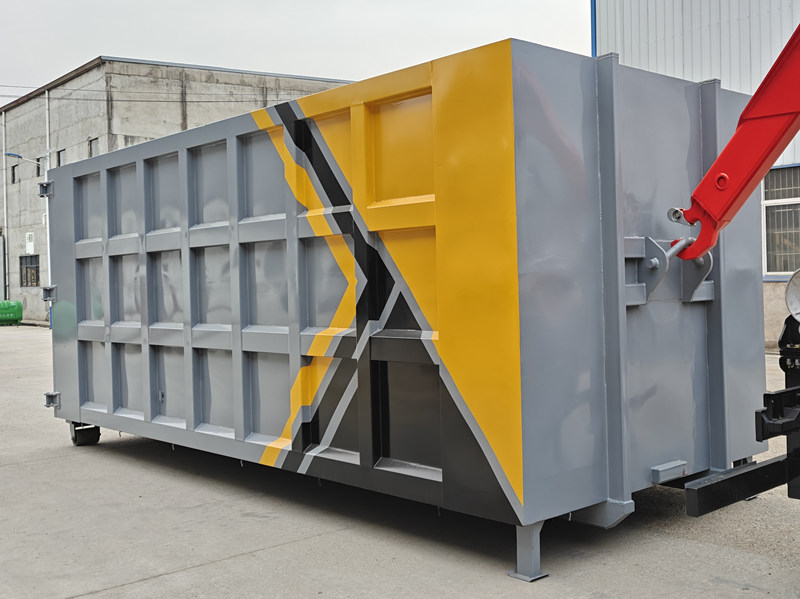

Garbage container |
Capacity |
20 CBM |
|
Loading weight |
20 tons |
|
|
Size |
5600×2300×1500 mm |
|
|
Material |
Q235B Carbon Steel, side walls 4mm, floor 5mm |
|

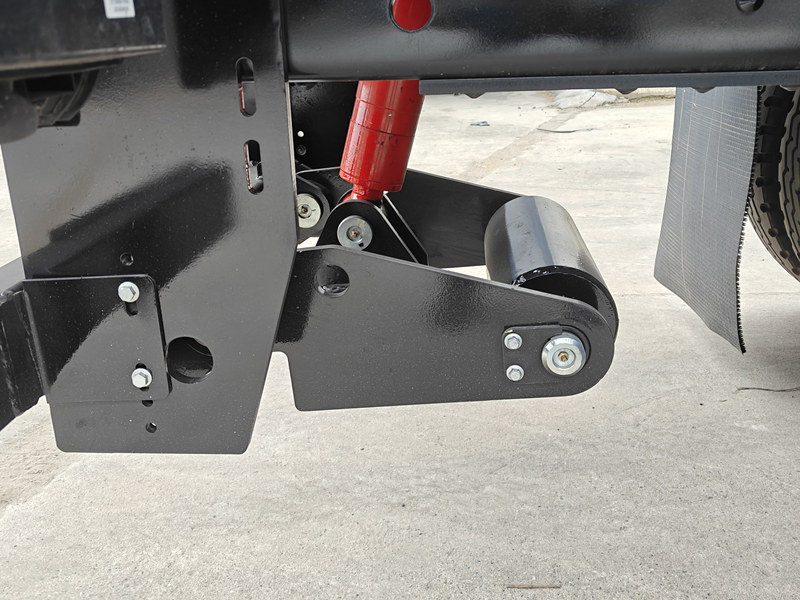

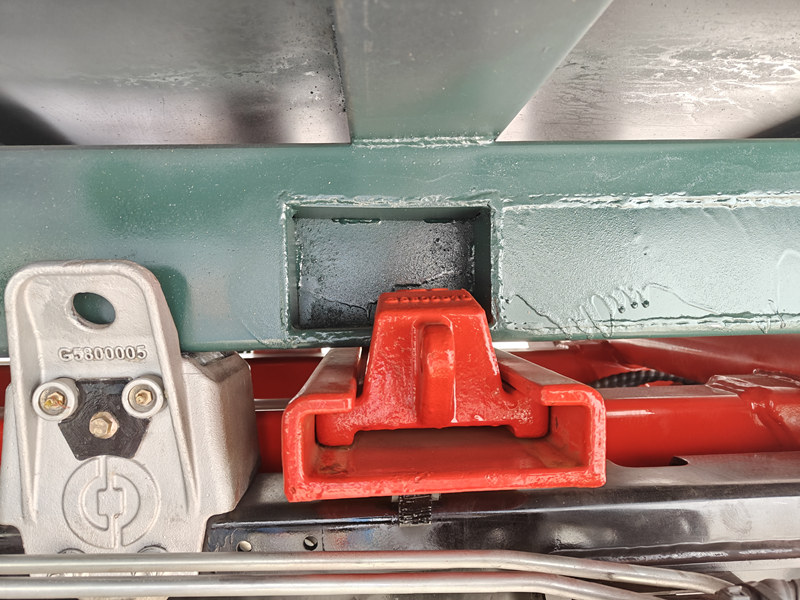

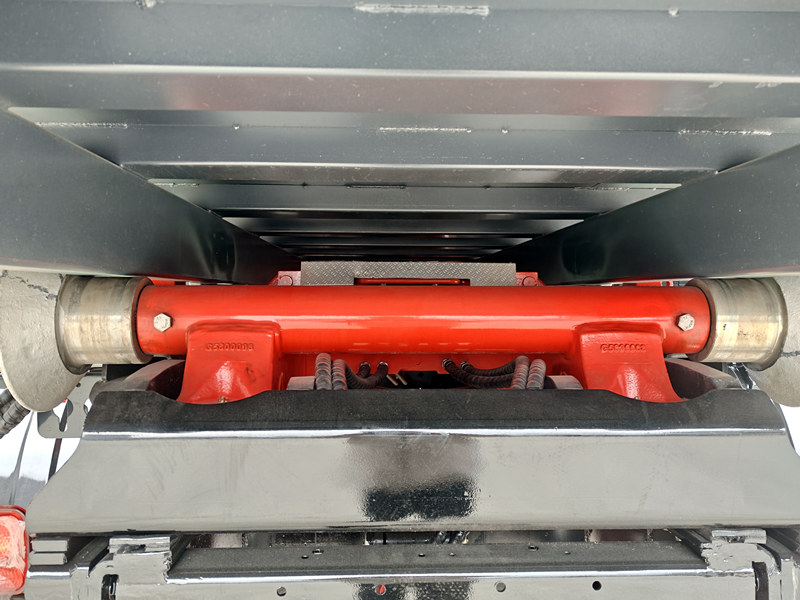

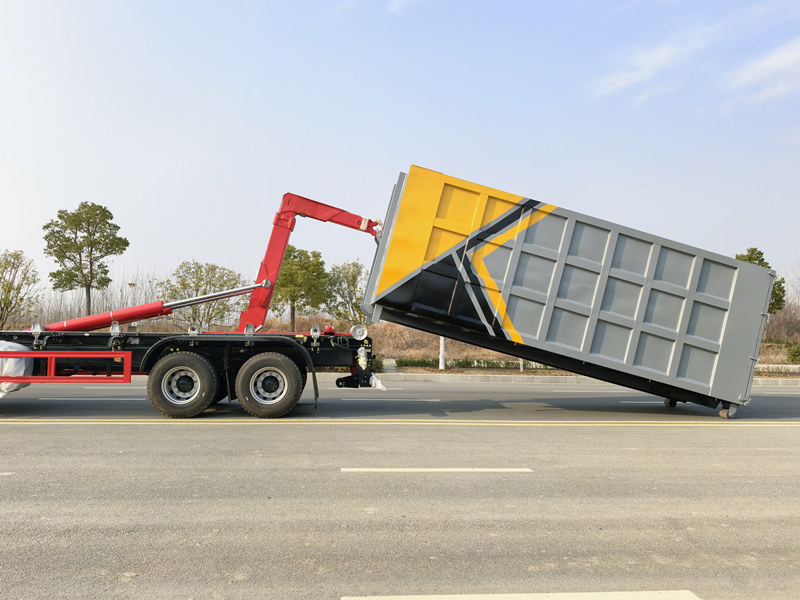

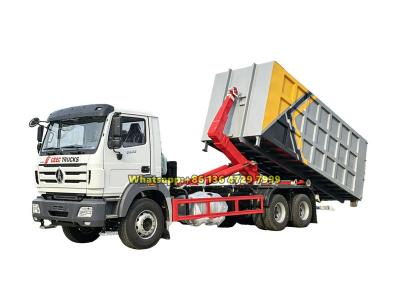

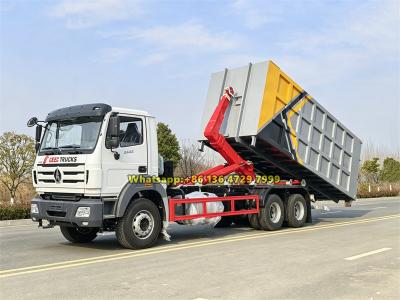

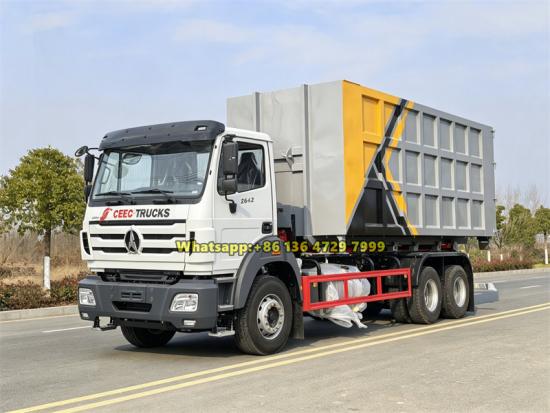

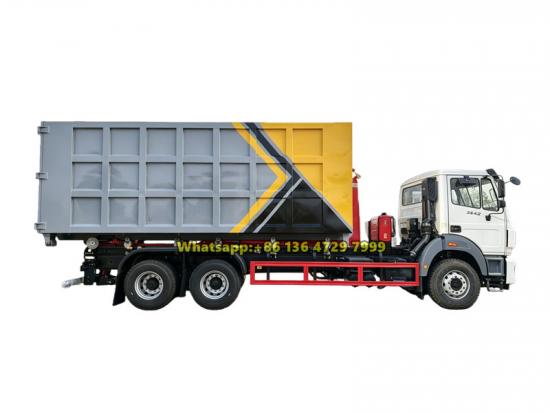

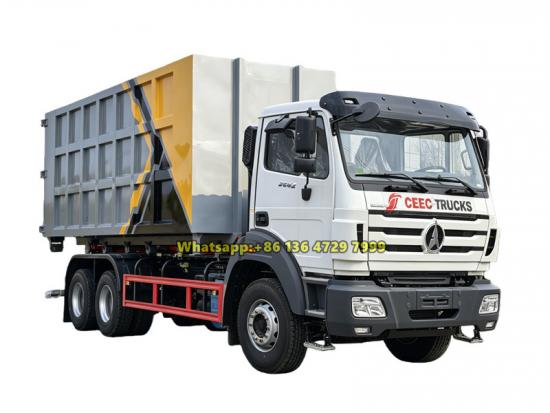

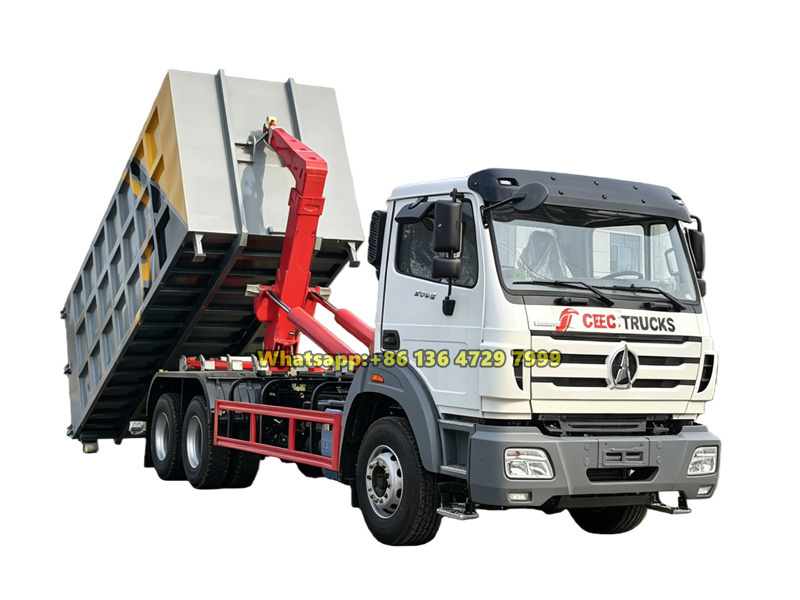

» Ⅲ. Product Details:

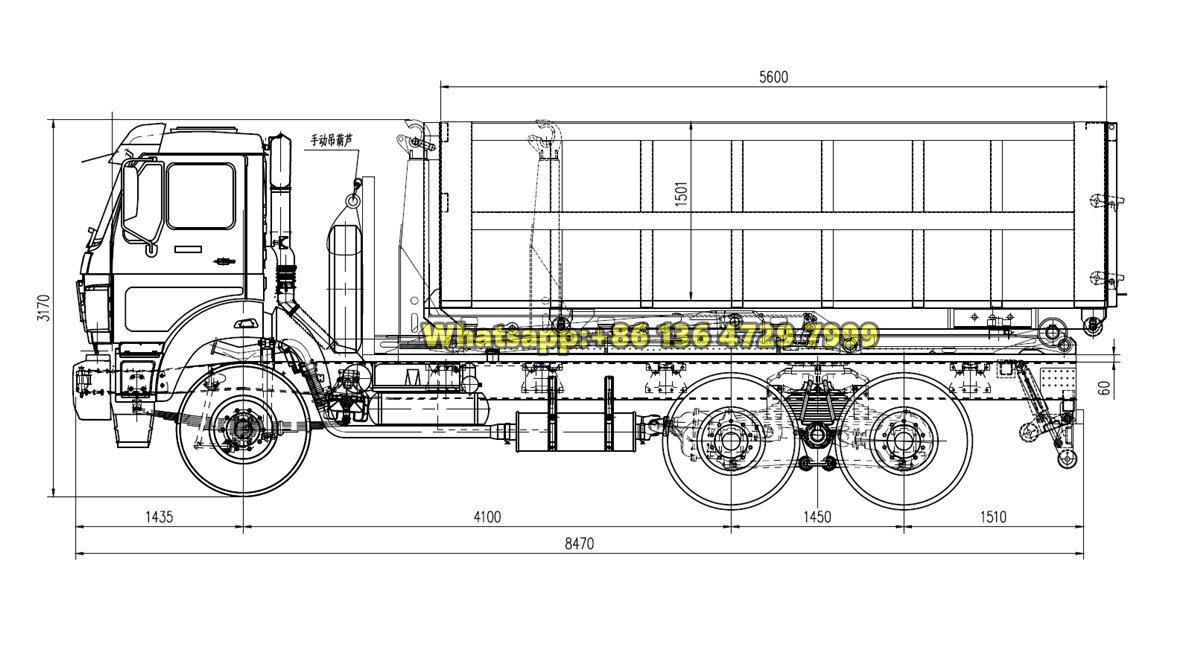

» Ⅳ. Beiben Hook Loader Drawing:

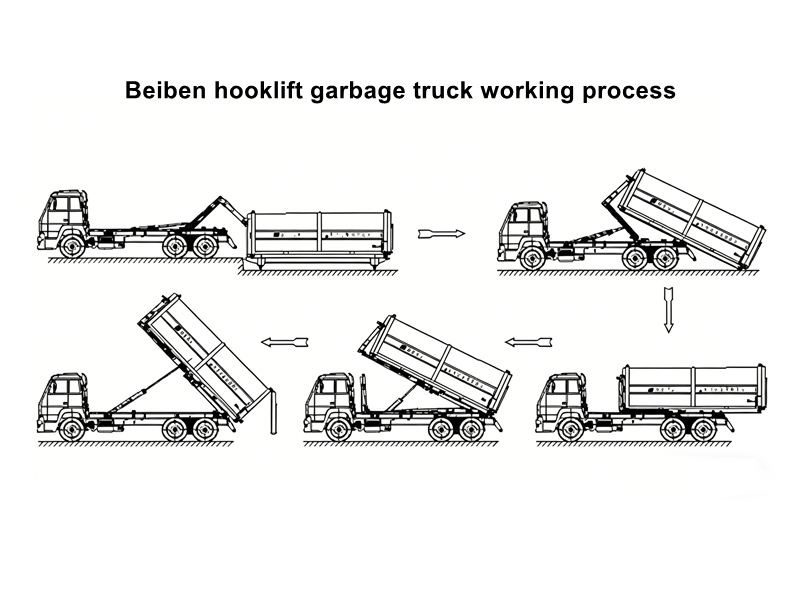

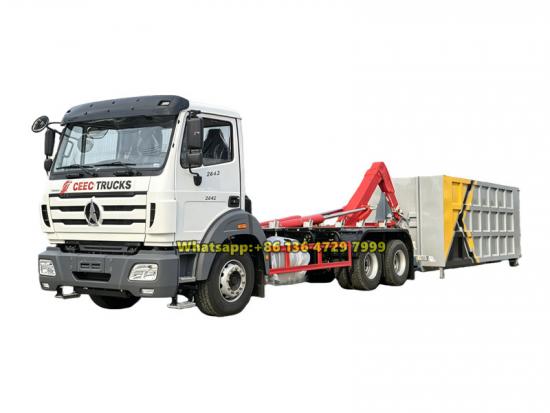

» Ⅴ. Hook Lift Truck Working Process:

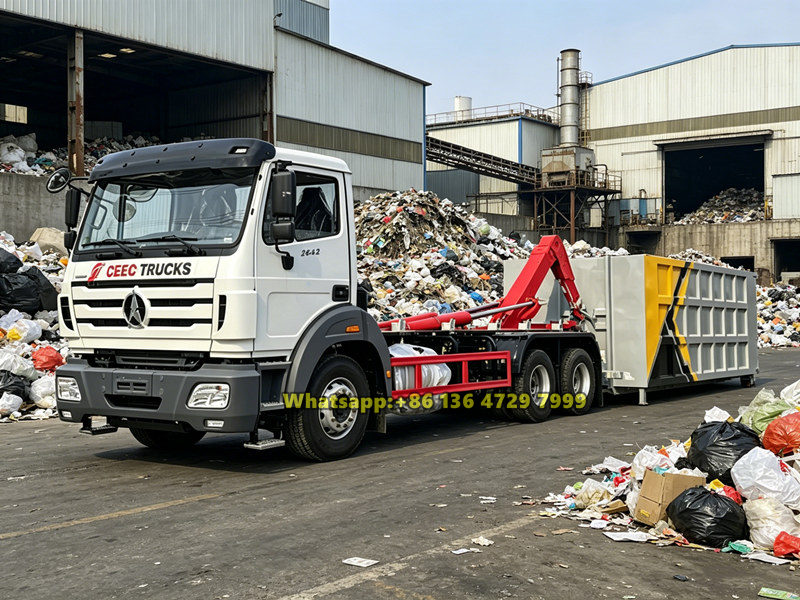

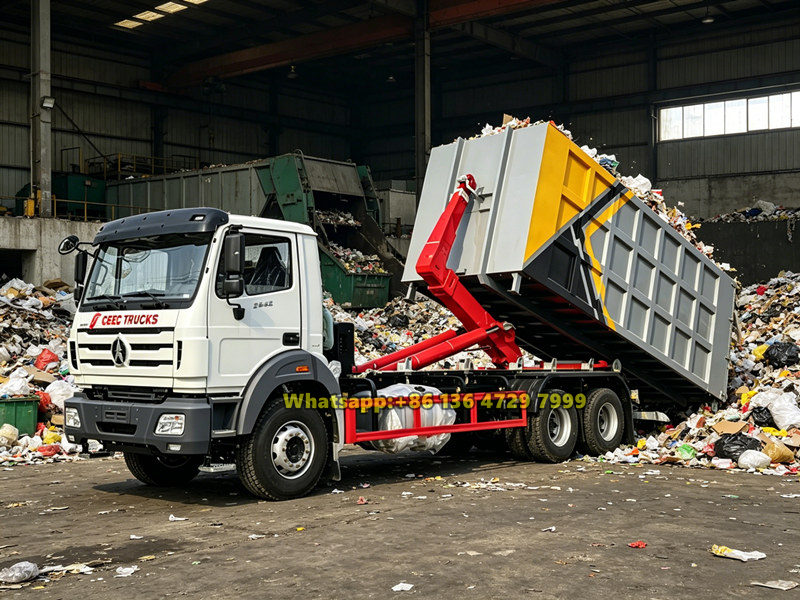

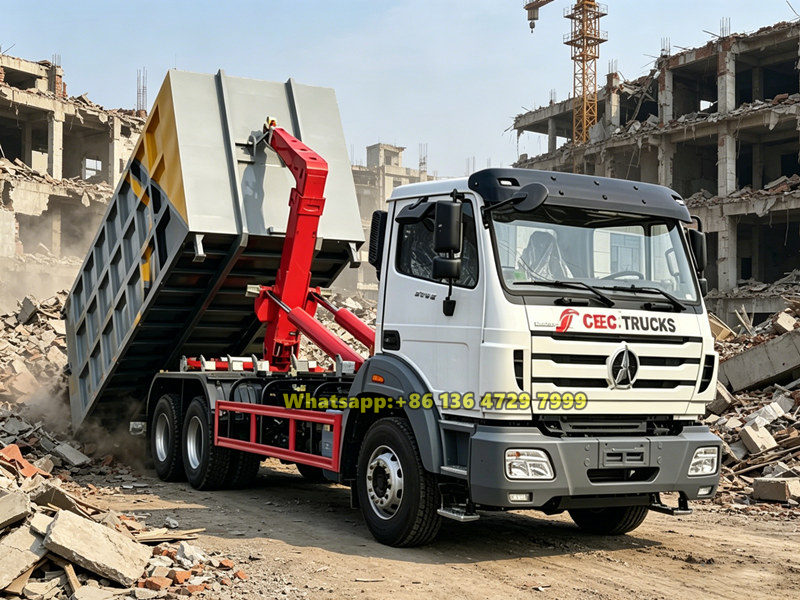

» Ⅵ. Product Applications:
