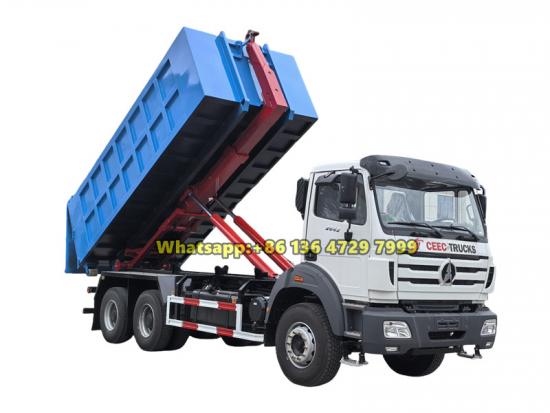

Beiben 6x4 20 ton hook loader truck

Beiben 6×4 hook lift garbage truck
Beiben 6×4 hook lift garbage truck
Beiben 6×4 hook lift garbage truck
Beiben 6×4 hook lift garbage truck
Beiben 6×4 hook lift garbage truck
Beiben 6×4 hook lift garbage truck
Beiben 6×4 hook lift garbage truck
Beiben 6×4 hook lift garbage truck
Beiben 6×4 hook lift garbage truck
Beiben 6×4 hook lift garbage truck
Beiben 6×4 hook lift garbage truck
Beiben 6×4 hook lift garbage truck
Beiben 6×4 hook lift garbage truck

Beiben 6x4 20 ton hook loader truck

The Beiben 6×4 20-ton Hooklift Garbage Truck is a professional and high-efficiency environmental sanitation transfer equipment. Built on the robust Beiben heavy-duty chassis, its core hydraulic hooklift system boasts a 20-ton operating capacity, enabling it to quickly load, unload, and self-dump a 20-cubic-meter standard garbage bin in just 50 seconds. it is an ideal choice for modern urban environmental sanitation systems.

  • Working Capcity:

    20 tons
  • Cabin Type:

    NG80B short cabin

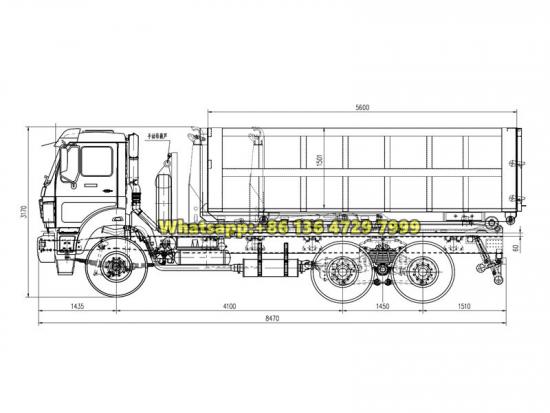

  • Dimension ( mm ) :

    8470×2550×3170
  • Drive System:

    6×4
  • Wheelbase (mm):

    4100+1450
  • Engine Power:

    420HP , WP12.420E32
  • Gear Box:

    12JS200T
  • Remark:

    13.00R22.5 tyres, 20 T hook loader system
New Products

The Beiben 20-ton Hooklift Garbage Truck is a professional environmental sanitation equipment based on the Beiben 6×4 heavy-duty chassis. Its core function lies in the rapid loading, unloading, and transfer of independent garbage bins through the hydraulic hooklift system. Equipped with a powerful 420-horsepower Weichai WP12.420E32 engine, Beiben 20 T hook loader truck can easily handling various complex road conditions and heavy garbage collection/transportation tasks.

The operating system of this Beiben hook loader garbage truck is particularly efficient. The core 20-ton hooklift is made of high-strength steel, with a system working pressure of 28MPa. This mechanism can complete the loading or unloading of a 20CBM garbage bin in less than 50 seconds, with a maximum tilt angle of 52 degrees to ensure thorough dumping.

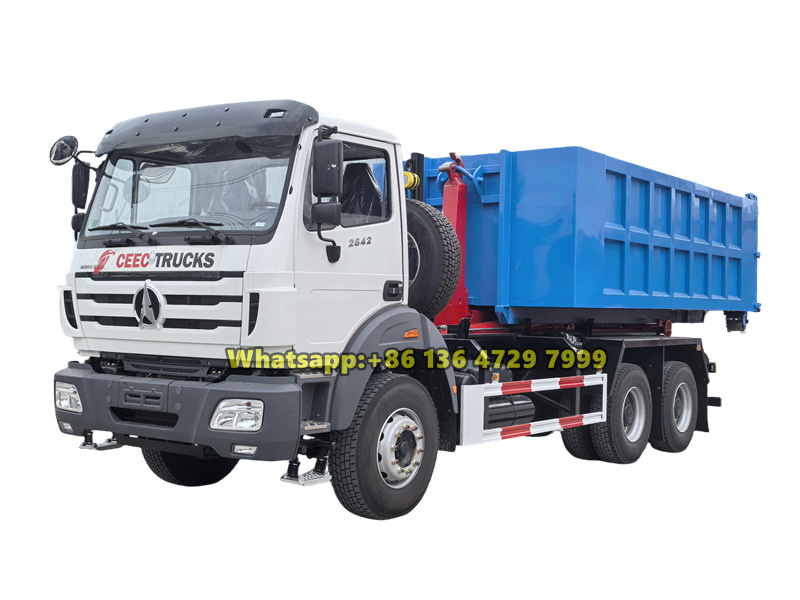

beiben 6x4 drive hooklift trash truck

*Beiben 20-ton heavy hooklift garbage truck

CEEC factory is authorized supplier on beiben garbage trucks,
guarantee all beiben hook loader trucks Brand-New and High-Quality.



» Ⅰ.Product Introduction:

Manufacturer: CEEC TRUCKS

★ 420 Hp powerful engine, 100,000 Km without prblem.

★ 20 T hook lift system, High strength steel with Europen design

★ Benz double differential axle, extremely suitable for AFRICA.

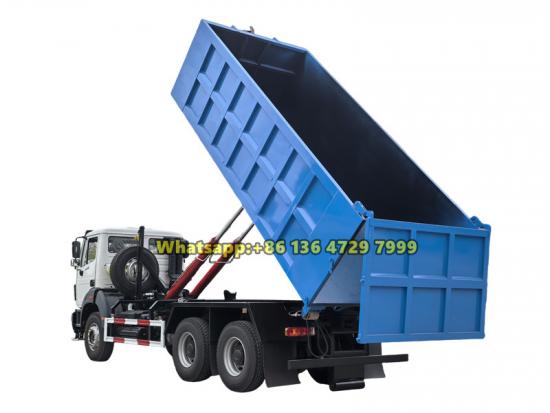

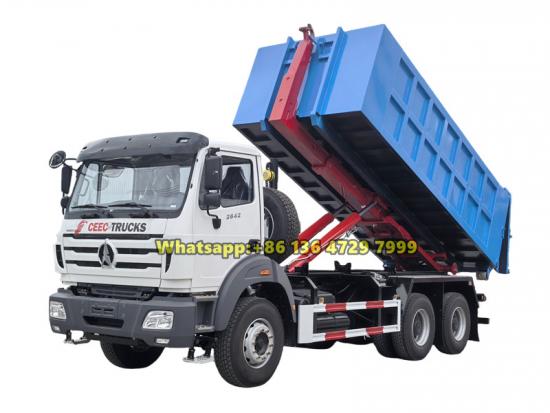

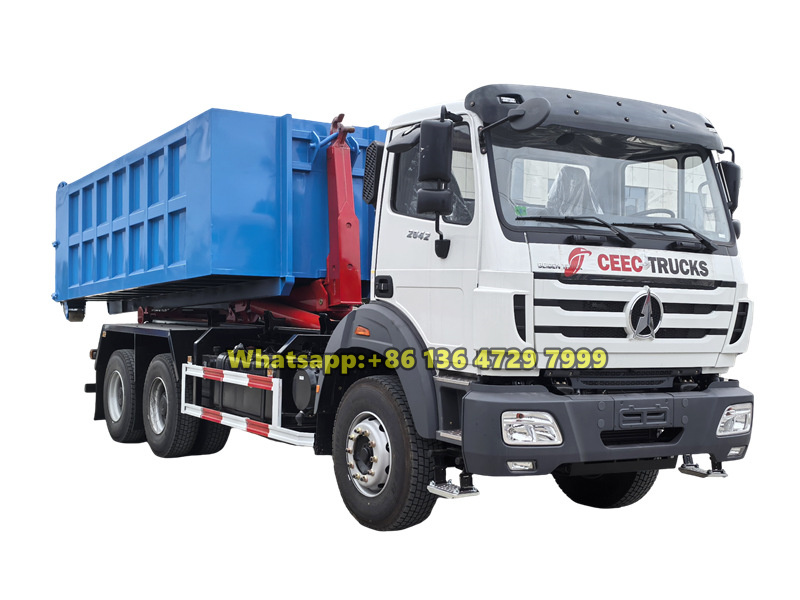

Beiben 6×4 20 ton hook loader truck



» Ⅱ. Technical Specifications:



Beiben 20-ton hooklift garbage truck specifications

Dimensions

Wheelbase(mm)

4100+1450

Overall Dimension(mm)

8470x2550x3170

Hook arm lift capacity(kg)

20,000

Weights parameter

GVW (kg)

26,000kgs

Curb weight(kg)

12,800kgs

Front axle (T)

7.5 Ton load capacity, leaf spring suspension

Rear axle load(T)

13.5 Ton double reduction driving axle, differential lock

Tread (Front/rear) (mm)

1940/1860

Front / rear overhang(mm)

1480/1200

Approach/depart angle(°)

20/19

Max speed(km/h)

89

Vehicle Frame, suspension

Frame

Double-deck frame,300x90x8+5

Suspension

Front and rear strengthen leaf spring

Tire

12.00R20, total 10 tires + 1 spare tire

Engine

Engine model

WEICHAI WP12.420E32

Engine type

4 stroke, direct injection, 6 cylinder in-line

Diesel engine

Fuel tank capacity(L)

400L steel tank

Displacement(L)

11.596L

Engine power(kw)

309kw/420HP

Max. torque/speed

1750N.m/1200-1500rpm

Drive Line parameter

Clutch description

Dry single plate, hydraulic control booster, mechanical operation

with hydraulic assistance

Transmission

FAST brand-12JS200T

12 forwarder, 2 reverse gear, Manual operation

Braking system

Service brake

Dual circuit air brake

Assistant brake

EVB

Park brake

Spring brake

Steering wheel

 Power steering assistance, left hand drive

Cab description

1. Beiben NG80B short cab, with cooling and heating air conditioner, MP3, radio,USB

2. The cab can reversible forwardly, 2 people allowed in the cab

Hook loader specifications

Garbage container volume (CBM)

20CBM

Hooking Capacity(T)

20Ton

Hook arm material

Q40, Q50 high strength steel

System pressure (Mpa)

28

Control voltage(V)

24

Hook arm self weigh(kg)

2200

Extension of hook arm(mm)

1100

Hydraulic gear pump flow (ML/r)

60

Hydraulic oil tank capacity(L)

110L or more

Loading/unloading cycle time(S)

50

The hook center height(mm)

1570

Distance from hook center to rear roller(mm)

5350

Width of guild rail(mm)

1060

Tipping angle (°)

52

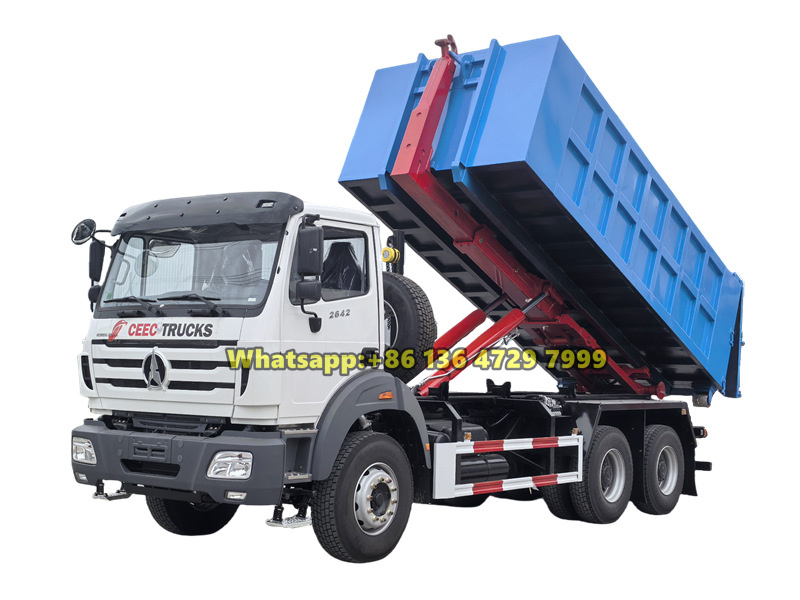

beiben 20-ton hook loader truck



» Ⅲ. Chassis Advantages:



Beiben 6×4 roll off garbage truck

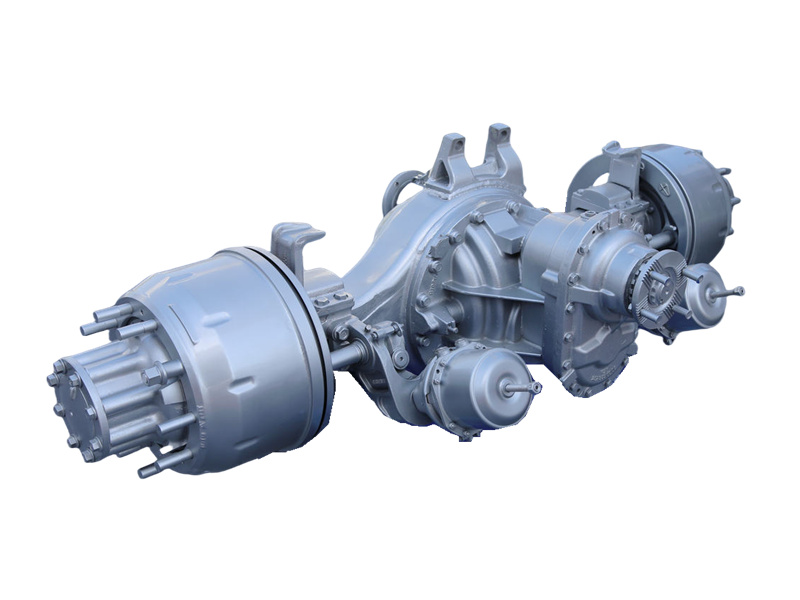

Mercedes-Benz Technology Axles

Front axle payload: 7500kg

Rear axle payload: 13000kg+13000kg



HOWO 10-wheel 20-ton hook loader

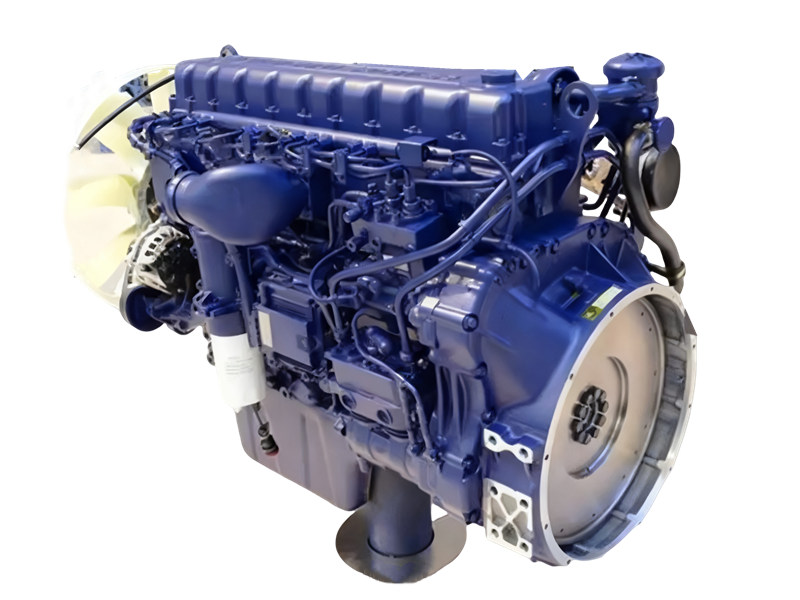

WEICHAI Diesel Engine

Model: WP12.420E32

Number of cylinders: 6

Power: 420HP

Displacement: 11596ml



Beiben 6×4 hook arm garbage truck

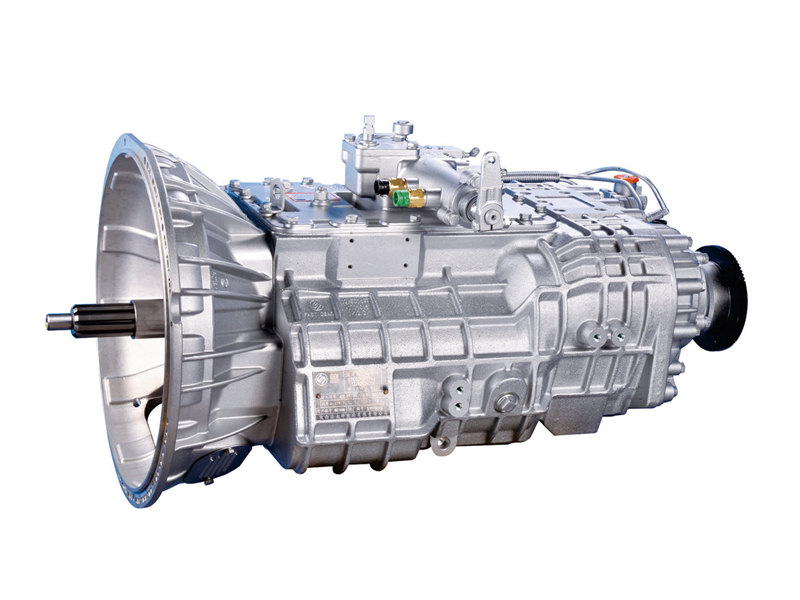

FAST Transmission

Model: 12JS200T

Gear: 12-speed forwards and 2 reverse

Max. input torque: 2000 N.m

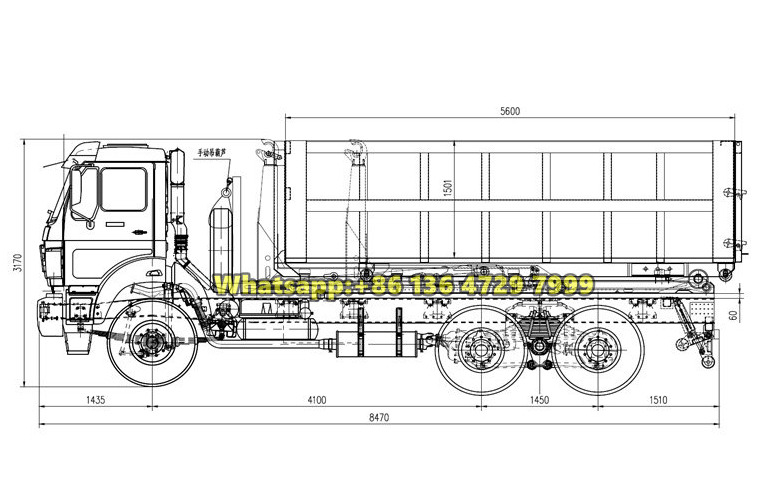

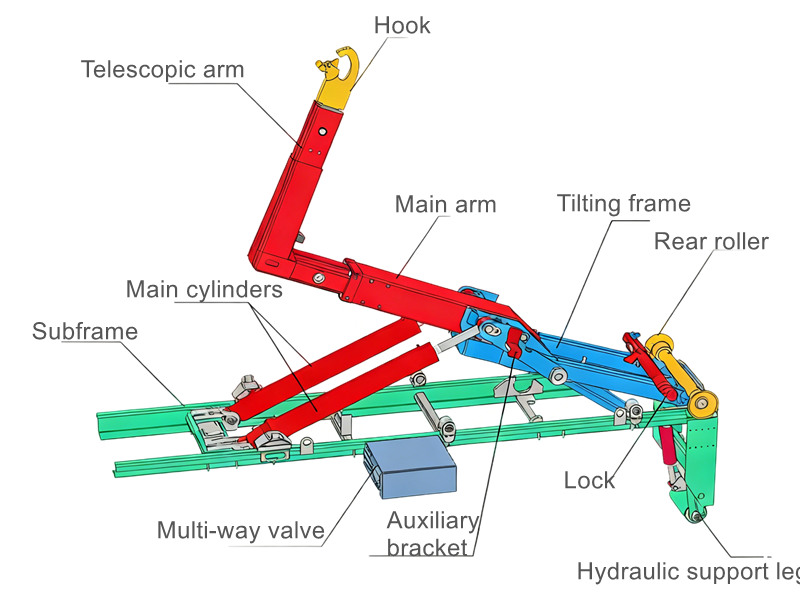

» Ⅳ. Hook Loader Structure:

Hook loader body structure

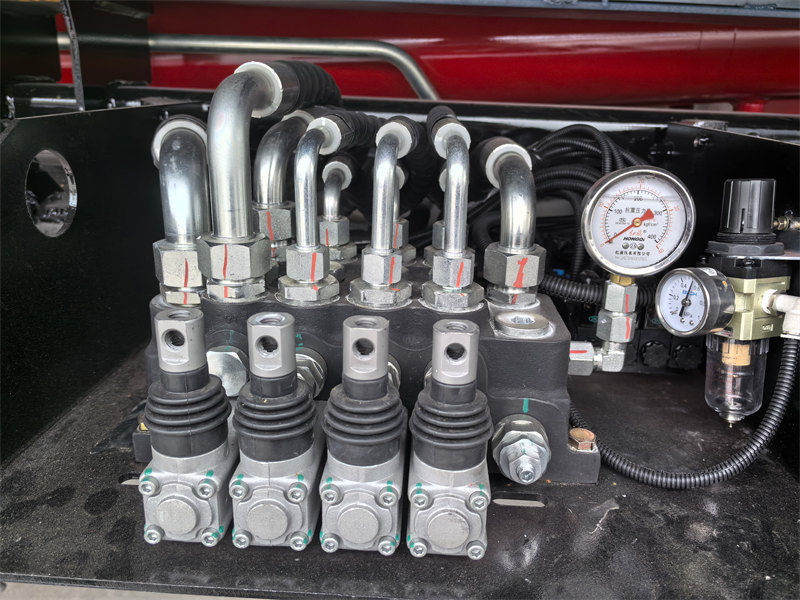

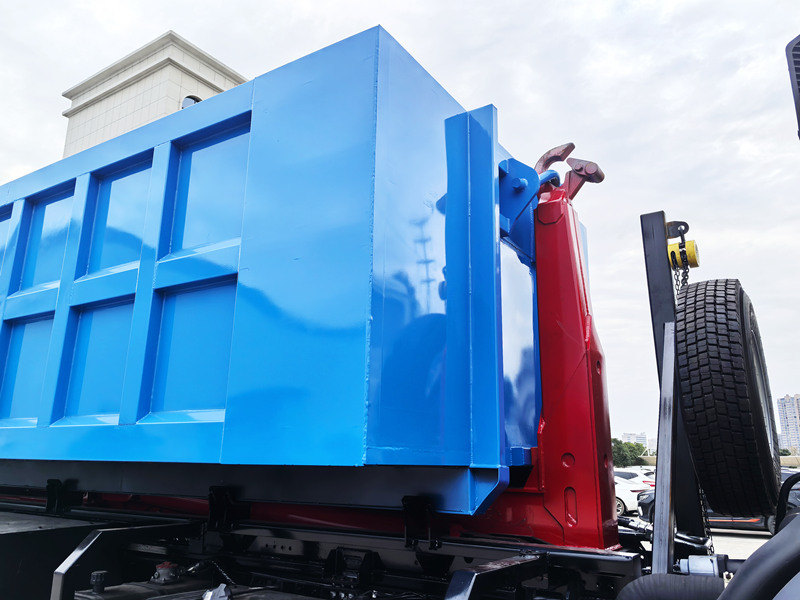

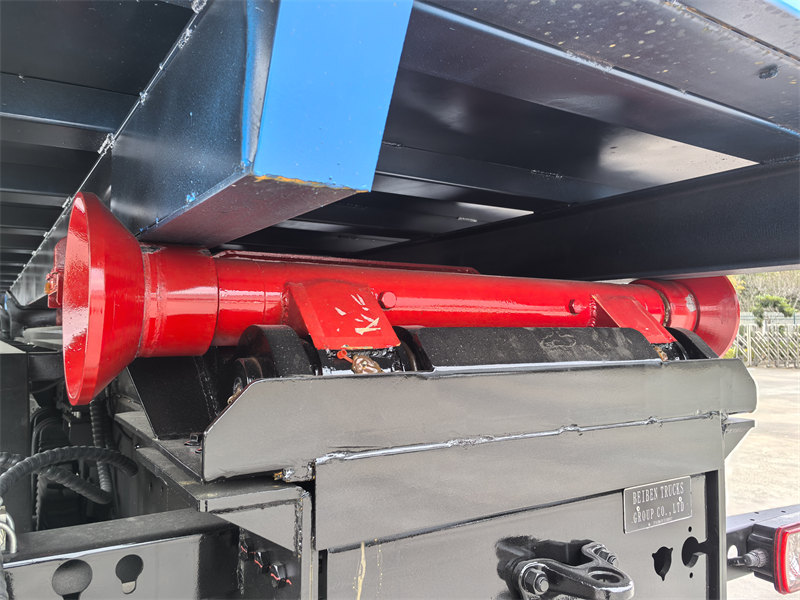

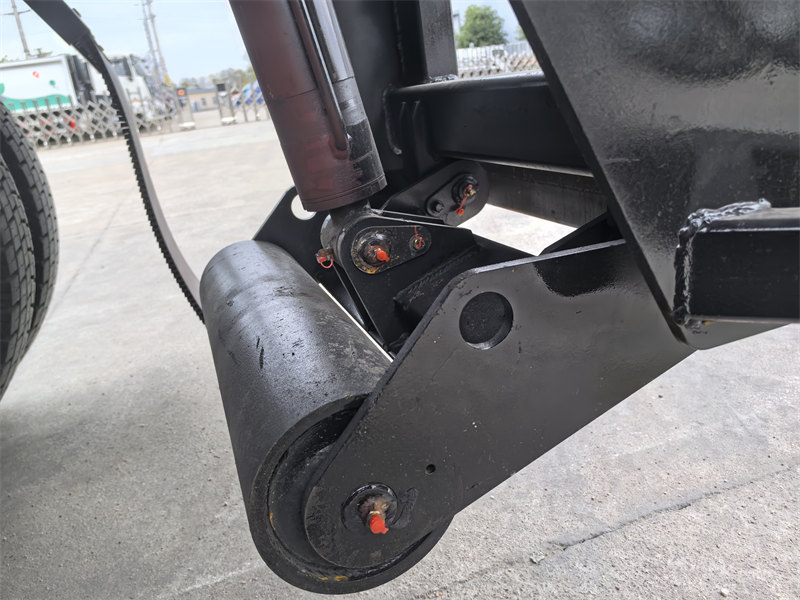

» Ⅴ. Hook Loader Details:



Products--100% china beiben factory trucks!

Shipping --100% fast, Convenience, Efficient!

Guarantee--7days + 24hours Safetify Service!



1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive hooklift garbage trucks for option



2. Factory direct sale, supply Beiben 15 Ton, 20 Ton, 25 Ton, 30 T capacity hook loader trucks



3.12 months after sale service guarantee, quality assurance.



4. Beiben trucks mounted VOLER, HYVA, PALFINGER hook loader brand.
