Products
north benz 2538 dump trucks for earth moving
Product Details

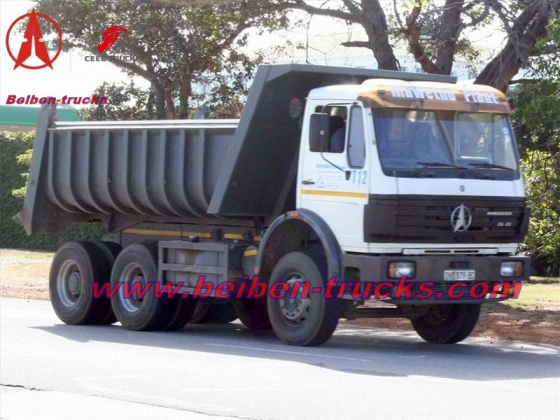

north benz 2538 dump trucks for earth moving
BEIBEN DUMP TRUCK FOR EARTH MOVING 30TON
| Sales No. | 2538KY | |
| Dimension(mm) | Long | 8290 |
| Wide | 2500 | |
| High | 3410 | |
| Wheel base(mm) | 3800+1450 | |
| Drive | 6×4 | |
| Engine | Model | WP10.380E32 |
| Cabin | NG80B/short cab | |
| Clutch(mm) | Φ430 | |
| Front Axle | 7.5T | |
| Rear/Mid Axle | Model/speed radio | Double Reduction Driving Axle /5.263 |
| Steering System | ZF8098 | |
| Braking System | Dual Circulation Air Brake System | |
| Fuel Tank(L) | 400L | |
| Frame/mm | 317×70×8.5+7+8mm | |
| Tire | 315/80R22.5 | |
| Front/Rear Overhang | 1410/1630 | |
| Transmission | Fuller 9JS180 | |
| Curb Weight(kg) | 12470 | |
| Up Body Volume(m³) | 5.8mx2.3mx1.5m | |
| Max Speed(km/h) | 90 | |
PreviousBeiben NG80 6x4 dump truck 10 wheel tipper
NextBeiben truck tipper 10 wheeler 35 Ton
