The Beiben 2642 tractor truck is a heavy-duty commercial vehicle specifically designed for long-distance transportation and heavy-load operations, making it a standout in the industry with its exceptional performance and superior design. The vehicle is equipped with the WP12.420E32 engine, which has a displacement of 12L and meets EURO 3 emission standards, providing ample power. With a wheelbase of 3450+1450mm, a curb weight of 8800kg, and a maximum towing capacity of 40,000kg, this truck is built for heavy-duty tasks. The comfortable cab design, which includes a single sleeper, ensures a pleasant driving experience for long-distance journeys. It is a reliable heavy-duty commercial vehicle.
Production time:
30 daysPayment terms:
TTWorking Capcity:
40 tonsEngine power:
420 HPDrive system:
6×4Product Descriptions
The Beiben 2642 tractor truck, designed specifically for long-distance transportation and heavy-load operations, stands out in the industry with its exceptional performance and robust structure. With a wheelbase of 3450+1450mm, it provides a stable foundation for smooth driving. The curb weight of 8800kg demonstrates its sturdy construction and impressive load capacity. Furthermore, with a maximum towing capacity of 40,000kg, it fully meets the demands of long-distance logistics and high-load transportation.

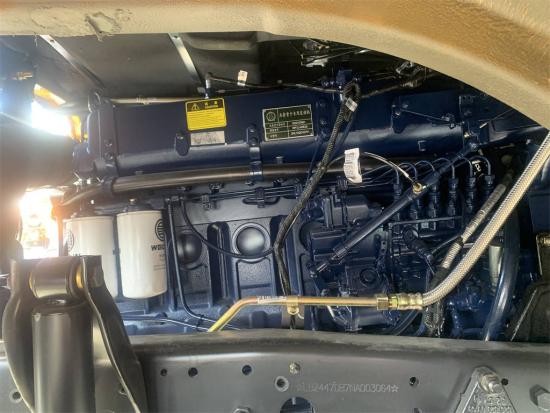

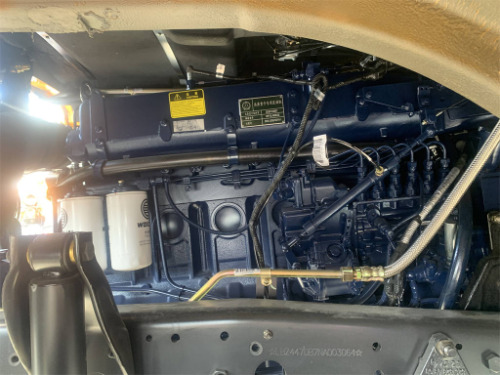

The Beiben 2642 tractor head is equipped with the WP12.420E32 engine, which utilizes water cooling, a four-stroke cycle, an inline six-cylinder layout, and turbocharging technology, powered by diesel fuel. This engine not only delivers strong power but also meets EURO 3 emission standards, ensuring both power output and environmental compliance. The 12L displacement provides ample power reserves for the vehicle.
The steering and suspension systems are also key features of the Beiben 6×4 tractor truck. It incorporates the 8098 steering system, which offers flexible and convenient operation. The suspension system combines a front non-independent suspension with leaf springs and a telescopic shock absorber with a stabilizer bar, as well as a rear non-independent suspension with stabilizing springs and a stable suspension setup, ensuring a smooth and comfortable driving experience.
Product Specifications
|
Wheel base (mm) |
3450+1450 |
|
|
Curb weight (kg) |
8800 |
|
|
Max. towing weight (kg) |
40000 |
|
|
Max Speed (Km/h) |
≥90 |
|
|
Dimension (Length*Width*Height) |
6935*2495*3340mm |
|
|
Engine |
Model |
WP12.420E32 |
|
Power |
420HP/309KW |
|
|
Type |
water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Fuel type |
Diesel |
|
|
Emission |
EURO 3 |
|
|
Displacement(L) |
12 |
|
|
Fuel tanker capacity (L) |
400L |
|
|
Clutch |
Model |
Φ430, Diaphragm Spring, Hydraulic boosting |
|
Gearbox |
Model |
12JS160T, mechanical type,12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 |
|
Suspension system |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension, |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension, |
|
|
Frame |
Fish belly shape, variable width, variable sections |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7mm |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle AL7/1DS-7/5.921 |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
|
Tire |
12.00R20 |
|
|
Qty of tire |
11 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cab |
Long cab with single sleeper |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
|
Fifth wheel |
#50 single direction |
|
Product Details
 |
 |
China best beiben 2642 tractor trucks supplier is ceec trucks plant, we supply the best quality 6*4 2642 tractor for sale, and original beiben 2642 tractor truck parts , more than 12 months for north benz 2642 tractor trucks.
420hp prime mover Hot sale Beiben V3 2642 truck head 6*4 tractor truck in china, we can supply the best price of beiben V3 420 hp tractor trucks
North Benz V3 6x4 420hp truck head Beiben V3 tractor truck best price , our north benz V3 tractor trucks have the 420 hp diesel engine as customer required.
The Beiben 2642 tractor is a heavy-duty transport vehicle with a 6X4 drive configuration, powered by a WP12.420E32 engine that delivers a maximum of 420 horsepower. It is equipped with a FAST 12JS200T transmission, offering 12 forward gears and 2 reverse gears. The vehicle boasts dimensions of 7180x2490x3180 millimeters, with a wheelbase of 3450+1450 millimeters, and a maximum traction gross weight capacity of 40 tons. Widely used in long-haul logistics, construction projects, and other heavy-duty transport sectors, the Beiben 2642 tractor truck has earned widespread praise in the market for its outstanding performance and reliable quality.
The Beiben 2642 tractor head, leveraging German Benz technology, is specifically designed for heavy-duty transport. With overall dimensions of 7140×2500×3200 mm and a wheelbase of 3450+1450 mm, it is equipped with a WP12.420E32 diesel engine that delivers a maximum power of 308 kW (420 hp) at a rated speed of 2100 rpm, complying with EURO III emission standards. The vehicle features a 12JS200T mechanical transmission with 12 forward gears and a 400-liter fuel tank to ensure long-distance driving capability. Its dual-circuit air brake system, complemented by an ABS system, guarantees safe driving. With a maximum towing capacity of 40 tons, the Beiben 2642 tractor is an ideal choice for long-haul logistics and heavy-load transportation.
Beiben 2642 tractor is a vehicle specially built for the Mongolian market based on German Mercedes-Benz technology, with overall dimensions of 7140×2500×3200mm, wheelbase of 3450+1450mm, curb weight of 8800kg, and maximum traction weight of 40000kg. The vehicle is equipped with a WP10.420E32 engine with a maximum output power of 308kw, which meets the EURO III emission standards. It is equipped with a 400L fuel tank, a FAST 12JS200T gearbox and a luxurious cab, providing a comfortable and convenient driving environment for the driver.
BEIBEN 6x4 tractor truck 2642SZ 420HP diesel engine prime mover has a metal frame + skin structure, which has the same level of safety as a European car, and meets the European ECR29 safety regulations. The frame is stamped and formed at one time to ensure the strength of the girder. The axle is selected as Beiben axle. Mercedes-Benz's unique axle technology improves the reliability of the vehicle, fuel-saving, and high attendance rate. Reinforced structure, suitable for transporting all kinds of heavy goods. After recent years of construction and development capacity,the company currently has 100,000 vehicle supporting ability. China north beiben 2642 tractor head is durable and powerful with WEICHAI WP12.420E32 diesel engine, 420HP and emission 11596cc, very idea truck for DR Congo market.
