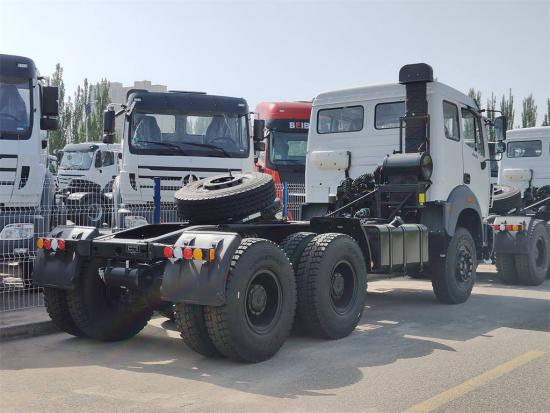

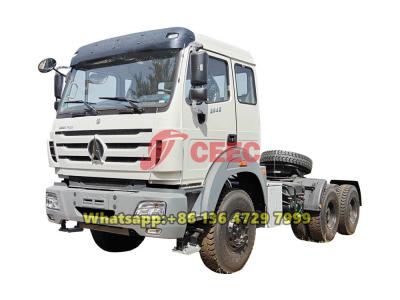

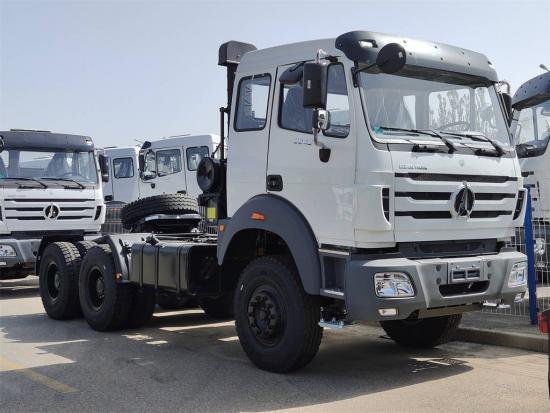

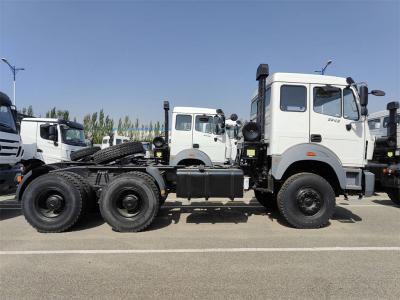

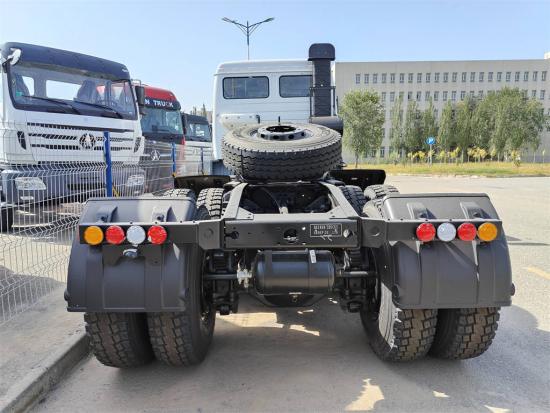

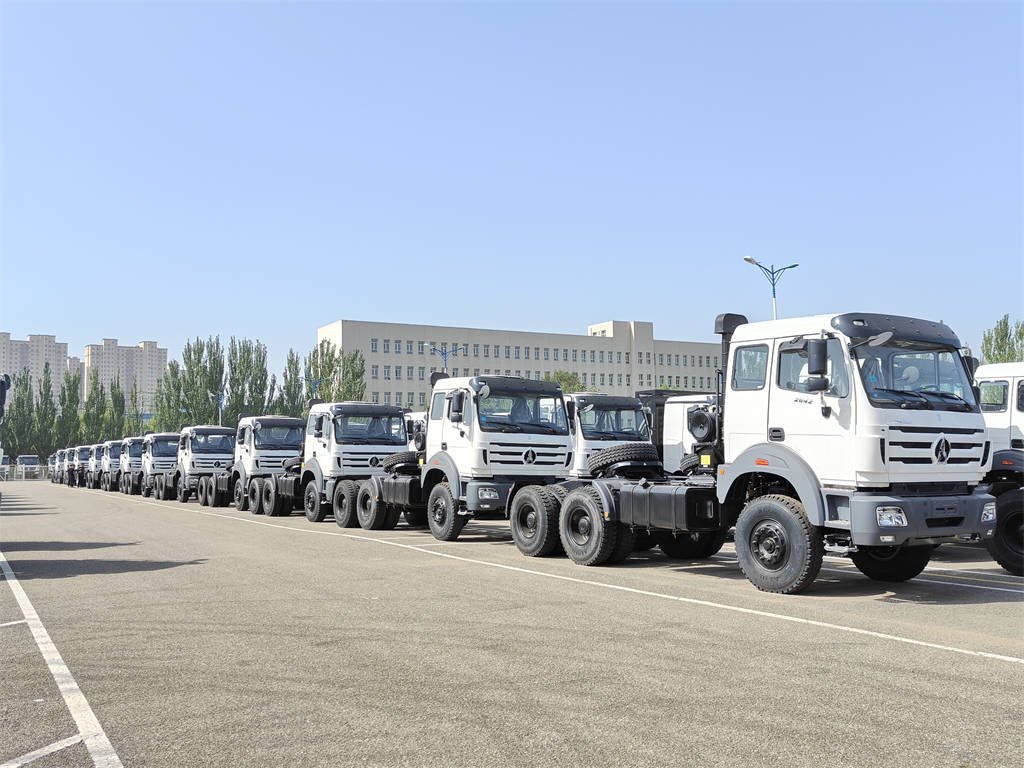

Beiben 2642 tractor is a vehicle specially built for the Mongolian market based on German Mercedes-Benz technology, with overall dimensions of 7140×2500×3200mm, wheelbase of 3450+1450mm, curb weight of 8800kg, and maximum traction weight of 40000kg. The vehicle is equipped with a WP10.420E32 engine with a maximum output power of 308kw, which meets the EURO III emission standards. It is equipped with a 400L fuel tank, a FAST 12JS200T gearbox and a luxurious cab, providing a comfortable and convenient driving environment for the driver.
Production time:
30 daysPayment terms:
TTWorking Capcity:
40 tonsEngine power:
420 HPDrive system:
6×4Product Description

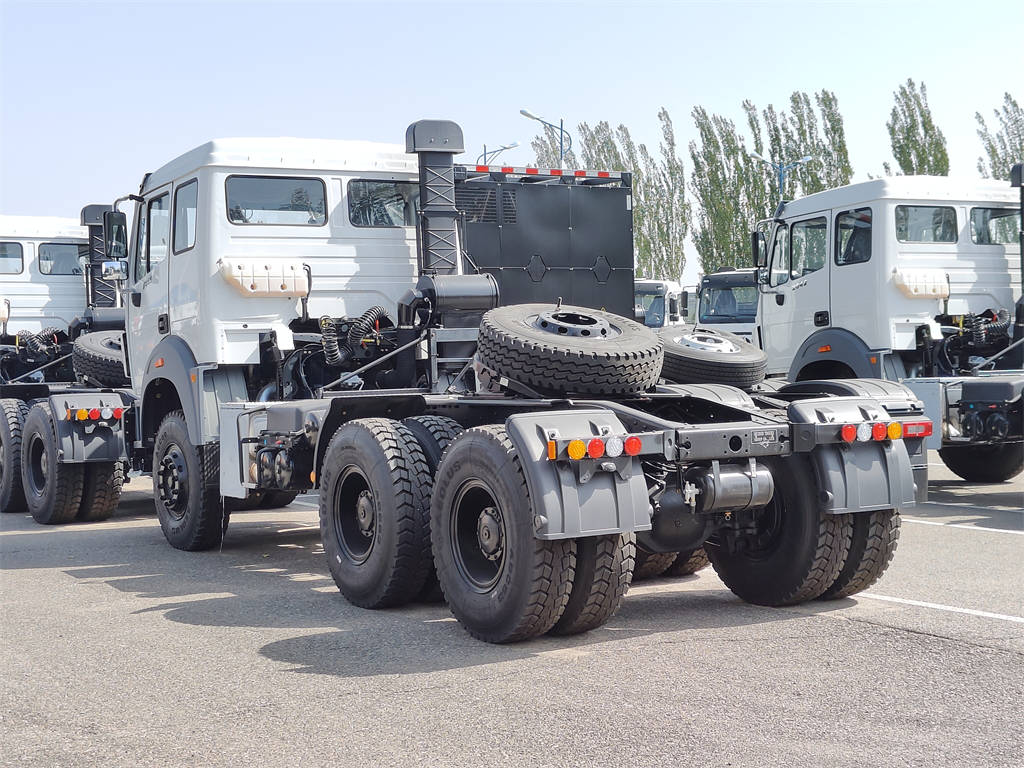

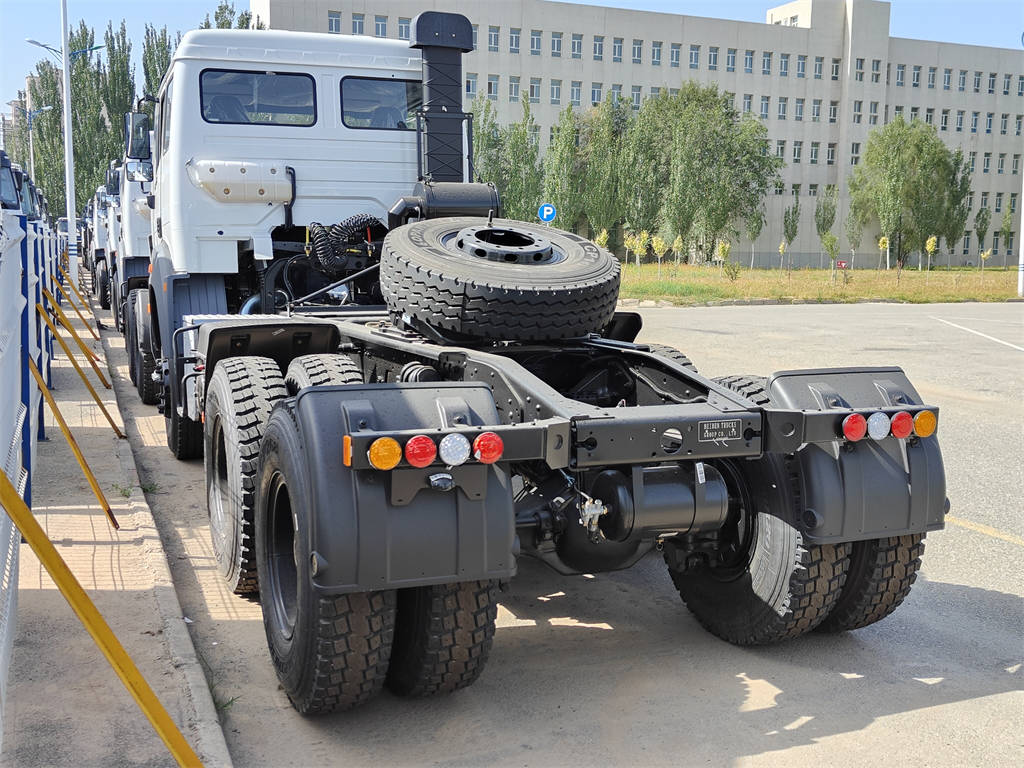

Beiben 2642 tractor is an export vehicle built for the Mongolian market. Its overall design and technology are based on German Mercedes-Benz technology, ensuring the vehicle's excellent performance and reliability. The overall dimensions of the Beiben2642 tractor are 7140×2500×3200mm (length×width×height), and the wheelbase is 3450+1450mm, providing a stable driving foundation for the vehicle. Its curb weight is 8800kg, and its maximum traction weight reaches an astonishing 40000kg, fully demonstrating its powerful traction capacity as a tractor.
The Beiben 2642 tractor truck is equipped with a WP10.420E32 engine, which is a water-cooled, four-stroke, inline six-cylinder, turbocharged diesel engine. Its maximum output power is 308kw, equivalent to 420 horsepower, and it can reach the rated power at a speed of 2200rpm. This engine is not only powerful, but also meets the EURO III emission standards, which is both environmentally friendly and efficient.
The Beiben 2642 tractor head is equipped with a 400L fuel tank to ensure the vehicle's long endurance. Its clutch adopts a 430-type single-dry friction plate and hydraulic power-assisted type, which is easy to operate. The gearbox uses a FAST 12JS200T mechanical gearbox with 12 forward gears and smooth shifting, which can meet various driving needs.
The front axle of the Beiben tractor truck adopts a double-shoe pneumatic brake non-driven steering axle with Mercedes-Benz technology, while the middle and rear axles are heavy-duty axles designed for the Mongolian market, which also use double-shoe pneumatic brakes and are equipped with wheel-side reducers and double-stage reduction drive shafts to ensure strong load-bearing capacity and driving stability. The vehicle is equipped with 11 12.00R20 radial tires, which provide good grip and driving stability.
Product Specifications
|
Overall Dimension (L*W*H) (mm) |
7140×2500×3200 |
|
|
Wheel base (mm) |
3450+1450 |
|
|
Curb weight (kg) |
8800 |
|
|
Max. towing weight (kg) |
40000 |
|
|
Max Speed (km/h) |
≥90 |
|
|
Engine |
Model |
WP10.420E32, water-cooled, four-stroke,6 cylinders straight in line, turbocharged |
|
Fuel type |
Diesel |
|
|
Max. Power (kw) |
308kw |
|
|
Rated Power /rotating ( hp/(r/min) |
420hp /2200rpm |
|
|
Emission |
EURO III |
|
|
Displacement ( ml ) |
9726 |
|
|
Fuel tanker capacity ( L ) |
400L fuel tank |
|
|
Clutch |
Model |
430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
FAST 12JS200T mechanical type, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake, With ABS system |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
ZF8098 |
|
Suspension System |

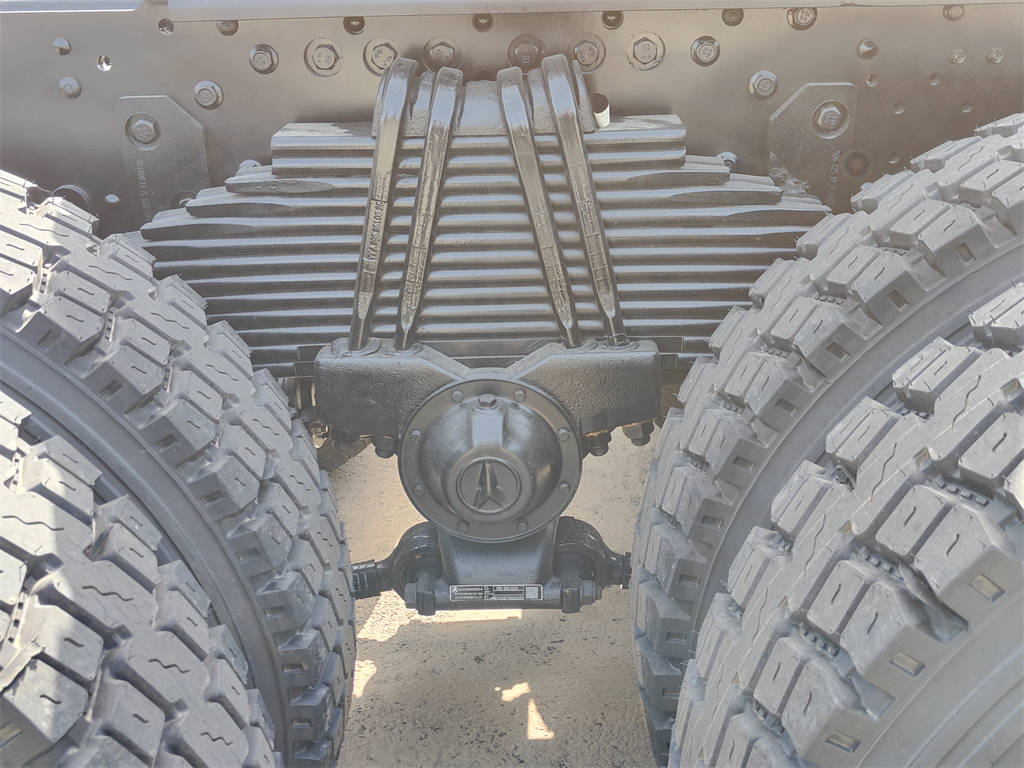

Rear Suspension |
Non-free standing stabilization spring, stabilization suspension, |
|
Frame |
Fish belly shape, variable width, variable sections |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
HEAVY DUTY TYPE for Mongolia market. Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
|
Tire |
12.00R20 radial tires |
|
|
Qty of tire |
11 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-35A |
|
|
Starter |
5.4Kw/24V |
|
|
Cab |
With one sleeper (NG80 Benz Cabin) |
|
|
high back seat for driver, one sleepers, standard sleeper box, heating and air conditioning, high roof box, electric glass riser, standard steering wheel, 24V power, radio (with MP3), digital instrument, manual adjustment of headlamps, with central clock. |
||
|

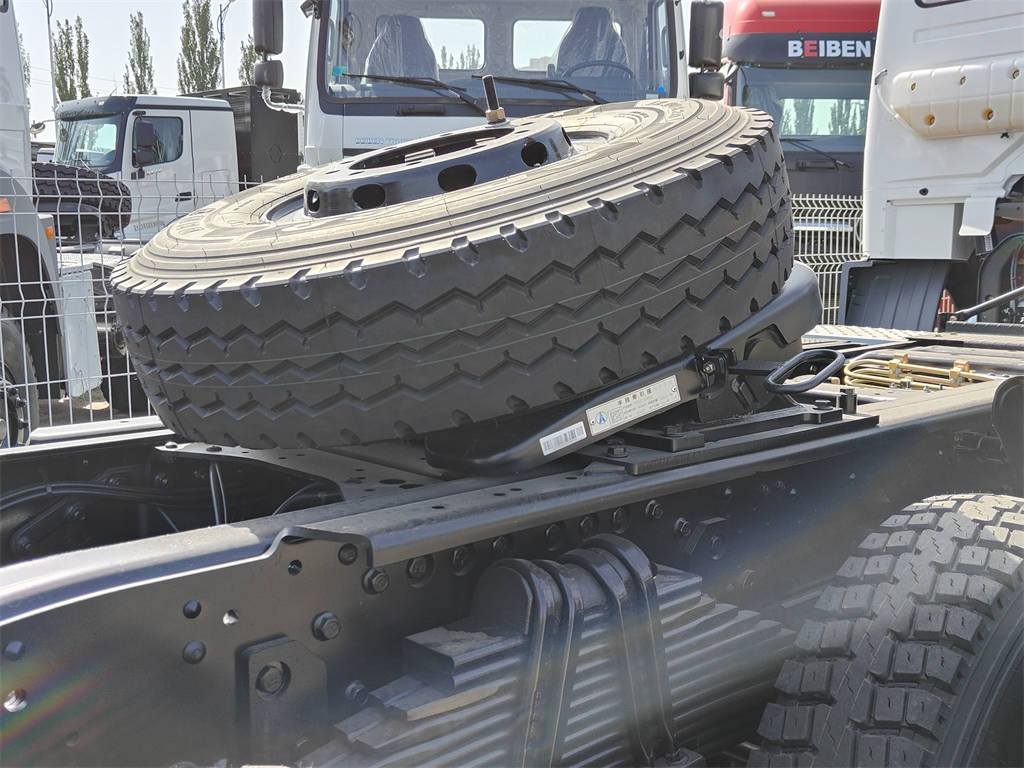

Fifth wheel |
#50 single direction |
|
Product Details

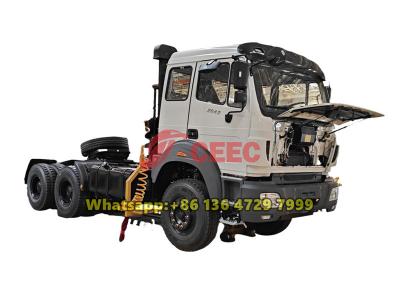

China best beiben 2642 tractor trucks supplier is ceec trucks plant, we supply the best quality 6*4 2642 tractor for sale, and original beiben 2642 tractor truck parts , more than 12 months for north benz 2642 tractor trucks.

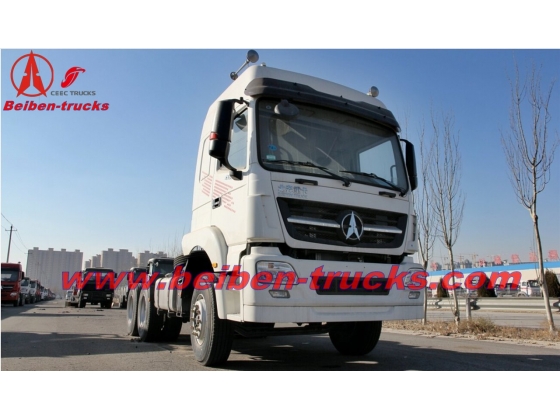

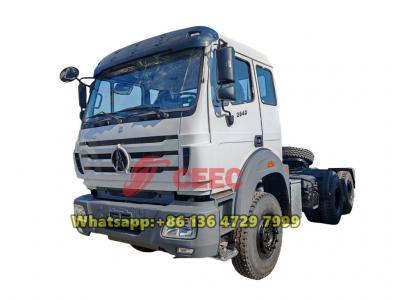

420hp prime mover Hot sale Beiben V3 2642 truck head 6*4 tractor truck in china, we can supply the best price of beiben V3 420 hp tractor trucks

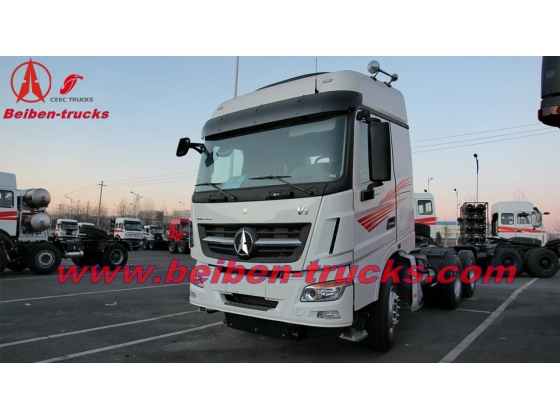

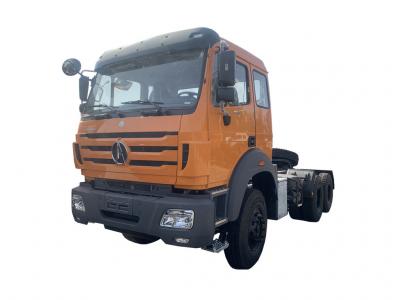

North Benz V3 6x4 420hp truck head Beiben V3 tractor truck best price , our north benz V3 tractor trucks have the 420 hp diesel engine as customer required.
