The Beiben 2642 tractor is a high-performance model specifically designed for heavy-duty transportation. It is equipped with a 420-horsepower WP12.420E32 engine that complies with Euro III emission standards, offering powerful performance while being environmentally friendly. Featuring a 6×4 drive configuration, it is equipped with a 13-ton double-reduction drive axle and a 12-speed FAST gearbox, providing a towing capacity of up to 40 tons and adapting to various complex road conditions. The cab is equipped with ABS and an air conditioning system, ensuring a comfortable driving experience. Suitable for long-distance logistics, heavy-duty transportation, and other scenarios, it is an efficient and reliable solution for heavy-duty haulage.
Working capcity:
40 tonsCabin type:
NG80 classic cabinDimension ( mm ) :
7180x2490x3180Drive system:
6×4Wheelbase (mm):
3450+1450mmEngine power / Model:
420 HPGear Box:
12JS200TARemark:
Red, orange, blue color for optionProduct Description
The Beiben 2642 tractor is a high-performance vehicle specifically designed for heavy-duty transportation. It is equipped with a WP12.420E32 engine, which adopts water cooling, four-stroke, turbocharging, and intercooling technologies. With a displacement of 11.596 liters, it boasts a maximum power of 420 hp (308 kW) and a peak torque of 1350 Nm at 1600 RPM, delivering strong and stable power output. The engine is also equipped with an exhaust brake function, further enhancing safety during downhill driving. Moreover, the vehicle complies with Euro III emission standards, balancing efficient power with environmental requirements. Whether for long-distance transportation or heavy-duty operations, the Beiben 2642 tractor truck provides reliable power support to meet users' demands for efficient haulage.
The Beiben NG80 2642 tractor truck features a 6×4 drive configuration, offering excellent traction and passability. Its chassis structure is robust, with the frame made of high-strength steel, ensuring stability and durability under heavy loads. The front axle is a 7.5-ton non-driven steering axle, while the middle and rear axles are 13-ton double-reduction drive axles, capable of withstanding greater loads and providing stronger driving force. In terms of the transmission system, the vehicle is equipped with a FAST 12JS200T gearbox, supporting 12 forward gears and 2 reverse gears, ensuring smooth shifting and flexible operation, and adapting to various complex road conditions. Additionally, the clutch adopts a 430 diaphragm design, combined with the ZF8098 steering system, further enhancing the vehicle's controllability and driving comfort.
The Beiben 2642 10-wheeler tractor is widely used in long-distance logistics, heavy-duty transportation, engineering operations, and other fields. Its 6×4 drive configuration and 13-ton double-reduction drive axles make it excel in heavy-duty transportation, particularly suitable for the haulage of bulk cargo such as coal, ore, and building materials. With a maximum gross vehicle weight of 25,000 kilograms and a maximum towing weight of up to 40 tons, it can easily handle various high-load operational requirements. Furthermore, the combination of its 420HP engine and 12-speed gearbox not only improves transportation efficiency but also reduces fuel consumption, saving operational costs for users. Whether in plain areas or mountainous regions, the Beiben 2642 tractor head provides reliable transportation solutions.
Product Specifications
|
Model |
Beiben 2642 |
|
|
Traction type |
6X4 |
|
|
Driving type |
Left Hand Driving |
|
|
Overall Dimension (LxWxH) |
7180x2490x3180 |
|
|
Wheelbase (mm) |
3450+1450mm |
|
|
Curb weight(kg) |
9200 |
|
|
Total mass(kg) |
25000 |
|
|
Traction force(kg) |
396700 |
|
|
Engine |
Model |
WP12.420E32 |
|
Type |
Water-cooled, four-stroke, with exhaust valve brake, direct injection, turbocharged and intercooled |
|
|
Displacement(L) |
11.596 |
|
|
Bore X stroke (mm) |
126mm/130mm |
|
|
Max power(kw/rpm) |
420HP/308Kw |
|
|
Max torque (Nm/rpm) |
1350NM@1600/rpm |
|
|
Emission |
EURO 3 |
|
|
Fuel tanker(L) |
400 steel fuel tank |
|
|
Gearbox |
Brand |
FAST |
|
Model |
12JS200T |
|
|
Shift mode |
12 forwards speed, 2 reverses speed |
|
|
Steering system |
Model |
ZF8098 |
|
Clutch |
Model |
430 Diaphragm type |
|
Frame |
317x70x8.5+7+12mm |
|
|
Front axle |
7.5T front non-driving steering axle |
|
|
Middle and Rear axle |
13T double reduction driving axle |
|
|
Tyre |
12.00R20 |
|
|
Number of tyre |
10+1 spare |
|
|

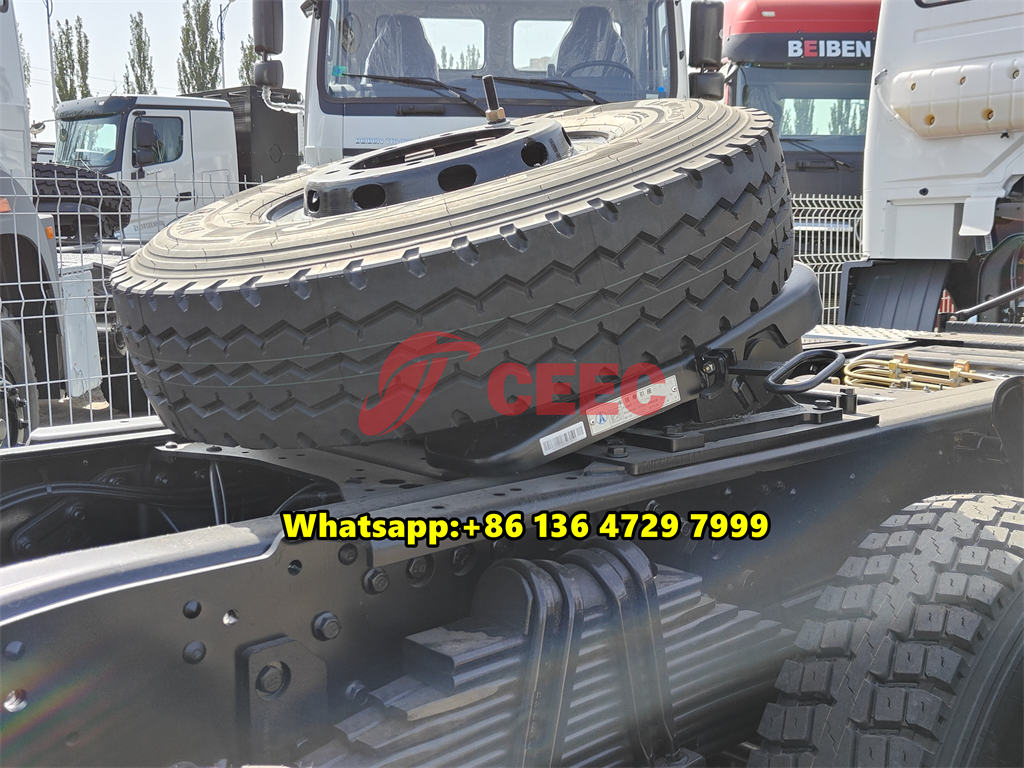

Fifth wheel |
90# (3.5inch) |
|
|

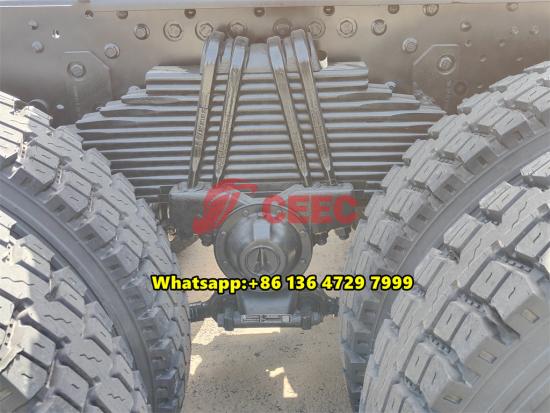

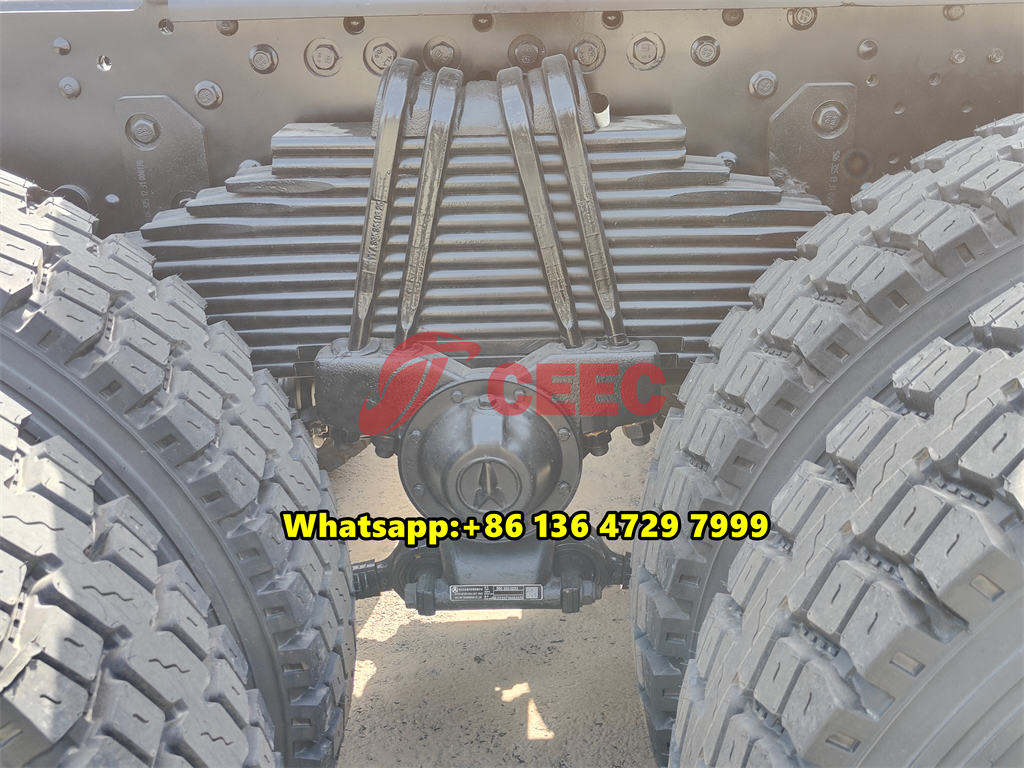

Suspension |
Leaf spring type |
|
|
Color |
Optional |
|
|
Cabin |
NG80B flat roof cabin with one sleeper and ABS, A/C. |
|

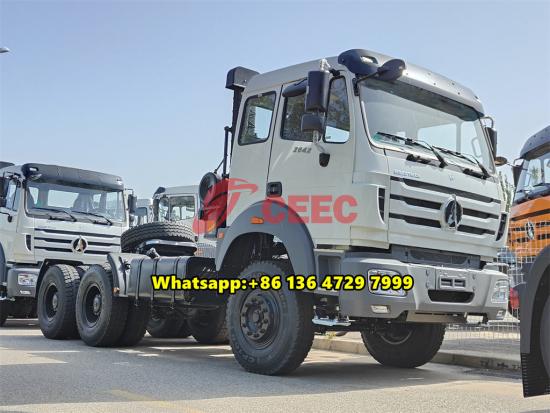

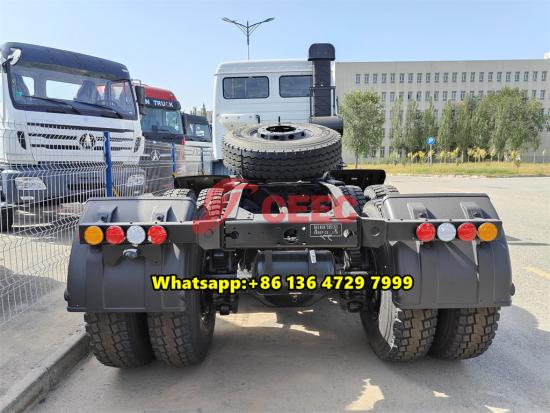

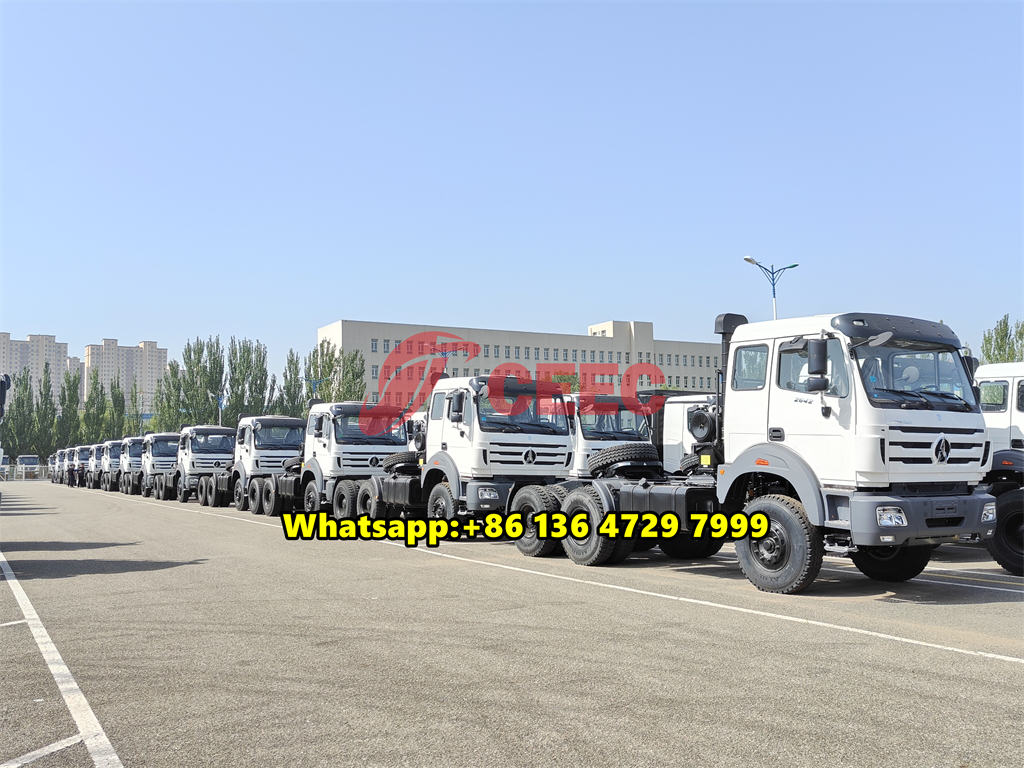

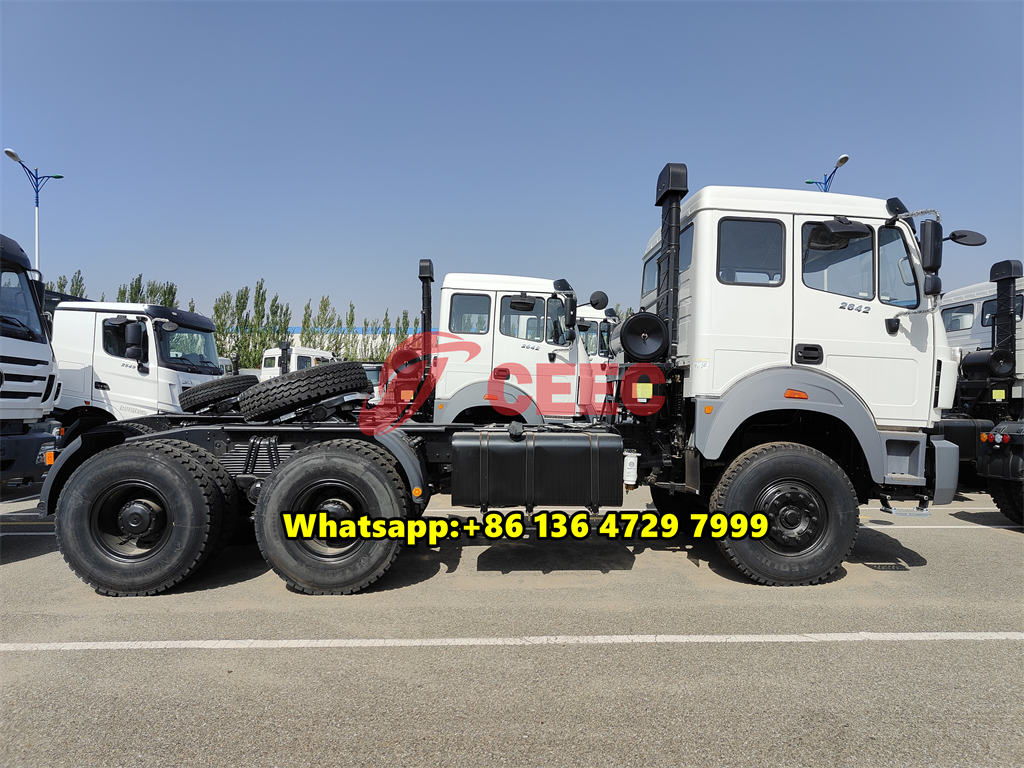

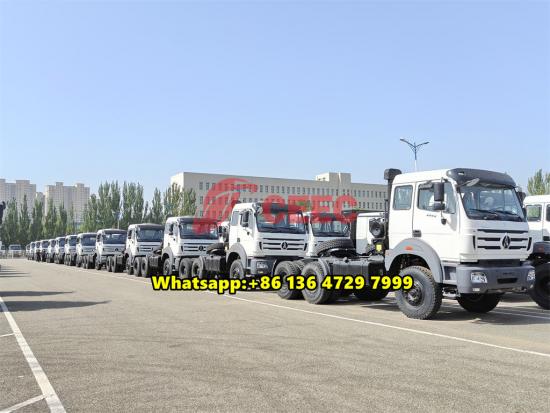

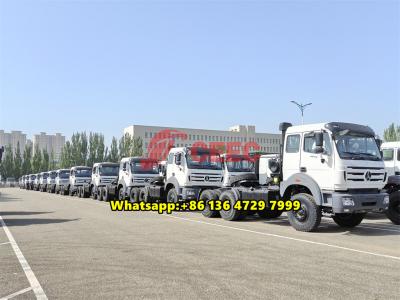

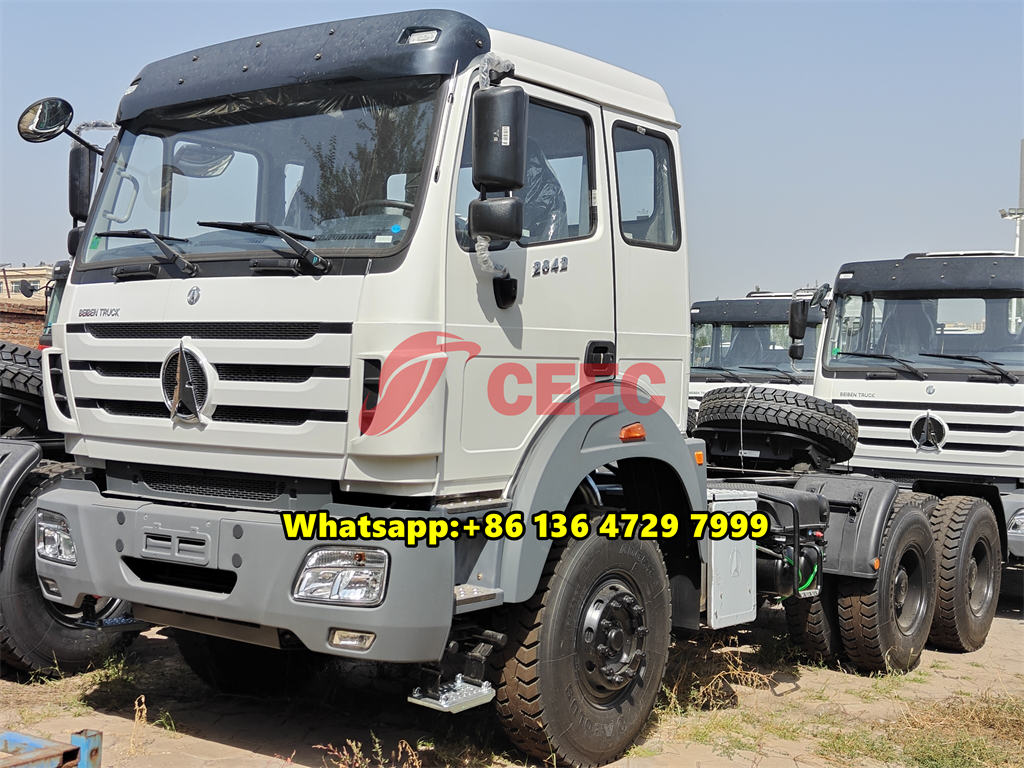

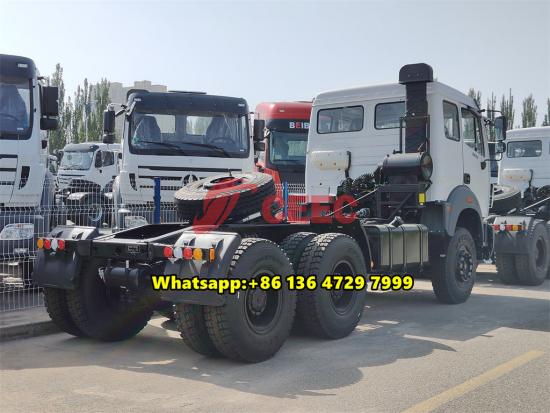

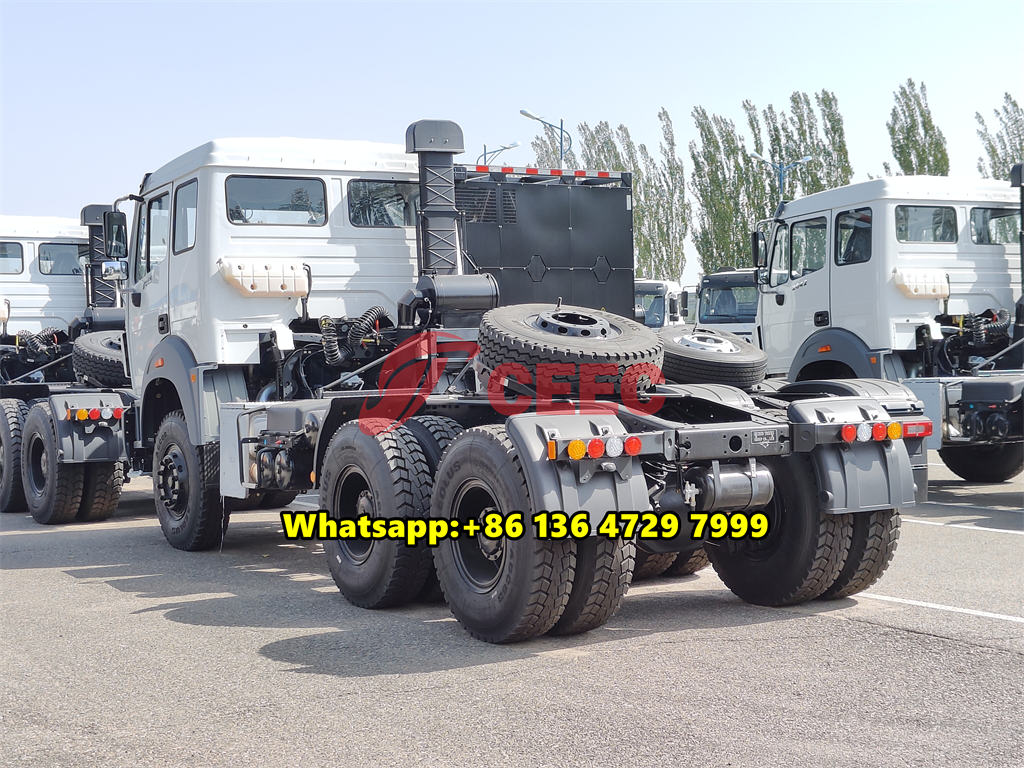

Product Pictures
