Beiben 420HP Tractor Truck is a heavy-duty truck specifically designed for long-distance transportation and heavy logistics. Equipped with a Weichai WP12.420E32 engine (420 horsepower, maximum torque of 1750N·m) and a 12JS160T mechanical transmission, it delivers powerful performance. With a full steel frame structure and double-layer steel plate coverage, it is durable and reliable. The cab is comfortable and spacious, equipped with a high-back shock-absorbing seat and air conditioning. Suitable for long-distance transportation and heavy logistics, it stands out as a leader in the logistics transportation industry.
Working capcity:
40 tonsCabin type:
Beiben NG80 cabin, with one sleeperDimension ( mm ) :
6935*2495*3340mmDrive system:
6×4Wheelbase (mm):
3450+1450Engine power / Model:
420 HPGear Box:
12JS200TARemark:
6×6, RHD is optionalProduct Description

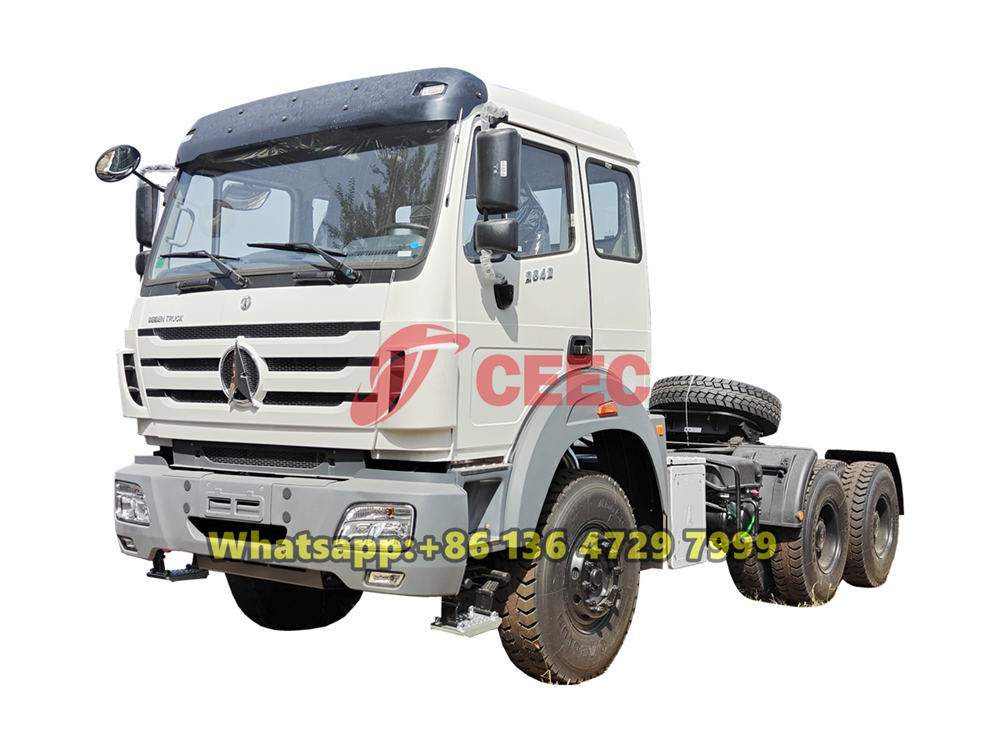

The Beiben 420HP Tractor Truck is a high-performance heavy-duty truck specifically designed for long-distance transportation, heavy logistics, and special operational needs. It integrates advanced power technology, stable handling performance, and excellent load-carrying capacity, making it an indispensable efficient tool in the modern logistics and transportation sector.
The Beiben 2642 Tractor Truck has gained wide recognition in the market for its powerful dynamic performance, reliable safety guarantees, and human-centered design. This model is equipped with a WP12.420E32 diesel engine, with a maximum power output of 420 horsepower, capable of meeting the power demands of various complex road conditions. The vehicle has a moderate size, with a wheelbase of 3450+1450mm, a curb weight of 8800kg, a gross vehicle weight of up to 25 tons, and a towing weight of up to 40 tons, sufficient to handle various heavy-load transportation tasks.
In addition to its outstanding dynamic performance, the Beiben 6×4 Tractor Head also emphasizes driving comfort and safety. The cab adopts a full steel frame structure with double-layer steel plate coverage, making it both sturdy and durable. In terms of interior design, it is equipped with a high-back shock-absorbing seat, built-in air conditioning, manual door locks, and manual window lifters, providing a comfortable driving environment for the driver. Furthermore, the vehicle is equipped with an advanced safety system, including a dual-circuit air brake system with automatically adjustable clearance, an engine exhaust brake auxiliary braking system, and a parking brake system that applies spring pressure to the rear wheels, ensuring worry-free driving safety.
Product Specifications
Wheel base (mm) |
3450+1450 |
|
Curb weight (kg) |
8800 |
|
Gross towing trailer weight (kg) |
40000 |
|
Max Speed (Km/h) |
≥90 |
|
Dimension(Length*Width*Height) |
6935*2495*3340mm |
|
Engine |
Model |
WP12.420E32 |
Power |
420HP |
|
Type |
water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
Fuel type |
Diesel |
|
Emission standard |
EURO III |
|
Displacement(L) |
11.596 |
|

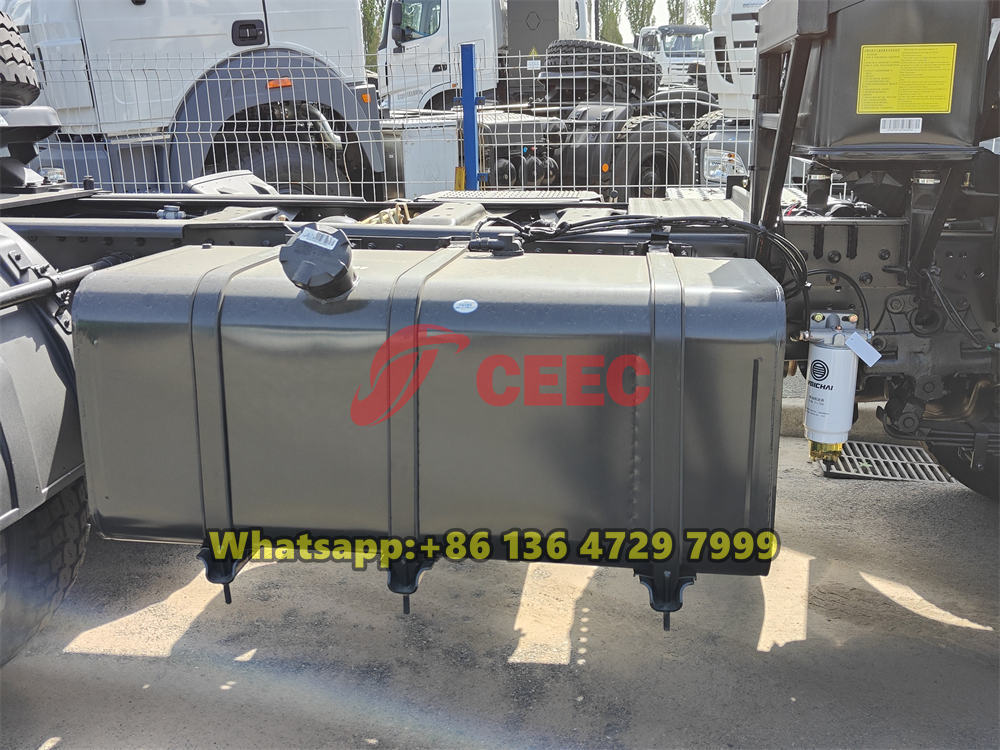

Fuel tanker capacity (L) |
400L |
|
Clutch |
Model |
Φ430, Diaphragm Spring, Hydraulic boosting |
Gearbox |
Model |
12JS160T, mechanical type,12 Forward speed gear. |
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake |
Engine exhaust brake |
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
Steering system |
Model |
ZF8098 |
Frame |
Fish belly shape, variable width, variable sections |
|
Cross section dimension of frame(mm) |
317×70×8.5+7mm |
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle AL7/1DS-7/5.921 |
|

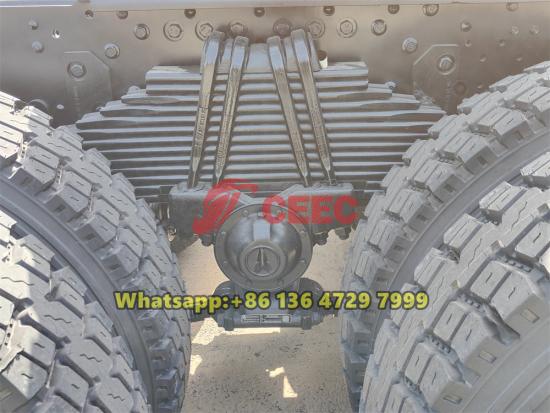

Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle |
|
Tire |
12.00R20 |
|
Qty of tire |
11 |
|
Electrical system |
Battery |
2X12V/135Ah |
Generator |
28V-35A |
|
Starter |
5.4Kw/24V |
|
Cab |
NG80 long cab with single sleeper, |
|
Interior trimming: |
||
Exterior trimming: |
||
Fifth wheel |
#50 single direction |
Product Features
1. Powerful Engine
The Beiben 2642 Tractor Truck is equipped with a high-performance Weichai WP12.420E32 engine, providing strong power output. Whether it's starting, accelerating, or climbing, this model excels in various operating conditions and meets the demands of various heavy-load transportation tasks.
2. Excellent Durability
The vehicle adopts a full steel frame structure and double-layer steel plate cover design, enhancing the overall strength and stiffness. Additionally, its key components such as the engine, transmission, and axles have undergone rigorous testing and validation, ensuring stability and reliability during long-term use.
3. Flexible Configurations
The Beiben 10-wheeler Tractor Head offers multiple configuration options, including different sizes of fuel tanks, various tire specifications, and different cab configurations. Users can choose according to their actual needs to meet personalized transportation requirements.
4. Comfortable Driving Experience
The cab is made of high-quality materials and features a human-centered design, providing a comfortable driving environment. The seat is a high-back shock-absorbing seat, equipped with a sleeper berth, air conditioning, manual door locks, and manual window lifters. Furthermore, the cab can be tilted forward for easy inspection and maintenance of the engine and chassis.
