The Beiben 2642 heavy-duty tractor is a high-performance towing equipment specifically designed for efficient logistics transportation. Powered by a 420HP Weichai WP12 engine paired with a 12-speed Fast gearbox, it delivers robust power while maintaining excellent fuel efficiency. Featuring a reinforced chassis based on Mercedes-Benz technology and 13-leaf spring suspension, it ensures reliable performance for heavy-load transportation. The cab comes with a high-roof sleeper berth and ergonomic configurations to provide comfortable long-distance driving experience. With a large 400-liter fuel tank for extended range and dual-circuit air brake system for enhanced safety, the Beiben 2642 excels in various applications including container transport, bulk cargo logistics and special equipment hauling, making it an ideal choice for modern logistics operations.
Working capcity:
40 tonsCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
7160 x2500x3180Drive system:
6×4Wheelbase (mm):
3450+1450Engine power / Model:
420 HP, WP12.420E32Gear Box:
12JS200TARemark:
Cabin color is optionalThe Beiben 2642 tractor truck is a semi-trailer tractor specifically designed for long-distance heavy-load transportation. Featuring advanced chassis technology and powertrain configuration, it delivers an efficient, safe, and comfortable transport solution. This Beiben tandem-axle sleeper tractor not only inherits the Beiben's renowned reliability but also achieves significant improvements in comfort, fuel efficiency, and intelligent features, making it an indispensable high-end asset in modern logistics.
Beiben 2642 heavy tractor truck is powered by a WP12.420E32 turbocharged diesel engine with an 11.6L displacement, delivering 420 HP maximum power and 1750 N·m peak torque within a broad 1200-1500 rpm range. Paired with a 12JS200T transmission (based on Fuller Eaton technology), its 12-speed manual gearbox ensures smooth shifting and high transmission efficiency, whether on highways or mountain slopes.
Product Specifications
Wheelbase (mm) |
3450+1450 |
|
Curb weight (kg) |
9920 |
|
Engine |
Model |
WP12.420E32 |
Type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
Fuel type |
Diesel |
|
Min rate of consuming fuel(g/(kw.h)) |
196g/Kw. h |
|
Horsepower |
420 HP |
|
Rated Power / rotating |
309Kw/2100rpm |
|
Emission |
EURO III |
|
Maximum Torque / rotating speed (n.m/(r/min) |
1750Nm/1200-1500rpm |
|
Displacement(ml) |
11596 |
|
Fuel tanker capacity (L) |
400 |
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
Gearbox |
Model |

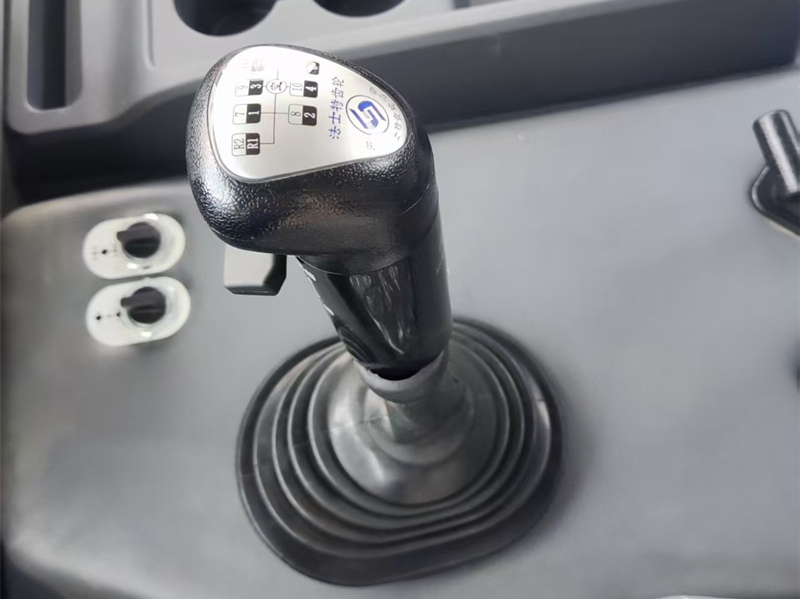

12JS200T, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake |
Engine exhaust brake |
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
Steering system |
Model |
ZF8098, whole circulation in ball type, hydraulic boosting |
Suspension System |
Rear Suspension |

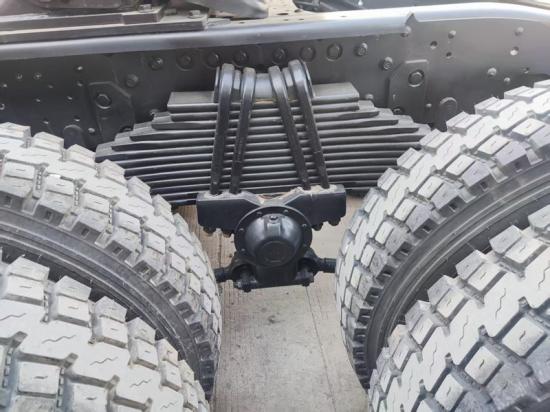

Non-free standing stabilization spring, stabilization suspension,13pcs |
Frame |
Fish belly shape, variable width, variable sections |
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle. |
|
Tire |
12.00R20 radial tire |
|
Qty of tire |
11 |
|
Electrical system |
Battery |
2X12V/135Ah |
Generator |
28V-35A |
|
Starter |
5.4Kw/24V |
|
Cab |
Long cab with one sleeper |
|
Interior trimming: |
||
Exterior trimming: |
||
Fifth wheel |
#50 single direction |
Performance & Advantages
The Beiben 2642 heavy tractor truck stands out in the market with its outstanding performance.
• Powerful Performance: The optimized combination of the WP12.420E32 engine and 12JS200T transmission provides consistent power, enabling effortless handling of both highway cruising and steep inclines.
• Fuel Efficiency: Through enhanced combustion efficiency and drivetrain optimization, the Beiben trailer tractor achieves low fuel consumption without compromising performance, reducing operating costs.
• Safety & Reliability: Equipped with Mercedes-Benz-inspired axles, a dual-circuit air brake system, and multiple active safety features, it ensures superior stability and safety under all driving conditions.

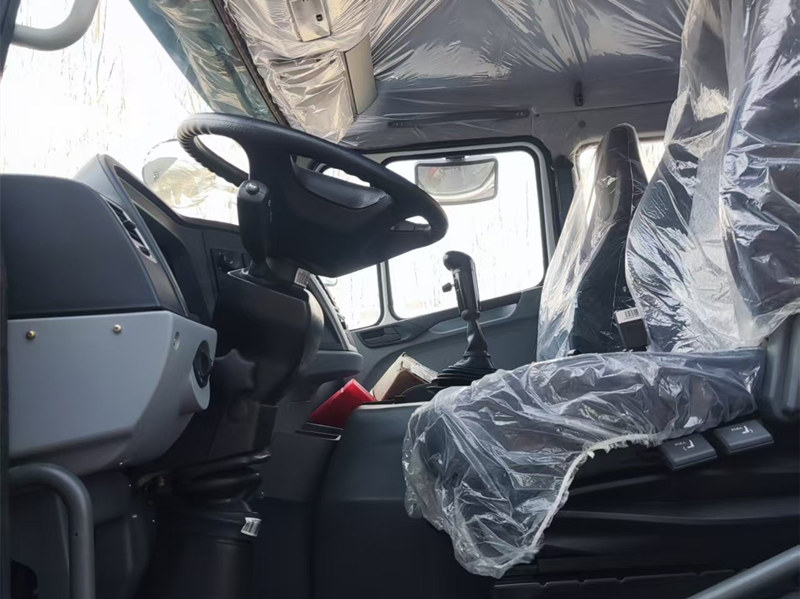

• Comfort & Convenience: The long-nose sleeper cab offers ample rest space, while the integrated interior and ergonomic design enhance driving comfort and convenience.

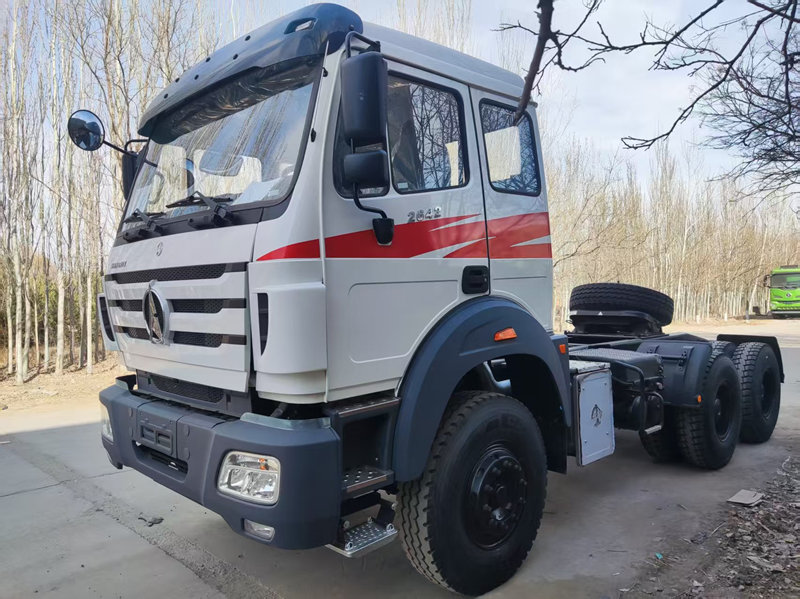

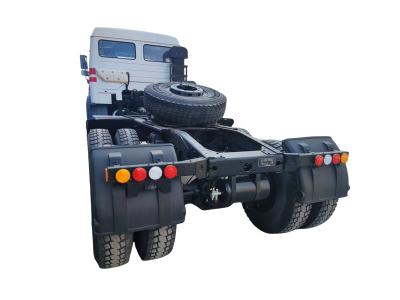

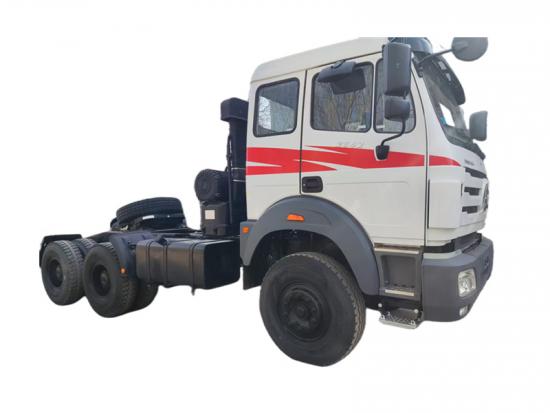

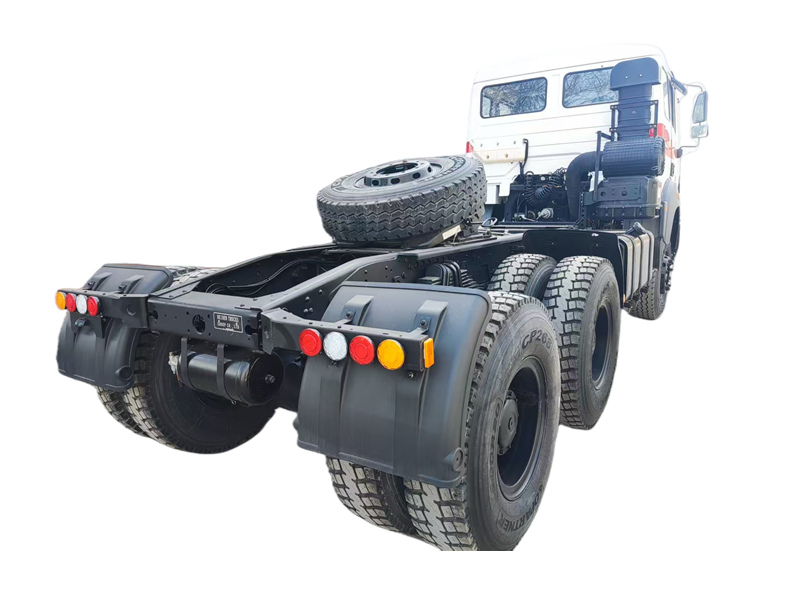

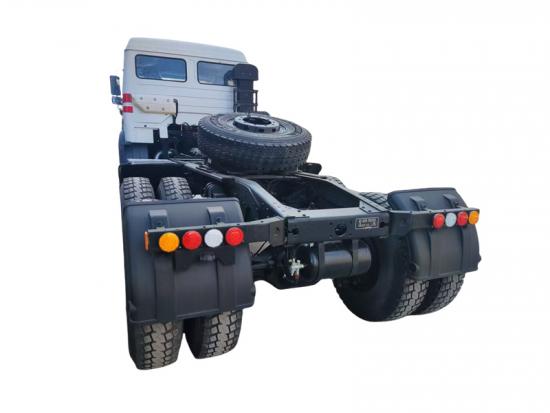

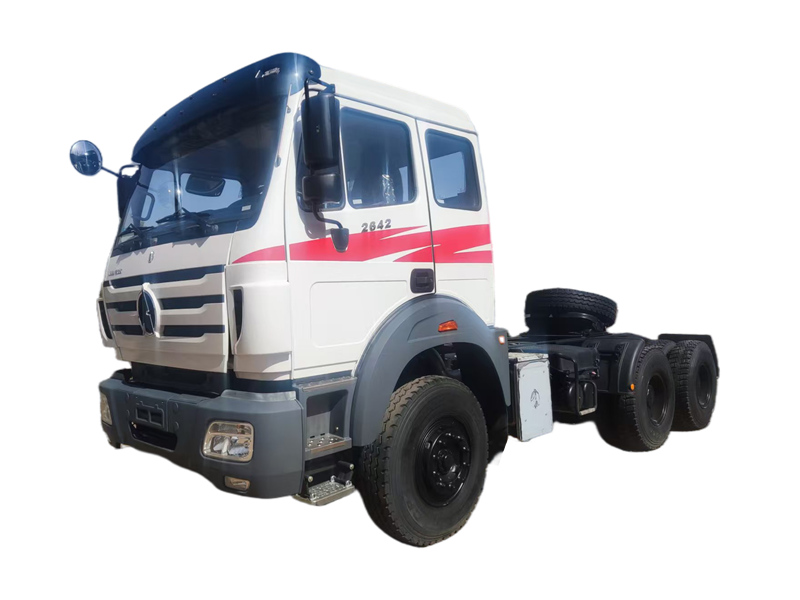

Product Pictures
