Beiben 2642 trailer tractor head is a heavy-duty prime mover engineered for high-efficiency logistics and industrial freight transport. Equipped with a robust 12-liter Euro V-compliant diesel engine generating 420 hp and 2,100 Nm torque, it excels in hauling semi-trailers with gross combination weights (GCW) up to 60 tons across long-distance routes. Its 6x4 drivetrain configuration, reinforced with a locking differential and all-terrain tires, ensures reliable traction on mountainous terrain, construction sites, and intercontinental highways
Working capcity:
60 tonCabin type:
NG80B long cabinDimension ( mm ) :
7160x2495x3180Drive system:
6×4Wheelbase (mm):
3450+1450Engine power / Model:
420 HpGear Box:
12JS200TARemark:
10 tonBeiben 2642 towing tractor head is a heavy-duty commercial vehicle engineered for long-haul freight transportation, combining robust performance with specialized features to meet demanding logistics requirements.Equipped with a high-torque diesel engine (typically a 10.7-liter inline-six configuration generating 420-460 HP), Beiben 2642 towing tractor head efficiently pulls semi-trailers with gross combination weights exceeding 40 tons. Its reinforced chassis and multi-axle drive system ensure stable load distribution, making it suitable for bulk commodities like steel coils, construction materials, and industrial machinery.
The tractor's aerodynamic cab design and optimized fuel injection system achieve a balance between power output and consumption, maintaining an average fuel efficiency of 30-32 liters per 100 km under full load. Its 800-liter dual fuel tanks enable non-stop operation ranges surpassing 2,500 km, critical for cross-regional logistics in markets like China's Belt and Road infrastructure corridors.
The heart of the Beiben 2642 prime mover is the Weichai Power WP12.420E32 diesel engine, a 6-cylinder, in-line configuration with a displacement of 11.6 liters. beiben 2642 towing tractor truck generates a maximum power output of 420 hp (310 kW) at 1,900 rpm and a peak torque of 2,000 Nm between 1,100 and 1,400 rpm. Paired with the WP12.420E32 is the Fast Gear 12JS200T manual transmission, featuring 12 forward gears and 2 reverse gears.
Product Specifications
Wheelbase (mm) |
3450+1450 |
|
Curb weight (kg) |
9920 |
|
Engine |
Model |
WP12.420E32 |
Type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
Fuel type |
Diesel |
|
Min rate of consuming fuel(g/(kw.h)) |
196g/Kw. h |
|
Horsepower |
420 HP |
|
Rated Power / rotating |
309Kw/2100rpm |
|
Emission |
EURO III |
|
Maximum Torque / rotating speed (n.m/(r/min) |
1750Nm/1200-1500rpm |
|
Displacement(ml) |
11596 |
|
Fuel tanker capacity (L) |
400 |
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
Gearbox |
Model |
12JS200T, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake |
Engine exhaust brake |
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
Steering system |
Model |
ZF8098, whole circulation in ball type, hydraulic boosting |
Suspension System |

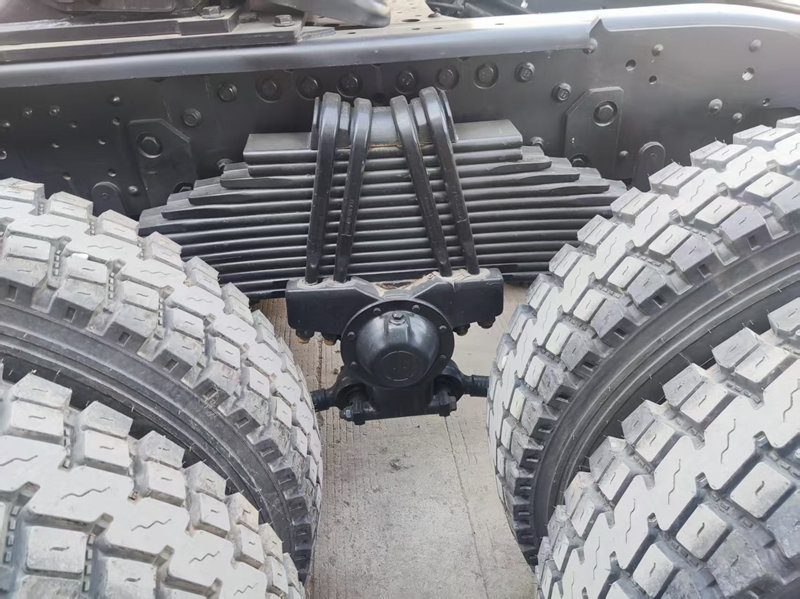

Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13pcs |
Frame |
Fish belly shape, variable width, variable sections |
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle. |
|
Tire |
12.00R20 radial tire |
|
Qty of tire |
11 |
|
Electrical system |
Battery |
2X12V/135Ah |
Generator |
28V-35A |
|
Starter |
5.4Kw/24V |
|
Cab |
Long cab with one sleeper |
|
Interior trimming: |
||
Exterior trimming: |
||

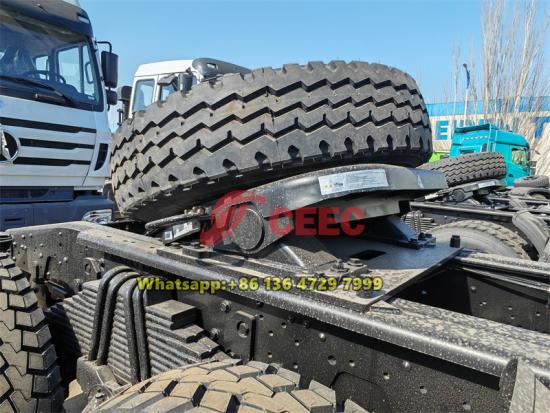

Fifth wheel |
#50 single direction |
Performance & Advantages
Beiben 2642 towing tractor truck is a robust heavy-duty trailer tractor head engineered for demanding logistics and long-haul transportation. Its design prioritizes power, durability, and operational efficiency, making it a preferred choice in industries such as mining, construction, and cross-regional freight.
1. Engine Specifications: WP12.420E32
At its core lies the WP12.420E32 diesel engine, a 12-liter inline-six-cylinder powerplant developed by Weichai Power. Key features include:
2. Transmission System: 12JS200T
The 12JS200T manual transmission complements the engine’s capabilities with:
3. Structural and Functional Highlights

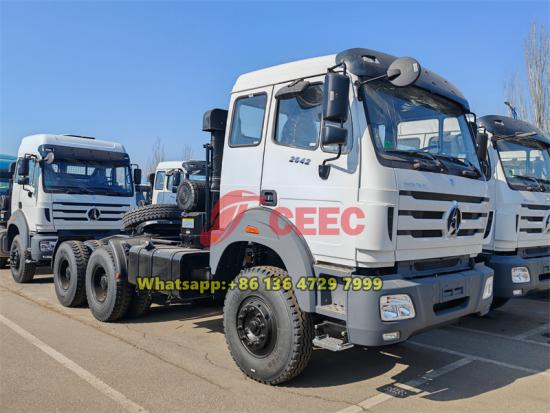

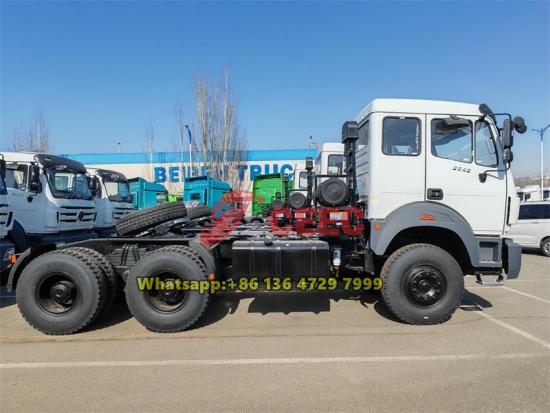

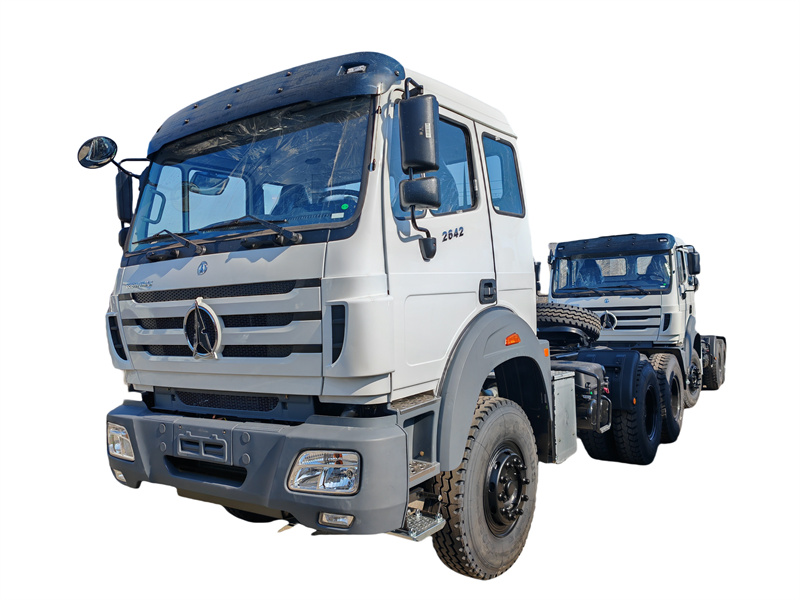

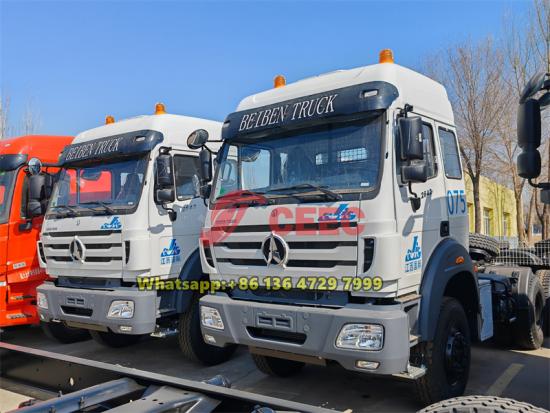

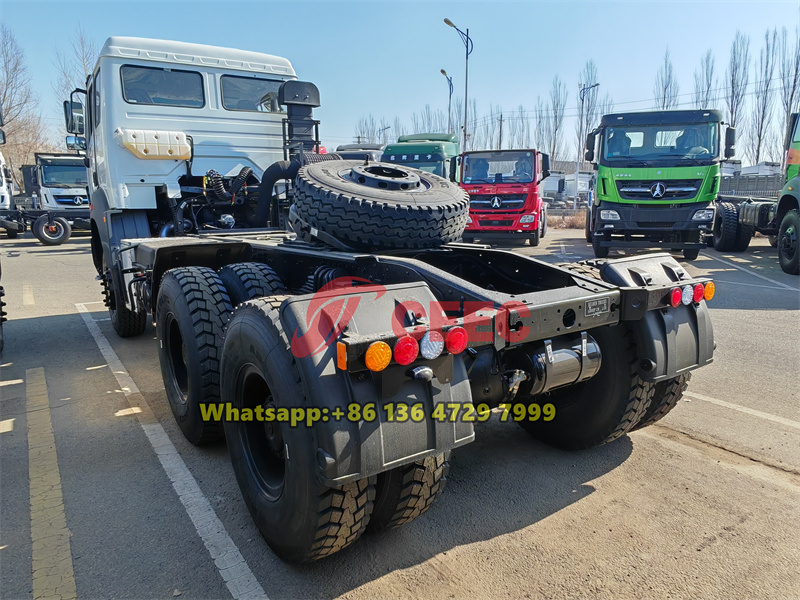

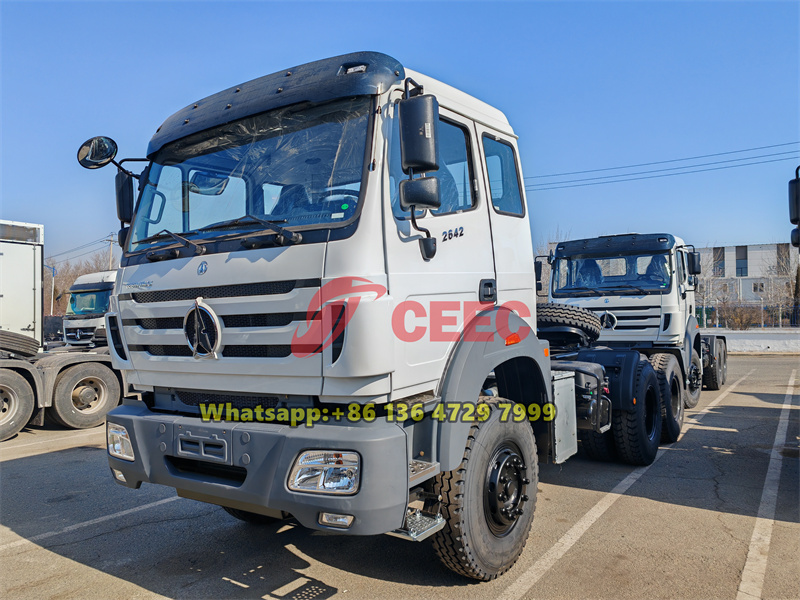

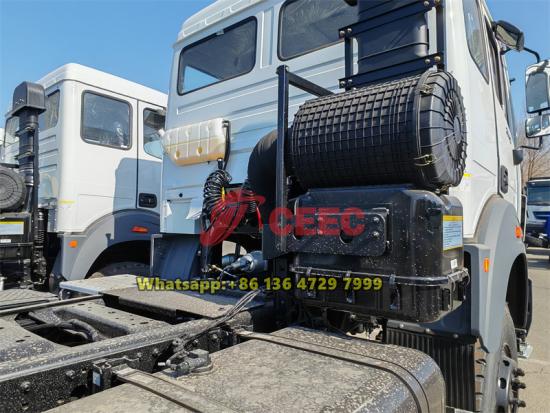

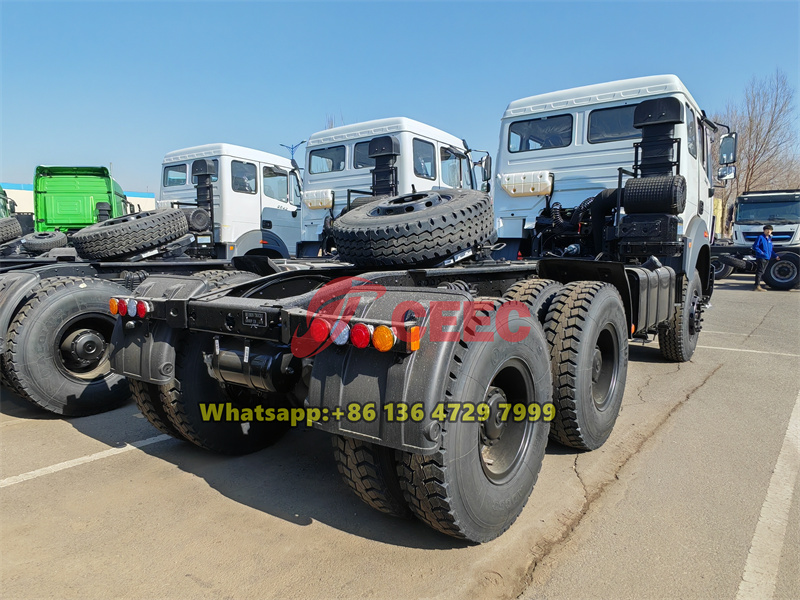

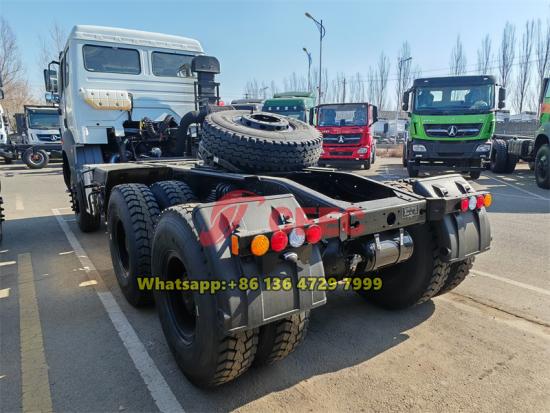

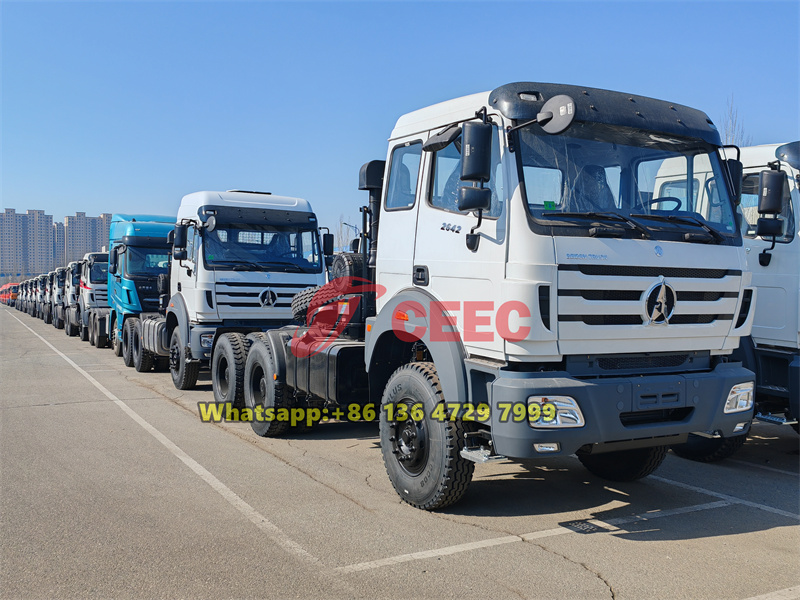

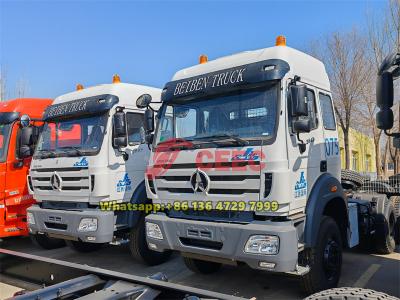

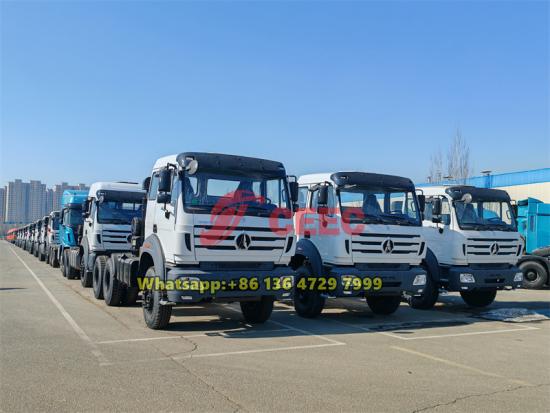

Product Pictures
