Beiben 6x4 tractor truck, equipped with the robust NG80B cabin, WP12.420 engine, and Fast 12-speed transmission, is engineered for challenging terrains and heavy-duty operations across Africa. The NG80B cabin prioritizes operator comfort and safety, featuring reinforced structures and ergonomic design to withstand prolonged use in harsh climates. Powered by the WP12.420 engine, this model delivers 420 horsepower and high torque output (1,900 Nm), optimized for fuel efficiency under heavy loads. The Fast 12-speed gearbox enables seamless gear shifts, enhancing adaptability across steep gradients and muddy paths.
Working capcity:
40 tonsCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
7160 x2500x3180Drive system:
6×4Wheelbase (mm):
3450+1450Engine power / Model:
420 HP, WP12.420E32Gear Box:
12JS200TARemark:
Right hand drive, 6x6 drive avaiableBeiben 6x4 tractor truck, equipped with the NG80B cabin, WP12.420 engine, and Fast 12-speed transmission, serves as a robust solution for demanding applications across Africa. Beiben 6x4 tractor truck design and components cater to three primary functions in the region:
Heavy-Duty Freight Transportation: The 420-horsepower WP12.420 engine delivers high torque (2,100 Nm at 1,200-1,500 rpm), enabling efficient haulage of oversized loads like mining equipment, timber, or construction materials across long distances. The Fast 12-gear transmission ensures optimal power distribution, adapting to variable terrain while maintaining fuel efficiency—a critical factor in regions with sparse refueling infrastructure.
Off-Road Logistics in Rugged Terrains: With its 6x4 drivetrain and reinforced chassis, the beiben tractor truck navigates unpaved roads, steep inclines, and uneven surfaces common in rural African mining and agricultural zones. The NG80B cabin’s enhanced suspension system reduces driver fatigue during extended operations in harsh environments, while its elevated ground clearance prevents underbody damage from rocks or debris.
Inter-Regional Containerized Cargo Movement: The model’s 18-ton rear axle load capacity and compatibility with standard ISO containers make it ideal for port-to-inland freight distribution. beiben 2642 tractor head supports cross-border trade by transporting manufactured goods, agricultural produce, or humanitarian supplies between coastal hubs and landlocked nations, leveraging the Fast transmission’s dual-range gears for highway cruising and low-speed precision in congested urban areas.
This configuration balances power, durability, and operational flexibility—key requirements for Africa’s evolving transport sector.
Product Specifications
Wheelbase (mm) |
3450+1450 |
|
Curb weight (kg) |
9920 |
|
Engine |
Model |
WP12.420E32 |
Type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
Fuel type |
Diesel |
|
Min rate of consuming fuel(g/(kw.h)) |
196g/Kw. h |
|
Horsepower |
420 HP |
|
Rated Power / rotating |
309Kw/2100rpm |
|
Emission |
EURO III |
|
Maximum Torque / rotating speed (n.m/(r/min) |
1750Nm/1200-1500rpm |
|
Displacement(ml) |
11596 |
|
Fuel tanker capacity (L) |
400 |
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
Gearbox |
Model |
12JS200T, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
Assistant brake |
Engine exhaust brake |
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
Steering system |
Model |
ZF8098, whole circulation in ball type, hydraulic boosting |
Suspension System |
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13pcs |
Frame |
Fish belly shape, variable width, variable sections |
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, non-driving steering axle |
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle. |
|
Tire |
12.00R20 radial tire |
|
Qty of tire |
11 |
|
Electrical system |
Battery |
2X12V/135Ah |
Generator |
28V-35A |
|
Starter |
5.4Kw/24V |
|
Cab |
Long cab with one sleeper |
|
Interior trimming: |
||
Exterior trimming: |
||
Fifth wheel |
#50 single direction |

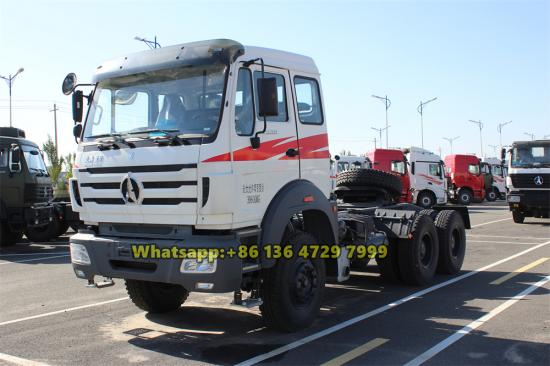

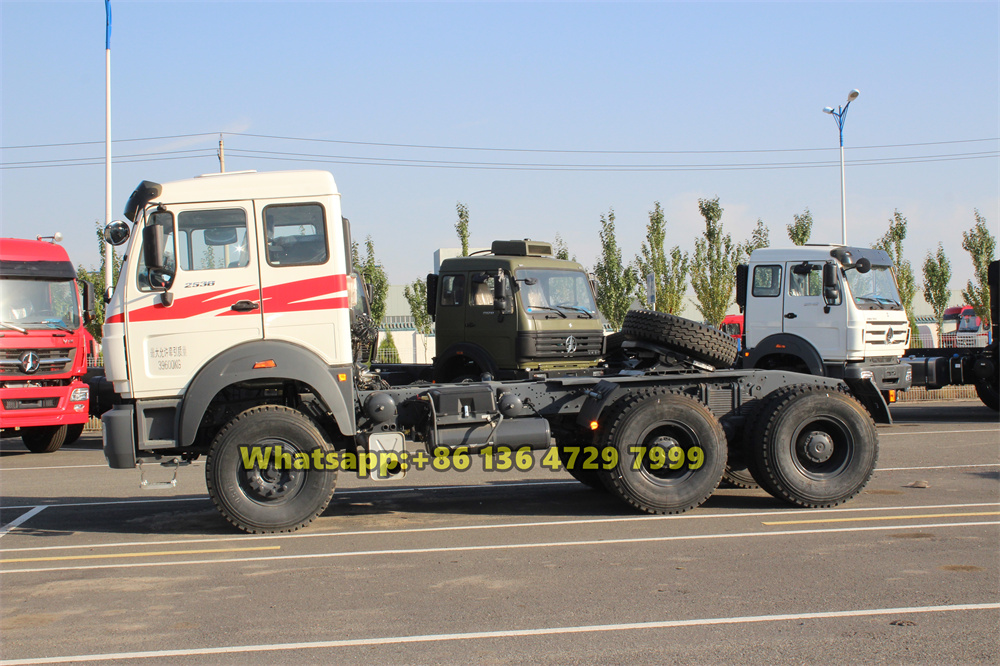

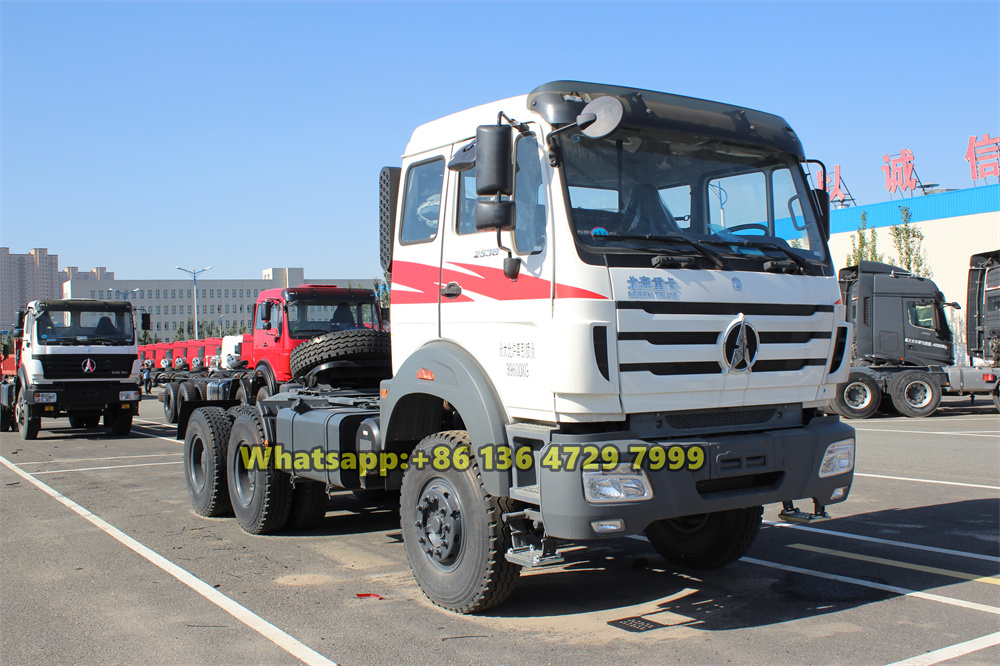

Beiben 6x4 tractor head with 12.00R20 tyres
Performance & Advantages
Beiben 6×4 Tractor Truck Technical Overview
1. Powertrain Configuration
2. Transmission System
3. Cabin and Design
Product Pictures

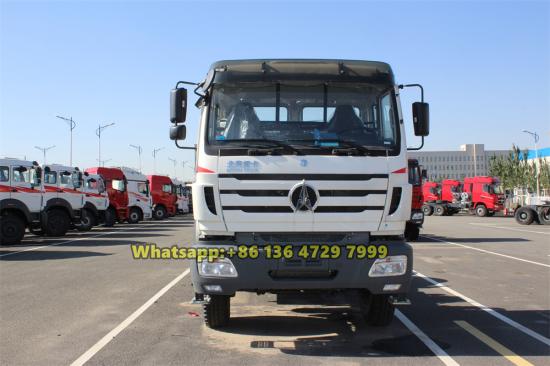

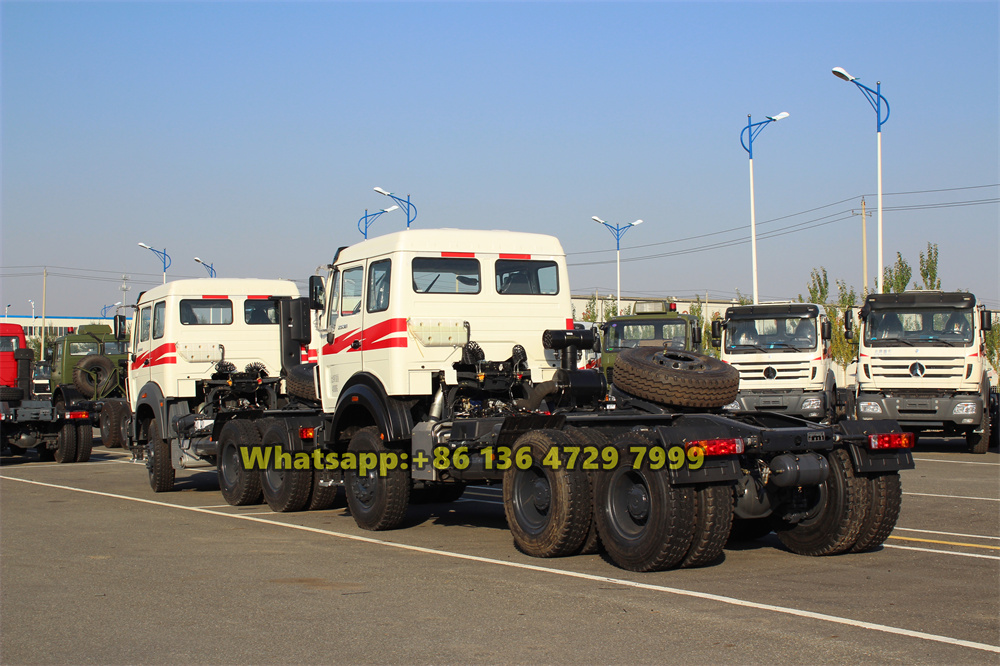

Beiben 6x4 towing tractor truck

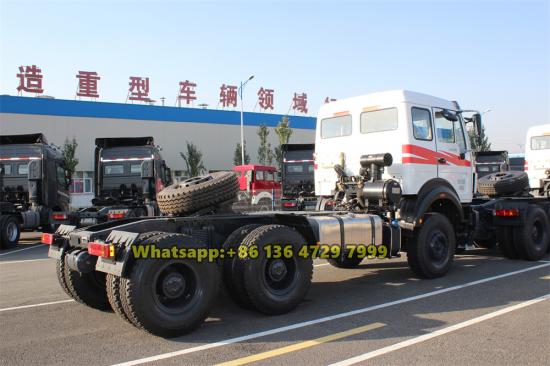

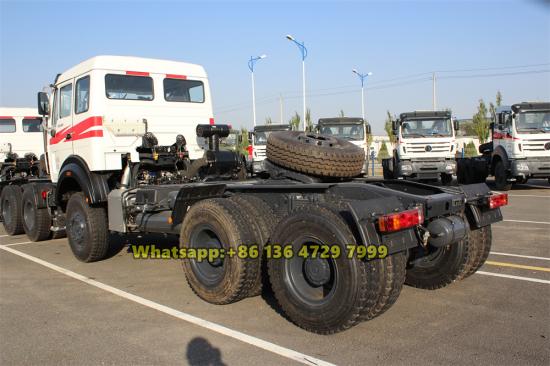

Beiben 2642 cabin tractor truck with kingpin

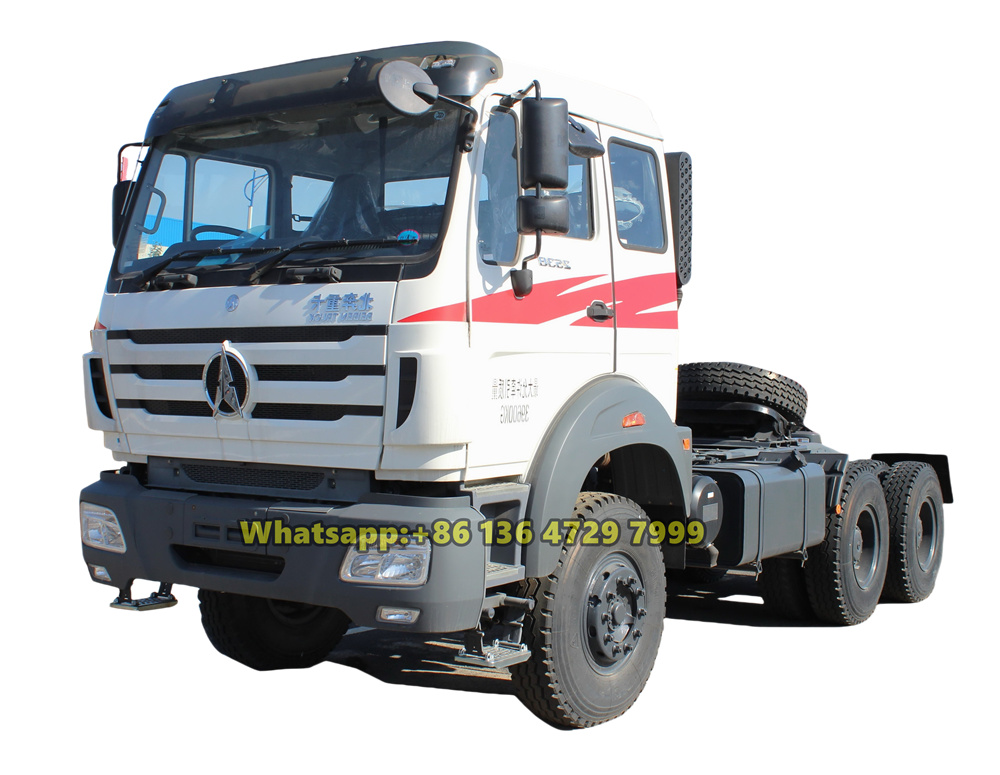

Beiben 6x4 tractor truck with NG80B sleeper bed cabin
