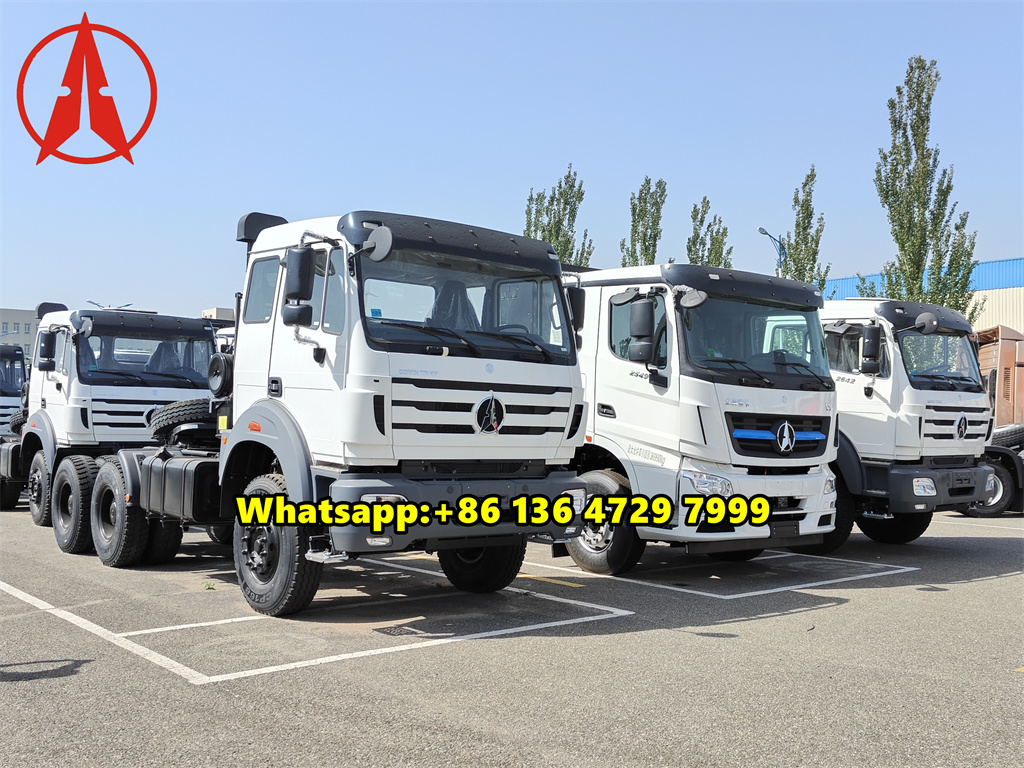

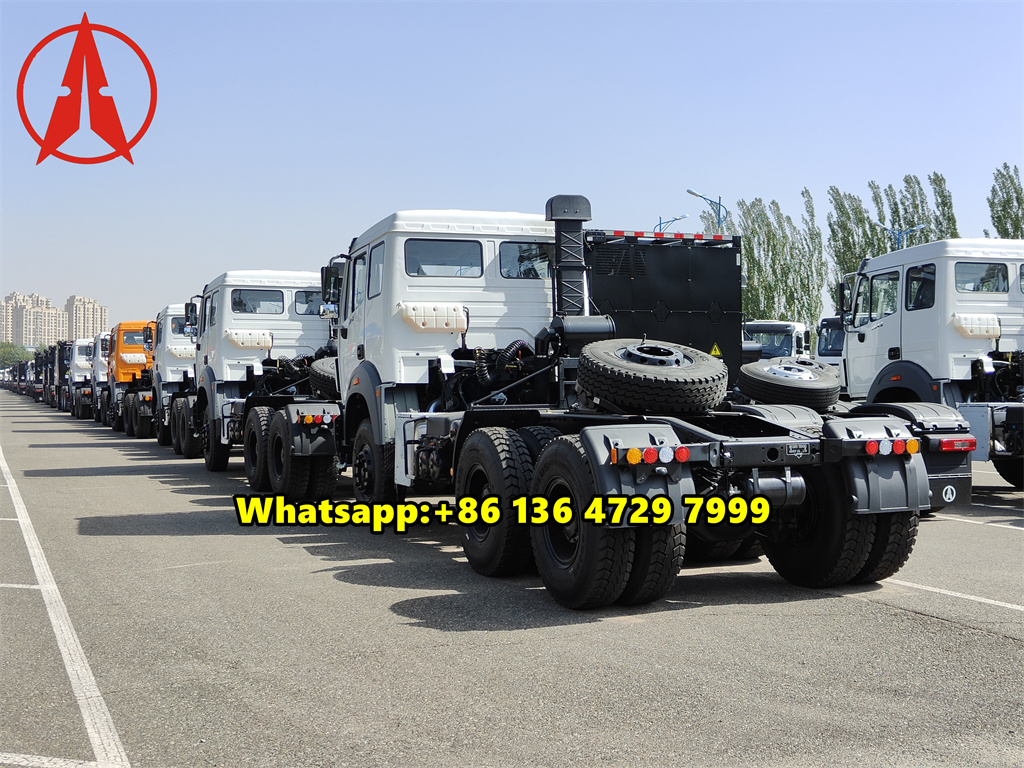

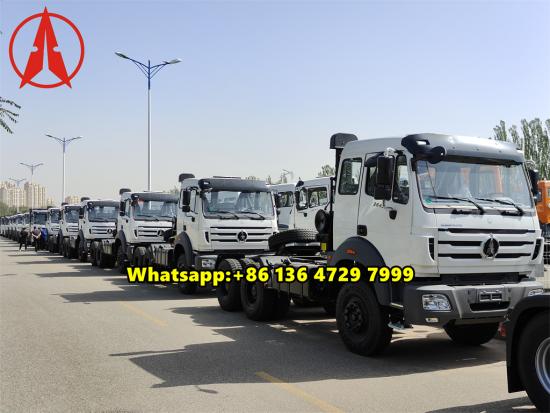

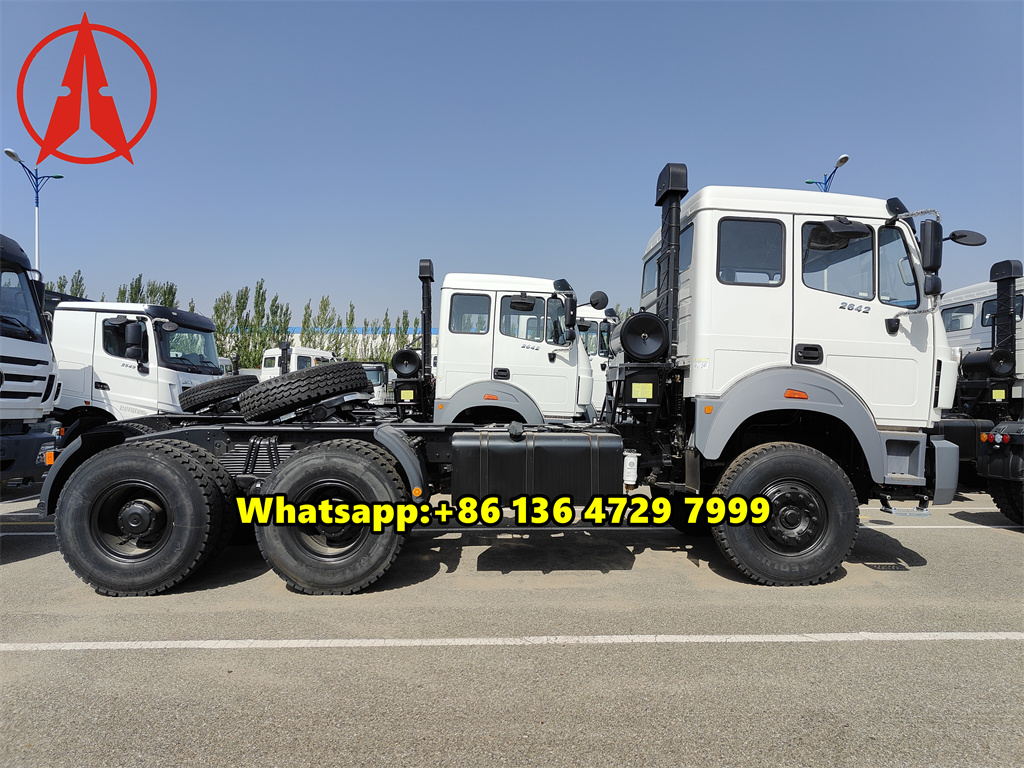

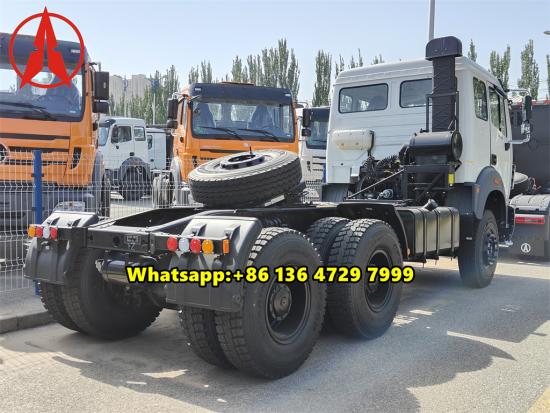

BEIBEN 6x4 tractor truck 2642SZ 420HP diesel engine prime mover has a metal frame + skin structure, which has the same level of safety as a European car, and meets the European ECR29 safety regulations. The frame is stamped and formed at one time to ensure the strength of the girder. The axle is selected as Beiben axle. Mercedes-Benz's unique axle technology improves the reliability of the vehicle, fuel-saving, and high attendance rate. Reinforced structure, suitable for transporting all kinds of heavy goods. After recent years of construction and development capacity,the company currently has 100,000 vehicle supporting ability. China north beiben 2642 tractor head is durable and powerful with WEICHAI WP12.420E32 diesel engine, 420HP and emission 11596cc, very idea truck for DR Congo market.
Production time:
30-35daysPayment terms:
TTWorking Capcity:
40-45 tonsEngine power:
420HPDrive system:
6x4BEIBEN 2642 tractor truck is a heavy-duty tractor, which also cal be called Beiben 2642 prime mover, Beiben 2642 tractor head, Beiben 6x4 tractor truck. This tractor usually has strong power and carrying capacity, suitable for long-distance transportation, logistics transportation and other scenarios. BEIBEN 2642 NG80 tractor truck is popular in the Congo market due to its strong adaptability, high cost performance, perfect service network, strong brand influence and strong market demand.

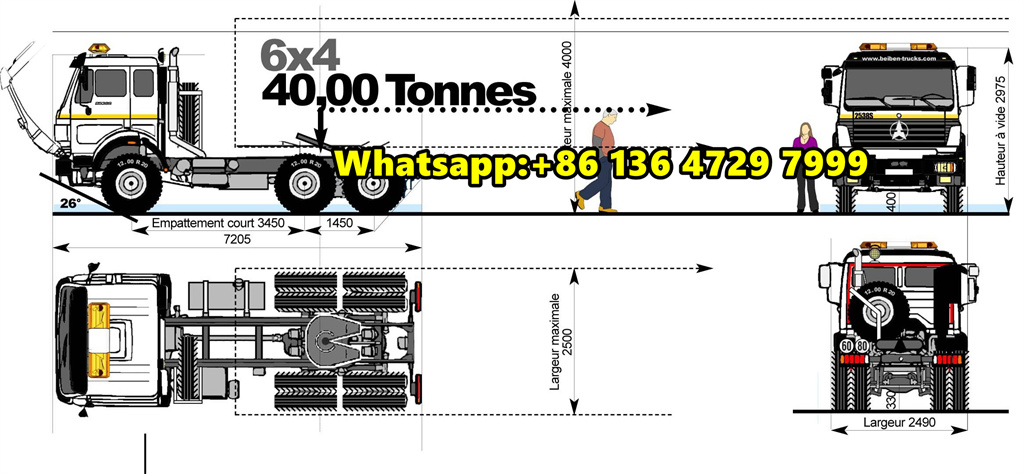

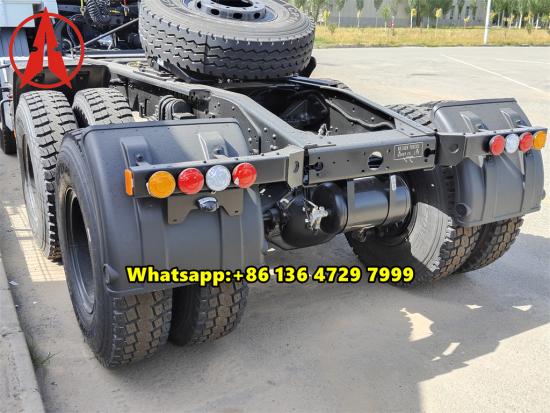

China beiben NG80 tractor truck 2642SZ mounted with WEICHAI WP12.420E32 diesel engine, 420HP and displacement can be 11596cc, EURO3 standard very suitable for Africa market. Transmission gearbox is FAST brand 12JS200T model with 12 forward and 2 reverse, ZF8098 hydraulic steering with power assistance, very suitable and convenient for daily driving. Clutch is GFX430 type, single dry frictional disc, hydraulic boosting type. The North Benz 2642 prime mover kurb weight can be 8800kg, maximum towing weight can be 40000kg, maximum speed 110km. As for truck loading axle, which all based on Germany Mercedes Benz unique technology, front axle 7tons double-shoe pneumatic brake, non-driving steering axle, rear double axle 18tons, double-shoe pneumatic brake, ductile casting casing, with hub redactor. Original Beiben NG80B cabin, inner equipped with AM/FM radio, MP3 player, AC for hot and cold wind, also customzied single or double sleeper based on requirement. Standard 12.00R20 radial tire, 11 pieces including one full size spare tire. The Beiben NG80 tractor head with wheelbase 3450+1450mm, and whole tractor head dimension 7205x2500x3150mm, Optional 400L fuel tanker or 800L fuel tanker for longer endurance.
Powerful engine: Equipped with a high-performance diesel engine, WEICHAI brand WP12.420E32 model with 308KW / 420HP, which provides sufficient power support to ensure stable driving under various road conditions.
Strong carrying capacity: The body and chassis are sturdy in design based on Mercedes Benz technology, with strong carrying capacity, and can carry large tonnage of goods.
Convenient operation: The north benz NG80B cab design is reasonable, the field of vision is wide, and the operation control system is humanized, which improves the convenience and comfort of driving.
High safety performance: Equipped with a variety of safety systems, such as ABS anti-lock braking system, brake assist system, etc., to ensure safety during driving.
The reasons for Beiben 2642 420HP 6x4 NG80 tractor head popularity in the Democratic Republic of Congo may include the following aspects:
Strong adaptability: The China North Benz 2642 prime mover head has strong off-road capabilities and can adapt to the complex and changeable road conditions in the Democratic Republic of Congo. Whether it is urban roads or rural roads, it can maintain good passability and stability.
High cost performance: Compared with other imported brands of tractors, the BEIBEN 2642 tractors may be more competitive in price, and its performance and quality can also meet the needs of the local market, so it has a high cost performance.
Perfect service network: Beiben Heavy Duty Tractor Head Truck may have established a relatively complete service network in the Democratic Republic of Congo, including sales, maintenance, and parts supply, etc., to provide convenient service support for local users.
Brand influence: As a well-known heavy-duty vehicle manufacturer in China, Beiben Heavy Duty Truck's brand enjoys a certain degree of popularity and reputation at home and abroad. In the Democratic Republic of Congo market, the BEIBEN brand may have become one of the brands trusted by users.
Market demand: With the development of the economy of the Democratic Republic of Congo and the increase in logistics and transportation needs, the market demand for heavy vehicles such as tractors is also expanding. The BEIBEN 2642 tractor has successfully met the needs of the local market with its excellent performance and price advantage.
No |
Specification |
Data |
|
1 |
Model |
2642SZ |
|
2 |
Wheel base |
3450+1450 |
|
3 |
Dimension |
7160*2500*3260 |
|
4 |
Curb weight |
10500 |
|
5 |
Cross towing trailer weight |
140000 |
|
6 |
Max speed |
75 |
|
7 8 |
Engine |
Model |
WP12.420E32 |
Emission |
EURO 3 |
||
9 |
kW/rpm |
309/2200 |
|
10 |
Hp/rpm |
420 |
|
11 |
Fuel system type |
Mechanical pump |
|
12 |
Air filter type |
Sand filter |
|
13 |
No. of cylinders |
6 |
|
14 |
Displacement |
11.596L |
|
15 |
Stroke |
4 |
|
16 |
Bore |
126*155 |
|
17 |
Compression ratio |
17:1 |
|
18 |
Economy revs |
1300-1400 |
|
19 |
Exhaust brake |
YES |
|
20 |
Oil change volume |
17L |
|
21 |
Oil change interval |
10000km |
|
22 |
Fuel prerequisites |
>EURO 2 |
|
23 |
Fuel consume g/kWh |
192 |
|
24 |
Fuel tank capacity |
400L |
|
25 |
Fuel tank type |
Iron |
|
27 |
Clutch |
Model / mm |
430 |
28 |
Number |
1 |
|
29 |
Clutch system type |
Single dry frictional disc, Hydraulic boosting |
|
30 |
Transmission |
Model |
12JS200T |
31 |
Max torque Nm/rpm |
2000/2600 |
|
32 |
GCW approval (ton) |
—— |
|
33 |
1# gear ratio |
15.53 |
|
34 |
2# gear ratio |
12.08 |
|
35 |
3# gear ratio |
9.39 |
|
36 |
4# gear ratio |
7.33 |
|
37 |
5# gear ratio |
5.73 |
|
38 |
6# gear ratio |
4.46 |
|
39 |
7# gear ratio |
3.48 |
|
40 |
8# gear ratio |
2.71 |
|
41 |
9# gear ratio |
2.10 |
|
42 |
10# gear ratio |
1.64 |
|
43 |
11# gear ratio |
1.28 |
|
44 |
12# gear ratio |
1.00 |
|
45 |
13# gear ratio |
14.86 |
|
46 |
14# gear ratio |
3.33 |
|
47 48 |
Brake system |
Service brake |
double circulation air brake system |
Assistant brake |
Potential springs pressing on middle and rear wheels |
||
49 |
ABS |
WITHOUT/无 |
|
50 |
Steering system |
ZF8098 |
|
51 |
Front axle model / ton |
VL4/15D/7.5, Benz Technology |
|
52 |
Raer axle model / type |
HL7/015DS/13, Benz Technology |
|
53 |
Hub reduction type |
Double reduction |
|
54 |
Finel end drive Nm |
55000 |
|
55 |
Gear ratio |
5.921 |
|
56 |
Tyre size |
12.00R20 |
|
57 |
Spare tyre Qty |
1 |
|
58 59 60 |
Electrical system |
Battery |
180AH/2*12V |
Generator ampere (A) |
28V/70A |
||
Starter kW |
24V/5.58KW |
||
61 |
Cab |
Model |
NG80B Long cab |
62 |
Interior |
Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), Air seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C |
|
63 |
Accessory |
Metal bumper, three steps, new mirror, sun visor |
|
65 |
Model |
#90 |
|
66 |
Series |
Strengthen model |
|
72 |
Overall height |
1426mm |
|
73 |
Overall weight |
—— |
|
74 |
Frame |
Main frame height |
317 |
75 |
Main frame thickness |
12 |
|
76 |
Inner frame thickness |
8.5+7 |
Advanced features for Beiben 6x4 LHD RHD 2642 420HP tractor truck to DR Congo
