The Beiben 6×6 off-road oil tanker is a high-end hazardous chemical transport vehicle built on the professional chassis of Beiben heavy-duty trucks. It features a 6×6 all-wheel-drive design and is powered by a 420-horsepower Weichai WP12.420E32 engine. The core tank is constructed from high-quality carbon steel with a three-compartment structure and a total capacity of 20,000 liters. The interior of the tank is treated with anti-corrosion coating to ensure long service life. The NG80 extended cab is equipped with a sleeper berth and hydraulic damping seats, providing comfort for long-distance transportation.
Working capcity:
20000 litersCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
9660×2500×3850Drive system:
6×6Wheelbase (mm):
4450+1450Engine power / Model:
420 HP/WP12.420E32Gear Box:
12JS200TARemark:
8×8, RHD is optional1. Product Description
The Beiben 6×6 oil tanker, also known as the Beiben all-wheel-drive fuel bowser, is a high-end hazardous chemical transport equipment built on the Beiben 6×6 chassis. It is primarily used for the transportation and storage of petroleum derivatives, such as gasoline, diesel, crude oil, lubricating oil, and coal tar.
Customized for mining areas in the Democratic Republic of the Congo, this Beiben 6×6 off-road oil tanker features an all-terrain chassis design, perfectly adapting to the region's complex road conditions and high-temperature, high-humidity environment. Based on Beiben's professional off-road truck chassis, it is equipped with a high-torque 420-horsepower Weichai WP12.420E32 engine, with a 12-liter displacement ensuring robust power output even in high-altitude mining areas.
2. Product Specifications
|
Truck Chassis |
||||
|
Chassis Brand |
Beiben |
F/R Axle |
7T/ 13T*2 |
|
|
Overall Dimensions |
9660×2500×3850 mm |
Drive Type |
6×6, LHD |
|
|
Wheelbase |
4450+1450mm |
Gearbox |
FAST 12JS200T, 12F+2R |
|
|
Tire |
12.00R24, 10+1pcs |
Brake |
Air brake type |
|
|
Cabin |
NG80, long cabin, with one sleeper, with A/C, hydraulic driver's seat, manual reversal, etc |
|||
|
Engine |
Model |
Weichai WP12.420E32 |
||
|
Horsepower |
420HP |
|||
|
Displacement |
12 L |
|||
|
Emission |
Diesel, Euro 3 |
|||
|
Type |
6 cylinders in-line, four strokes, water-cooled, turbo-charged intercooling, direct injection |
|||
|
Fuel Tanker |
||||
|
Tank |
Volume |
20000L, 3 compartments |
||
|
Material & Thick |
steel Q235B; end 5mm, body 4mm |
|||
|
Color & Logo |
customized |
|||
|
Fittings |

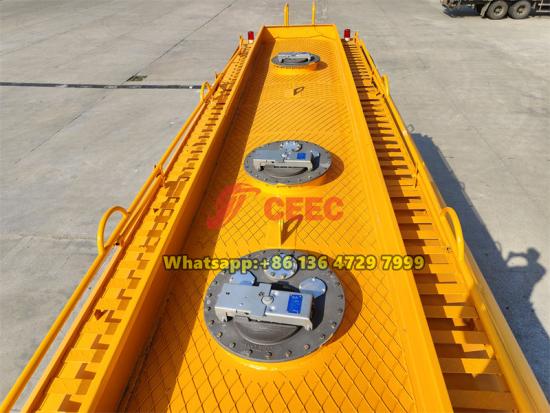

Manhole |
3 units DN500 |
||
|
Breather Valve |
3 units, DN50 |
|||
|

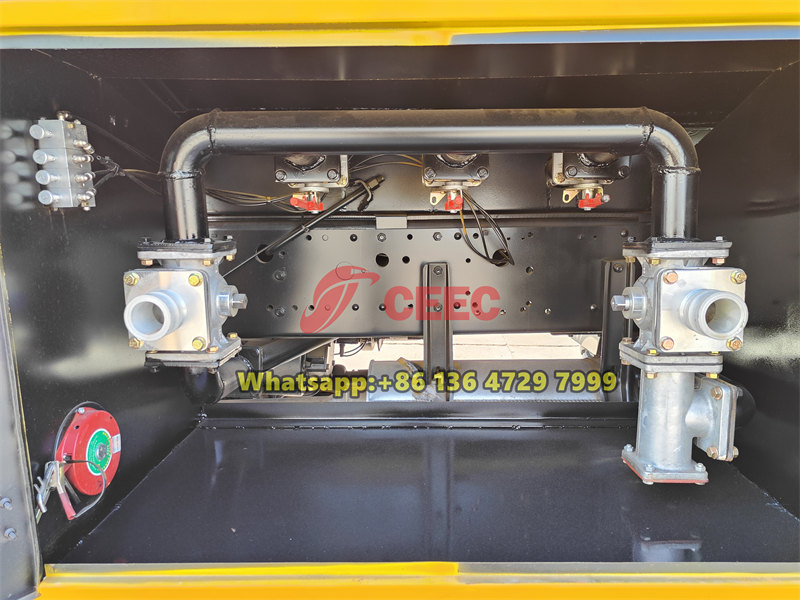

Bottom Valve |
3 units |
|||
|
Oil Pump |
80YHCB-60, with flow rate 60m3/h |
|||
|
Discharge Valve |
3 units, ball valve |
|||
|
Flowmeter |
1 unit, with 15M rotary filling gun |
|||
|
Anti-static rail |
1 piece |
|||
|
Emergency Cutoff Device |
1 unit |
|||
|
Vapor Recovery System |
Factory standard |
|||
|
Overfill sensor |
Factory standard |
|||
|
Tool Box |
1pcs |
|||
|
Fire extinguisher |
1 pcs |
|||
3. Tank Body Features of the Beiben 6×6 Fuel Bowser
• Tank Material: The tank body is made of 5mm-thick carbon steel. Aluminum alloy or stainless steel can also be used based on customer requirements.
• Compartments: Divided into 3 compartments for storing different types of oil products.
• Oil Pump: A well-known Chinese brand arc gear oil pump with a flow rate of 60 m³/h.
• Oil Meter: Options include single-count, dual-count, or tax-controlled fuel dispensers.

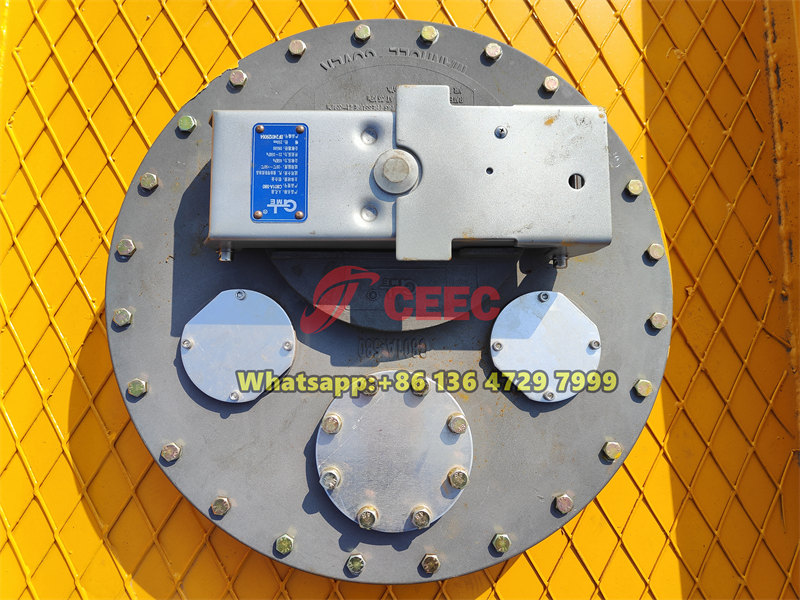

• Breathing Valve: To maintain balanced pressure between the tank interior and atmospheric pressure during operation, a breathing valve is installed on the manhole cover of the tank. When the oil inside expands due to heat or when the tank is being filled (increasing internal pressure), the upper valve of the breathing valve opens if the internal pressure exceeds external pressure by 8 kPa. Conversely, when oil is pumped out or contracts due to cooling (reducing internal pressure), the lower valve opens if the internal pressure falls below external pressure by 3 kPa.

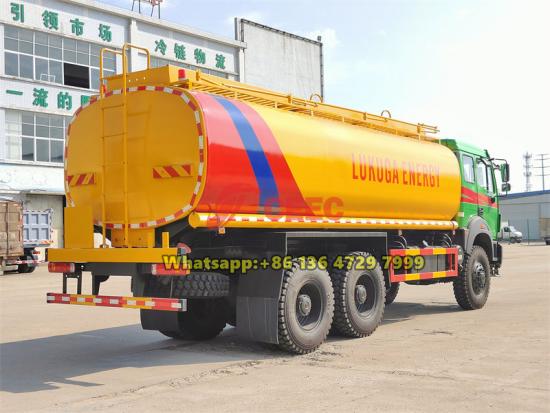

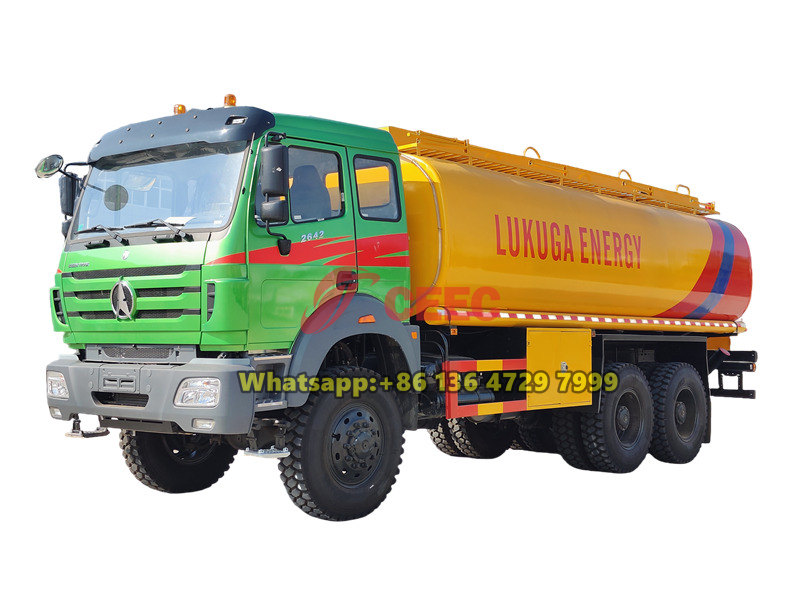

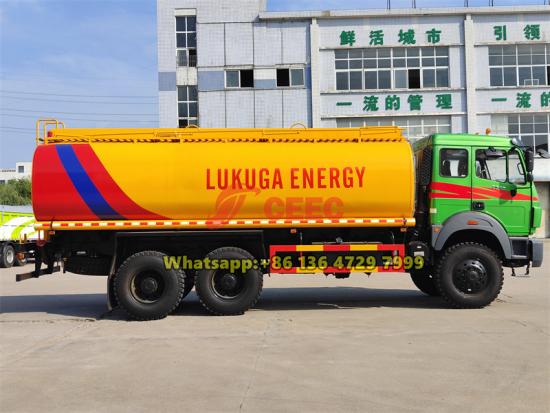

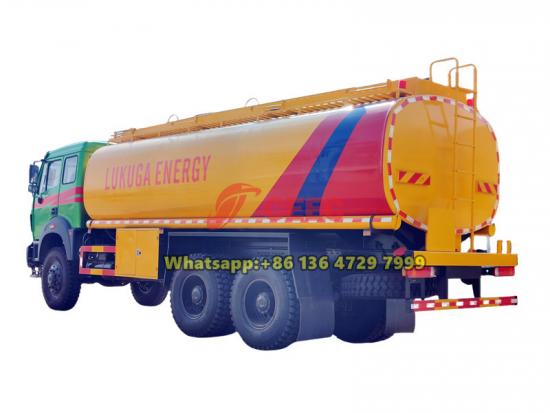

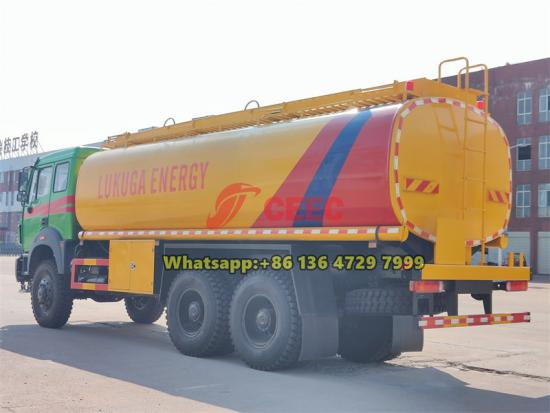

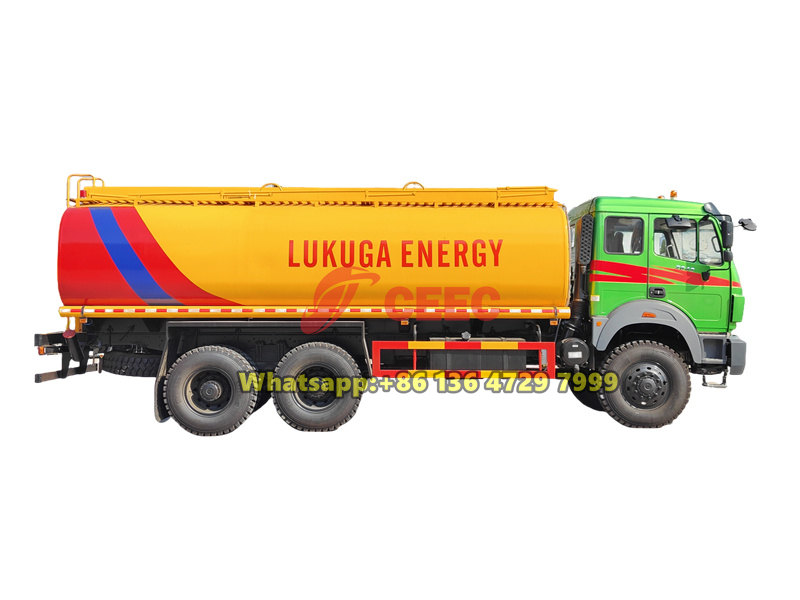

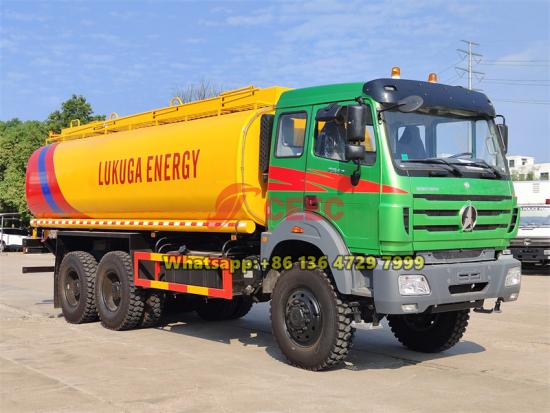

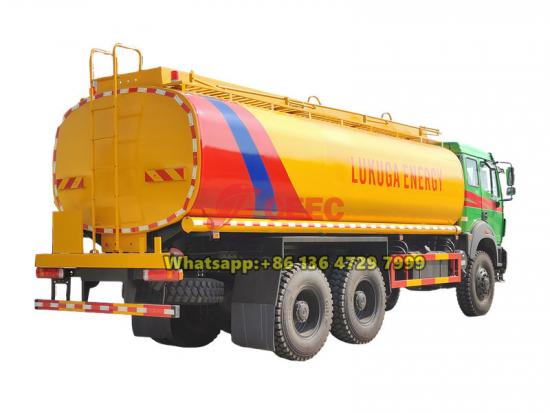

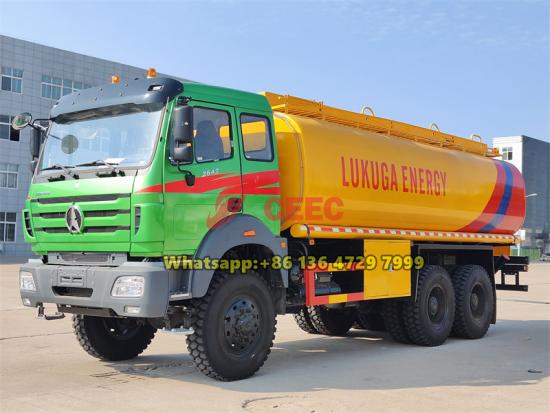

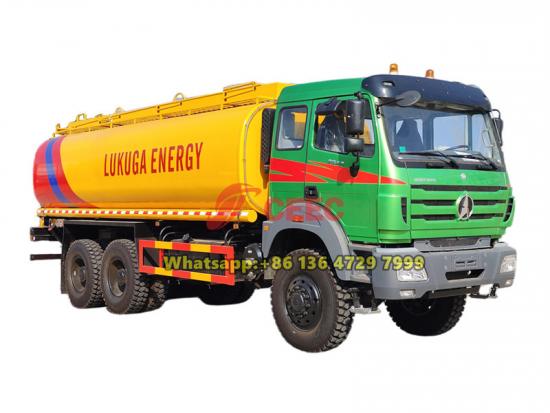

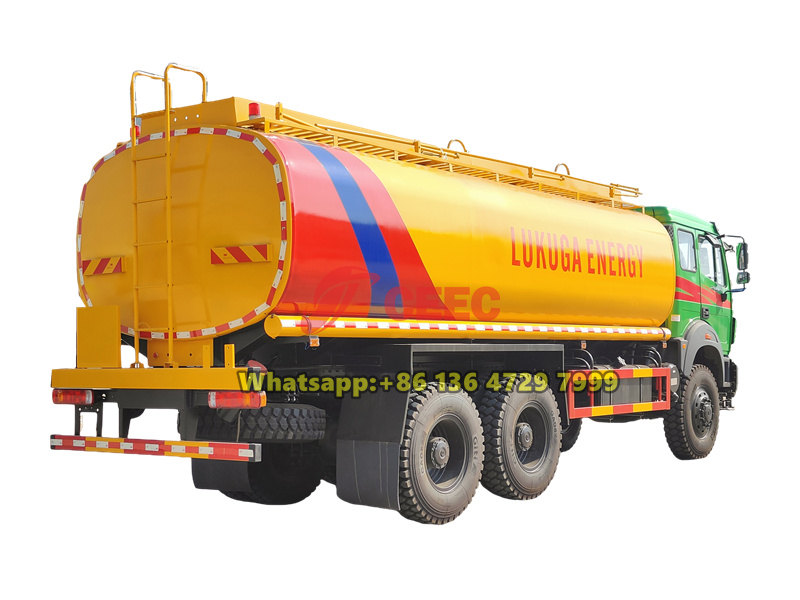

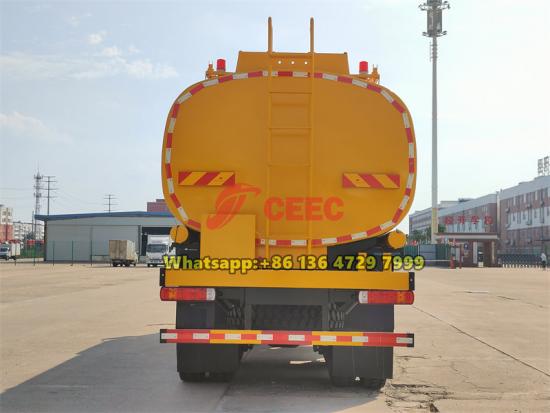

4. Details Display of Beiben 6×6 Fuel Tanker
