Beiben 8x8 all-wheel drive off-road vehicle is very popular in the Democratic Republic of Congo, due to its excellent performance and precise matching with the harsh local environment: Conquer extreme terrain: The road infrastructure in the Democratic Republic of Congo is weak, and mud is everywhere in the rainy season. Beiben 8x8's all-wheel drive system, high ground clearance and reinforced suspension give it unparalleled passability, allowing it to penetrate into mining areas, jungles and other areas that are difficult for vehicles to reach. The sturdy frame and powerful chassis of this model can carry large-scale engineering equipment or ore, and can run stably on unpaved roads, greatly improving the logistics efficiency of mining areas.
Working capcity:
70 tonsCabin type:
Beiben NG80 cabin, with one sleeperDimension ( mm ) :
12600×2600×4700Drive system:
8×8Wheelbase (mm):
1500+4750+1450Engine power / Model:
420 HP/WP12.420E32Gear Box:
12JS200TARemark:

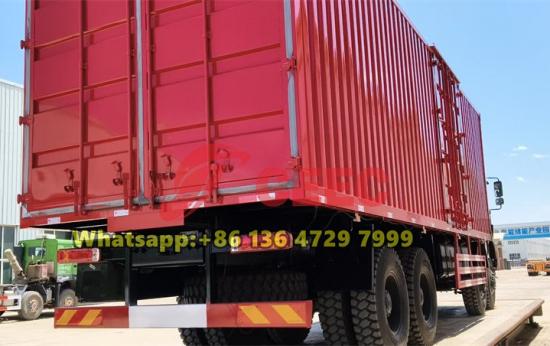

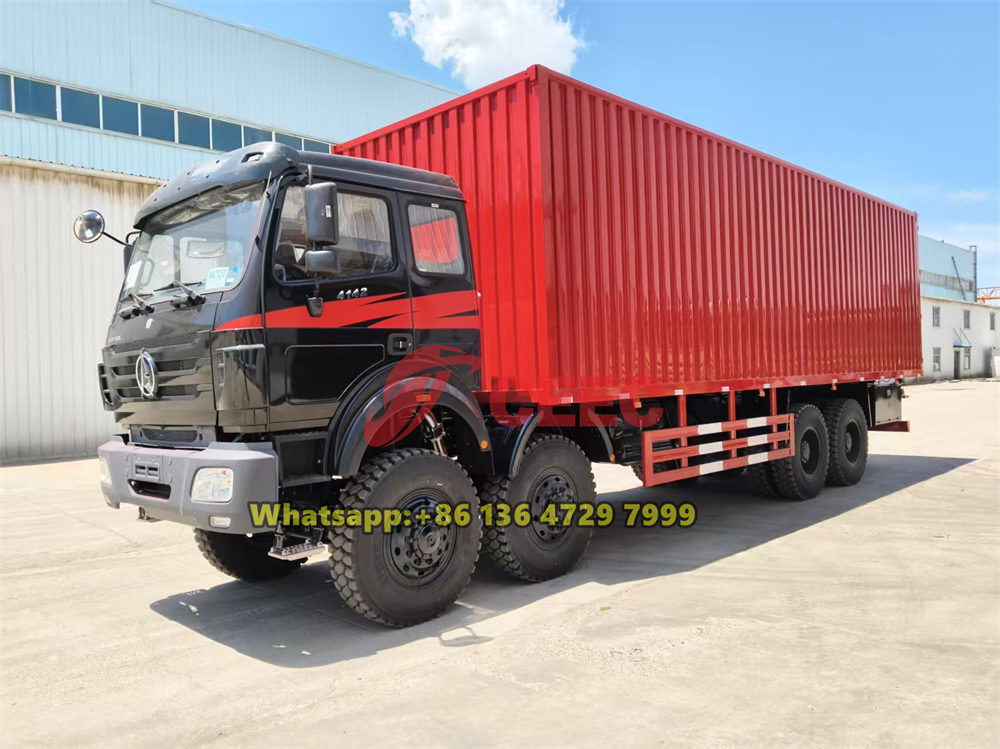

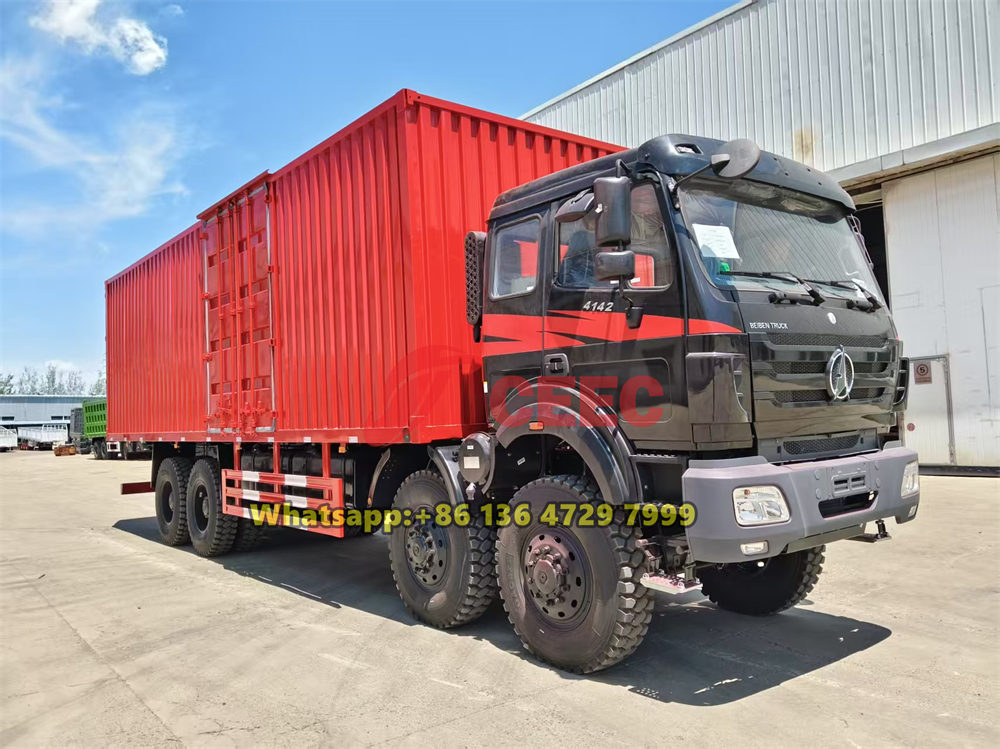

RHD drive, 12.00R24, 14.00R20Congo beiben 8x8 off road cargo truck, also named as congo beiben 8x8 drive heavy truck, beiben 8x8 drive cargo truck, beiben 8x8 drive van truck. It is china beiben NG80B cabin heavy duty all wheel drive truck, specialized designed for extremely road transportation. Powed on WP12.420 diesel engine, with FAST12 shift transmission, Beiben 8x8 off road truck can used for long distance drive in forest, desert, mud road situation. Congo customer usually customize beiben 8x8 off road drive truck for cargo truck, van truck, to payload vegetable, rice, and other materials.

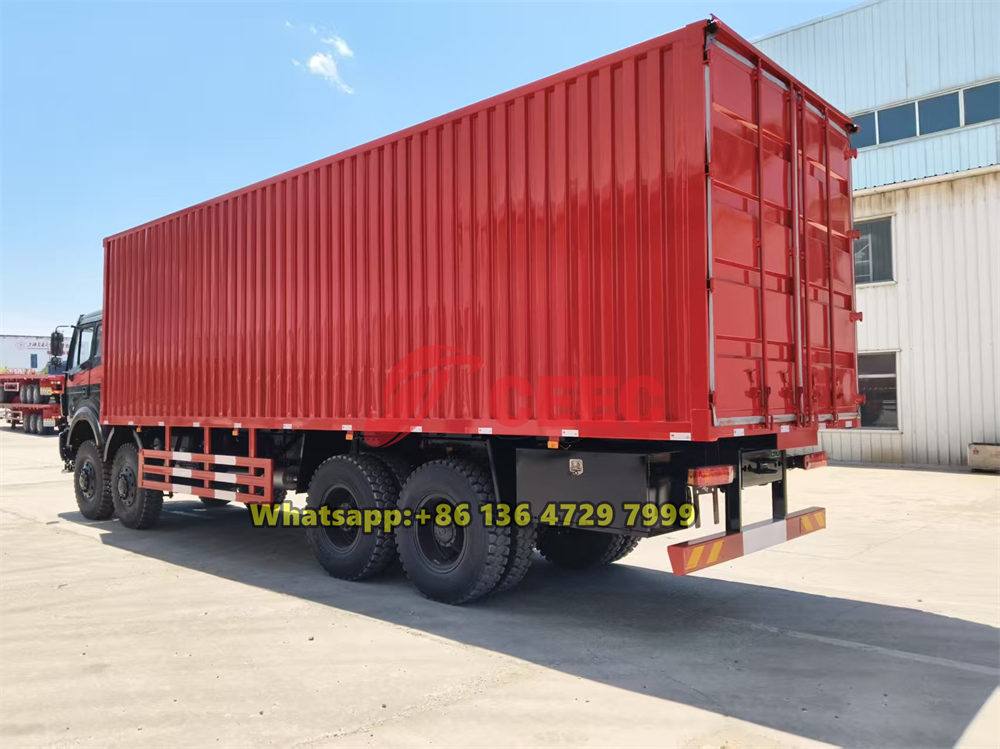

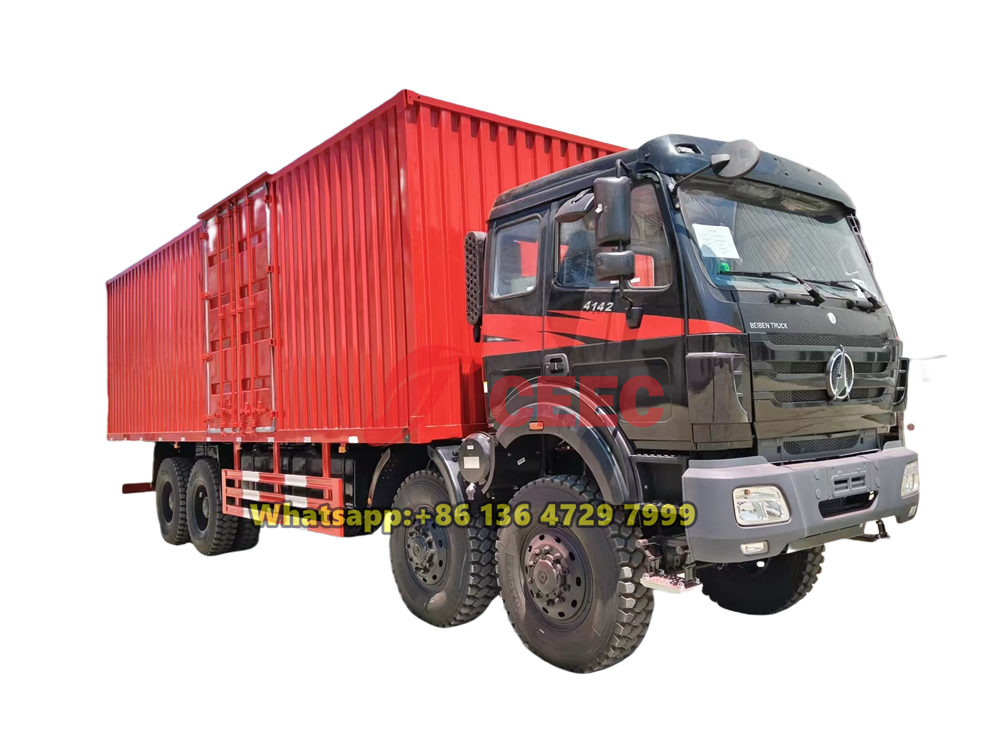

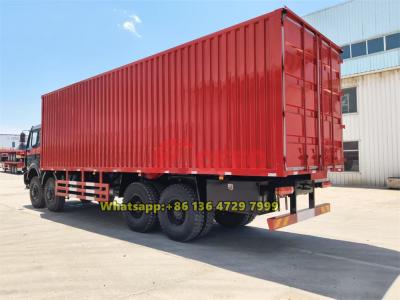

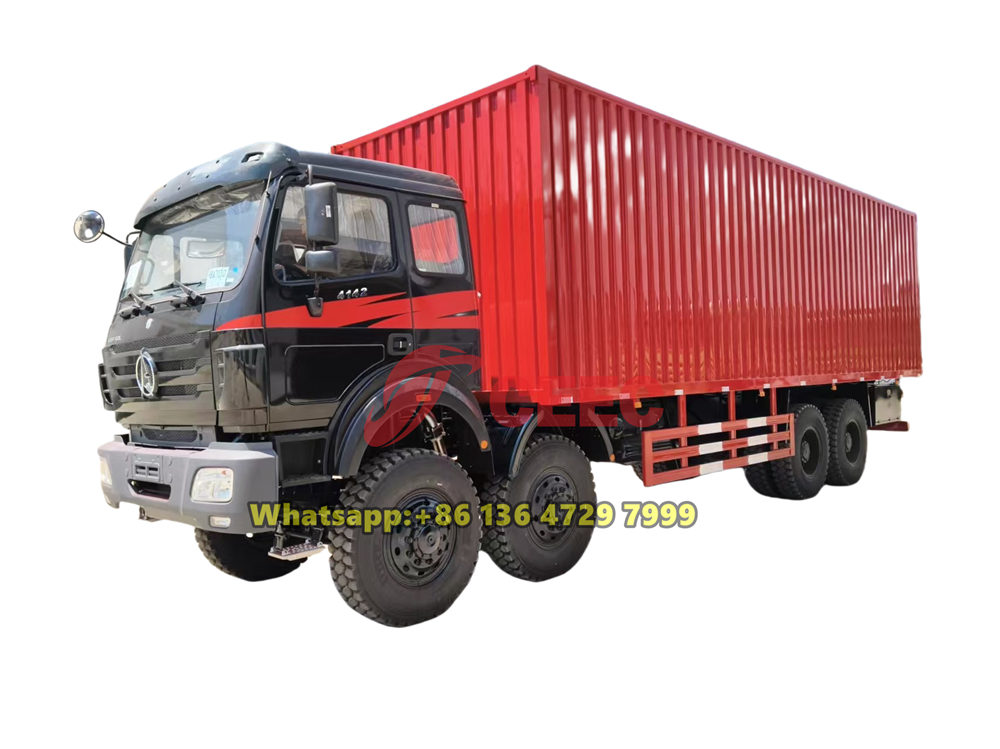

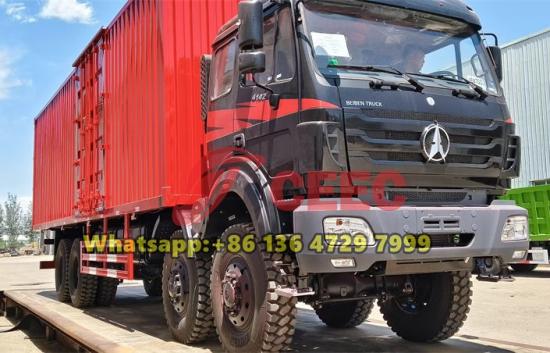

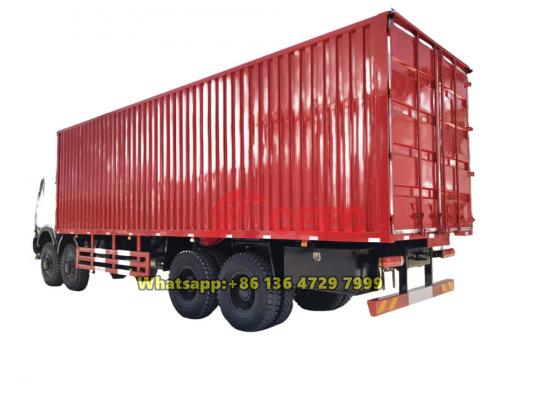

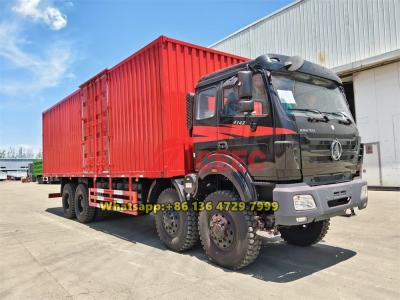

Congo beiben 8x8 off road drive cargo truck
● 8x8 drive, High ground clearance
● Weichai 420 Hp engine, super strong
● Mercedes benz technology, front axle& Rear axle

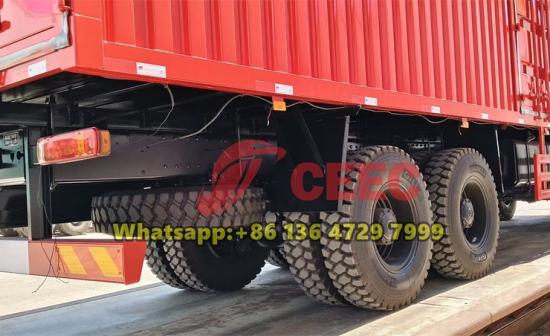

● 12.00R24 off road tyres
|
Beiben 8x8 drive off road truck Technical Specification |
||
|
Basic parameter
|
Model |
3142 PZ |
|
Drive system |
8x8 |
|
|
Length×width×height(mm) |
12000×2500×4200 |
|
|
Wheel-base(mm) |
19004450+1450 |
|
|
Curb weight(kg) |
14400 |
|
|
Engine parameter |
Model (six cylinder in line) |
WP12.420E32 |
|
Max. Power (HP/rpm) |
420 |
|
|
Max. Torque(Nm/rpm) |
1600/1400～1600 |
|
|
Displacement(lit) |
11.926 L |
|
|
Fuel tank capacity |
400L Iron oil tanker 400L |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical, 12JS200A |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster； |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake |
|
|
Assisted brake |
Engine exhaust brak |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7.5 T, no-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263； |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 13/13 pieces； |
|
|
Tire |
12.00R24 |
|
|
Cabin |
NG80B Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||
|
Offer |
|
|
Congo beiben 8x8 off road drive heavy duty cargo truck chassis
Beiben 12 wheeler cargo truck with 8x8 drive system
Beiben 8x8 off road drive truck chassis
Beiben 8x8 drive military truck chassis with 420 hp diesel engine
With its sophisticated engineering design, the Beiben 8x8 all-wheel drive off-road vehicle demonstrates excellent off-road capabilities in the complex and changeable terrain of Africa. Its core technical support is reflected in the following aspects: Full-time all-wheel drive and high-passability chassis:
The core lies in its 8x8 all-wheel drive system, and each wheel has independent driving force. With the multi-axis drive axle design, high ground clearance, optimized approach angle and departure angle
Independent suspension and central charging and discharging system: Each drive axle often adopts an independent suspension or balanced suspension system, combined with a large-stroke shock absorber, which effectively absorbs high-frequency vibrations on rugged roads (such as washboard roads and rocky roads) to ensure that the wheels are fully grounded.
Powerful power and intelligent torque management: Equipped with a high-power, high-torque diesel engine, matched with an efficient transmission and a full-time transfer case, it provides abundant and continuous power output. Advanced drive control systems (such as differential locks and wheel-to-wheel limited slip) can intelligently sense wheel slip and instantly lock or redistribute torque to wheels with adhesion, ensuring strong traction and climbing ability on low-adhesion roads (such as mud and sand dunes).
Professional off-road tires and long-range guarantee: Equipped with wide-section, deep-patterned off-road radial tires, providing excellent grip and puncture resistance. The large-capacity fuel tank design meets the endurance requirements of long-distance crossings in Africa and reduces dependence on supplies
north benz brand china beiben 8 wheel drive truck are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben truck is the Chinese best truck brands and best quality, technical performance properties index and conform to the state and military standard.
Beiben 8x8 all wheel driving cargo truck, the Beiben 4142 model truck equipped with NG80 classical cabin, mounted with 12.00R24 tires, which have a larger diameter and higher height, and the Beiben 8x8 chassis has a strong passing ability when facing uneven road surfaces with ditches, potholes and rocks. Super powerful WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, turbo charge and 6 cylinder. Stronger frame can be suitable to build all kinds of special purpose trucks.
The Beiben 8×8 all-wheel-drive chassis features a tri-axle twelve-wheel design with a wheelbase of 1500+5050+1450mm. The overall dimensions are 12100X2700X3400mm, and the curb weight is 10800kg. It is equipped with a WP12.420E32 diesel engine, rated at 319Kw (420HP), mated to a 12JS200T transmission. The chassis is fitted with a dual-circuit air brake system and a full-circulating ball-type steering system, and utilizes a fish-belly high-strength frame. With its ability to adapt to various complex environments, it is a preferred choice in the field of off-road transportation, widely used in petroleum exploration, mining, military operations, and rescue missions.
Beiben 4142 off-road military truck is a powerful vehicle designed for rugged terrain and challenging environments. Equipped with a robust WP12.420 engine, this truck is capable of delivering superior performance . With its 8x8 off-road drive system, the Beiben 4142 can traverse rough and uneven terrain with ease, making it ideal for military operations, disaster relief efforts, and other specialized missions. The truck's NG80B full steel cabin provides a safe and comfortable environment for the driver and passengers,
The Beiben 8x8 offroad drive truck is a rugged and powerful off-road vehicle designed to tackle the toughest terrains with ease. Equipped with a set of 12.00R24 tyres, this truck offers superior traction and stability, allowing it to confidently navigate through mud, snow, rocks, and other challenging conditions. Brand new Beiben 3135 V3 cargo truck chassis equipped with newly designed V3 cabin with one sleeper, A/C system for convenient working, WEICHAI diesel engine with 350HP, emission can be 9.726cc, FAST brand 12JS200T model with 12 forward and 2 reverse, as for axle capacity for the China North Benz 8x8 military truck chassis, front can be 7500kg with double turning axles and rear can be 13000kg with double driving axles, diesel tanker capacity is 400L, optional aluminum alloy material or carbon steel material, ZF8098m left hand drive or right hand drive steering suitable for all Africa market, the V3 new cabin can have painting and logos 100% as customized.
Beiben 8x8 V3 Truck Chassis is equipped with WEICHAI WP10H350 engine with 350 horsepower and 9.5 liter displacement. It adopts 12JS200T gearbox with 12 forward gears and 2 reverse gears. ZF8098 hydraulic power steering system improves handling. The front axle adopts Mercedes Benz technology and has a load capacity of 6.5 tons. The rear axle has a double reduction and a load capacity of 13 tons. The vehicle size is 9500×2500×3180 mm, the wheelbase is 1500+4150+1450 mm, the total mass is 31,000 kg, the maximum speed is 100 kilometers per hour, and the fuel tank capacity is 400 liters. It is suitable for a variety of heavy-duty transportation tasks.
Equipped with a robust 8x8 all-wheel-drive system and a high-torque diesel engine, the Beiben 3142 excels in transporting oversized military cargo, including ammunition, armored vehicles, and modular command units. Its reinforced chassis and adaptive suspension enable it to carry payloads exceeding 80 tons across extended distances, ensuring reliable supply chain continuity in conflict zones or remote areas.With independent wheel articulation and centralized tire inflation technology, the vehicle navigates extreme off-road conditions—from desert dunes to Arctic tundra
Beiben 4142 8×8 drive cargo truck is a robust military-grade heavy-duty vehicle engineered for superior off-road mobility and logistical efficiency. Equipped with a WP120.420E32 engine, this truck delivers a maximum power output of 420 horsepower and a torque of 1,600 Nm at 1,200-1,600 rpm. The 11.596-liter, six-cylinder, turbocharged diesel engine complies with Euro III emission standards.Built on an 8×8 military-grade chassis, the vehicle employs a permanent all-wheel-drive system with inter-axle and cross-axle differential locks. The 12.00R24 radial tires, featuring deep tread patterns, provide exceptional ground clearance and puncture resistance in mud, sand, or rocky environments.
