Beiben 8x8 all-wheel drive off-road vehicle developed by CEEC Trucks. Its core feature is the full-time all-wheel drive system. All eight wheels have independent driving capabilities. Beiben 8x8 off road truck model uses a high-power diesel engine, usually matched with an advanced gearbox and an efficient transfer case to ensure that it can still output sufficient and stable power in harsh environments such as plateaus, deserts, and muddy areas. Beiben 8x8 off-road vehicle is widely used in military special vehicle chassis, oil field exploration, forest fire fighting, engineering rescue and heavy equipment transportation. It is a veritable all-weather, all-terrain multi-purpose heavy off-road platform.
Working capcity:
60 tonsCabin type:
Beiben NG80 cabin, with one sleeperDimension ( mm ) :
12600 × 2600 × 4600Drive system:
8×8Wheelbase (mm):
1500+4750+1450Engine power / Model:
420 HP/WP12.420E32Gear Box:
12JS200TARemark:
RHD drive, 12.00R24, 14.00R20Congo Beiben 8x8 off road cargo truck ,also named as congo beiben 8x8 drive cargo truck, congo beiben 8x8 off road truck. It is speciazed designed for congo extreme terrains and 60 T- 100 T heavy-load operations. Congo beiben 8x8 off road truck has durable off road drive system ensures superior traction on unstable surfaces like mud, sand, and steep gradients, enabling reliable transport of oversized equipment, raw materials, or tactical supplies in remote or hostile environments.
Beiben 8X8 all-wheel drive heavy-duty off-road vehicle is a high-performance multi-axle drive special vehicle platform independently developed by Beiben Heavy Truck under China North Industries Group Corporation. Its core design focuses on all-terrain high passability and heavy-load reliability. beiben 8x8 off road truck adopts a full-time eight-wheel drive system. Each wheel has independent driving force. Combined with the transfer case, differential lock and inter-wheel limited slip device, it can achieve efficient escape in extreme road conditions such as mud, desert and snow.
● 8x8 drive, High ground clearance
● Weichai 420 Hp engine, super strong
● Mercedes benz technology,
● NG80B cabin, with sleeper bed
The frame structure is made of high-strength alloy steel forging. The ladder beam design is combined with a multi-stage buffer suspension system (such as a combination of leaf springs and hydraulic shock absorbers), which significantly improves the torsion resistance and driving stability under complex loads.

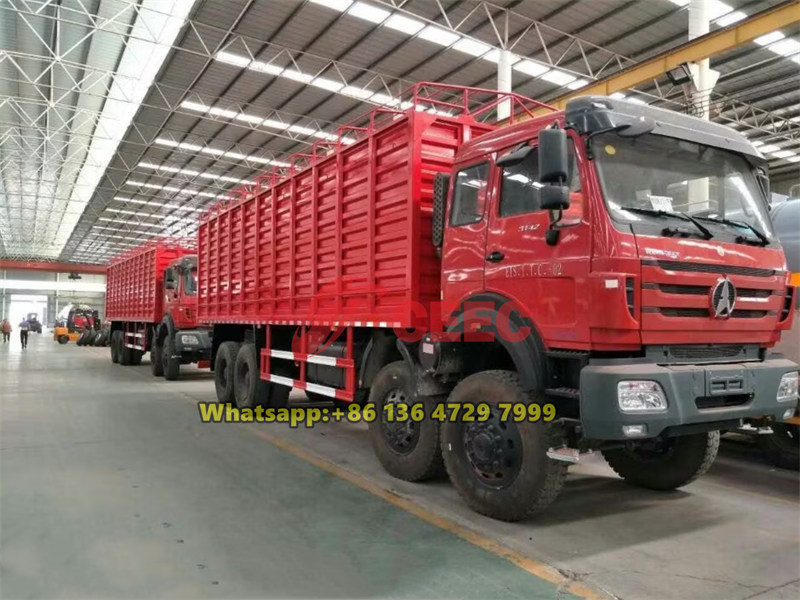

Congo beiben 8x8 drive off road cargo truck
The platform is widely used in military equipment transportation, oilfield exploration, emergency rescue and special engineering fields. With its modular design, it can be derived into special models such as dump trucks, carriers, and crane chassis. It is an important milestone in the independent development of China's heavy off-road equipment technology.
Product Specifications
Beiben 8×8 off road cargo truck 4142SZ |
||||
Dimension |
12000×2600×4200(mm) |
|||
Cargo box dimension |
9500x2800x2700 mm |
|||
Approaching angle/Departure angle |
26/64° |
|||
Overhang(front/rear) |
1410/825mm |
|||
Wheel base |
1500+4750+1450mm |
|||
Max speed |
99km/h |
|||
Curb weight |
9400 kg |
|||
Payloading weight |
39600kg |
|||
Slope climbing capability |
Max.40% |
|||
Engine |
Model |
WP12.420E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection |
||
Displacement |
11.596L/Diesel |
|||
Stroke |
126/155 mm |
|||
Max. power |
309/2100 (kw/rpm) |
|||
Max.torque |
1600/1800(Nm/rpm) |
|||
Fuel tanker capacity |
400L |
|||
Clutch |
∮430, Single dry frictional disc,Hydraulic boosting |
|||
Gearbox |
12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer |
|||
Gear ratio of gear box |
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33 |
|||
Suspension system |
Front |
Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 13pcs |
||
Rear |
Non-free standing stabilization spring, balance suspension system, 13pcs |
|||
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
||
Assistant brake |
Engine exhaust brake |
|||
Park brake |
Potential springs pressing on middle and rear wheels |
|||
Steering system |
TAS85, whole circulation in ball, hydraulic booster |
|||
Transfer box |
L2000 |
|||
Frame |
Fish belly shape, variable width, variable sections |
|||
Front axle (Mercedes Technology) |
Double-shoe pneumatic brake, driving steering axle, 7.5 Ton |
|||
Middle and Rear axle (Mercedes Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle, 13 Ton |
|||
Tyre |
12.00R24 |
|||
Electrical system |
Battery |
2X12V/135Ah |
||
Generator |
28V-35A |
|||
Starter |
5.4Kw/24V |
|||
Cabin |
NG80B Long-Flat roof cabin with single sleeper Covered with double layer steel plate; |

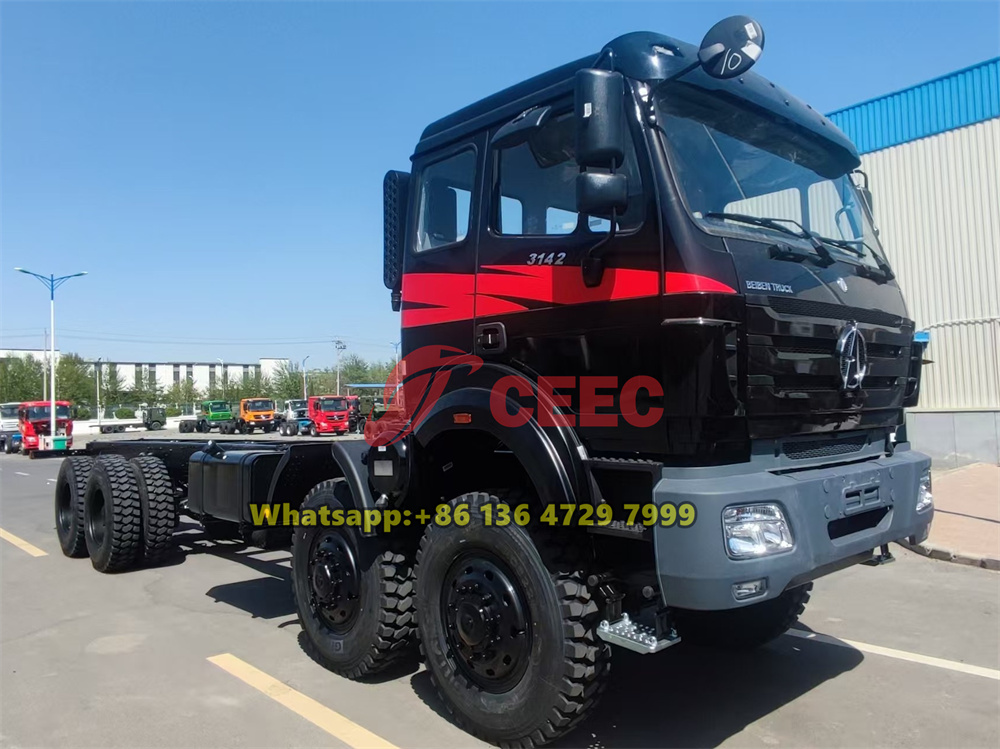

Beiben 8x8 drive cargo truck with 12.00R24 tyres
Product Pictures

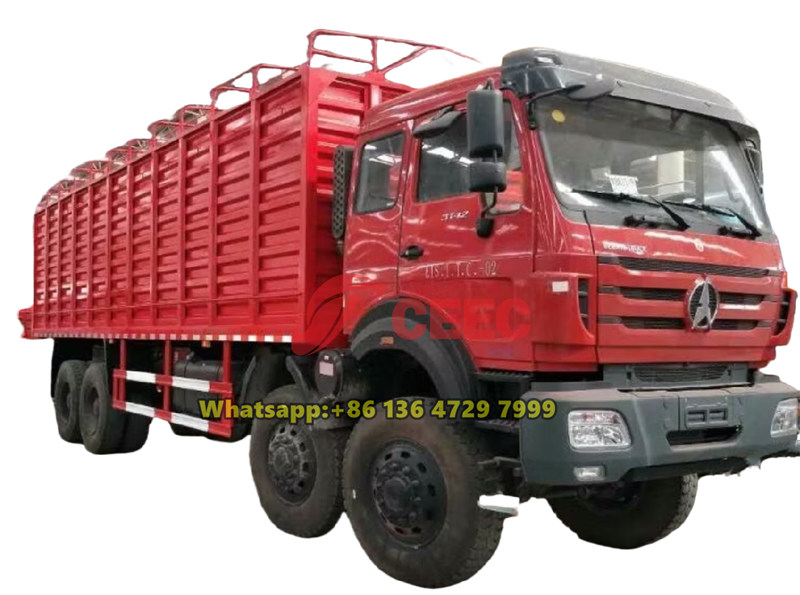

Beiben 8x8 drive military off road truck
Under the harsh natural environment and infrastructure conditions in Africa, the Beiben 8X8 all-wheel drive vehicle has become the core force of key transportation tools with its excellent performance. Its application scenarios and operation points are as follows:
Where we can used the beiben 8x8 trucks ?

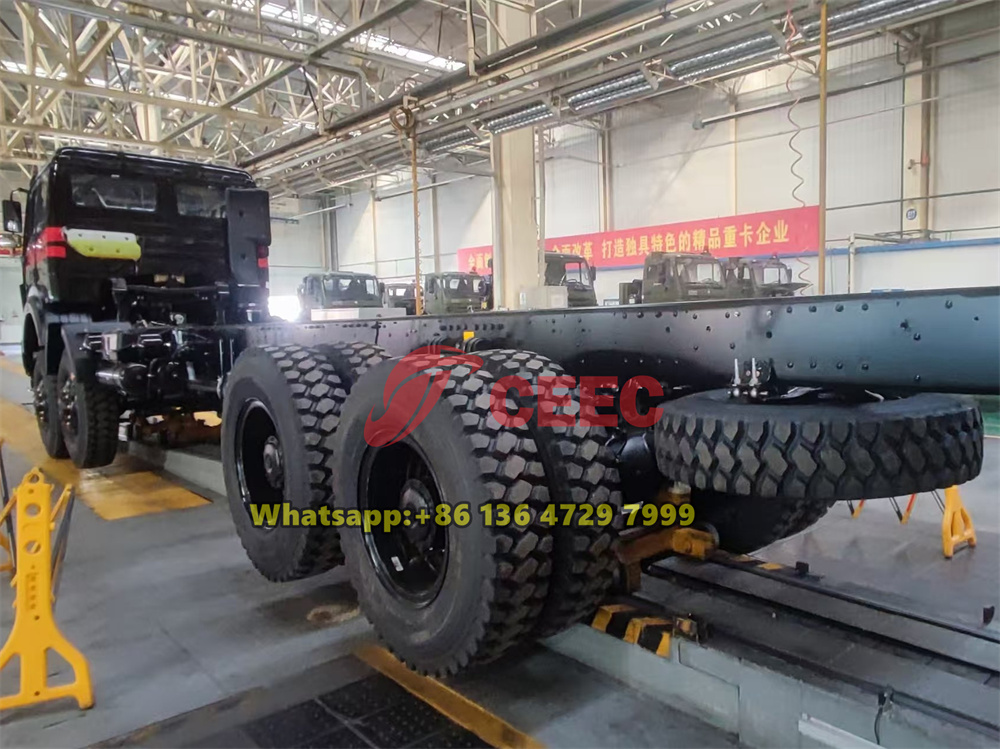

Beiben 8x8 drive off road cargo truck

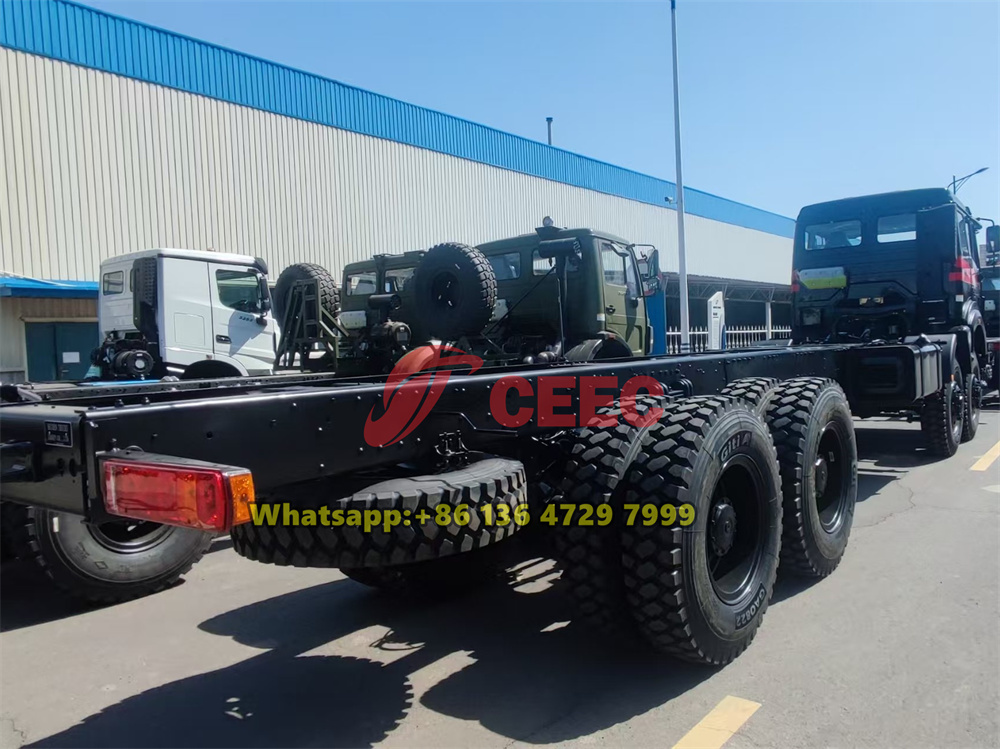

Beiben 8x8 off road truck with 12 wheeler tyres
