Equipped with a robust 8x8 all-wheel-drive system and a high-torque diesel engine, the Beiben 3142 excels in transporting oversized military cargo, including ammunition, armored vehicles, and modular command units. Its reinforced chassis and adaptive suspension enable it to carry payloads exceeding 80 tons across extended distances, ensuring reliable supply chain continuity in conflict zones or remote areas.With independent wheel articulation and centralized tire inflation technology, the vehicle navigates extreme off-road conditions—from desert dunes to Arctic tundra
Working capcity:
50 tonsCabin type:
Beiben NG80 cabin, with one sleeperDimension ( mm ) :
12100×2700×3400Drive system:
8×8Wheelbase (mm):
1500+4750+1450Engine power / Model:
420 HP/WP12.420E32Gear Box:
12JS200TARemark:
Right hand drive, 14.00R20 tyre avaiableBeiben 8×8 all-wheel-drive chassis, designed specifically for complex environments as heavy-duty off-road transportation platform, demonstrates extraordinary capabilities across multiple sectors thanks to its outstanding cross-country mobility, load-carrying capacity, and environmental adaptability. From material transportation in extreme weather conditions to exploration operations in challenging terrains, this chassis rises to the task with ease, earning the trust of numerous industry users.
Equipped with a turbocharged diesel engine generating over 420 hp, it maintains operational readiness at altitudes exceeding 4,500 meters and temperatures ranging from -40°C to 55°C. Three-stage differential locks and adaptive tire pressure regulation optimize traction on surfaces from loose sand to ice-covered roads.
Its robust 8x8 chassis configuration ensures superior load-bearing capacity and stability, enabling the transportation of heavy weaponry, ammunition, and specialized military equipment across diverse terrains, including deserts, marshes, and mountainous regions. Equipped with a high-torque diesel engine and adaptive suspension, it maintains operational efficiency in extreme temperatures (-40°C to 55°C) and altitudes exceeding 4,500 meters, critical for border patrols and high-altitude deployments.
Beiben 3142 Military 8×8 Drive Truck: Technical Overview
The Beiben 3142 is a robust military-grade 8×8 drive truck engineered for superior off-road mobility and heavy-duty performance. Below is a structured breakdown of its key components and specifications:
8×8 Drive System
Equipped with a full-time 8×8 all-wheel-drive configuration, the vehicle ensures exceptional traction and stability across challenging terrains. This system distributes power evenly to all wheels, enhancing maneuverability in extreme conditions.
WP12.420E32 Engine
Powered by a Weichai WP12.420E32 diesel engine, the truck delivers 420 horsepower (313 kW) and a peak torque of 1,900 Nm at 1,200–1,500 rpm. Compliant with Euro III emission standards, it balances high output with fuel efficiency and reliability.
FAST 12JS200T Transmission
The 12-speed FAST 12JS200T manual transmission features synchronized gears and a torque capacity of 2,000 Nm. Its optimized gear ratios enable smooth power delivery under heavy loads and variable speeds.
Full-Steel NG80B Long Cabin
The reinforced NG80B cabin, constructed from high-strength steel, provides enhanced ballistic and blast protection. Its extended design accommodates up to three personnel while integrating ergonomic controls and advanced communication systems.
Axle Configuration
12.00R24 Tires
Fitted with 12.00R24 all-terrain radial tires, the truck achieves optimal grip on loose surfaces, mud, and rocky landscapes. These tires are reinforced for puncture resistance and extended service life.
Product Specifications
|
Beiben 8×8 AWD truck chassis |
||
|
Wheelbase(mm) |
1500+5050+1450 |
|
|
L*W*H |
12100X2700X3400 |
|
|
Curb weight(kg) |
10800 |
|
|
Front overhang/rear overhang (mm) |
1410/1940 |
|
|
Approach angle/Departure angle |
33/20 |
|
|
Max Speed:(Km/h) |
≤85 |
|
|
Engine |
Model |
WP12.420E32 |
|
Type |
water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Fuel type |
Diesel |
|
|
Min rate of consuming fuel(g/(kw.h)) |
196g/kw.h |
|
|
Rated Power / rotating(kw/(r/min) |
319Kw(420HP)/2200rpm |
|
|
Emission |
EURO 3 |
|
|
Maximum Torque / rotating speed (n.m/(r/min) |
1750Nm/1500-1800rpm |
|
|
Displacement(ml) |
11.596 |
|
|

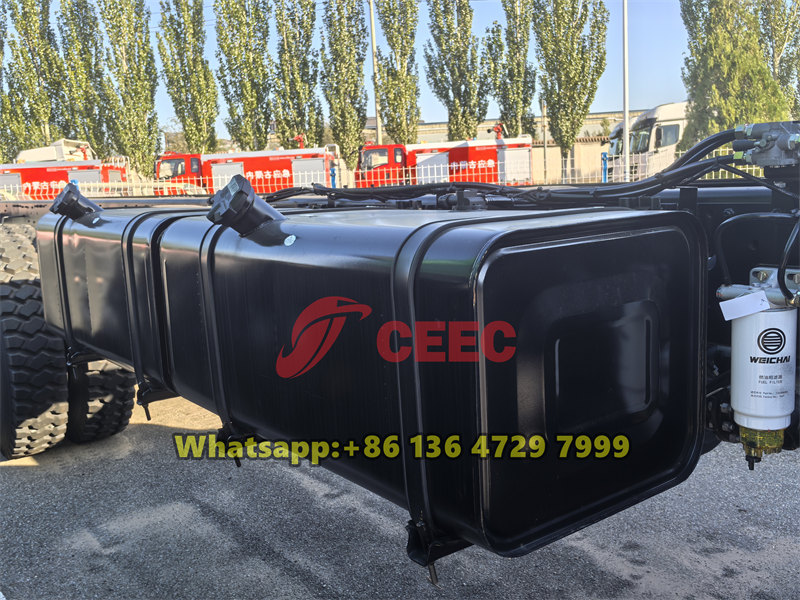

Fuel tanker capacity(L) |
400L+400L Iron |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,12/12 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Double Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 8 ton driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R24 radial tire |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
|
Other specifications |
Two layer air filter |
|
|
Upper body |
Can be customized according to customer's requirements |
|
Performance Advantages
Beiben 3142 military 8x8 drive truck serves as a versatile platform for defense and tactical operations. Below is a concise breakdown of its primary applications, structured to ensure originality:
Heavy-Duty Logistics Transport
The truck’s robust 8x8 chassis and high-torque engine enable it to carry oversized military equipment, including armored vehicles, artillery systems, or modular shelters, across long distances. Its reinforced payload capacity (up to 25 tons) ensures reliable delivery of critical supplies in combat or peacekeeping missions.
Mobile Weapon System Deployment
Designed with adaptable mounting interfaces, the Beiben 3142 integrates seamlessly with missile launchers, anti-aircraft systems, or radar arrays. Its stabilized platform and power-generation capabilities support real-time targeting and rapid deployment in dynamic battlefield scenarios.
All-Terrain Reconnaissance and Patrol
Equipped with advanced differential locks, centralized tire inflation, and amphibious capabilities, the vehicle navigates extreme environments—from desert dunes to marshlands. Its armored cab variant provides crew protection during reconnaissance, border patrols, or counterinsurgency operations.
Modular Mission Customization
The truck’s modular frame allows swift reconfiguration for specialized roles, such as electronic warfare, medical evacuation, or command-and-control centers. Interchangeable modules and standardized interfaces reduce downtime, enhancing operational flexibility for diverse military needs.

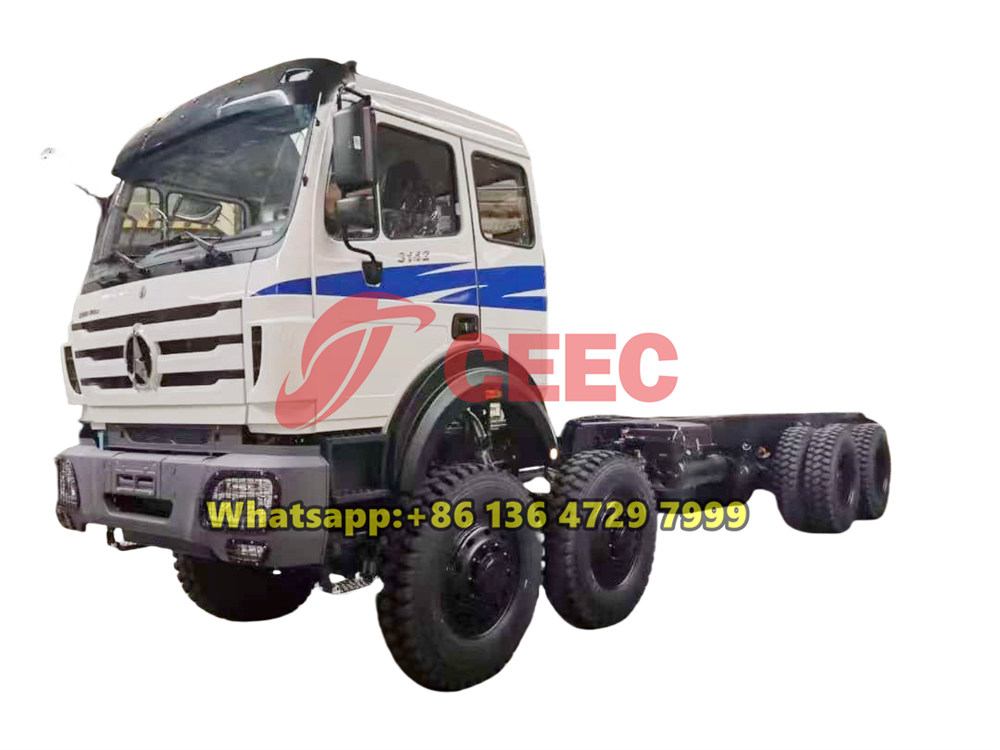

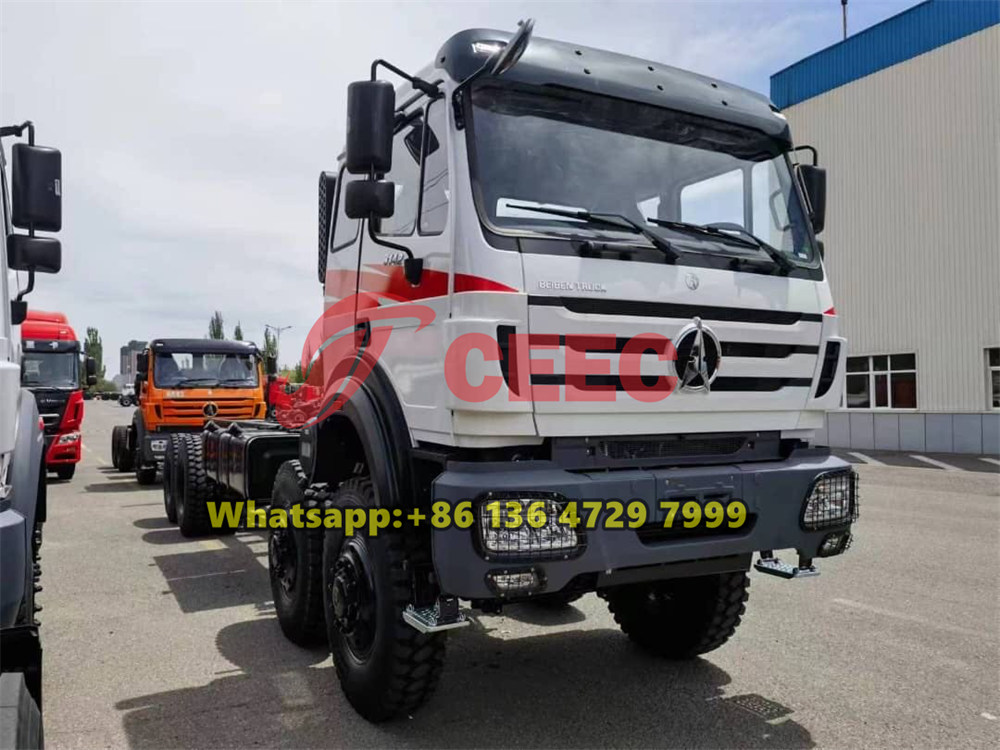

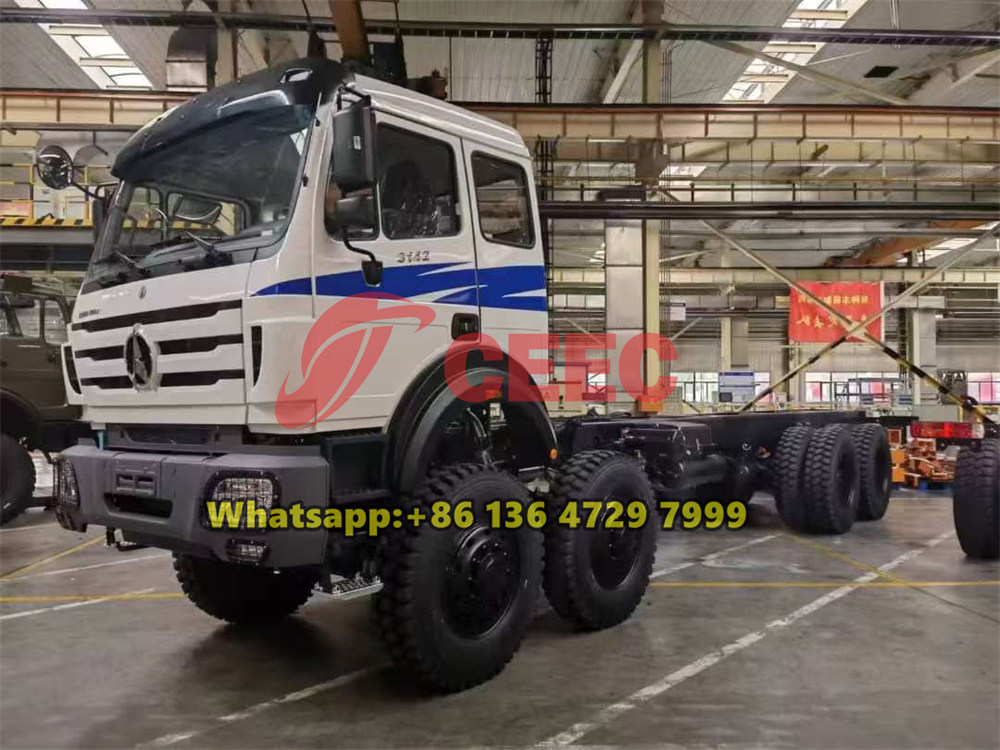

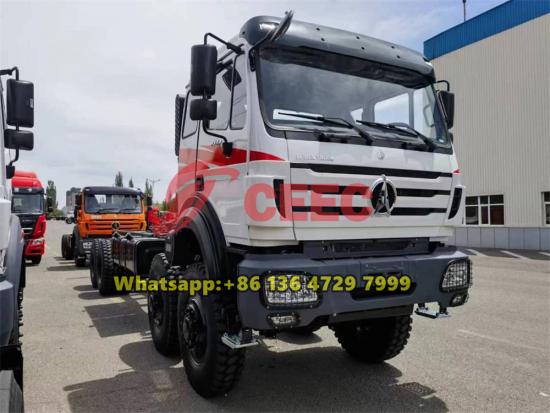

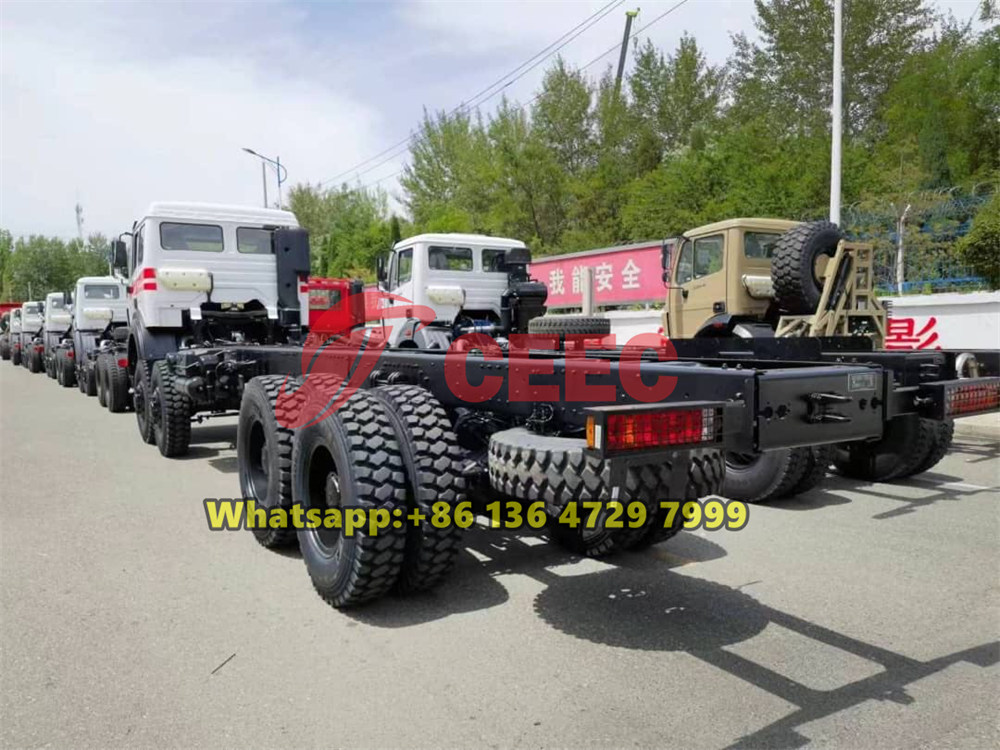

Product Pictures
north benz brand china beiben 8 wheel drive truck are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben truck is the Chinese best truck brands and best quality, technical performance properties index and conform to the state and military standard.
Beiben 8x8 all wheel driving cargo truck, the Beiben 4142 model truck equipped with NG80 classical cabin, mounted with 12.00R24 tires, which have a larger diameter and higher height, and the Beiben 8x8 chassis has a strong passing ability when facing uneven road surfaces with ditches, potholes and rocks. Super powerful WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, turbo charge and 6 cylinder. Stronger frame can be suitable to build all kinds of special purpose trucks.
The Beiben 8×8 all-wheel-drive chassis features a tri-axle twelve-wheel design with a wheelbase of 1500+5050+1450mm. The overall dimensions are 12100X2700X3400mm, and the curb weight is 10800kg. It is equipped with a WP12.420E32 diesel engine, rated at 319Kw (420HP), mated to a 12JS200T transmission. The chassis is fitted with a dual-circuit air brake system and a full-circulating ball-type steering system, and utilizes a fish-belly high-strength frame. With its ability to adapt to various complex environments, it is a preferred choice in the field of off-road transportation, widely used in petroleum exploration, mining, military operations, and rescue missions.
Beiben 4142 off-road military truck is a powerful vehicle designed for rugged terrain and challenging environments. Equipped with a robust WP12.420 engine, this truck is capable of delivering superior performance . With its 8x8 off-road drive system, the Beiben 4142 can traverse rough and uneven terrain with ease, making it ideal for military operations, disaster relief efforts, and other specialized missions. The truck's NG80B full steel cabin provides a safe and comfortable environment for the driver and passengers,
The Beiben 8x8 offroad drive truck is a rugged and powerful off-road vehicle designed to tackle the toughest terrains with ease. Equipped with a set of 12.00R24 tyres, this truck offers superior traction and stability, allowing it to confidently navigate through mud, snow, rocks, and other challenging conditions. Brand new Beiben 3135 V3 cargo truck chassis equipped with newly designed V3 cabin with one sleeper, A/C system for convenient working, WEICHAI diesel engine with 350HP, emission can be 9.726cc, FAST brand 12JS200T model with 12 forward and 2 reverse, as for axle capacity for the China North Benz 8x8 military truck chassis, front can be 7500kg with double turning axles and rear can be 13000kg with double driving axles, diesel tanker capacity is 400L, optional aluminum alloy material or carbon steel material, ZF8098m left hand drive or right hand drive steering suitable for all Africa market, the V3 new cabin can have painting and logos 100% as customized.
Beiben 8x8 V3 Truck Chassis is equipped with WEICHAI WP10H350 engine with 350 horsepower and 9.5 liter displacement. It adopts 12JS200T gearbox with 12 forward gears and 2 reverse gears. ZF8098 hydraulic power steering system improves handling. The front axle adopts Mercedes Benz technology and has a load capacity of 6.5 tons. The rear axle has a double reduction and a load capacity of 13 tons. The vehicle size is 9500×2500×3180 mm, the wheelbase is 1500+4150+1450 mm, the total mass is 31,000 kg, the maximum speed is 100 kilometers per hour, and the fuel tank capacity is 400 liters. It is suitable for a variety of heavy-duty transportation tasks.
Beiben 4142 8×8 drive cargo truck is a robust military-grade heavy-duty vehicle engineered for superior off-road mobility and logistical efficiency. Equipped with a WP120.420E32 engine, this truck delivers a maximum power output of 420 horsepower and a torque of 1,600 Nm at 1,200-1,600 rpm. The 11.596-liter, six-cylinder, turbocharged diesel engine complies with Euro III emission standards.Built on an 8×8 military-grade chassis, the vehicle employs a permanent all-wheel-drive system with inter-axle and cross-axle differential locks. The 12.00R24 radial tires, featuring deep tread patterns, provide exceptional ground clearance and puncture resistance in mud, sand, or rocky environments.
Equipped with a Benz 7.5-ton front axle and a Benz 13-ton double rear axle, the beiben 3142 off road truck achieves a balanced weight capacity and structural integrity. The rear tandem axles enhance load-bearing stability, while the reinforced differentials minimize mechanical stress during heavy-duty operations. This setup supports a gross vehicle weight (GVW) exceeding 60 tons, catering to large-scale logistics.Designed for military use, the vehicle’s modular frame allows integration of specialized add-ons, such as armored plating or communication systems. Its high ground clearance and reinforced chassis further enhance survivability in combat zones
