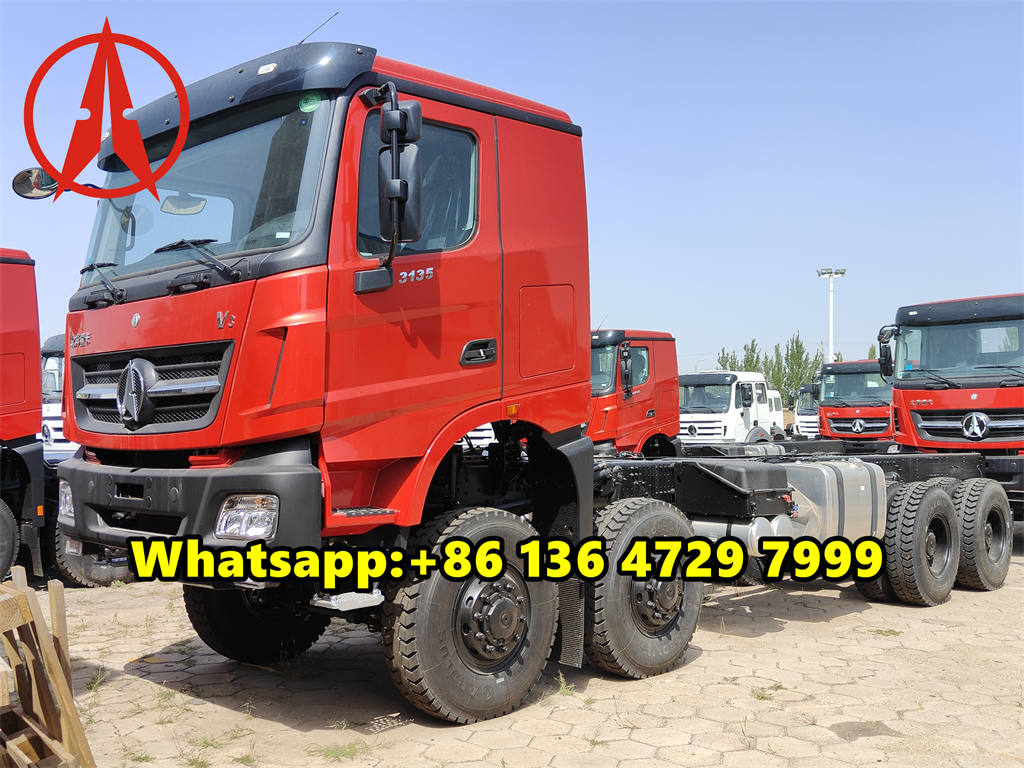

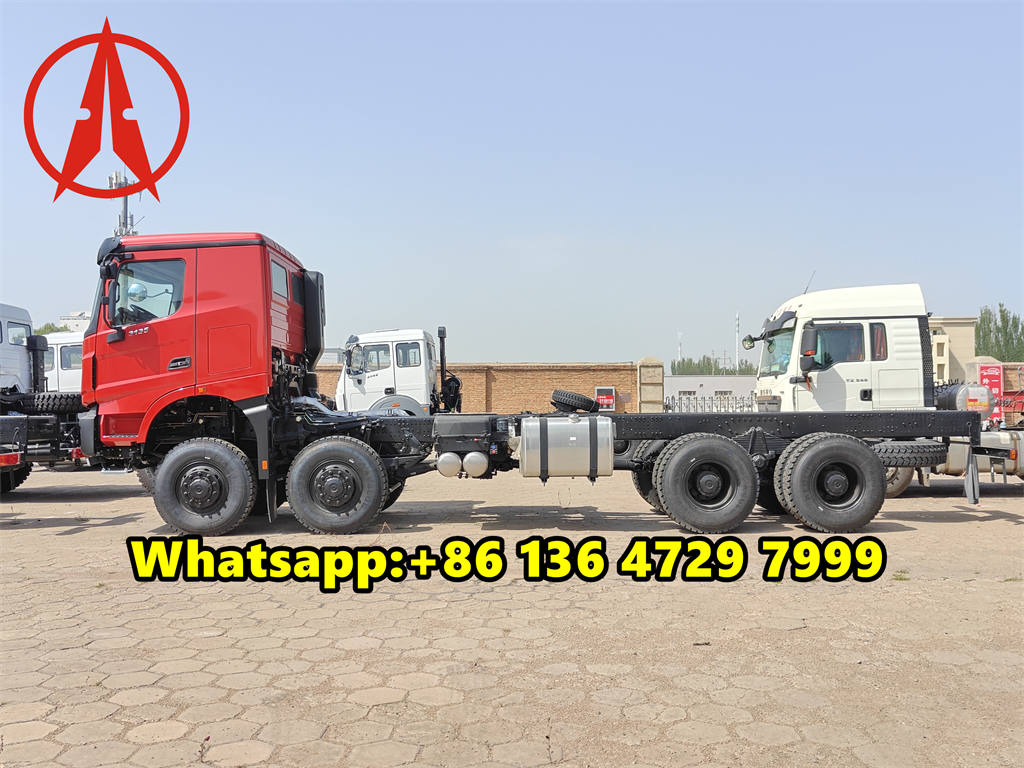

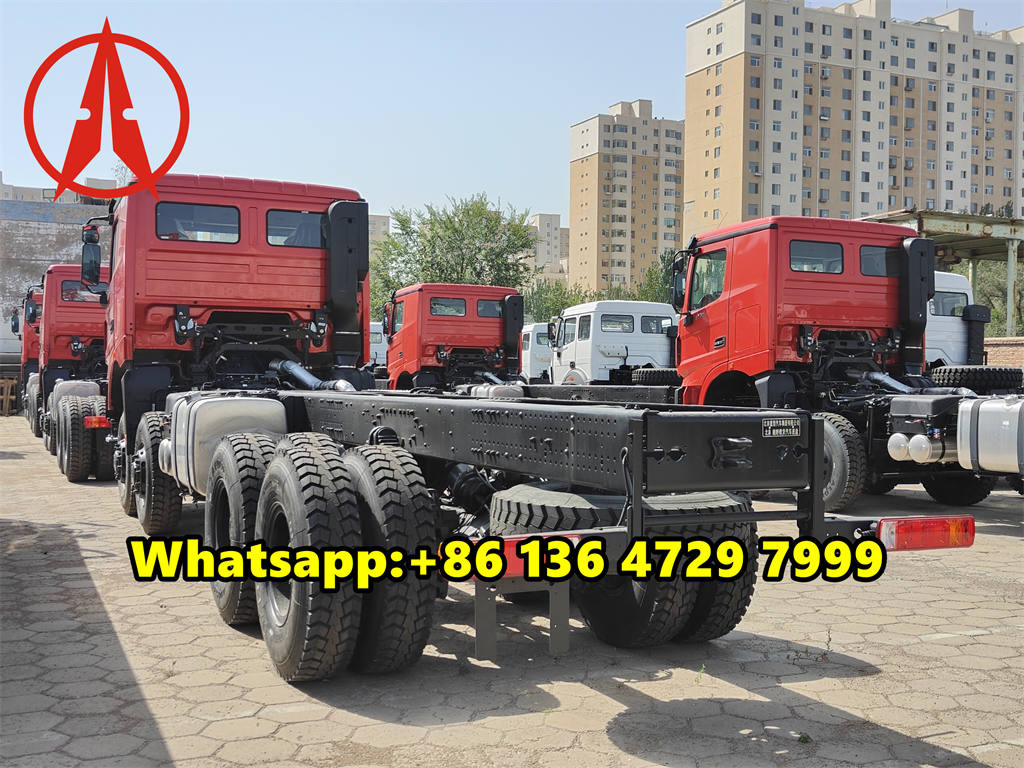

Beiben 8x8 V3 Truck Chassis is equipped with WEICHAI WP10H350 engine with 350 horsepower and 9.5 liter displacement. It adopts 12JS200T gearbox with 12 forward gears and 2 reverse gears. ZF8098 hydraulic power steering system improves handling. The front axle adopts Mercedes Benz technology and has a load capacity of 6.5 tons. The rear axle has a double reduction and a load capacity of 13 tons. The vehicle size is 9500×2500×3180 mm, the wheelbase is 1500+4150+1450 mm, the total mass is 31,000 kg, the maximum speed is 100 kilometers per hour, and the fuel tank capacity is 400 liters. It is suitable for a variety of heavy-duty transportation tasks.
Production time:
30 daysPayment terms:
TTWorking Capcity:
40 tonsEngine power:
350 HPDrive system:
8×8Product Description

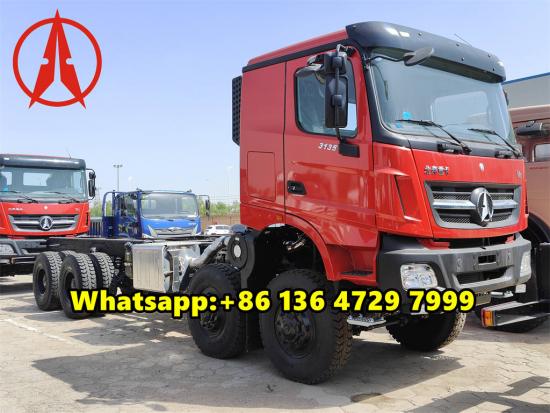

Beiben 8x8 V3 Truck Chassis, with its outstanding design and powerful performance, has become an ideal choice for many engineering and application fields. The model of this chassis is 3135, equipped with a WEICHAI WP10H350 engine, which provides up to 350 horsepower and a displacement of 9.5 liters, ensuring that the vehicle can perform well in various working conditions.
In terms of transmission system, Beiben 8x8 off-road chassis uses a 12JS200T gearbox with 12 forward gears and 2 reverse gears, providing drivers with flexible and changeable operating options, whether on urban roads or rugged terrain. The application of the ZF8098 hydraulic power steering system further improves the vehicle's handling and stability, making driving easier and more comfortable.

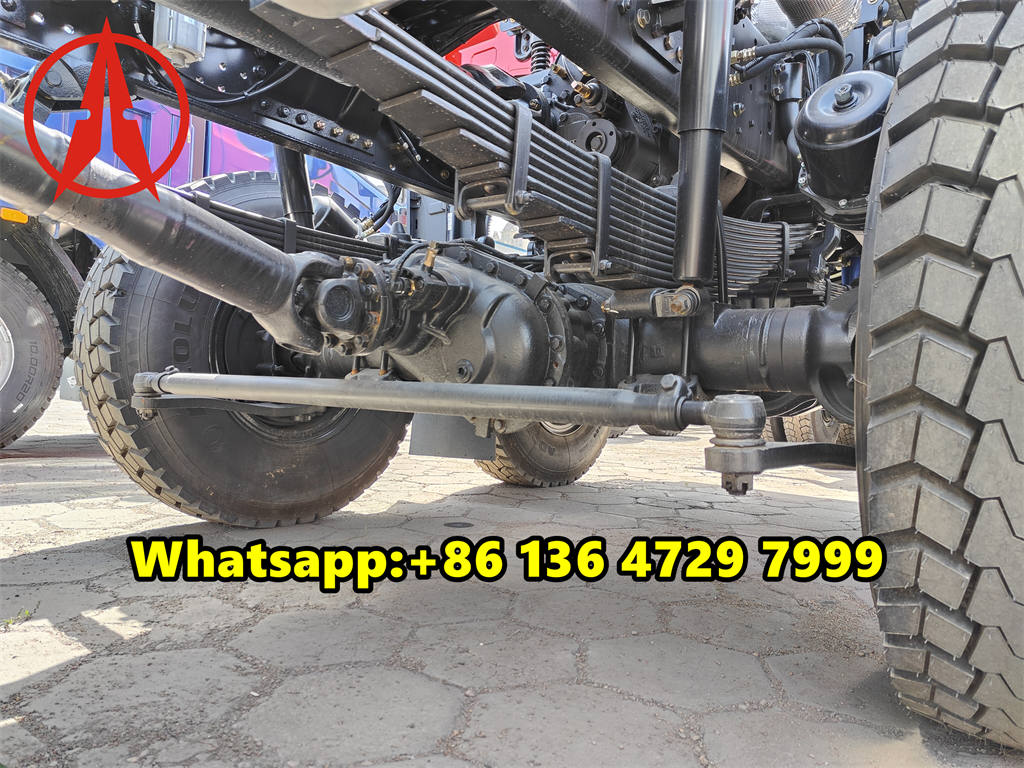

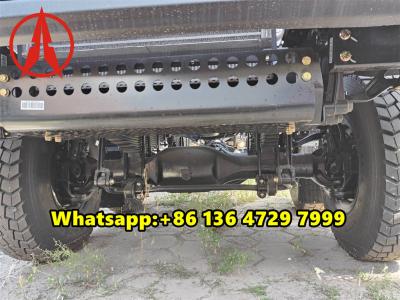

Beiben 8x8 truck also performs well in key components of the chassis. The front axle adopts Mercedes Benz technology, with a load capacity of 6.5 tons, while the rear axle is a 13-ton double-stage reduction drive axle, also based on Mercedes Benz technology, ensuring the stability and durability of the vehicle under heavy load.

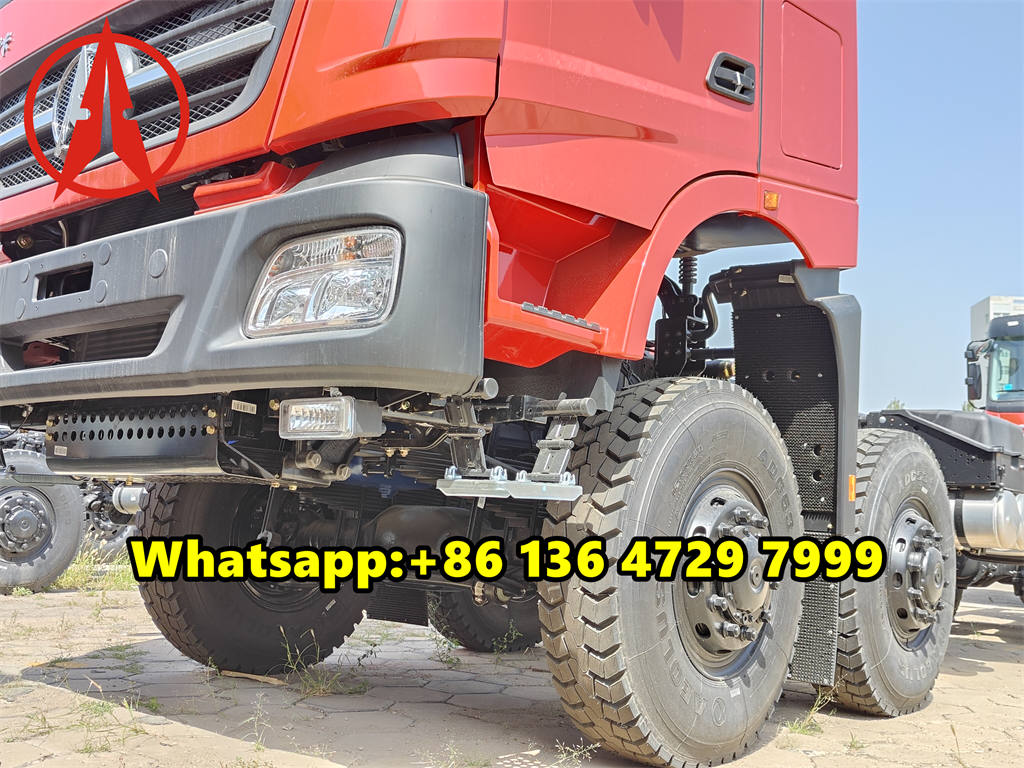

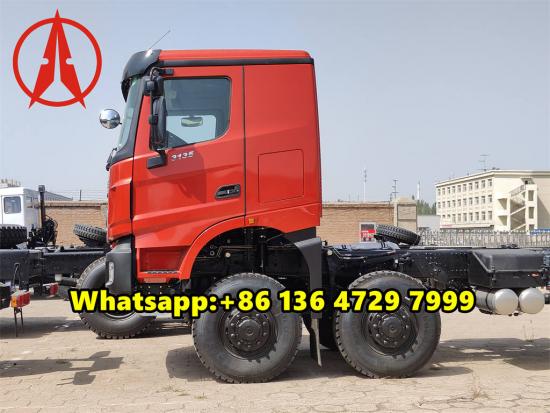

The Beiben 8x8 AWD truck chassis is equipped with Beiben V3 cab, which has a spacious and comfortable interior space, and is equipped with air conditioning and a sleeper, providing the driver with a good working environment and rest conditions. The 12.00R24 off-road tires (including a spare tire) ensure the vehicle's good grip and driving stability under various road conditions.
Product Specifications
|
Beiben 8x8 V3 Truck Chassis |
|
|
Model |
3135 |
|
Engine |

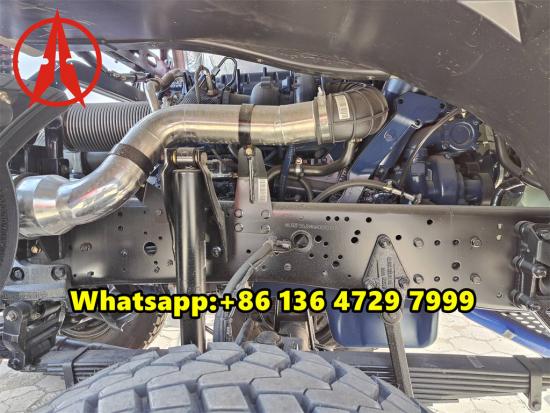

WEICHAI WP10H350, 350HP |
|
Displacement |
9.5L |
|
Transmission |
12JS200T gearbox, 12 forward, 2 reverse |
|
Steering |
ZF8098 Hydraulic Steering With Power Assistance |
|
Clutch |
GFX430, Single dry frictional disc, Hydraulic boosting |
|
Front axle (Mercedes Benz technology) |

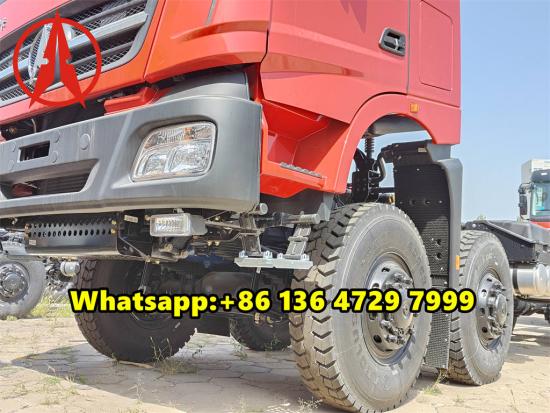

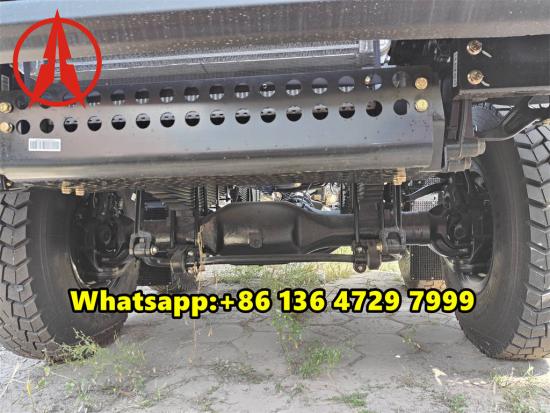

6.5T driving axle |
|
Rear axle (Mercedes Benz technology) |

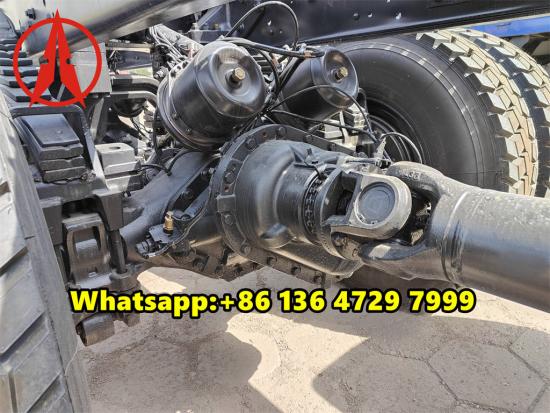

13T dual reduction driving axle |
|
Cab |

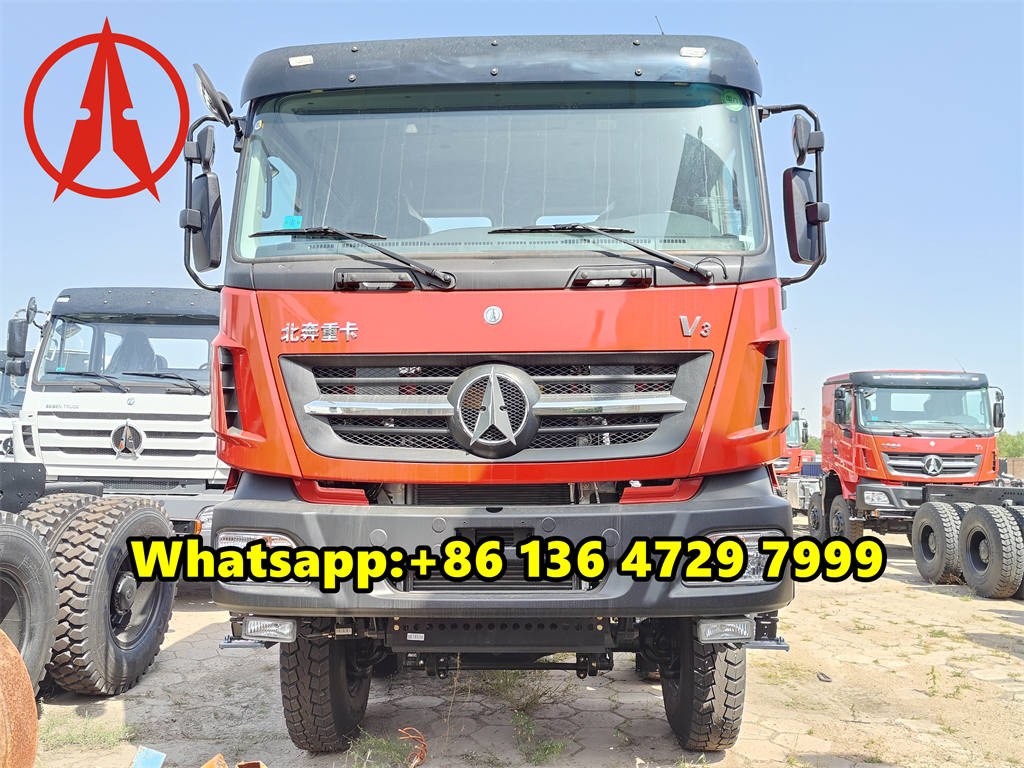

V3 Cab, inner A/C, one bed |
|
Rim/Tires |
12.00R24 (one spare tire) |
|
Overall Dimensions |
9500×2500×3180mm |
|
Gross Vehicle Weight |
31000kg |
|
Curb Weight |
13200kg |
|
Wheel base |
1500+4150+1450 mm |
|
Color |
white, orange, red |
|
Max. Speed |
100km/h |
|
Fuel Tank |
400L |
Product Applications
Beiben 8x8 V3 heavy truck chassis is mainly used in the following fields due to its strong carrying capacity and off-road performance:
1. Heavy-duty transportation: suitable for long-distance cargo transportation, especially for transportation tasks that require high carrying capacity and complex road conditions.
2. Engineering operations: In environments such as mines and construction sites that require heavy equipment transportation and operations, Beiben 8×8 off-road chassis can cope with harsh working conditions.
3. Emergency rescue: Beiben 8×8 trucks have strong carrying capacity and off-road performance, making them an ideal choice for emergency rescue vehicles, able to quickly arrive at the scene and carry out rescue work in an emergency.
4. Military use: The 8x8 drive form and multi-axis design make this chassis also widely used in the military field, such as military material transportation, field combat support, etc.
Product Details
north benz brand china beiben 8 wheel drive truck are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben truck is the Chinese best truck brands and best quality, technical performance properties index and conform to the state and military standard.
Beiben 8x8 all wheel driving cargo truck, the Beiben 4142 model truck equipped with NG80 classical cabin, mounted with 12.00R24 tires, which have a larger diameter and higher height, and the Beiben 8x8 chassis has a strong passing ability when facing uneven road surfaces with ditches, potholes and rocks. Super powerful WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, turbo charge and 6 cylinder. Stronger frame can be suitable to build all kinds of special purpose trucks.
The Beiben 8x8 offroad drive truck is a rugged and powerful off-road vehicle designed to tackle the toughest terrains with ease. Equipped with a set of 12.00R24 tyres, this truck offers superior traction and stability, allowing it to confidently navigate through mud, snow, rocks, and other challenging conditions. Brand new Beiben 3135 V3 cargo truck chassis equipped with newly designed V3 cabin with one sleeper, A/C system for convenient working, WEICHAI diesel engine with 350HP, emission can be 9.726cc, FAST brand 12JS200T model with 12 forward and 2 reverse, as for axle capacity for the China North Benz 8x8 military truck chassis, front can be 7500kg with double turning axles and rear can be 13000kg with double driving axles, diesel tanker capacity is 400L, optional aluminum alloy material or carbon steel material, ZF8098m left hand drive or right hand drive steering suitable for all Africa market, the V3 new cabin can have painting and logos 100% as customized.
