Beiben 8x8 all wheel drive NG80 cargo truck

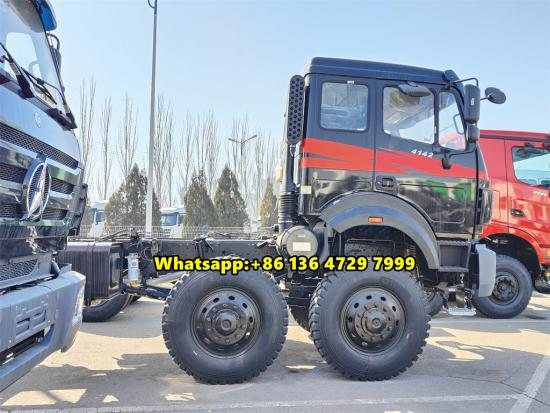

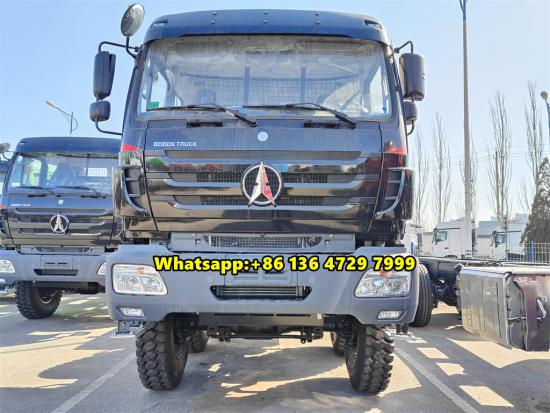

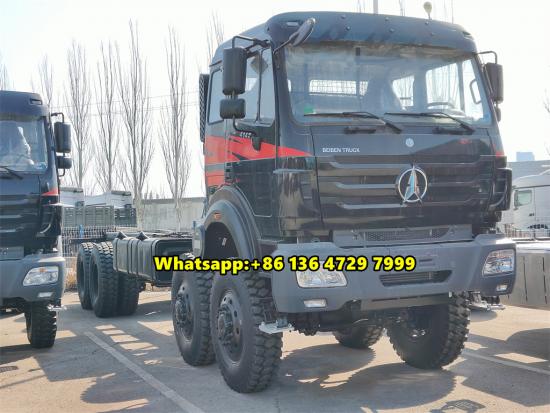

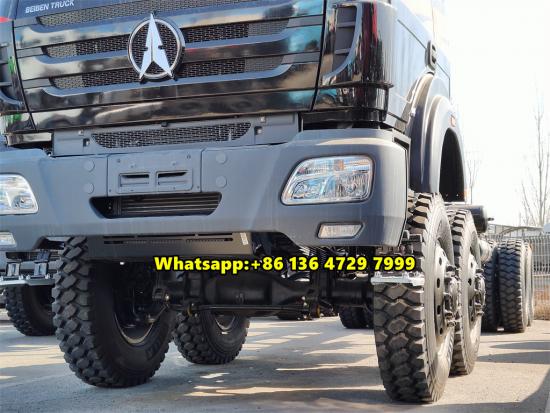

Beiben 8x8 offroad cargo truck 4142
Beiben 8x8 offroad cargo truck 4142
Beiben 8x8 offroad cargo truck 4142
Beiben 8x8 offroad cargo truck 4142
Beiben 8x8 offroad cargo truck 4142
Beiben 8x8 offroad cargo truck 4142
Beiben 8x8 offroad cargo truck 4142
Beiben 8x8 offroad cargo truck 4142
Beiben 8x8 offroad cargo truck 4142
Beiben 8x8 offroad cargo truck 4142

Beiben 8x8 all wheel drive NG80 cargo truck

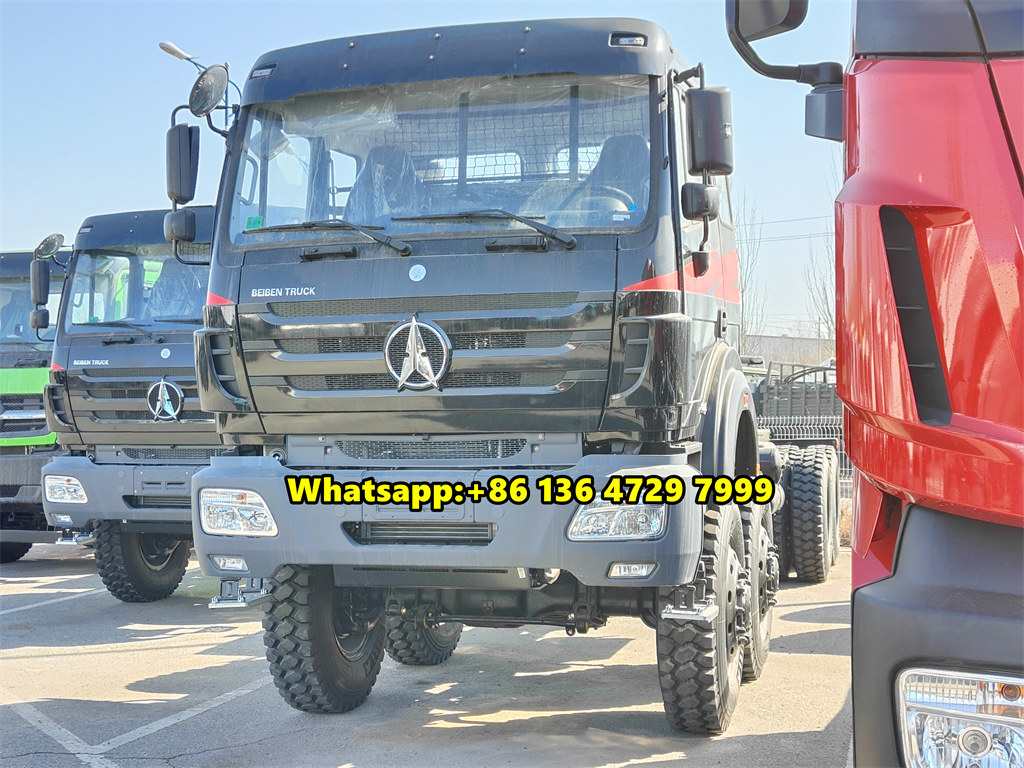

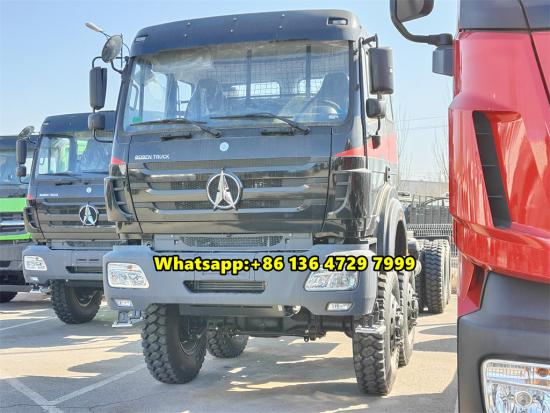

Beiben 8x8 all wheel driving cargo truck, the Beiben 4142 model truck equipped with NG80 classical cabin, mounted with 12.00R24 tires, which have a larger diameter and higher height, and the Beiben 8x8 chassis has a strong passing ability when facing uneven road surfaces with ditches, potholes and rocks. Super powerful WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, turbo charge and 6 cylinder. Stronger frame can be suitable to build all kinds of special purpose trucks.

  • Production time:

    25-30days
  • Payment terms:

    TT
  • Working Capcity:

    30-40 tons
  • Engine power:

    420HP
  • Drive system:

    8x8
New Products

Beiben 8x8 all wheel driving cargo truck also can be called Beiben 8x8 offroad cargo truck, Beiben 4142 AWD cargo truck, Beiben 8x8 military truck. The Beiben 8x8 all wheel drive NG80 cargo truck has strong off-road capability and high passability, and can adapt to complex and harsh road conditions, such as mountains, deserts, snow, etc. Beiben 8x8 drive form means that it has four axles and 12 wheels, single at front two axles and double at rear two axles, and each wheel has power output. This design enables it to maintain good traction and stability under extreme conditions. Beiben 8x8 all-wheel drive cargo truck in DRC Congo is mainly used in some fields and regions that require high off-road performance, including but not limited to military, rescue, exploration and other mining fields. In the military field, such vehicles are often used as transportation, reconnaissance or combat platforms, and their strong off-road capabilities enable them to be quickly deployed in various complex environments. In the field of rescue, Beiben 8x8 cargo trucks can quickly reach the disaster area for personnel evacuation and material transportation. In the field of exploration, it is the right-hand man of explorers, helping them conquer various rugged terrains.





Required Technical Specification

Basic parameter

Model

4142 / 8×8

Length×width×height(mm)

11800×2500×3385

Wheel-base(mm)

1850+4450+1450

Curb weight(kg)

14400

Engine parameter

Model (six cylinder in line)

WP12.420E32

Max. Power (HP/rpm)

420

Max. Torque(Nm/rpm)

1600/14001600

Displacement(lit)

11.596 L

Fuel tank capacity

400L Iron oil tanker

Transmission system

Clutch

430 Single disc, dry type, friction clutch

Gearbox

Mechanical, 12JS200A

Steering system

Steering gear

8098 Circulating ball steering gear, hydraulic booster

Brake system

Service brake

Double circulation air brake system equipped

Parking brake

Energy storage spring brake

Assisted brake

Engine exhaust brake

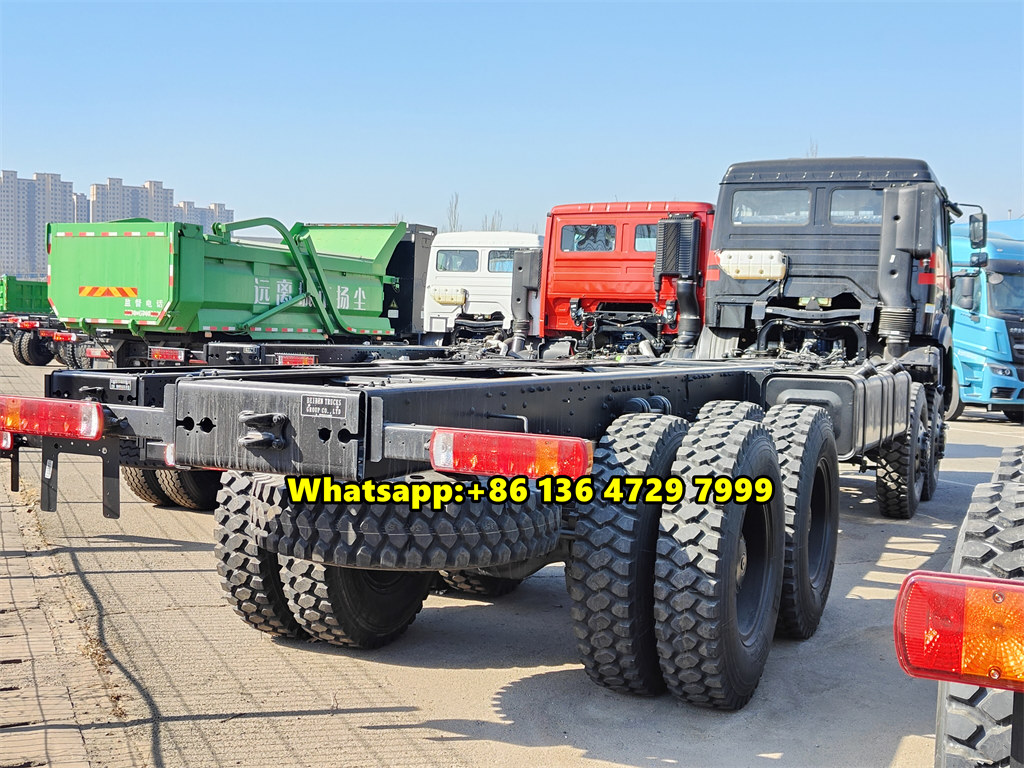

Chassis parameter

Frame

Variable width and section  317×70×8.5+7+8.5 mm

Front axle

7.5 T, no-driving steering axle, drum brake

Middle & Rear axle

13 T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263

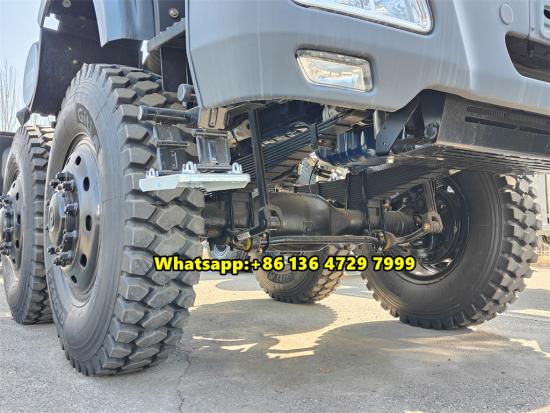

Front and rear suspension

Front/rear: Leaf spring, 13/13 pieces

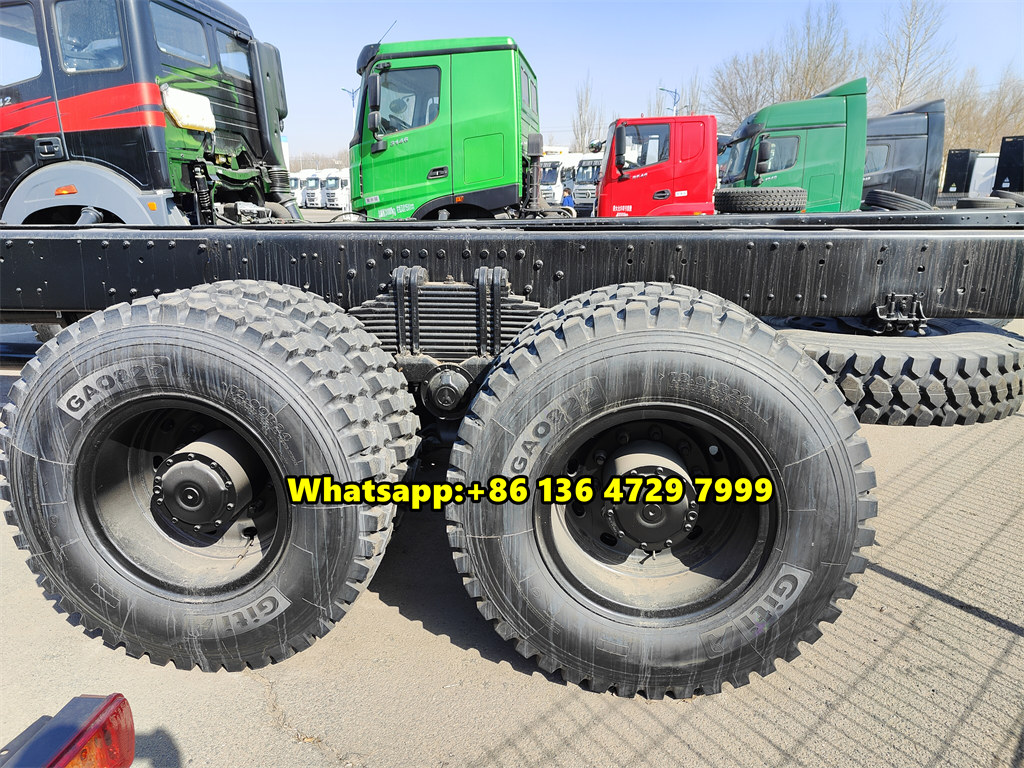

Tire

12.00R24

Cab

NG80B Long Cabin/ Flat roof/Left drive

Exterior trimming:

Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual).

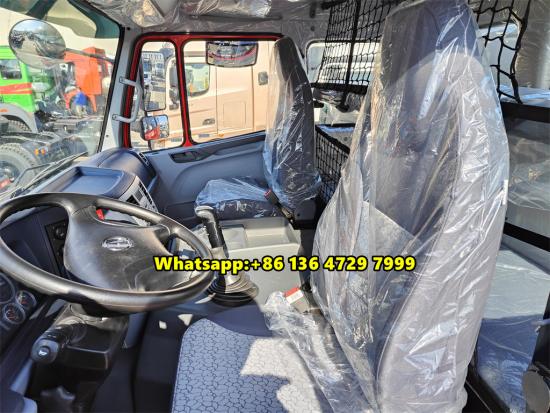

Interior trimming:

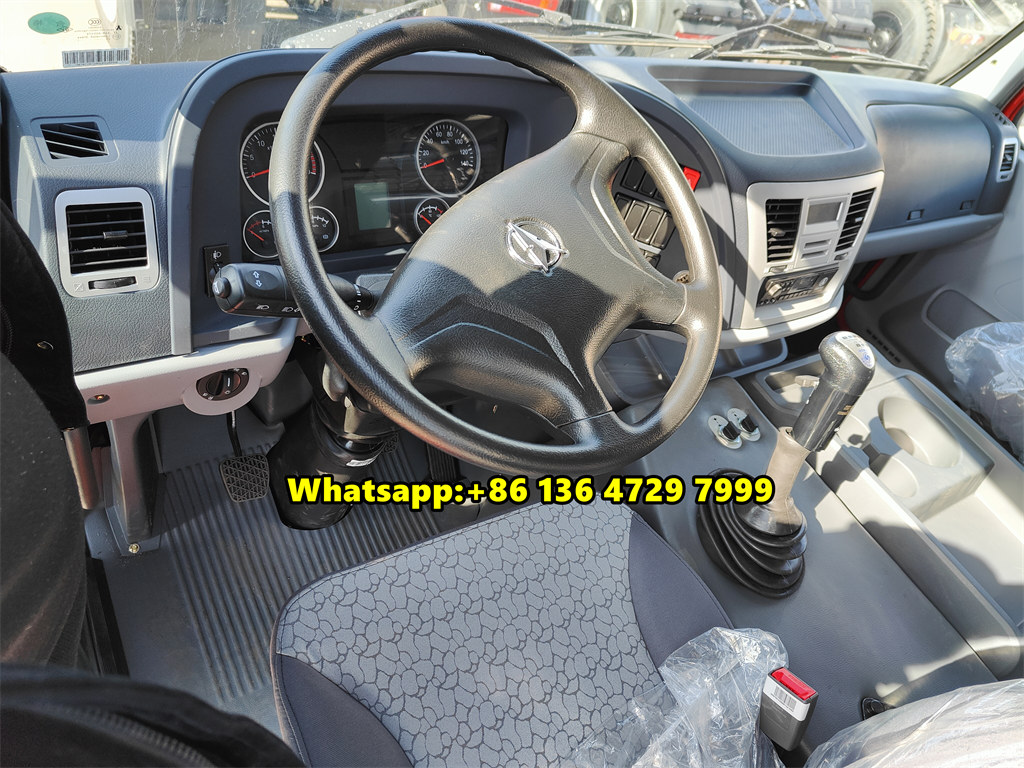

Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument

Robust 8x8 Drive Type: The BEIBEN 8x8 offroad cargo truck boasts an impressive 8x8 drive type, providing exceptional traction and stability across varied terrains. This feature ensures reliable performance even in challenging environments, making it suitable for diverse construction and industrial applications.

Powerful Engine: Equipped with the WP12.420 diesel engine model, delivering a formidable 420HP engine power, this Beiben 8x8 model truck combines high performance with efficiency. The potent engine ensures ample power for lifting operations while maintaining fuel efficiency, and optimizing productivity on the job site.

In addition to its remarkable working performance, the BEIBEN 8x8 offroad cargo truck chassis prioritizes operator comfort and safety. The cabin is ergonomically designed, providing a spacious and comfortable workspace for operators to work efficiently during long shifts. Advanced safety features and intuitive controls further enhance operational reliability, ensuring peace of mind for operators even in challenging working environments. The BEIBEN 8x8 all wheel driving truck chassis stands as a testament to innovation and excellence in the realm of heavy loading equipment. Combining robust construction, powerful performance, and advanced features, it sets a new standard for efficiency and productivity in industrial operations.
