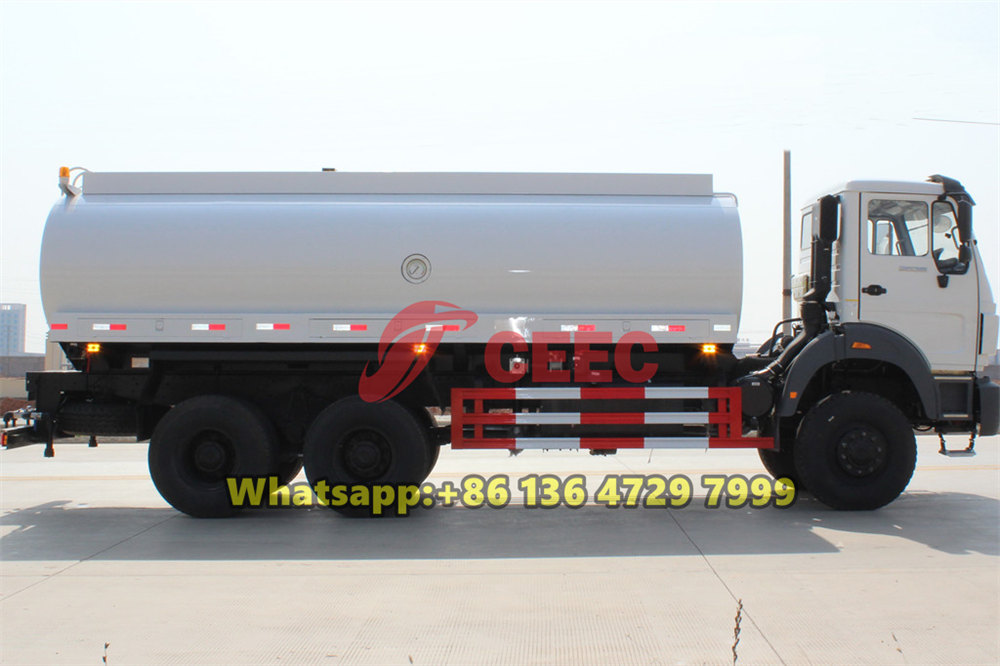

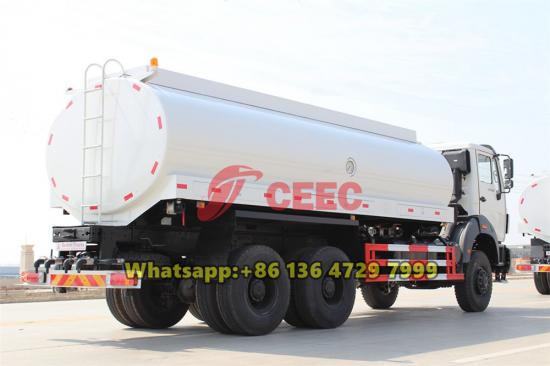

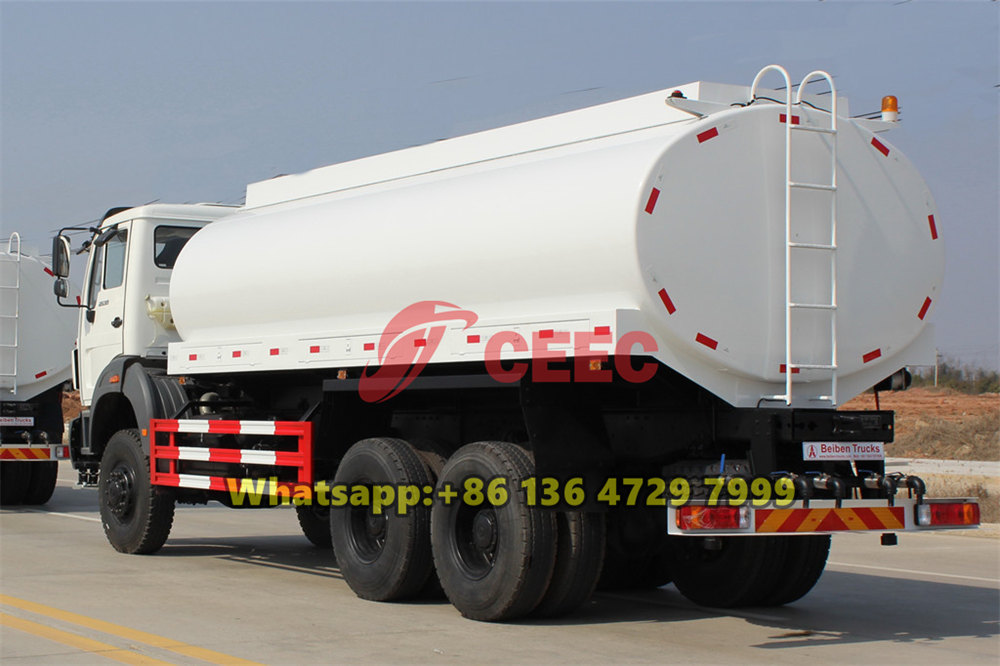

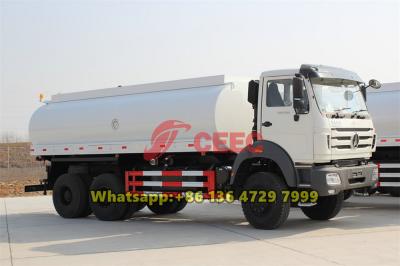

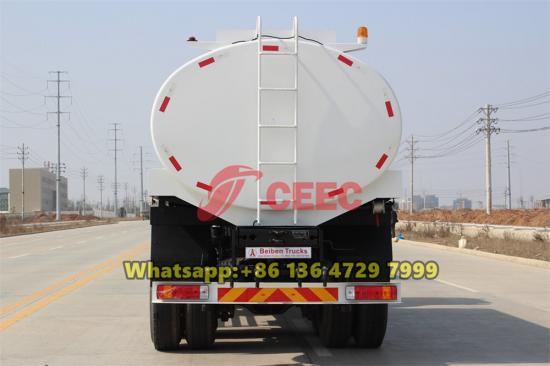

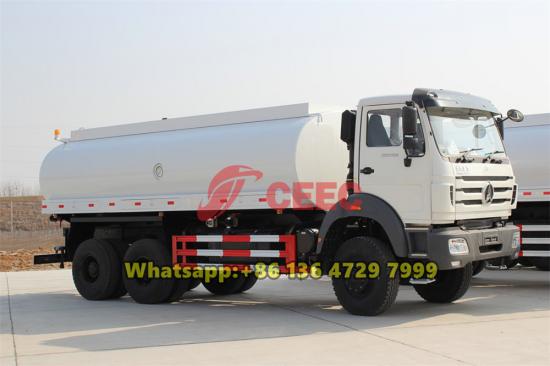

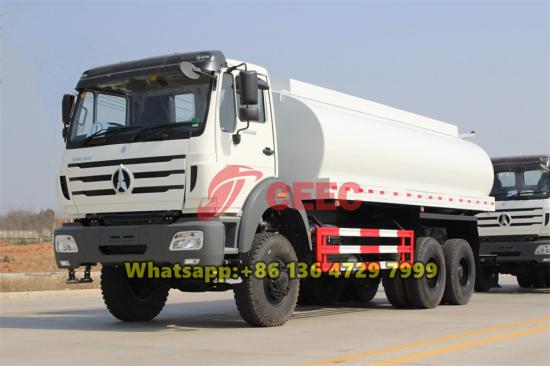

The Beiben 6×6 all-wheel drive water truck, with a gross vehicle weight of 25,000kg, is equipped with a Weichai 380HP engine, a 20,000-liter large-capacity water tank, and an efficient water pump. It features front, rear, side spraying capabilities, as well as a high-pressure water gun. Its sturdy design, powerful engine, efficient operational capabilities, and convenient operation make it an ideal choice for urban road cleaning, fire-fighting assistance, and green space irrigation.
Working capcity:
20000 litersCabin type:
Beiben NG80 flat roof cabinDimension ( mm ) :
10200×2500×3050Drive system:
6×6 all wheel driveWheelbase (mm):
3800+1450Engine power / Model:
380 HPGear Box:
12JS200TARemark:
Stainless steel water tank is optionalProduct Description
The Beiben 6×6 all-wheel drive water truck is a professional vehicle that combines efficient operation, powerful performance, and versatile applications, specifically designed to tackle complex terrains and diverse tasks. With a 6×6 drive configuration, it boasts excellent off-road capability and stability, effortlessly navigating rugged terrains and challenging road conditions. The gross vehicle weight (GVW) is 25,000kg, providing strong load-carrying capacity that fully meets the demands of large-scale water transportation. With a wheelbase of 3,800+1,450mm and dimensions of 10,200×2,500×3,050mm, it ensures vehicle flexibility while offering ample loading space. The front axle has a load-carrying capacity of 7.5 tons, and the rear axle 13 tons, coupled with 12.00R20 standard tires (10 tires + 1 spare tire), ensuring stability and safety under full load conditions.
One of the core advantages of the Beiben 6×6 AWD water tanker truck is its 20,000-liter large-capacity water tank. Made of high-quality carbon steel (Q235) with internal corrosion protection, it possesses high strength and corrosion resistance, ensuring long-term and stable operation. The vehicle is equipped with an 80QZF-60/90N water pump, with a flow rate of 60 cubic meters per hour, a lift of 90 meters, and a self-priming function that takes only 1.5 minutes at a height of 4 meters, boasting an efficiency of up to 95%. The pump's matched power is 22kW, enabling it to complete large-scale water spraying tasks in a short period.

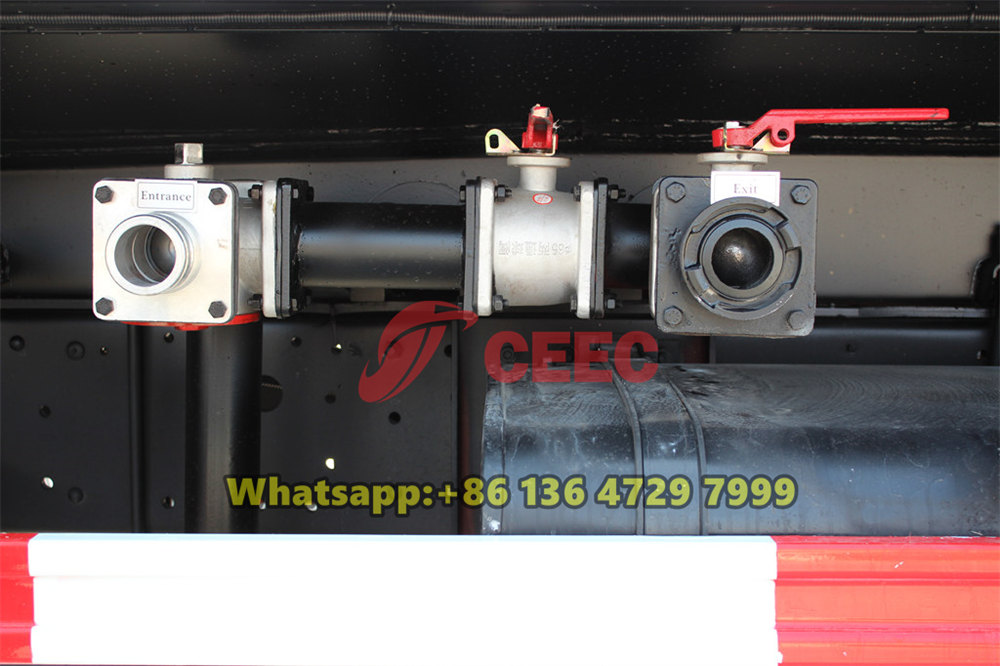

The Beiben 6×6 off-road water bowser is equipped with multiple spraying functions to meet the operational needs of different scenarios. It features front, rear, and side spraying capabilities, enabling comprehensive road cleaning and dust suppression operations. The rear working platform is also equipped with a high-pressure water gun, suitable for fire-fighting assistance and localized cleaning tasks. Additionally, the vehicle has gravity flow and self-priming functions, allowing for rapid water extraction and discharge. These versatile designs make this water truck not only suitable for urban road cleaning but also play a significant role in fire fighting, green space irrigation, and other fields.
Product Specifications
|
Main Specification |
|
|
Product Name |
Beiben water truck 20000 liters |
|
Driving Type |
6x6, left hand drive |
|
Weights |
|
|
GVW (kg) |
25000 |
|
Curb weight(kg) |
11545 |
|
Dimensions |
|
|
Wheelbase(mm) |
3800+1450 |
|
Overall Dimension(mm) |
10200×2500×3050 |
|
Tank |
20000liters |
|
Engine |
|
|
Engine model |
WP10.380E32 |
|
Engine type |
4 stroke water-cooled, Inter-cooling, turbocharged |
|
No. of cylinders |
straight-6 cylinders |
|
Displacement(L) |
9.726L |
|
Rated power (Kw/rpm) |
280kw/2200rpm |
|
Hose power |
380HP |
|
Max Torque (N*m)/Rev(rpm) |
1600N.m/1500~1800rpm |
|
Drive Line |
|
|
Transmission |
9JS150,9 forwards,1 reverse gear, manual operation |
|
Steering |
With power steering |
|
Brake system |
Air brake |
|
Cab |
|
|
Cab |
NG80B short cabin |
|
Standard configuration |
A/C |
|

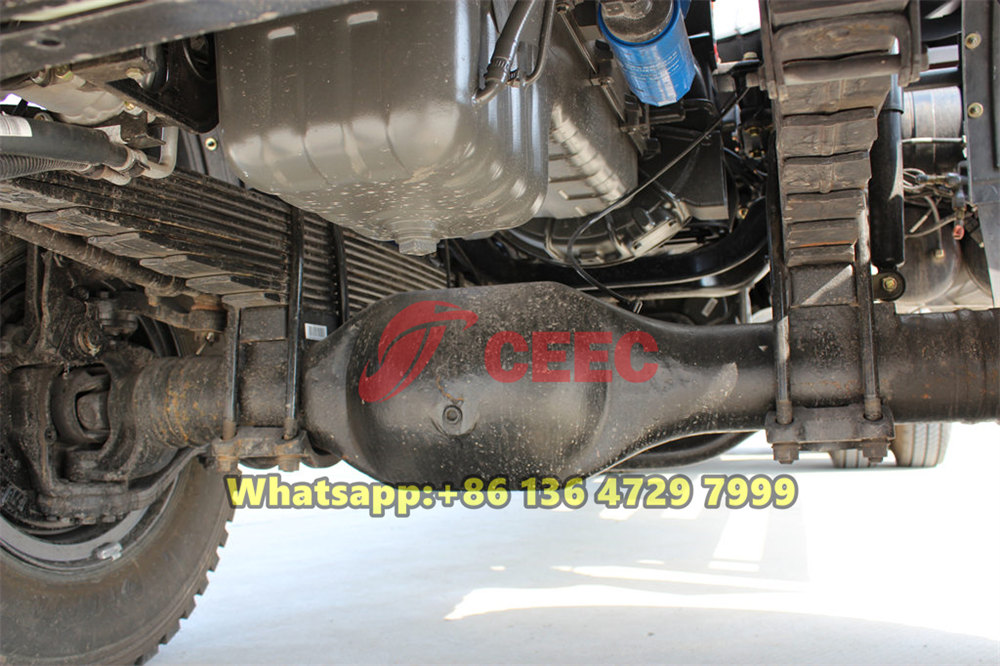

Axle |
|
|
Front axle |
7.5 tons |
|
Rear axle |
13 tons |
|
Tire specification |
|
|
Tire specification |
12.00R20 standard tire,10 tires+1 spare tire |
|
Specification of water truck |
|
|
Water tank |
20000liters |
|
Water tanker material |
High quality carbon steel (Q235) |
|
Standard equipment |
with water pump |
|

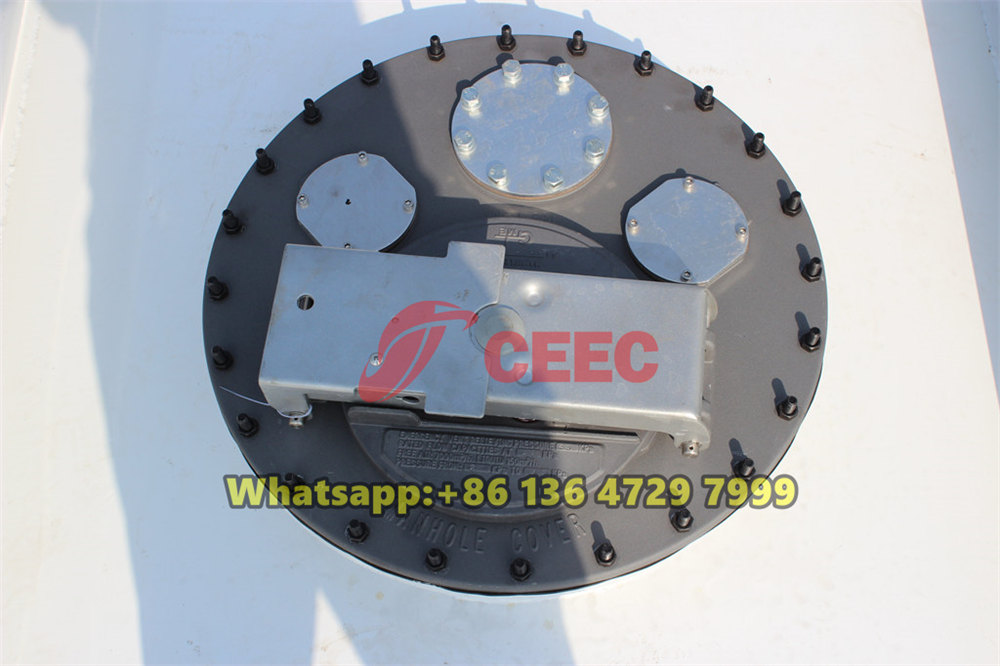

Manhole |
1 units DN500mm manhole |
|
Horse reels |
2 pcs hose reels at each side of the truck |
|
Water pump |
Water pump model: 80QZF-60/90N |
|
Water tank |
20000liters |
