beiben 2638 water truck

Home Beiben Water Truck beiben 2638 water truck

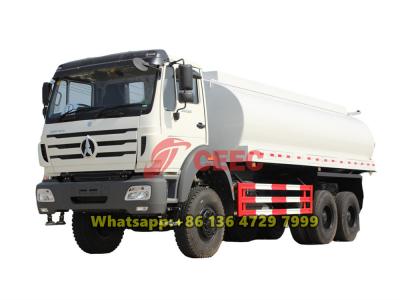

Beiben 2638 mobile water tanker truck

Beiben 2638 mobile water bowser
Beiben 2638 mobile water bowser
Beiben 2638 mobile water bowser
Beiben 2638 mobile water bowser
Beiben 2638 mobile water bowser
Beiben 2638 mobile water bowser
Beiben 2638 mobile water bowser
Beiben 2638 mobile water bowser
Beiben 2638 mobile water bowser
Beiben 2638 mobile water bowser
Beiben 2638 mobile water bowser
Beiben 2638 mobile water bowser
Beiben 2638 mobile water bowser
Beiben 2638 mobile water bowser
Beiben 2638 mobile water bowser

Beiben 2638 mobile water tanker truck

The Beiben 6×6 all-wheel drive water truck, with a gross vehicle weight of 25,000kg, is equipped with a Weichai 380HP engine, a 20,000-liter large-capacity water tank, and an efficient water pump. It features front, rear, side spraying capabilities, as well as a high-pressure water gun. Its sturdy design, powerful engine, efficient operational capabilities, and convenient operation make it an ideal choice for urban road cleaning, fire-fighting assistance, and green space irrigation.

  • Working capcity:

    20000 liters
  • Cabin type:

    Beiben NG80 flat roof cabin
  • Dimension ( mm ) :

    10200×2500×3050
  • Drive system:

    6×4
  • Wheelbase (mm):

    4450+1450
  • Engine power / Model:

    380 HP
  • Gear Box:

    12JS200TA
  • Remark:

    6X6 drive, RHD drive optional
New Products

Beiben 2638 mobile water tanker truck is a robust, multi-functional vehicle engineered for efficient water transportation across diverse operational environments. Built on a reinforced chassis with a 6x4 drivetrain, beiben 2638 water tanker truck combines , supporting a water tank volume of 10,000-15,000 liters. The beiben 2638 water bowser tank body is constructed from corrosion-resistant stainless steel, ensuring durability and compliance with potable water standards.

Operational features include a dual-purpose pumping system with a 2,000 L/min intake/outflow rate, adaptable for firefighting, agricultural irrigation, or emergency water supply. The beiben 2638 water sprinkler truck integrates an automated control panel for precise flow management, equipped with real-time monitoring of liquid levels, pressure, and temperature.



beiben 2638 water tanker truck

Beiben 2638 mobile water tanker truck is a robust and versatile heavy-duty vehicle designed for efficient large-scale water transportation. Below is a structured overview of its key specifications:

1. Powertrain Configuration

  • Engine: Equipped with a WP10.380E32 diesel engine, delivering 380 horsepower. This 9.7-liter inline-six-cylinder engine complies with Euro III emission standards, ensuring optimal fuel efficiency and reliability in demanding operations.
  • Transmission: Integrated with a FAST 9JS150T manual transmission system, featuring 9 forward gears and 1 reverse gear. Its reinforced design supports high torque output (1,500 Nm maximum input torque), enabling smooth operation under heavy loads.

2. Chassis and Cabin

  • Sleeper Cabin: The NG80B sleeper cabin provides enhanced driver comfort with ergonomic seating, climate control, and a foldable bunk bed. Its reinforced steel structure and shock-absorbent design prioritize safety during long-haul missions.
  • Chassis: Built on a heavy-duty ladder frame, the chassis ensures stability and durability, with a GVWR (Gross Vehicle Weight Rating) exceeding 30,000 kg.

3. Water Tanker Body

  • Capacity: Features a 20,000-liter steel water tanker body, constructed from corrosion-resistant 304-grade stainless steel.
  • Design: The cylindrical tank incorporates internal anti-surge baffles to minimize water sloshing during transit. A rear-mounted drainage system with a 100 mm ball valve ensures rapid water discharge.
  • Safety: Includes overflow prevention mechanisms, pressure relief valves, and reflective markings for visibility.

4. Applications
Ideal for firefighting, agricultural irrigation, and municipal water supply in remote areas. Its off-road capability and high payload capacity make it suitable for rugged terrains.





beiben 2638 water tanker truck

Spray system for beiben 2638 water sprinkler truck

Product Specifications



Main Specification

Product Name

Beiben water truck 20000 liters

Driving Type

6x4, left hand drive

Weights

GVW (kg)

25000

Curb weight(kg)

11545

Dimensions

Wheelbase(mm)

4450+1450

Overall Dimension(mm)

10200×2500×3050

Tank

20000liters

Engine

Engine model

WP10.380E32

Engine type

4 stroke water-cooled, Inter-cooling, turbocharged

No. of cylinders

straight-6 cylinders

Displacement(L)

9.726L

Rated power (Kw/rpm)

280kw/2200rpm

Hose power

380HP

Max Torque (N*m)/Rev(rpm)

1600N.m/1500~1800rpm

 Drive Line

Transmission

9JS150,9 forwards,1 reverse gear, manual operation

Steering

With power steering

Brake system

Air brake

Cab

Cab

NG80B short cabin

Standard configuration

A/C

Axle

Front axle

7.5 tons

Rear axle

13 tons

Tire specification

Tire specification

12.00R20 standard tire,10 tires+1 spare tire

Specification of water truck

Water tank

20000liters

Water tanker material

High quality carbon steel (Q235)

Standard equipment

with water pump
with fire coupling, self-flow and self- priming function.
with front spray, back spray and side spray function,
with high-pressure water spray gun on the working platform at the back of truck.

Manhole

1 units DN500mm manhole

Horse reels

2 pcs hose reels at each side of the truck

Water pump

Water pump model: 80QZF-60/90N
Water pump flow rate(L/m): 60m3/h
Head of delivery(m): 90m
Self-priming function(min/4m):1.5
Efficiency(%):95%
Related rotate speed(r/min)1180
matched power(kw):22

Water tank

20000liters



beiben 2638 water tanker truck

beiben 2638 water pump truck

beiben 2638 water delivery truck for exporting

beiben 2638 water pump truck

Beiben 20,000 liters water tanker truck in our factory

beiben 2638 water tanker truck

Beiben 6x4 drive water sprinkler truck

beiben 2638 water tanker truck

Steel tanker body for beiben 2638 water bowser truck

beiben 2638 water tanker truck

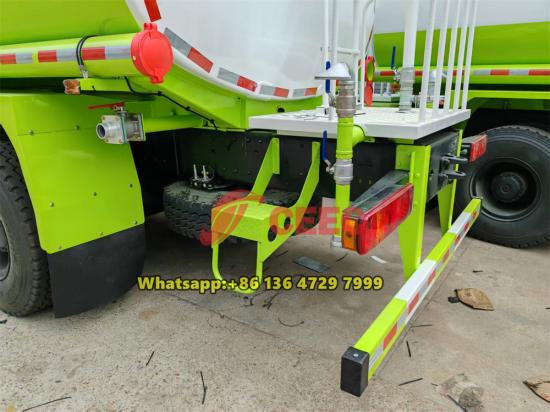

Rear spray system for beiben 2638 water tanker truckbeiben 2638 water tanker truck
