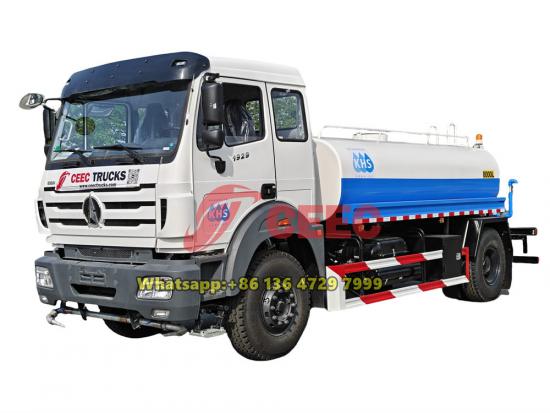

The Beiben 8000L Water Truck is a versatile sanitation vehicle designed for multiple functions. It features an NG80 short cab, powered by a 290-horsepower Weichai WP10.290 engine paired with a 9-speed transmission. With dimensions of 8200×2550×3100 mm, it is equipped with an 8000L carbon steel water tank and a Weilong 65QZF-40/45 water pump. The truck boasts a comprehensive spraying system (front/rear/side), a maximum speed of 110 km/h, and is suitable for road cleaning, green space irrigation, dust suppression, and cooling operations. Its 12.00R20 tires ensure excellent load-bearing capacity, while hydraulic power steering enhances maneuverability, making it an ideal choice for urban sanitation work.
Working capcity:
8000 litersCabin type:
Beiben NG80 short cabinDimension ( mm ) :
8200×2550×3100Drive system:
4×2, left hand driveWheelbase (mm):
4800 mmEngine power / Model:
290 HP/WP10.290E32Gear Box:
9JS150ARemark:
4×4, RHD is optionalThe Beiben Water Tank Lorry is a professional sanitation vehicle integrating multiple functions such as road cleaning, green space irrigation, and auxiliary firefighting. Built on the Beiben NG80 short cab, its dimensions of 8200×2550×3100 mm and a wheelbase of 4800 mm ensure both an 8-ton water capacity and excellent maneuverability in urban streets. beiben 8000 liter water truck is powered by a Weichai WP10.290E32 diesel engine, delivering 290 horsepower and paired with a 9-speed transmission, enabling a top speed of 110 km/h for efficient task completion. With a 7.5-ton front axle and an 11.5-ton rear axle, along with 12.00R20 large tires, the vehicle offers outstanding load-bearing capacity and road adaptability.
The water tank and pump are the core components of the Beiben water transport truck, directly impacting its performance. The 8000L water tank is constructed from carbon steel Q235, known for its strength and corrosion resistance, ensuring long-term durability and leak-free water storage. The tank is equipped with specialized features such as front/rear/side nozzles, a water cannon, water valves, a manhole cover, and a ladder. These components enhance operational flexibility—adjustable nozzles allow precise watering for roads and green areas, while the water cannon provides extended reach and strong pressure for distant or heavily soiled areas.
Beiben water bowser truck is fitted with a Weilong 65QZF-40/45 water pump, delivering a flow rate of 40 m³/h, a head of 45 m, and a self-priming height of 6.5 m. This ensures rapid water delivery to target areas, meeting diverse height and distance requirements. During operation, the pump maintains stable performance, ensuring consistent and efficient water distribution.

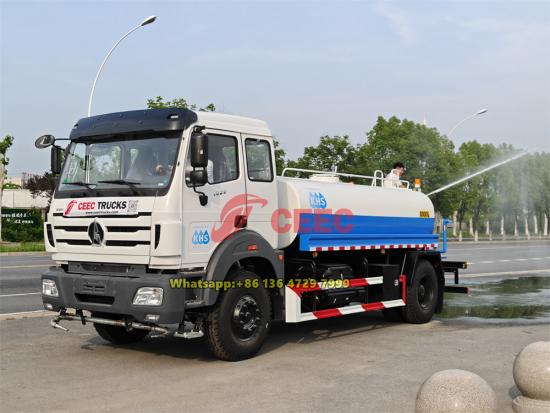

Beiben 8000L Water Sprinkler Truck supports multiple spraying functions for various scenarios. Beyond standard road cleaning, it can irrigate trees, green belts, and lawns. Its front-flushing and rear-spraying design broadens coverage, while side nozzles allow targeted watering. The rear work platform features a rotatable green spray cannon, adjustable to modes like direct jet, heavy rain, light rain, or drizzle. The direct jet is ideal for cleaning dirty surfaces, heavy rain for large-scale irrigation, and light rain/drizzle for delicate plants. This versatility makes the Beiben Water Tank Truck invaluable for urban greening, road maintenance, and more.
Product Specifications
|
Cabin |

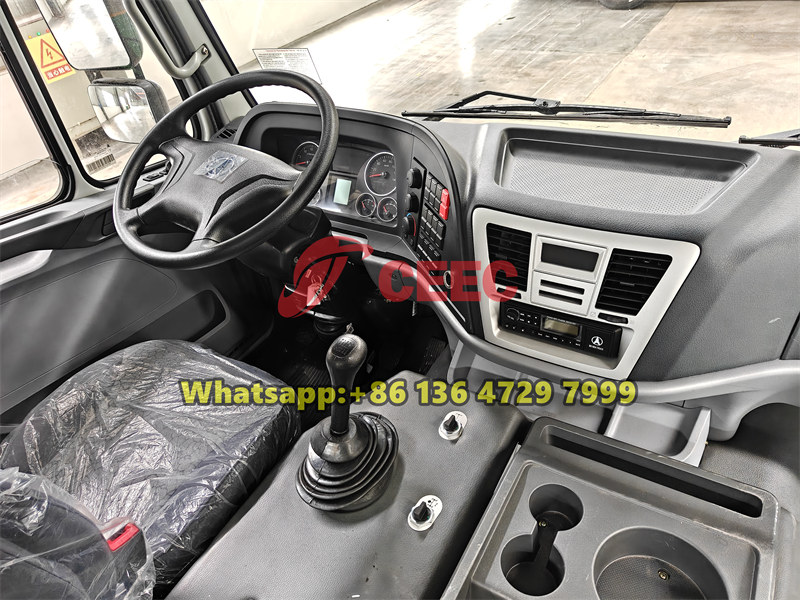

NG80 short cab, A/C |
|
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm |
8200×2550×3100 |
|
Wheelbase (mm) |
4800 |
|
|
Wheel track (front/rear) (mm) |
2045/1855 |
|
|
Weight in KGS |
Gross Vehicle Weight |
19000 |
|
Curb Weight |
8860 |
|
|
Front axle loading capacity |
7500 |
|
|
Rear axle loading capacity |
11500 |
|
|
Max. driving speed(km/h) |
110 |
|
|
Engine |
Brand |
Weichai Engine |
|
Model |
WP10.290E32 |
|
|
Max.torque/speed(N.m/rpm) |
1160N.m/1200-1600rpm |
|
|
Type |
4-stroke direct injection, 6 cylinders in-line, water cooling, turbo-charging and inter-cooling, diesel engine |
|
|
Displacement(L) |
9.726 |
|
|
Horse Power(HP) |
290HP (213kW) |
|
|
Rated speed (rpm) |
2200 |
|
|
Emission standard |
Euro 3 |
|
|
Gearbox |
Manual operation, FAST brand 9JS150A, 9 speed forward and 1 reverse gear |
|
|
Steering |
Hydraulic steering with power assistance. LHD |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Tire |
12.00R20 tyre, total 10 tyres and 1 spare tyre |
|
|
Wter Tank specification |
Capacity |
8000 liters |
|
Material |
Carbon steel Q235 |
|
|
Special equipment |
Equipped with front (rear, side) nozzles |
|
|
Water pump |
Brand |
WEILONG |
|
Model |
65QZF-40/45 |
|
|
Flow (m3/h) |
40 |
|
|
Lifting (m) |
45 |
|
|
Sulf-suction height (m) |
6.5 |
|

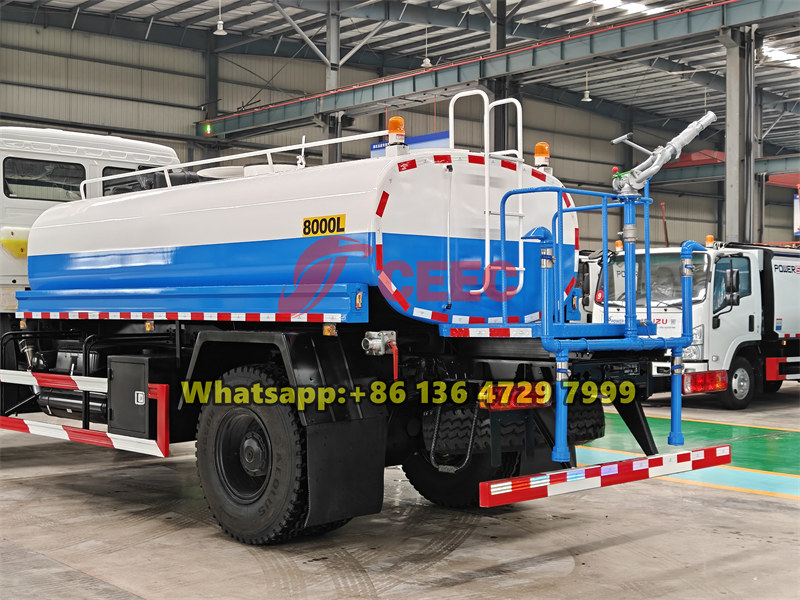

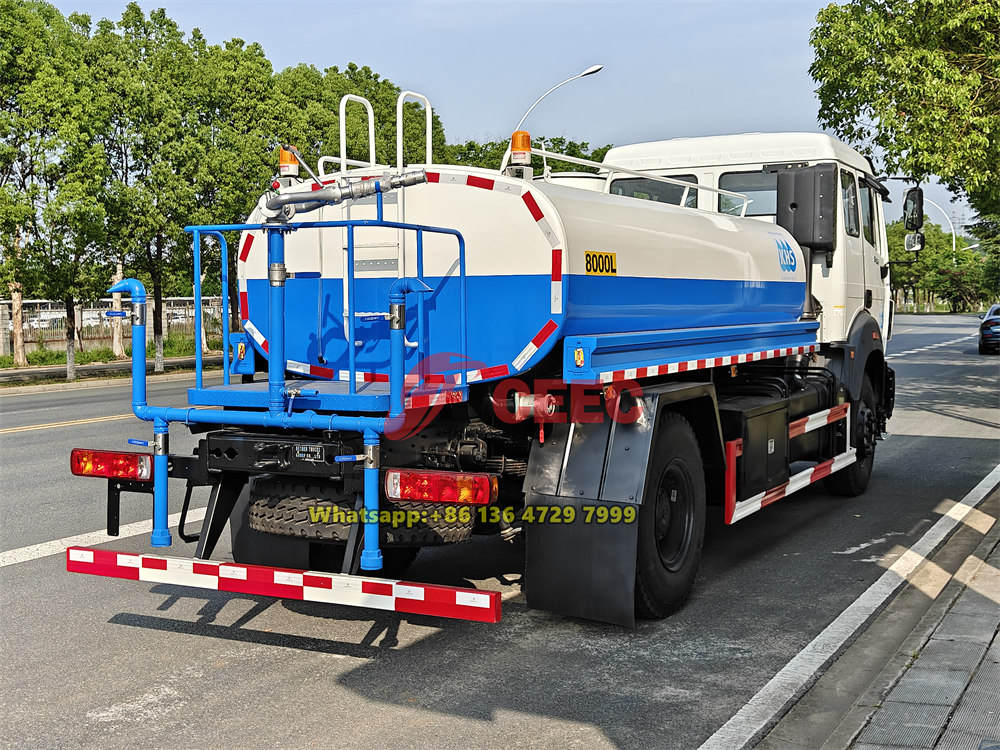

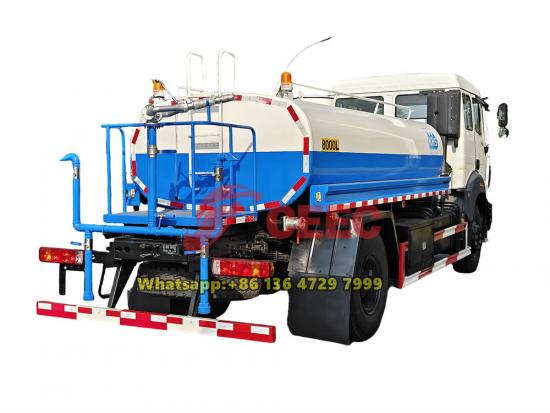

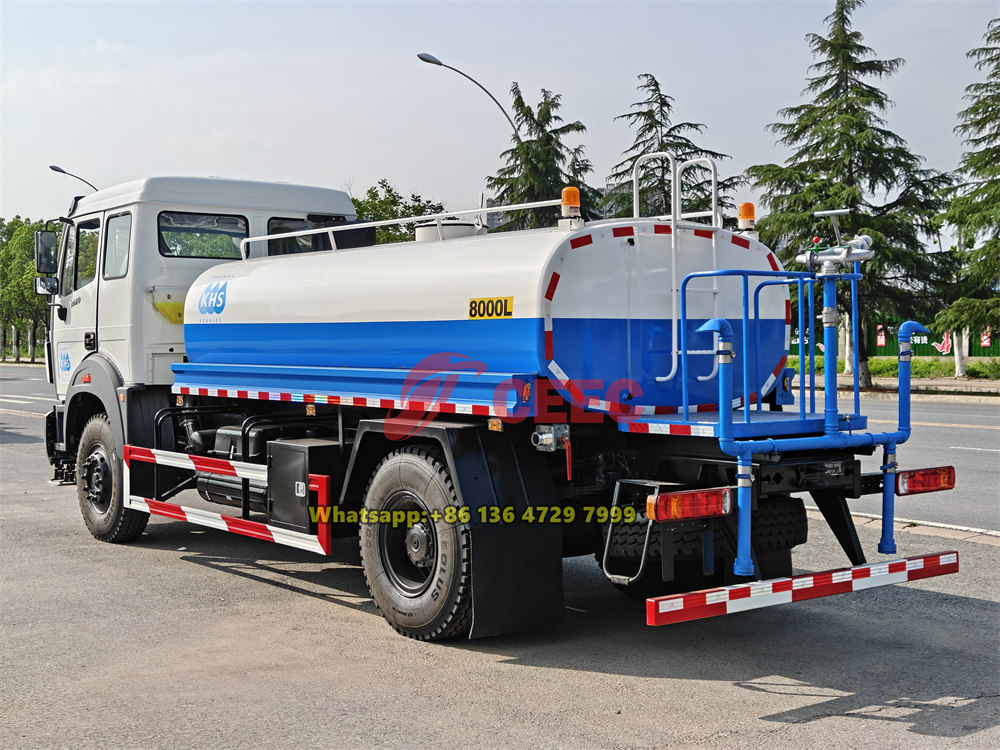

beiben 8000 liter water tanker truck with rear work platform

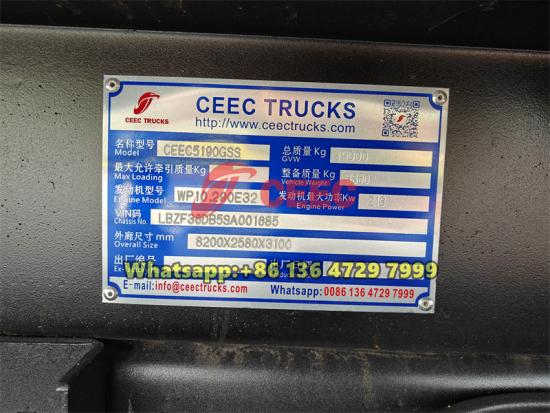

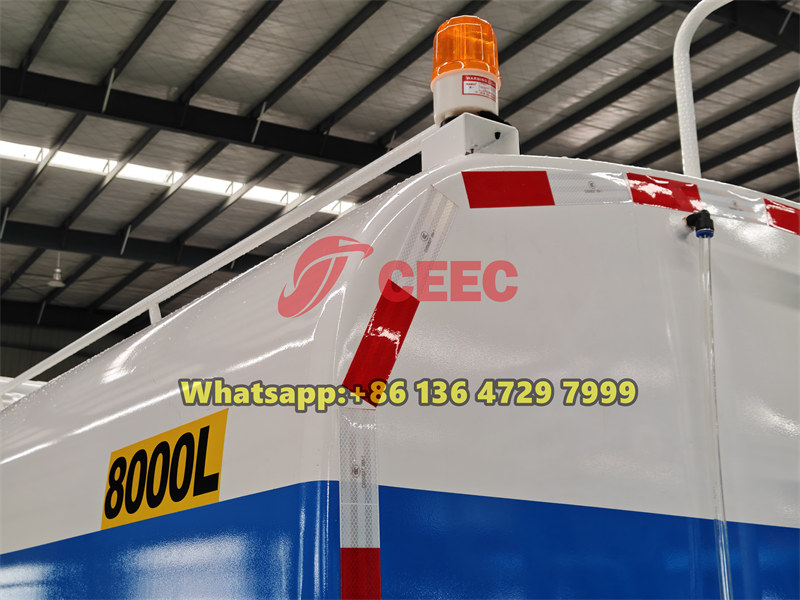

beiben 8000 liters water tanker inspection

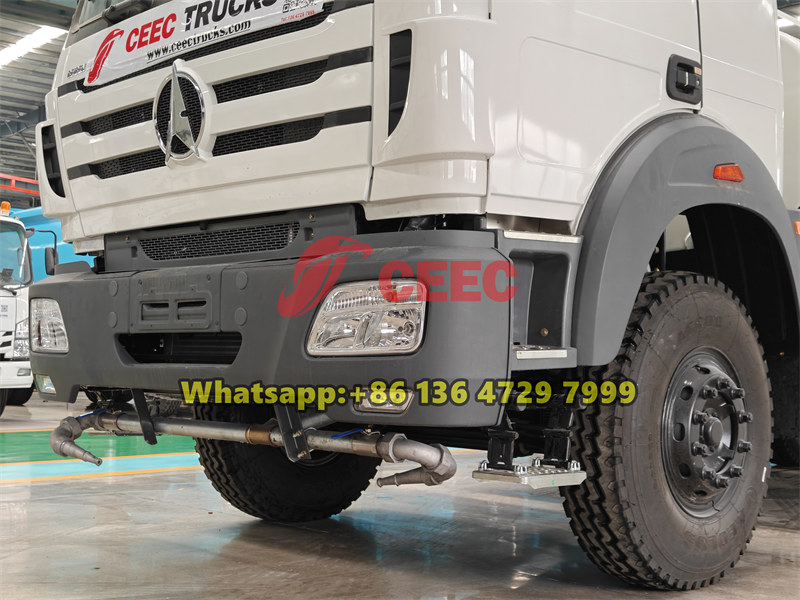

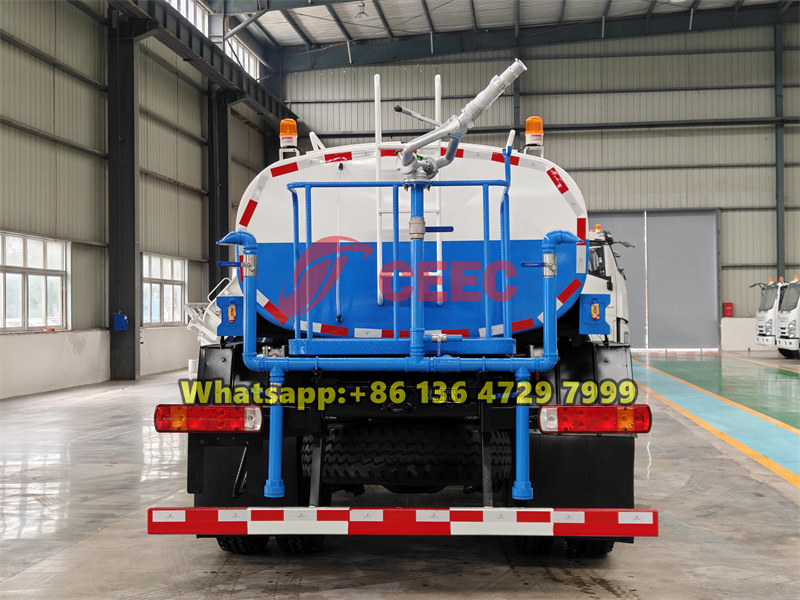

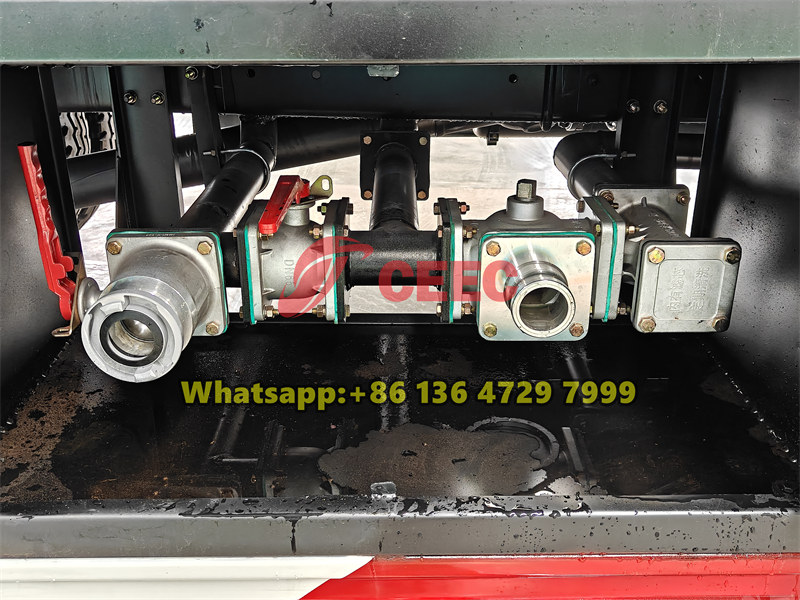

rear spray system for beiben 8000 liters water tanker truck

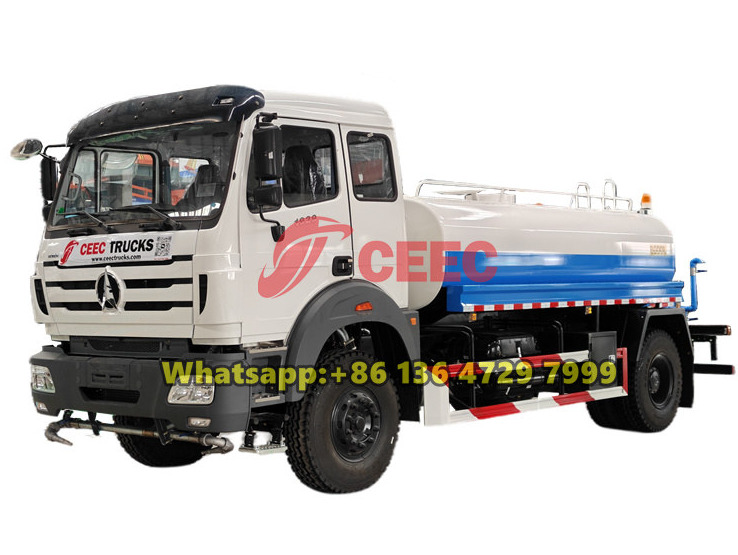

beiben 8000 liters water pump tanker truck

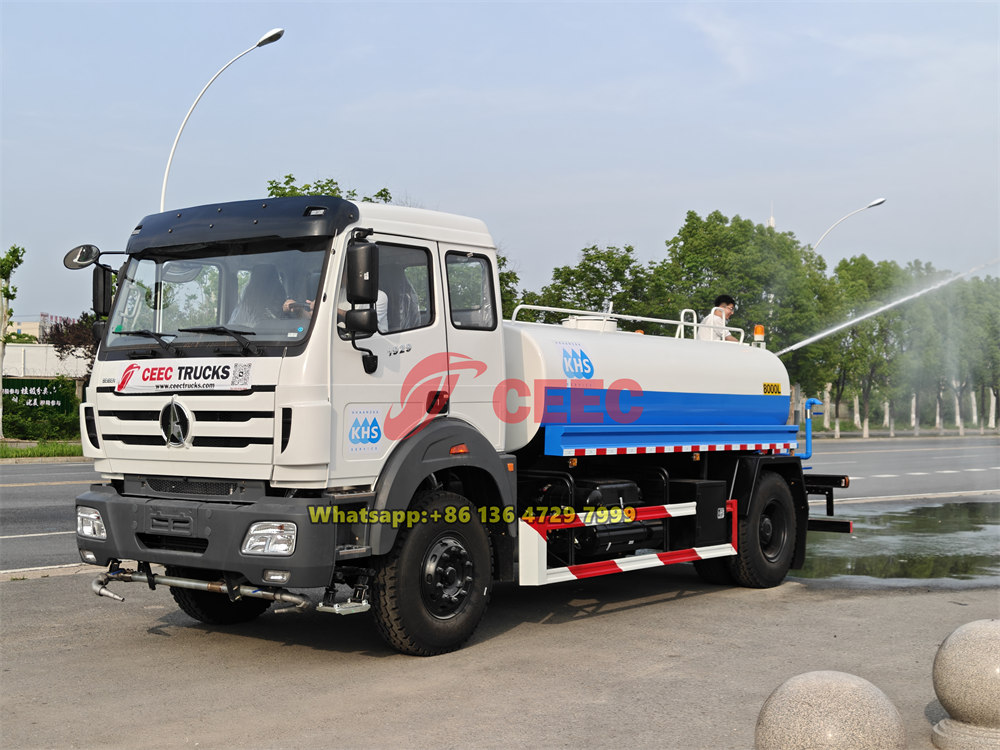

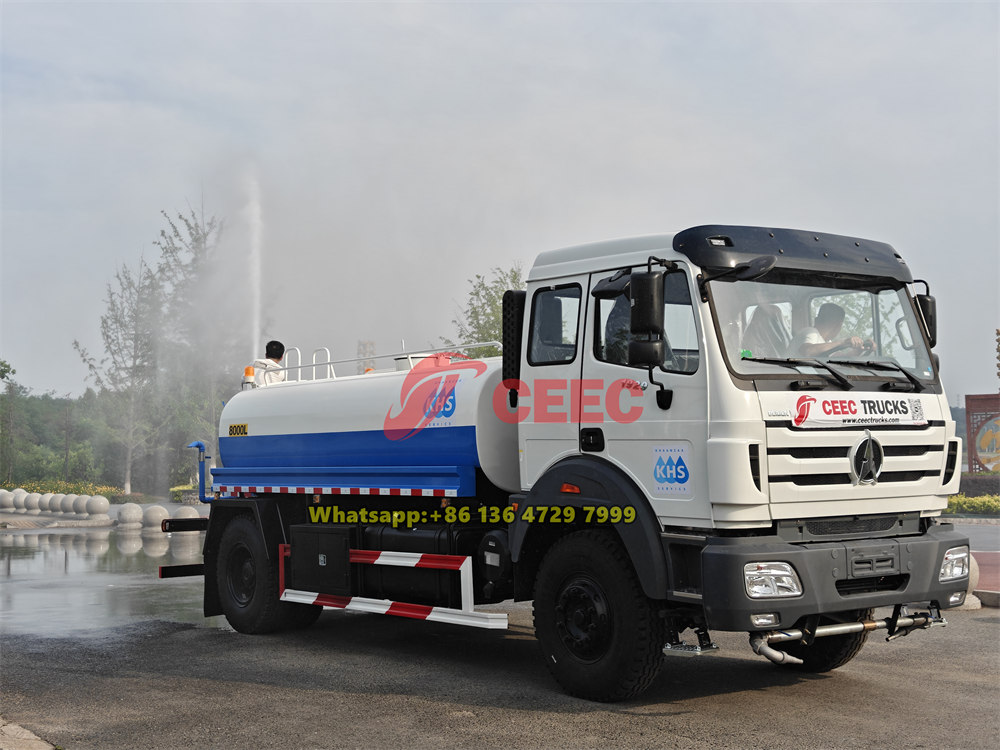

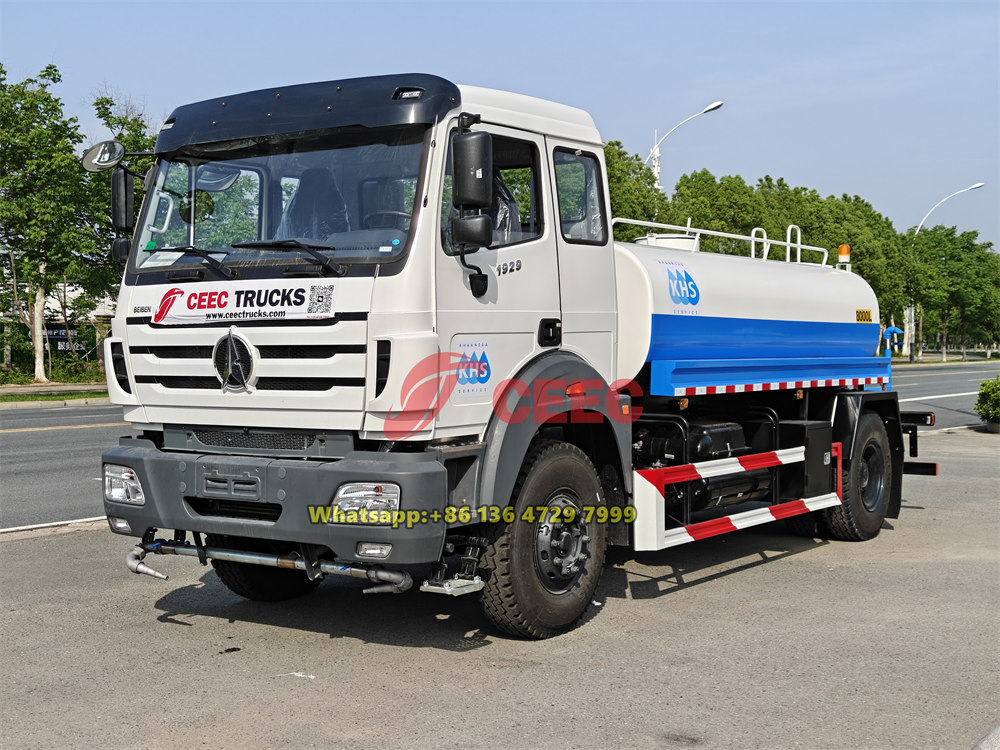

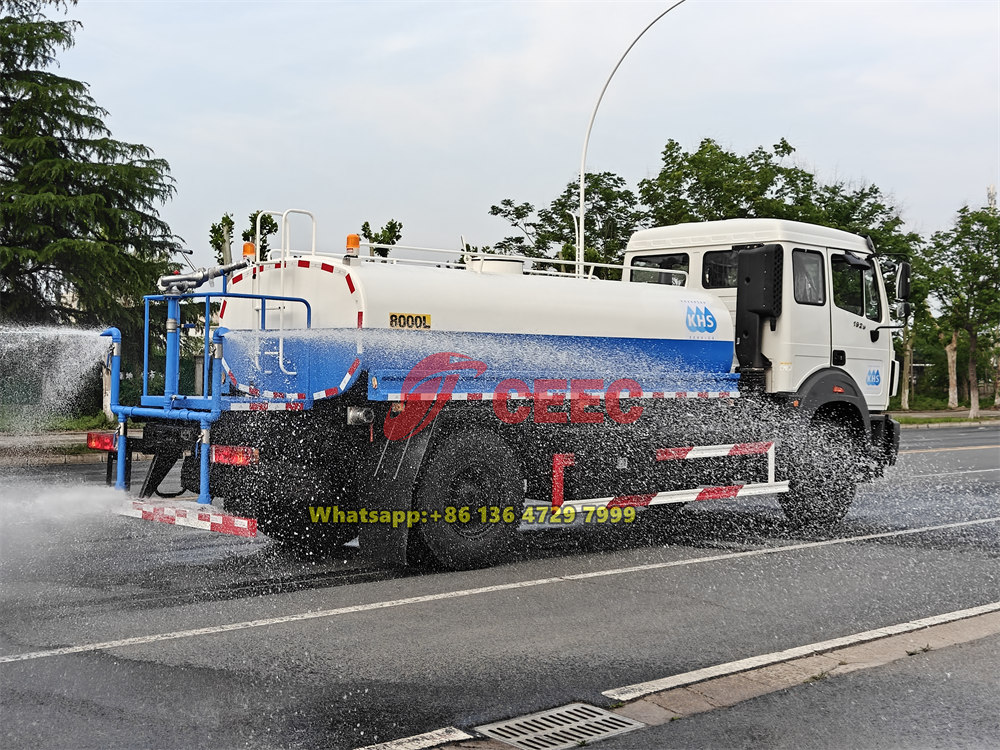

beiben 8000 liters water sprinkler truck
2 unit beiben 4x2 drive water tanker truck for mongolia customer

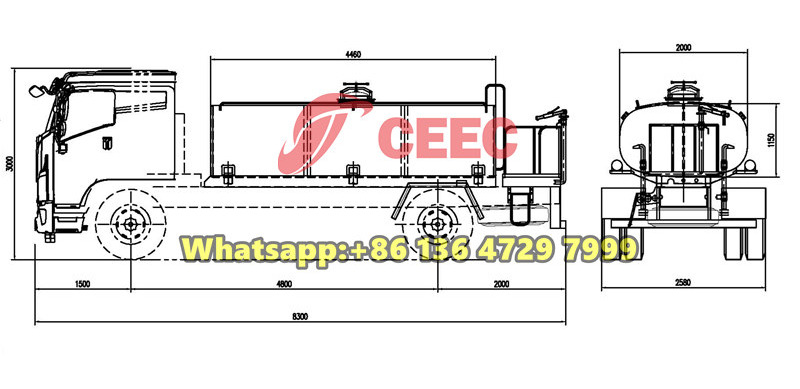

Product Drawing

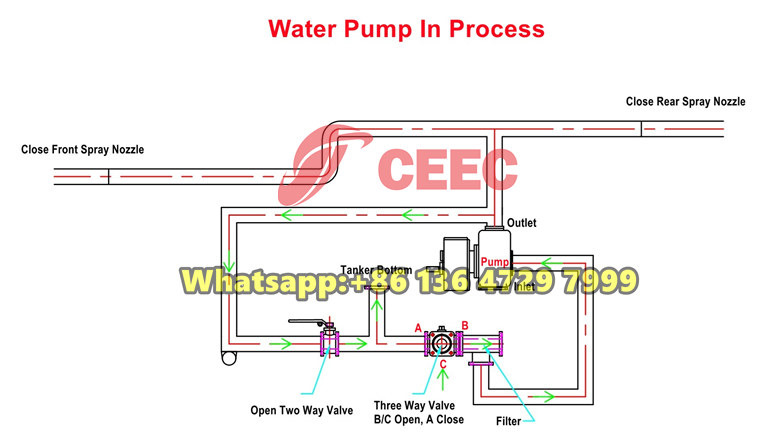

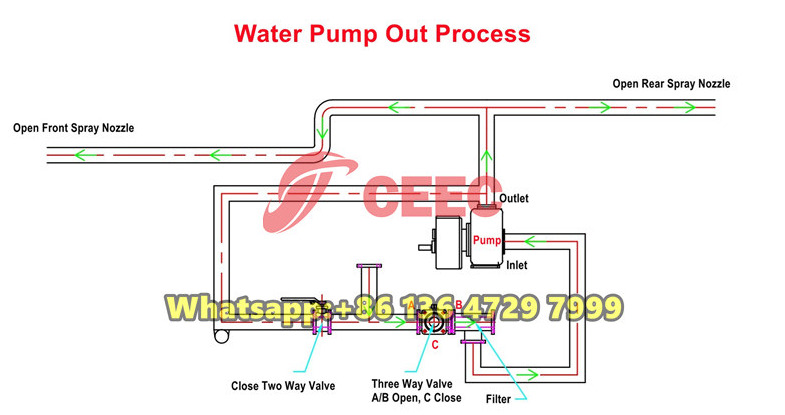

Pipeline diagram
Product Details
BeibenTRUK 15m3 6X4 mobile catering trucks, RHD water tank truck for sale, mostly on beiben 2534,2538 truck chassis, the beiben 10 wheeler 20,000 liters Water pump model: 80QZF-60/90N Water pump flow rate(L/m): 60m3/h Head of delivery(m): 90m Self-priming function(min/4m):1.5 Efficiency(%):95%
Beiben sprinkler truck 2638 6x4 water truck with 20 cubic tanker, based on beiben 2638 all wheel drive truck chassis, 6*6 drive military truck chassis, weichai WD615.38 type engine, fast 9 shift transmission, benz 7 T front axle, benz 16 T doubel rear axle with reducer, 12.00R20 tyre. 20 CBM beiben water tanker capacity.
1. BEIBEN NG80 340HP 6X4 water tank truck 2. Flat roof cabin,single sleeper, auto-air conditioner 3. High quality and competitive price 4. Quick delivery time 5. Best after-sales
The Beiben 6×6 all-wheel drive water truck, with a gross vehicle weight of 25,000kg, is equipped with a Weichai 380HP engine, a 20,000-liter large-capacity water tank, and an efficient water pump. It features front, rear, side spraying capabilities, as well as a high-pressure water gun. Its sturdy design, powerful engine, efficient operational capabilities, and convenient operation make it an ideal choice for urban road cleaning, fire-fighting assistance, and green space irrigation.
The Beiben 6×6 all-wheel drive water truck, with a gross vehicle weight of 25,000kg, is equipped with a Weichai 380HP engine, a 20,000-liter large-capacity water tank, and an efficient water pump. It features front, rear, side spraying capabilities, as well as a high-pressure water gun. Its sturdy design, powerful engine, efficient operational capabilities, and convenient operation make it an ideal choice for urban road cleaning, fire-fighting assistance, and green space irrigation.

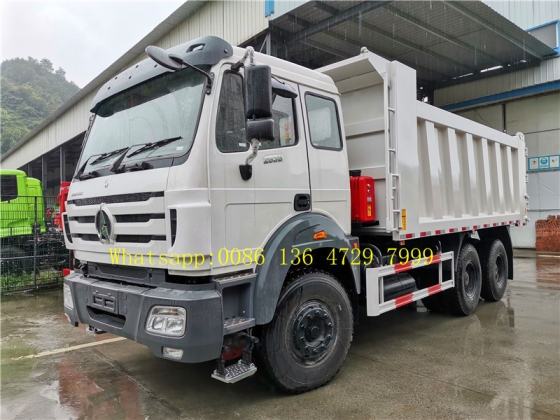

kenya Beiben 2638 tipper truck , 5400*2300*1500 mm cargo box capacity , mercedes benz NG80B cabin, mercedes benz front axle, mercedes benz rear axle, with wheel reducer.china beiben advanced technology on dump truck experience. We are the most professional beiben trucks manufacturer in china, can supply beiben 2634, 2638,2642 dump trucks.

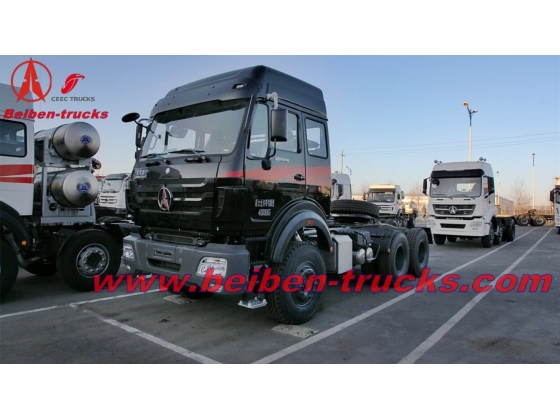

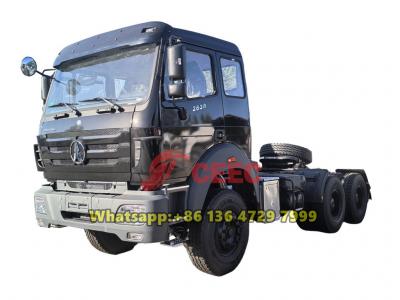

The Beiben 2638 tractor truck is equipped with a 380-horsepower Weichai WP10.380E32 engine, boasts dimensions of 7150×2500×3200mm, and has a wheelbase of 3450+1450mm. It features a fully steel frame structure for enhanced durability and robustness. The truck is fitted with a FAST 12JS200T transmission, offering 12 forward gears for smooth and effortless shifting. With excellent safety performance, it comes with a Mercedes-Benz technology braking system and a ZF8098 steering system. The cab is spacious and comfortable, making it an ideal choice for efficient logistics transportation in the Congo market.
Bei ben tractor truck for Congo, the best beiben tractor truck and beiben dump truck supplier in congo

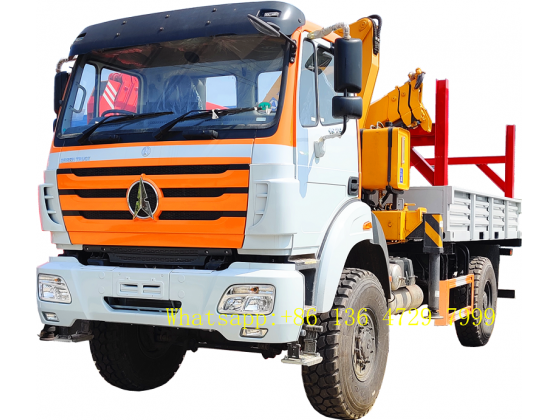

beiben 1934 all wheel drive truck chassis , it is with extremely strong 340 hp engine, right hand drive , mercedes benz technology cabin, mercedes benz technology front axle and rear alxe. with china famous XCMG crane.
