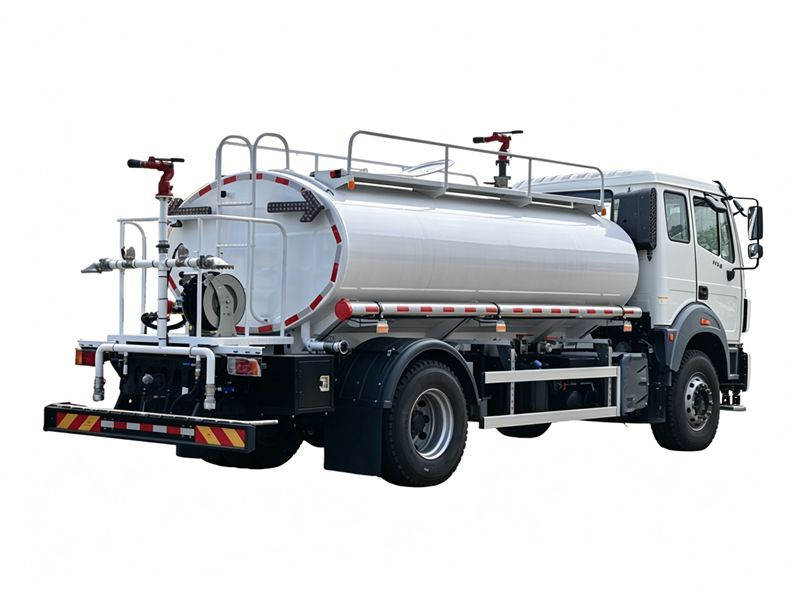

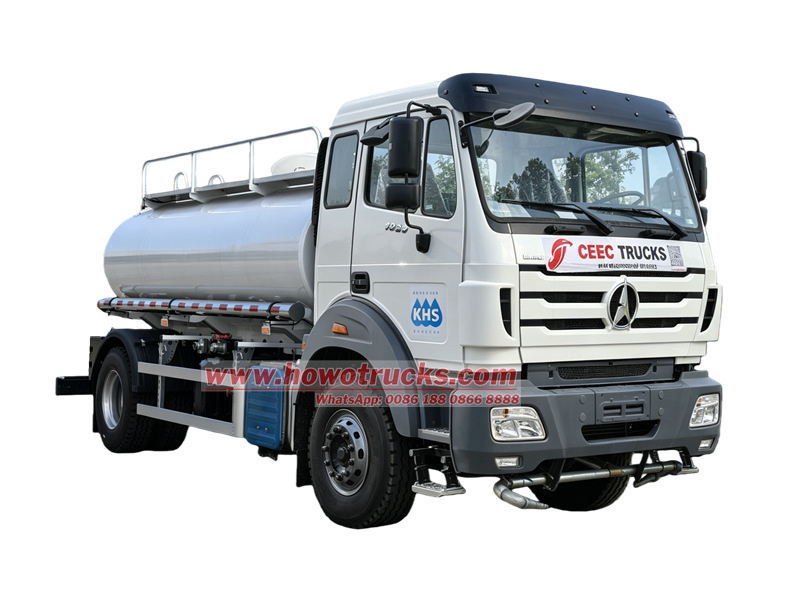

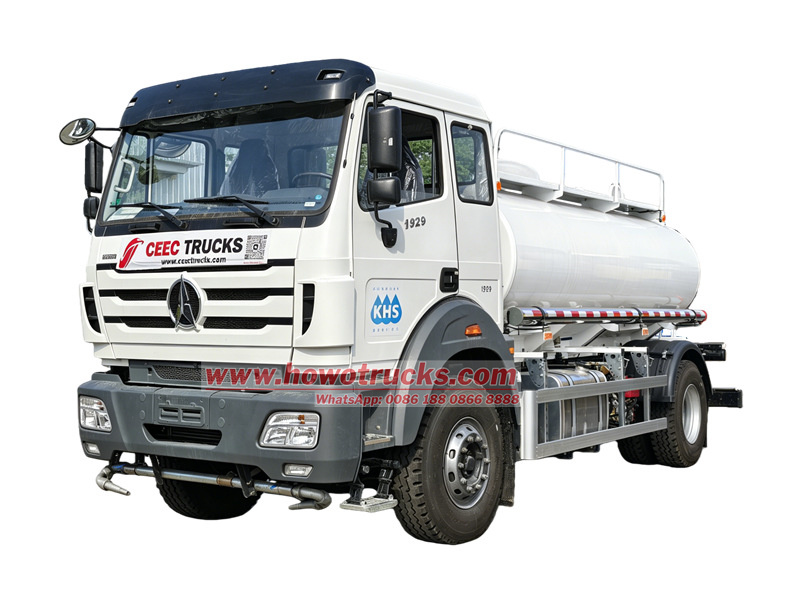

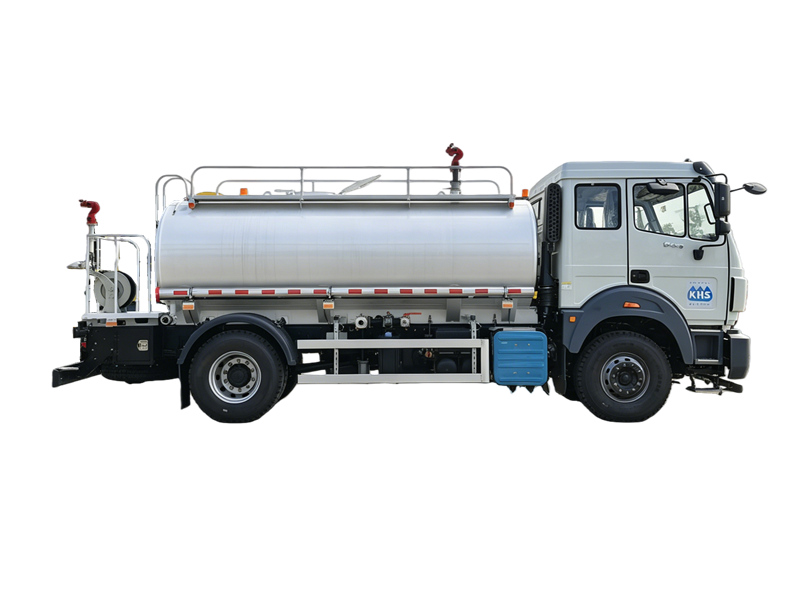

The Beiben 12,000L water truck is modified on the Beiben 1929 chassis, equipped with a 290 hp engine and a 12,000L carbon steel water tank. It features front sprinkling, rear watering, side spraying, and a high-pressure water gun. Mainly used for municipal watering, greening irrigation, and construction site dust suppression, it achieves a sprinkling width of over 14 meters and a water cannon range of over 23 meters, offering high efficiency, durability, and practicality.
Market Price:
$34600Working Capcity:
12000 litersCabin Type:
NG80B long cabin, 2 seats and one sleeperDimension ( mm ) :
8300×2550×3300Drive System:
4×2, LHDWheelbase (mm):
4800Engine Power:
290HP/WP10.290E32Gear Box:
9JS150ARemark:
4×4 drive, RHD, stainless steel water tanker is optionalThe Beiben 12,000L water truck is a large-duty special vehicle modified on a Beiben 4×2 chassis, consisting of a water tank, water pump, and spraying system. It is powered by a WP10.290E32 diesel engine with a maximum output of 290 hp. The tank is made of 4mm carbon steel, ensuring sturdiness and durability for extended continuous operation.
This Beiben water bowser truck is mainly used for municipal road watering and dust reduction, landscaping irrigation, and construction site dust suppression. Equipped with front sprinklers, rear nozzles, side sprayers, and a high-pressure water gun, it achieves a sprinkling width of over 14 meters and a water cannon range of over 23 meters. With flexible operation, it is a common and practical model in environmental sanitation and engineering fields.
CEEC factory is authorized supplier on Beiben water trucks,
guarantee all Beiben water bowser trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 4×2 heavy-duty chassis, GVW 19000kg, Weichai 290HP diesel engine, Fast 9-speed gearbox
▶ Cabin: Beiben NG80B long cabin, 2 seats and sleeper bed, with A/C
▶ Water Tank: 12000 liters, 5mm thick carbon steel, with baffles and anti-rust treatment inside
▶ Water Pump: China well-known brand water pump, with flow rate 60m3/h

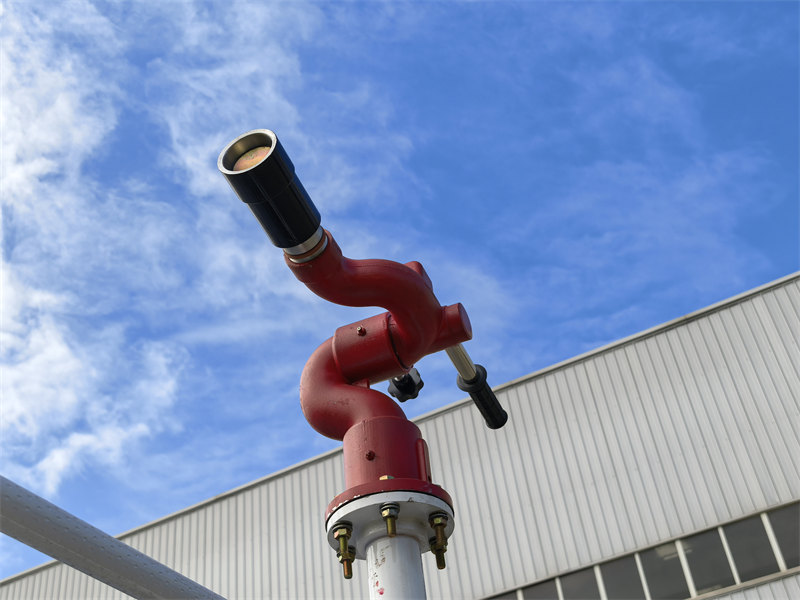

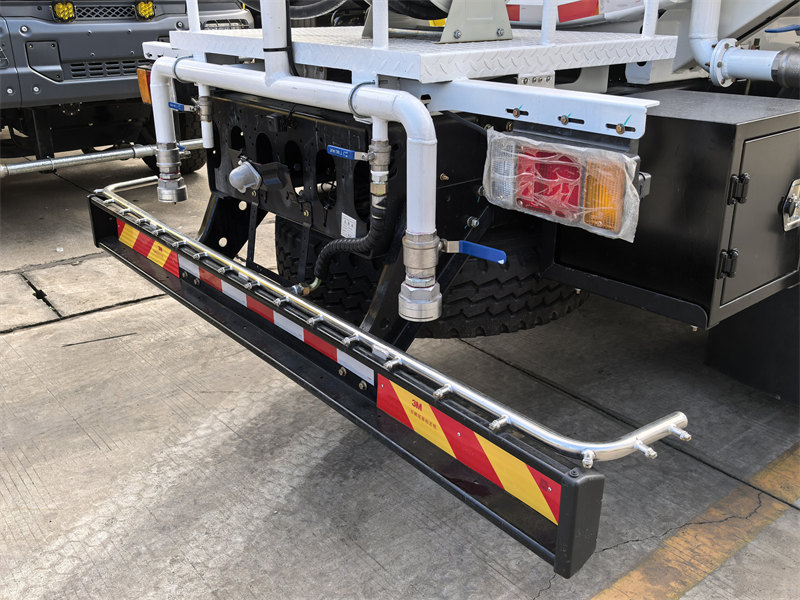

▶ Spray nozzles: Front/rear/side spray nozzles and rear mounted high-pressure water cannon
» Ⅱ. Product Specifications:
|
Basic parameter |
Model |
1929KZ/4×2 |
|
Length×width×height(mm) |
8300×2550×3300 |
|
|
Wheel-base(mm) |
4800 |
|
|
Curb weight(kg) |
10500 |
|
|
Engine parameter |
Model (six cylinder in line) |
WP10.290E32 |
|
Max. Power (HP/rpm) |
290 |
|
|
Max. Torque(Nm/rpm) |
1160/1200～1600 |
|
|
Displacement(lit) |
9.726 L |
|
|
Fuel tank capacity |
400L Iron fuel tank |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical, 9JS150A |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake； |
|
|
Assisted brake |
Engine exhaust brake； |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7.5 T, non-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13T, Double-shoe pneumatic brake, single reduction driving axle, differential lock, speed ratio is 5.263 |
|
|
Front and rear suspension |
Front/rear: Leaf spring, 13/9+8 pieces； |
|
|
Tire |
12.00R20 |
|
|
Cab |
NG80 Long Cabin/ Flat roof/Left drive |
|
|
Exterior trimming: |
||
|
Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
||
|
Interior trimming: |
||
|
Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||
|
Tank |
Capacity |
12000 liters |
|
Material |
4mm carbon steel |
|
|
Water pump |
Flow |
40m3/h |
|
Vertical Suction |
≥6 m |
|
|
Priming Time |
<5 min |
|
|
Lift of pump |
45m |
|
|
Spraying system |
Spray width |
≥14 |
|
Water cannon range |
≥23 |
|
|
Nozzles |
Front, side and rear nozzles |
|
» Ⅲ. Product Features:
1. Sturdy Chassis: Built on the Beiben 1929KZ/4×2 special chassis, powered by a 290 hp six-cylinder diesel engine, providing ample power and strong load capacity.
2. Durable Tank: 12,000-liter water tank made of 4mm thick carbon steel, corrosion-resistant and robust, suitable for long-term continuous operation.
3. Versatile Spraying Functions: Equipped with front sprinklers, rear waterers, side sprayers, and a high-pressure water gun. Sprinkling width exceeds 14 meters, and water cannon range exceeds 23 meters, meeting various needs such as road watering, green irrigation, and construction site dust suppression.
4. High-Performance Water Pump: Flow rate of 40 m³/h, vertical suction height over 6 meters, water priming time less than 5 minutes, and head of 45 meters, enabling fast filling and powerful spraying.

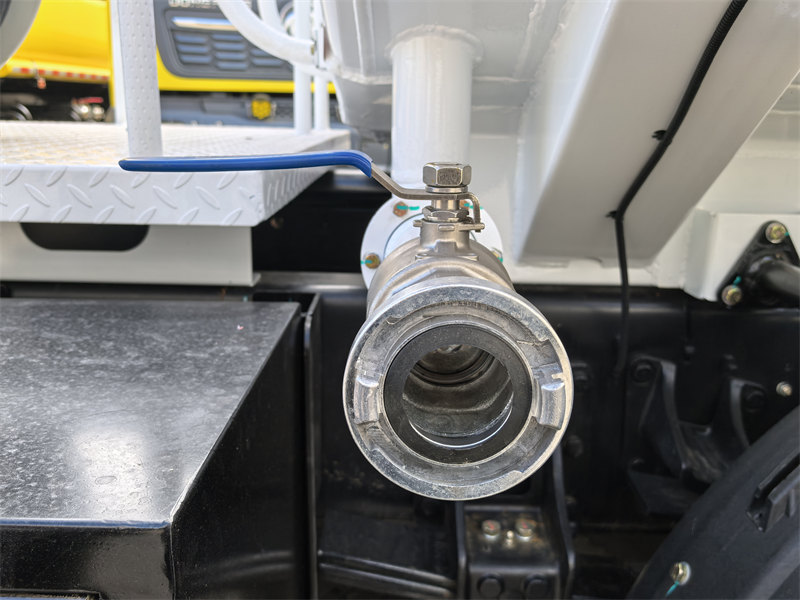

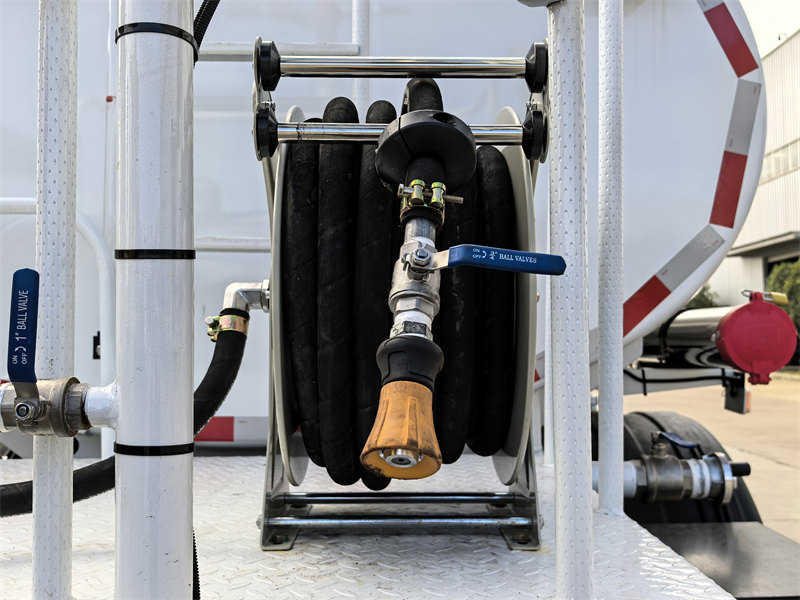

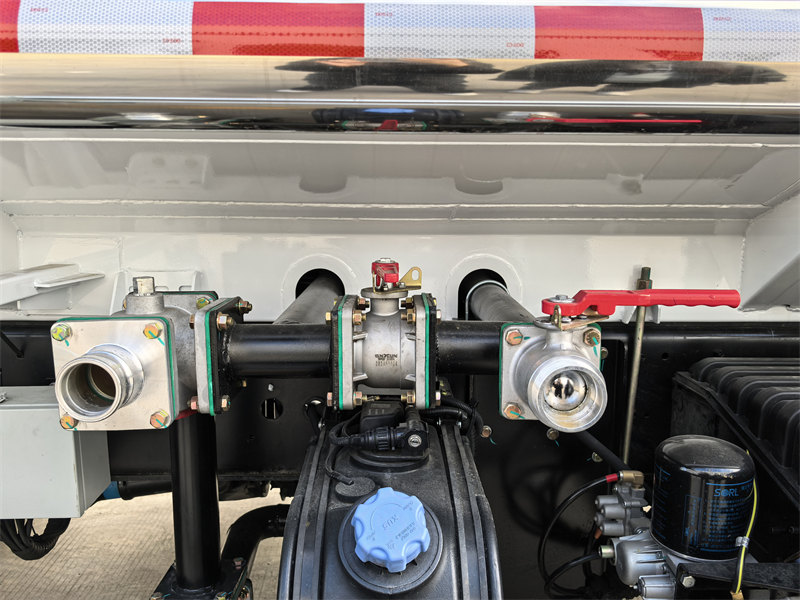

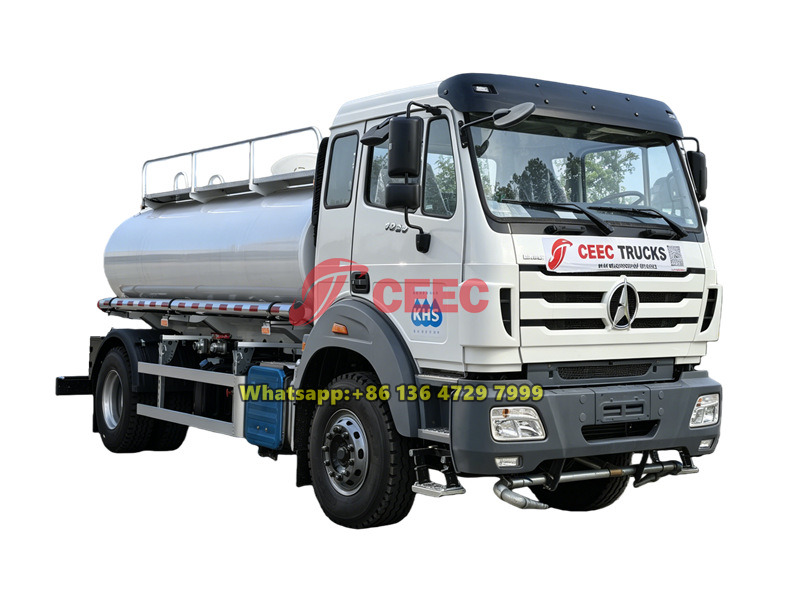

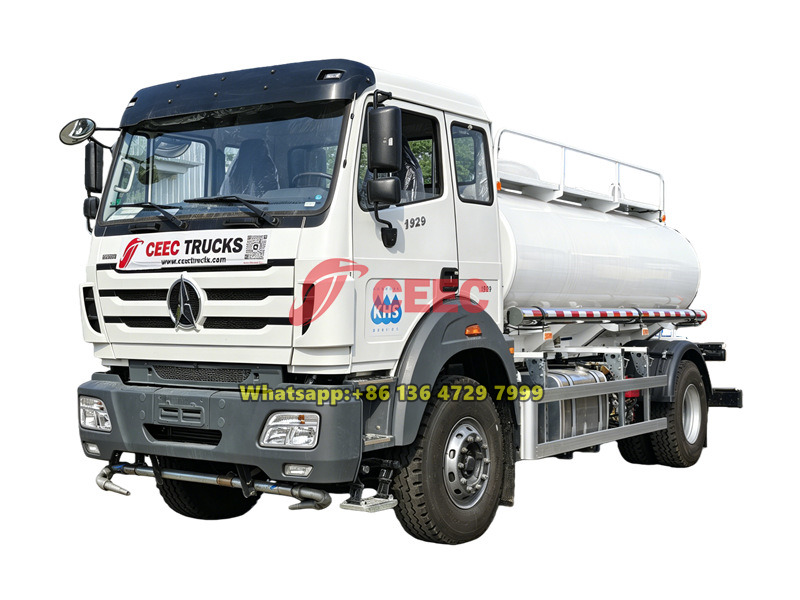

» Ⅳ. Product Details:

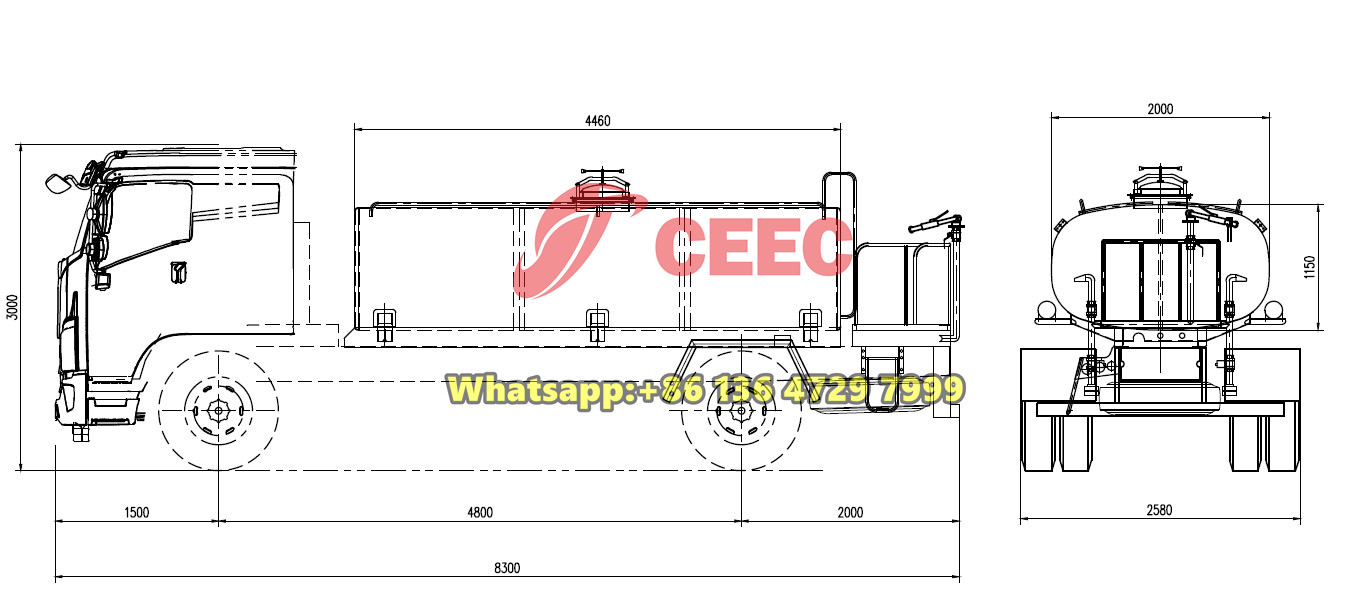

» Ⅴ. Product Drawing:

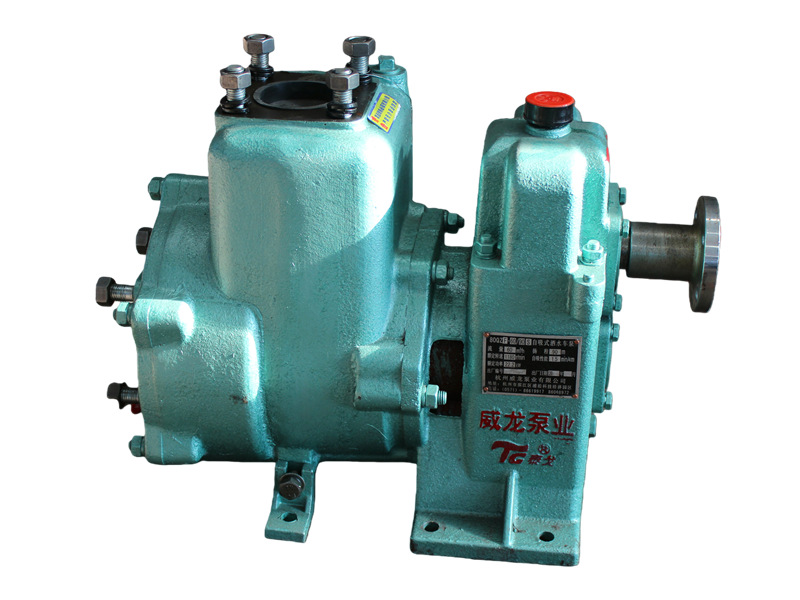

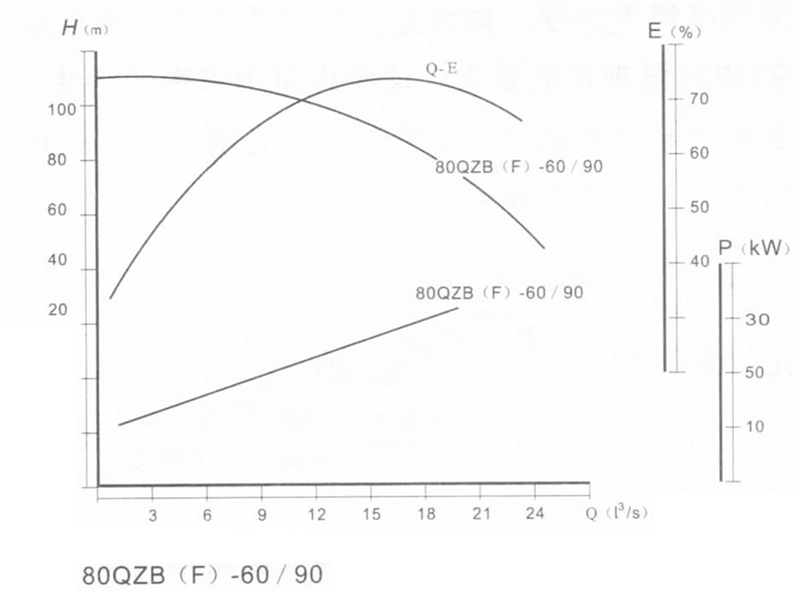

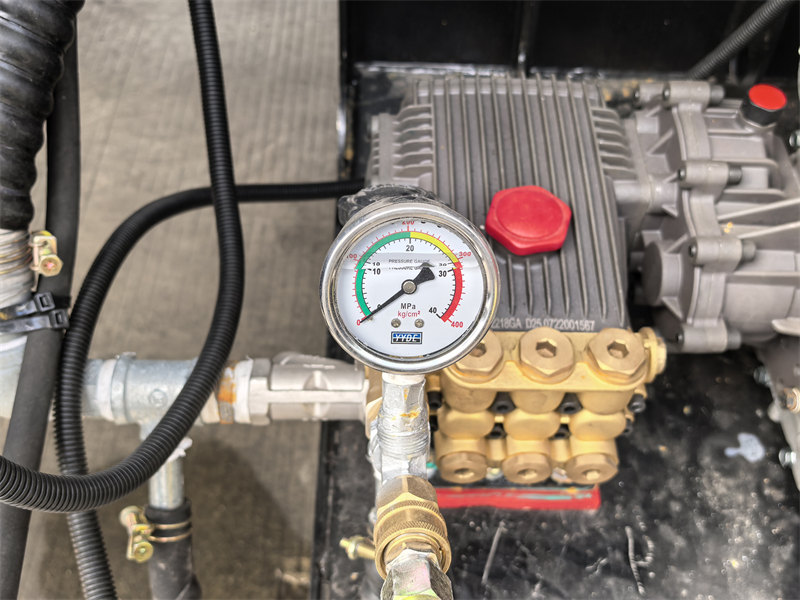

» Ⅵ. Water Pump:
 |
 |
