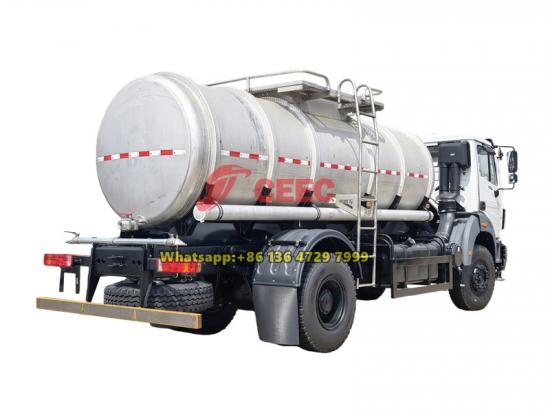

The Beiben 1929 10,000L stainless steel water transport truck features a 304-2B food-grade stainless steel tank with a thickness of 4mm. It is powered by a 270 HP engine and a HONDA gasoline-engine water pump with a flow rate of 15–25 m³/h. A spraying device is installed at the rear, enabling dual functions of potable water transport and greenbelt spraying. It is suitable for municipal emergency water supply, construction site water use, garden irrigation, and other scenarios.
Market Price:
$39600Working Capcity:
10000 litersCabin Type:
NG80B long cabin, 2 seats and one sleeperDimension ( mm ) :
8310×2500×3200Drive System:
4×2, LHDWheelbase (mm):
4800Engine Power:
290HP/WP10.290E32Gear Box:
9JS150ARemark:
4×4 drive, RHD, PTO drive water pump is optionalBeiben 10,000L stainless steel drinking water truck, also know as Beiben potable water tanker truck, is a high-quality special vehicle designed specifically for the transport of drinking water, hot water, and food-grade liquids, strictly adhering to food safety standards. The vehicle is equipped with a WP10.290E32 engine (270 HP) and a 9JS150A transmission, with a maximum gradeability of 38%, allowing it to handle complex road conditions. The tank is made of 304-2B food-grade stainless steel with a thickness of 4mm and has passed a 5 psi hydrostatic pressure test. Combined with a single-compartment design, a 20-inch manhole, and a pressure-vacuum valve, the tank ensures sealed and contamination-free transport.
The tank material is corrosion‑resistant, non‑toxic, and odorless, guaranteeing water purity. The accompanying HONDA gasoline-engine water pump (flow rate 15–25 m³/h), along with a 30m fire‑grade discharge hose and a 5.9m suction hose, enables efficient loading and unloading. The rear‑mounted spraying nozzles allow flexible switching between water supply and greenbelt spraying applications, making it suitable for municipal emergency water supply, construction site domestic water use, field operation replenishment, garden irrigation, and more. Its NG80 long‑cab design features an air‑suspended seat and a sleeper bunk, enhancing long‑haul driving comfort. It is a professional water transport solution that integrates safety, durability, and multi‑functionality.
CEEC factory is authorized supplier on Beiben water tanker trucks,
guarantee all Beiben water cart trucks Brand-New and High-Quality.
▶Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 4×2 heavy chassis, Weichai 290HP diesel engine, Fast 9-speed gearbox
▶ Cabin: Beiben NG80B long cabin, air suspension seat, single bunk with sleeper, with A/C
▶ Water Tank: 10000 liters, 304-2B food grade stainless steel, with baffles inside and outer reinforced rings

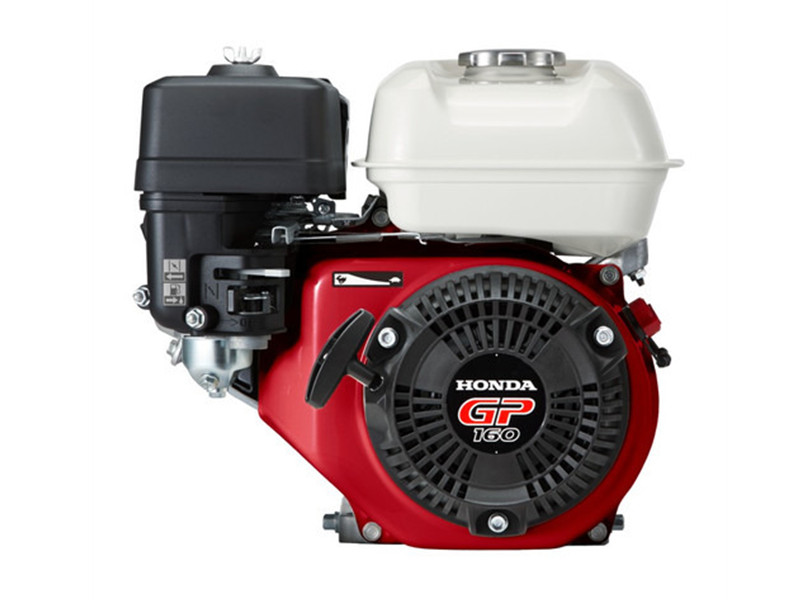

▶ Water Pump: HONDA GP160H-E1 gasoline engine water pump
▶ Pipeline: Stainless steel pipe systme
▶Ⅱ. Product Specifications:
|
Beiben 10000 liters Potable water Tanker Truck Specifications |
||||
|
Chassis parameters |
||||
|
Vehicle Model |
CEEC5182GSS |
|||
|
Vehicle overall dimensions |
Overall dimensions (LxWxH)mm |
8310×2500×3200 |
||
|
Drive Type |
4×2 |
|||
|
Wheel Base(mm) |
4800 |
|||
|
Wheel Track(Front/Rear)mm |
1995/1800 |
|||
|
Weight data |
Tare Weight(kg) |
7004 |
||
|
Capacity(kg) |
10866 |
|||
|
Persons in cab |
2 |
|||
|
Total weight(kg) |
19000 |
|||
|
Vehicle main performance |
Max.driving speed(km/h) |
89 |
||
|
Max.climbing degree(%) |
38 |
|||
|

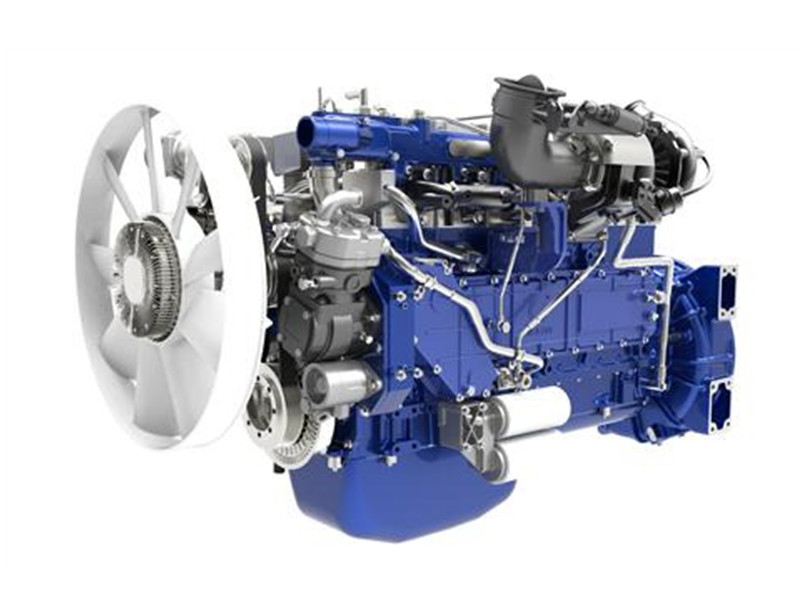

Engine |
Model |

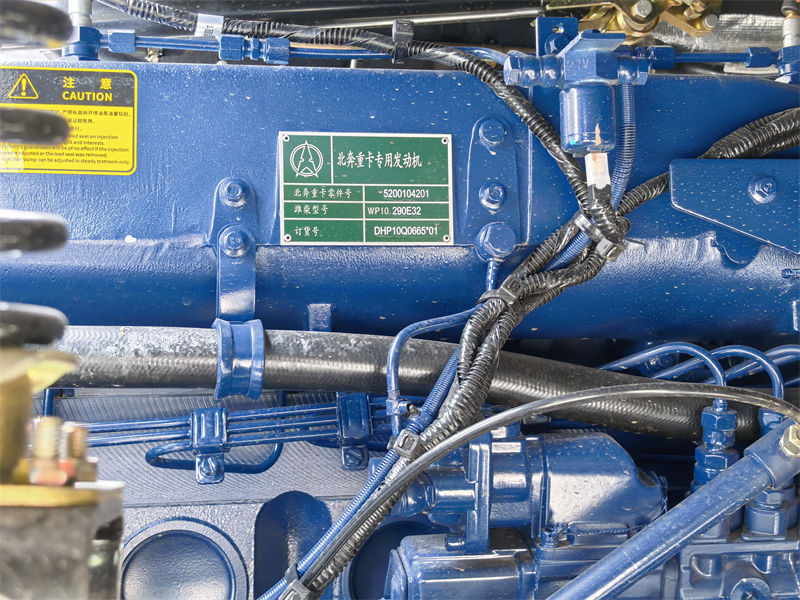

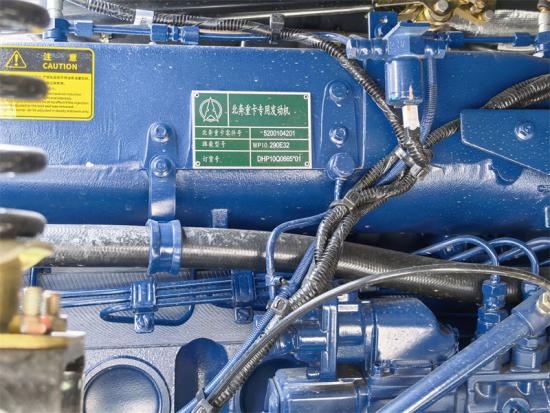

WP10.290E32 |
||
|
Displacement(L) |
9.726 |
|||
|
Rated Power(kw/rpm) |
213KW/270HP(2200) |
|||
|
Max torque(N.m/rpm) |
1160(1200-1600) |
|||
|
Gearbox |
Model No. |

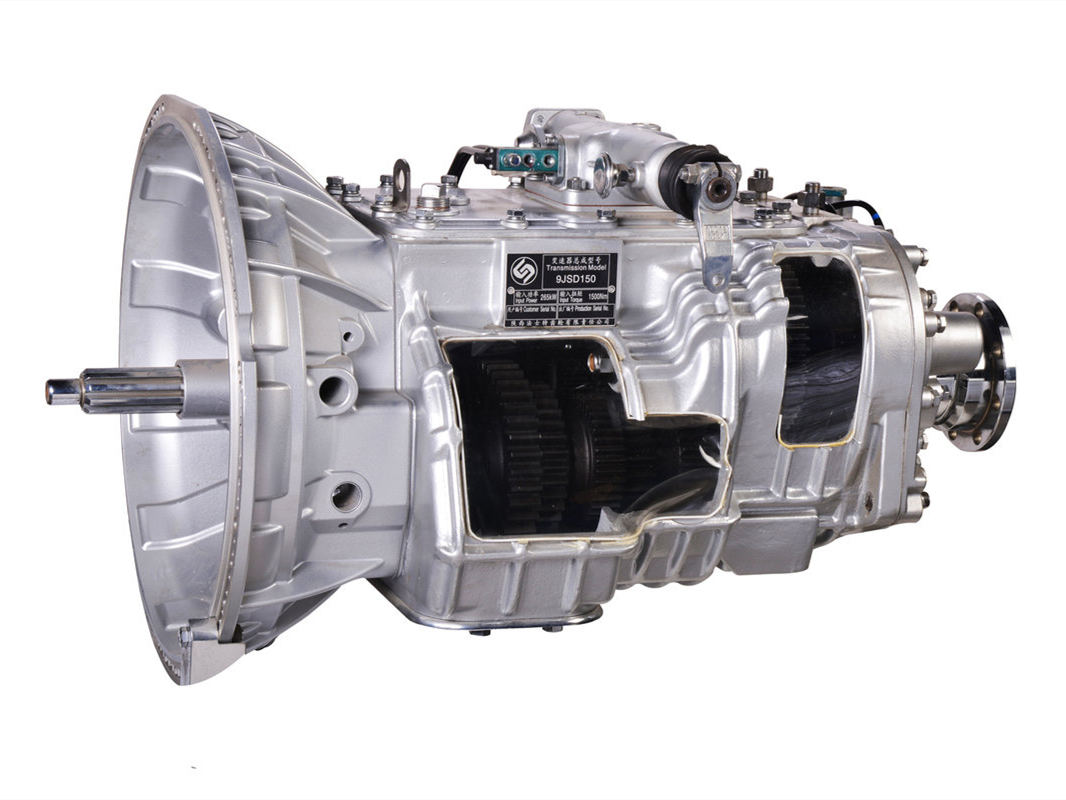

9JS150A |
||
|
Clutch |
Type |
Reinforced diaphragm clutch, diameter 430mm |
||
|
Front/Rear Axle |
Load capacity |
7.5T/13T |
||
|
Suspension |
Front suspension/Leaf spring number |
10 |
||
|
Rear suspension/Leaf spring number |
8+6 |
|||
|
Steering Gear |
8098 Circulating ball steering gear, hydraulic booster |
|||
|
Brake system |
Service brake |
Dual circuit compressed air brake |
||
|
Parking brake |
Spring energy, compressed air operating on rear wheels |
|||
|
Auxiliary brake |
Engine exhaust valve brake |
|||
|
Wheels and tyre size |
6+1/12.00R20 |
|||
|

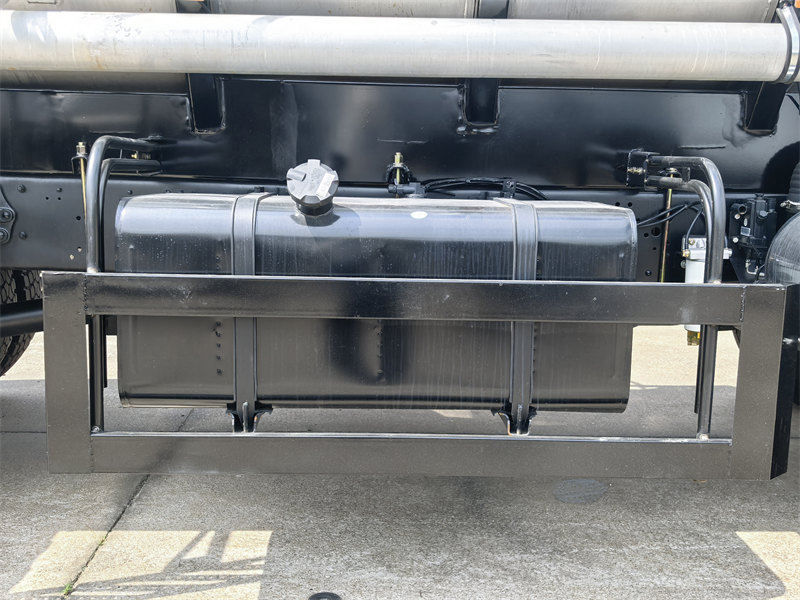

Fuel Tank(L) |
400 |
|||
|
Cabin |

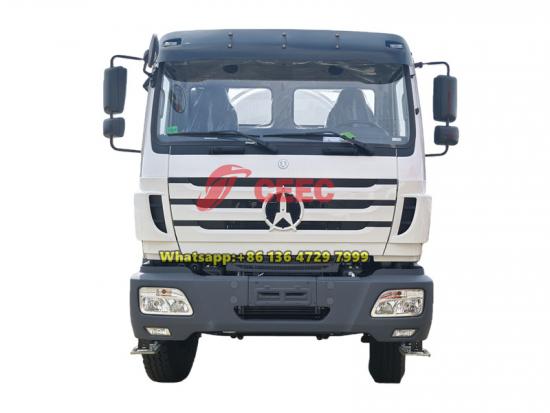

NG80 long cabin, left hand drive, air suspension seat, single bunk with sleeper, cooling and heating air conditioner, steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
|||
|
Upper body parameters |
||||
|

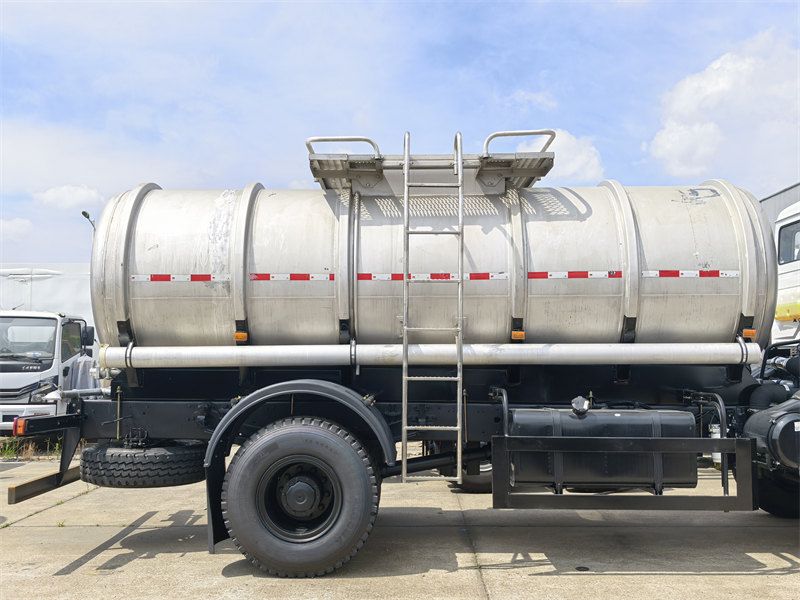

A.TANK BODY |
||||
|
1. Tank Profile |
Round shape |
|||
|
2. Test pressure |
Hydrostatic test to 5 psi (35 Kpa) on each compartment. |
|||
|
3. Working pressure |
Atmospheric. |
|||
|
4. Capacity |
10000L |
|||
|
5. Compartments |
Single compartment. |
|||
|
6. Interior weld finish |
Not polished or grinded (W-0). |
|||
|
7. Exterior weld finish |
Not polished or grinded (W-0). |
|||
|
8. Shell material |
Stainless steel 304 2B. |
|||
|
a) Top |
4mm nominal. |
|||
|
b) Sides |
4mm nominal. |
|||
|
c) Bottom |
4mm nominal. |
|||
|
9. End Plate |
Stainless steel 304 2B, 4mm nominal. |
|||
|
All single heads dished and flanged. |
||||
|
10. Baffle / Surge Heads |
Stainless steel 304 2B, 4mm nominal. |
|||
|
Dished with flap. |
||||
|
2 pcs |
||||
|
11. Spill molding and rollover protection |
Stainless steel around the dome with drain hose. |
|||
|
12. Outer rings |
304-2B stainless steel, 60mm height, 3mm nominal, continuously welded. |
|||
|
13. Frame |
Carbon steel independent. |
|||
|
14. Loaders and brackets |
Carbon steel. |
|||
|
B. TANK FITTINGS AND PIPING |
||||
|
1. Manholes |
20" diameter with 6 stainless steel wing nuts, located at the top center |
|||
|
2. Pressure Vacuum Vent |
Two per compartment. 6~12 kPa pressure, 2~4 kPa vacuum. |
|||
|
Chinese Brand |
||||
|
3.Foot valve |
Nil. |
|||
|
4 Discharge system |

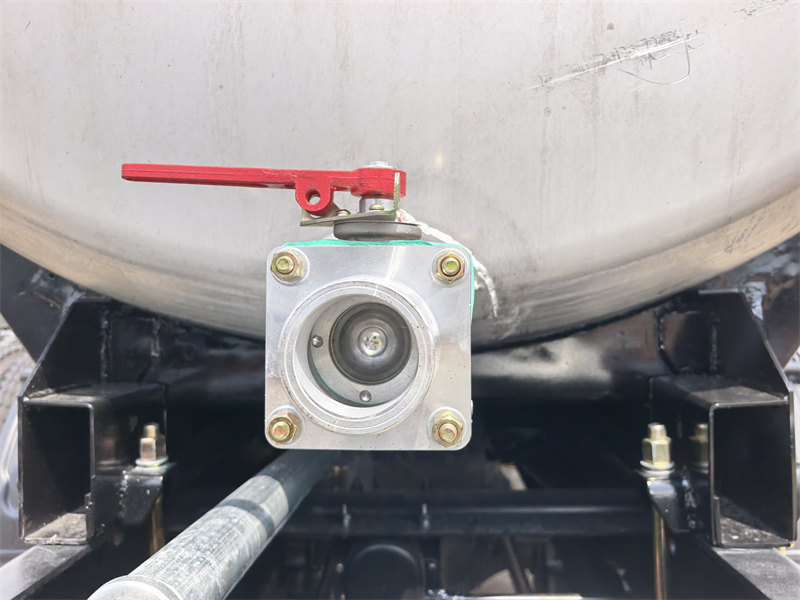

3” diameter discharge with 3" diameter butterfly valve, 3" stainless steel male camlock coupling and quick cap, located at the back of the tank. |
|||
|
C. ACCESSORIES |
||||
|
1. Ladder |
Stainless steel, 400mm wide, with non skid rungs and lateral handles, mounted at right middle of tanker. |
|||
|
2. Walkway |
Extruded aluminum around dome. |
|||
|
3. Hose Carries |
1 no, hose carrier (round tubes) to fit Ø159 x 6meter (236") hose close type complete with brackets to be installed at the right side. |
|||
|
4. Hose |
Firemen type flexible discharge hoses, 30m 2.5" for discharge. and flexible plastics suction hoses, 5.9m 3"for suction, 3" female camlock coupling at both ends. |
|||
|
5. Motor Pump |

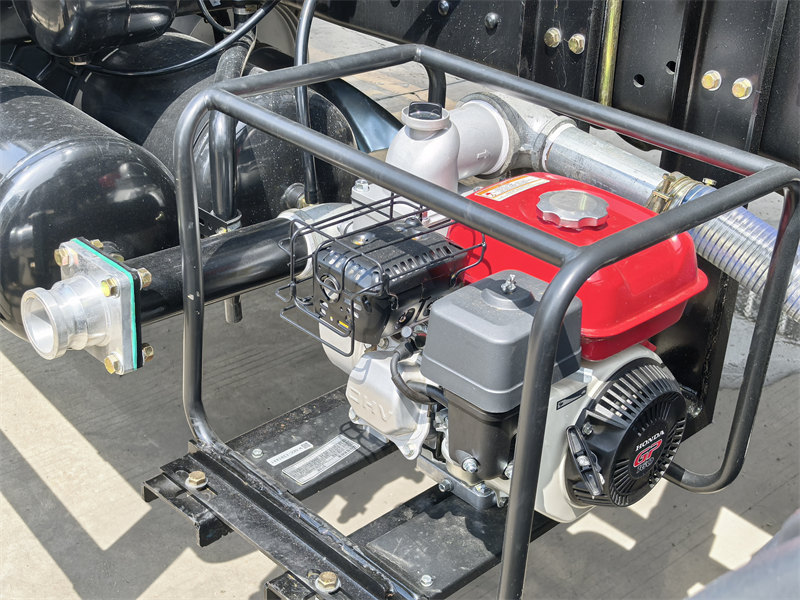

HONDA Gasoline motor water pump , Single cylinder, 4 stroke, forced air cooling, displacement 163L, pump flow rate 15–25 m³/h. |
|||
▶Ⅲ. Product Features:
 |
 |
1. Food grade 304-2B stainless steel tank – corrosion resistant and maintains water quality
2. Weichai 270 HP engine – powerful and reliable
3. HONDA gasoline engine water pump – efficient loading/unloading with flow rate of 15–25 m³/h

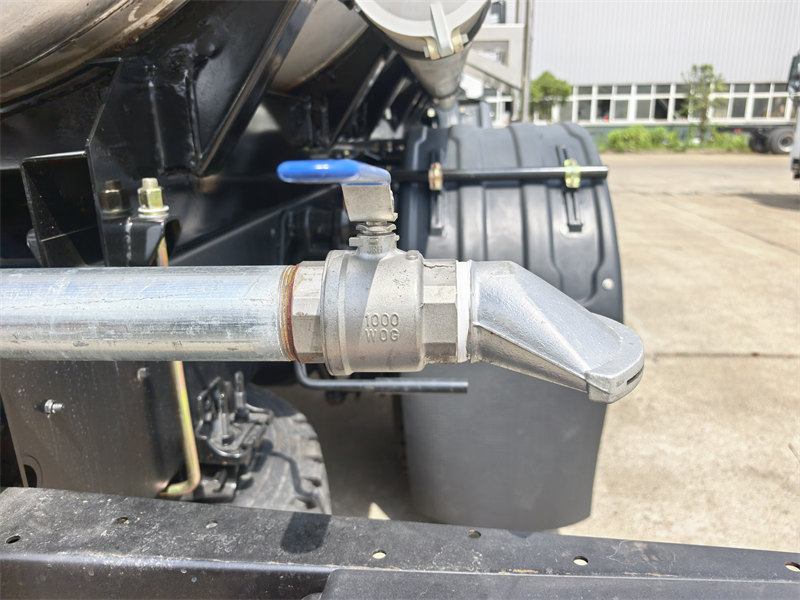

4. Rear spraying nozzles – dual purpose for water supply and greenbelt spraying
5. Mercedes Benz technology 7.5T front axle + 13T rear axle – high load carrying capacity
6. Long cab with air suspended seat and sleeper bunk – comfortable for long distance travel
▶ Ⅳ. Product Details:

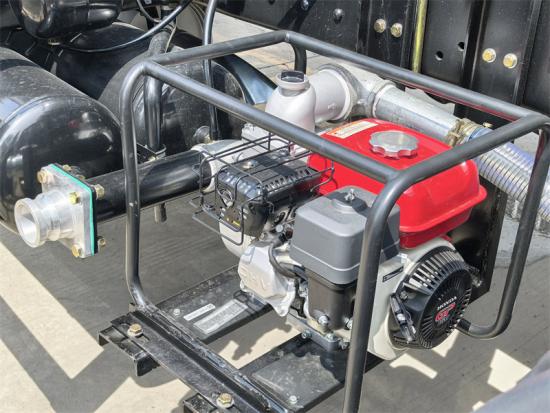

» Ⅵ. Water Pump:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive water tanker trucks for option
2. Factory direct sale, supply Beiben 10000 liters~30000 liters water trucks at best price
3.Front, rear, side spraying nozzles are optional for different applications
4. Carbon steel, stainless steel tank and stainless steel water pump is optional.
