The Beiben 6×6 off-road cargo chassis is a high-performance all-wheel-drive chassis specifically designed for extreme terrain. Equipped with a 420HP high-torque engine, a 12-speed transmission, and Mercedes-Benz technology dual-reduction axles, it features a high-strength fish-belly-type frame and all-terrain tires. With a super-strong load capacity of 25 tons and exceptional off-road mobility, it is suitable for military vehicles, special engineering vehicles, emergency rescue vehicles, and other customization needs. It serves as a reliable and durable professional transport solution for harsh environments.
Working capcity:
25 tonsCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
9500×2500×3300Drive system:
6×6Wheelbase (mm):
4450+1450Engine power / Model:
420 HP/WP12.420E32Gear Box:
12JS200TRemark:
8×8, RHD is optionalProduct Descriptions
The Beiben 6×6 off-road cargo chassis is a high-performance all-wheel-drive chassis engineered for extreme terrain. Featuring a 6×6 all-wheel-drive configuration, it is powered by a WP12.420E32 turbocharged engine, delivering a maximum output of 420HP and a peak torque of 1,750 N·m. Paired with a 12JS200T mechanical transmission and an LF200 transfer case, it ensures efficient and reliable power delivery. The chassis adopts a fish-belly-type variable cross-section frame based on German Mercedes-Benz technology, offering exceptional torsional resistance and a load capacity of up to 25 tons. Combined with 12.00R24 all-terrain tires, it guarantees stable mobility in complex road conditions.
With its high load capacity, superior off-road performance, and dependable power, the Beiben 6×6 AWD chassis is an ideal choice for specialized vehicle modifications. In military applications, it can be adapted into troop carriers, mobile camps, or command vehicles. For engineering operations, it is suitable for mixer trucks, dump trucks, and truck-mounted cranes. In emergency rescue scenarios, it can be configured as all-terrain fire trucks, rescue vehicles, or mobile medical units. Additionally, it serves polar expeditions, desert exploration, and other extreme-environment equipment transport needs. Whether traversing rugged mountains, muddy swamps, or desert plateaus, this chassis delivers outstanding adaptability and stability, meeting the stringent demands of various industries.
Product Specifications
|
Wheelbase(mm) |
4450+1450 |
|
|
L*W*H |
9500X2500X3300 |
|
|
Gross vehicle weight(kg) |
25000 |
|
|
Approach angle/Departure angle(°) |
26/20 |
|
|
Max Speed (Km/h) |
≤85 |
|
|
Engine |
Model |
WP12.420E32 |
|
Engine type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Power (r/min) |
309Kw(420HP) |
|
|
Rated speed |
2100 rpm |
|
|
Emission standard |
EURO 3 |
|
|
Maximum Torque (r/min) |
1750Nm |
|
|
Speed at max. torque |
1200-1500 rpm |
|
|
Displacement(ml) |
11.596 |
|
|
Fuel tanker capacity(L) |
400L Iron |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 8 ton driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R24, radial tire, 10+1 pcs |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B left hand drive |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
|
Other specifications |
Two-stage air filter, 76°Tropical thermostat. |
|
|
Upper body |
Cargo box size 7000×2500×1500mm (reference) |
|

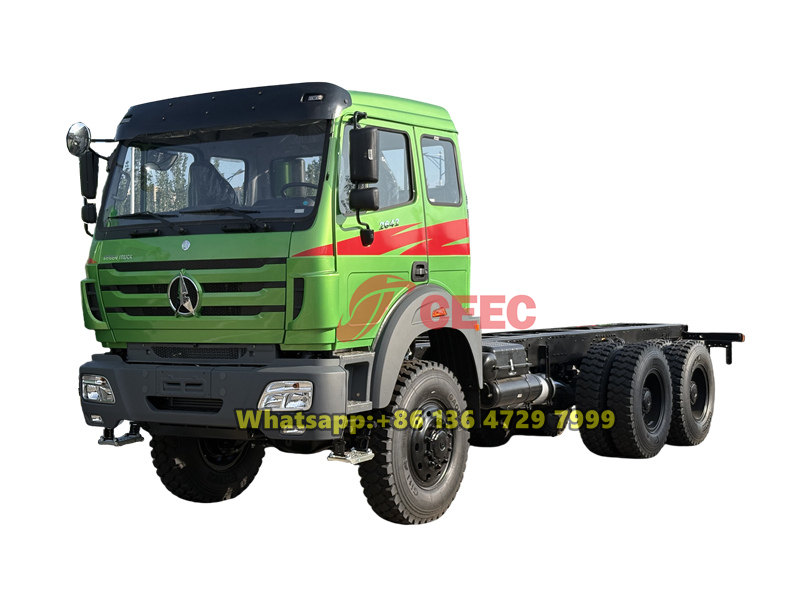

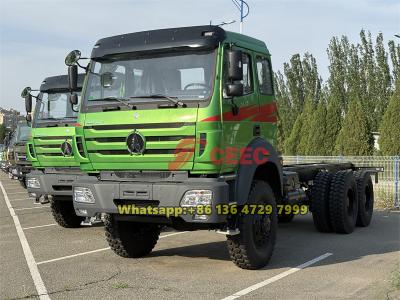

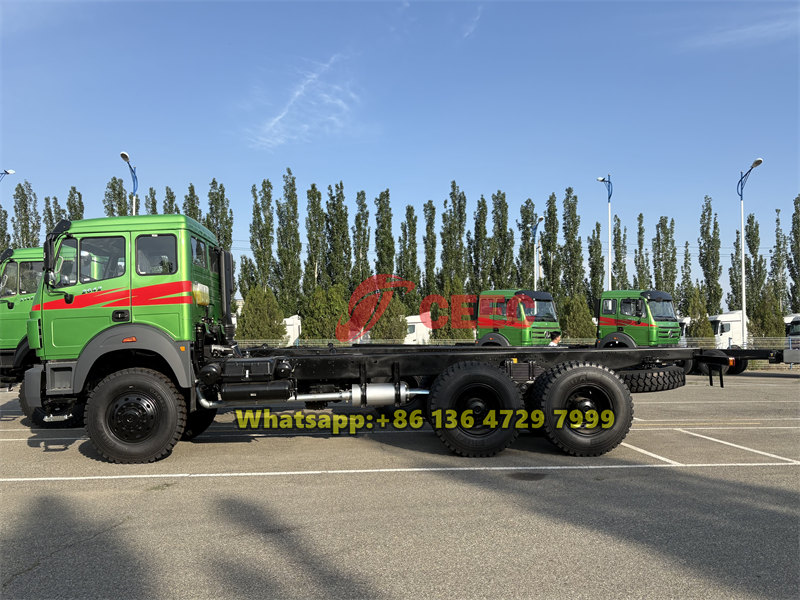

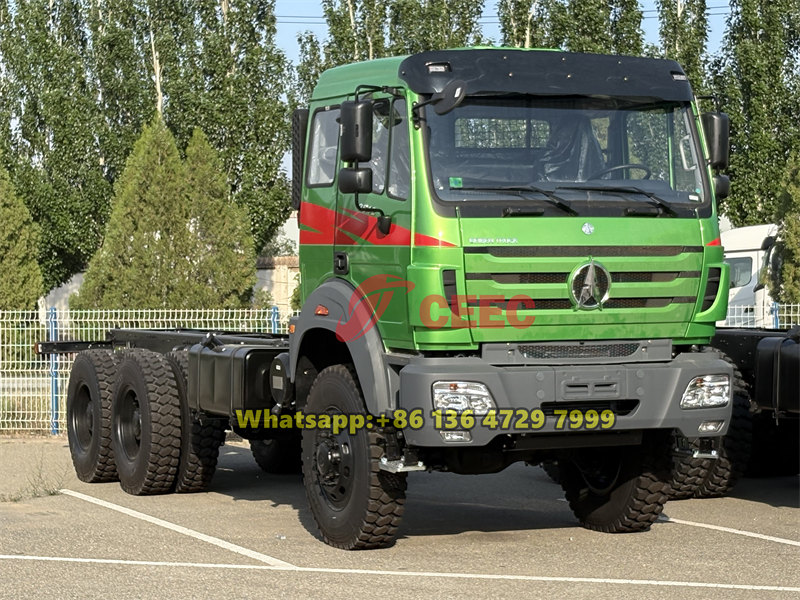

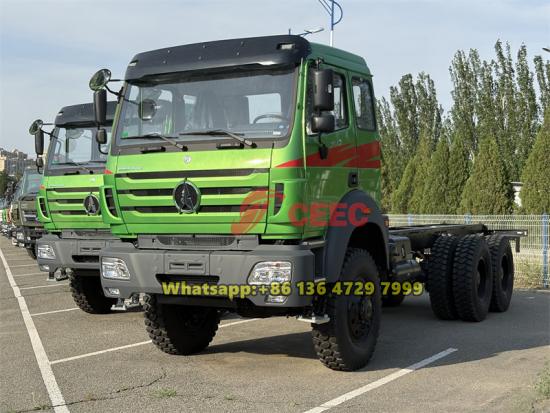

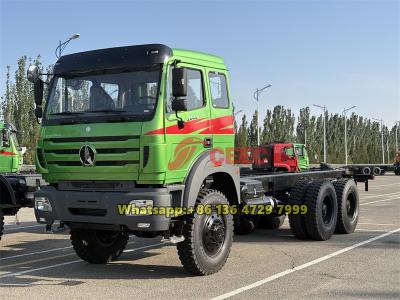

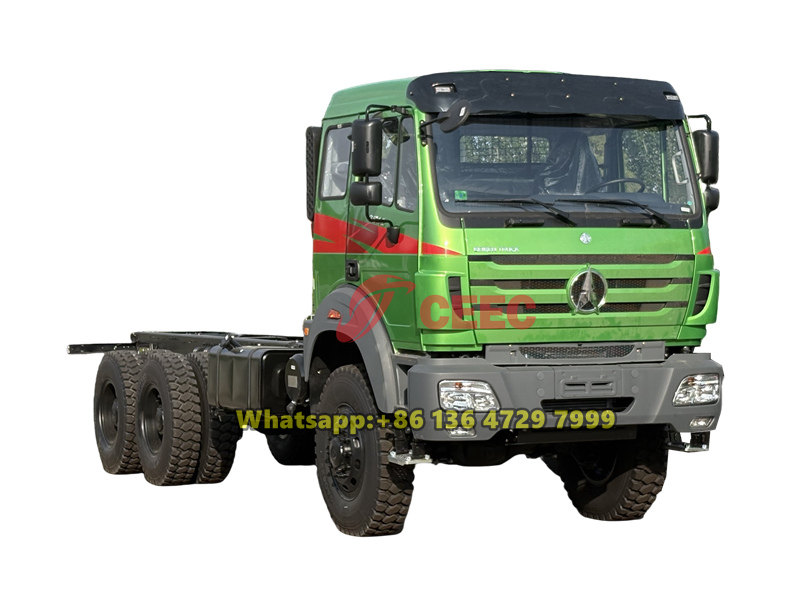

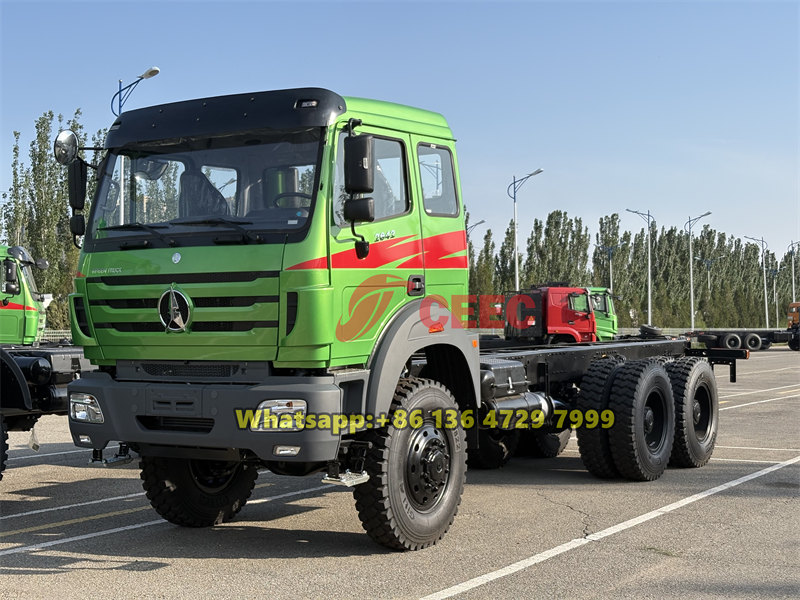

Product Pictures
