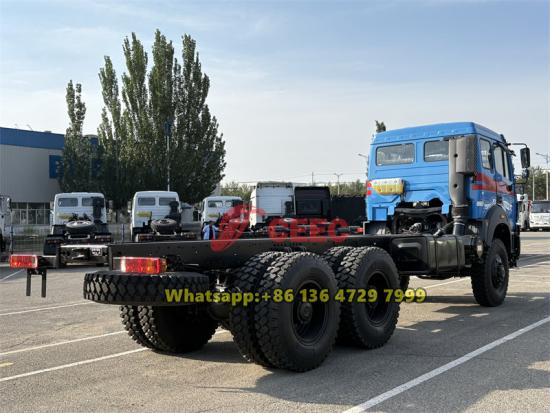

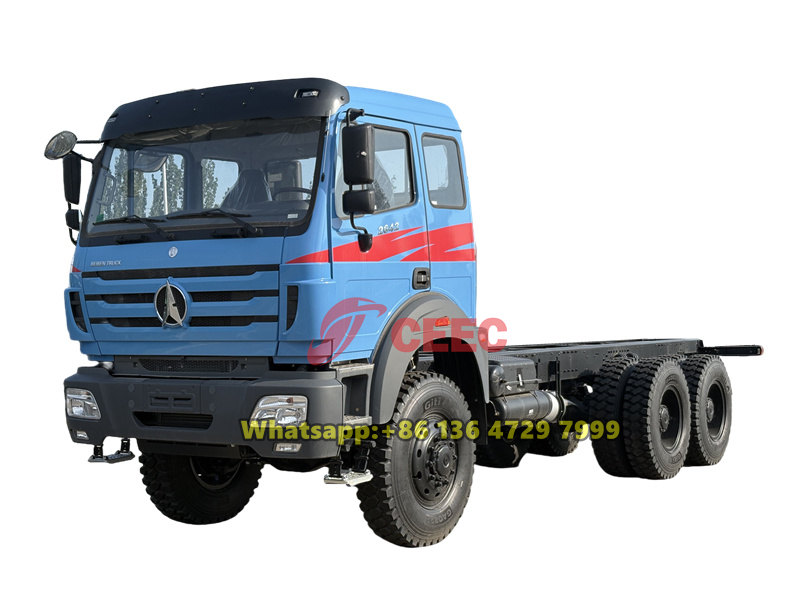

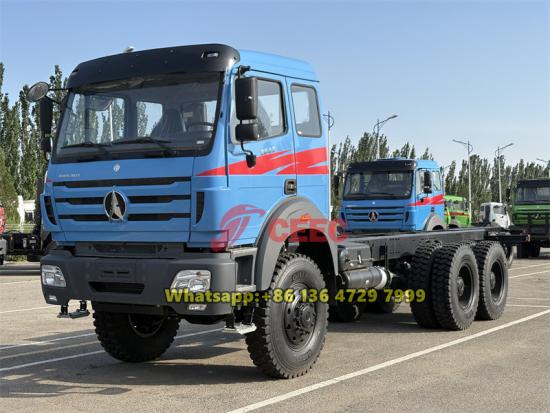

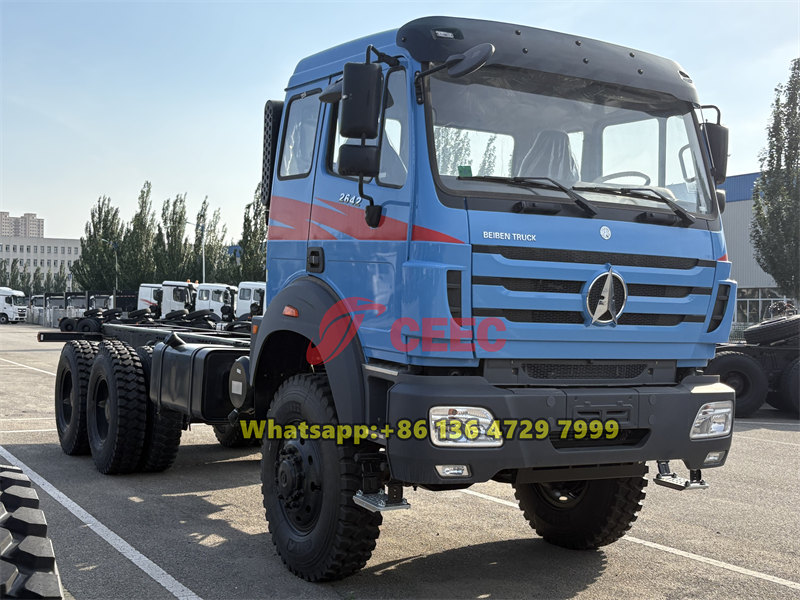

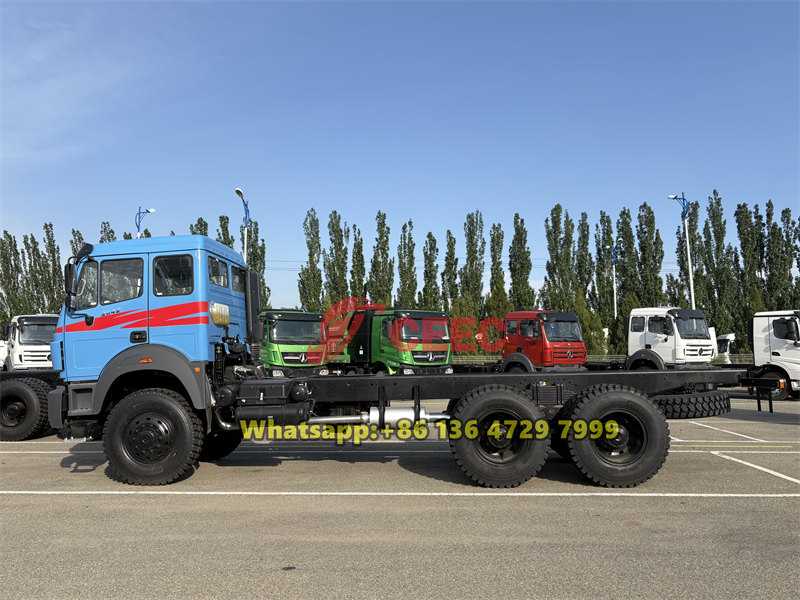

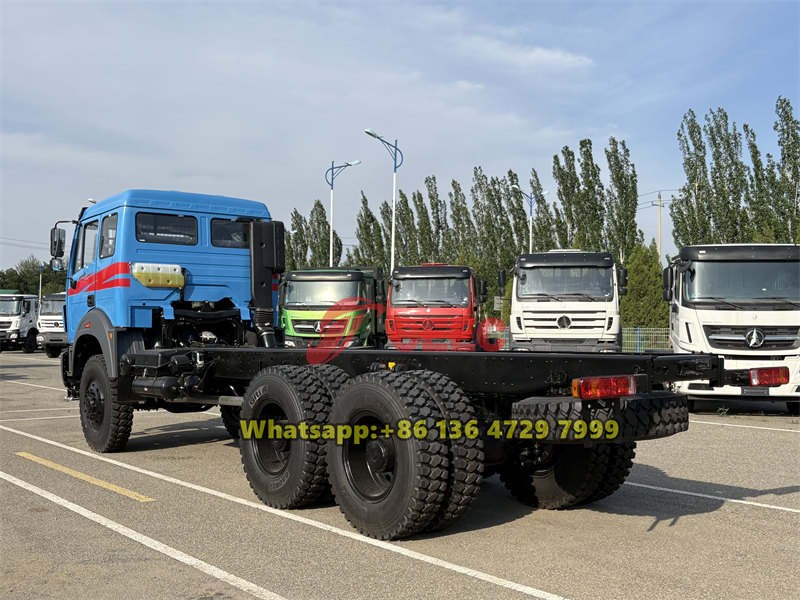

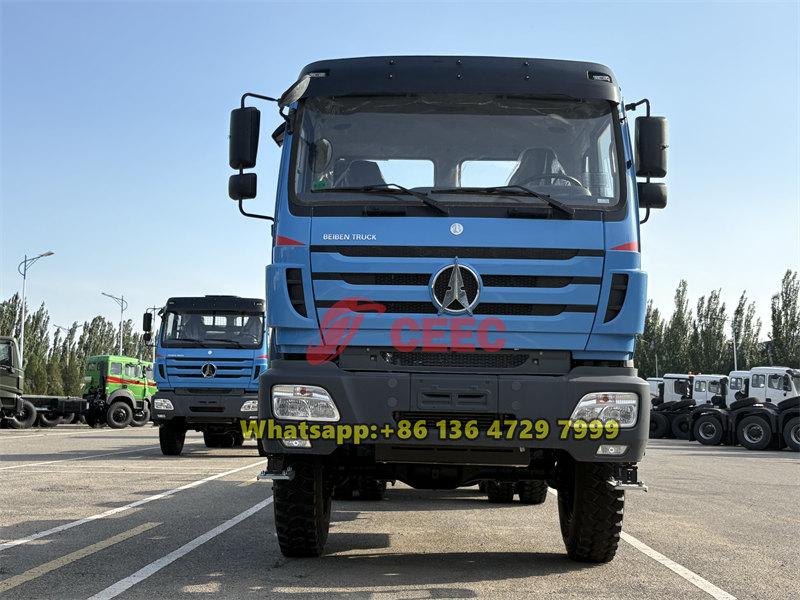

The Beiben 2642 6×6 chassis is a high-performance off-road chassis built on military technology, designed for extreme terrains and heavy-duty missions. It features a full-time six-wheel drive system, a high-strength frame, and an optimized suspension structure, ensuring stable traversability in challenging conditions such as mud, sand, and rocky terrain.
Working capcity:
25 tonsCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
9500X2500X3300Drive system:
6×6Wheelbase (mm):
4450+1450Engine power / Model:
420 HP/WP12.420E32Gear Box:
12JS200TA, FAST 12-speedRemark:
8×8 drive is optionalProduct Description
The Beiben 2642 6×6 chassis is a high-performance all-wheel-drive cargo chassis specifically engineered for extreme off-road operations, renowned for its exceptional mobility, reliability, and load-bearing capacity. The vehicle adopts a 6-wheel-drive configuration, powered by a Weichai 420HP diesel engine paired with a FAST 12-speed manual transmission, delivering robust power output in complex terrains. The high-strength frame design enhances overall rigidity and durability, making it suitable for heavy-duty tasks. Equipped with a high-performance suspension system, it ensures comfort and stability in rough terrains. Whether navigating muddy paths, sandy deserts, or rocky landscapes, the Beiben 6×6 heavy-duty chassis provides stable performance.
Product Specifications
|
Wheelbase(mm) |
4450+1450 |
|
|
L*W*H |
9500X2500X3300 |
|
|
Gross vehicle weight(kg) |
25000 |
|
|
Approach angle/Departure angle(°) |
26/20 |
|
|
Max Speed (Km/h) |
≤85 |
|
|
Engine |
Model |
WP12.420E32 |
|
Engine type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Power (r/min) |
309Kw(420HP) |
|
|
Rated speed |
2100 rpm |
|
|
Emission standard |
EURO 3 |
|
|
Maximum Torque (r/min) |
1750Nm |
|
|
Speed at max. torque |
1200-1500 rpm |
|
|
Displacement(ml) |
11.596 |
|
|
Fuel tanker capacity(L) |
400L Iron |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 8 ton driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R24, radial tire, 10+1 pcs |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B left hand drive |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
|
Other specifications |
Two-stage air filter, 76°Tropical thermostat. |
|
|
Upper body |
Cargo box size 7000×2500×1500mm (reference) |
|
Product Applications
The Beiben 2642 6×6 off-road cargo chassis is a versatile platform designed for specialized operations, offering outstanding adaptability for modifications.
1. Military Applications: The Beiben 6WD chassis can be modified into troop carriers, military logistics vehicles, and field command vehicles. Its all-wheel-drive system and reinforced chassis design meet the mobility deployment requirements in complex battlefield terrains, ensuring rapid response capabilities for military forces.
2. Emergency Rescue: This chassis is particularly suitable for conversion into large fire trucks, disaster relief vehicles, and emergency communication vehicles. Its high mobility and stability enable quick deployment at disaster sites, making it a critical asset for emergency operations.
3. Engineering Applications: As a reliable carrier for heavy-duty dump trucks, concrete pump trucks, and truck-mounted cranes, its high load-bearing capacity and powerful performance make it ideal for demanding construction tasks, significantly improving operational efficiency.
4. Municipal and Sanitation Services: The Beiben 6×6 chassis is widely used in modifications such as water trucks, garbage compactor trucks, and vacuum tank trucks. Its modular design allows flexible adaptation to various superstructure requirements, meeting the high-efficiency demands of urban sanitation operations.
