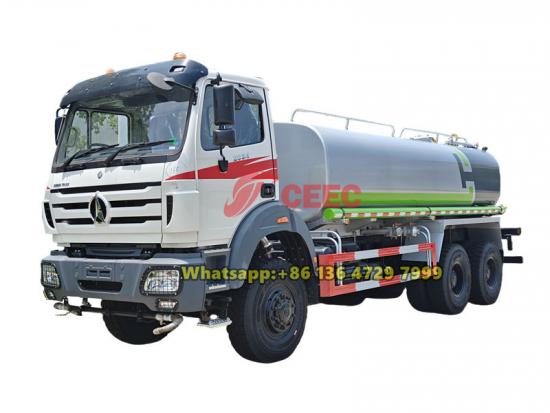

Beiben 6×6 all-wheel-drive water tanker is a versatile specialized vehicle built on a Beiben 6×6 off-road chassis. It is equipped with a Weichai WP10.340E32 engine, paired with a FAST 9-speed manual transmission and hydraulic power steering system. With a gross vehicle weight of 26 tons, it is designed for working in complex terrains. Its core structure includes a 20-cubic-meter carbon steel water tank, an 80QZF-60/90N water pump, and a comprehensive spraying system featuring front, rear, and side sprinklers, a high-pressure water gun, and a DN500mm maintenance manhole, making it suitable for firefighting, dust suppression, greening, and other multi-scenario applications.
Working capcity:
20000LCabin type:
Beiben NG80 short cabinDimension ( mm ) :
9250×2550×3250Drive system:
6×6Wheelbase (mm):
4350+1450Engine power / Model:
340 HP/WP10.340E32Gear Box:
9JS150ARemark:
6×4, LHD, stainless steel tank is optionalProduct Description

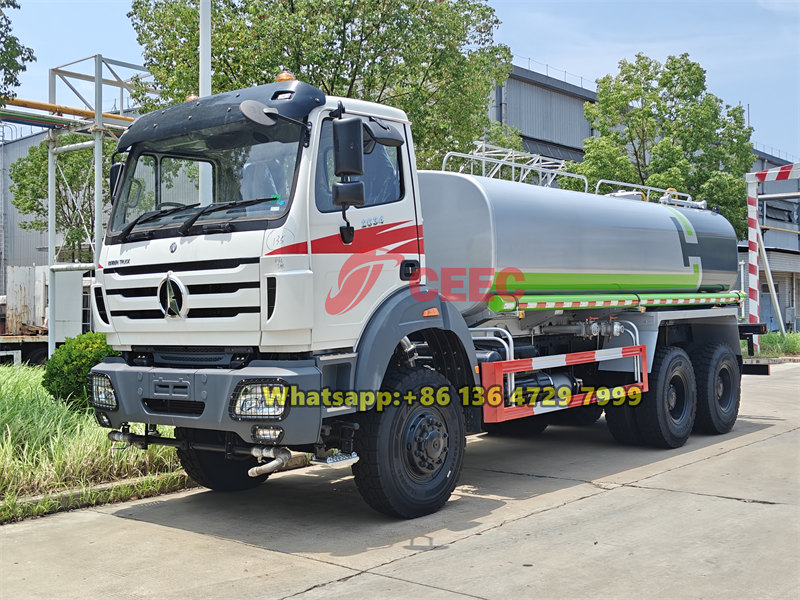

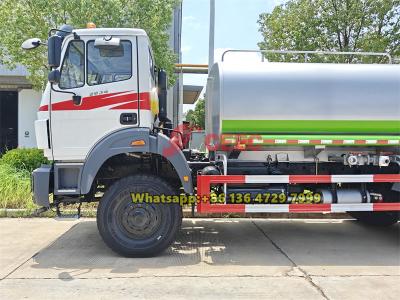

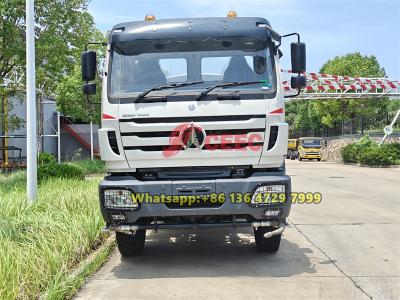

Beiben 6×6 all-wheel-drive water tanker is a professional multi-purpose vehicle built on the Beiben NG80 RHD chassis, featuring an air-conditioned cab. The overall dimensions are 9250×2550×3250mm, with a wheelbase of 4350+1450mm. Its 6×6 all-wheel-drive configuration ensures exceptional off-road performance and load capacity. Powered by a Weichai WP10.340E32 diesel engine delivering 340HP, it is paired with a robust FAST 9JS150A 9-speed manual transmission for reliable power delivery. The chassis features high ground clearance and reinforced suspension, along with 12.00R24 tires, making it suitable for heavy-duty operations in challenging terrains.

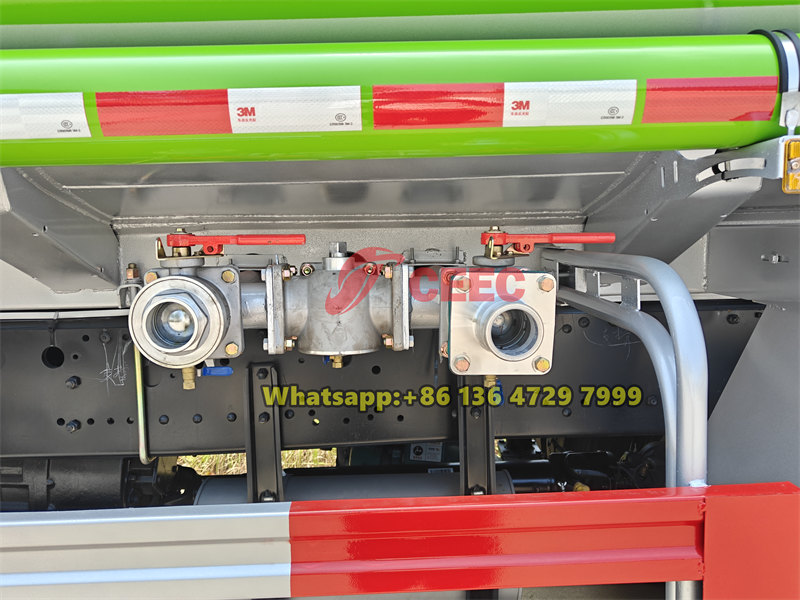

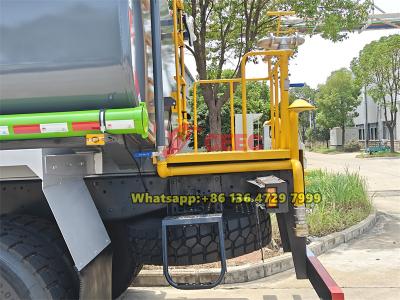

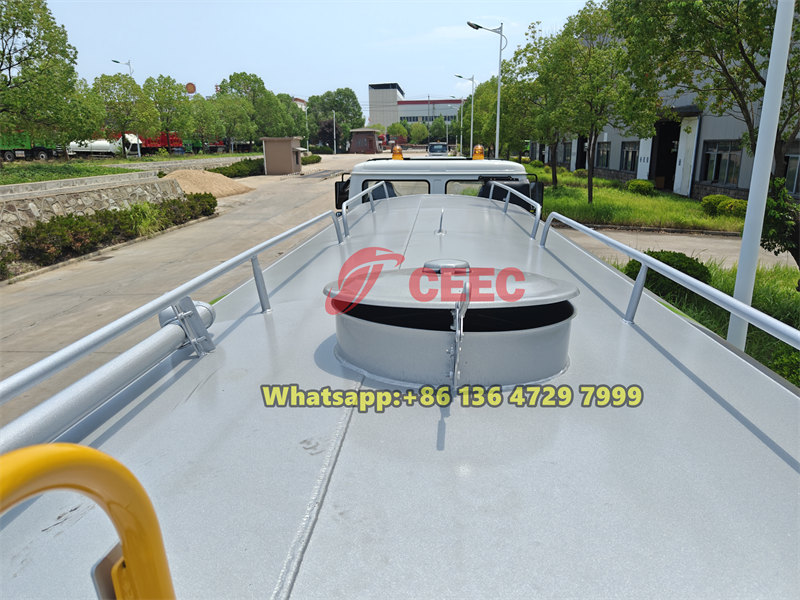

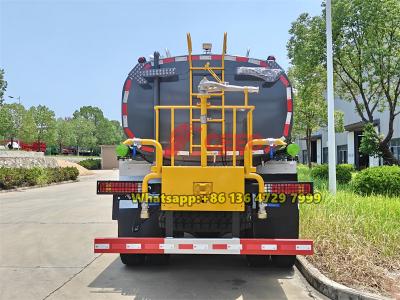

The superstructure of the Beiben 6×6 water bowser consists of a 20,000-liter water tank and an 80QZF-60/90N high-performance water pump, providing a flow rate of 60m³/h and a delivery head of 90m, with self-priming capability. The vehicle integrates front, rear, and side spray systems, a high-pressure water gun at the rear platform, and two hose reels on each side. A DN500mm manhole on the tank facilitates maintenance. Its advantages include superior off-road mobility due to the all-wheel-drive chassis, high-efficiency water supply for firefighting and sanitation tasks, and a versatile spraying system for diverse operational needs, making it an ideal choice for mining, firefighting, and municipal applications.
Product Specifications
|
Cabin |
Beiben NG80 short cab, with A/C |
|
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm |
9250×2550×3250 |
|
Wheel base (mm) |
4350+1450 |
|
|
Wheel track (front/rear) (mm) |
1960/1855,1855 |
|
|
Weight in KGS |
Gross Vehicle Weight |
26000 |
|
Curb Weight |
12500 |
|
|
Front axles loading capacity |
7000 |
|
|
Rear axles loading capacity |
13000 of 2 axle combined |
|
|
Max. driving speed(km/h) |
|
|
|
Engine |
Brand |
Weichai Engine |
|
Model |
WP10.340E32 |
|
|
Max.torque/speed(N.m/rpm) |
1250N.m/1400-1600rpm |
|
|
Type |
4-stroke direct injection, 6 cylinders in-line, water cooling, turbo-charging and inter-cooling, diesel engine |
|
|
Power |
340HP/250KW |
|
|
Rated speed (rpm) |
2200 rpm |
|
|
Displacement (L) |
9.726 L |
|
|
Emission standard |
Euro 3 |
|
|
Gearbox |
Manual operation, FAST brand 9JS150A, 9 speed forward and 1 reverse gear |
|
|
Steering |
Hydraulic steering with power assistance. RHD |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Tire |
12.00R24 tire, total 10 tires and 1 spare tire |
|
|
Superstructure Specifications |
||
|
Water tank |
20000liters |
|
|
Water tanker material |
High quality carbon steel (Q235) |
|
|
Description |
with water pump |
|
|
Manhole |
1 unit DN500mm manhole |
|
|
Hose |
2 pcs hose at each side of the truck |
|
|
Water pump |
Water pump model: 80QZF-60/90N (N/S) |
|
