Beiben 6X6 off road V3 truck chassis is widely used for heavy duty cargo transportation, with WP12.430E6 diesel engine, beiben V3 off road truck have strong power output when it is used into desert road, forest land and military emergency rescue. In CEEC trucks factory, beiben 6x6 drive truck can be customized into fuel tanker truck, water tanker truck and dump truck, cargo truck, to satisfied with different kinds of customer's requirement.
Working capcity:
30 tonsCabin type:
Beiben V3 cabin, with sleeper bedDimension ( mm ) :
9700 x 2500 x 3300Drive system:
6×6Wheelbase (mm):
4450+1450Engine power / Model:
430 HP / WP13.430E6Gear Box:
12JS200TA, FAST 12-speedRemark:
12.00R24Beiben V3 6x6 truck chassis is designed for heavy duty off road good transport. With mercedes benz technology V3 cabin, beiben 2643 off road truck has great advantage on heavy duty paylong, forest timber transport, desert delivey. Beiben 6x6 off road heavy duty truck combined with WP12.430E6 diesel engine, fast12JS200T transmission and benz front axle and double rear axle. In general ,beiben 6x6 off road truck can be customized into different kinds of special trucks, which is widely used in military department, wildland oil field area, forest rainy road, africa desert situation.
CEEC factory is No 1 supplier on beiben 6x6 off road trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
1. Super strong engine : WEICHAI WP12.430E6 engine + 9-speed gearbox, excellent fuel economy.
2. 6x6 off road drive system: 100% suitable for forest, sand, military using.
3. Mercedes benz technology axle: Benz front axle and rear axle, with wheel differencial. Ratio 4.7 , 5,93
Product Specifications
|
Wheelbase(mm) |
4450+1450 |
|
|
L*W*H |
9500X2500X3300 |
|
|
Gross vehicle weight(kg) |
25000 |
|
|
Approach angle/Departure angle(°) |
26/20 |
|
|
Max Speed (Km/h) |
≤85 |
|
|
Engine |
Model |
WP13.430E5 |
|
Engine type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Power (r/min) |
319Kw(430HP) |
|
|
Rated speed |
2100 rpm |
|
|
Emission standard |
EURO 6 |
|
|
Maximum Torque (r/min) |
1750Nm |
|
|
Speed at max. torque |
1200-1500 rpm |
|
|
Displacement(ml) |
11.596 |
|
|
Fuel tanker capacity(L) |
400L Iron |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 8 ton driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R24, radial tire, 10+1 pcs |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B left hand drive |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
|
Other specifications |
Two-stage air filter, 76°Tropical thermostat. |
|
|
Upper body |
Cargo box size 7000×2500×1500mm (reference) |
|
Beiben V3 cabin 6x6 drive truck is a versatile heavy-duty vehicle designed to excel in challenging conditions. Its major applications can be outlined as follows:

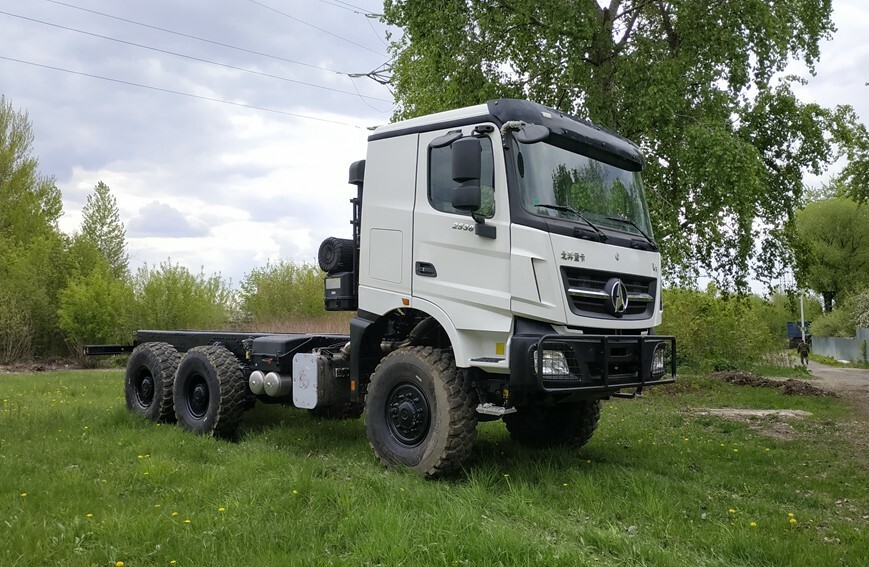

Beiben 6x6 all wheel drive truck chassis
Product Advantages
Beiben V3 cabin 6x6 drive truck is a heavy-duty, all-wheel-drive vehicle manufactured by Beiben (North Benz), a Chinese truck company. Here’s a breakdown of its usage and features:

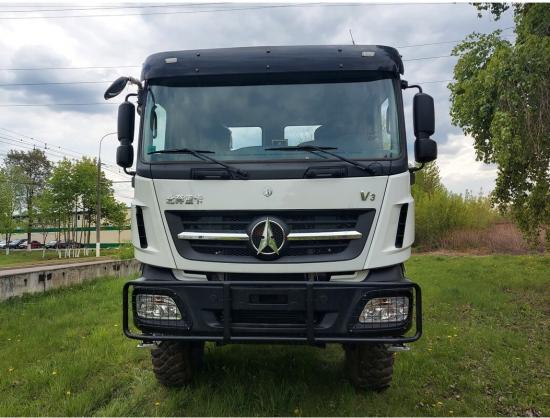

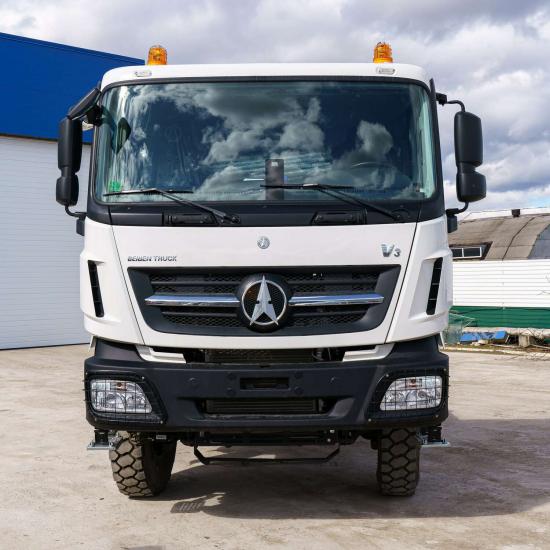

beiben 6x6 drive truck with V3 cabin

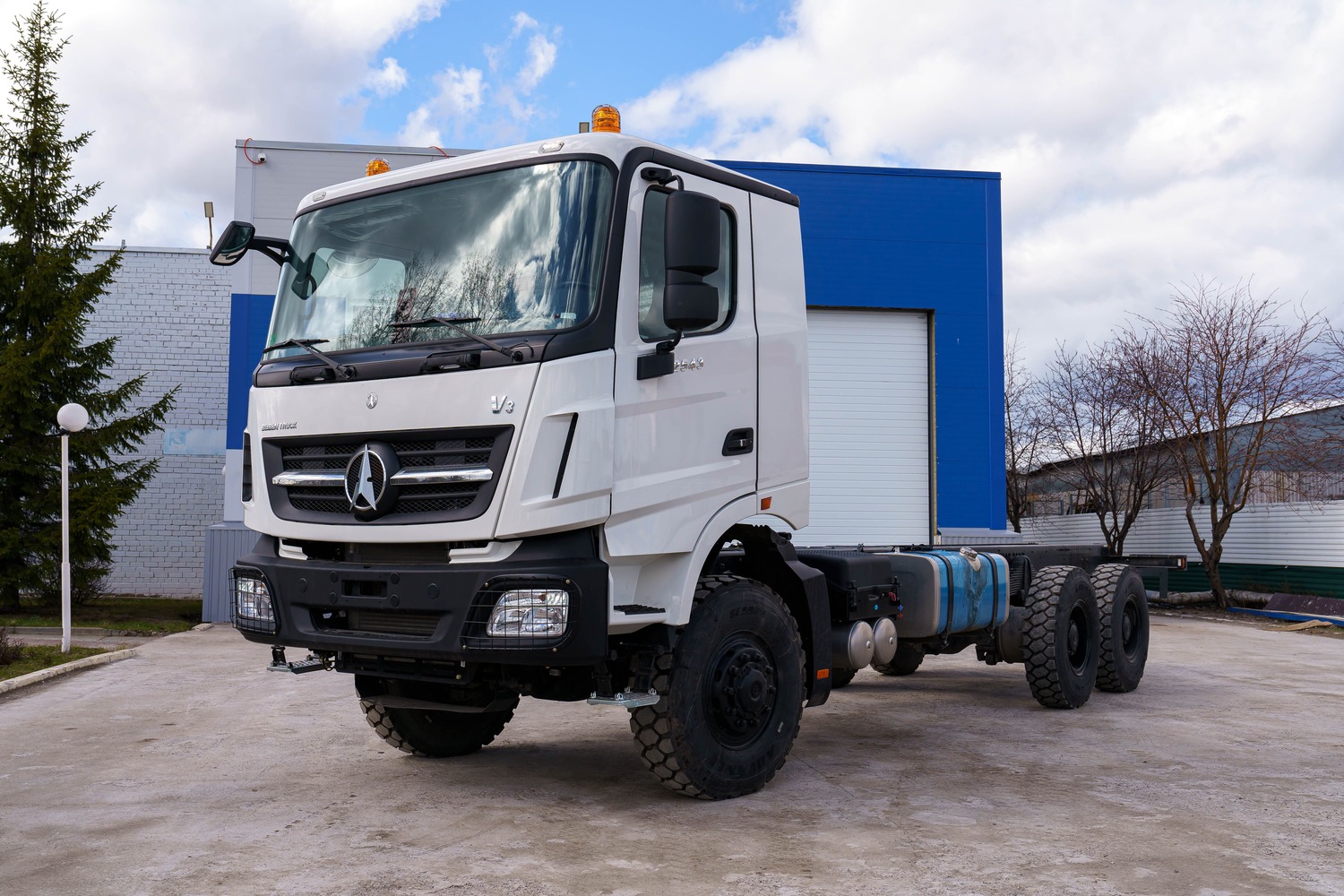

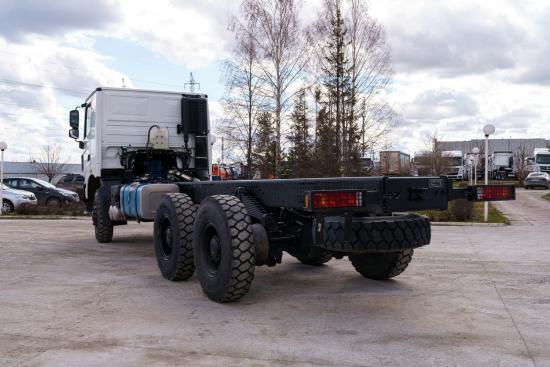

Beiben 6x6 cargo truck with V3 cabin

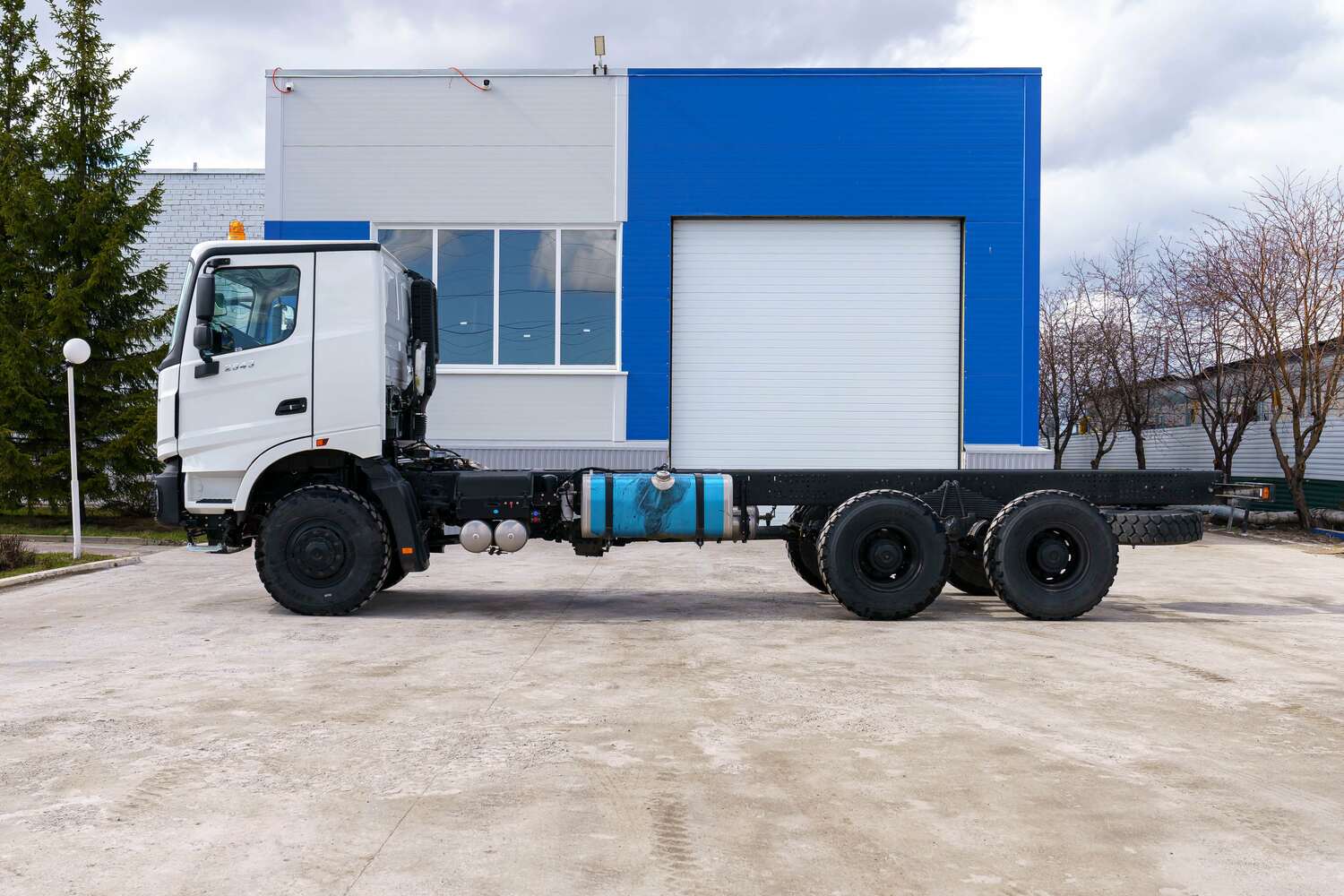

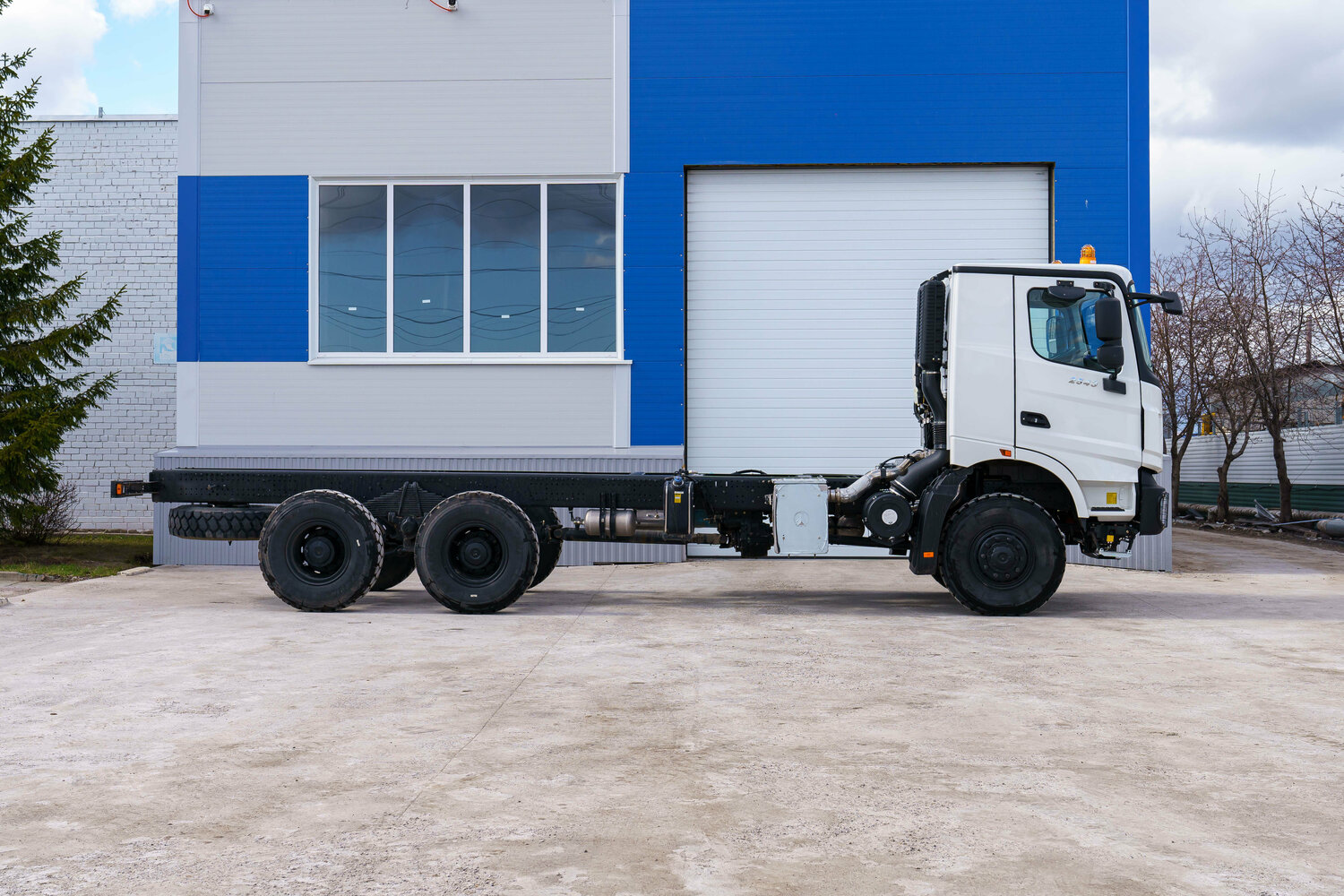

Beiben 6x6 drive long cargo truck chassis

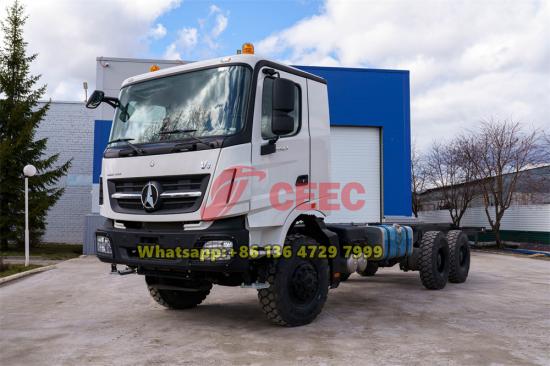

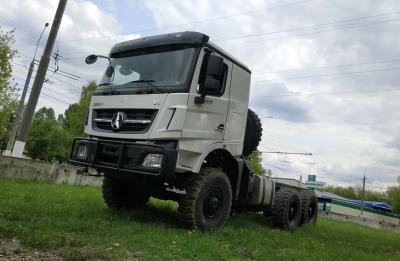

Beiben 2643 cargo truck with 6x6 drive

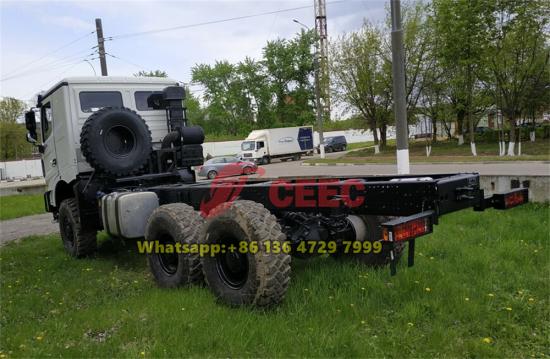

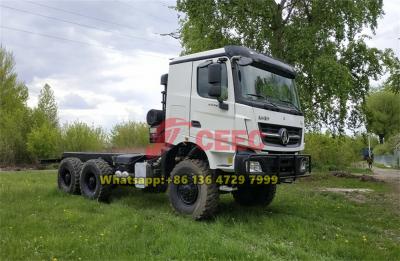

Beiben 2643 cargo truck with off road system
Super comfortable interior for beiben V3 truck cabin

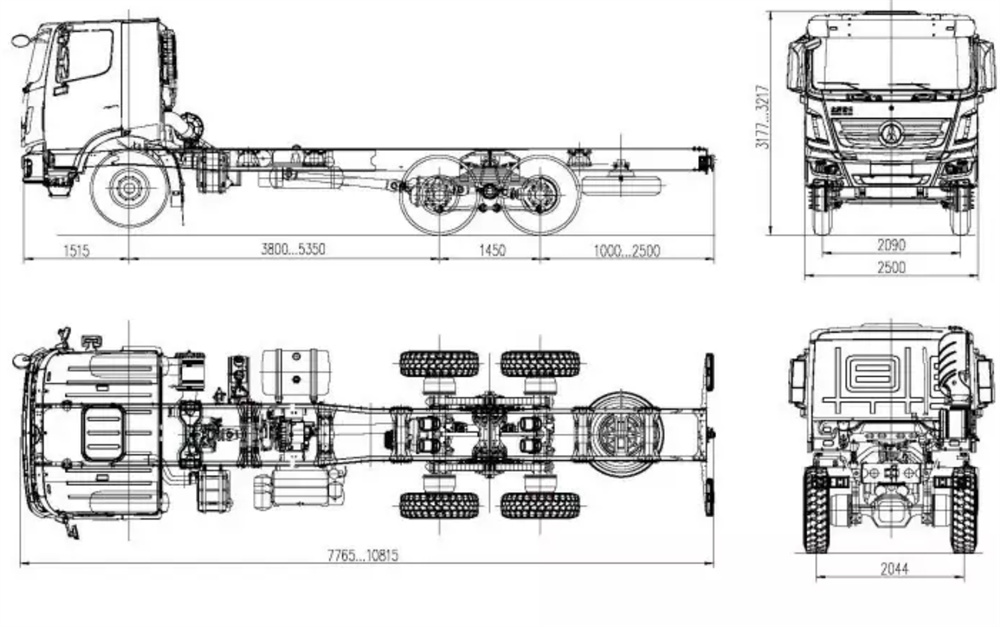

Beiben V3 cargo truck drawing
