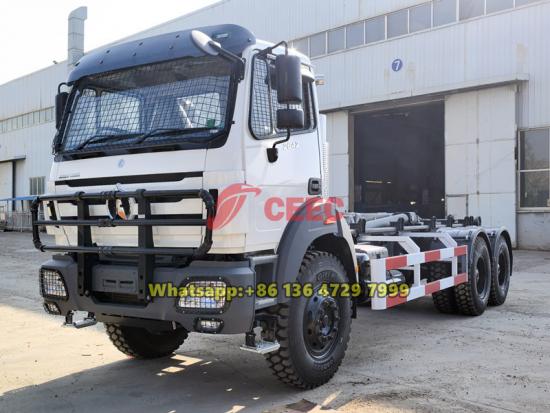

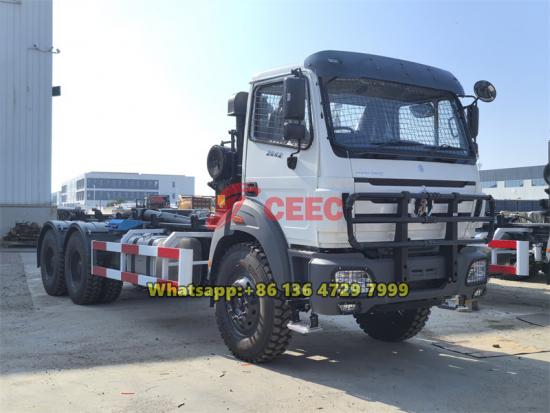

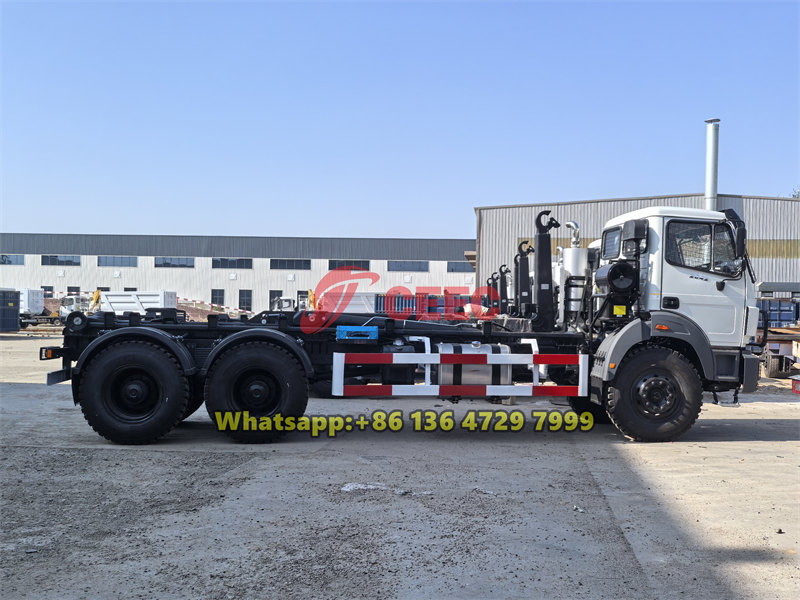

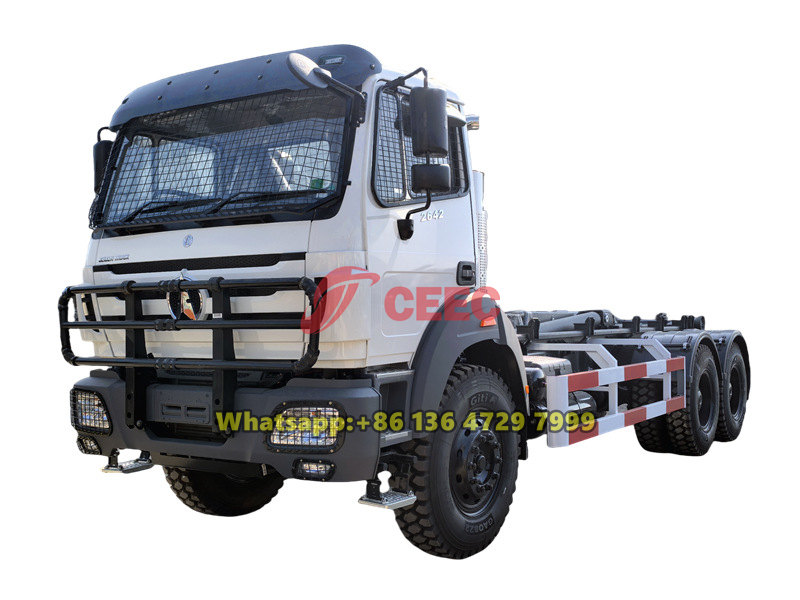

Beiben 6×6 hook-arm garbage truck is a high-performance specialized sanitation vehicle. Built on the Beiben heavy-duty truck chassis, it features a 6×6 all-wheel drive system and right-hand drive configuration. Equipped with a high-power Weichai engine and a 20-ton hydraulic hook-arm system, it enables rapid loading, unloading, and transportation of standard 20-cubic-meter garbage containers. With its powerful performance and exceptional load-bearing capacity, this truck is suitable for municipal services, mining areas, and regions with complex road conditions, making it an ideal solution for efficient garbage collection and transportation.
Working capcity:
20 tonsCabin type:

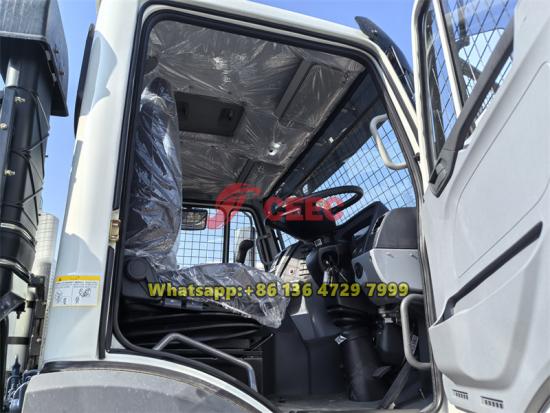

NG80B short cabinDimension ( mm ) :
9800×2550×340Drive system:
6×6Wheelbase (mm):
4300+1350Engine power / Model:
420HP/WP12.420E32Gear Box:
9JS180Remark:
12.00R24, 14.00R20 tyre, RHD driveBeiben 6×6 hook lift garbage truck is a specialized sanitation vehicle built on a Beiben heavy-duty chassis. It adopts a 6×6 all-wheel drive system, delivering outstanding load-bearing capacity and excellent performance in complex road conditions. Powered by a Weichai WP12.420E32 engine with a maximum output of 420 horsepower, it complies with Euro III emission standards. The truck is equipped with a 20-ton hydraulic hook-arm system and a 20-cubic-meter garbage container, enabling fully hydraulic-controlled rapid loading, unloading, and transportation of garbage bins, significantly improving operational efficiency.
Due to its powerful performance, highly reliable chassis, and all-wheel drive adaptability, the Beiben 6×6 off-road hook loader garbage truck is particularly suitable for various scenarios such as municipal sanitation, large-scale property management, mining areas, and construction sites. It excels especially in regions with poor road conditions or challenging environments (e.g., Africa and Southeast Asia), providing efficient and sealed garbage collection and transportation services.
CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
1. Powerful engine : Equipped with China top brand WEICHAI engine, with 340HP, 380HP, 420HP for option
2. Beiben 6×6 chassis: Built on Beiben 6×6 all-wheel drive chassis, load-bearing capacity and high reliability, suitable for bad road conditions
3. Mercedes benz technology axle: Benz 7 T front axle and 19 T rear axle, with wheel differencial. Ratio 4.7 , 5,93
4. High load capacity: With 20-ton hook-arm, suitable for lifting 20CBM garbage containers
» Ⅱ. Product Specifications:
|
Product Name |
Beiben 6×6 Hook Lift Garbage Truck |
|
Vehicle Model |
CEEC5255ZLB |
|
Chassis Brand |
Beiben |
|
Driving Type |
6*6, RHD |
|
Gross Weight |
26000kg |
|
Related Loading Mass |
13670kg |
|
Curb Weight |
11750kg |
|
Dimension |
9800*2550*3450mm |
|
Wheelbase |
4300+1350mm |
|
Front/Rear Axle Loading Capacity |
7000kg/19000kg |
|
Approach angle/Departure angle |
16°/22° |
|
Front/Rear track |
1995mm;1800mm/1800mm |
|
Tire |
12.00R24,10+1 PCS |
|
Max Speed |
90 (Km/h) |
|
Engine parameters: |
|
|
Brand |
WEICHAI |
|
Model |
WP12.420E32 |
|
Max. output power |
309 KW |
|
Horse Power |
420 HP |
|
Displacement |
11596 ml |
|
Emission Standard |
Euro 3 |
|
Max. torque |
1750 N.m |
|
Rated speed |
2100 rpm |
|
Speed at max. torque |
1200-1500rpm |
|
Hook lift system |
|
|
Lifting capacity |
20 tons |
|
Garbage container volume |
20 cubic meters |
|
Hydraulic system pressure |
30MPa |
|
Equipment weight |
2800Kg |
|
Control voltage |
24V |
|
Telescopic scope of hook arm |
1000mm |
|
Oil pump displacement |
84ml/r |
|
Hook height |
1570mm |
|
Distance from hook center to rear roller |
5275mm |
|
Rail width |
1060mm |
» Ⅲ. Product Advantages:

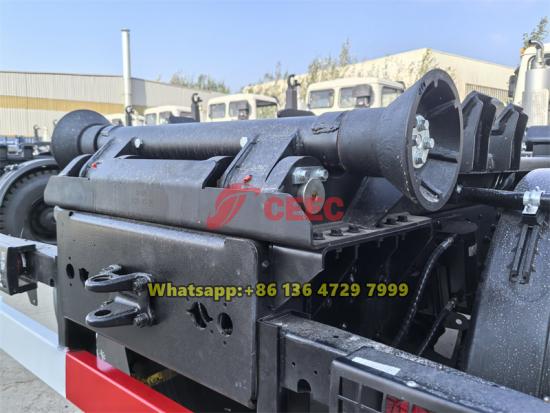

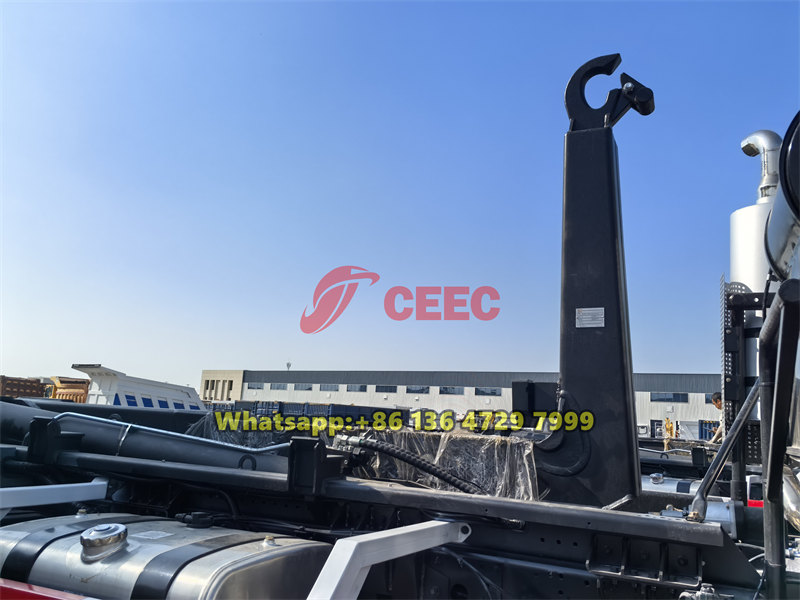

Hook arm
The main arm and hook are made of high-strength alloy steel with localized special treatment, providing strong load-bearing capacity and resistance to deformation. The arm lowering process is equipped with a sensing device for enhanced safety.

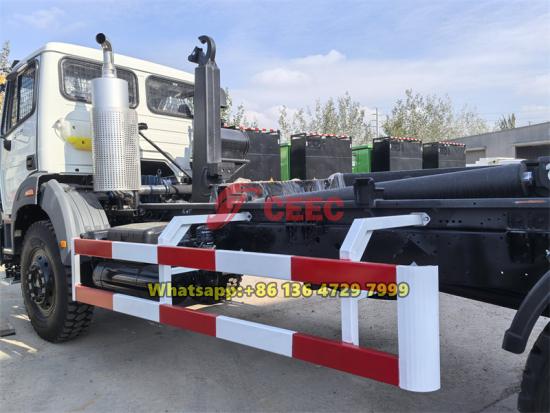

Cylinders
Equipped with well-known Chinese brand cylinders, which are reasonably matched and cost-effective. Key components employ imported sealing elements, ensuring stable performance and reliable quality. The dual-cylinder design delivers more powerful lifting and lowering force, while protecting the entire hydraulic system and hook arm for enhanced durability.
Pulleys
Both sides of the rear are equipped with a pulley made of high-strength steel. The rotating parts are lubricated with grease, providing effective assistance during the lifting and lowering of the garbage container.

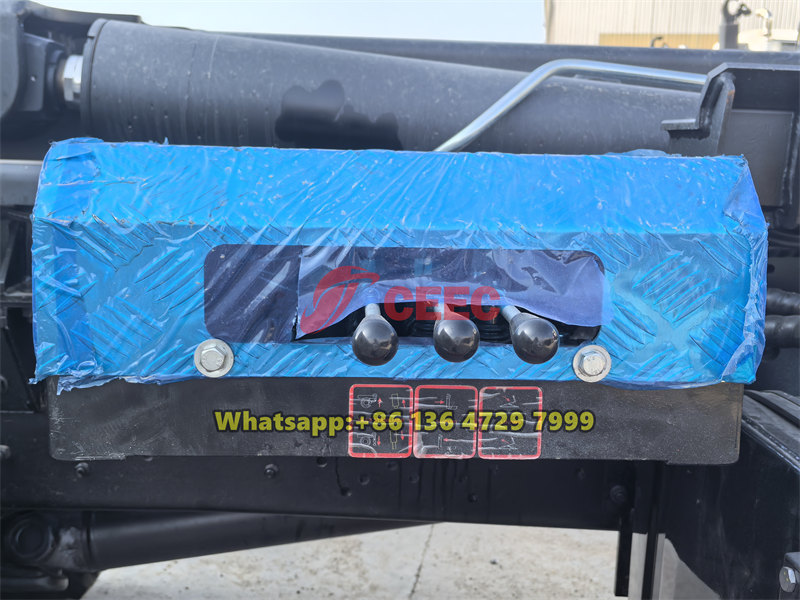

Control system
The hydraulic control system can be operated either electrically or manually, with one set of control buttons installed in the cab and another set installed at the side of the body.

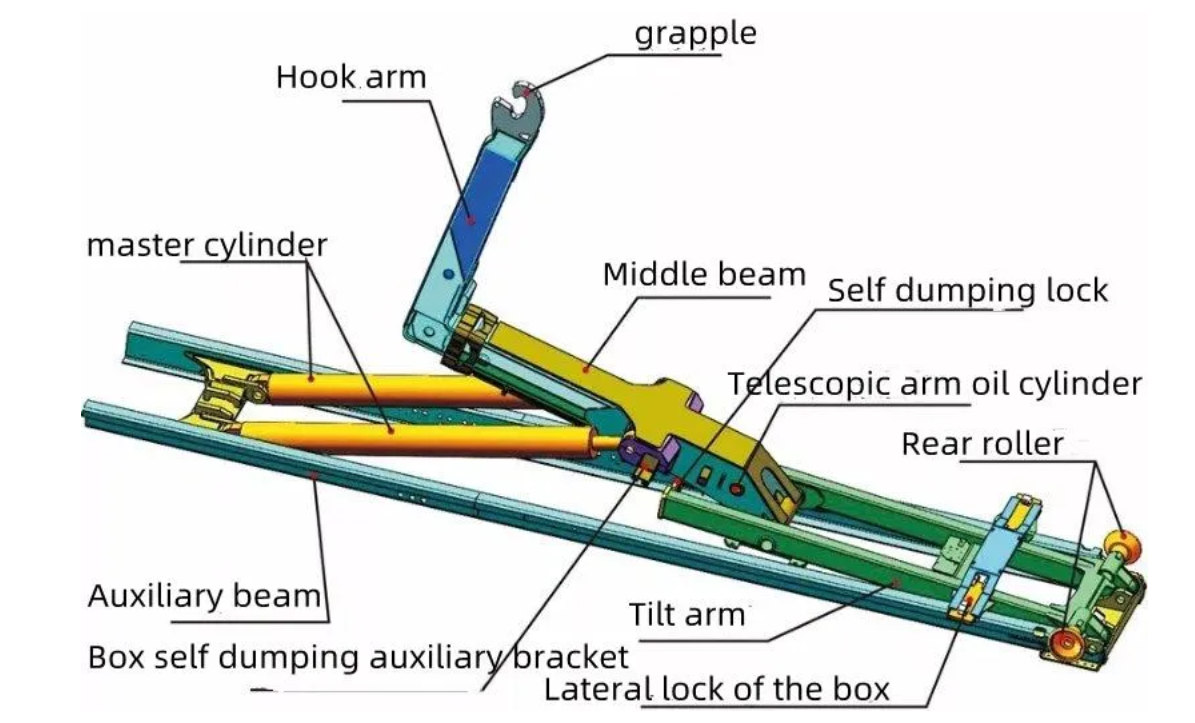

» Ⅳ. Product Structure:
