Beiben 6x6 drive mining dump truck is equipped with WEICHAI WP12.420E32 diesel engine, which can provide strong engine power during in the drive situation. Fast 12JS200T transmission is very reliable for difficult terrains and off-road applications. Its 6x6 off road system can challenge different kinds of bad road, such as forest, desert, rock terrain. The primary function of beiben 6x6 dumper is to transport sand, mining rock, logging material.
Working capcity:
40 tonsCabin type:
NG80B short cabinn, without sleeper bedDimension ( mm ) :
9860 x 2500 x 3300Drive system:
6×6Wheelbase (mm):
3800+1450Engine power / Model:
420 HP / WP12.420E32Gear Box:
12JS200T, FAST 12-speedRemark:
V3 cabin availableBeiben 6x6 drive mining dump truck is full time all-wheel-drive heavy dump truck, which is specially designed for rough conditions and demanding worksite. The main usage of beiben 6x6 drive dump truck is to transport and unload bulk material in enviroments when rough terrain. Beiben 6x6 drive dump truck can used in mining operation, for example to payload ore, coal, muddy and steep mining landscapes.
Beiben 6x6 drive dumper truck is used in infrastucture projects and military defense logistics. Its WP12.420 diesel engine is suitable for oil gas and forestry , to haul heavy equipments and material over rugged terrain where regular beiben trucks can not operate. In some africa countries, beiben 6x6 drive dump trucks can transport heavy goods.
CEEC factory is 100% factory on beiben 6x6 dumper trucks,
guarantee all beiben 6x6, 8x8 drive trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
1. Super strong engine : WP12.420E32 engine , super suitable for africa countries
2. 6x6 off road drive system: challenge every tough road, forest, desert, muddy road, rocky terrain.
3. Benz NG80B cabin : Full steel cabin, mercedes benz blood heritage.
4, Benz truck frame: 100,000 km quality guarantee, your reliable parterner
» II . Technical specification :
|
Wheelbase(mm) |
3800+1450 |
|
|
L*W*H |
9800X2500X3300 |
|
|
Gross vehicle weight(kg) |
55000 |
|
|
Approach angle/Departure angle(°) |
26/20 |
|
|
Max Speed (Km/h) |
≤85 |
|
|
Engine |
Model |
WP12.420E32 |
|
Engine type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Power (r/min) |
305 Kw (420HP) |
|
|
Rated speed |
2200 rpm |
|
|
Emission standard |
EURO 3 |
|
|
Maximum Torque (r/min) |
1750Nm |
|
|
Speed at max. torque |
1200-1500 rpm |
|
|
Displacement(ml) |
11.926 |
|
|
Fuel tanker capacity(L) |
400L Iron |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 8 ton driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R24, radial tire, 10+1 pcs |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B left hand drive |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
|
Other specifications |
Two-stage air filter, 76°Tropical thermostat. |
|
|
Upper body |
(reference) |
|
» III.Technical drawing:

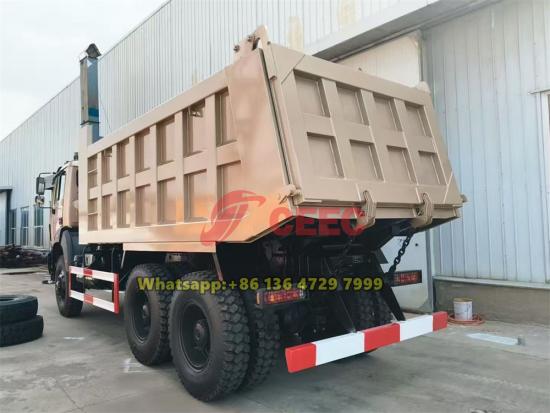

Beiben 6x6 drive mining dump truck is off road dump trucks designed for heavy-duty hauling tasks. beiben 6x6 off road dumping truck is best suited for extreme conditions. Main fields that require Beiben 6x6 drive tipper trucks include:
1. Heavy duty Mining Operations
Hauling 50 ton- 100 ton heavy equipment, machinery, ore, and other materials in mines, where access roads are rough, steep, and often muddy or rocky.
2. Military off road usage
Beiben 6x6 drive dump truck is Serving in military UN department, to transport agricuture rice, food, vegetable and construction building material, which is widely used for building military working site.
3. Forestry & Logging
Beiben 6x6 off road dump truck is Hauling felled logs, forestry machinery, and supply trailers into/out of poorly maintained forest roads, often in wet, slippery, or hilly conditions.
Beiben 6x6 all wheel drive truck chassis
» IV.Product details :

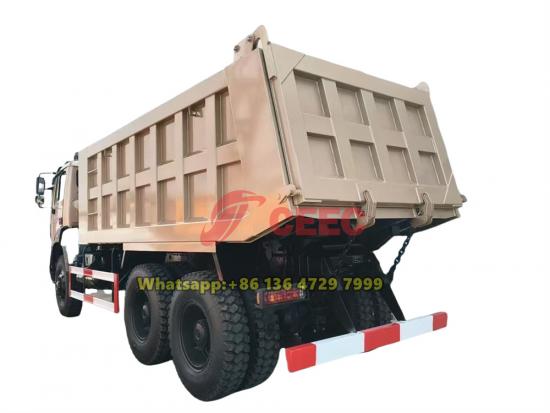

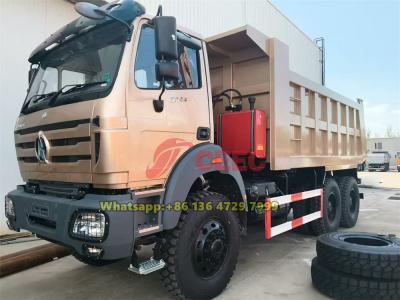

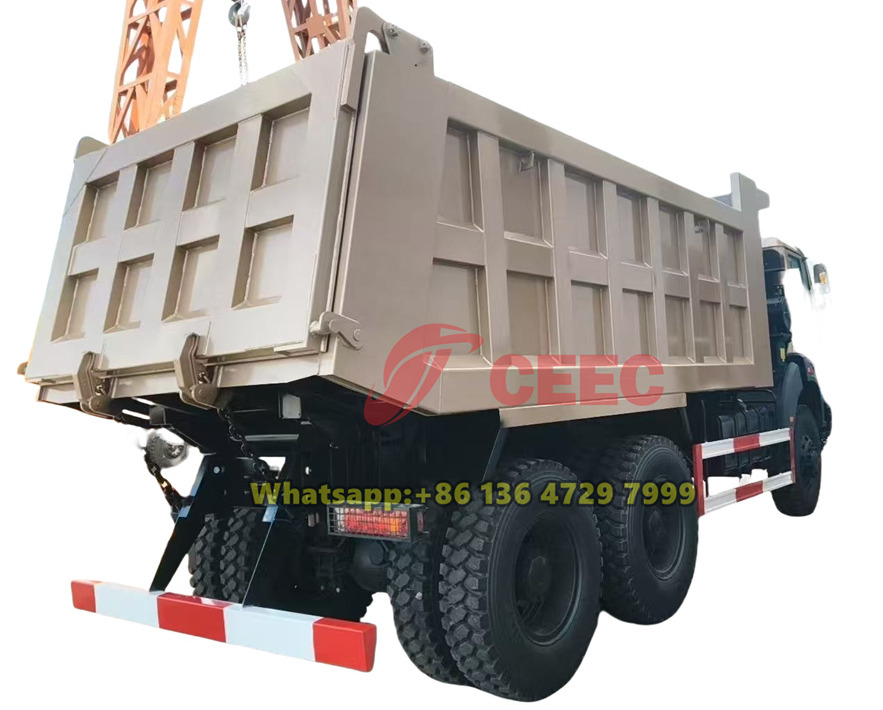

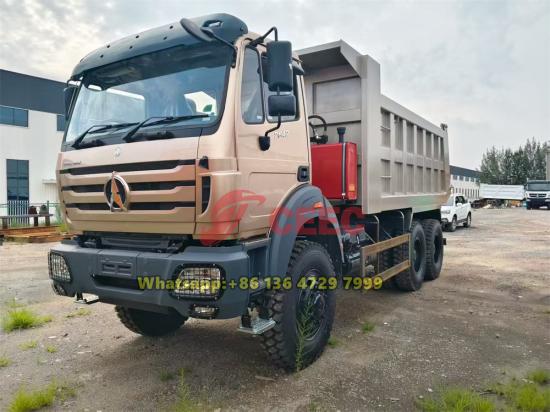

Beiben 6x6 drive dump truck is a heavy-duty dump trucks that used in tough road situation , forest road, desert road, :
beiben 6x6 drive off road truck chassis with 12.00R24 tyres

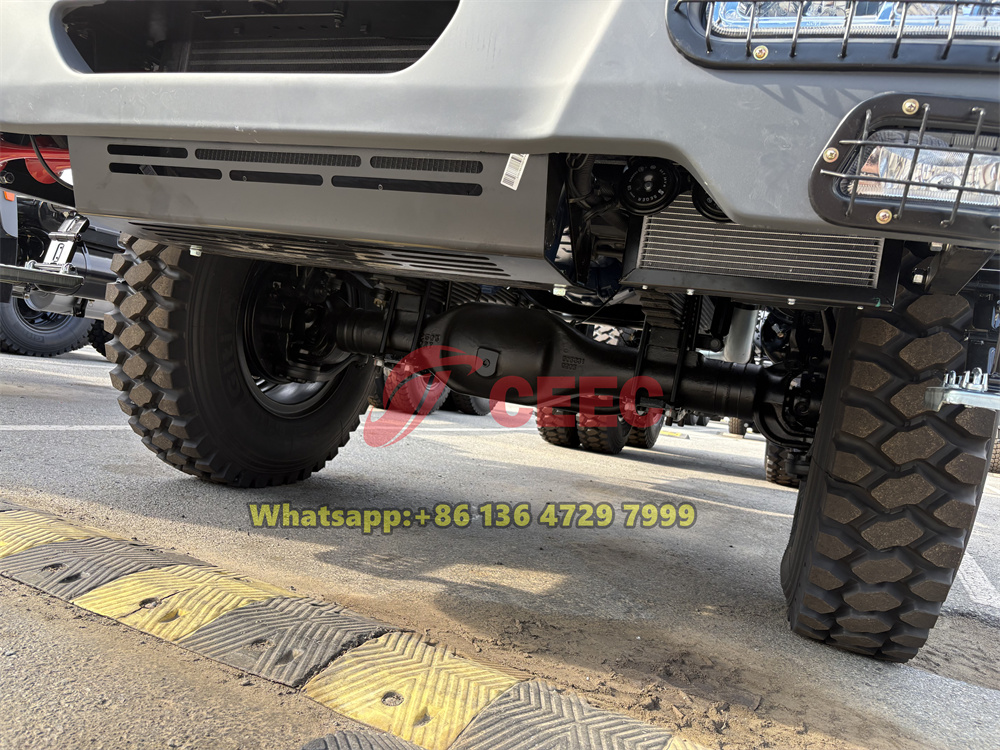

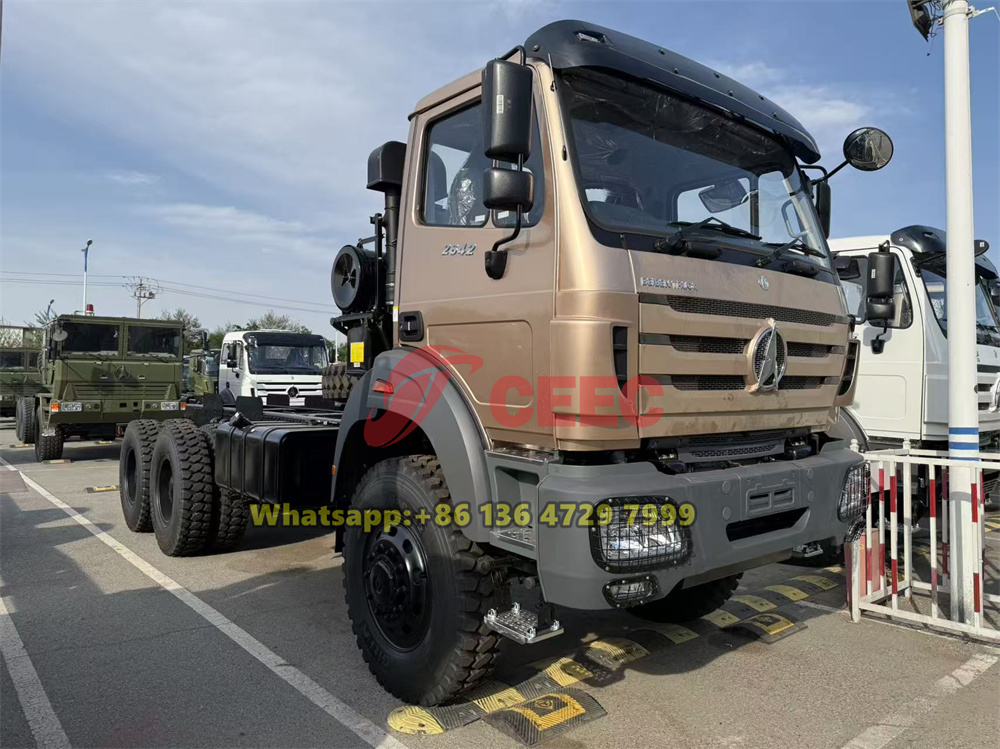

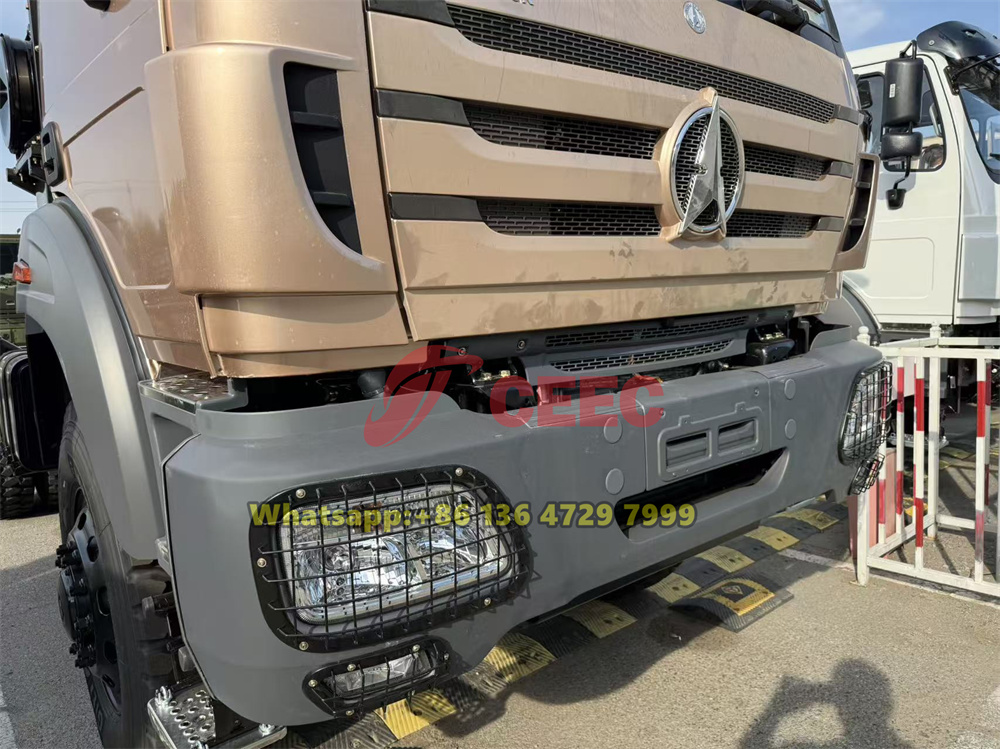

beiben 6x6 drive dump truck with front bumper

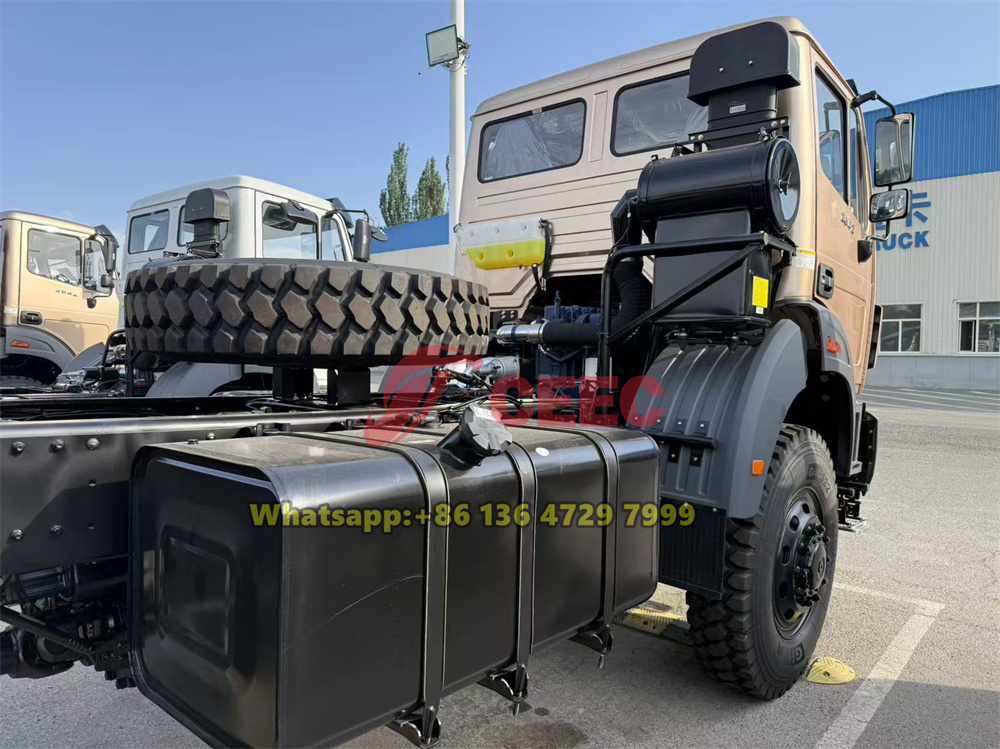

air filter system for beiben 6x6 off road dump truck

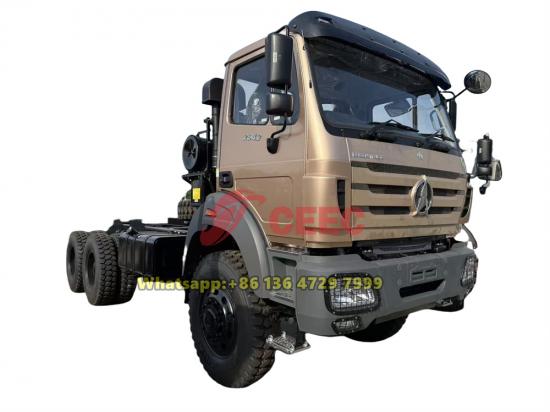

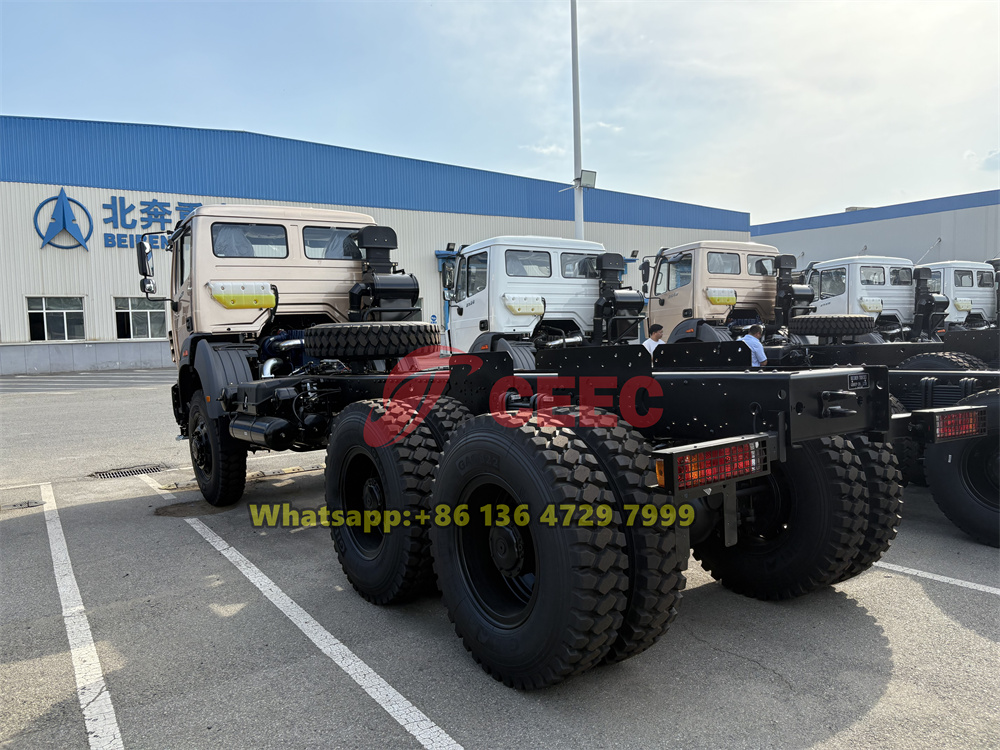

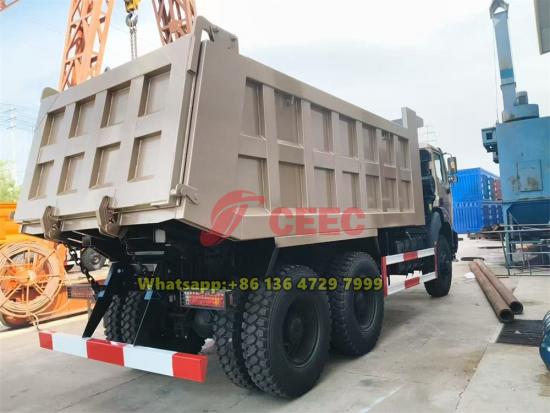

Beiben 6x6 drive dump truck chassis

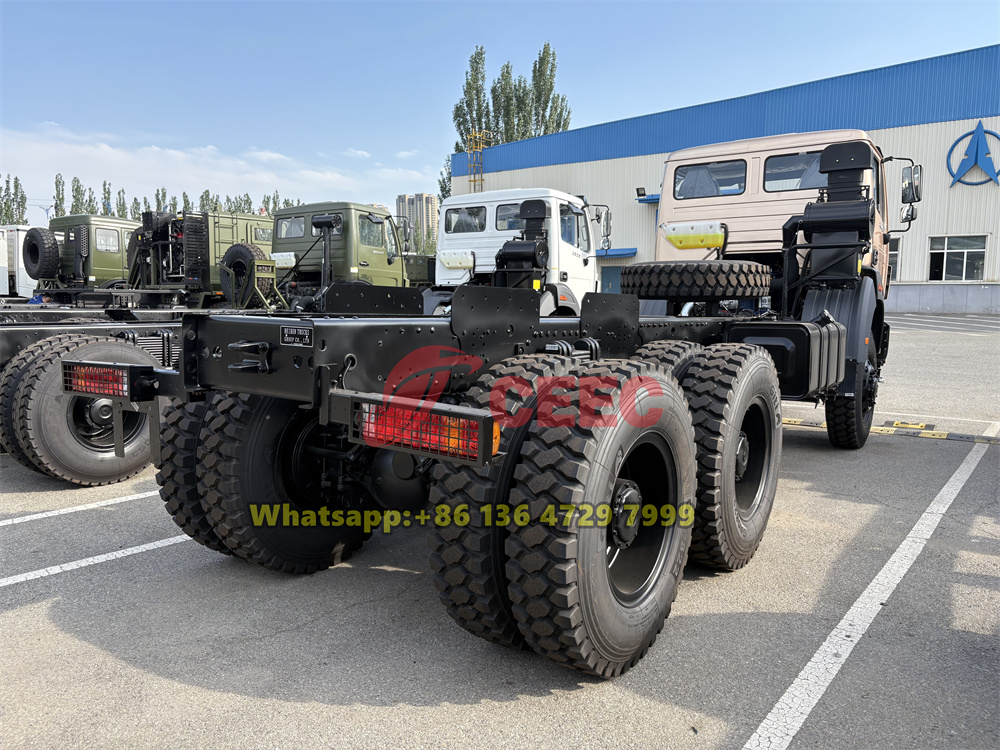

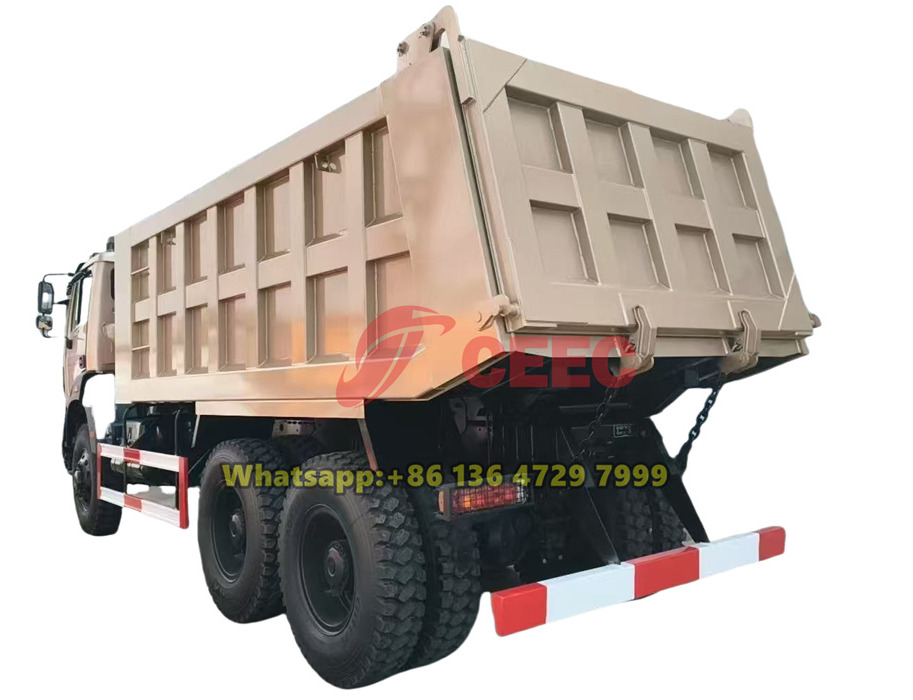

Beiben 6x6 off road heavy dump truck chassis

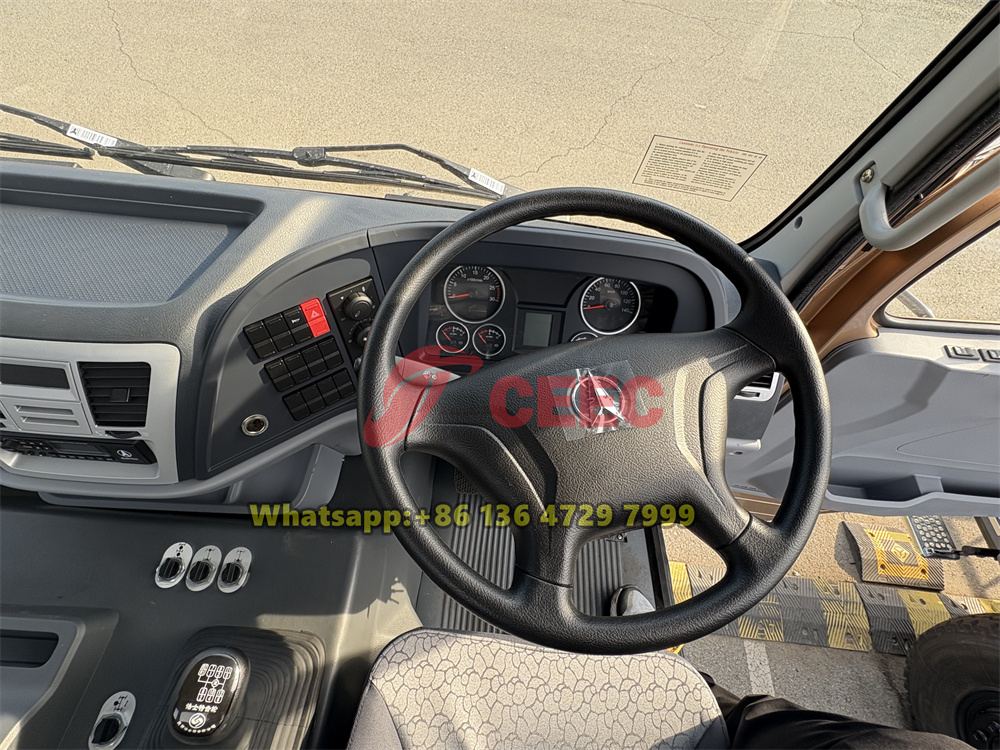

Right hand drive system for beiben 6x6 drive dump truck

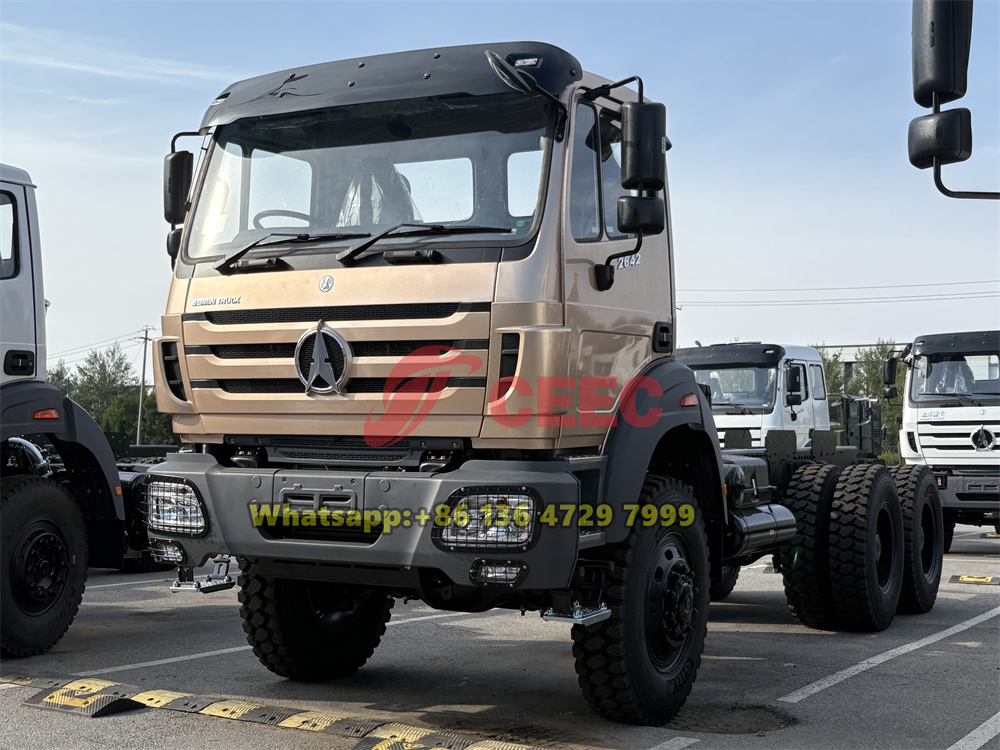

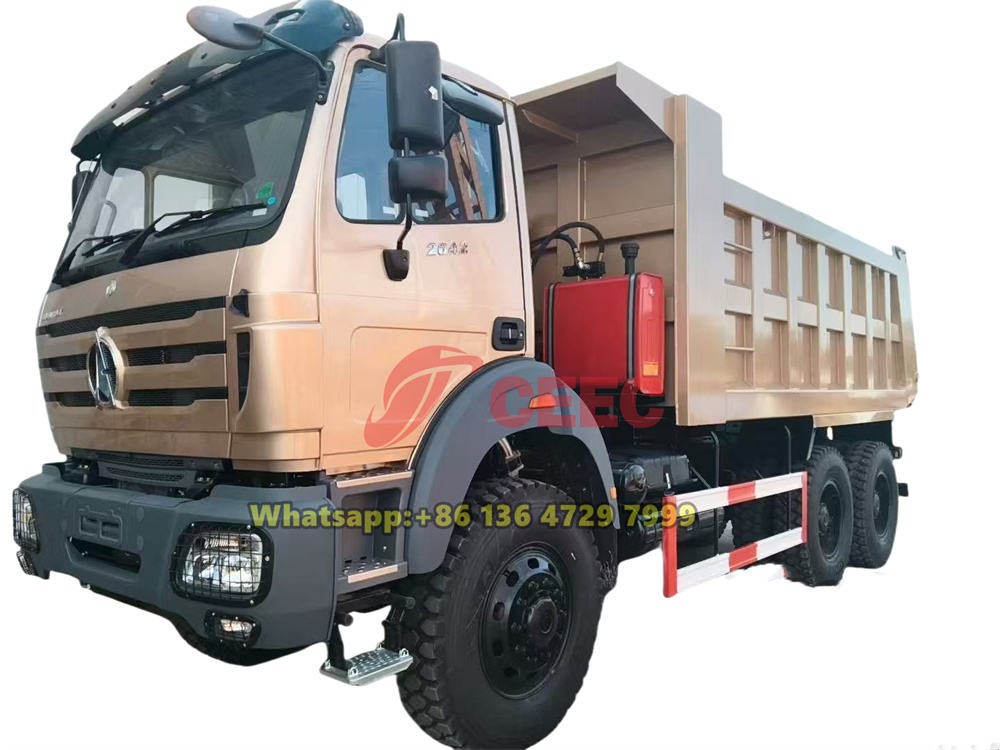

Beiben 6x6 drive off road system 2642 truck chassis

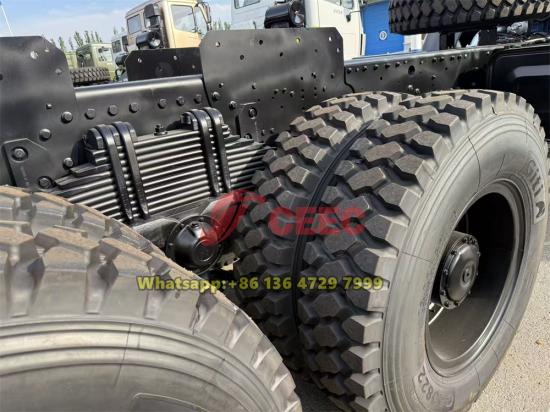

4 U-bolt suspension system for beiben 6x6 dump truck

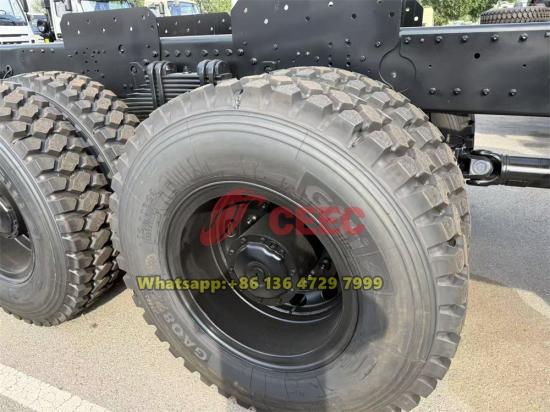

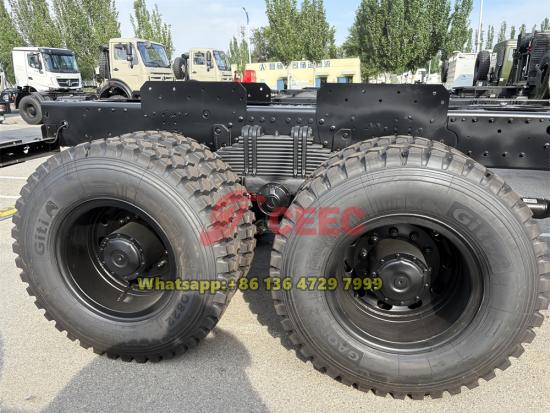

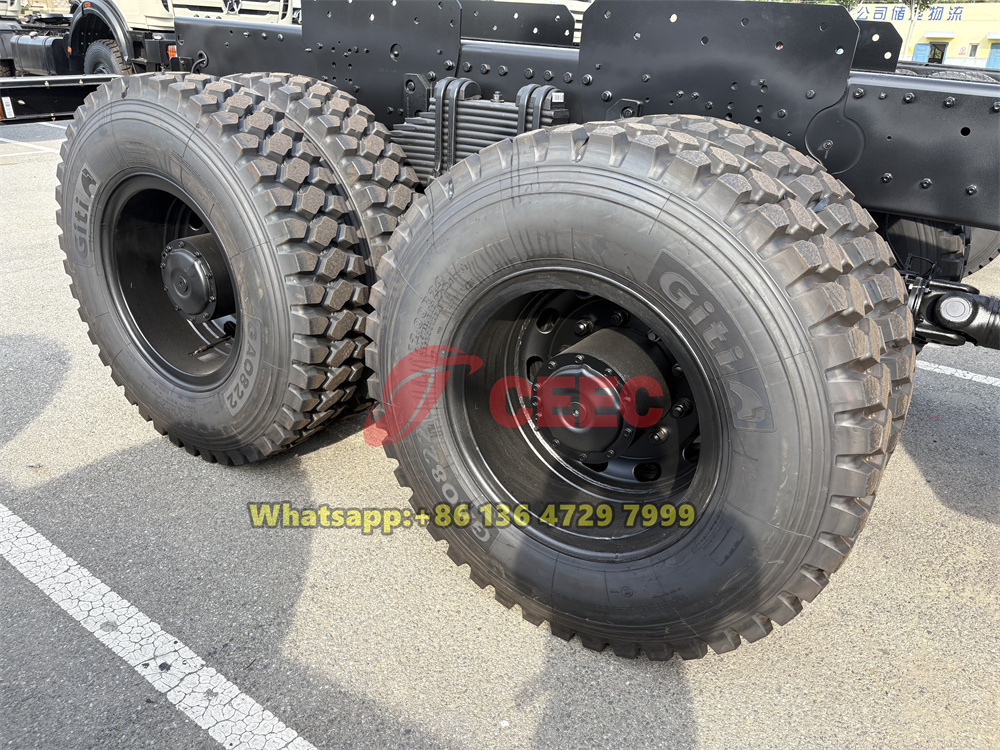

12.00R24 tyres for beiben 6x6 drive dump truck

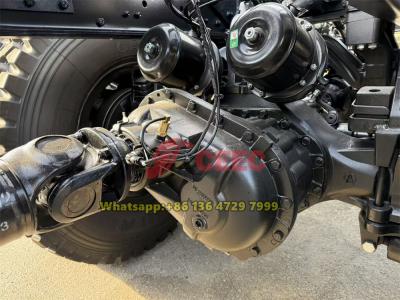

6x6 drive system, front axle
