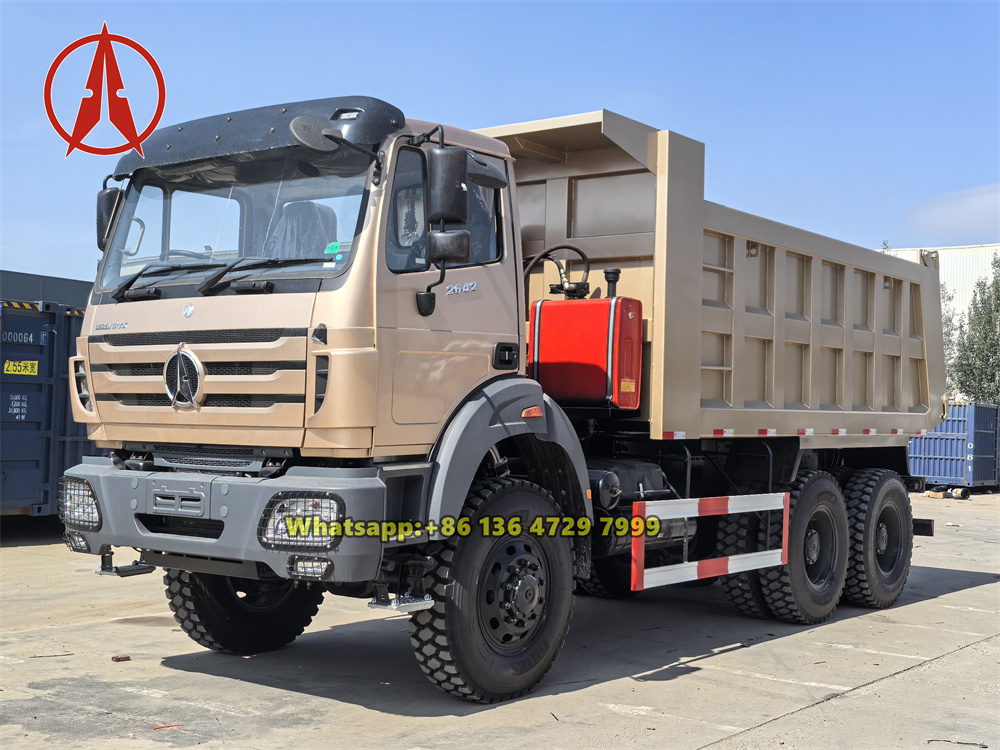

Beiben 2642 heavy duty dump truck mainly used in heavy duty operation for transporting, payloading and unloading bulk material in construction, minging , road construction projects. It withstands heavy loads and tough terrian, and efficiently for hauling large volumes earth. The beiben 2642 dump body can quickly unload materials.
Goods Stock:
1Working capcity:
50 tonCabin type:
NG80B short cabinn, with A/CDimension ( mm ) :
8850 x 2500 x 3460Drive system:
6×6Wheelbase (mm):
3800+1450Engine power / Model:
420 HP / WP12.420E32Gear Box:
12JS200T, FAST 12 shift forward + 2 reverseRemark:
12.00R24 tyresBeiben 6x6 drive off road dump truck is special articulated dump truck, which is equipped with WEICHAI WP12.420 6 cylinder euro 3 diesel engine, which output 420 hp strong horse power. In africa country, the road situation and weather situation is extremely tough, which require 6x6 drive off road system and strong engine to haul the whole truck. Beiben 6x6 drive articulated dump truck have great advantage on mercedes benz technology all wheel drive system, and NG80B benz technolgy cabin.
Beiben 6x6 drive rigid dump truck is widely applied in CONGO DRC , kinshasa, Congo brazzaville, Tanzania, kenya, zambia, south africa, zimbabuwe country. In terms of super reliable quality , and classic cabin performance, it gets great reputation in west africa, east africa and south afica.
CEEC factory is 20 years on beiben dump trucks,
guarantee all beiben 6x4,6x6, 8x4,8x8 drive Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
1. Strong engine power : Weichai 420 Hp engine, 200,000 Km with easy maintenance
2. 6x6 drive system: Military quality assurance, can challenge every road in africa
3. Benz NG80B cabin : Full steel cabin, mercedes benz blood heritage.
4, Benz truck frame: 100,000 km quality guarantee, your reliable parterner
» II . Technical specification :
|
Wheelbase(mm) |
3800+1450 |
|
|
L*W*H |
8600X2500X3300 mm |
|
|
Cargo box |
5600x2300x1500 mm |
|
|
Cargo box material |
Q345B high strength steel, China famous brand |
|
|
Thickness |
side 6 mm, bottom 8 mm |
|
|
Hydraulic cylinder |
China famous 180 front lift system, CEEC brand |
|
|
Gross vehicle weight(kg) |
55000 |
|
|
Approach angle/Departure angle(°) |
26/20 |
|
|
Max Speed (Km/h) |
≤85 |
|
|
Engine |
Model |
WP12.420E32 |
|
Engine type |
Water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Power (r/min) |
420 Hp (305 Kw) |
|
|
Rated speed |
2200 rpm |
|
|
Emission standard |
EURO 3 |
|
|
Maximum Torque (r/min) |
1750Nm |
|
|
Speed at max. torque |
1200-1500 rpm |
|
|
Displacement(ml) |
11.926 |
|
|
Fuel tanker capacity(L) |
400L Iron |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
ZF8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 8 ton driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R24, radial tire, 10+1 pcs |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B left hand drive |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
|
Other specifications |
Two-stage air filter, 76°Tropical thermostat. |
|
|
Upper body |
(reference) |
|
» III.Technical drawing:

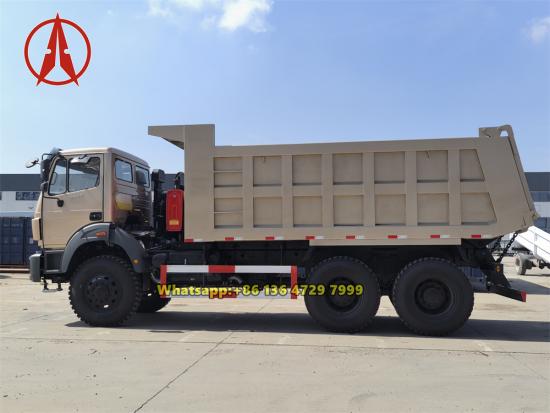

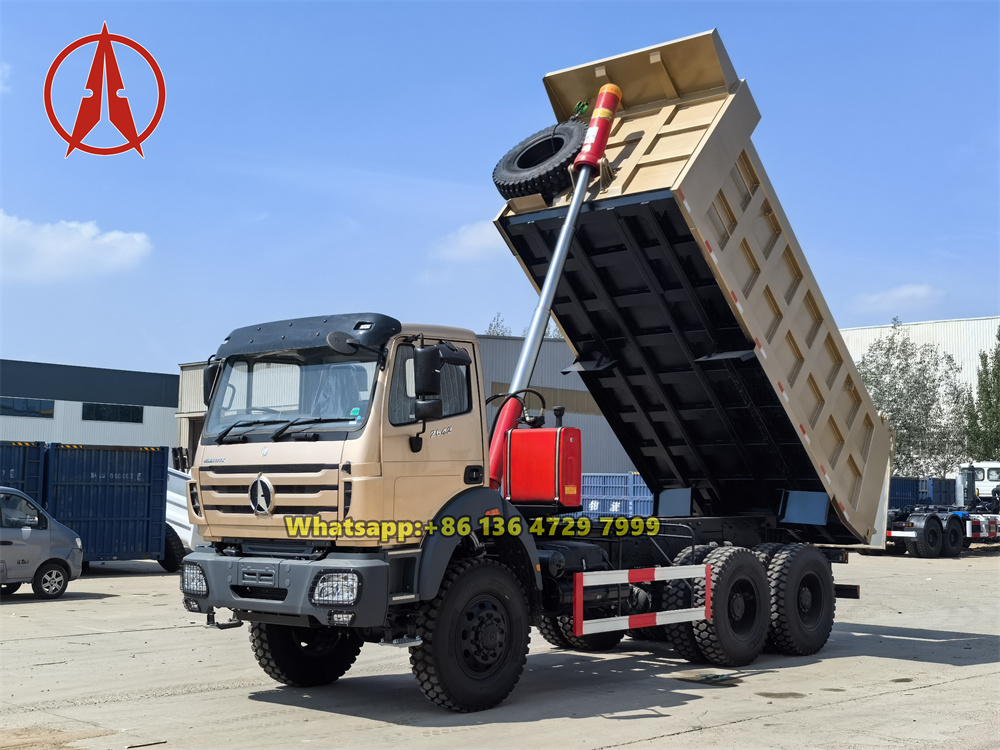

Beiben 6x6 drive rigid dump truck with 6x6 drive system
Beiben 6x6 drive mining dump truck is off road dump trucks designed for heavy-duty hauling tasks. beiben 6x6 off road dumping truck is best suited for extreme conditions. Main fields that require Beiben 6x6 drive tipper trucks include:
1. Construction Projects
Hauling Sand, Gravel, & Aggregates: beiben 6x6 dump truck Delivers loose materials such as sand, gravel, stones, and aggregate to and from construction sites.
Remove Excavated Soil & Debris: Takes away earth, rubble, and waste generated from site excavations or demolitions.
2. Mining Operations
Transporting Ore & Coal: Moves raw materials like mined ore, coal, and extracted minerals from mining pits or underground sites to processing areas or storage.
Handling Overburden: Carries overburden (the soil and rock overlying a mineral deposit) from mining areas to designated dump locations.
3. Infrastructure and Road Building
Delivering Asphalt or Road Base: Beiben 6x6 dump truck Transports road construction materials, such as asphalt or road foundation base, to paving or maintenance sites.
Graveling Rural or Remote Roads: Beiben 6x6 dump truck is Used for dumping and spreading materials on undeveloped or rural roads.
4. Large-Scale Earthmoving
Bulk Site Clearing: Beiben 6x6 dumper Carries large volumes of earth, fill or other site materials for land grading and preparation of large areas.
Land Development: Essential for moving dirt during the creation of housing, industrial zones, and other big projects.
5. Municipal and Waste Management
Transporting Large Waste Volumes: Moves construction waste, debris, or even bulk municipal refuse to landfills or recycling facilities.
» IV.Product details :
Beiben 6x6 drive dump truck is a heavy-duty dump trucks that used in tough road situation , forest road, desert road, :

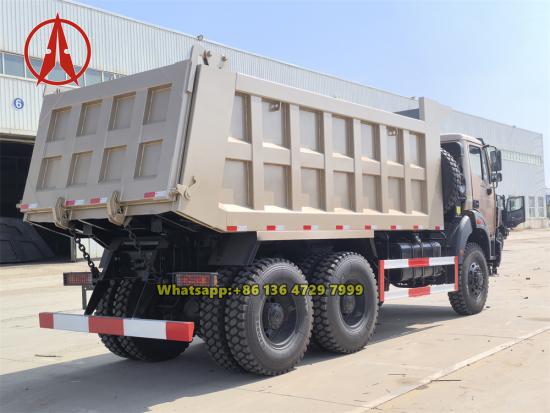

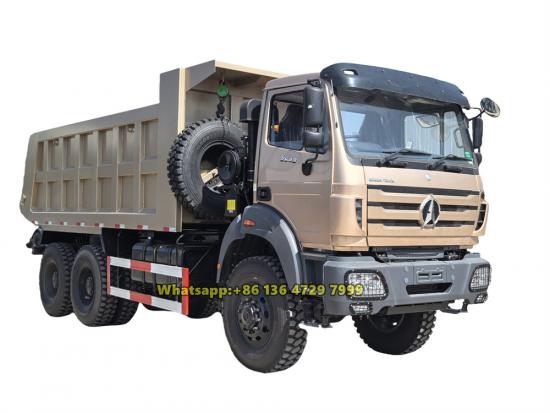

beiben 6x6 off road dump truck with 12.00R24 tyres

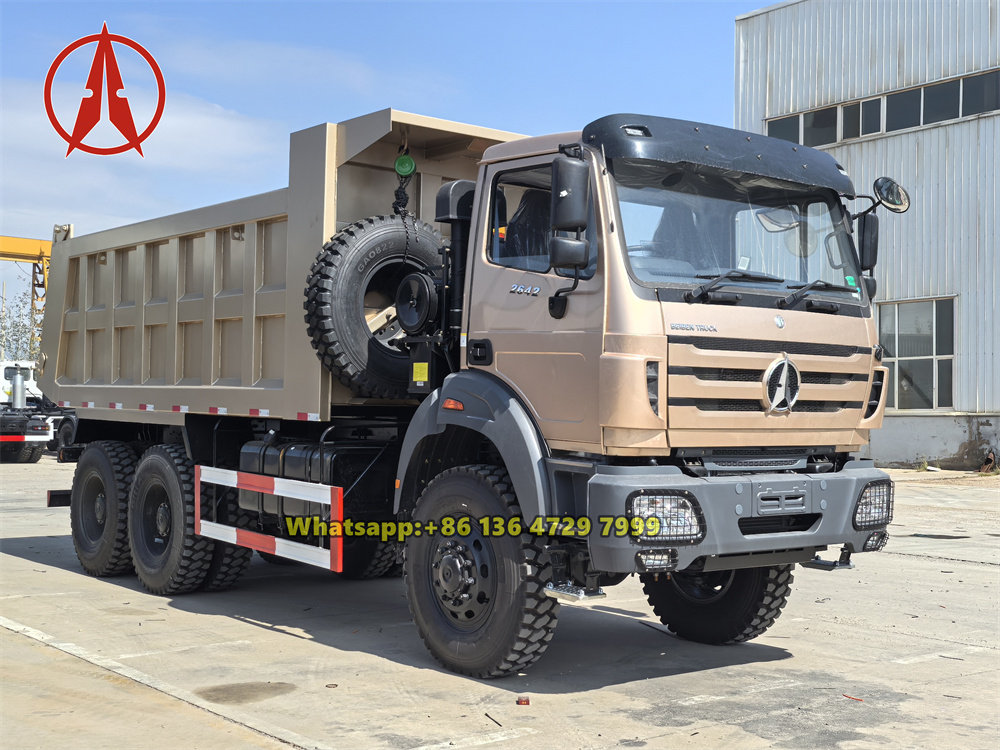

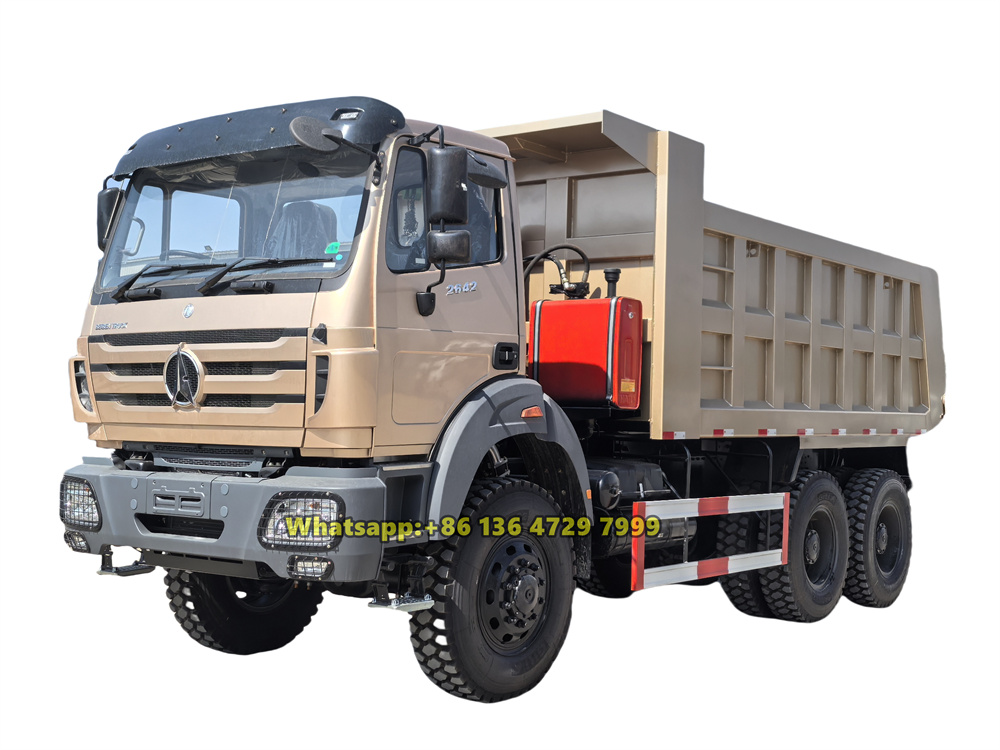

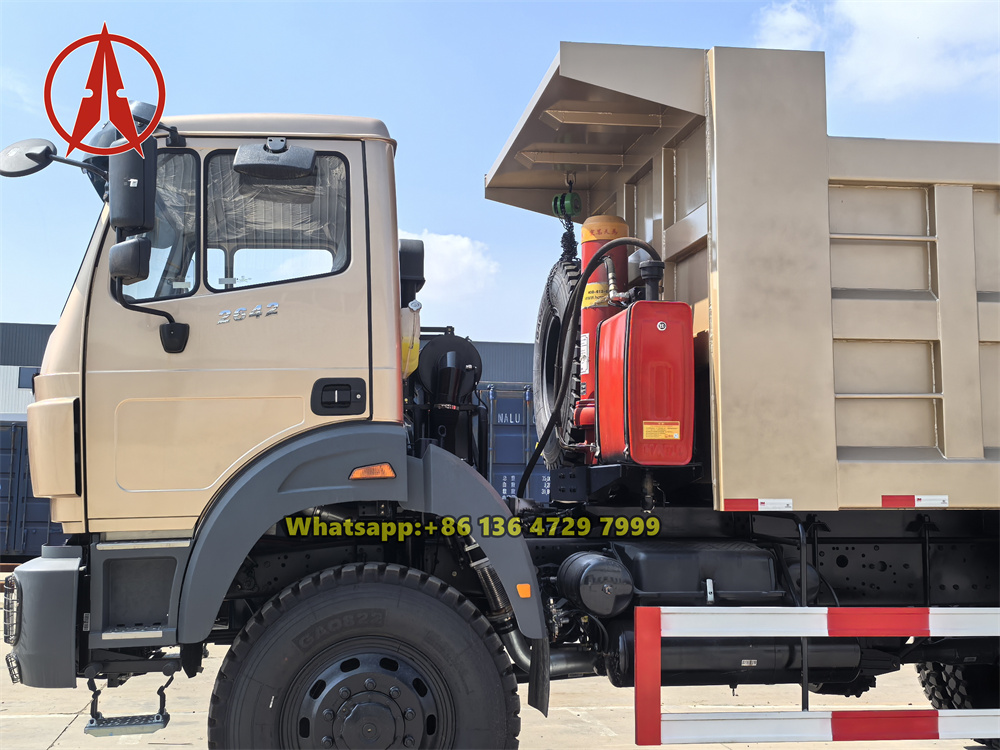

Beiben NG80B cabin dump truck with 6x6 drive system

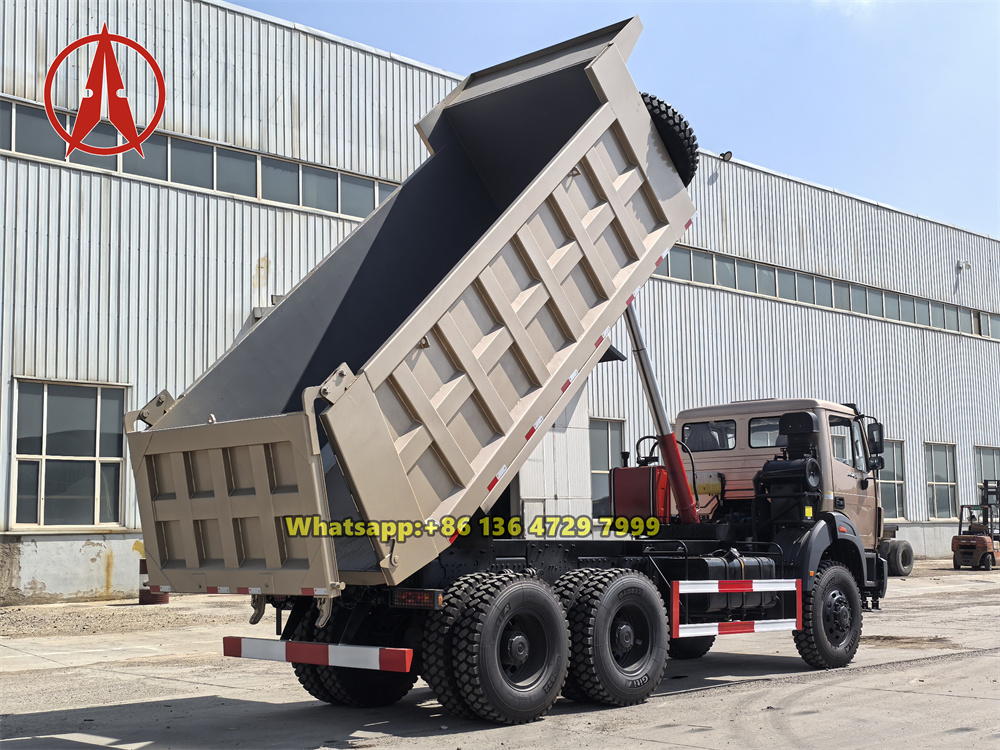

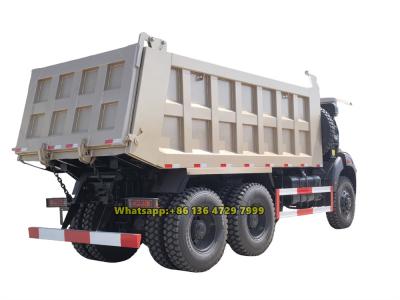

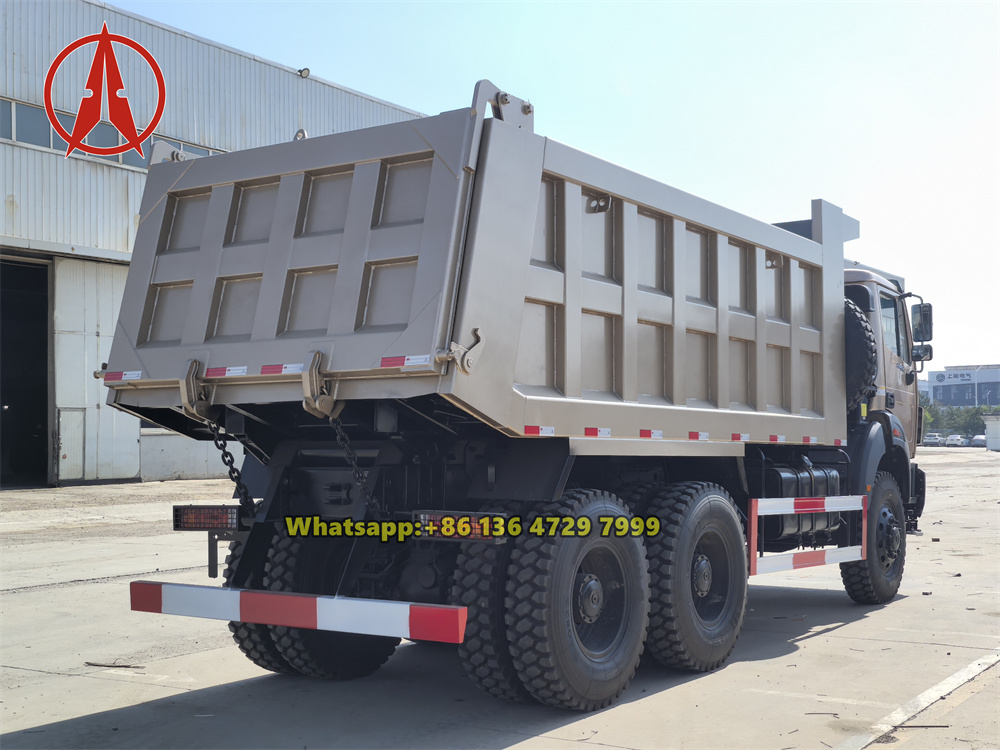

Beiben 6x6 drive cargo body dump truck
16-20 cbm cargo box can be customized upon on customer's requirement.
All cargo box is reinforced with welding and designing.

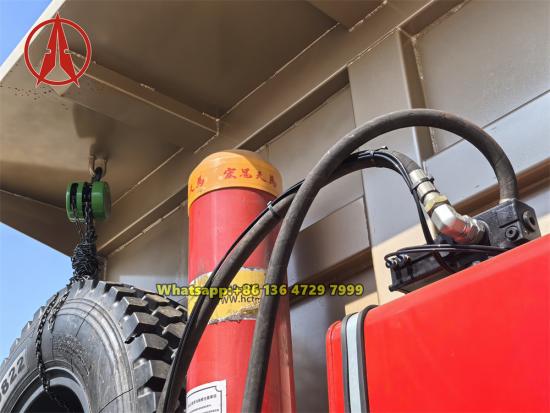

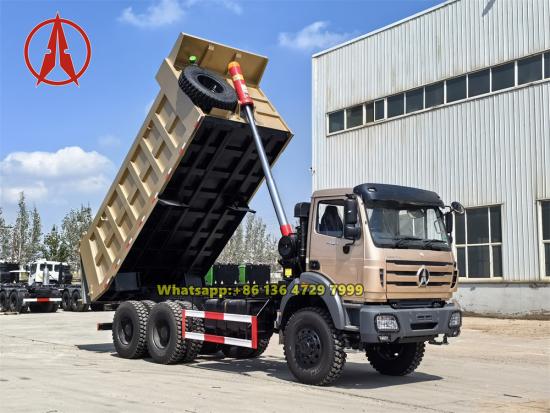

Srong front lifting system, suitable for any working site in africa

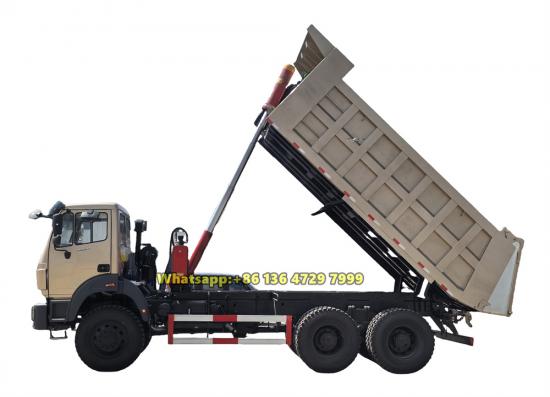

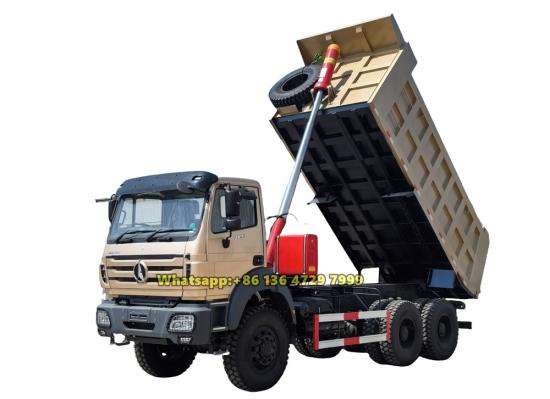

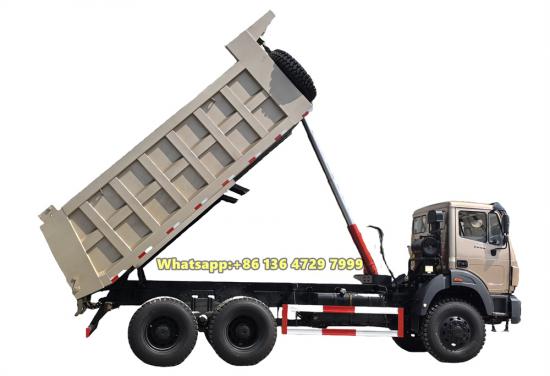

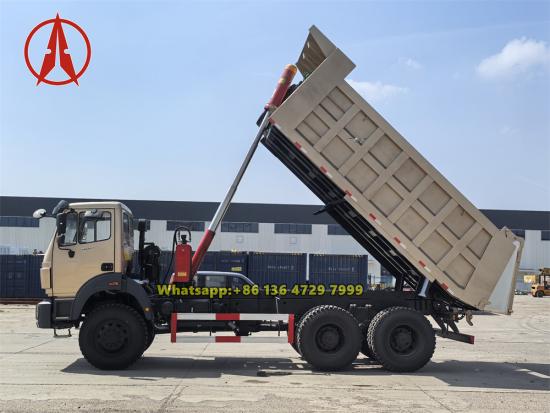

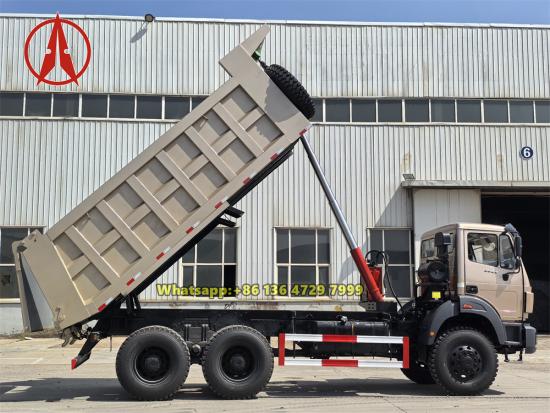

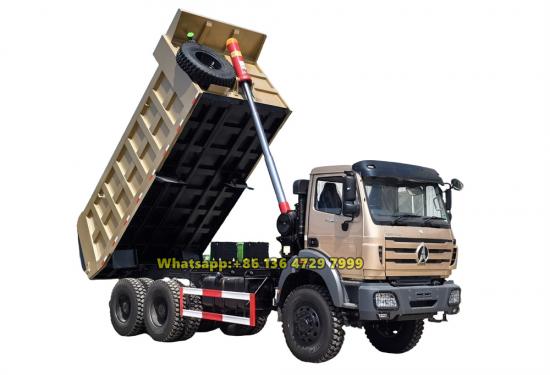

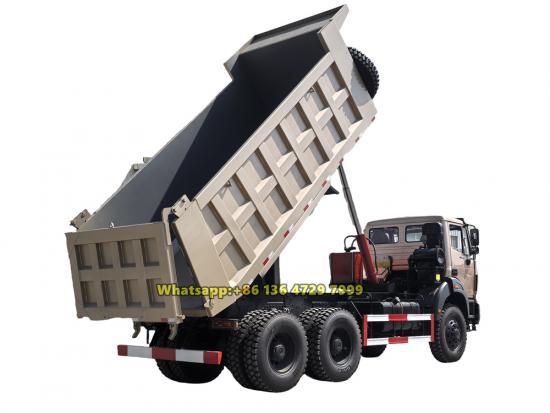

Beiben 6x6 front lift heavy dump truck with 16 cbm cargo box

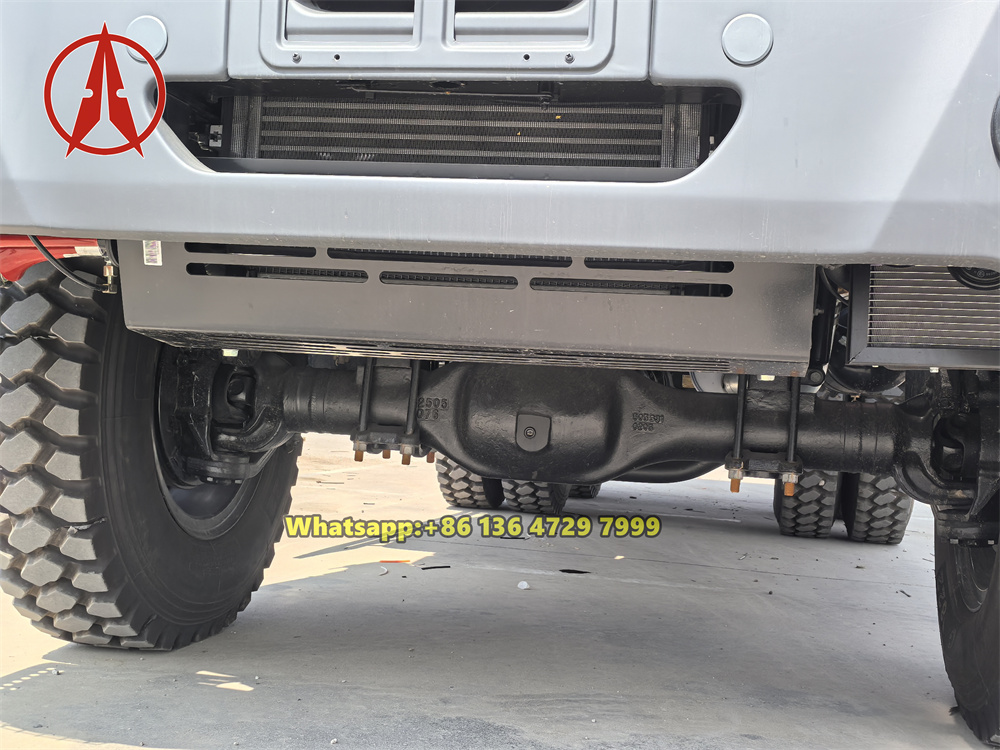

front axle drive system, with high ground clearance. Off road drive first choice

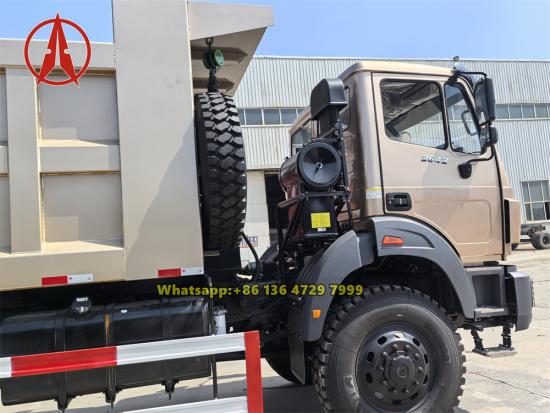

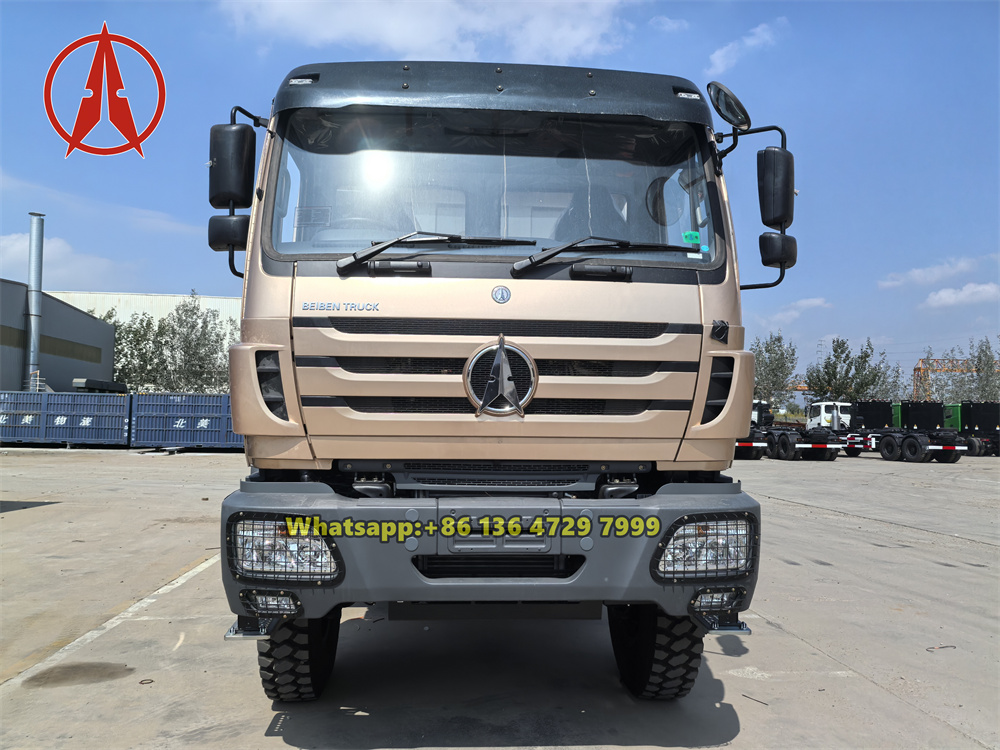

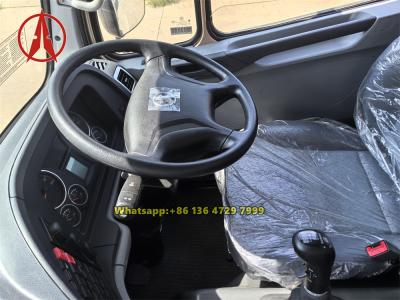

Beiben NG80B short cabin, mercedes benz tehcnlogy, classic heritage

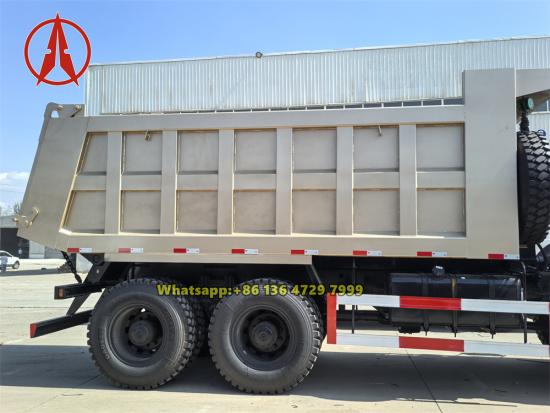

High strength carbon steel for beiben 6x6 drive dump truck cargo box
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 2634,2638,2642 dump truck, all upon on your need !
2. Factory bottom price, save your china vist cost
3.12 months after sale service guarantee, quality assurance.
4. 12.00R24 tyres, 14.00R20 , 315/80R22.5, 13.00R22.5, all are avaiable.
