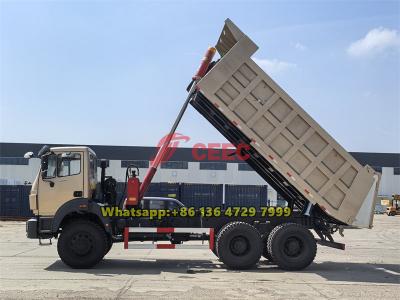

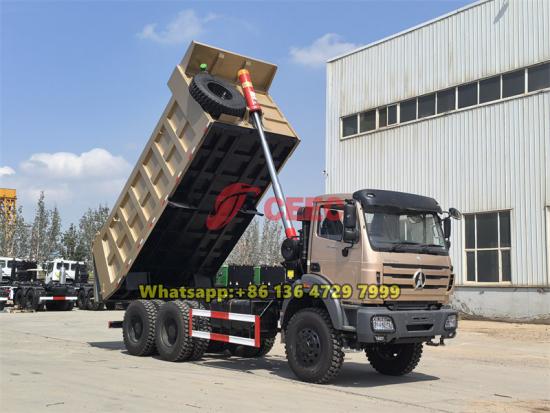

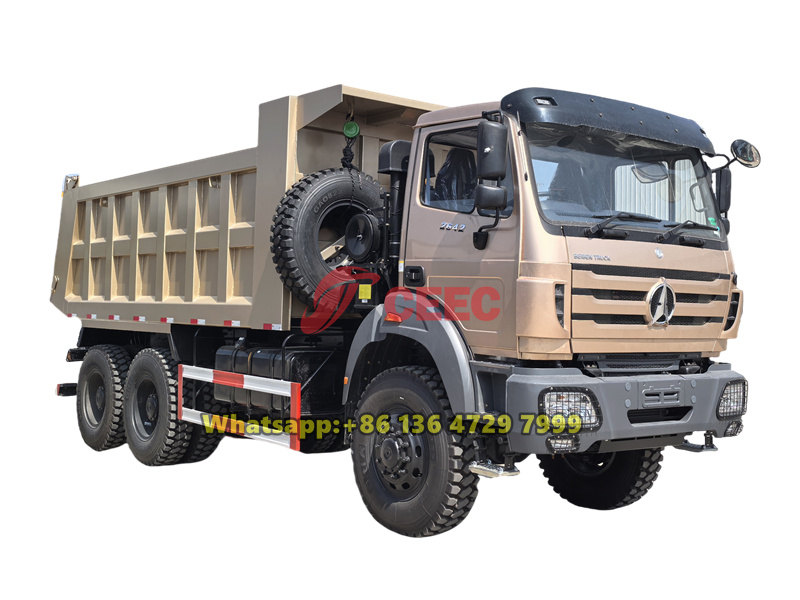

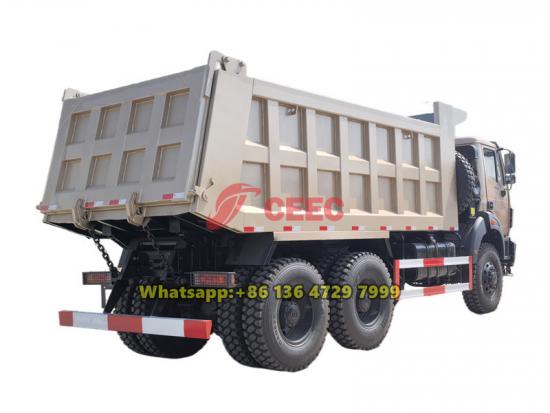

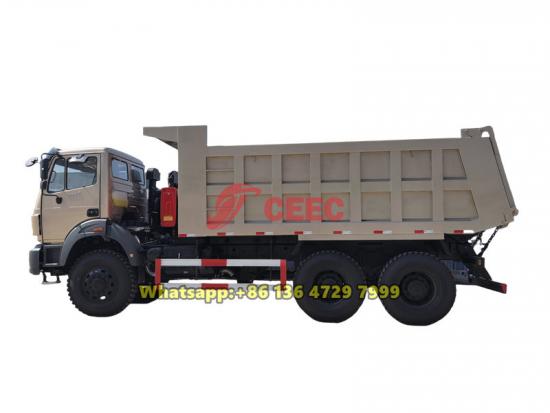

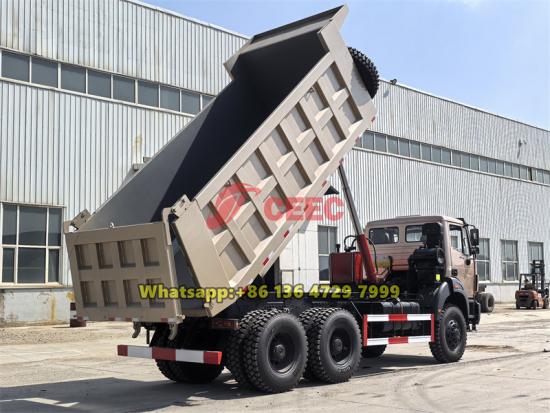

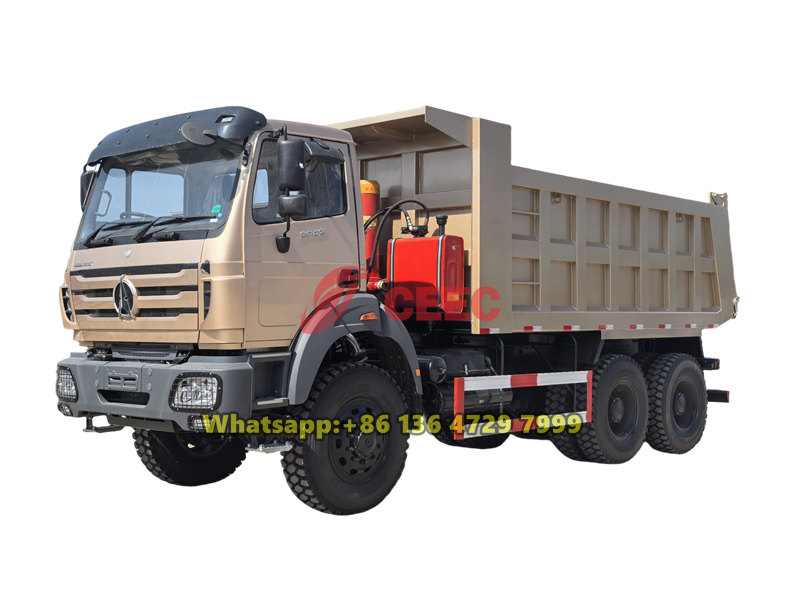

Specially designed for Tanzania, the Beiben RHD 6×6 off-road dump truck features right-hand drive and all-wheel drive. It is equipped with a 420-horsepower Weichai engine and a 12-speed transmission, delivering excellent all-terrain mobility and robust load-bearing performance. Its high-strength cargo box offers a capacity of 19 cubic meters, making it suitable for heavy earth and rock transportation in harsh environments such as mines and construction sites. It reliably adapts to complex local road conditions.
Working capcity:
35 tonsCabin type:
NG80B short cabinDimension ( mm ) :
8500×2500×3670Drive system:
6×6Wheelbase (mm):
3800+1450Engine power / Model:
320HP/WP12.420E32Gear Box:
12JS200TRemark:
12.00R24, 14.00R20 tyre, 6×6, RHD driveBeiben RHD 6×6 dump truck is a heavy-duty engineering vehicle customized for customers in Tanzania, featuring right-hand drive and an all-wheel-drive configuration. The chassis is powered by a Weichai WP12.420E32 diesel engine with a maximum output of 420 horsepower, paired with a 12-speed mechanical transmission and a two-stage reduction drive axle, ensuring powerful torque delivery. The superstructure consists of a high-strength steel cargo box measuring 5600×2300×1500mm, equipped with a front-mounted hydraulic lifting system for outstanding load-bearing capacity and durability.
With high ground clearance, a 6×6 all-wheel-drive system, and 12.00R24 off-road tires, the Beiben 6×6 construction tipper truck demonstrates exceptional performance in extreme road conditions, making it highly suitable for engineering transportation across Tanzania’s rugged terrain and poorly maintained roads. Its advantages include strong adaptability, high load capacity, and ease of maintenance. It is primarily used for earth and rock transportation in mining, construction, and large-scale infrastructure projects.
CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
★ Beiben 6×6 chassis
Built on Beiben 6×6 right hand drive chassis, with robust structure capable of withstanding heavy loads.
★ Beiben NG80B cabin
NG80 cab features a semi-floating suspension system with highstructural rigidity and energy absorption, providing enhanced driverprotection.
★ High performance engine
Equipped with Weichai engines, known for their strong reliability and high-performance output. The max. output is up to 420HP.
★ Excellent off-road capability
With high ground clearance, a 6×6 all-wheel drive system, and 12.00R24 off-road tires, it delivers outstanding performance in extreme road conditions.
» Ⅱ. Product Specifications:
|
Wheelbase (mm) |
3800+1450 |
|
|
Overall Dimension: |
8500X2500X3670 |
|
|
Curb weight (kg) |
15800 |
|
|
Front overhang/rear overhang (mm) |
1435/1600 |
|
|
Approach angle/Departure angle |
26/33 |
|
|
Max speed(km/h) |
85 |
|
|
Engine |
Model |
WP12.420E32, water-cooled, four strokes,6 cylinders straight in line, turbocharged, |
|
Fuel type |
Diesel |
|
|
Cylinders |
6 in-line |
|
|
Max. Power |
420HP (309KW) |
|
|
Rated speed |
2100 rpm |
|
|
Emission standard |
EURO III EGR |
|
|
Maximum Torque / rotating speed(n.m/(r/min) |
1750Nm/1200-1500rpm |
|
|
Displacement(ml) |
11596 |
|
|
Fuel tanker capacity (L) |
400L |
|
|
Clutch |
Model |
φ430, Single dry frictional disc, diaphragm spring, pushing type |
|
Gearbox |
Model |
12JS200T, mechanical type, mechanical type, 12 forward speed gear and 2 reverse. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098, whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,13 pcs spring |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13pcs. |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 7.5t no-driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13 tons double reduction driving axle, speed ratio 5.921 |
|
|
Tire |
12.00R24 radial tire |
|
|
Qty of tire |
11 (10+1) |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
70A |
|
|
Starter |
5.5Kw |
|
|
Cab |
NG80B Right hand drive Short cab without sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; |
|
|

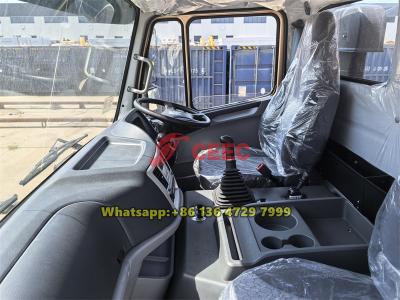

Interior trimming: Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C. |
||
|
Exterior trimming: Metal bumper, two steps, new mirror. |
||
|
Cargo box |
Size |
5600×2300×1500 mm |
|
Material |
High strength steel Q355 |
|
|
Thickness |
Walls: 6mm; Floor: 8mm |
|
|

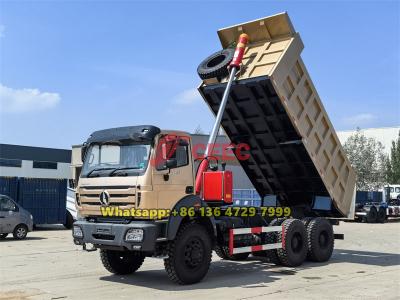

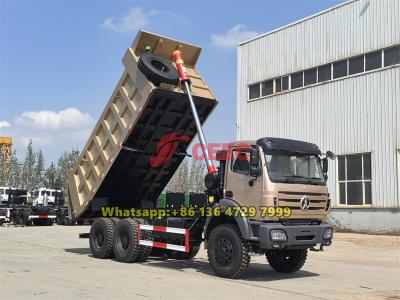

Lifting system |
Front lifting, telescopic hydraulic cylinder |
|
» Ⅲ. Product Advantages:
NG80 Cab
The NG80 cab features a semi-floating suspension system, providing high structural rigidity, strong energy absorption, and enhanced driver protection.
It is constructed from a single-piece stamped high-strength steel plate and incorporates a multi-cavity structural design for enhanced rigidity.
WEICHAI Engine
The Beiben tipper trucks are equipped with Weichai engines, known for their strong reliability and high-performance output.
Reinforced Chassis
The suspension system typically adopts a multi-leaf spring design, effectively enhancing the vehicle's load-bearing capacity and providing robust support for cargo transportation. This well-engineered chassis structure ensures excellent stability and handling even when the vehicle is fully loaded.

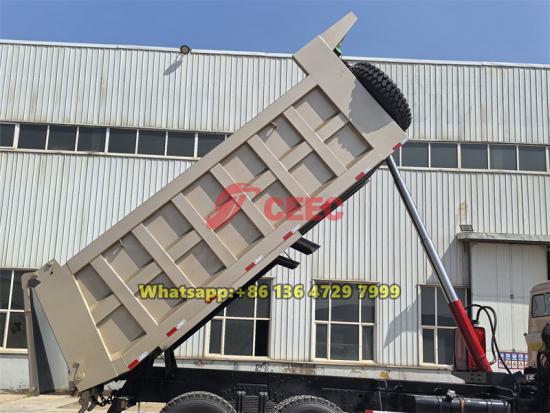

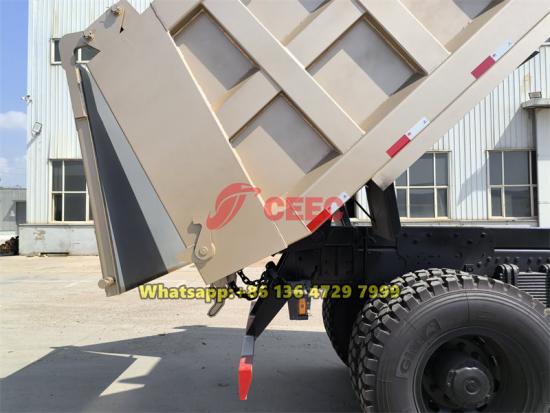

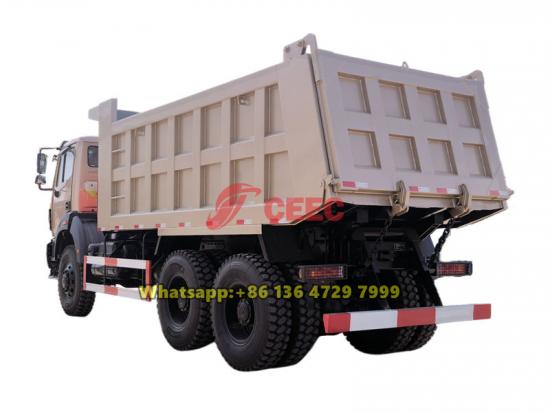

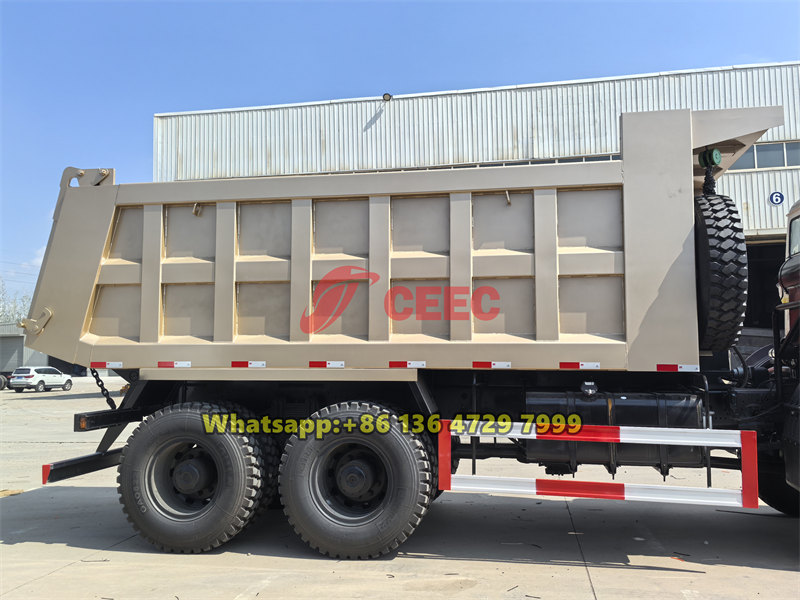

Cargo Box
The cargo box is constructed with Q355 manganese steel plate, offering superior strength, wear resistance, and corrosion resistance. The inner size of the cargo box is 5600×2300×1500mm.

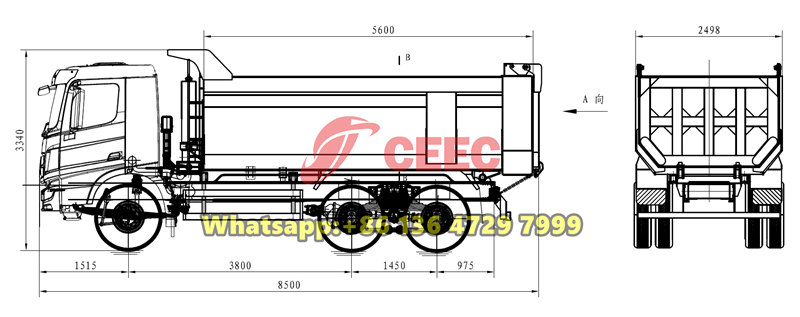

» Ⅳ. Product Drawing
