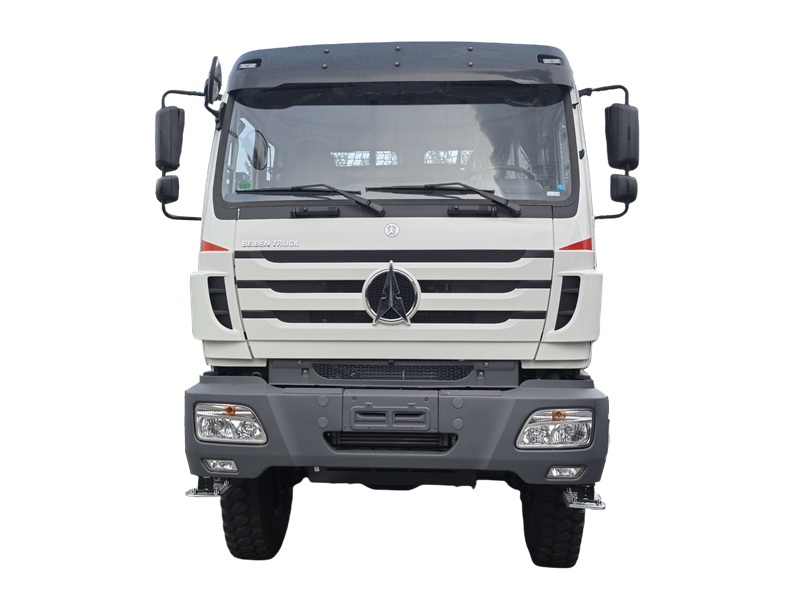

BeiBen 6×6 all-wheel-drive chassis is a heavy-duty off-road vehicle based on Mercedes-Benz technology. Equipped with a 420-horsepower engine and a specialized transfer case, it features high-mobility suspension and a robust frame. Its exceptional off-road capability, superior load-bearing capacity, and adaptability to high-temperature environments make it particularly suitable for extreme terrain operations in Africa, such as mineral development and engineering transportation.
Working capcity:
40 tonsCabin type:
NG80B long cabinDimension ( mm ) :
9500×2500×3300Drive system:
6×6Wheelbase (mm):
3450+1450Engine power / Model:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
8×8, RHD drive is optionalThe BeiBen 6×6 off-road chassis is a heavy-duty all-wheel-drive vehicle built on German Mercedes-Benz technology, renowned for its outstanding off-road performance and reliability. This chassis incorporates a high-displacement WP12.420E32 engine paired with a FAST 12-speed transmission, along with an LF200 transfer case and 13-ton front and rear axles featuring wheel-side reducers, ensuring high loading capacity in complex road conditions. Its fish-belly-type variable-cross-section frame, 8-ton front and 13-ton rear axle configuration, and high-mobility design enable it to handle extreme terrains with ease. Thanks to its robust structure, adaptability to Africa’s high-temperature environment, and ease of maintenance, this Beiben 6×6 truck chassis is highly favored by African customers. By installing various superstructures, it can be widely adapted for special-purpose vehicles such as water tankers, fuel tankers, cargo trucks, garbage compactors, and vacuum suction trucks.
CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
» Ⅱ. Product Specifications:
|
Beiben 6×6 off-road chassis specifications |
||
|
Drive type |
6×6, left hand drive |
|
|
Wheel base (mm) |
4450+1450 |
|
|
Overall Dimensions (mm) |
9500X2500X3300 |
|
|
Curb weight(kg) |
9900 |
|
|
Front overhang/rear overhang (mm) |
1410/1940 |
|
|
Approach angle/Departure angle |
26/20 |
|
|
Max Speed:(Km/h) |
≤80 |
|
|
Model |
WP12.420E32, water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Engine |
Fuel type |
Diesel |
|
Min rate of consuming fuel(g/(kw.h)) |
192g/kw.h |
|
|
Rated Power/ rotating(kw/(r/min) |
309Kw(420HP)/2200rpm |
|
|
Emission |
EURO3 |
|
|
Maximum Torque/rotating speed(n.m/(r/min) |
1750Nm/1500-1800rpm |
|
|
Displacement(ml) |
11.596 |
|
|
Fuel tanker capacity(L) |
400L+400L Iron |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 7.5 ton driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R20 OR 12.00R24 radial tire |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B left hand drive |
|
|
Long cab with one sleeper |
||
|
Full steel skeleton structure, covered with double layer steel plate; |
||
|
Can be tipped forwardly; |
||
|
Interior trimming: |
||
|
Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C |
||
|
Exterior trimming: |
||
|
Metal bumper, two steps, new mirror. |
||
|
Other specifications |
Two-stage air filter, 76°Tropical thermostat. |
|
|
Upper body |
Suitable for water truck, fuel truck, cargo truck, garbage compactor trucks, vacuum tank truck, etc. |
|
» Ⅲ. Product Details:
NG80 Cab
Beiben NG80B long cabin
One sleeping berth
Air-spring suspension driver's seat
Cooling and heating air conditioner
Steering wheel with adjustable height and angle
Mercedes Benz Technology Axles
Front axle (Mercedes Benz Technology), promising advanced performance and reliability.
7.5-ton capacity, equipped with double-shoe pneumatic brake, a non-driving steering axle.
Middle and Rear axle (Mercedes Benz Technology), engineered for superior load handling.
13T capacity with double-shoe pneumatic brakes, ductile casting casing, featuring hub reducer and double reduction driving axle for optimal power transmission.

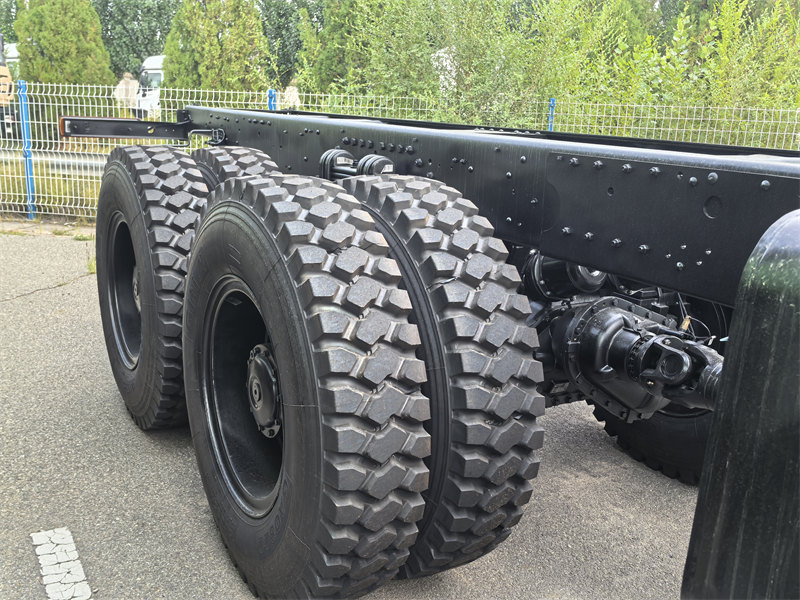

Off-road Tires
12.00R24 tires, ensuring optimal traction and durability under various conditions.
» Ⅳ. Product Drawing:
» Ⅴ. Customer Case:
Beiben 6×6 all-wheel-drive chassis exported to Africa

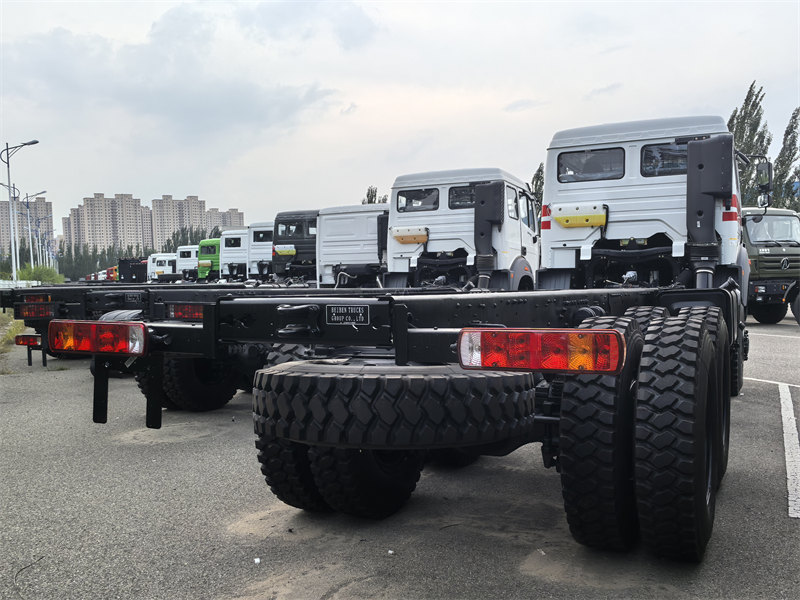

Beiben heavy duty construction chassis are ready for shipment
