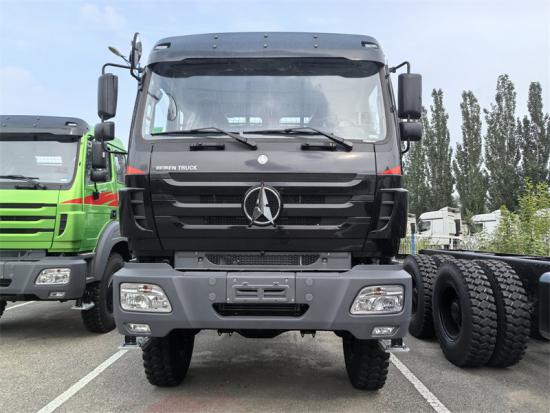

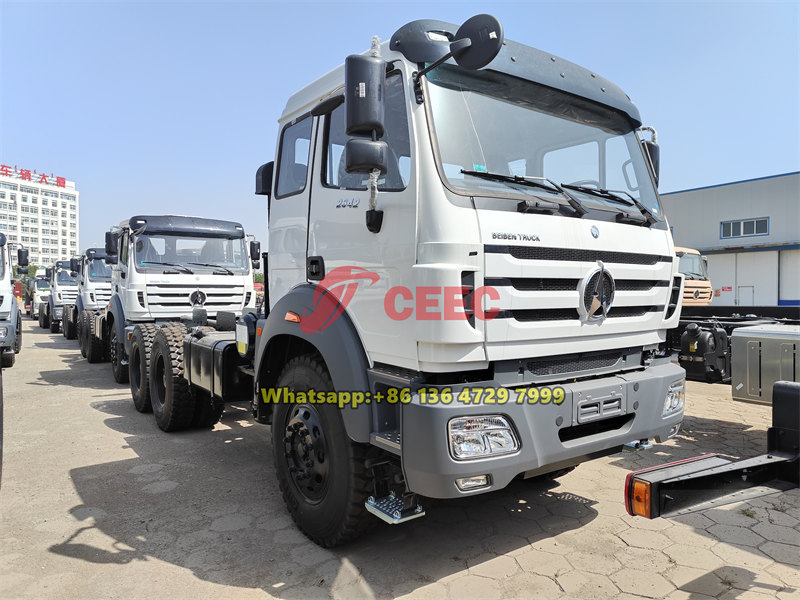

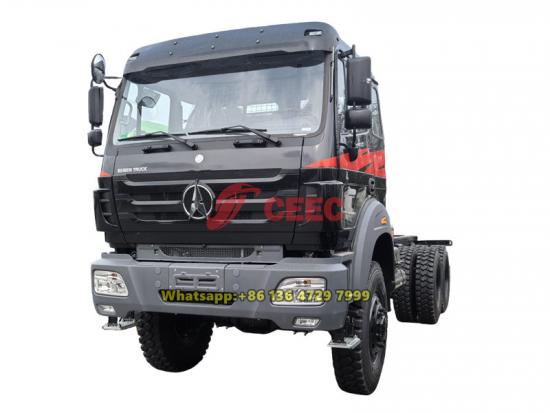

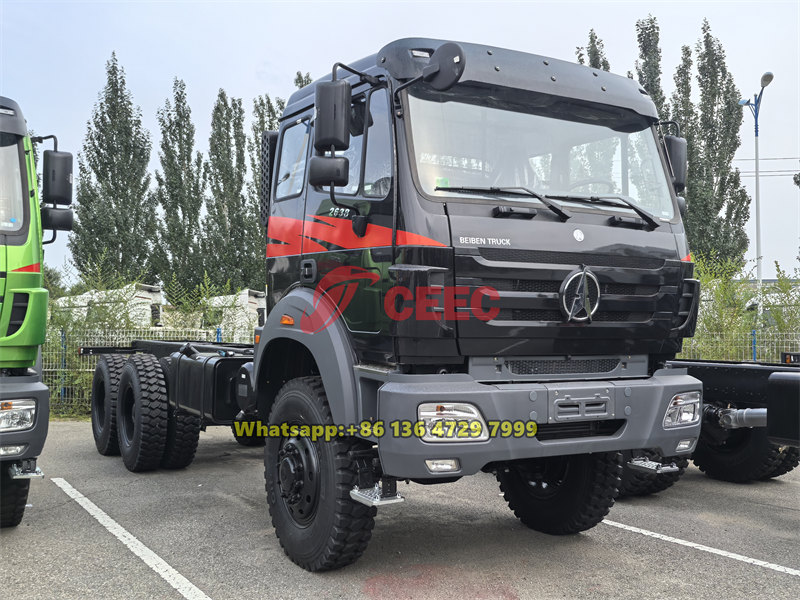

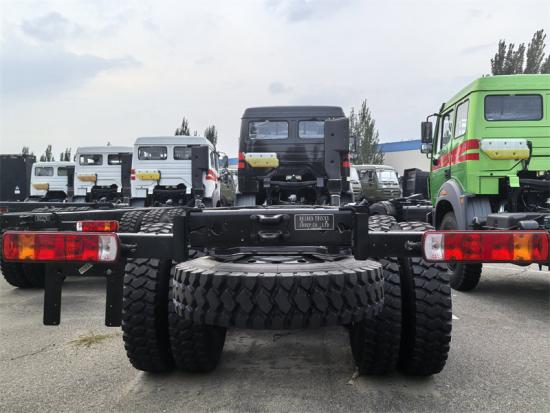

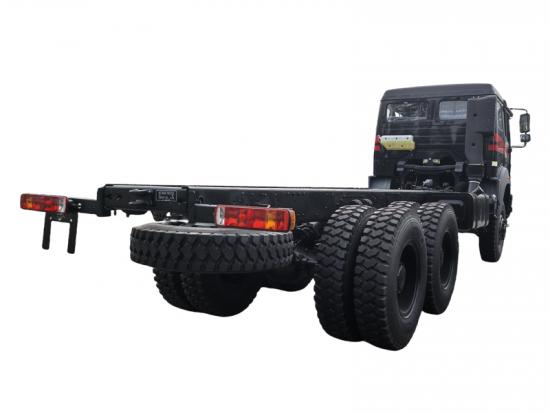

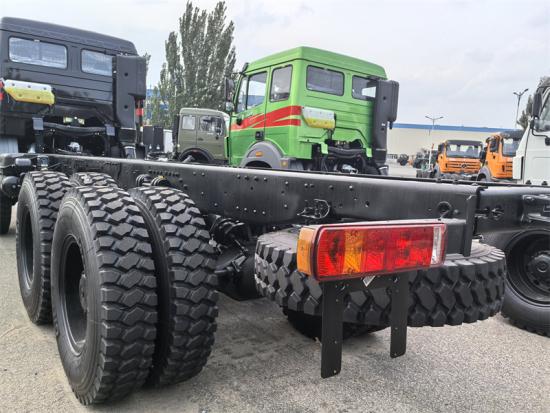

The Beiben 6×6 off-road chassis is a heavy-duty special-purpose chassis built based on Mercedes-Benz technology. It adopts a six-wheel all-drive design, is equipped with a high-horsepower diesel engine and heavy-duty axles, and features excellent all-terrain passability and strong load-carrying capacity. It is specifically designed for heavy-duty transportation and special operations under harsh road conditions such as mining areas and field engineering.
Working capcity:
40 tonsCabin type:
NG80B long cabinDimension ( mm ) :
9500×2500×3300Drive system:
6×6Wheelbase (mm):
4450+1450Engine power / Model:
380HP/WP10.380E32Gear Box:
12JS200TRemark:
8×8, RHD drive is optionalThe Beiben 6×6 off-road chassis is a heavy-duty special-purpose platform built based on Mercedes-Benz technology. The 6×6 indicates that all 6 wheels of the vehicle are driving wheels, which can meet the high mobility requirements of complex terrains. Its core structure inherits the essence of Mercedes-Benz technology, adopting a fish-bellied variable cross-section frame. It is matched with a 7-ton front drive steering axle and a 13-ton two-stage reduction rear axle. The power chain consists of a Weichai 380-horsepower turbocharged engine and a 12-speed Fast gearbox. The suspension system ensures load-carrying capacity and passability through multi-leaf leaf springs and stabilizer bars.
Relying on the all-wheel drive design, the Beiben 6WD off-road chassis performs outstandingly in complex road conditions such as swamps and mountainous areas. With a curb weight of 9,900 kg and robust axle structures, it possesses excellent load-bearing capabilities. The 400L fuel tank and low fuel consumption characteristics are suitable for long-term operations, and the safety structure and comfortable configuration of the cab also enhance operational practicality. This chassis is widely used in scenarios such as special equipment transportation and field engineering transportation and demonstrates reliable performance in extreme environments.
CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
» Ⅱ. Product Specifications:
|
Beiben 6WD Heavy-duty Chassis Specifications |
||
|
Wheelbase(mm) |
4450+1450 |
|
|
L*W*H |
9500×2500×3300 |
|
|
Curb weight(kg) |
9900 |
|
|
Front overhang/rear overhang (mm) |
1410/1940 |
|
|
Approach angle/Departure angle |
26/20 |
|
|
Max Speed:(Km/h) |
≤85 |
|
|
Model |
WP10.380E32, water-cooled, four strokes,6 cylinders straight in line, turbocharged |
|
|
Engine |
Fuel type |
Diesel |
|
Min rate of consuming fuel(g/(kw.h)) |
196g/kw.h |
|
|
Rated Power / rotating(kw/(r/min) |
280Kw(380HP)/2200rpm |
|
|
Emission standard |
EURO3 |
|
|
Maximum Torque / rotating speed(n.m/(r/min) |
1600Nm/1500-1800rpm |
|
|
Displacement(ml) |
9726 |
|
|

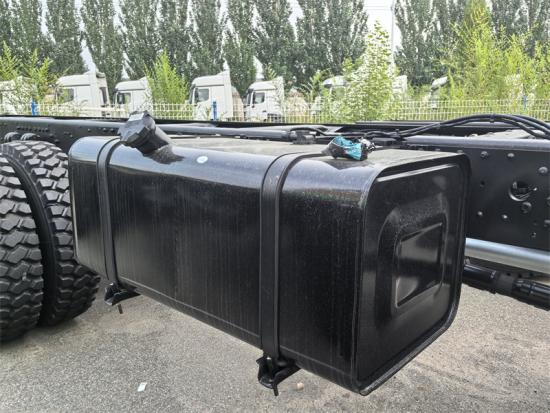

Fuel tanker capacity(L) |
400L Iron |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
|
Rear Suspension |

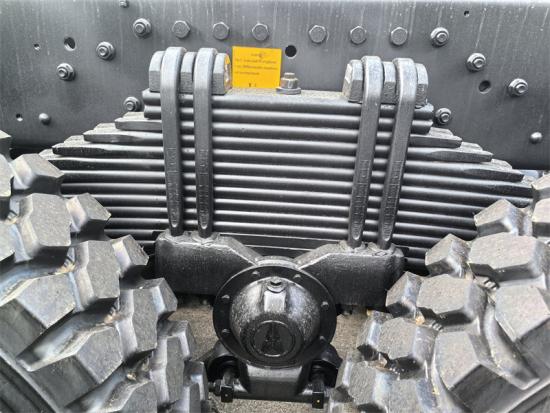

Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 7 ton driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R24 radial tire |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B left hand drive |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
» Ⅲ. Product Features:
1. Rugged and durable Beiben all-wheel drive 6×6 chassis
2. Designed for heavy-duty hauling in harsh road conditions
3. WP10.380E32 engine, 380 horsepower, for powerful performance
4. Versatile 6×6 drive system, ideal for challenging terrain and missions

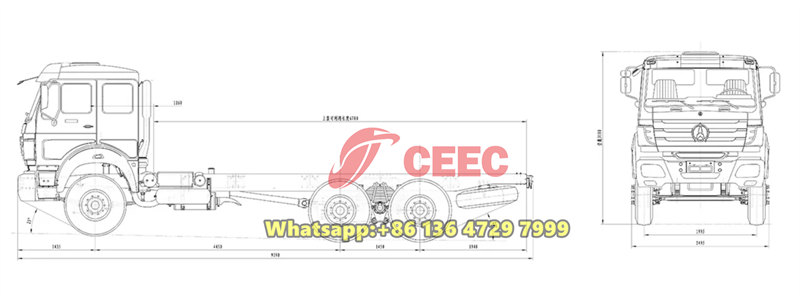

» Ⅳ. Product Drawing:

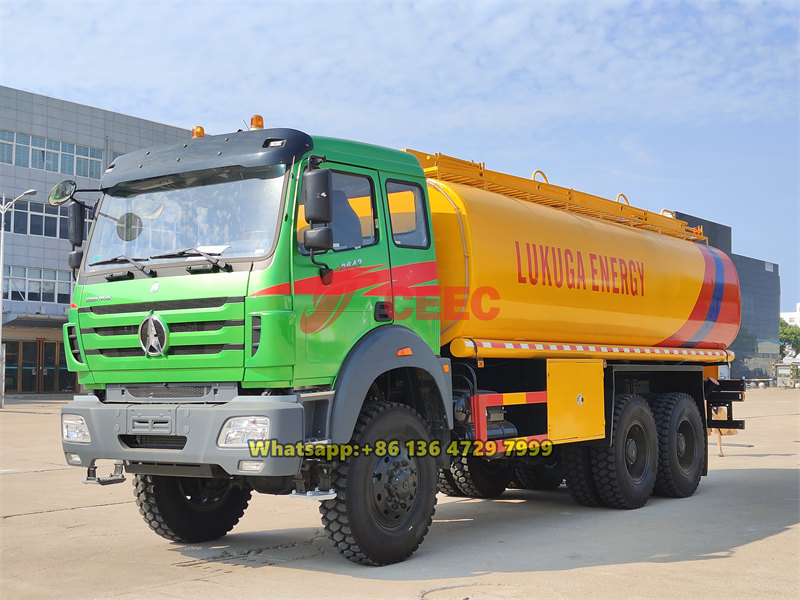

» Ⅴ. Applications:
» Ⅵ. Customer case:
Beiben 6×6 all-wheel-drive chassis exported to Africa
Beiben heavy duty construction chassis are ready for shipment
