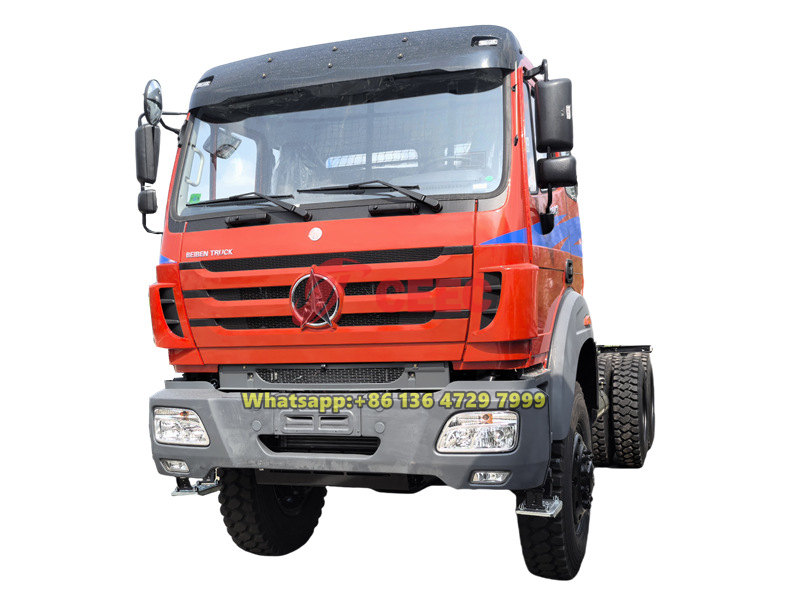

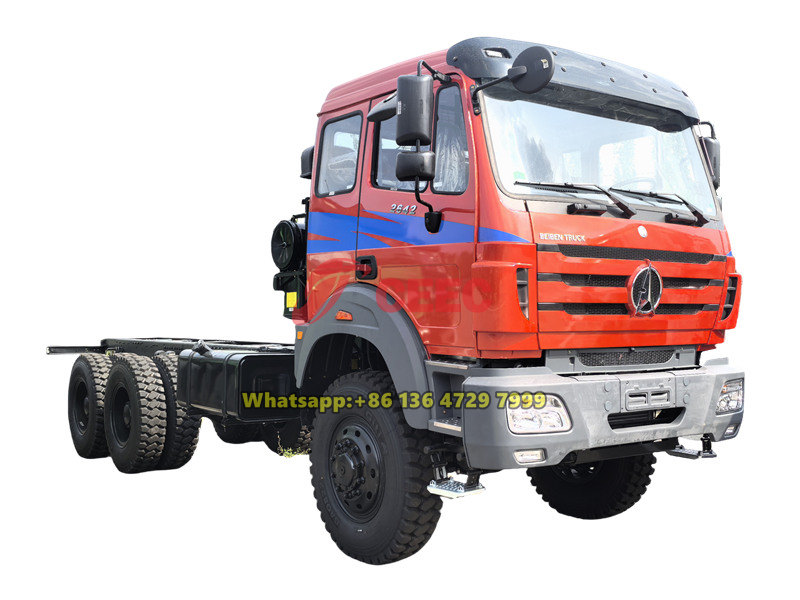

Beiben 2642 6WD chassis is a heavy-duty 6×6 all-wheel-drive off-road truck, featuring a three-axle drive system and a robust Mercedes-Benz-inspired frame as its core components. Powered by a high-torque 420-horsepower engine paired with a specialized off-road transmission, along with high ground clearance and a reinforced suspension system, it demonstrates exceptional all-terrain capabilities. This chassis serves as an ideal modification platform for specialized equipment in fields such as oil exploration and emergency rescue operations in rugged outdoor environments.
Working capcity:
40 tonsCabin type:
NG80B long cabinDimension ( mm ) :
9500×2500×3300Drive system:
6×6Wheelbase (mm):
4450+1450Engine power / Model:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
8×8, RHD drive is optionalThe Beiben 2642 6WD chassis is a typical 6×6 all-wheel-drive off-road truck, utilizing a three-axle all-wheel-drive layout that ensures outstanding all-terrain performance. It is equipped with a Weichai WP12 series 420-horsepower diesel engine, delivering a peak torque of 1,750 Nm, and is paired with a Fast Gear 12-speed mechanical transmission and an LF200 transfer case. The chassis incorporates a German Mercedes-Benz-inspired fish-belly-type variable cross-section frame. The front axle is a 7-ton steering drive axle, while the middle and rear axles are 13-ton dual-reduction axles with a gear ratio of 5.263. Combined with 12.00R24 off-road tires and a 400-liter steel fuel tank, it guarantees sustained off-road endurance. The Beiben 6×6 off-road chassis is an ideal platform for modifying various types of specialized operational vehicles, particularly suited for high-intensity tasks in harsh outdoor environments such as oil fields and engineering rescue operations.
CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Reliable Beiben trucks for transporation on- or off- road
» Ⅱ. Product Specifications:
|
Beiben 2642 NG80 6×6 Chassis Specifications |
||
|
Wheelbase(mm) |
4450+1450 |
|
|
Overall dimensions (mm) |
9500×2500×3300 |
|
|
Curb weight (kg) |
9900 |
|
|
Front overhang/rear overhang (mm) |
1410/1940 |
|
|
Approach angle/Departure angle |
26/20 |
|
|
Max Speed:(Km/h) |
≤85 |
|
|
Model |
WP12.420E32, water-cooled, four strokes,6 cylinders straight in line, turbocharged |
|
|
Engine |
Fuel type |
Diesel |
|
Min rate of consuming fuel(g/(kw.h)) |
192g/kw.h |
|
|
Rated Power / rotating(kw/(r/min) |
309Kw(420HP)/2200rpm |
|
|
Emission standard |
EURO3 |
|
|
Maximum Torque / rotating speed(n.m/(r/min) |
1750Nm/1500-1800rpm |
|
|
Displacement(ml) |
11.596 |
|
|

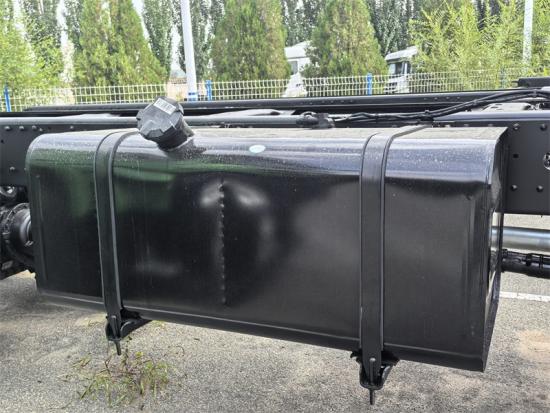

Fuel tanker capacity(L) |
400L Iron |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|

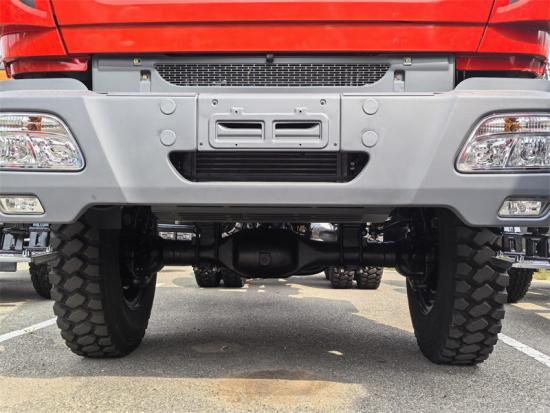

Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 7 ton driving steering axle |
|
|

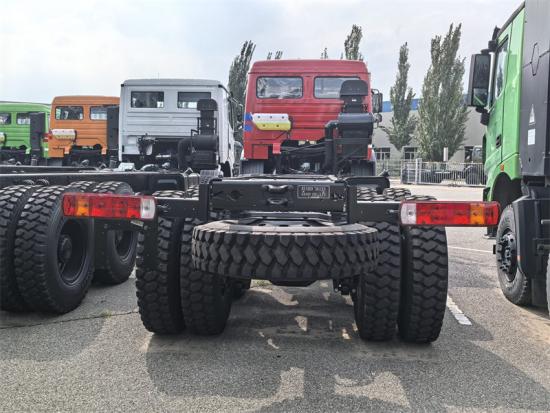

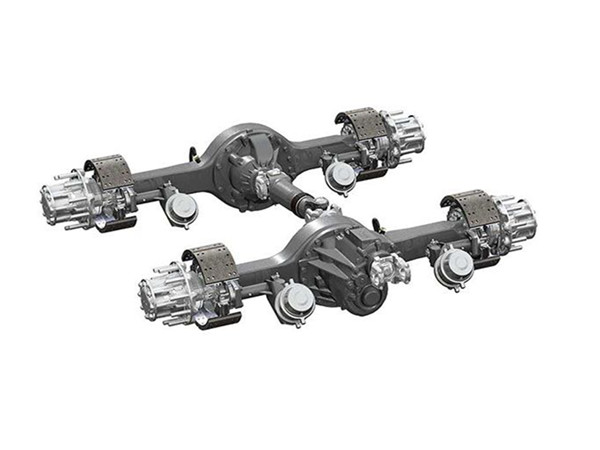

Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R24 radial tire |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B left hand drive |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
» Ⅲ. Product Features:

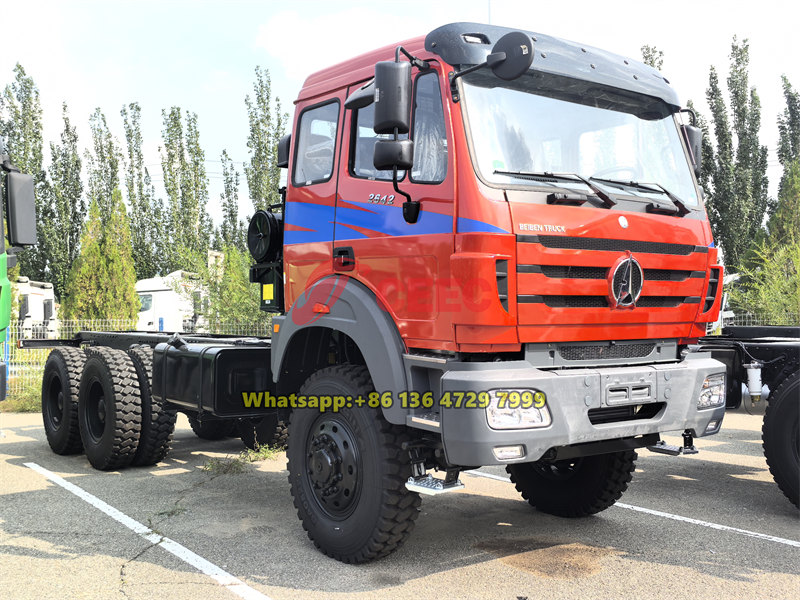

1. Rugged and durable Beiben all-wheel drive 6×6 chassis
2. Designed for heavy-duty hauling in harsh road conditions

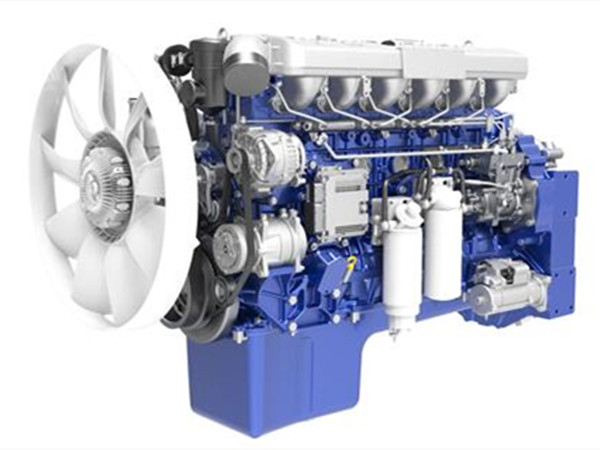

3. WP10.420E32 engine, 420 horsepower, for powerful performance
4. Versatile 6×6 drive system, ideal for challenging terrain and missions

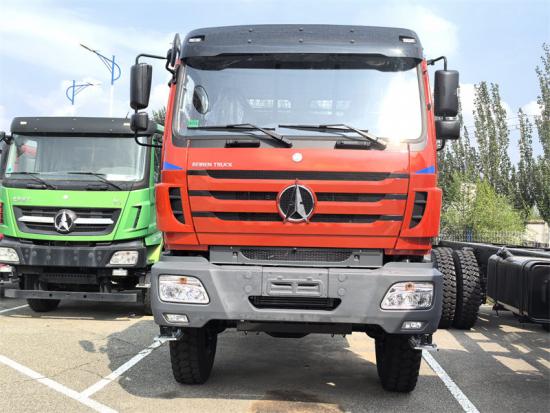

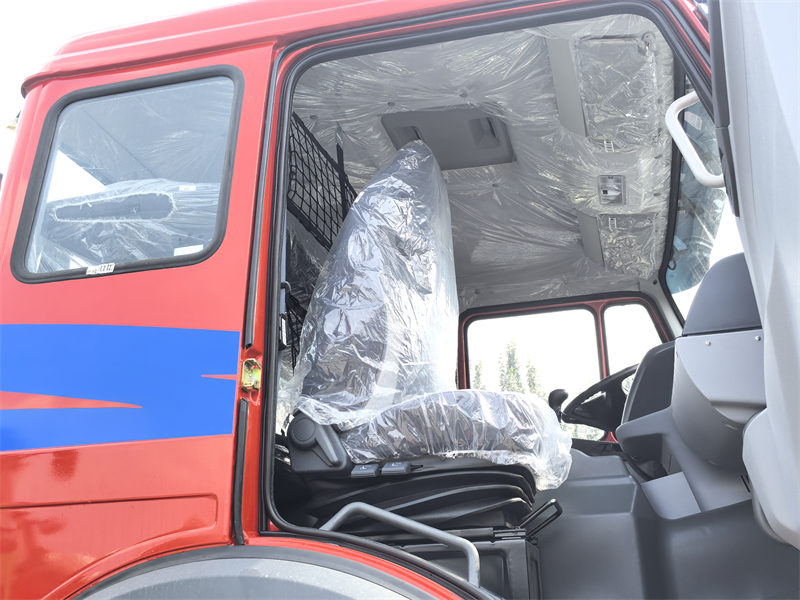

Beiben NG80B long cabin, with AC, 2 seats and 2 sleeper berth.

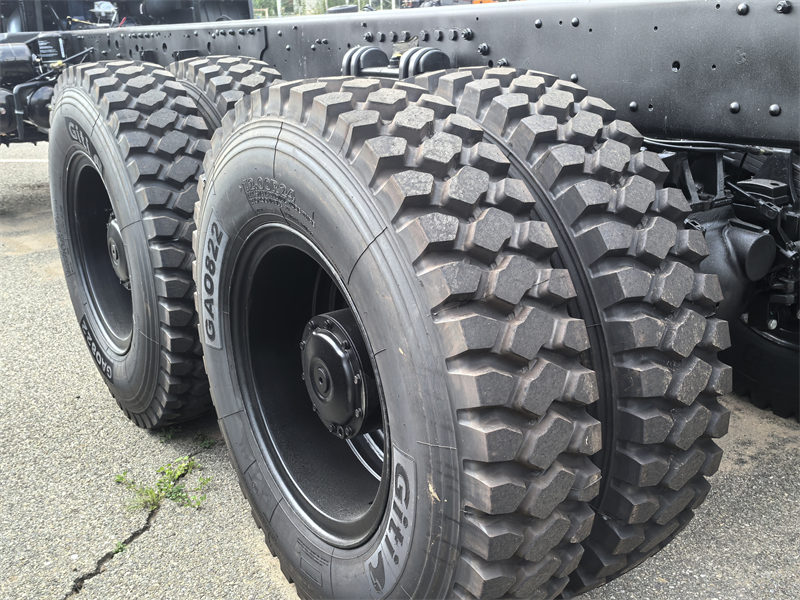

12.00R24 off-road tires, suitable for harsh road conditions.

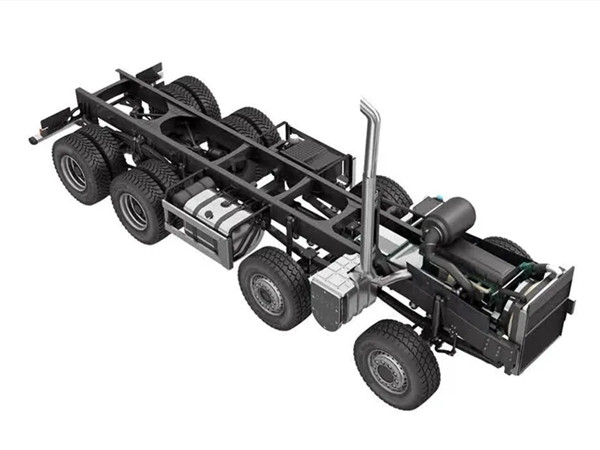

» Ⅳ. Product Drawing:

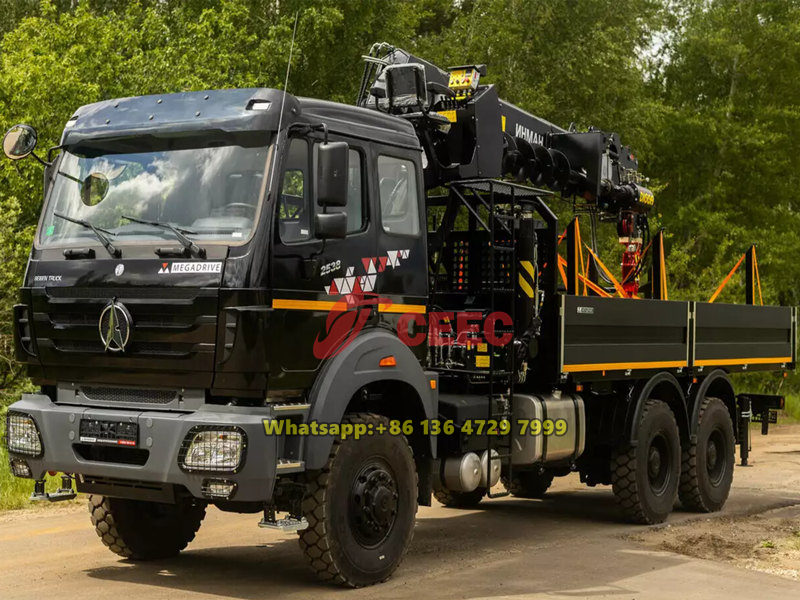

» Ⅴ. Applications:
» Ⅵ. Customer case:
Beiben 6×6 all-wheel-drive chassis exported to Africa

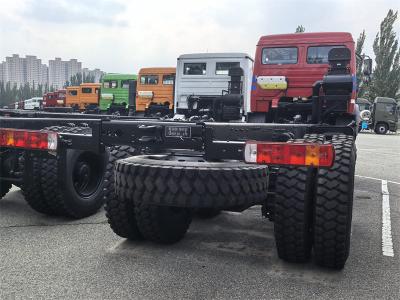

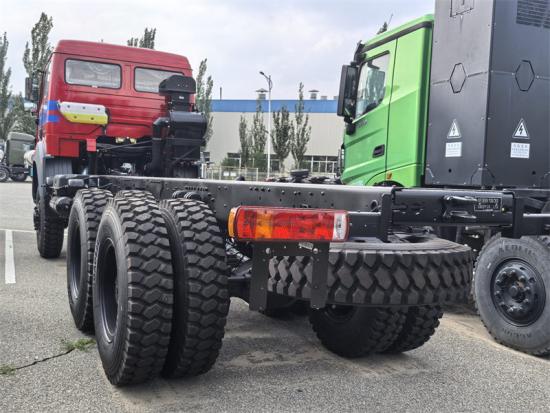

Beiben heavy duty construction chassis are ready for shipment
