The Beiben 6×6 all-wheel-drive off-road chassis is equipped with a part-time six-wheel drive system. It features a high-strength fish-belly frame and axles incorporating Mercedes-Benz technology. Powered by a WP12.420 Euro III diesel engine and a 12-speed transmission, it delivers robust performance and stable heavy-load handling. Capable of easily navigating challenging terrains such as mud, sand, and rocky surfaces, it is an ideal choice for heavy-duty off-road applications.
Working capcity:
40 tonsCabin type:
NG80B long cabinDimension ( mm ) :
9500×2500×3300Drive system:
6×6Wheelbase (mm):
4450+1450Engine power / Model:
420HP/WP12.420E32Gear Box:
12JS200TRemark:
8×8, RHD drive is optionalThe Beiben 6×6 chassis is an all-wheel-drive off-road platform with a part-time six-wheel drive system, specially designed for complex terrains and heavy-load operations. Its high-strength fish-belly variable cross-section frame, inspired by German Mercedes-Benz technology, is paired with a front 7-ton and rear dual 13-ton Mercedes-Benz technology axles, forming an ultra-robust load-bearing structure. This ensures stable performance even on muddy, sandy, or rocky roads.
Powered by a WP12.420E32 Euro III diesel engine and combined with a 12-speed fully synchronized transmission and an LF200 transfer case, the Beiben 6WD off-road chassis delivers an impressive output of 309 kW / 420 HP. The superior suspension system, equipped with front 10-leaf and rear 13-leaf spring sets, along with an automatic adjustment arm, dual-circuit air brake system and engine exhaust auxiliary brake, ensures both control and comfort in extreme conditions. It is the ideal choice for off-road expeditions and heavy-duty engineering operations.
CEEC factory is authorized supplier on beiben 6x6 tractor trucks,
guarantee all beiben 6x6 drive trucks Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Reliable Beiben 6WD trucks for all terrain operation
» Ⅱ. Product Specifications:
|
Beiben 2642 NG80 6×6 Chassis Specifications |
||
|
Wheelbase(mm) |
4450+1450 |
|
|
Overall dimensions (mm) |
9500×2500×3300 |
|
|
Curb weight (kg) |
9900 |
|
|
Front overhang/rear overhang (mm) |
1410/1940 |
|
|
Approach angle/Departure angle |
26/20 |
|
|
Max Speed:(Km/h) |
≤85 |
|
|

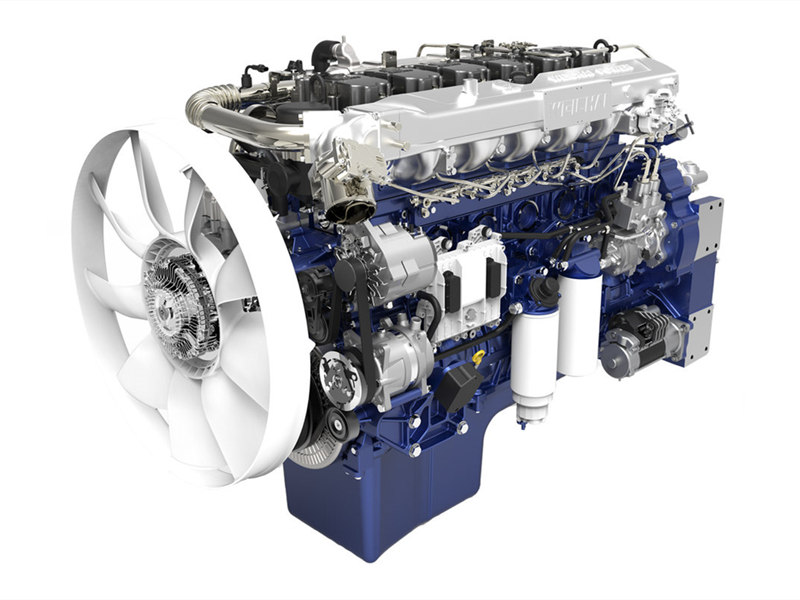

Model |
WP12.420E32, water-cooled, four strokes,6 cylinders straight in line, turbocharged |
|
|
Engine |
Fuel type |
Diesel |
|
Min rate of consuming fuel(g/(kw.h)) |
192g/kw.h |
|
|
Rated Power / rotating(kw/(r/min) |
309Kw(420HP)/2200rpm |
|
|
Emission standard |
EURO3 |
|
|
Maximum Torque / rotating speed(n.m/(r/min) |
1750Nm/1500-1800rpm |
|
|
Displacement(ml) |
11.596 |
|
|
Fuel tanker capacity(L) |
400L Iron |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
|

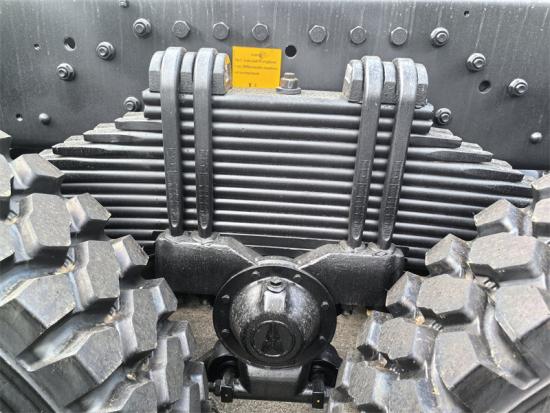

Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|

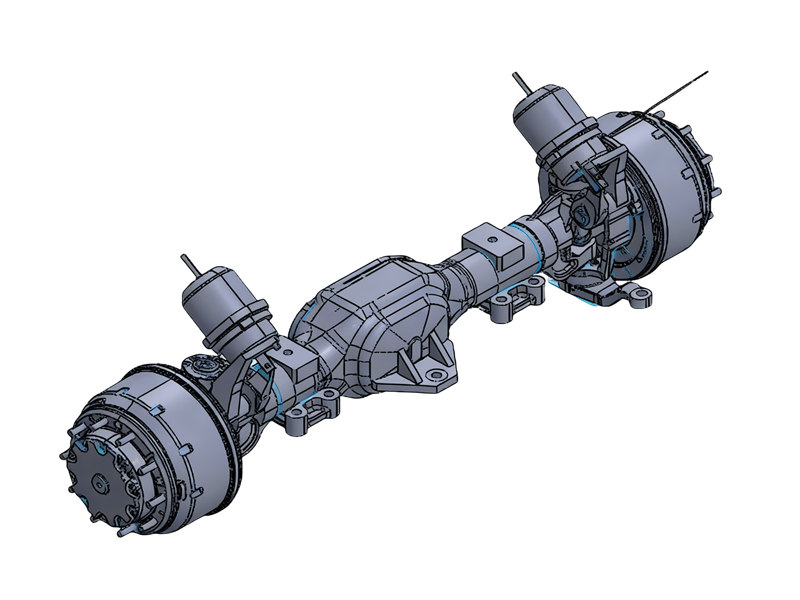

Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 7 ton driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio5.263 |
|
|
Tire |
12.00R24 radial tire |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B left hand drive |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
» Ⅲ. Product Features:
High Maneuverability
Suitable for complex road conditions such as oil fields and mines, it meets the demands of diverse off-road applications, including those in plateaus, hilly areas, and mountainous regions.
Reliability
The frame features a composite structure of side beams with unequal widths, variable cross-sections, and fish-belly design, ensuring uniform rigidity. This is a unique Mercedes-Benz frame structure. Finite element analysis and a single-step stamping process eliminate localized stress concentrations.

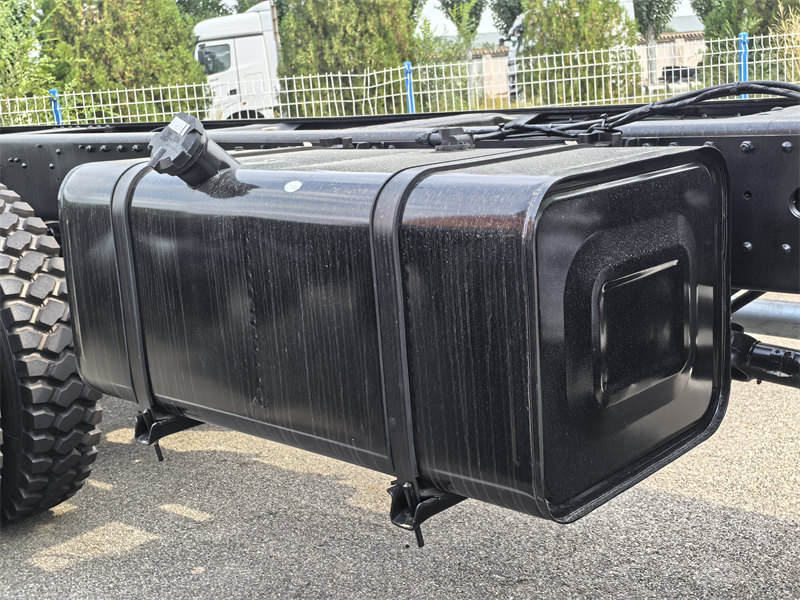

Large fuel tank
Equipped with 400 liters steel fuel tank, suitable for long-distance transportation. 800 liters fuel tank also can be customized.

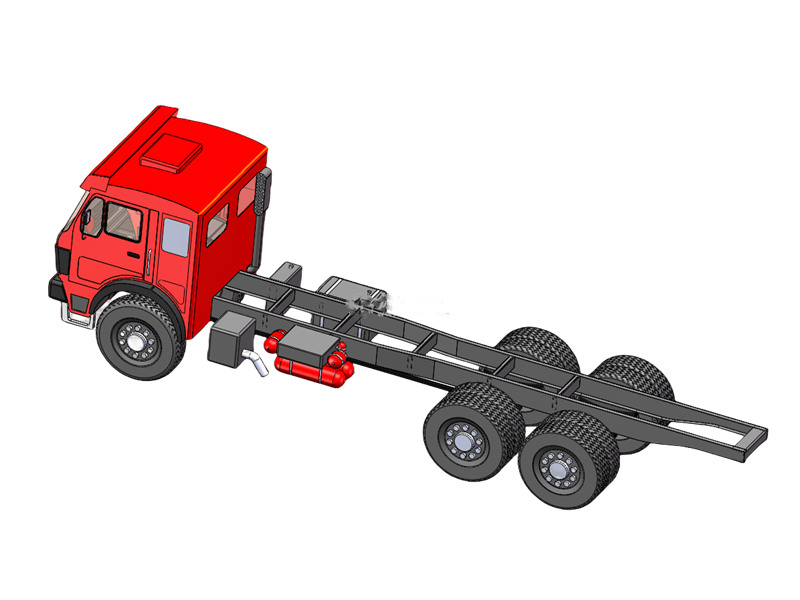

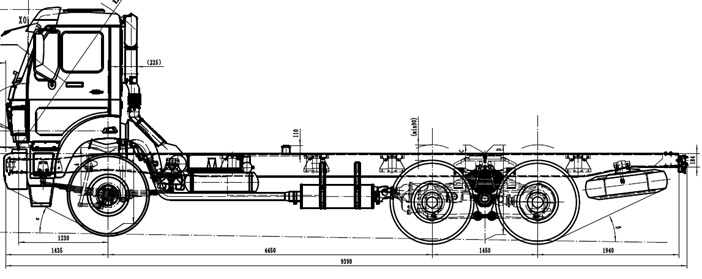

» Ⅳ. Product Drawing:

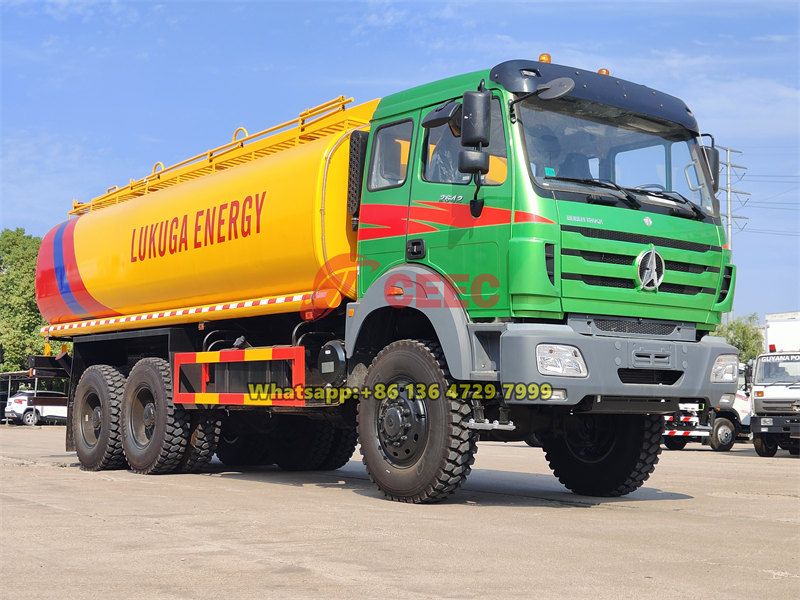

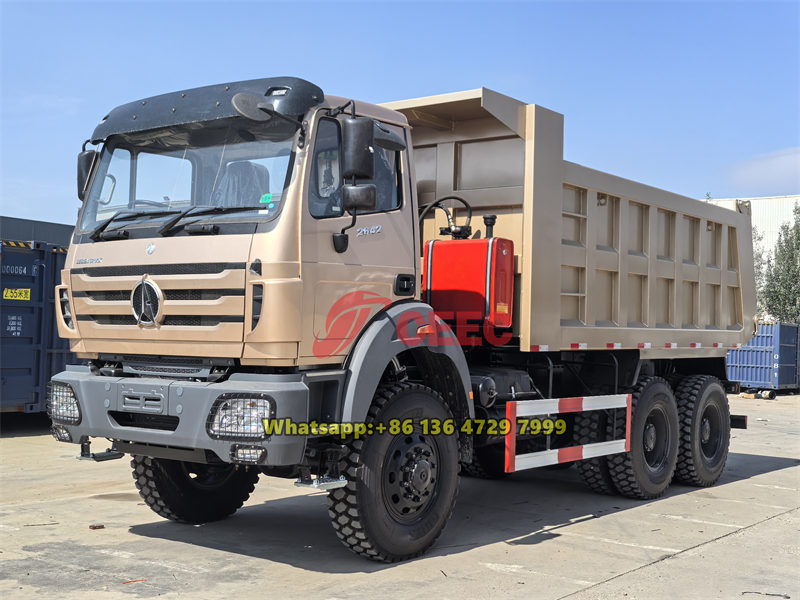

» Ⅴ. Applications:
» Ⅵ. Customer case:

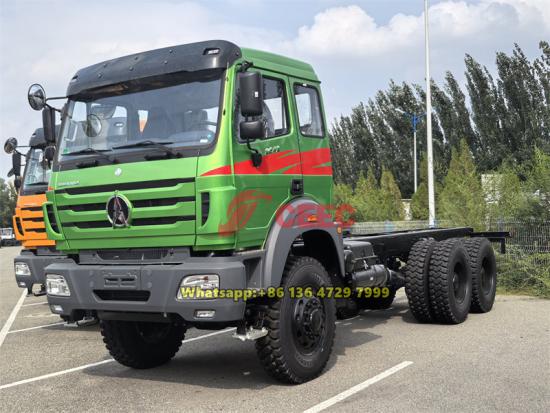

Beiben 6×6 all-wheel-drive chassis exported to Africa
Beiben 6WD off-road chassis exported to Africa
