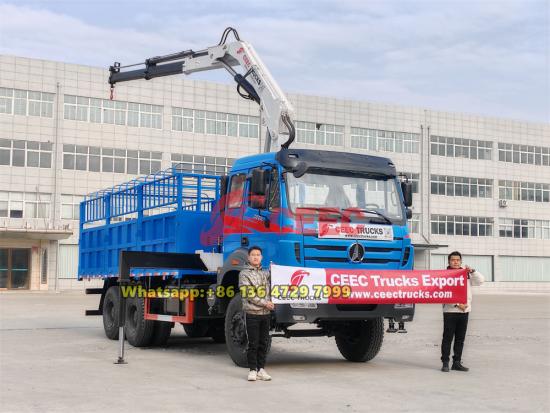

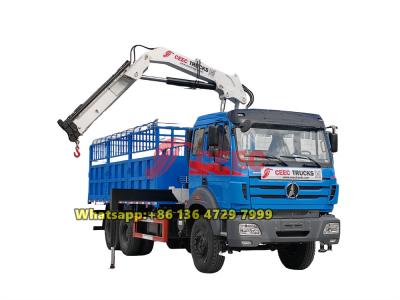

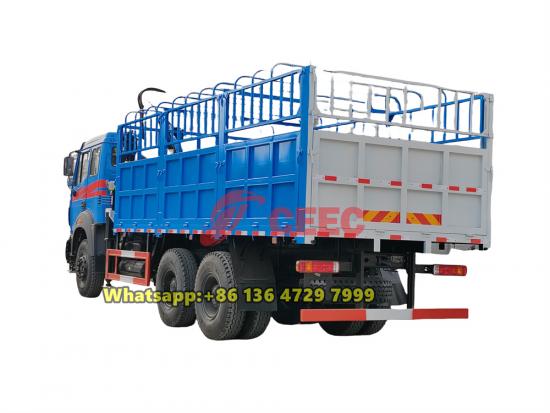

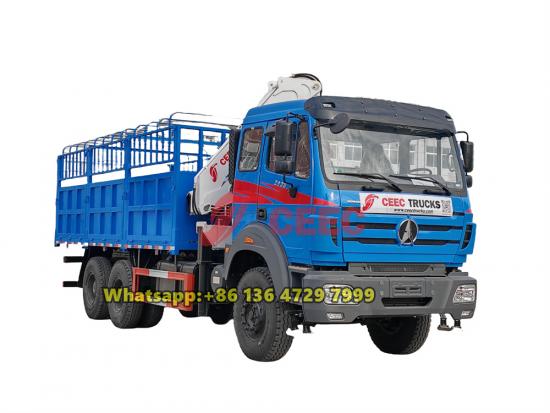

Beiben 2638 heavy-duty crane truck integrates robust engineering with specialized functionality, designed for demanding industrial and construction tasks. At its core lies the WP10.380E3 engine, a 10.3-liter inline-six-cylinder diesel powerhouse manufactured by Weichai Power. This turbocharged engine delivers 380 hp (280 kW) at 2,100 rpm and a peak torque of 1,500 Nm at 1,200–1,600 rpm, complying with Euro III emission standards.
Working capcity:
5 T craneCabin type:
Beiben NG80 cabin, with sleeper bedDimension ( mm ) :
9730*2600*3830Drive system:
6×4, LHDWheelbase (mm):
4450+1450Engine power / Model:
380HP, WP10.380E32Gear Box:
12JS200TARemark:
White, red, orange, green color is optionalBeiben 2638 heavy-duty crane truck integrates robust engineering with advanced functionality, tailored for demanding lifting and transport operations. At its core lies the WP10.380E3 engine, a 10.52-liter inline-six-cylinder diesel powerplant manufactured by Weichai. This turbocharged, intercooled engine delivers 380 hp at 1,900 rpm and generates a peak torque of 1,560 Nm at 1,200–1,500 rpm, complying with Euro III emissions standards.
Beiben 2638 crane truck is equipped with a 5-ton knuckle boom crane, featuring a three-stage hydraulic telescopic arm with a maximum lifting radius of 14 meters. The crane’s 360-degree rotating base and precision hydraulic controls enable flexible load positioning, suitable for material handling, logistics, and construction applications. Reinforced steel outriggers provide stability during operations, with a load-bearing capacity of up to 8 tons in stationary mode.
The cab of this Beiben truck-mounted crane features the NG80 long cab design, offering a spacious and comfortable interior. The cab is equipped with facilities such as heating and cooling air conditioning, a hydraulic suspension driver's seat, and more, providing a pleasant driving environment for the driver. Additionally, the cab is equipped with a four-point seat belt, an FM/AM radio player, USB ports, and other configurations, enhancing driving safety and convenience.
The Beiben 2638 crane truck is equipped with a WP10.380 engine, a straight-six, four-stroke, water-cooled, turbocharged with intercooler, diesel engine produced by Weichai Power. With a displacement of 9.726 liters, the engine delivers a maximum power of 279 kW (380 horsepower) and a maximum torque of 1,460 Nm, reaching its maximum torque within the range of 1,200-1,600 rpm. This power performance ensures robust power output under various operating conditions, whether it's climbing fully loaded or traveling at high speeds, all handled with ease.
The knuckle boom crane is one of the core components of this Beiben 2638 truck with crane. It adopts an advanced hydraulic system design, ensuring rapid and precise movements for lifting and telescoping the boom. The crane has a maximum lifting capacity of 5 tons, a maximum lifting height of 12.8 meters, and a maximum working range of 10 meters. These performance parameters meet the operational requirements under various complex conditions. Furthermore, the knuckle boom structure makes the crane more flexible during operation, allowing it to complete lifting tasks in confined spaces and improving work efficiency.
Product Specifications
|
BEIBEN 6x4 truck mounted 5Ton knuckle boom crane |
|
|
Emission Standard |
EURO 3 |
|
Chassis type |
Cargo truck type |
|
Chassis brand |
Beiben |
|
Driving Type |
6×4 |
|
Dimensions |
|
|
Wheelbase(mm) |
4450+1450 |
|
Overall Dimension(mm) |
Approx. 9960×2500×3348 |
|
Cargo box dimension(mm) |
7000x2300x800 |
|
Weight parameters |
|
|
GVW(kg) |
25,000kgs |
|
Curb weight(kg) |
Approx. 13,550kgs |
|
Real load weight(kg) |
More than 20,000kgs |
|
Chassis parameter |
|
|
Front axle |
7 Ton load capacity, drum brake |
|
Rear/middle axle |
18Ton/axle (2 axle combined) |
|
Front/rear overhang(mm) |
1410/2530 |
|
Approach angle (°) |
34 |
|
Departure angle (°) |
24 |
|
Max speed (km/h) |
85 |
|
Suspension |
Leaf spring suspension |
|
Engine performance |
|
|
Engine model |
WP10.380 (WEICHAI brand) |
|
Engine type |
Straight in-line, 6 cylinders, 4 strokes, water-cooling, Turbo charge with inter-cooling, diesel engine |
|
No. of cylinders |
Straight-6 cylinders |
|
Displacement(L) |
9.726L |
|
Max. output (KW) |
279kw (380hp) |
|
Fuel type |
Diesel |
|
Max. output (kw/Ps/rpm) |
279kw(380ps) /2200 rpm |
|
Max torque/Speed (N.m/rpm) |
1460 N.m/1200-1600rpm |
|
Tire specification |
12.00R20, total 10 units tire+1 spare tire |
|
Drive Line |
|
|
Clutch description |
¢430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance |
|
Transmission |
12 forwarder, 2 reverse gear, synchronous meshing by manual |
|
Braking system |
Service brake: Brake gap can be adjusted automatically double circulation air brake system |
|
Suspension system |
|
|
Front axle |
Semi-elliptic leaf springs shock absorbers |
|
Rear axle |
Torsion bar semi-elliptic leaf springs |
|
Electrical Equipment |
|
|
Voltage |
24V |
|
Batteries |
2X12V/135Ah |
|
Starter |
6.2Kw/24V |
|
Cab description |
|
|
NG80 long cab, with one sleeper, cool and heating air-conditioner, Hydraulic suspension driver's seat, four point safety belt for driver and co-driver With FM/AM radio player, USB interface |
|
|
Crane |
|
|
Type |
Knuckle boom crane, 4 sections |
|
Max. lifting capacity |
5000 kg |
|
Max. lifting height |
12.8 meters |
|
Max. working range |
10 meters |
|
Hydraulic outriggers |
2 units |
Beiben 2638 Heavy-Duty Crane Truck: Core Applications
Heavy Load Handling in Infrastructure Projects
The Beiben 2638 excels in lifting and transporting oversized loads for large-scale infrastructure development. Its robust crane system, with a lifting capacity of up to 30 tons, enables precise placement of steel beams, concrete panels, and prefabricated structures during bridge construction, highway expansion, or industrial facility assembly.
Versatile Logistics for Industrial Equipment
This model streamlines logistics for machinery relocation and installation across manufacturing sectors. Its modular design allows rapid adaptation to diverse cargo types, from wind turbine components to mining drills. The crane’s 360-degree rotation capability and telescopic boom facilitate loading/unloading without auxiliary equipment, particularly beneficial in space-constrained urban warehouses or remote oil fields.
Emergency Response Operations
Equipped with all-terrain mobility and rapid deployment features, the 2638 serves critical roles in disaster relief scenarios. The crane efficiently clears debris after earthquakes or hurricanes, while its 300kW engine powers emergency lighting and rescue tools through onboard generators.
Specialized Mining and Energy Sector Support
Tailored for resource extraction industries, the truck’s reinforced chassis withstands extreme payloads in mining operations. It handles heavy drilling rigs, pipeline segments, and mineral transport containers with dust-resistant crane mechanisms.
