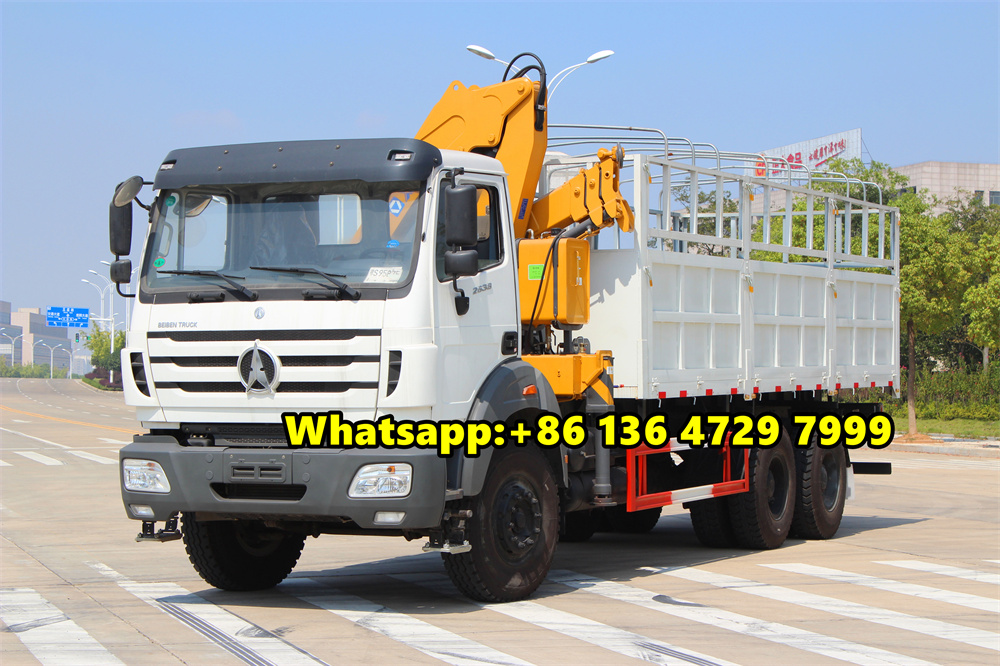

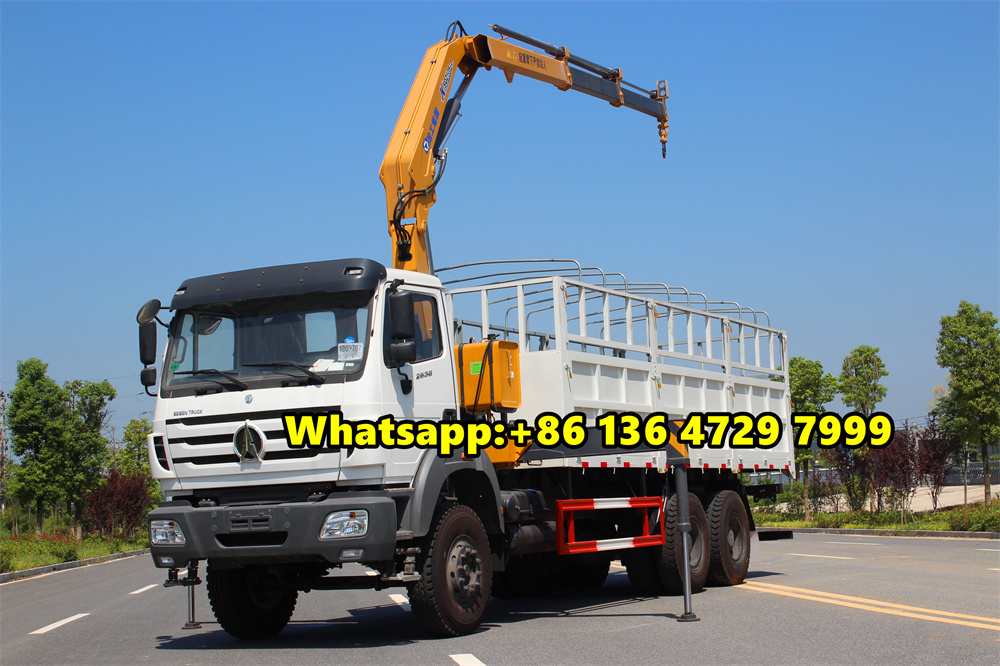

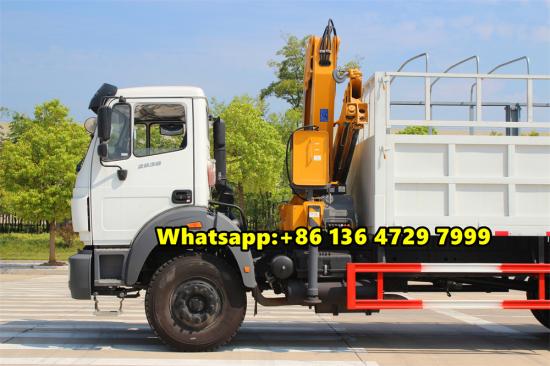

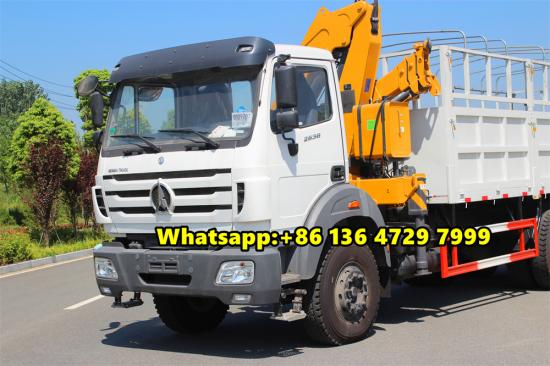

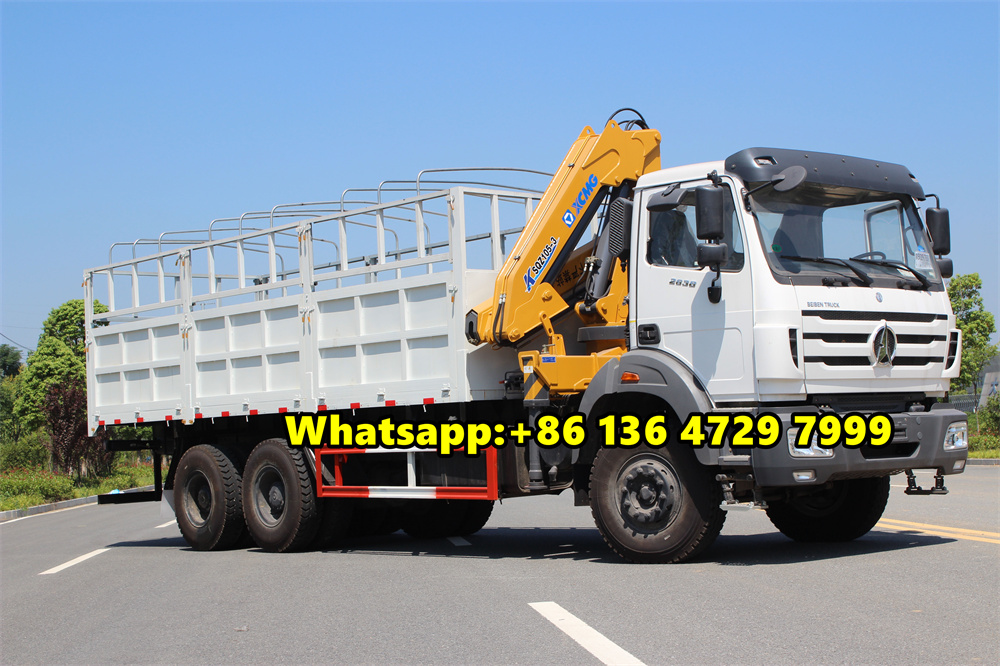

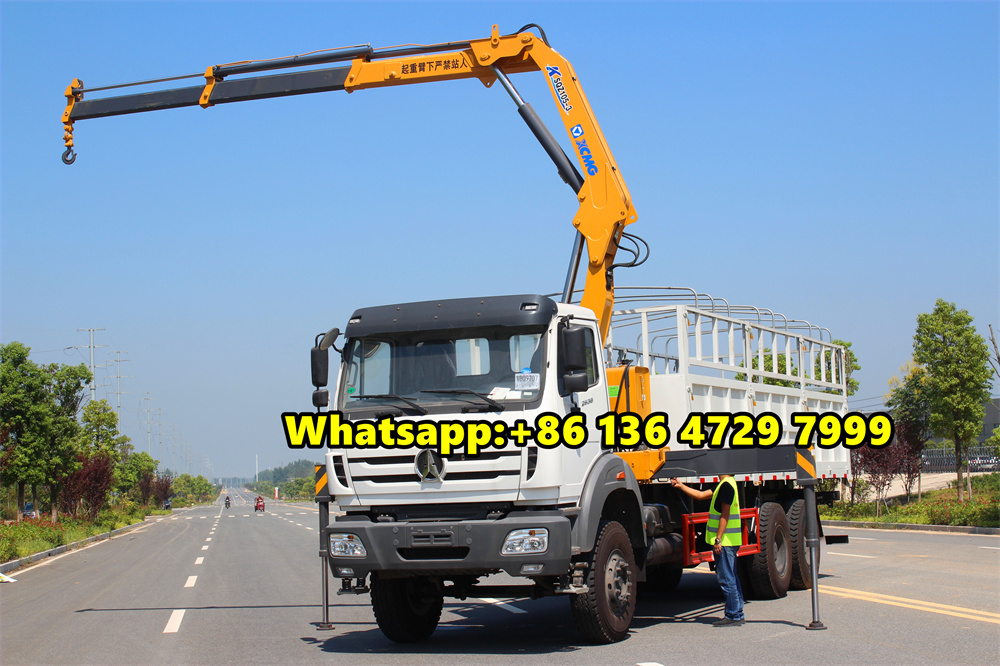

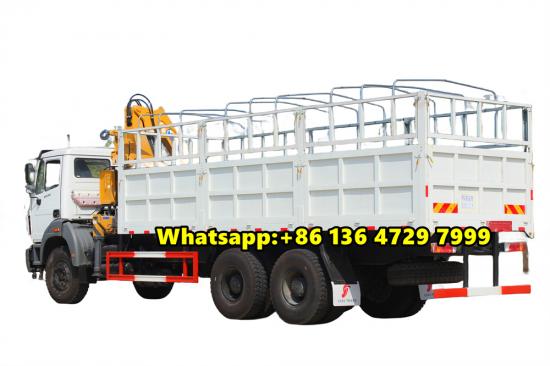

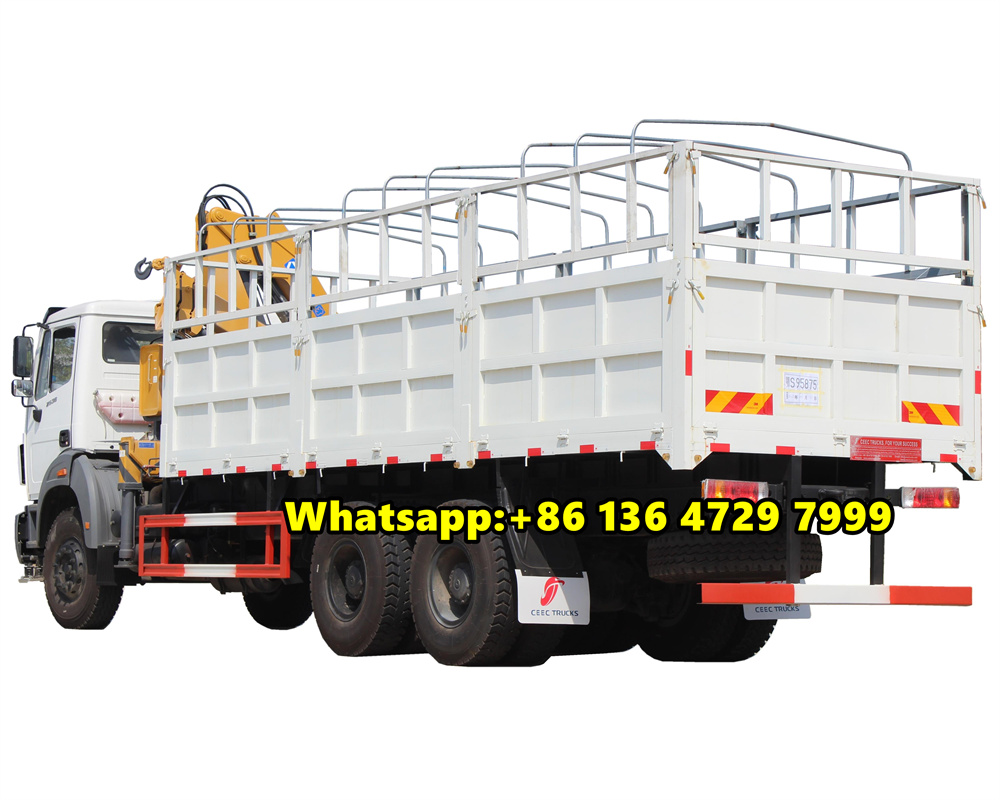

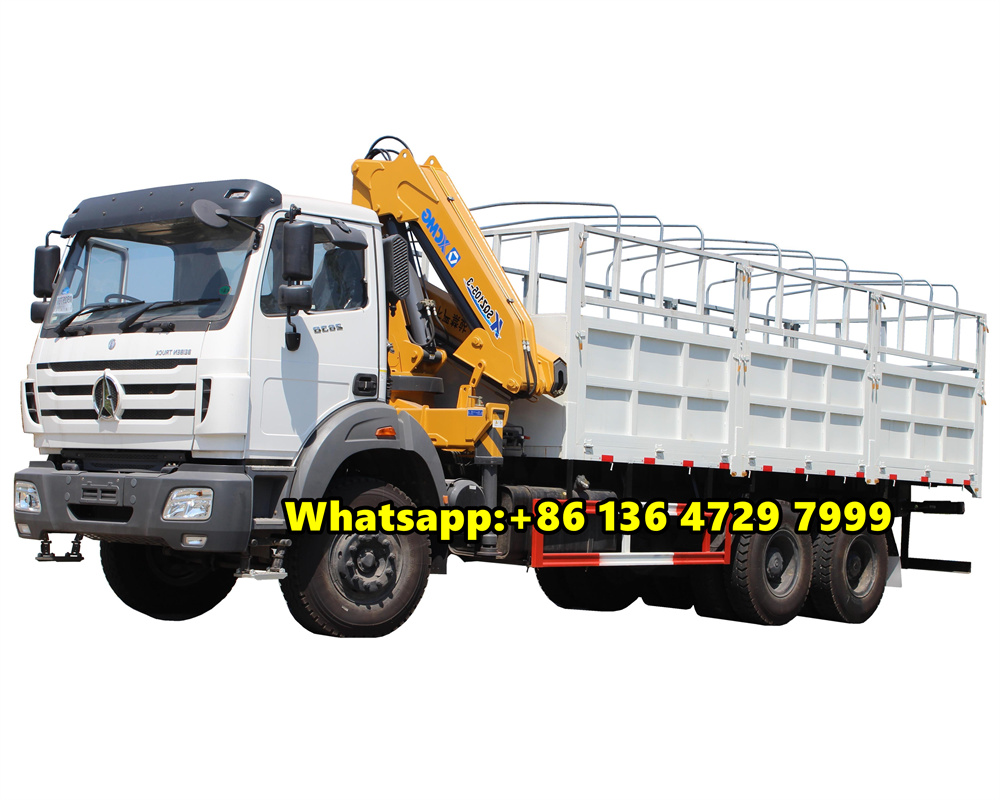

The Beiben 2638 crane truck, also named as beiben 2638 truck mounted crane, beiben 2638 lorry crane truck. It is a heavy-duty truck equipped with a crane for lifting and moving heavy loads in construction, logistics, and other industries. This truck is manufactured by Beiben Trucks Group Co., Ltd., a leading manufacturer of commercial vehicles in China. The Beiben 2638 crane truck is a powerful and efficient vehicle designed for heavy-duty lifting and transportation tasks. Equipped with a sturdy crane that has a lifting capacity of up to 20 tons, this truck is perfect for construction sites, industrial settings, and other demanding work environments.
Beiben 2638 crane truck is widely used in Africa for various purposes due to its versatility and reliability. Here are the main uses of this truck in the continent:
1. Construction projects: Beiben 2638 crane truck is commonly used in construction projects in Africa for lifting and transporting heavy materials such as steel beams, concrete blocks, and equipment. The powerful crane on the truck allows for efficient and safe lifting of loads, making it an essential tool on construction sites.
2. Infrastructure development: The Beiben 2638 crane truck plays a crucial role in infrastructure development in Africa by helping to transport materials for road construction, bridge building, and other infrastructure projects. The truck's durability and high load capacity make it ideal for carrying construction materials over long distances and rough terrain.
3. Oil and gas industry: The Beiben 2638 crane truck is often used in the oil and gas industry in Africa for maintenance and repair work on drilling rigs, pipelines, and other equipment. The crane on the truck enables workers to lift and move heavy machinery easily, facilitating efficient operations in the industry.
4. Cargo transportation: In addition to its crane capabilities, the Beiben 2638 crane truck is also used for general cargo transportation in Africa. The truck's large cargo bed can accommodate a wide range of goods, making it suitable for transporting merchandise, equipment, and supplies across the continent.
The specifications of 10Ton telescopic boom crane specifications
| 10Ton knuckle boom crane specifications |
This type of crane have many advantage than others.The main character of this crane is high speed,and strong grade ability,etc. Crane arm can lift rapidly ,operate easily,high efficient and energy conservation ability.

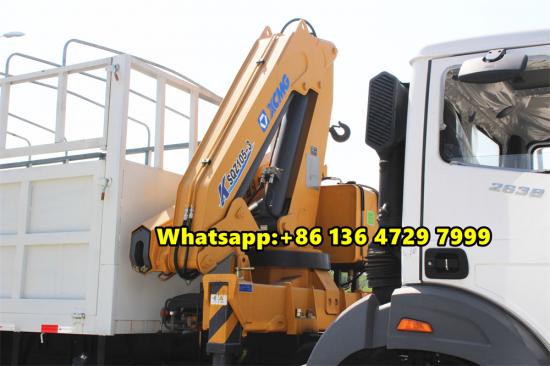

This 10Ton crane is folding boom crane,model:SQ10ZK3Q,with 4 section booms.It can rotation at 360 degree.It with 2 units telescopic all hydraulic support landing gear which guarantee the stability and reliability when at working status |
| Crane model |
SQ10ZK3Q(4 booms) |
Unit |
| Max lifting capacity |
10000 |
kg |
| Max lifting moment |
20 |
T.M |
| Recommend power |
28 |
kw |
| Max Oil Flow of Hydraulic System |
40 |
L/min |
| Max Pressure of Hydraulic system |
28 |
Mpa |
| Oil Tank Capacity |
140 |
L |
| Rotation Angle |
All rotation |
| Crane Weight |
3477 |
kg |
| Installation Space |
1150 |
mm |
| Max lifting height(m) |
12.5 |
m |
| Max.working radius(m) |
9.755 |
m |
| Work radius(m) 2.00m 4.17m 5.99m 7.87m 9.75m |
| Lifting capacity(kg) 10000kg 4600kg 3050kg 2280kg 1700kg |
Total 3 ways of shipping,or by land transportation for inland contries
1. By 40FT container for small trucks

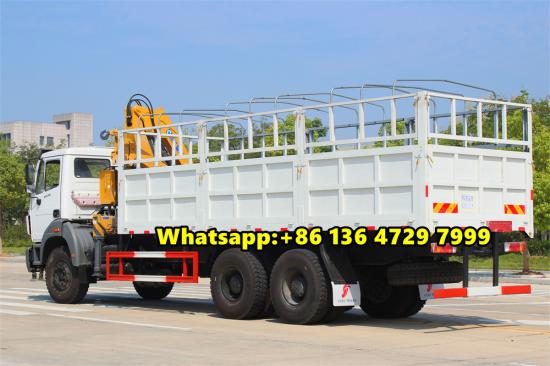

| BEIBEN 6x6 truck mounted 10Ton telescopic boom crane |
| Emission Standard |
EUR 3 |
| Chassis model |
ND5250GGSA |
| Driving Type |
6×6 |
| Dimensions |
| Wheelbase(mm) |
5050+1450 |
| Overall Dimension(mm) |
9200×2500×3458 |
| Cargo box dimension(mm) |
6000x2300x800 |
| Weight parameters |
| GVW(kg) |
25,000kgs |
| Curb weight(kg) |
12,450kgs |
| Real load weight(kg) |
12,150kgs |
| Chassis parameter |
| Front axle |
7 Ton front axle load capacity, Double shoe disc air break |
| Rear/middle axle |
18Ton/axle (2 axle combined)
Dual-circuit air braking system,driving axle,ductalloy axle cover
with wheel side reducer |
| Front axle span(mm) |
1940 |
| Rear axle span(mm) |
1847/1847 |
| Front/rear overhang(mm) |
1410/2530 |
| Approach angle(°) |
34 |
| Departure angle(°) |
24 |
| Max speed(km/h) |
80 |
| Suspension |
Leaf spring suspension |
| Engine performance |
| Engine model |
WP10.320(From WEICHAI engine) |
| Engine type |
Straight in-line,6 cylinders,4 strokes,water-cooling
Turbo charge with inter-cooling,diesel engine |
| No. of cylinders |
Straight-6 cylinders |
| Displacement(L) |
9.726L |
| Max. Output (KW) |
235kw (320hp) |
| Fuel type |
Diesel |
| Max. output (kw/Ps/rpm) |
235kw(320ps)/2200 rpm |
| Max torque/Speed(N.m/rpm) |
1250 N.m/1400-1600rpm |
| Tire specification |

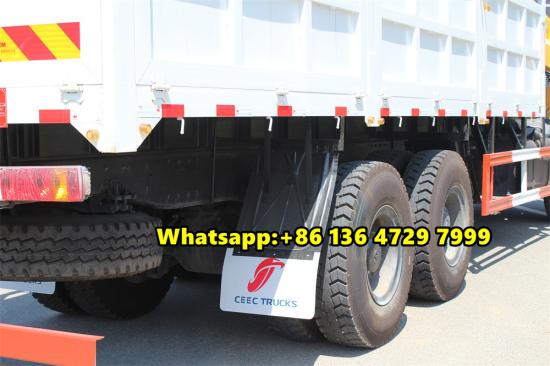

14.00R20,total 6 units off-road tire+1 spare tire |
| Drive Line |
|
| Clutch description |
¢420,dry single plate, hydraulic control booster,mechanical
operation with hydraulic assistance |
| Transmission |
8 forwarder,1 reverse gear, synchronous meshing,manual |
| Braking system |
Service brake:Brake gap can be adjusted automatically
double circulation air brake system
Assistant brake:WEVB(Engine exhaust brake)
Park brake:Spring brake effect to middle and rear tires |
| Suspension system |
| Front axle |
Semi-elliptic leaf springs shock absorbers |
| Rear axle |
Torsion bar semi-elliptic leaf springs |
| Electrical Equipment |
| Voltage |
24V |
| Batteries |
2X12V/135Ah |
| Starter |
6.2Kw/24V |
| Cab description |
NG80 short cab,cooling and heating air-conditioner,all steel bumper
With FM,AM radio player,with manual windows |
The hydraulic system of the Beiben 2638 crane truck operates in three main steps to efficiently lift and maneuver heavy loads.
Step 1: Hydraulic Fluid Flow
The process begins with the activation of the truck's engine, which powers the hydraulic pump. The pump then pressurizes the hydraulic fluid stored in the reservoir tank. Once pressurized, the fluid flows through hydraulic hoses and tubes towards the crane's control valve.
Step 2: Cylinder Activation
When the operator activates the crane controls, the control valve directs the pressurized hydraulic fluid towards the appropriate hydraulic cylinders. These cylinders are responsible for extending or retracting the crane's boom and manipulating the load. As the fluid enters the cylinders, it forces the piston inside to move in the desired direction, thus extending or retracting the crane's arm accordingly.
Step 3: Load Manipulation
As the crane's hydraulic cylinders extend or retract, they exert force on the load being lifted. This force is carefully controlled by the operator through the crane's control system, allowing for precise positioning of the load. The hydraulic system plays a crucial role in enabling the crane to lift heavy objects with ease and accuracy.
Overall, the Beiben 2638 crane truck's hydraulic system plays a vital role in ensuring the smooth operation of the crane and the safe handling of heavy loads. Its efficient design and precise control capabilities make it an essential component of the truck's overall functionality.
