The Beiben 6×6 truck-mounted crane is a heavy-duty engineering vehicle modified on the basis of the Beiben 6×6 all-wheel drive off-road chassis. With its outstanding all-terrain capability and load-bearing stability, it provides an integrated solution for heavy-duty material lifting and transportation. The chassis is powered by a Weichai 420-horsepower engine and features a three-axle drive system with differential locks, delivering excellent off-road performance and a gross vehicle weight rating of 26 tons, making it a reliable heavy-duty platform for complex road conditions.
The core of the Beiben boom crane truck is the XCMG 10-ton knuckle boom crane, which offers a maximum lifting capacity of 10 tons and a maximum working height of 12.5 meters. It is paired with a 7-meter-long cargo box. The crane adopts a lightweight and compact design with full slewing capability, combined with large-span outriggers to ensure efficient and stable lifting operations. This vehicle integrates lifting and transportation functions, making it widely applicable in scenarios such as engineering construction, logistics handling, and emergency rescue operations.

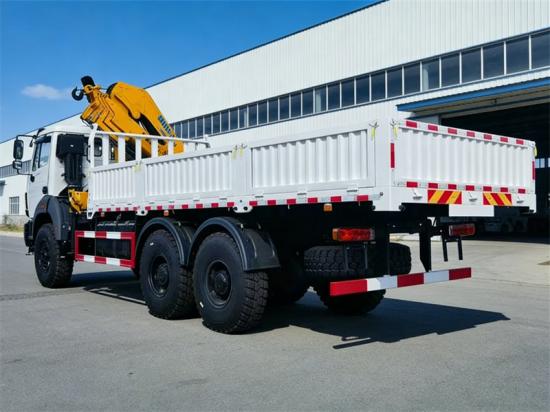

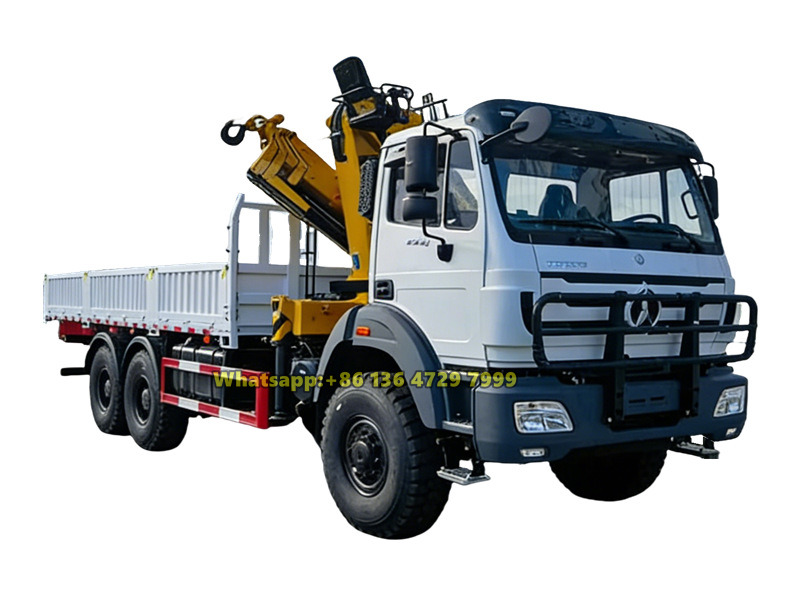

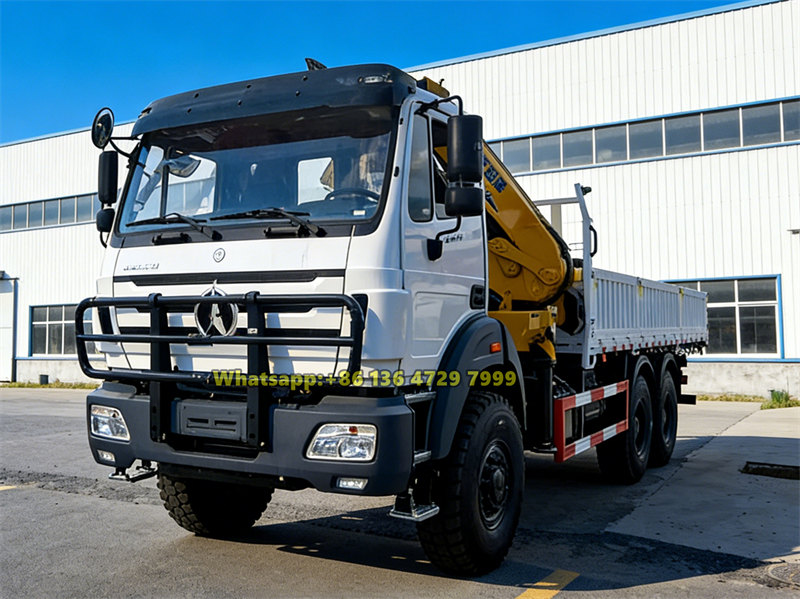

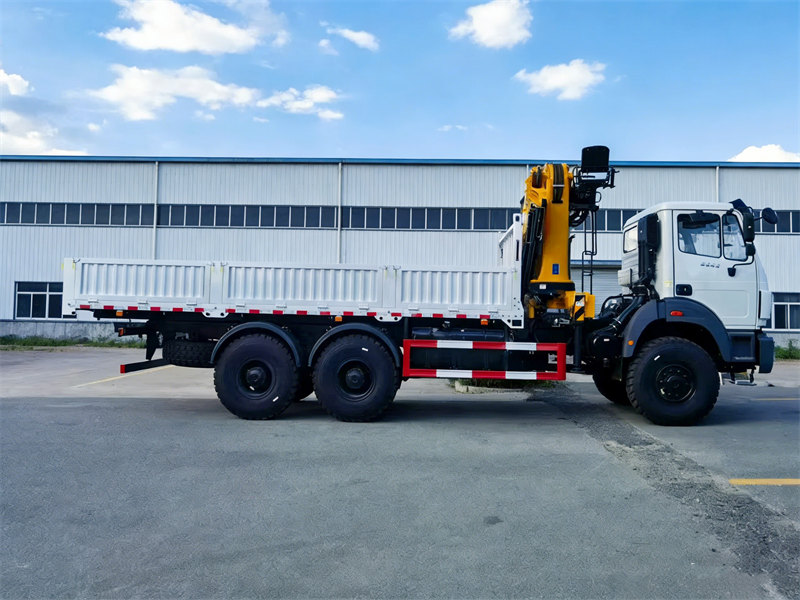

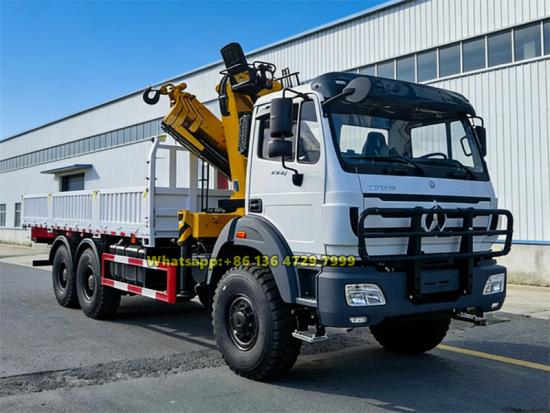

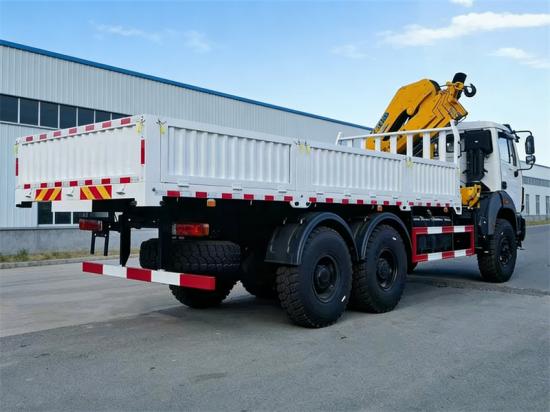

*Beiben 6×6 truck mounted crane XCMG*
CEEC factory is authorized supplier on beiben crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.
» Ⅰ.Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×6 chassis, NG80B long cabin, Weichai 420HP diesel engine, Fast 12-speed gearbox
▶ Crane model: XCMG SQ10ZK3Q
▶ Crane lifting capacity: 10 tons
▶ Cargo box dimensions: 7000×2500×600 mm
» Ⅱ. Product Specifications:
|
BEIBEN 6x6 truck mounted 10Ton XCMG crane
|
|
Emission standard
|
EUR 3
|
|
Vehicle model
|
CEECJ5260SQ
|
|
Chassis brand
|
Beiben
|
|
Driving Type
|
6×6, left hand drive
|
|
Crane lifting capacity
|
10000 kg
|
|
Dimensions
|
|
Wheelbase(mm)
|
4450+1450
|
|
Overall Dimension(mm)
|
10500×2500×3850
|
|
Cargo box dimension(mm)
|
7000x2500x600
|
|
Weight parameters
|
|
GVW(kg)
|
26,000kgs
|
|
Curb weight(kg)
|
14,500kgs
|
|
Rated load weight(kg)
|
11,500kgs
|
|
Chassis parameter
|
|
Front axle
|
7000 kg, driving axle, differential lock
|
|
Rear/middle axle
|
13000kg+13000kg, double reduction driving axle, differential lock
|
|
Front wheel track (mm)
|
1995
|
|
Rear wheel track (mm)
|
1800/1800
|
|
Front/rear overhang(mm)
|
1515/3085
|
|
Approach angle (°)
|
23
|
|
Departure angle (°)
|
11
|
|
Max speed(km/h)
|
80
|
|
Suspension
|
Leaf spring suspension, front 10 pcs, rear 13 pcs
|
|
Engine performance
|
|
Brand
|
Weichai
|
|
Engine model
|
WP12.420E32
|
|
Engine type
|
Straight in-line, 6 cylinders, 4 strokes, water-cooling, turbocharged with inter-cooling, diesel engine
|
|
No. of cylinders
|
Straight-6 cylinders
|
|
Displacement(L)
|
11.596 L
|
|
Max. Output (KW)
|
235kw (320hp)
|
|
Fuel type
|
Diesel
|
|
Max. output (kw/Ps)
|
309kw/420 ps
|
|
Rated speed (rpm)
|
2100 rpm
|
|
Max. torque (N.m)
|
1750 N.m
|
|
Fuel tank (L)
|
400
|
|
Tires
|
|
Tire specifications
|
14.00R20
|
|
Number of tires
|
6 pcs and one spare tire
|
|
Drive Line
|
|
Clutch description
|
¢430, dry single plate, hydraulic control booster, mechanical operation with hydraulic assistance
|
|
Transmission
|
FAST 12JS200T, 12 forwarders, 2 reverse gear, synchronous meshing, manual
|
|
Braking system
|
Service brake: Brake gap can be adjusted automatically double circulation air brake system
Assistant brake: WEVB(Engine exhaust brake)
Park brake: Spring brake effect to middle and rear tires
|
|
Suspension system
|
|
Front axle
|
Semi-elliptic leaf springs shock absorbers
|
|
Rear axle
|
Torsion bar semi-elliptic leaf springs
|
|
Electrical Equipment
|
|
Voltage
|
24V
|
|
Batteries
|
2X12V/135Ah
|
|
Starter
|
6.2Kw/24V
|
|
Cab description
|
|
NG80 cab long cab, cool and heating air-conditioner, Hydraulic suspension driver's seat, TAS85 steering wheel , With FM/AM radio player, USB interface,
|
|

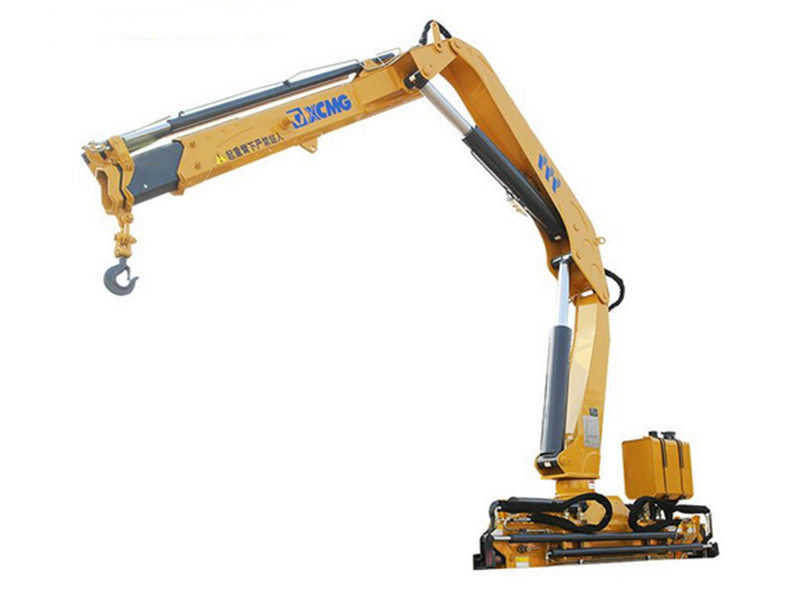

XCMG 10-ton knuckle boom crane specifications
|
|
Crane model
|
SQ10ZK3Q
|
Unit
|
|
Max lifting capacity
|
10000
|
kg
|
|
Max lifting moment
|
20
|
T.M
|
|
Recommend power
|
28
|
kw
|
|
Max Oil Flow of Hydraulic System
|
40
|
L/min
|
|
Max Pressure of Hydraulic system
|
30
|
Mpa
|
|
Oil Tank Capacity
|
160
|
L
|
|
Rotation Angle
|
360
|
°
|
|
Crane Weight
|
3477
|
kg
|
|
Installation Space
|
1150
|
mm
|
|
Max lifting height
|
12.5
|
m
|
|
Max. working radius
|
9.755
|
m
|
|
Outrigger span
|
5702
|
mm
|
|
Work radius(m)
2.00m 4.17m 5.99m 7.87m 9.75m
|
|
Lifting capacity(kg)
10000kg 4600kg 3050kg 2280kg 1700kg
|
» Ⅲ. Chassis Advantages:

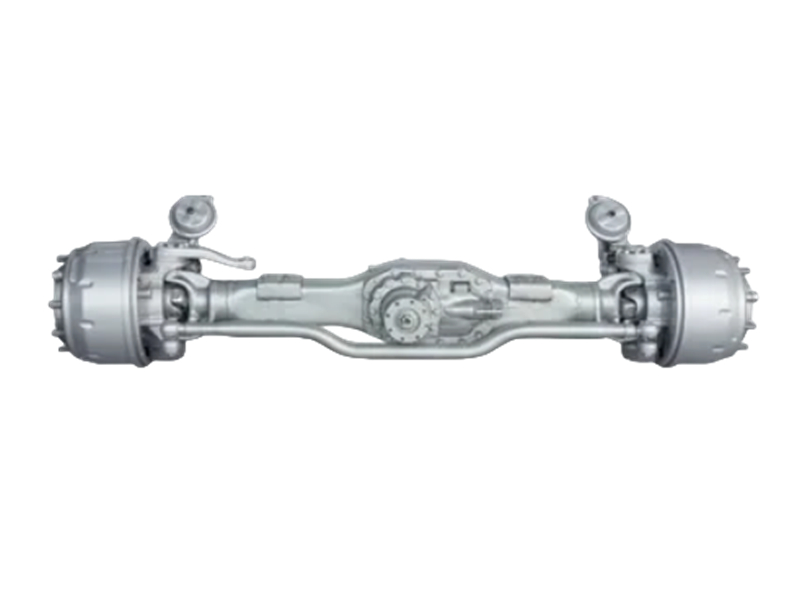

Beiben Axles
Front axle: Beiben 7 T driving axle
Rear axle: Beiben 2×13T dual reduction driving axle
Rear axle ratio: 5.263

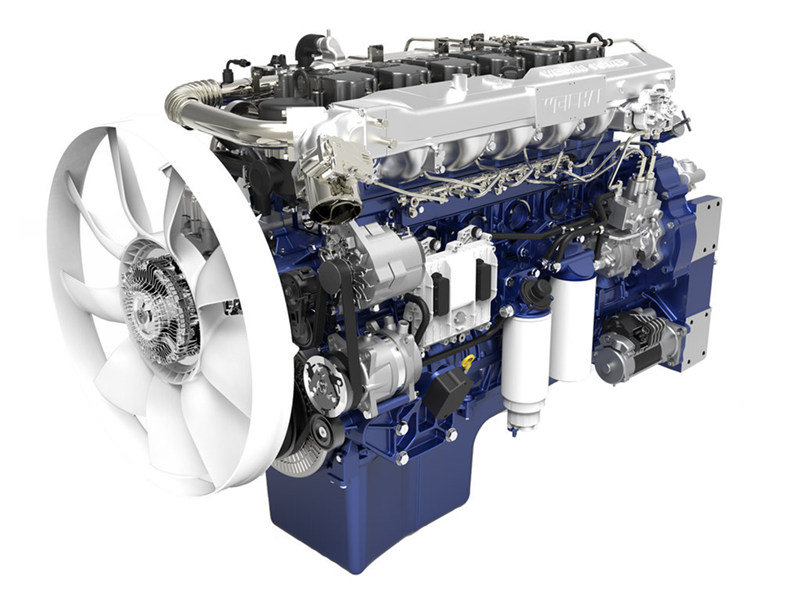

Weichai Engine
Model: WP12.420E32
Number of cylinders: 6
Power: 420HP/309KW
Displacement: 11596ml
Rated speed: 2100 rpm
Max. torque: 1750 N.m

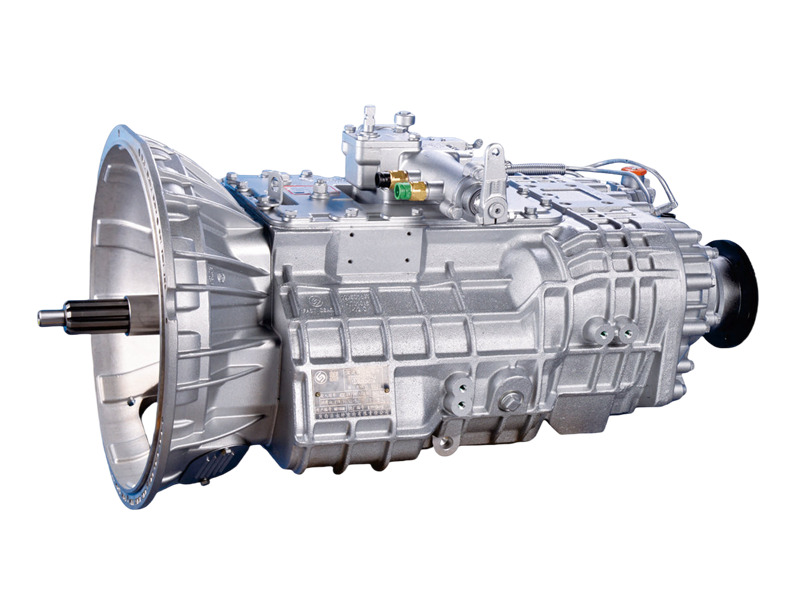

FAST Gearbox
Model: 12JS200T
Gear: 12-speed forwards and 2 reverse
Rated input power: 355 kw
Rated input torque: 2000 N.m
Suspension system
Equipped with integrated balance suspension system developed based on Benz technology.
Front leaf spring: 10 pcs
Rear leaft spring: 13 pcs
U-shape bolts: 4 pcs

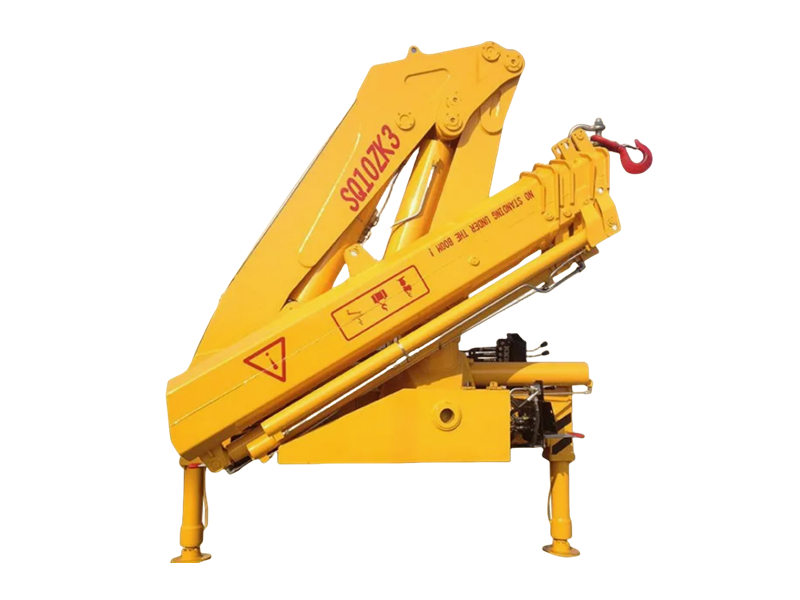

» Ⅳ. XCMG Crane Features:
» Ⅴ. XCMG SQ10ZK3Q crane specifications:
|
XCMG 10-ton knuckle boom crane specifications
|
|
Crane model
|
SQ10ZK3Q
|
Unit
|
|
Max lifting capacity
|
10000
|
kg
|
|
Max lifting moment
|
20
|
T.M
|
|
Recommend power
|
28
|
kw
|
|
Max Oil Flow of Hydraulic System
|
40
|
L/min
|
|
Max Pressure of Hydraulic system
|
30
|
Mpa
|
|
Oil Tank Capacity
|
160
|
L
|
|
Rotation Angle
|
360
|
°
|
|
Crane Weight
|
3477
|
kg
|
|
Installation Space
|
1150
|
mm
|
|
Max lifting height
|
12.5
|
m
|
|
Max. working radius
|
9.755
|
m
|
|
Outrigger span
|
5702
|
mm
|
|
Work radius(m)
2.00m 4.17m 5.99m 7.87m 9.75m
|
|
Lifting capacity(kg)
10000kg 4600kg 3050kg 2280kg 1700kg
|

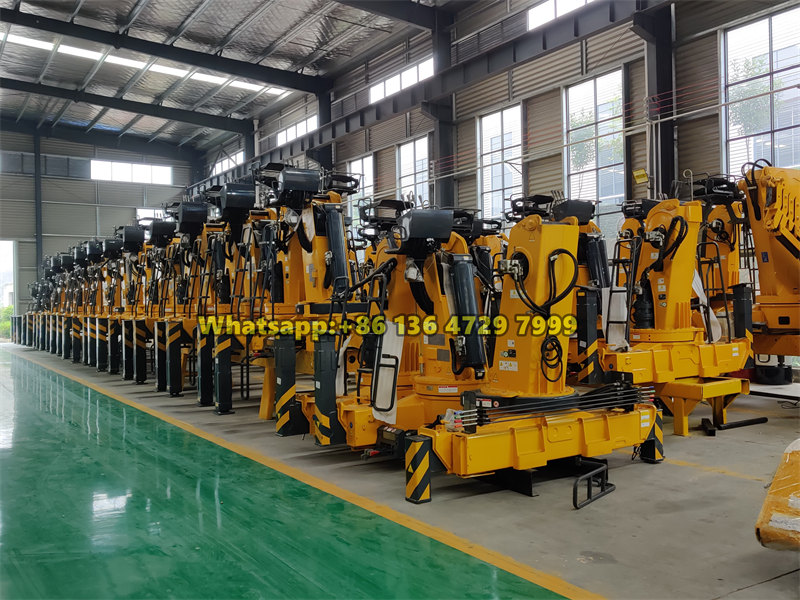

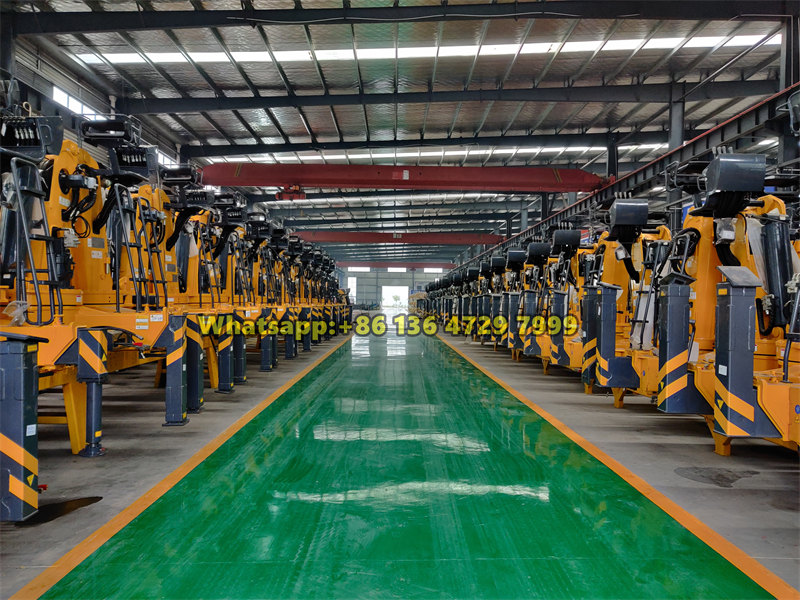

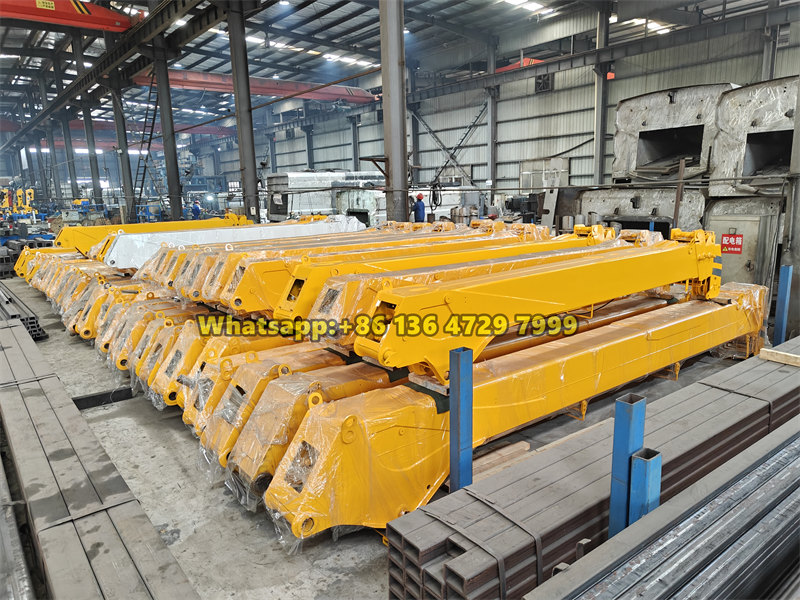

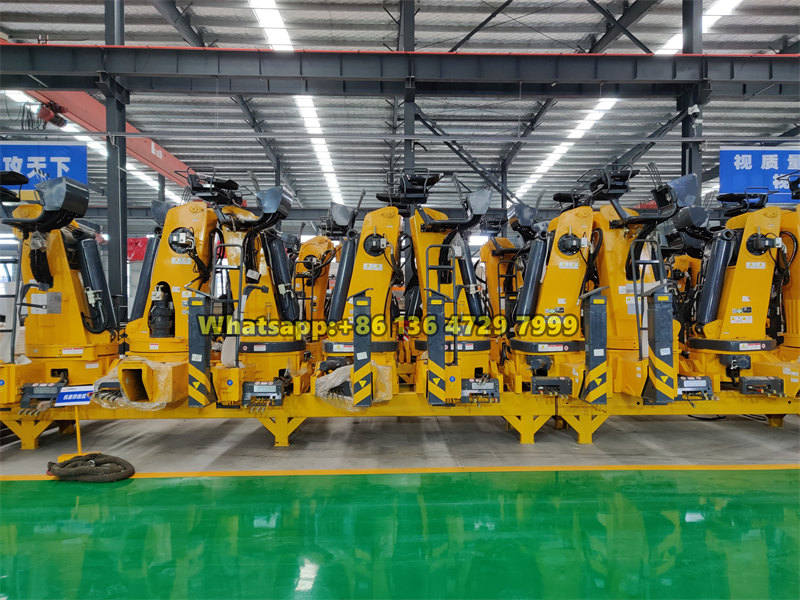

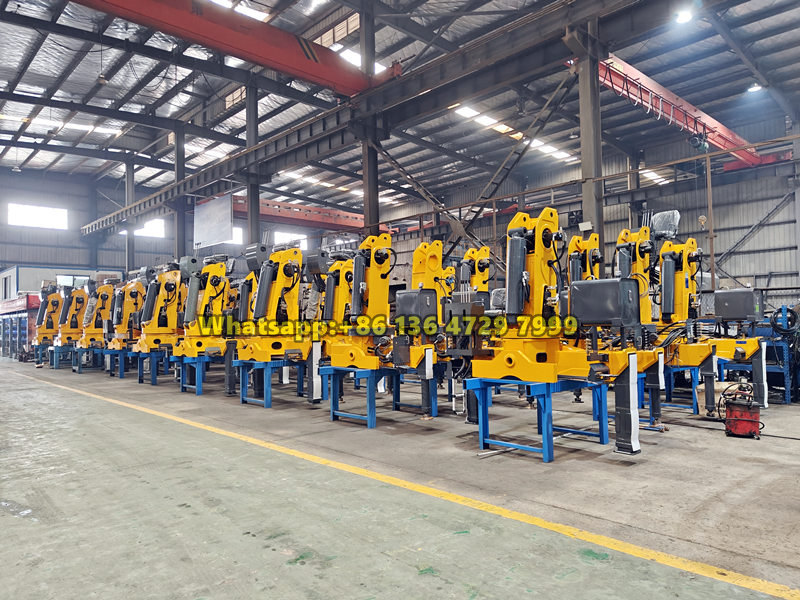

» Ⅵ. Crane Truck Workshop Show:

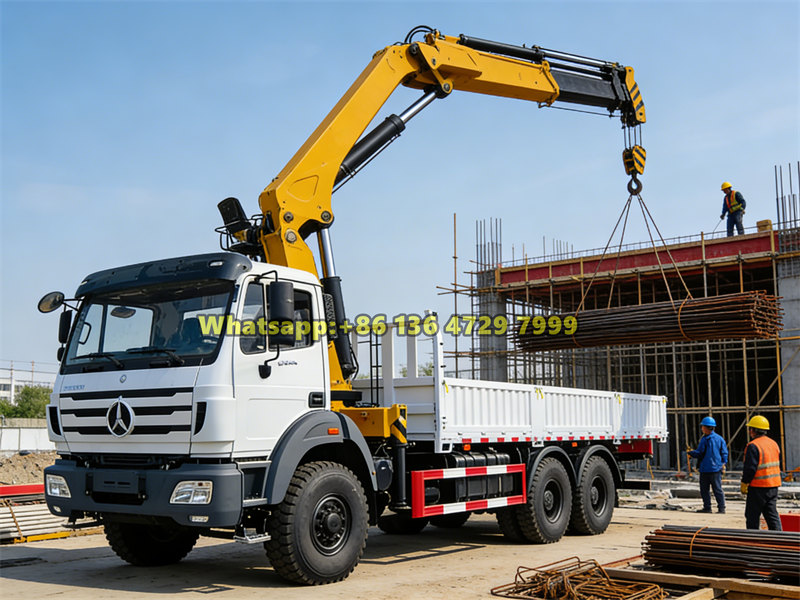

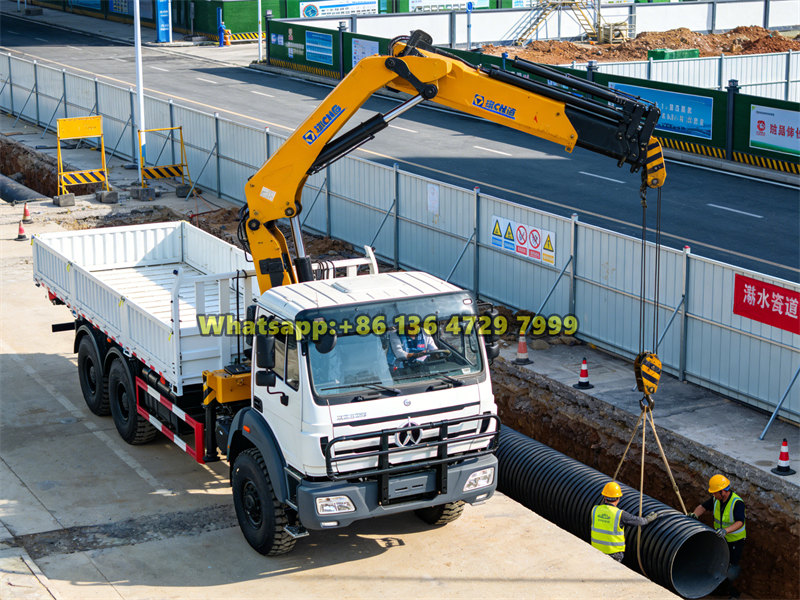

» Ⅶ. Product Applications:
Products--100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
Guarantee--7days + 24hours Safetify Service!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive boom crane trucks for option
2. Factory direct sale, supply Beiben crane trucks with lifting capacity 5000kg to 25000kg
3. XCMG, Palfinger, UNIC, ZOOMLION telescopic or knuckle boom cranes for option
4. Optional: remote control, moment limited valve, high sesat on column, drill, etc.
